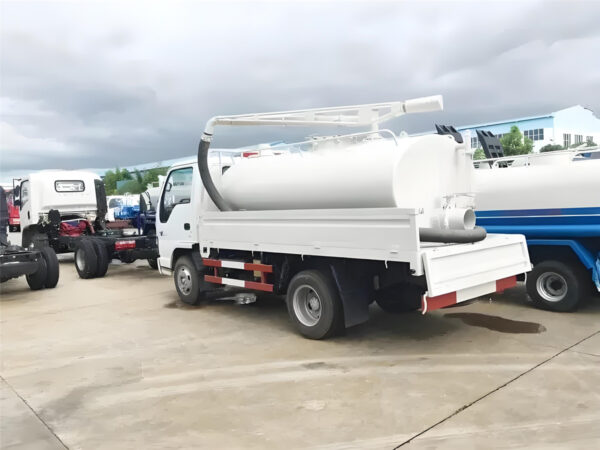

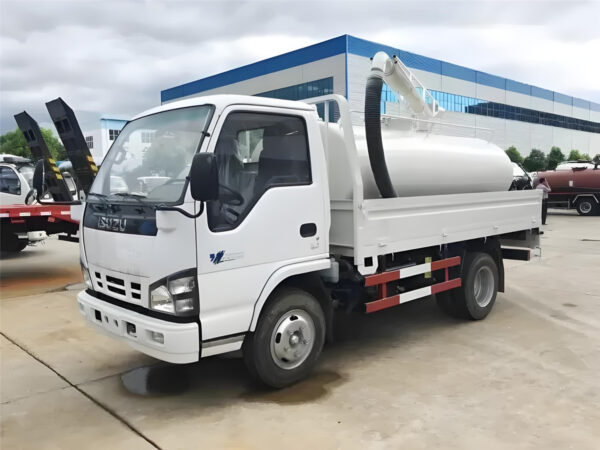

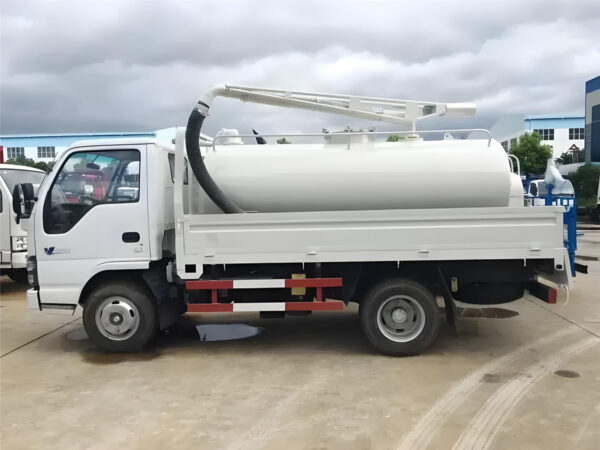

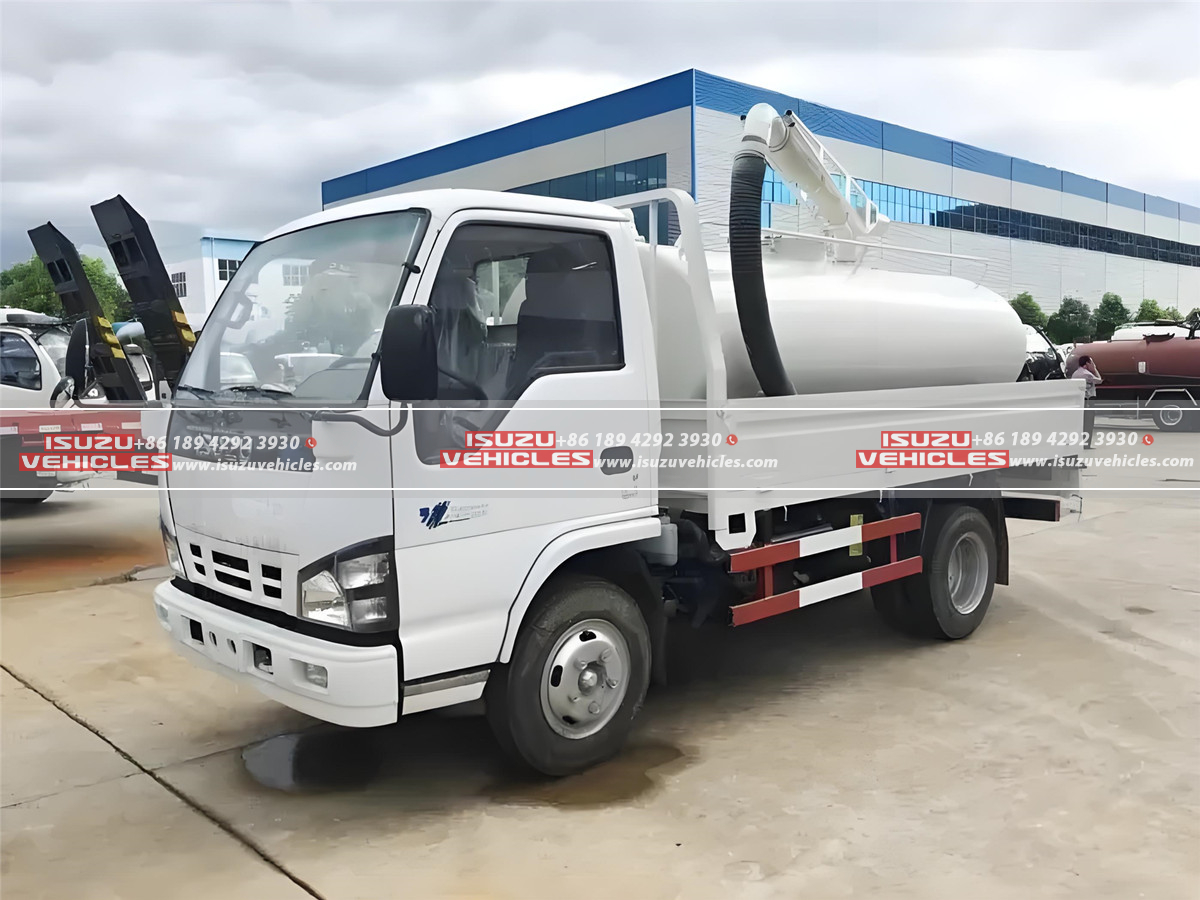

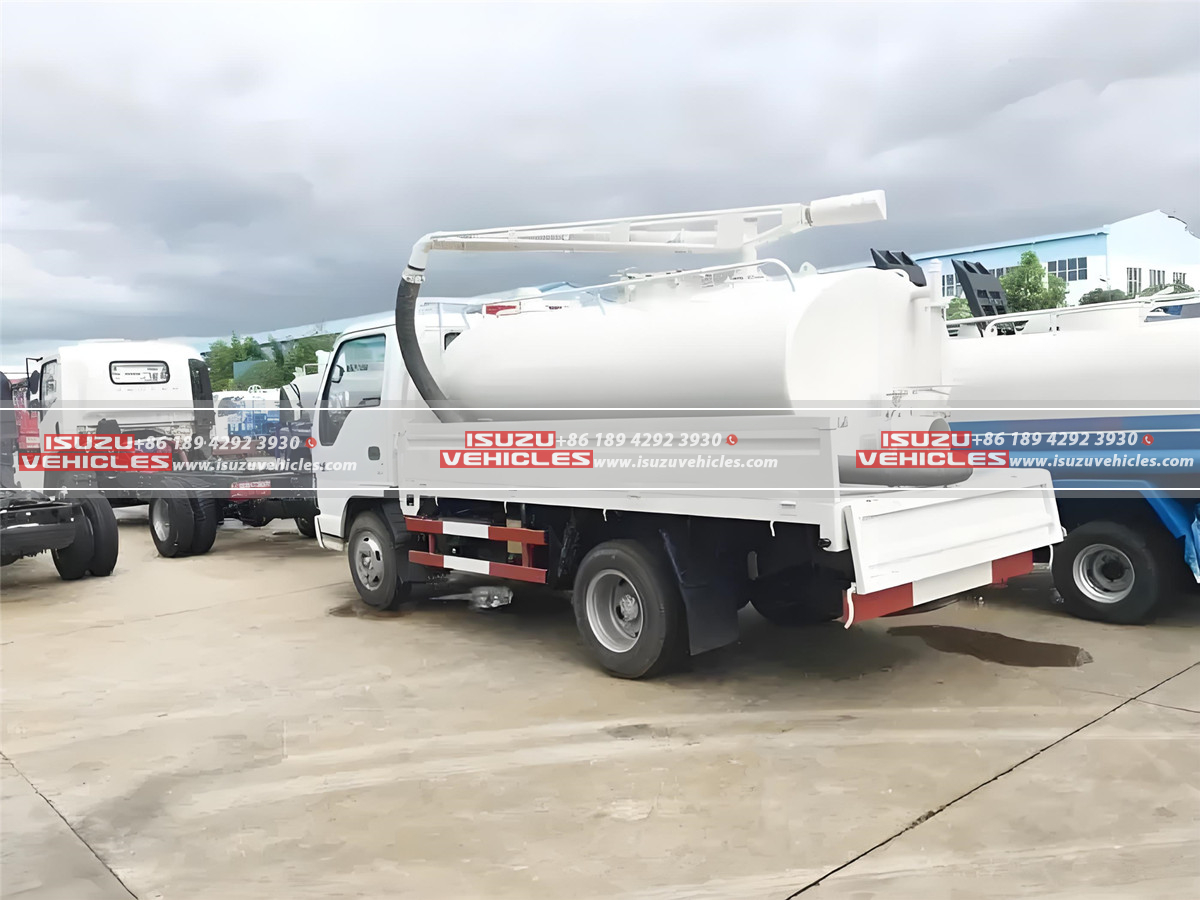

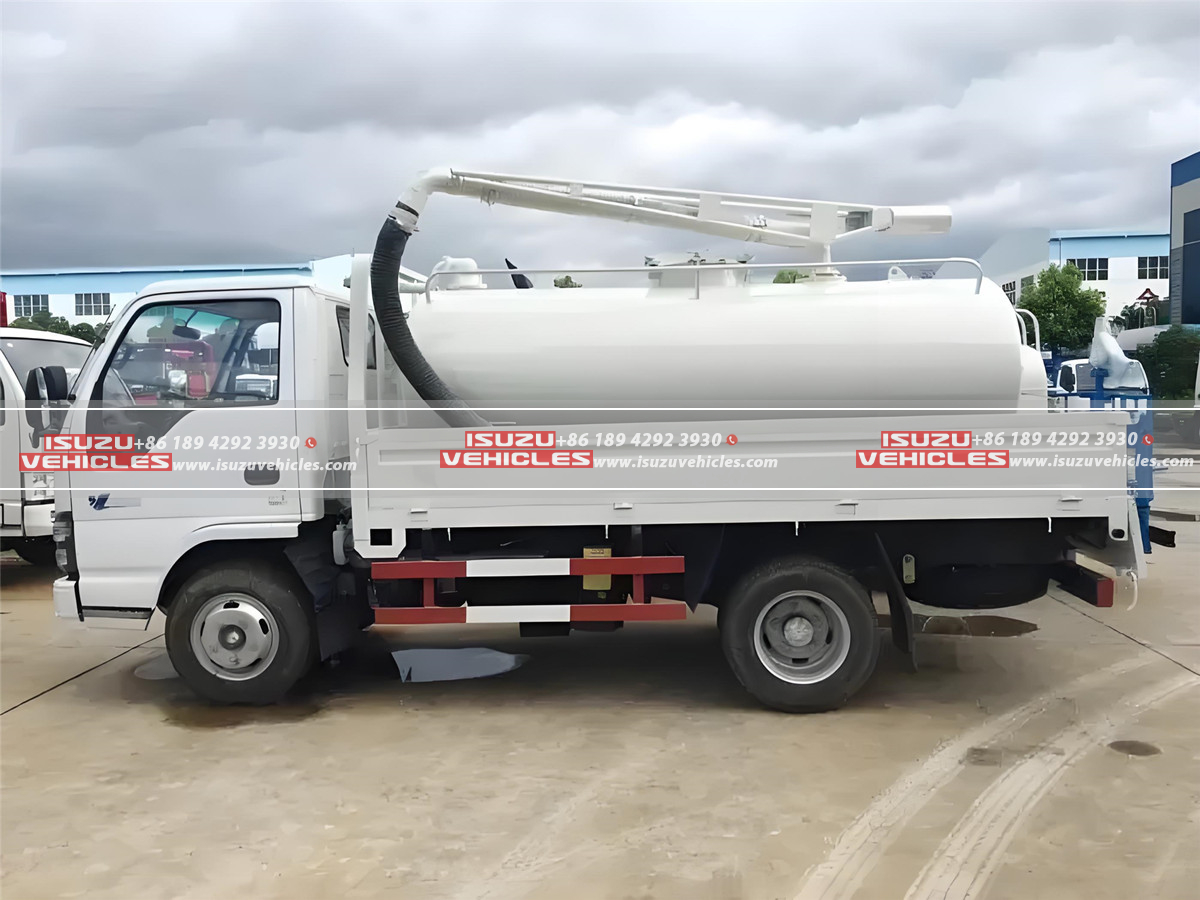

ISUZU 5000L Septic Vacuum Sewer Truck

Engineered for demanding municipal sanitation and industrial wastewater management, the ISUZU 5000L Septic Vacuum Sewer Truck combines the proven reliability of the ISUZU 600P chassis with a high-performance vacuum suction system tailored for efficient collection and transport of liquid waste. Built on a robust platform measuring 6,290×2,130×2,450mm with a 3,360mm wheelbase, this compact yet powerful truck excels in navigating confined urban streets, residential areas, and industrial sites. Its core capability centers on a substantial 5 cubic meter (CBM) oval-shaped tank constructed from 6mm thick Q235B carbon steel, driven by a high-flow 45m³/h vacuum pump capable of achieving suction lifts exceeding 6 meters. Powered by a 130hp ISUZU Euro 5 diesel engine and featuring rapid ≤5 minute suction cycles, this unit delivers exceptional productivity, environmental compliance, and operational versatility for septic tank servicing, sewer maintenance, and liquid waste haulage.

Features

1. Robust Chassis & Efficient Powertrain
   Anchored by the dependable ISUZU 600P 4×2 chassis featuring Left-hand Drive, this truck balances maneuverability and payload capacity with a 7,300kg Gross Vehicle Weight (GVW) and a 4,195kg curb weight. Its drivetrain integrates a 2.5-ton front axle and 4.8-ton rear axle, supported by durable 7.00R16 tires (6+1 configuration) for optimal load distribution and stability on varied terrain. Power is delivered by the advanced ISUZU 4KH1CN5HS direct-injection diesel engine, generating 130 horsepower while adhering to stringent Euro 5 emission standards for reduced environmental impact. This is coupled with the rugged ISUZU/MSB manual transmission offering 5 forward gears and 1 reverse gear, providing precise control and reliable low-speed torque essential for frequent stops and starts during suction operations.
2. Functional Operator Cabin & Workspace
   The steel-construction, single-row, flat day cabin prioritizes operator ergonomics and situational awareness during extended work cycles. Designed to accommodate up to 3 personnel, it features a straightforward layout with strategically placed controls for effortless operation of the vacuum system and auxiliary functions. Excellent forward and side visibility, facilitated by the cab’s design and large windows, is crucial for safe navigation in tight spaces and precise positioning of the suction hose. The cabin’s reinforced structure enhances occupant safety in demanding operational environments.
3. High-Performance Vacuum Suction System

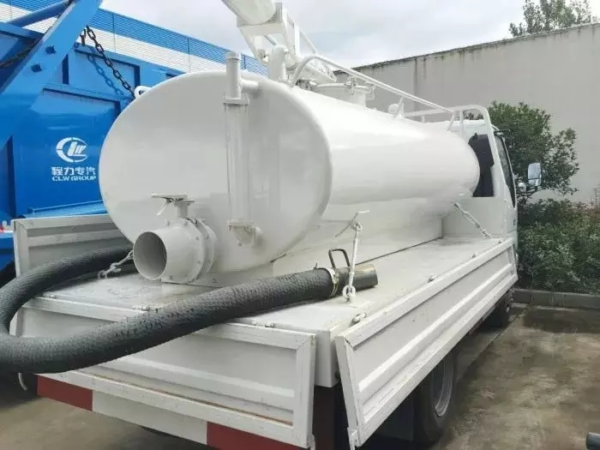

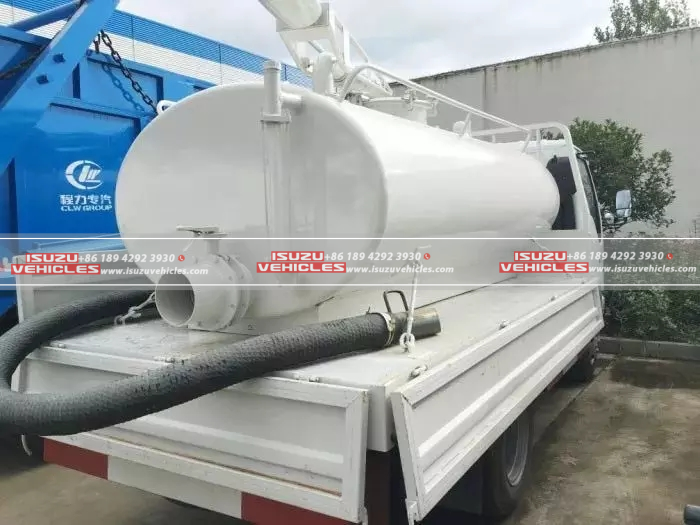

   The heart of the truck is its advanced vacuum system, engineered for rapid and efficient waste extraction. The 5CBM oval tank, fabricated from 6mm Q235B carbon steel, provides exceptional structural integrity and resistance to internal pressures while optimizing capacity within the compact chassis footprint. A high-capacity Chinese-brand vacuum pump delivers industry-leading performance metrics: a 45 cubic meter per hour flow rate, ultimate vacuum pressure of 7000 Pa (>500 mmHg), and the critical ability to achieve a maximum suction lift exceeding 6 meters. This enables effective evacuation from deep septic tanks or long sewer lines. The system includes a 5-meter flexible suction hose and is equipped with essential components like ball valves, pressure gauges, inspection windows, cleaning systems, hoist bases, oil-water separators, and overflow valves for safe, controlled operation.
4. Operational Efficiency & Customizable Options
   Designed for maximum job-site productivity, the vacuum truck achieves an exceptionally fast suction cycle time of ≤5 minutes under standard conditions, significantly increasing the number of service calls possible per shift. Comprehensive basic equipment ensures immediate operational readiness. To address specialized requirements or enhance longevity, several valuable optional upgrades are available: specifying a stainless steel tank for superior corrosion resistance when handling highly aggressive effluents or for extended service life; selecting premium Italian or Spanish vacuum pumps for ultimate performance and durability in the most demanding applications; applying internal anti-rust coatings to the tank for added protection against corrosive waste streams; and installing anti-flow (surge) devices to improve vehicle stability during transport by minimizing liquid sloshing within the tank. These features make the truck a highly adaptable solution for diverse waste collection challenges.

SPECIFICATIONS
