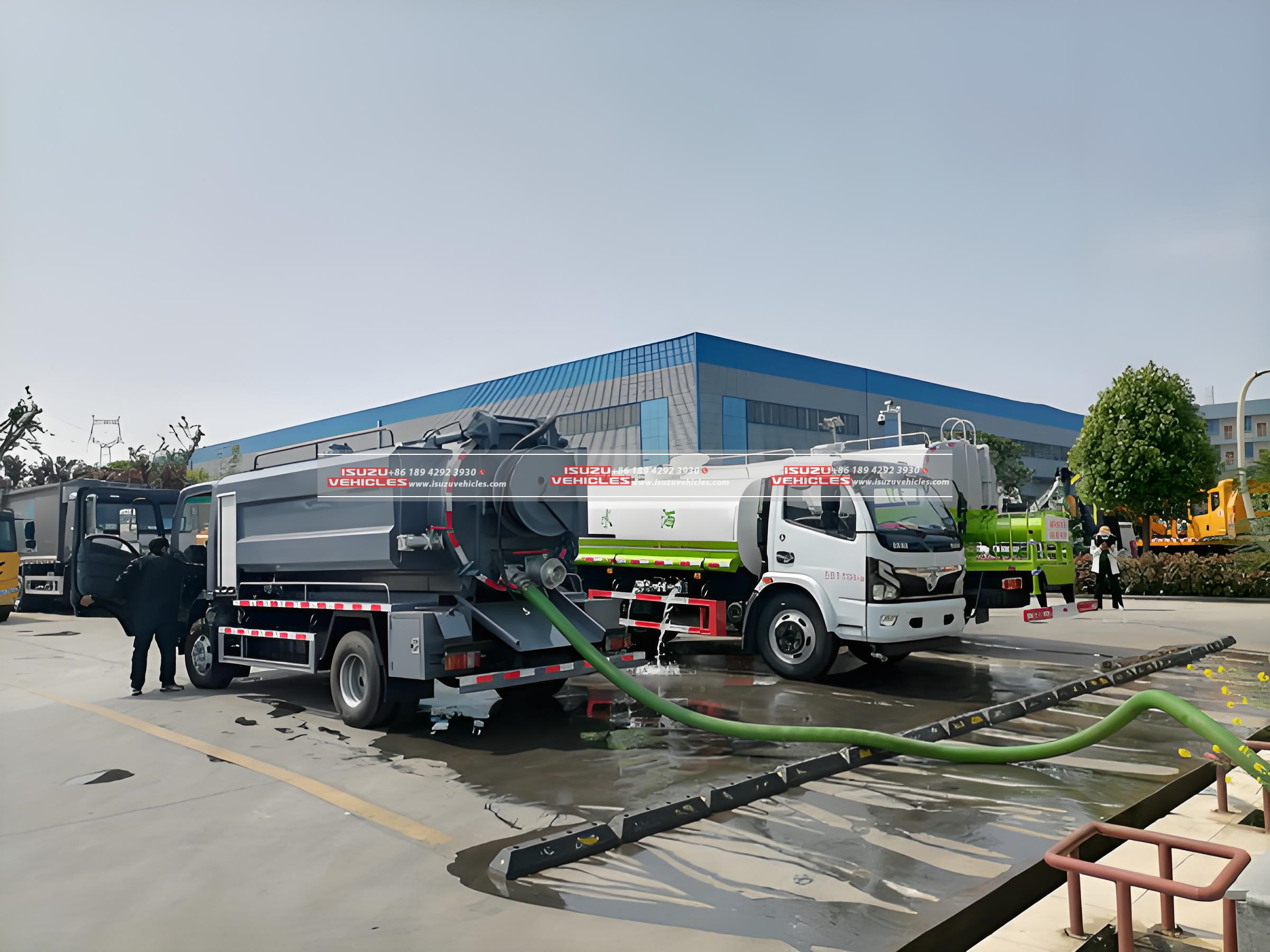

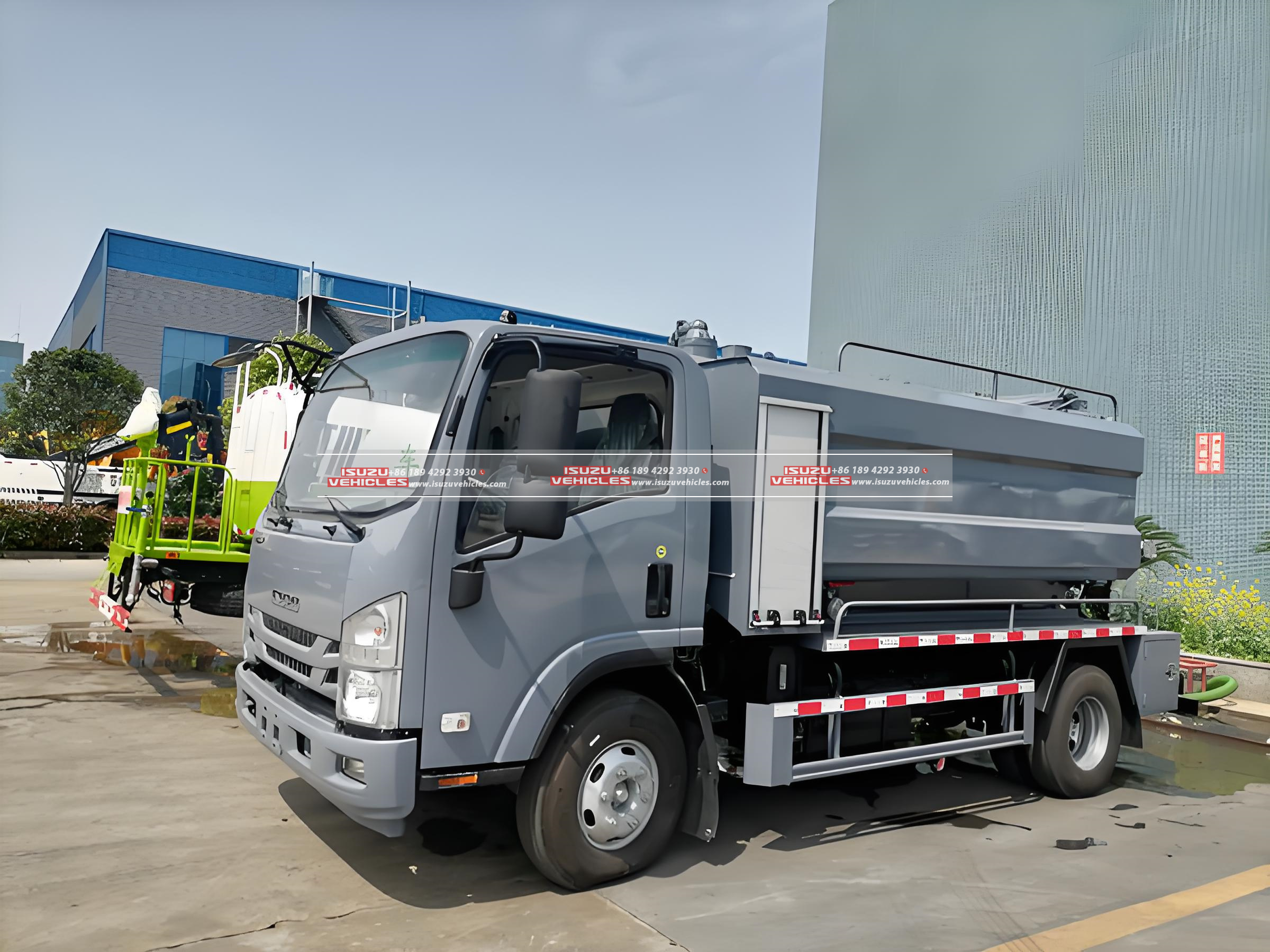

ISUZU 5000L Combined Sewer Jetting Truck

Engineered for comprehensive municipal and industrial sewer infrastructure maintenance, the ISUZU 5000L Combined Sewer Jetting Truck integrates powerful vacuum extraction with high-pressure water jetting capabilities on a single, highly maneuverable platform. Built upon the globally proven ISUZU 600P 4×2 chassis (dimensions: 5,990×2,130×2,660mm, wheelbase: 3,360mm), this specialized vehicle offers exceptional agility for navigating congested urban streets and confined worksites. Its core functionality revolves around a robust 5,000L cylindrical waste tank fabricated from Q235B carbon steel (6mm body, 8mm shell cover), paired with a high-performance vacuum pump capable of generating -97,000Pa ultimate pressure and a PTO-driven jetting pump delivering 16-24Mpa working pressure. Powered by a 130hp ISUZU Euro 5 diesel engine, this dual-purpose solution delivers unparalleled efficiency in cleaning, unblocking, and evacuating sewer lines, storm drains, and industrial pipelines.

Features

1. Optimized Chassis & Powertrain Foundation
   The truck leverages the rugged ISUZU 600P chassis with Left-hand Drive, balancing a substantial 7,300kg Gross Vehicle Weight (GVW) with a 4,525kg curb weight for significant payload capacity within a compact footprint ideal for city environments. Its drivetrain features a 2.5T front axle and 4.8T rear axle, supported by durable 7.00R16 tires (6+1 configuration) ensuring stability and load-bearing capacity on diverse surfaces. Power is reliably supplied by the ISUZU 4KH1CN5HS direct-injection diesel engine, producing 130 horsepower while meeting stringent Euro 5 emission standards, coupled with the robust ISUZU/MSB manual transmission (5 forward + 1 reverse gears) for precise control during slow-speed operational maneuvers and highway transit.

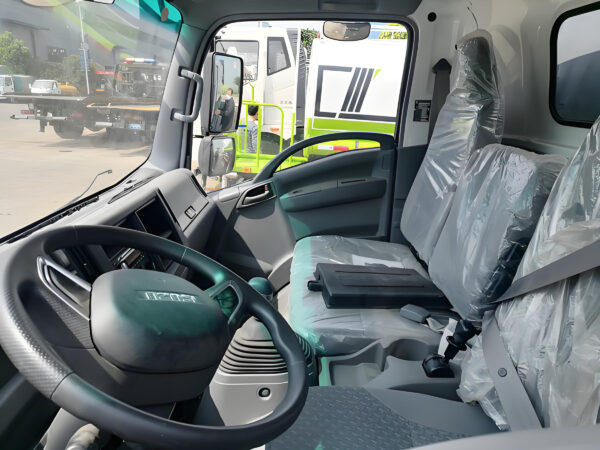

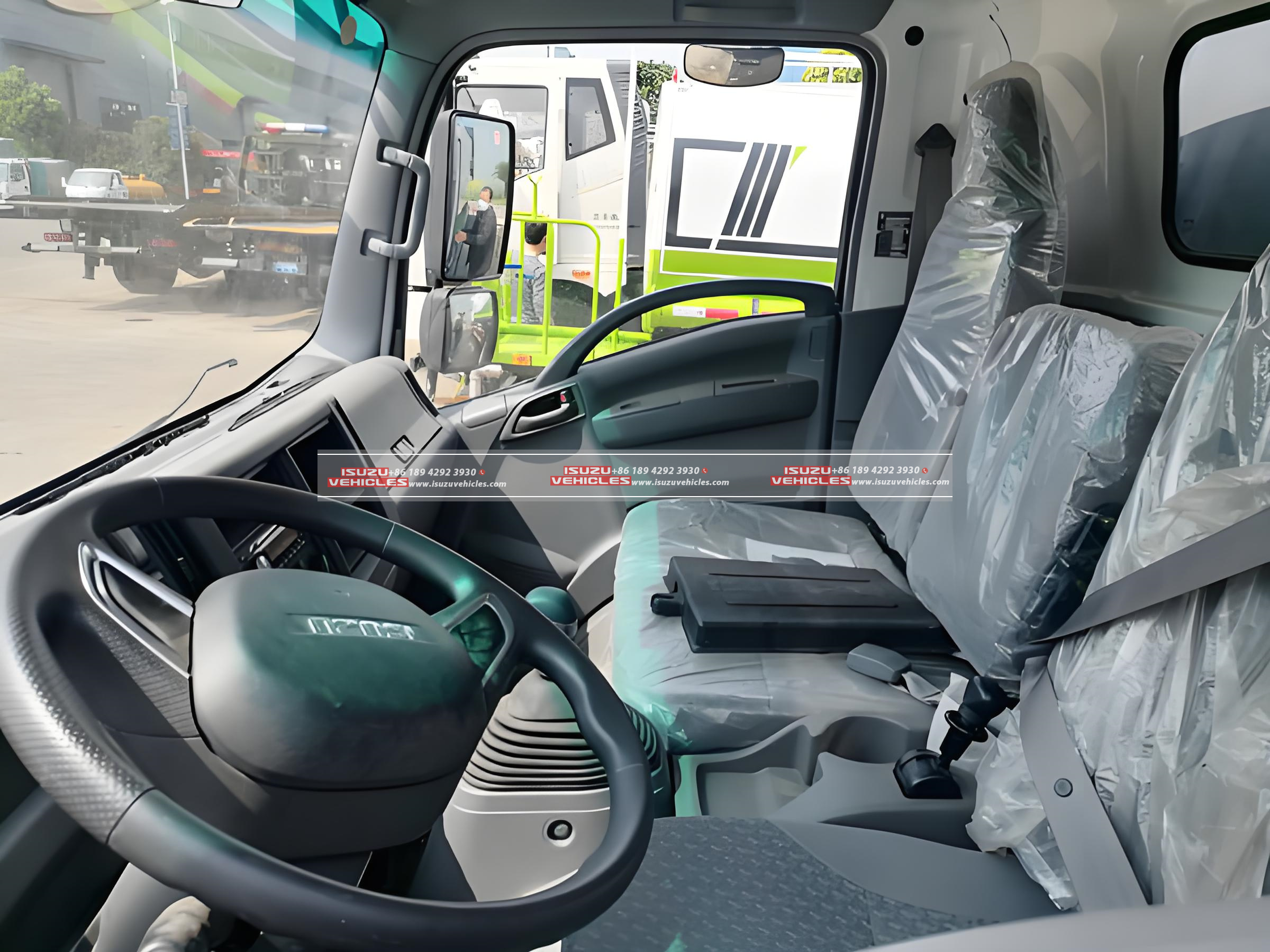

2. Functional Operator Cabin & Workspace
   Designed for practicality and extended operational efficiency, the steel-construction, single-row, flat day cabin accommodates up to 3 personnel comfortably. Its ergonomic layout prioritizes clear visibility through large windows and intuitive placement of hydraulic and system controls, enabling operators to manage complex jetting and vacuum sequences effectively while maintaining situational awareness in tight or hazardous environments. The reinforced structure enhances safety during demanding tasks.
3. Core Dual-Functionality Systems
   • High-Efficiency Vacuum System: Equipped with a water-cooled or air-cooled vacuum pump (renowned brands: Weilong, JUROP, MORO, BP), the system achieves an impressive flow rate of 6,000~35,000 Liters Per Minute (LPM) and a powerful -97,000Pa ultimate vacuum, enabling rapid evacuation of dense sludge, debris, and liquids from depths exceeding standard requirements. The system includes a primary 8-meter suction hose (extendable to 12m optionally) and essential components: ball valves, pressure gauges, inspection windows, cleaning systems, hoist bases, oil-water separators, and overflow valves for safe, contained operation.

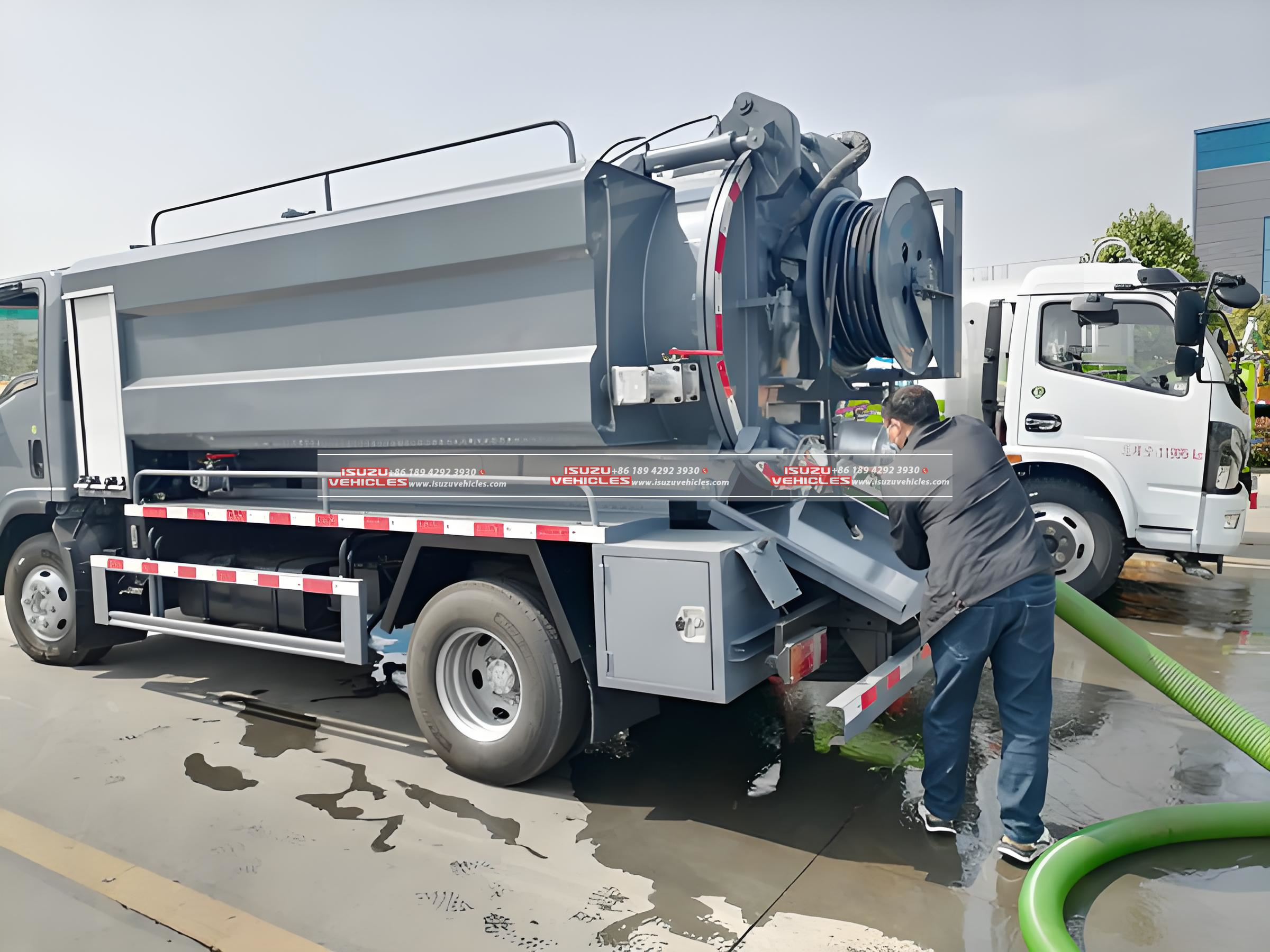

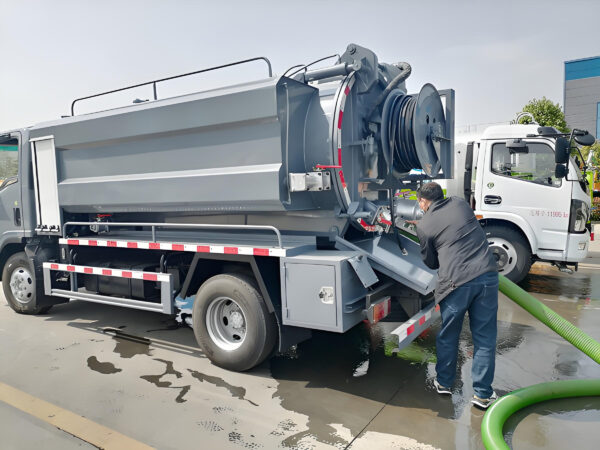

   • High-Pressure Jetting System: Driven directly by the chassis Power Take-Off (PTO), the jetting pump delivers adjustable working pressures between 16-24 Megapascals (Mpa) with a water flow rate of 75~275 LPM, capable of cutting through severe pipe blockages, root intrusions, and hardened sediment. The system features a standard 80-meter high-pressure hose reel (optionally extendable to 120m) for extensive reach within pipelines, with a front or side-mounted freshwater tank supplying the jetting operation.
4. Operational Versatility & Enhanced Options
   Designed for maximum uptime and adaptability, the sewer truck’s integrated systems allow for simultaneous or sequential jetting and vacuuming, drastically reducing job completion times compared to single-function units. Standard basic equipment ensures immediate deployment readiness. To address specific environmental challenges or extend service life, key optional upgrades include: specifying a stainless steel tank for superior corrosion resistance against highly aggressive effluents or saltwater exposure; selecting premium Italian or Spanish vacuum pumps for extreme-duty cycle reliability; applying internal anti-rust coatings within the tank for added protection against corrosive waste streams; and installing anti-flow (surge) devices to significantly improve vehicle stability and safety during transport by minimizing liquid movement within the tank. These features make it a future-proof investment for diverse sanitation and industrial cleaning applications.

SPECIFICATIONS
