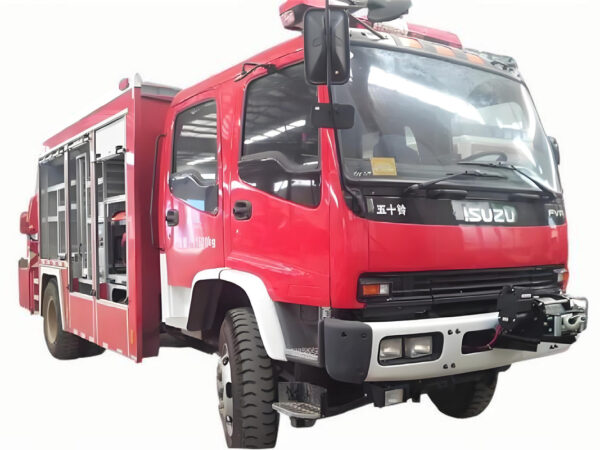

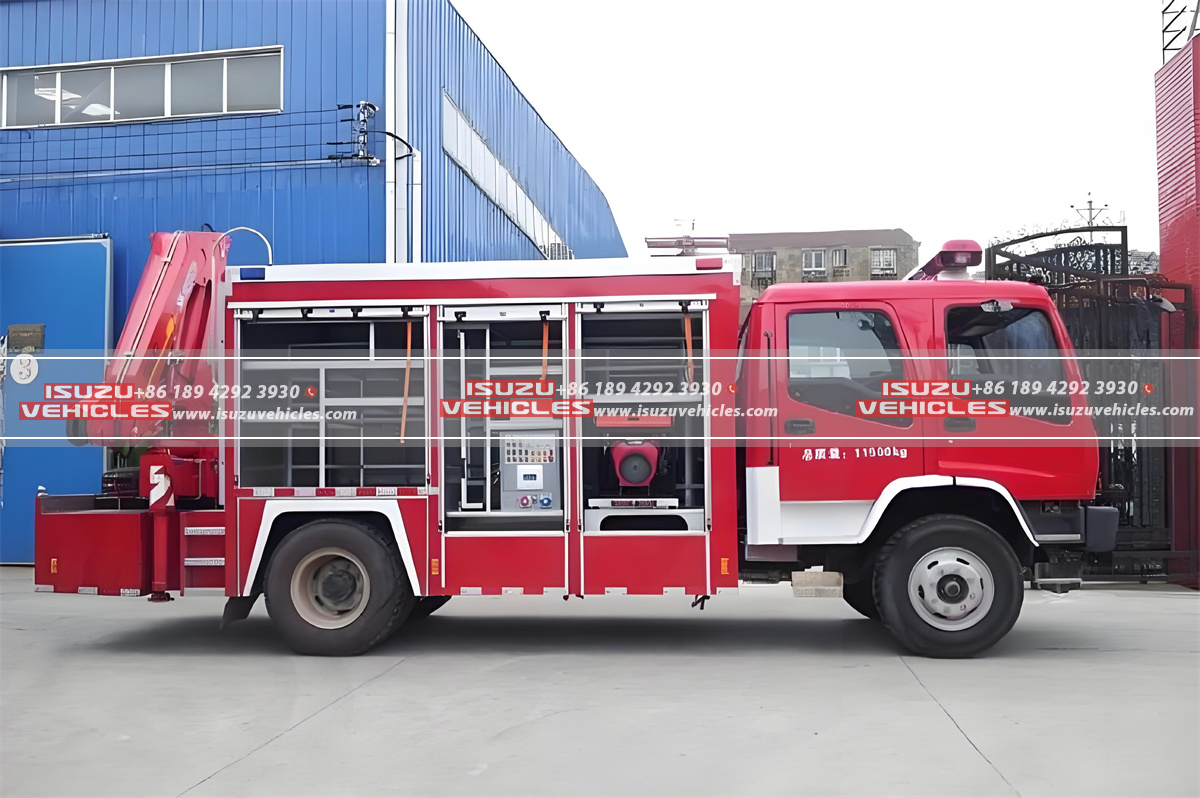

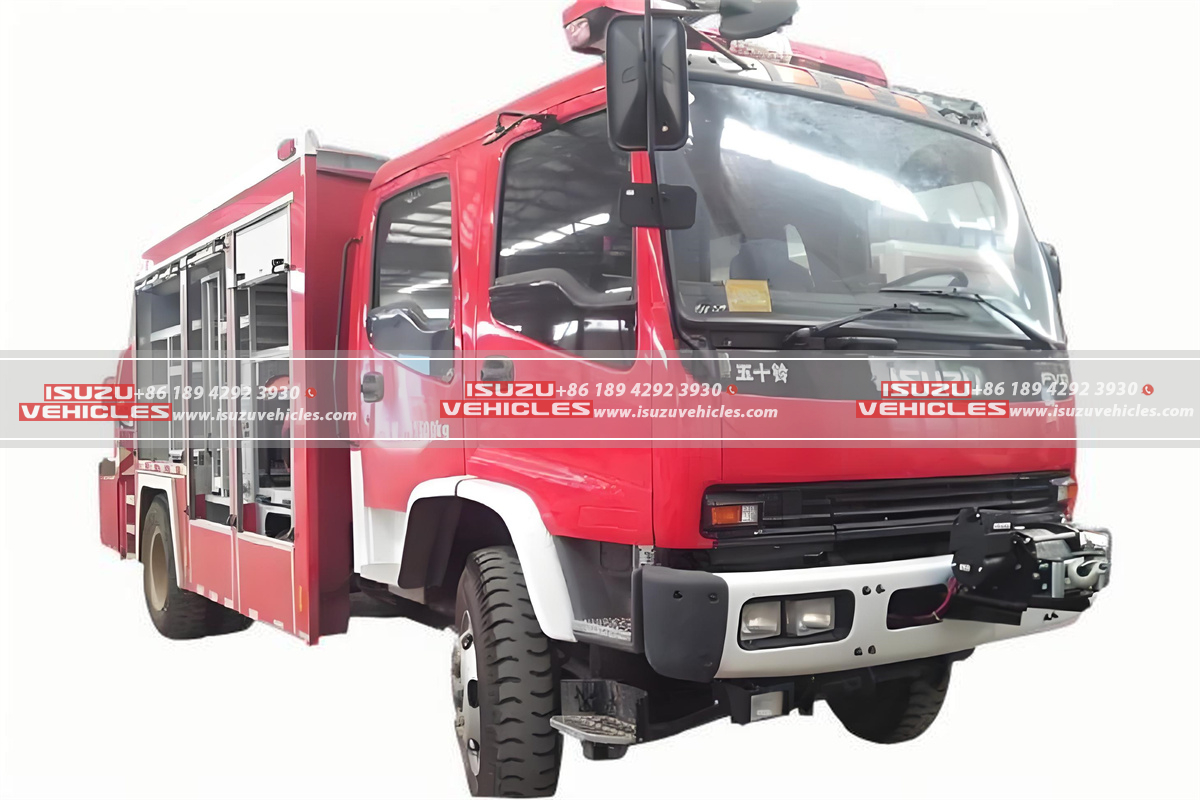

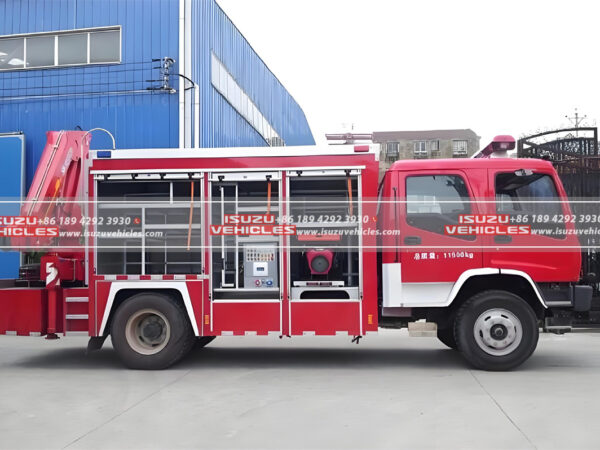

ISUZU 7.5M Tower Rescue Fire Truck
The ISUZU 7.5M Tower Rescue Fire Truck represents a pinnacle of engineering designed for complex urban firefighting, industrial incidents, and demanding technical rescue scenarios, particularly those requiring significant vertical access and illumination. Built upon the exceptionally reliable and robust ISUZU FVR chassis, renowned for its durability in emergency service applications, this vehicle integrates formidable power with specialized rescue systems. At its core lies the powerful 240hp 6HK1-TCNG40 Euro 4 compliant engine, ensuring responsive performance and adherence to modern emissions standards essential for operations in diverse environments. The defining feature is the towering 7.6m Pneumatic Lighting Tower, providing unparalleled illumination over vast incident scenes during night operations or in low-visibility conditions, significantly enhancing operational safety and efficiency. Complementing this vertical reach is the substantial 7.5T (16,800 lbs) US-made CHAMPION winch system, engineered to deliver exceptional pulling power for vehicle extrication, heavy object movement, or complex rescue hauling systems. This purpose-built apparatus combines high-grade materials, including an all-welded steel body for maximum structural integrity, with meticulously organized customized storage compartments and versatile crew seating options, ensuring rapid deployment of personnel and equipment while maximizing payload capacity for essential tools. It stands as an indispensable asset for fire departments and rescue units requiring a versatile, powerful, and reliable platform capable of tackling the most challenging incidents with confidence.
Detailed Features
- Power & Propulsion:
- Chassis: Premium ISUZU QL1160 FVR, engineered for heavy-duty service and exceptional reliability.
- Engine: ISUZU 6HK1-TCNG40 diesel engine generating 240 horsepower, meeting Euro 4 emission standards for responsible operation.
- Transmission: Robust MLD 6-speed manual transmission with 1 reverse gear, delivering optimal power transfer and control.
- Brakes & Steering: Reliable Air Brake System for consistent stopping power and Power Assist Steering ensuring maneuverability.
- Core Rescue & Lighting Systems:
- Lighting Tower: 7.6m Pneumatic Lifting Command System LED Light Tower (BOCAN/BSD-Z7041000), featuring 4 x 1000W high-intensity floodlights. Offers 360° horizontal and 330° vertical rotation, powered by a dedicated 380V/220V control cabinet for remote operation, casting powerful illumination over the entire incident ground.

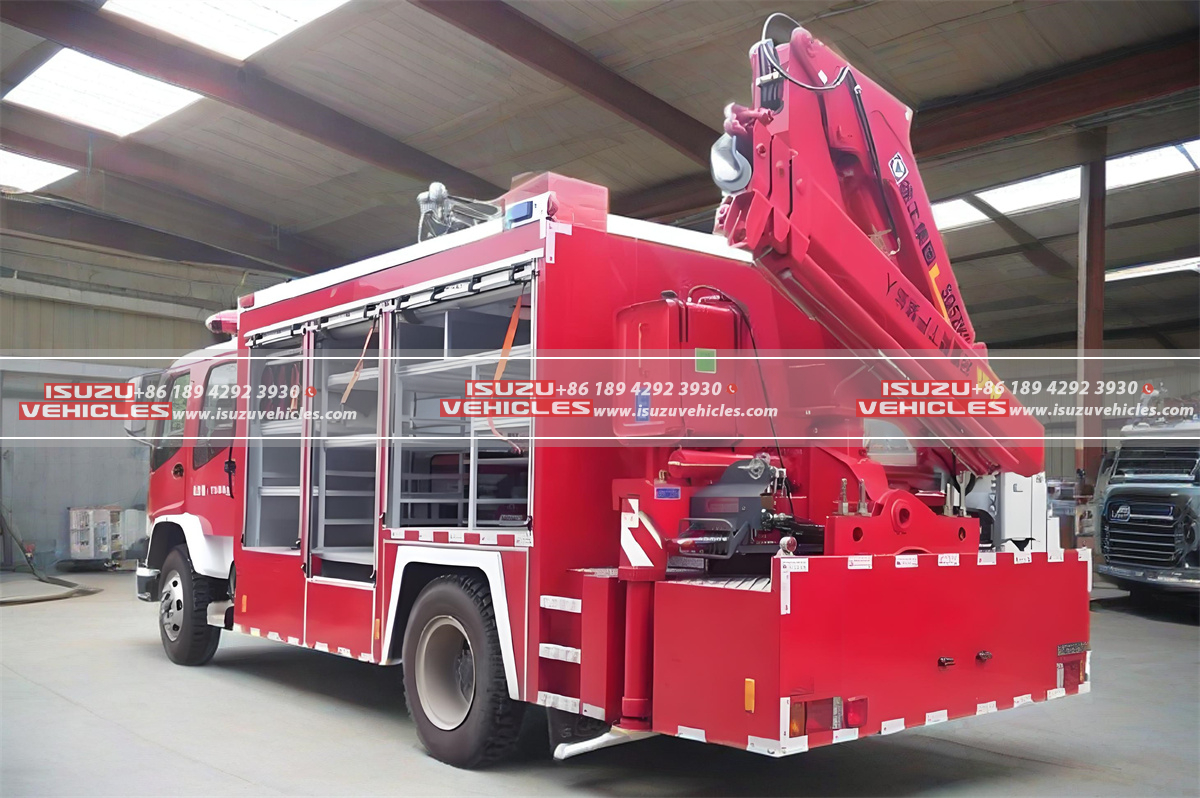

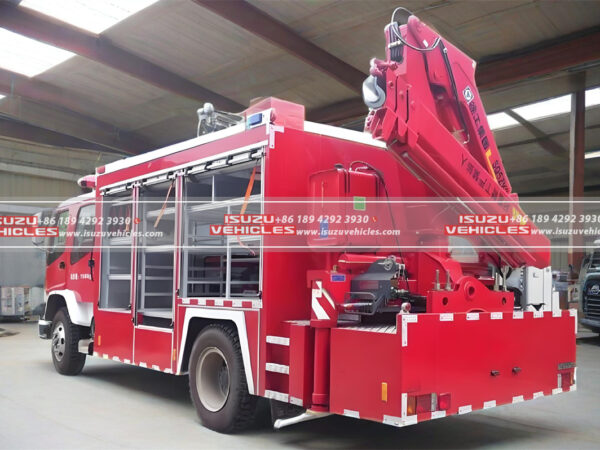

- Hydraulic Rescue Crane: XCMG SQ5ZK2 rear-mounted crane providing critical lifting capability with a max lifting capacity of 5,000kg (5 tonnes) and max lifting torque of 10.5 T.M. Its 8m hydraulic arm achieves a max working height of 9m with 370° rotation, essential for lifting debris, stabilizing vehicles, or positioning rescue tools.
- Traction Winch: High-capacity USA CHAMPION N16800XF-24V winch delivering a max traction force of 16,800 lbs (7,560 kgs). Features power-driven operation, a 13mm diameter wire rope, and 48m length for demanding recovery and extrication tasks.
- Electrical & Power Generation:
- Generator: HONDA SHT11500 generator providing 10kW rated power at 220V/380V. Equipped with a movable coil, earthing system, and both electric start and manual start options for dependable auxiliary power in the field.
- Electrical System: Independent circuits with strategically positioned emergency lighting. Includes headlamps in compartments, a dedicated operating dashboard with controls, red and blue flashing lights on body sides, a long red light on the cabin top, and an electronic alarm within the cabin for comprehensive scene safety and communication.
- Auxiliary Power: Flexible options support gas/diesel/LP or PTO generators, electric cable reels, and hydraulic rescue tool systems.

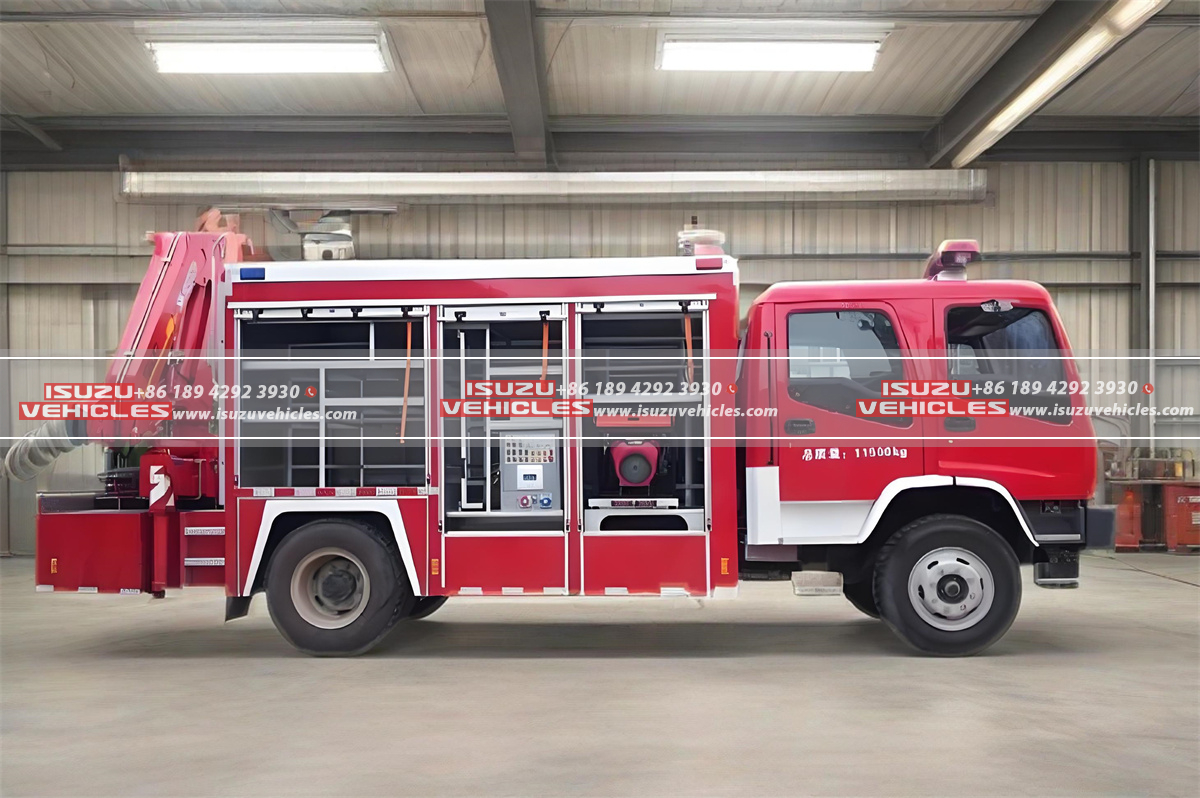

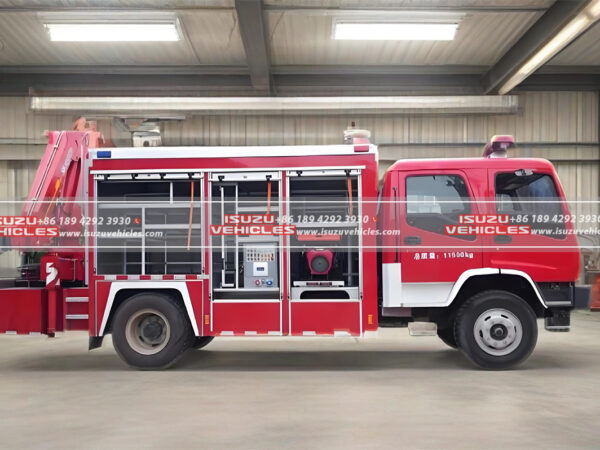

- Body, Storage & Compartmentalization:
- Construction: All-welded steel body ensures maximum durability and longevity under harsh conditions.
- Compartments: Features greater definition of compartment utilization with hinged or roll-up doors for secure access. Customized storage compartments include adjustable shelving, trays, and tool boards for optimal organization of rescue equipment.
- Crew Area: Double-line cabin with A/C and center lock for operator comfort and security. Includes a versatile Drop Down Squad Bench adaptable for personnel transport or equipment staging.
- Hose Management: Equipped with Dual Hydraulic Hose Reels located in the rear compartment for efficient deployment and retrieval of large-diameter supply lines.
- Additional Critical Specifications & Accessories:
- Dimensions & Weight: Overall Size: ~8,490 x 2,500 x 3,615mm (LxWxH). Gross Vehicle Weight: ~12,400kg. Vehicle Weight: ~11,950kg. Wheelbase: 4,500mm. Max Speed: 90km/h.
- Running Gear: Axles: Front 6,300kg / Rear 13,000kg. Tires: 10.00-20 / 6+1 Spare Tire. Battery: 24V.
- Warning Systems: Siren, speaker, and warning light configurations are available as standard or optional equipment.
- Pump Options: Configurable with PTO water pumps or a Slip-In Rear Mount Pump depending on operational requirements.
- Comprehensive Tooling: Includes a vast array of essential firefighting and rescue accessories such as multiple sucking hoses (DN150), various water hoses (13 & 20 Type), water collectors, filters, distributors, foam proportioning equipment (Pipe Type Foam Proportioner), foam guns (PQ8, PQ16), water/spray guns, specialized wrenches (Fire Hydrant, Underground Hydrant, Sucking Pipe, Foam Pipe), hose hooks & gaiters, hose protectors, sole timbers, fire axe, rubber hammer, chargeable portable lamps, a 2KG ABC Fire Extinguisher, original chassis tools, and spare tire.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Chassis | ISUZU QL1160/ ISUZU Fire Truck |
| Engine | 6HK1-TCNG40/ISUZU/240HP/Euro 4 |
| Transmission | MLD/ISUZU/6+1 Reverse Gear |
| Cabin | Double-line cabin, with A/C, Center Lock |
| Overall Size (L×W×H) | 8,490 × 2,500 × 3,615 mm (approx.) |
| Gross Vehicle Weight | 12,400 kg (approx.) |
| Vehicle Weight | 11,950 kg (approx.) |
| Wheelbase | 4,500 mm |
| Max Speed | 90 km/h |
| Battery | 24 V |
| Brakes | Air brake |
| Tires | 10.00-20/6+1 Spare Tire |
| Steering | Power assist steering |
| Axles (Front/Rear) | 6,300 kg / 13,000 kg |
Accessories
| SN | Item | Parameters | Unit | Qty |
|---|---|---|---|---|
| 1 | Sucking Hose | DN150 (4Ｍ) | PIECE | 2 |
| 2 | Water Filter | FLF150 | PIECE | 1 |
| 3 | Water Collector | FJ150 | PIECE | 2 |
| 4 | 13 Type Water Hose | 13-65－20M | DISC | 3 |
| 5 | 13 Type Water Hose | 13-80－20M | DISC | 3 |
| 6 | 20 Type Water Hose | 20-65－20M | DISC | 3 |
| 7 | 20 Type Water Hose | 20-80－20M | DISC | 3 |
| 8 | Triple Head Distributor | Φ80 INLET Φ65 OUTLET | PIECE | 3 |
| 9 | Adapter | Φ80ＭＭ×Φ80ＭＭ | PIECE | 2 |
| 10 | Foam Gun | PQ8 | PIECE | 1 |
| 11 | Foam Gun | PQ16 | PIECE | 1 |
| 12 | Straight Stream Water Gun | Φ16 MM | PIECE | 1 |
| 14 | Foam Sucking Hose | DN50 | PIECE | 1 |
| 15 | Foam Pipe Wrench | FS150 | PIECE | 2 |
| 16 | Hose Protector | RUBBER | PAIR | 2 |
| 17 | Hose Hook | FG600 | PIECE | 8 |
| 19 | Fire Hydrant Wrench | FB450 | PIECE | 1 |
| 20 | Underground Fire Hydrant Wrench | FBA800 | PIECE | 1 |
| 21 | Sucking Pipe Wrench | FS150 | PIECE | 2 |
| 22 | Sole Timber | 500X400X50 (MM) | PIECE | 4 |
| 24 | Fire Axe | PIECE | 1 | |
| 25 | Chargeable Portable Lamp | PIECE | 2 | |
| 26 | Pipe Type Foam Proportioner | PIECE | 1 | |
| 27 | Fire Extinguisher | 2KG ABC | PIECE | 1 |
| 29 | Spare Tyre | PIECE | 1 |
