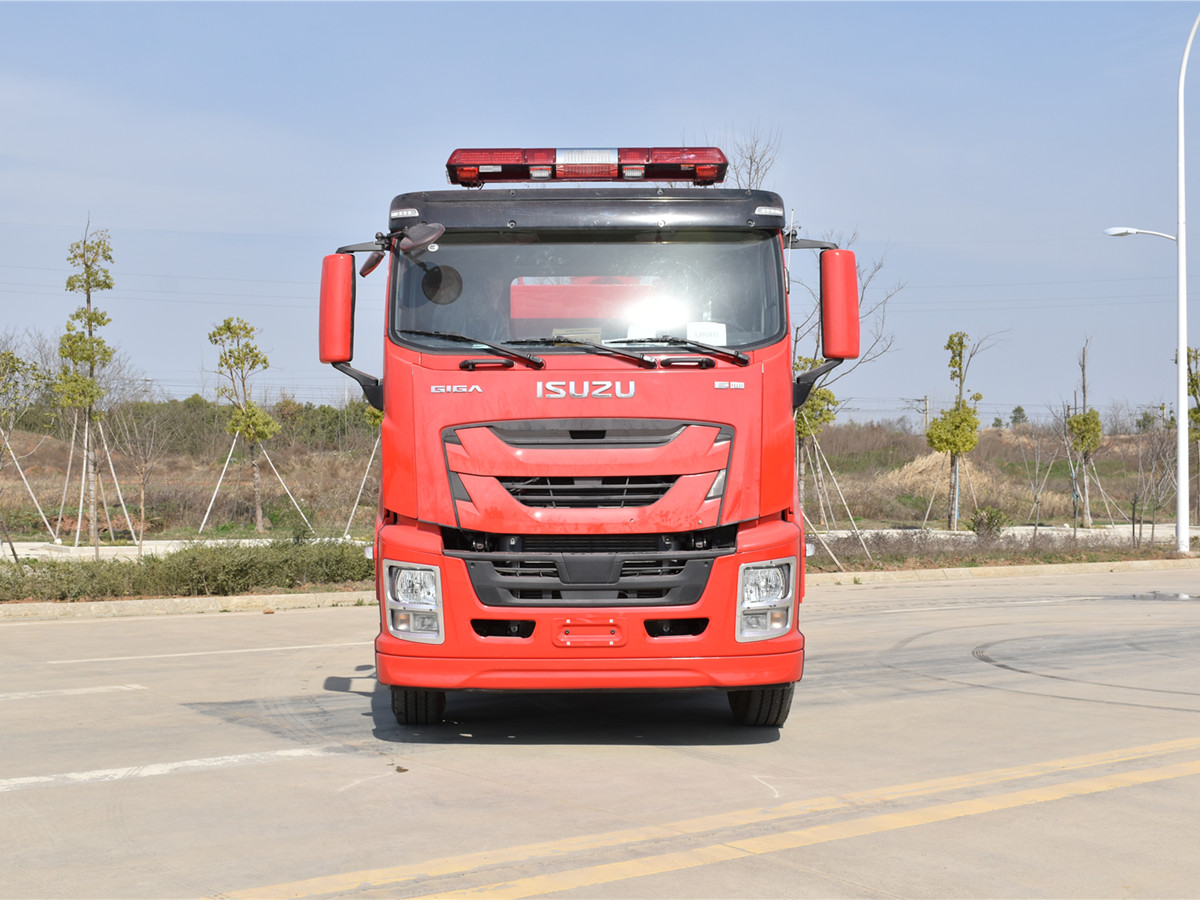

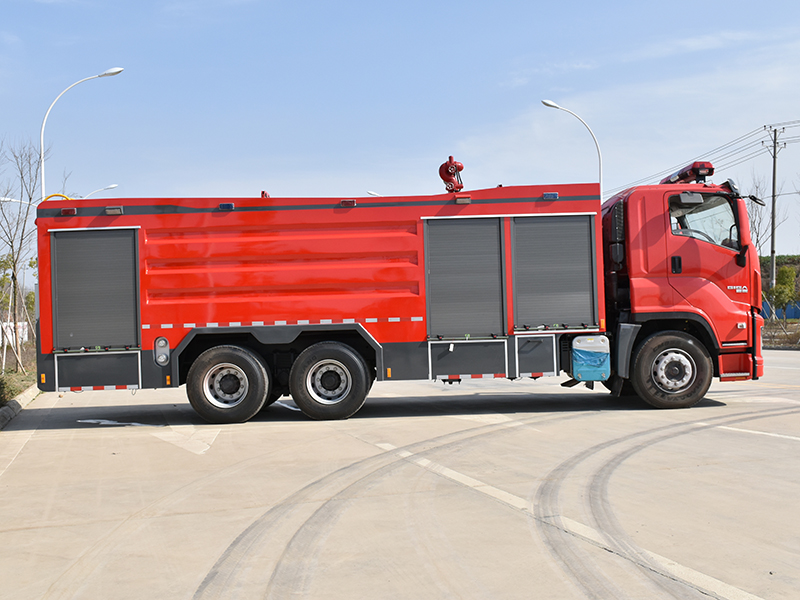

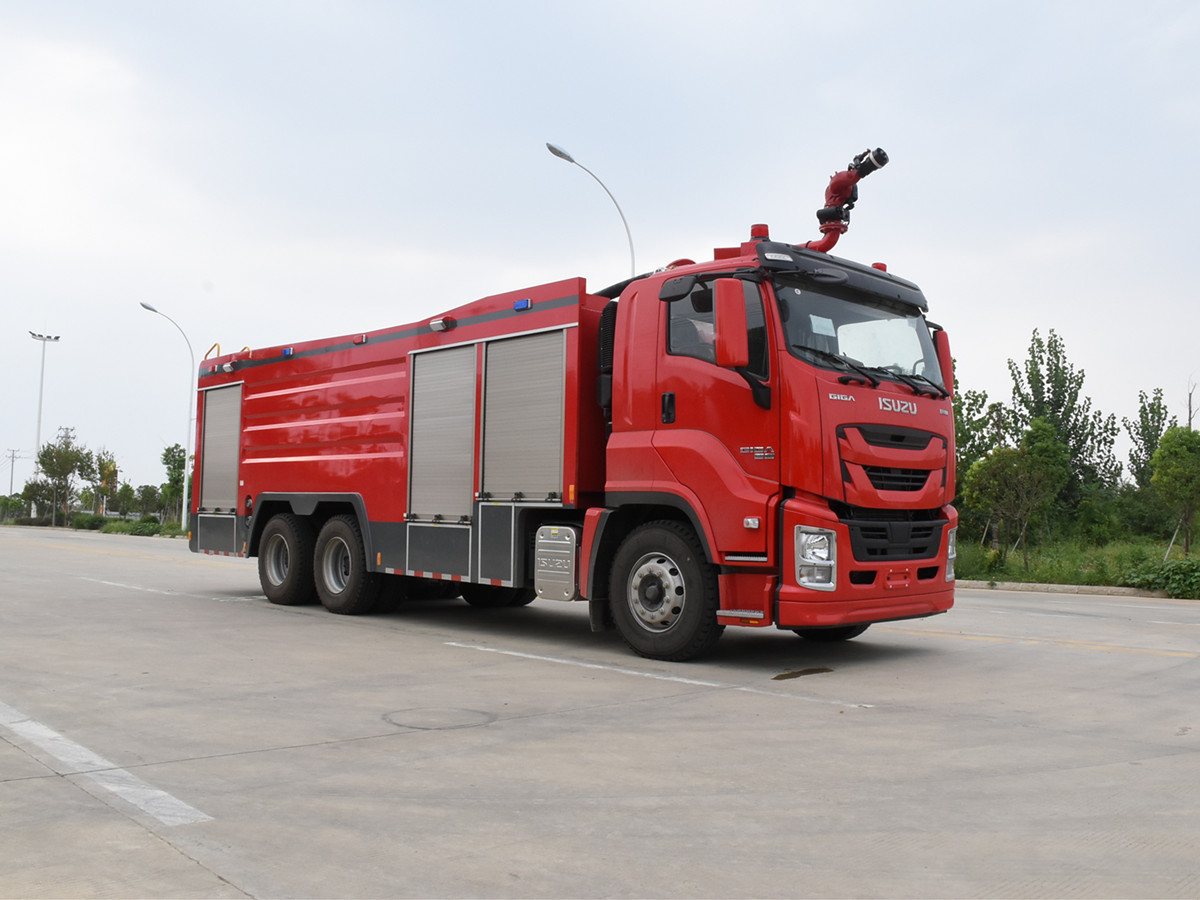

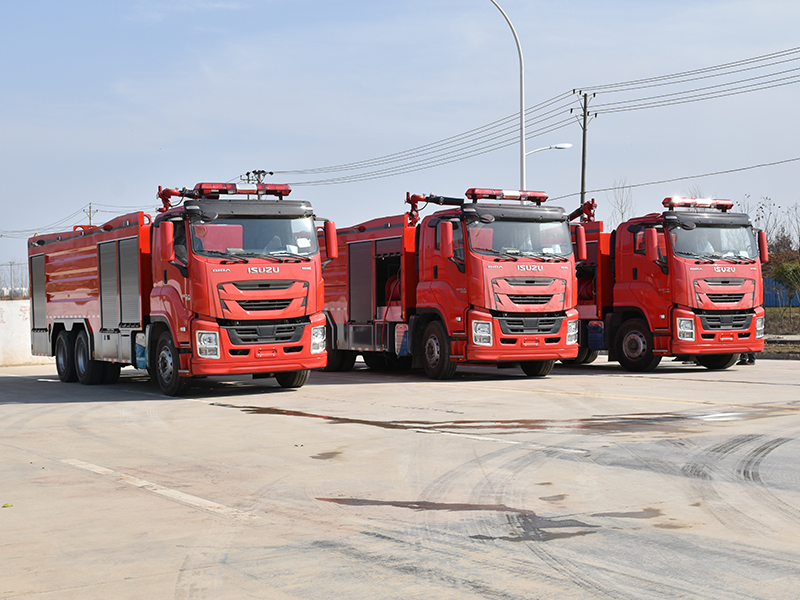

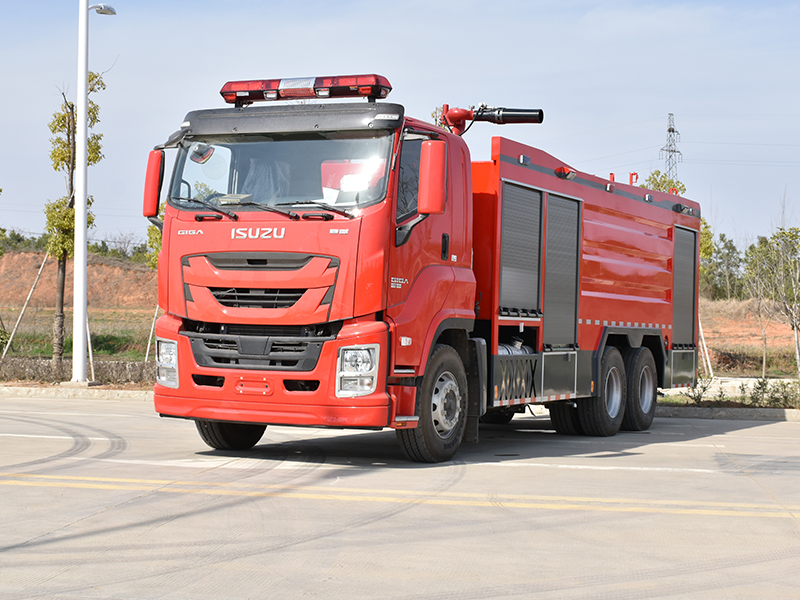

ISUZU 15000L Water Tanker Fire Truck
The ISUZU 15000L Water Tanker Fire Truck is built on the robust ISUZU QL5350 Chassis, a 6×4 left-hand-drive platform designed for heavy-duty firefighting operations. Engineered to meet Euro 6 emission standards, the chassis integrates a 460hp ISUZU 6WG1-TCG61 engine and a ZF8/FAST12-gear transmission, ensuring reliable power delivery and maneuverability across diverse terrains. With a wheelbase of 4,565+1,370mm and 385/65R22.5 tires, this truck balances stability and agility, making it ideal for emergency response scenarios.
The single cab accommodates up to six crew members and features high-quality Q235 carbon steel construction, air conditioning, and ergonomic seating. Rear seats are designed as lockers with mounts for four breathing apparatus units and reserve tanks, ensuring quick access to life-saving equipment during operations.
Features
Water Tank Capacity
The fire truck features a 15,000L carbon steel tank with a cylindrical design and 5mm shell thickness, reinforced by external ribs for structural integrity. Hydrostatically tested to ensure leak-proof performance, the tank is spray-painted internally and externally for corrosion resistance, making it durable for long-term use in harsh environments.
Pump System
Equipped with the CB10/60 Fire Pump, the truck delivers 3,600L/min at 1.0MPa pressure, powered by a PTO-driven system with circulating water cooling. The pump includes a DN100 inlet, dual DN65 side-filling ports, and two DN65 outlets with valves, enabling rapid water transfer and efficient fire suppression.
Storage & Safety
The modular equipment compartments are constructed from carbon steel and feature anodized aluminum roller shutters, sliding drawers, and anti-skid pedal plates. Compartments include dedicated storage for hoses, nozzles, shovels, axes, and extinguishers, all securely fixed to withstand vibrations during transit.
Electrical & Accessories
The truck’s integrated warning systems include red/blue strobe lights, a roof-mounted red alarm light strip, and a rear 35W projector. The cab houses an alarm control panel, while interior LED lighting ensures visibility in the pump room and equipment compartments.
Key Accessories:
- 2 suction pipes, 6 fire hoses, and nozzles (water-stream, diffuser, air foam).
- Hydrant spanners, hose straps, and emergency tools (axe, crowbar, portable ladder).
This fire truck combines ISUZU’s engineering excellence with purpose-built firefighting features, offering unmatched reliability and efficiency for emergency response teams.
SPECIFICATIONS:
| Category | Specifications |
|---|---|
| Fire Truck | – Make/Model Line: ISUZU 6X4 LHD – Chassis Model: ISUZU QL5350TZZWUTDZY – Engine Model/Emission: ISUZU 6WG1-TCG61 (Euro 6) – Horsepower: 460hp – Front/Rear Axle Load: 9T + 13*2T – Tire Size: 385/65R22.5 – Wheelbase: 4565+1370mm – Features: White color, 6-person capacity, air conditioning, power assist, radio, MP3. |
| Cabin | – Mode: Single cab – Capacity: 2 persons – Material: Q235 carbon steel – Seats: Rear locker seats with mounts for 4 breathing apparatus units and 4 reserve tanks; folding cushions for locker access; safety belts for all crew. |
| Water Tanker | – Capacity: 15,000L – Shape: Round cylindrical – Material: Carbon steel – Thickness: 5mm shell – Reinforcing Ribs: Installed on tank surface – Testing: Hydrostatically tested. |
| Pump Drive System | – Installation: Sandwich type – Cooling: Circulating water cooling – Transmission Shaft: High-balance precision with special middle support. |
| Fire Pump | – Make/Model: CB10/60 (China) – Normal Pressure: 3,600L/s @1.0MPa – Outlet Pressure: 1.0MPa – RPM: 3,520±50r/min – Axial Power: 106kW. |
| Pipe System | – Material: High-quality steel pipe – Inlet: 1x DN100 behind pump room – Filling Ports: 2x DN65 at tank sides; 1x DN65 pump fill – Outlets: 2x DN65 at pump room sides (with valves) – Cooling Pipe: PTO cooling with control valve. |
| Equipment & Pump Room | – Material: Carbon steel frame; oxide aluminum interior panels – Structure: Welded carbon steel frame; front equipment boxes, rear pump room; carbon steel outer skin. |
| Storage Compartments | – Design: Sliding drawers, fixed shelves – Doors: Anodized roller shutters with automatic illumination when opened. |
| Pedal Plate | – Location: Under roller shutter doors – Material: High-strength anti-skid profile – Load Capacity: >150kg; spring-locked to prevent turnover. |
| Electrical Equipment | – Lighting: Auxiliary lights in firemen’s room, pump room, equipment box – Warning: Red/blue strobes, roof-mounted red alarm lights, driver control box – Projector: 35W rear-mounted – Paint: High-quality exterior/interior spray. |
| Accessories | Includes: 2 suction pipes, 6 fire hoses, water-stream/diffuser/foam nozzles, hydrant spanners, shovel, crowbar, fire axe, extinguisher, portable ladder, and 24 total safety/firefighting tools. |
