ISUZU 8 CBM Water Foam Fire Truck

ISUZU 8 CBM Water Foam Fire Truck

The ISUZU 8 CBM Water Foam Fire Truck is a high-performance municipal firefighting vehicle engineered to provide rapid emergency response for urban districts, industrial facilities, airports, logistics parks, petrochemical plants, and large commercial complexes. Built on the proven ISUZU 4×2 chassis, this fire engine combines a powerful water and foam suppression system with a spacious crew cab, reliable pumping equipment, and a professionally designed firefighting body to deliver exceptional performance in a wide range of fire and rescue scenarios.

Featuring a 6,000-liter water tank and a 2,000-liter foam tank, the truck is capable of tackling both ordinary structural fires and flammable liquid fires with outstanding efficiency. Its 380 HP ISUZU diesel engine, full-power sandwich PTO, and high-capacity fire pump ensure continuous firefighting capability even during demanding emergency operations. Designed with durable materials, corrosion-resistant construction, and well-organized equipment compartments, this vehicle offers the reliability and operational flexibility required by modern fire departments.

---

Features

Powerful ISUZU Chassis and Engine

The truck is built on the dependable ISUZU QL5210TZZU2QDRY 4×2 chassis, providing excellent stability, driving performance, and durability for emergency response missions.

Key vehicle specifications include:

• Overall Dimensions: 8,730 × 2,550 × 3,720 mm
• Gross Vehicle Weight: 17,000 kg
• Wheelbase: 5,600 mm
• Maximum Speed: 95 km/h
• Euro 5 emission standard

Power comes from a 280 kW (380 HP) ISUZU diesel engine, delivering strong acceleration and dependable performance while driving to emergency scenes or operating firefighting equipment.

Large Water and Foam Storage Capacity

The truck is equipped with a professionally designed dual-agent firefighting system capable of handling multiple fire types.

Water Tank

• Capacity: 6,000 liters
• Constructed from high-quality Q235A carbon steel
• Fully welded anti-corrosion structure
• Internal anti-surge design for improved vehicle stability

Foam Tank

• Capacity: 2,000 liters
• Manufactured from 304 stainless steel
• Excellent corrosion resistance
• Suitable for long-term foam concentrate storage

Both tanks undergo a 24-hour hydrostatic pressure test to ensure outstanding sealing performance and leak-free operation.

High-Capacity Fire Pump

The fire truck features the reliable CB10/60 centrifugal fire pump, providing continuous water supply during firefighting operations.

Pump performance includes:

• Flow capacity: 60 L/s @ 1.0 MPa
• Maximum outlet pressure: ≤2.0 MPa
• Maximum suction depth: 7 m
• Vacuum priming system
• Priming time: ≤35 seconds
• Maximum vacuum: ≥85 kPa

This high-performance pump enables rapid water delivery while maintaining stable pressure throughout emergency operations.

Long-Range Fire Monitor

Mounted on top of the vehicle is the PL48-64YZ fire monitor, designed for accurate long-distance firefighting.

Performance specifications include:

• Water flow: 48–64 L/s
• Water reach: More than 60 meters
• Foam reach: More than 55 meters
• Horizontal rotation: 360°
• Vertical movement: -30° to +70°

The monitor provides excellent flexibility for attacking fires from multiple positions while keeping firefighters at a safer distance.

Professional Foam Proportioning System

The integrated PH64 foam proportioner ensures accurate mixing of foam concentrate with water for effective suppression of flammable liquid fires.

Key features include:

• Operating pressure: 0.6–1.4 MPa
• Flow rate: 64 L/s
• Adjustable foam ratio: 3%–6%
• Manual control system
• Stable and reliable foam delivery

This system is particularly effective for fuel storage facilities, chemical plants, airports, and industrial fire protection.

Comprehensive Pipeline and Control System

The firefighting system incorporates a well-organized pipeline layout that supports efficient water intake, discharge, and circulation.

Main functions include:

• Rear quick suction inlets with filter screens
• Multiple water injection ports
• Internal tank refill pipeline
• Four rear discharge outlets
• PTO cooling pipeline
• Optional pump room heating device for cold climates

The control dashboard is equipped with pressure gauges, vacuum indicators, liquid level displays, valve controls, lighting switches, and clear operating instructions for convenient operation.

Spacious Crew Cab

The crew cab is designed to transport both the driver and firefighting personnel comfortably and safely.

Cab features include:

• Seating configuration for 6 personnel (2+4)
• Left-hand drive
• One sleeper berth
• Air-conditioned cabin
• 100W electronic siren
• Long LED warning light bar
• PTO control system
• Complete dashboard instrumentation

The ergonomic layout enables firefighters to arrive prepared for immediate deployment.

Durable Fire Body Construction

The fire body is manufactured using advanced fabrication techniques to provide long-term durability and corrosion resistance.

Construction highlights include:

• High-strength welded steel framework
• Aluminum alloy roller shutters
• Spacious equipment compartments
• Anti-rust and phosphating treatment
• Galvanized fittings and hardware

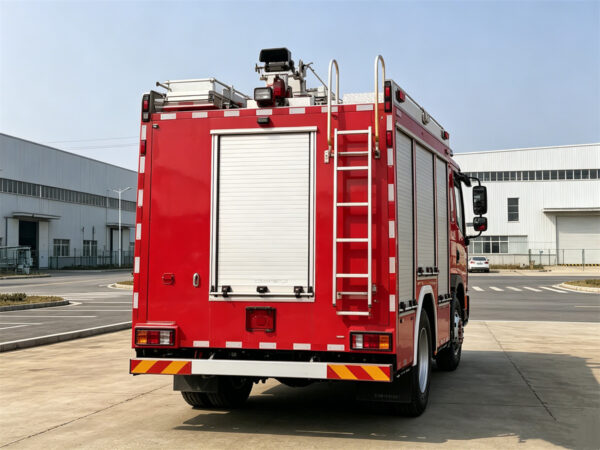

• Rear access ladder
• Independent pump compartment

The practical compartment arrangement allows firefighting equipment to be stored securely while remaining easily accessible during emergency operations.

Advanced Electrical and Warning System

The ISUZU truck is equipped with a complete emergency electrical package to improve operational safety in day and night conditions.

Standard equipment includes:

• Long LED emergency light bar
• Electronic siren and public warning system
• Side red and blue flashing lights
• Pump compartment lighting
• Equipment compartment lighting
• Illuminated control panel
• Independent electrical circuits

These systems provide excellent visibility while enhancing operational safety at emergency scenes.

Complete Firefighting Equipment Package

To ensure immediate readiness for firefighting missions, the vehicle is supplied with a comprehensive set of professional firefighting equipment.

Standard accessories include:

• Suction hoses
• Fire hoses in multiple diameters
• Foam hoses
• Water collectors
• Foam nozzles
• Straight stream and spray nozzles
• Fire hydrant wrenches
• Underground hydrant wrench
• Hose protectors
• Hose hooks
• Triple-head distributor
• Rubber hammer
• Extension ladder
• Various adapters and couplings

The equipment rack utilizes lightweight aluminum alloy construction with dedicated holders that keep every tool securely positioned and readily accessible during emergency response.

Combining a powerful ISUZU chassis, large-capacity 8 CBM water and foam tanks, an advanced firefighting system, and professional rescue equipment, the ISUZU 8 CBM Water Foam Fire Truck delivers exceptional reliability, rapid response capability, and outstanding firefighting performance for modern municipal and industrial fire protection operations.

Specification

Category & Item	Specification Description
1. General Vehicle Specifications
Overall Dimensions (L×W×H)	8,730 × 2,550 × 3,720 mm (approx.)
Water Tank Capacity	6,000 kg
Water Tank Material	Mild Steel
Foam Tank Capacity	2,000 kg
Foam Tank Material	Stainless Steel #304
Engine Power	280 kW / 380 HP
Maximum Driving Speed	95 km/h
Wheelbase	5,600 mm
Emission Standard	Euro 5
Crew Capacity	2+4 Persons
Fire Monitor Reach Range	Water >60m / Foam >55m
Approach / Departure Angle	17° / 12°
2. Truck Chassis Specifications
Chassis Model Number	QL5210TZZU2QDRY 4×2
Chassis Make	ISUZU
Engine Power	280 kW
Emission Standard	Euro 5
Wheelbase	5,600 mm
Gross Vehicle Weight (GVW)	17,000 kg
PTO Specification	Full power sandwich
3. Crew Cab Specifications
Structure	Flat, 2 doors, one row seats & one sleeper
Crew Capacity	2+4 Persons
Driver Side	Left-hand side
Additional Equipment	Besides the original chassis equipment, the following were added: 100W siren, long-line fire lights, marker lamp, outline marker lamp, PTO, etc.
Dashboard	Speed/fuel/rotating speed dashboard with indicators
4. Fire Package Structure & Technological Requirements
Overall Layout	Middle position of the central compartment. The back of the body is a pump compartment. The front and two sides of the middle of the body are storage compartments. Exposed type independent water tank in the compartment.
Body Structure	Aluminum alloy shutters installed on both sides of the body and the back of the pump compartment; ladders installed on the back of the body on the right side.
Technological Requirements	All welding panels and skeleton steels go through a strict anti-rust, anti-corrosion, and phosphating pickling process. All accessories and standard components go through galvanization, electroplating, and anti-corrosion treatments. After tank welding, defects such as empty solder are removed, and then a 24-hour hydrostatic test is conducted to ensure no leakage.
5. Tanker Specifications
Item Water Tank Foam Tank Structure Exposed tank, all metal welding structure, overall corrosion resistance, with shock absorption measures Exposed tank, all metal welding structure, overall corrosion resistance, with shock absorption measures Material High-quality carbon steel Q235A High-quality #304 Stainless Steel Capacity 6,000 kg 2,000 kg Main Devices 2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room; 1 overflow valve device / 2 drain outlet with ball valve; 2 DN65 water inlet holes at both sides, with ball valve and inside bend upturning pipeline 2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room; 1 overflow valve device / 2 drain outlet with ball valve; 2 DN65 water inlet holes at both sides, with ball valve and inside bend upturning pipeline
6. Fire Control System Specifications
6.1 Fire Pump
Model	CB10/60 normal pressure fire pump
Type	Ordinary pressure centrifugal pumps
Flow Capacity	60L/[email protected]
Outlet Pressure	≤2.0 MPa
Suction Depth	7m
Priming Device	Vacuum pump
Priming Time	≤35s
Maximum Vacuum	≥85kPa
6.2 Fire Package Control Dashboard
Display	RPM/vacuum/water pressure/liquid level indicator
Control Functions	Lighting/valves control switches, with pipeline layout and operation/maintenance illustration
Installation Location	Upper-left in the pump room
Control Modes	1. Control in the drive cabin (RPM, pump control); 2. Remote manual control in the pump room
6.3 Fire Monitor
Model	PL48-64YZ High-quality fire monitor
Make	Weisite Fire Equipment Co., LTD
Flow Capacity	48-64L/[email protected]
Rotation Angle	360°
Elevation Angle	-30° ~ +70°
Shooting Reach	Water ≥60m / Foam ≥55m
6.4 Foam Proportioner
Model	PH64
Working Pressure	0.6-1.4MPa
Flow Capacity	64L/s
Foam Ratio	3%-6% (adjustable)
Operation Type	Manual
6.5 Pipe Line System
Suction Line	2 DN150 quick suction hole at the rear of the pump room with filter screen and pneumatic Butterfly valve switch
Injection Pipeline	2 DN65 injection holes on both sides, 1 DN80 injection hole inside pump room
Tank Water Injection	Injecting water from pump to water tank through 1 Φ65mm injection hole inside pump room
Outlet Pipeline	4 DN80 normal pressure outlets at the rear
Cooling Pipeline	Cooling pipeline, control valve to cooling PTO
Heat Device	To raise temperature in pump room (optional)
7. Electrical System Specifications
Independent Circuit	Independent circuit system
Compartment Lighting	Headlamps installed in the pump compartment and storage compartment; auxiliary lighting with lighting switch and indicator light on the operating dashboard
Side Flashing Light	A set of red and blue flashing lights is installed on both sides of the vehicle body
Cabin Warning Device	1 piece long red light installed on the top of the cabin; 1 piece electronic alarm installed in the cabin; control box installed below in front of the driver
8. Painting Specifications
Finish	Overall appearance sprayed with fire-fighting red (R03) baking paint, consistent with the chassis
Color Scheme	Cab and truck body are fire-fighting red; equipment room interior is light gray; aluminum alloy door frame is aluminum color; chassis frame and wheel hub are phosphate black bottom; rim is silver; fenders and bumpers are dark gray
Reflective Markings	3M reflective marking strips added around the body and pedals
Paint Standard	Paint film color meets the requirements of R03 red in the national standard GB/T3181
9. On-board Equipment List
Item Parameters Unit Quantity Sucking Hose Φ150×2m piece 1 Water Filter Φ150 piece 1 Water Collector Φ150mm×Φ65mm piece 2 Sucking Pipe Wrench Φ150mm piece 1 Fire Hydrant Wrench FB450 piece 1 Underground Fire Hydrant Wrench FBA800 piece 4 13 Type Water Hose Φ80mm×20m disc 14 20 Type Water Hose Φ80mm×20m disc 4 20 Type Water Hose Φ65mm×20m disc 2 13 Type Water Hose Φ65mm×5m disc 4 Adapter Φ80mm×65mm piece 1 Straight Stream Nozzle PQ4 piece 1 Diversion Spray Nozzle PQ8 piece 1 Foam Nozzle Φ40 piece 1 Foam Nozzle Φ80 inlet Φ65 outlet piece 2 Out-sucking Foam Hose 6m set 8 Triple Head Distributor Rubber piece 9 Rubber Hammer – piece 1 Extension Ladder – piece 1 Hose Protector – pair 1 Hose Hook – piece 1 Hose Gaiter – piece 1
