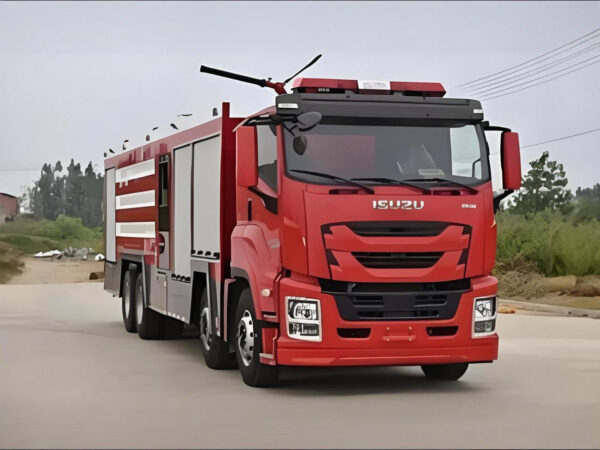

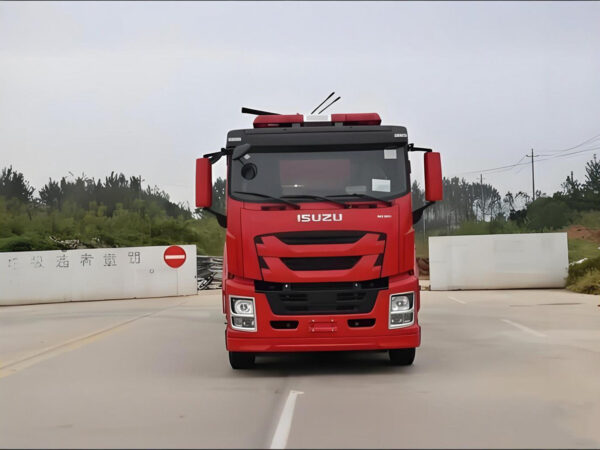

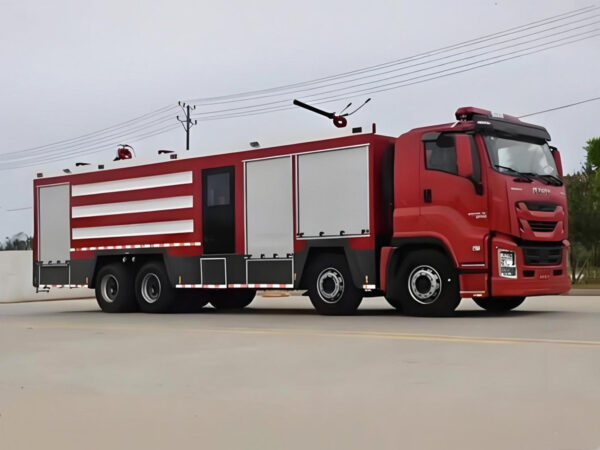

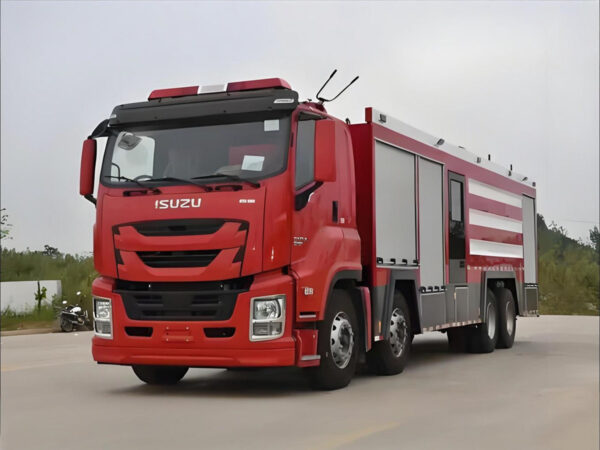

ISUZU 12000L Water Foam Powder Fire Fighting Truck

Built upon the proven and powerful ISUZU Giga chassis, this firefighting apparatus represents a pinnacle of heavy-duty emergency response engineering. Designed for maximum endurance and performance in demanding scenarios, the truck features a formidable 8*4 drive configuration, ensuring superior traction and stability across diverse and challenging terrains encountered during fire suppression operations. At its heart lies a high-performance diesel engine exceeding 450hp, delivering the substantial power required to operate complex firefighting systems while maintaining efficient mobility. The vehicle complies with the stringent Euro 4 emission standard, reflecting a commitment to environmental responsibility without compromising operational power. With a generous payload capacity and a manual transmission for precise control, this newly manufactured unit provides a solid, dependable, and customizable foundation engineered to serve as a critical asset for municipal fire brigades, industrial fire departments, and specialized hazard response teams.

Feature

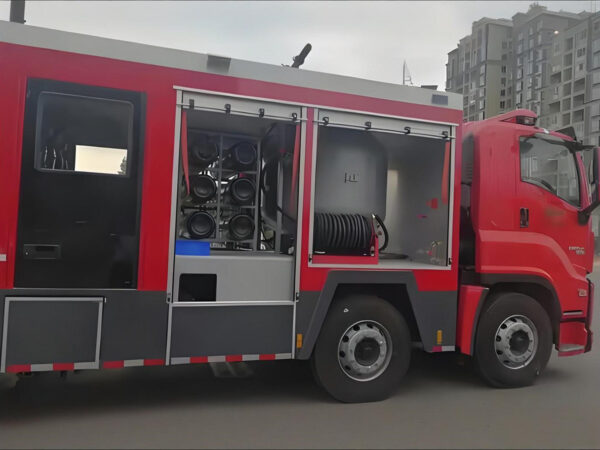

Integrated Multi-Agent Suppression System This fire truck is distinguished by its exceptional carrying capacity for three primary firefighting agents, enabling a versatile and sustained attack on various fire classes. The main water tank, constructed from durable carbon steel, holds an impressive 12,000 liters, forming the backbone for extended cooling and suppression. Complementing this are two dedicated stainless steel tanks: a 3,400-liter foam tank for creating effective blanketing foam layers and a 2,000-liter powder tank specifically for combating flammable liquid and electrical fires, providing a comprehensive solution for complex fire scenarios.

High-Performance Firefighting Pump and Monitor System Central to its operational efficacy is the powerful CB10/100 fire pump, capable of delivering a substantial output of 100 liters per second, which ensures a strong and consistent supply of water or foam solution to the attack lines. This pump can be flexibly installed at the center or rear of the vehicle to suit specific operational doctrines and space requirements. For major offensive operations, the truck is equipped with a roof-mounted PL80W fire monitor with a flow rate of 80 liters per second, allowing for the delivery of large volumes of water or foam from a safe, remote distance. A dedicated PF30 dry powder monitor is also installed, enabling rapid deployment of dry chemical agent for targeted suppression of specific high-hazard fires.

Durable Construction and Operational Specifications The appliance is built for longevity and resilience, utilizing robust materials like carbon steel in its body construction to withstand harsh operational environments. With overall dimensions of approximately 11,995mm in length, 2,550mm in width, and 3,800mm in height, the vehicle commands a substantial presence and carries a full complement of 16+1 wheels to support its significant weight and capacity. The platform is offered with available customization options, allowing fire departments to tailor certain aspects of the equipment layout and storage to meet their unique procedural needs and response protocols, ensuring this ISUZU fire truck integrates seamlessly into any professional fleet.

SPECIFICATIONS
