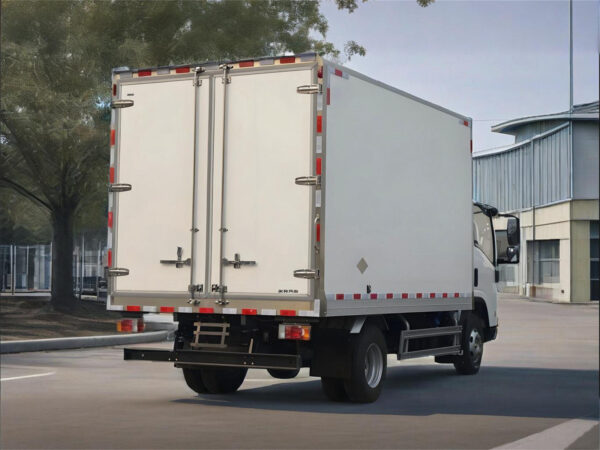

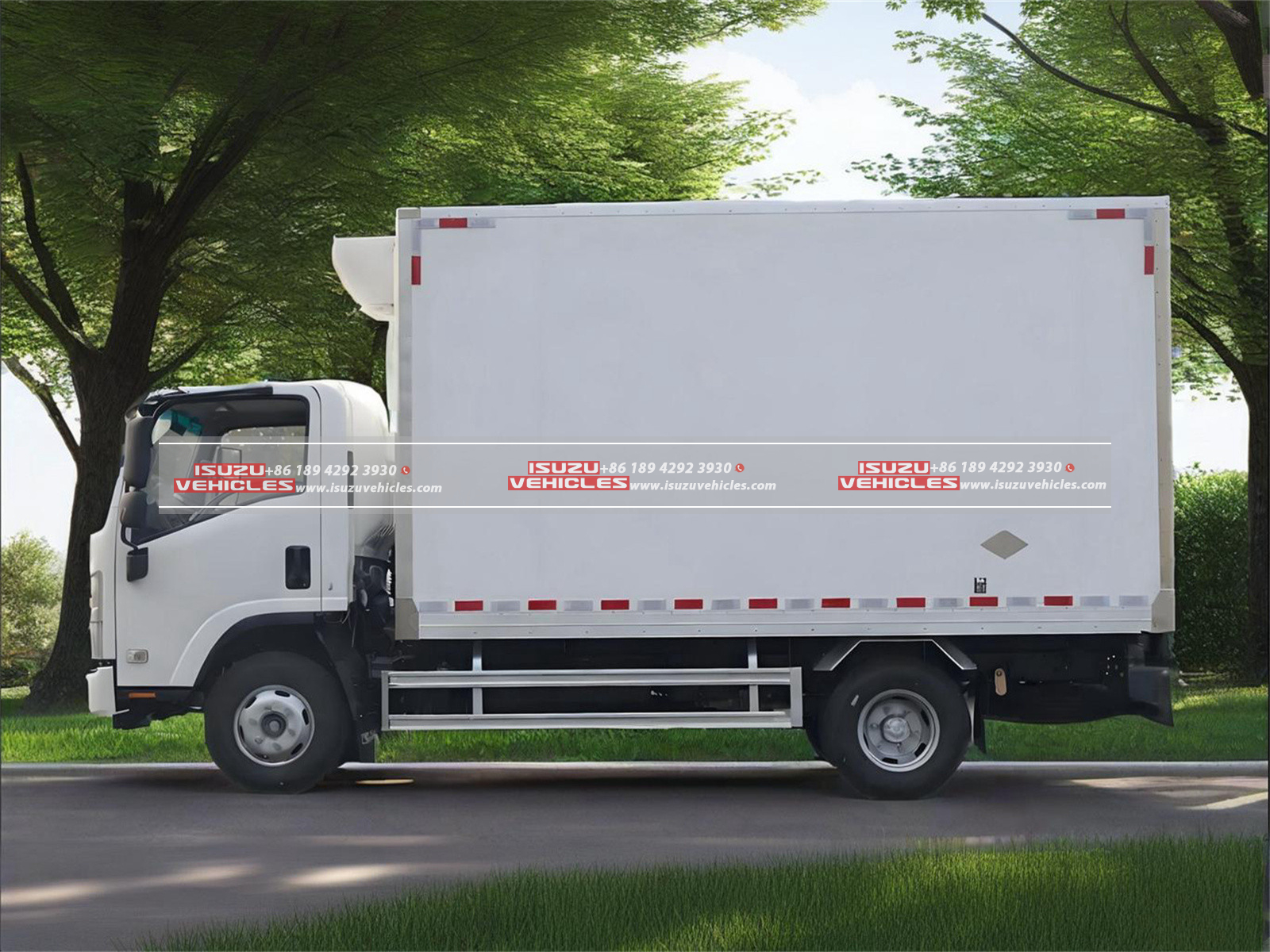

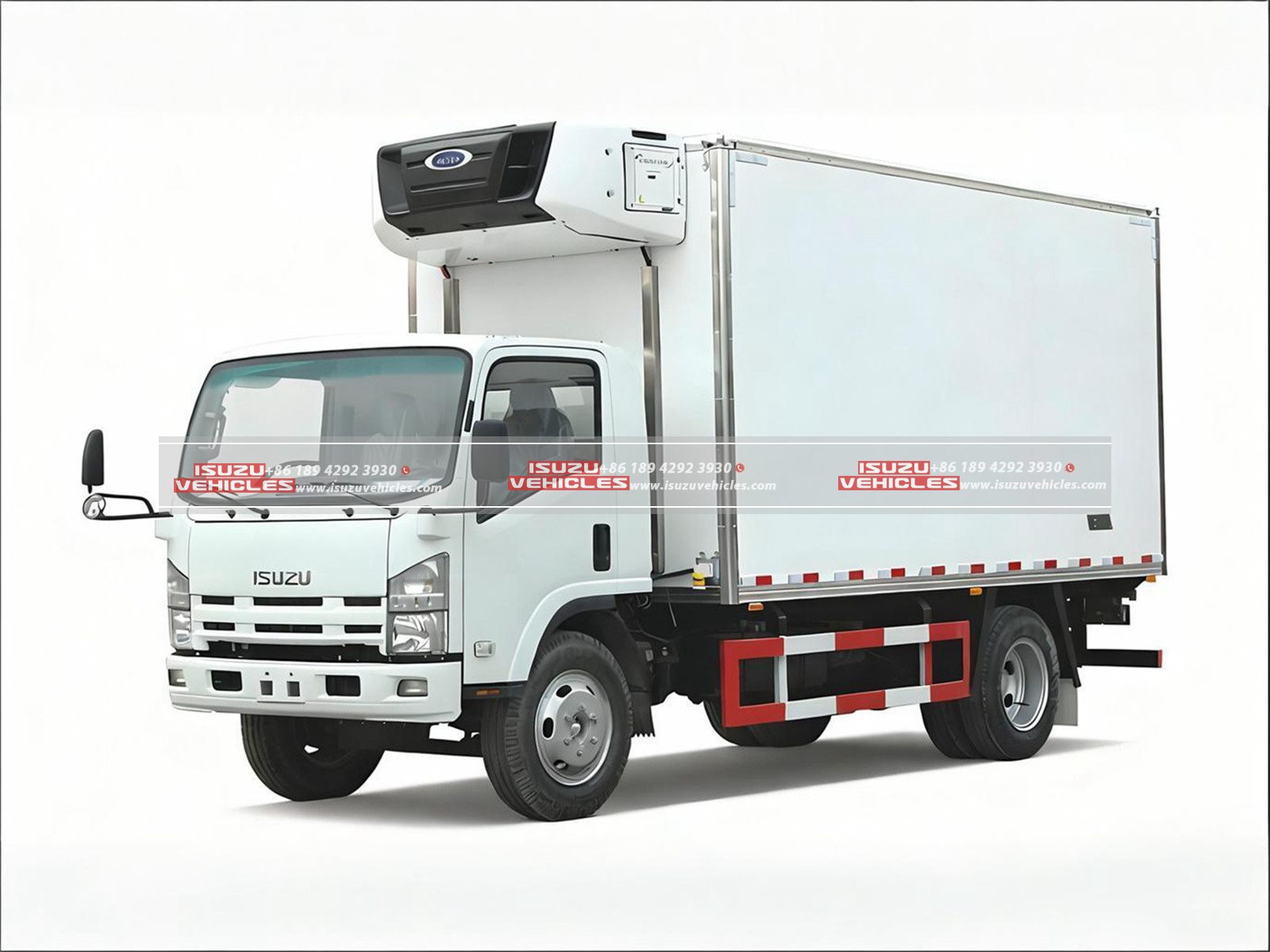

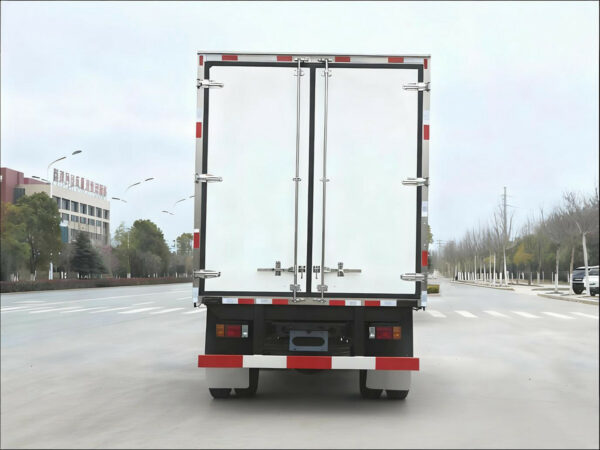

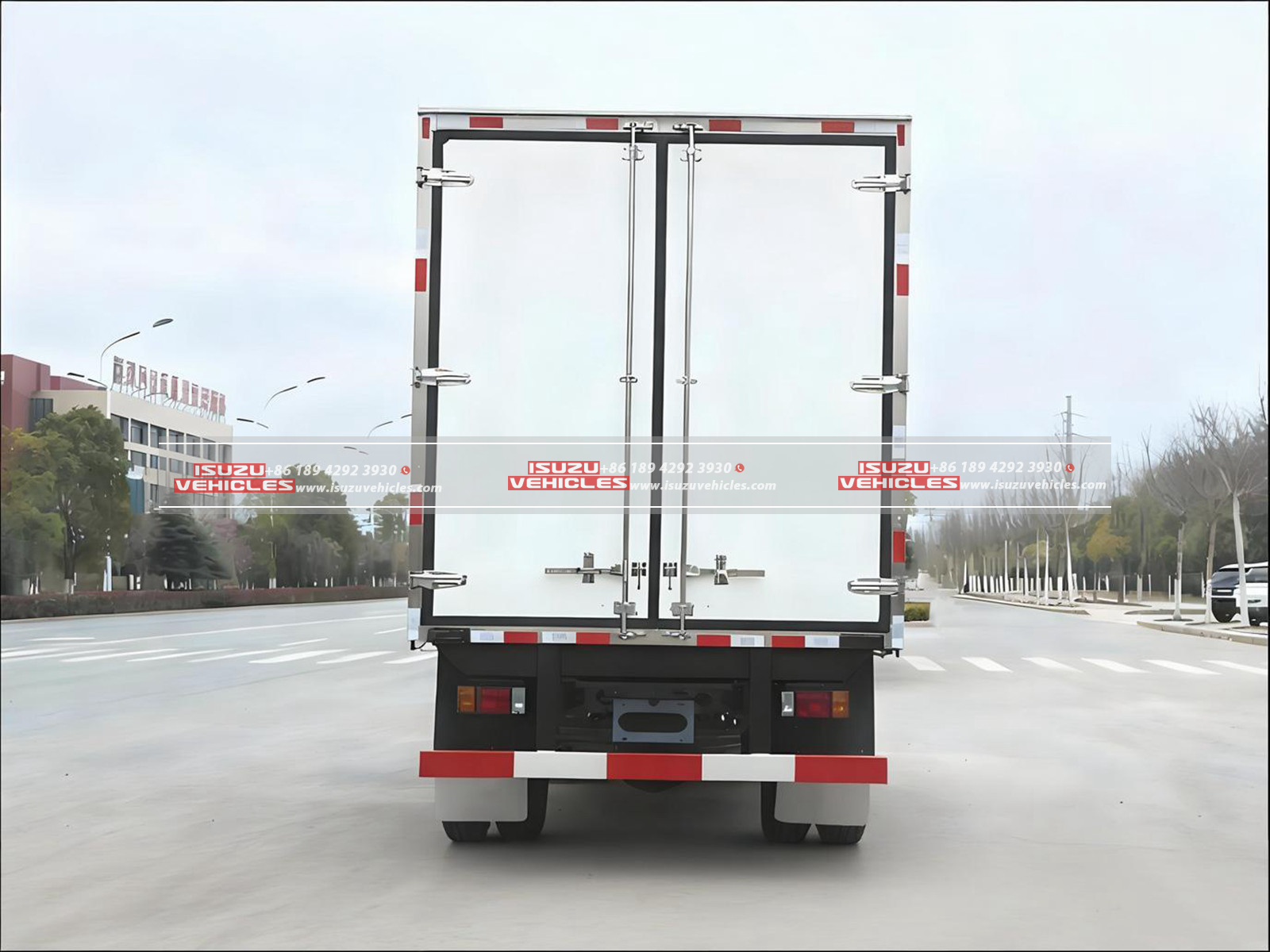

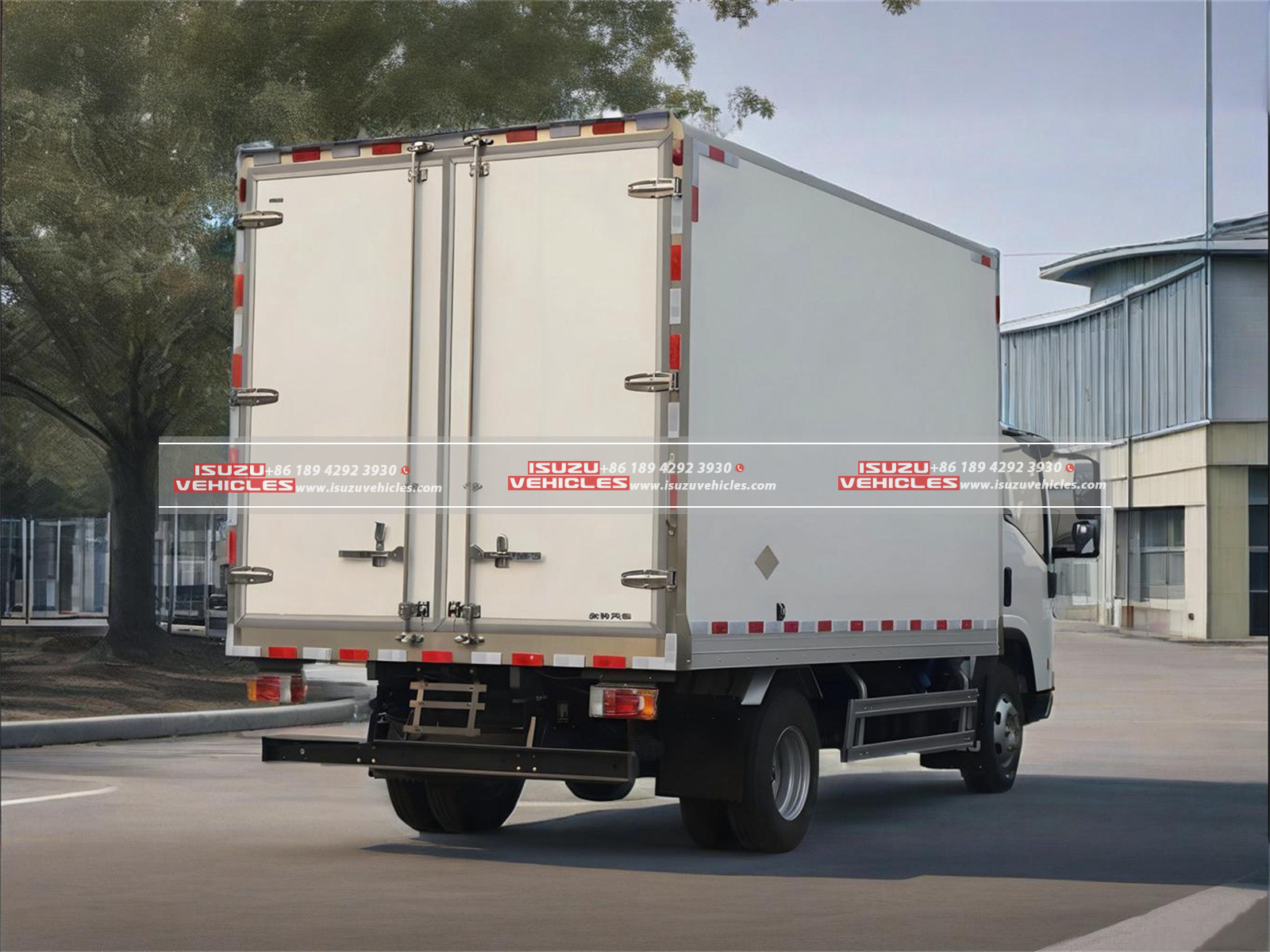

ISUZU 700P 5-Meter Refrigerated Truck

The ISUZU 700P 5-meter refrigerated truck is engineered to meet the rigorous demands of modern cold-chain logistics, combining ISUZU’s proven chassis reliability with advanced refrigeration technology. Built on the ISUZU 700P 3X chassis (Euro 6 compliant), this truck features a 190HP 4HK1-TCG61 engine delivering 507N·m torque across a broad rpm range (1,600–2,600 rpm), paired with a 6-speed manual transmission (MLD-6Q) for optimized fuel efficiency and load management. With a 20-cubic-meter cargo capacity and 5.2-meter box length, it balances payload versatility with urban maneuverability (turning radius: 7.2m).

The all-steel day cab (2,170mm width) prioritizes driver comfort with 4-point hydraulic suspension, adjustable seats, and multifunctional steering. Safety systems include dual-circuit air brakes, ABS, and engine exhaust braking, while the semi-elliptic leaf spring suspension (8/10+6) ensures stability under full load (11,000kg GVW).

At its core lies the Carrier C700 refrigeration unit, paired with polyurethane sandwich-panel walls (100mm thickness) for superior thermal insulation (±0.5°C stability). The all-closed aluminum structure with stainless steel hinges and LED interior lighting ensures durability and hygiene for sensitive cargo like pharmaceuticals or fresh produce.

---

Features

1. Chassis & Cab

• Powertrain:
  • 5.2L turbocharged diesel engine (139kW/190HP) with low-rpm high-torque output for fuel-efficient long hauls.
  • Non-synchronized manual transmission for heavy-load adaptability.
• Safety & Control:
  • Drum brakes with ABS and spring parking brakes for secure stops.
  • Recirculating ball steering with tilt adjustment for reduced driver fatigue.
• Ergonomics:
  • Day cab with 3 seats, A/C, and 24V electrical system.
  • 235/75R17.5 tires for balanced traction and load distribution.

2. Refrigeration System

• Temperature Control:
  • Carrier C700 unit with digital panel for precise -25°C to +25°C range.
  • 0.8–1.2°C/min cooling rate for rapid temperature recovery.
• Cargo Box:
  • 5.3m³ internal volume (L5,980×W2,150×H1,950mm) with aluminum alloy floor (anti-slip pattern).
  • Double-door rear access + side door for flexible loading.

3. Structural Design

• Insulation:
  • Polyurethane foam core (K-value ≤0.035W/m·K) minimizes thermal leakage.
  • Seamless stainless steel door frames resist corrosion.
• Durability:
  • 2-layer chassis frame with 5-ton front/7-ton rear axle ratings.
  • Aluminum wrap-angle profiles reduce weight while maintaining rigidity.

4. Dimensions & Weights

5. Optional Add-Ons

• Telematics for real-time temperature monitoring.
• Lift gate for dock-free operations.

---

This ISUZU 700P refrigerated truck is a turnkey solution for distributors requiring precision temperature control, operational efficiency, and long-term durability in perishable goods transport. Its Carrier-powered cooling and ISUZU’s drivetrain reliability make it ideal for food, floral, and pharmaceutical logistics.

SPECIFICATIONS

Parameter	Specification
Load Capacity	20 CBM
Box Dimensions
– Length	5,000 mm
– Width	2,100 mm
– Height	1,900 mm
Main Structure	Keel wooden insulation structure
Insulation
– Material	Polyurethane (80mm thickness)
– Outer Layer	Fiberglass reinforced plastic (2mm)
– Inner Layer	Fiberglass reinforced plastic (2mm)
Floor & Corners
– Floor Material	Aluminum alloy pattern plate
– Outer/Inner Corners	Aluminum alloy
Doors & Access
– Rear Door	Double-open
– Side Door	1
– Door Hardware	Stainless steel hinges and locks
– Rear Frame	Stainless steel
Interior	LED dome light
Refrigeration System
– Unit Brand/Model	Carrier C700
– Temperature Range	-18°C to +20°C (adjustable)
