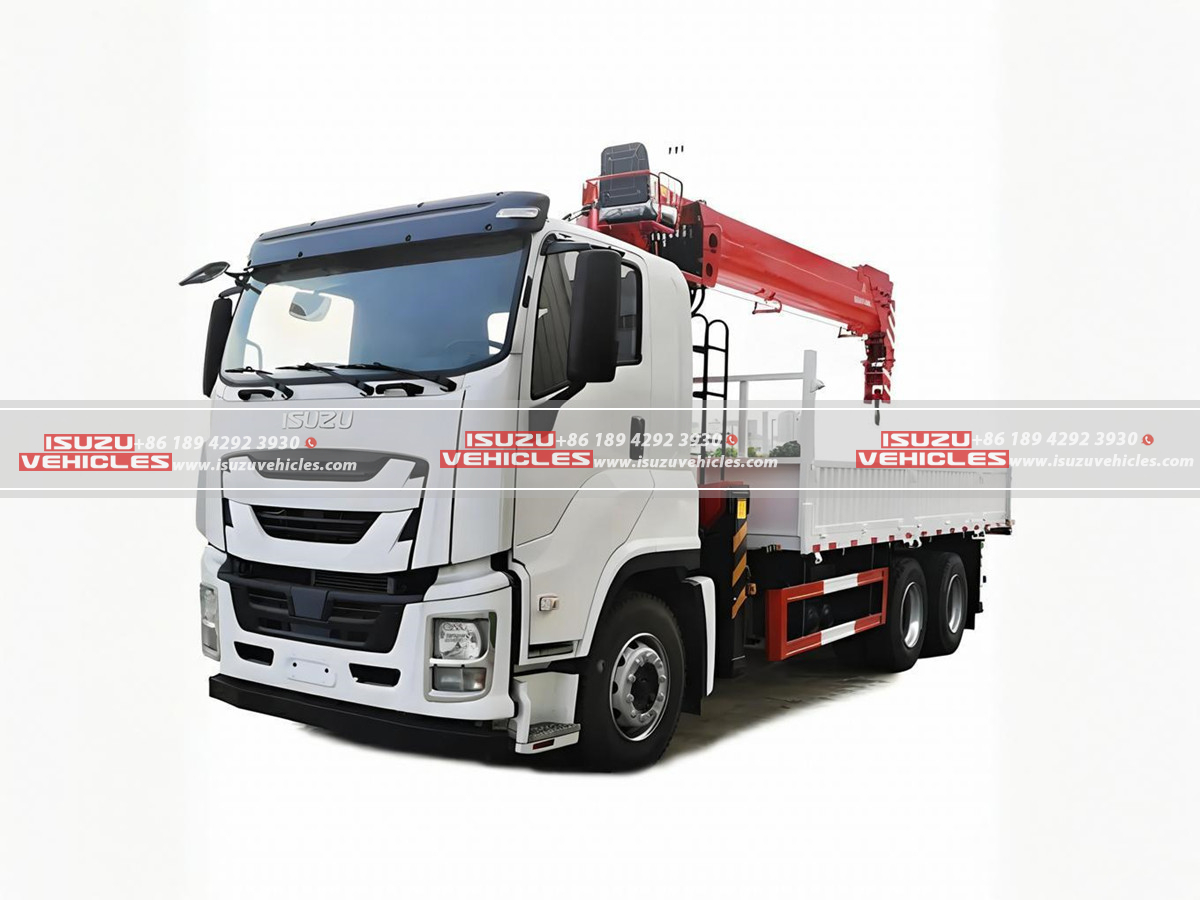

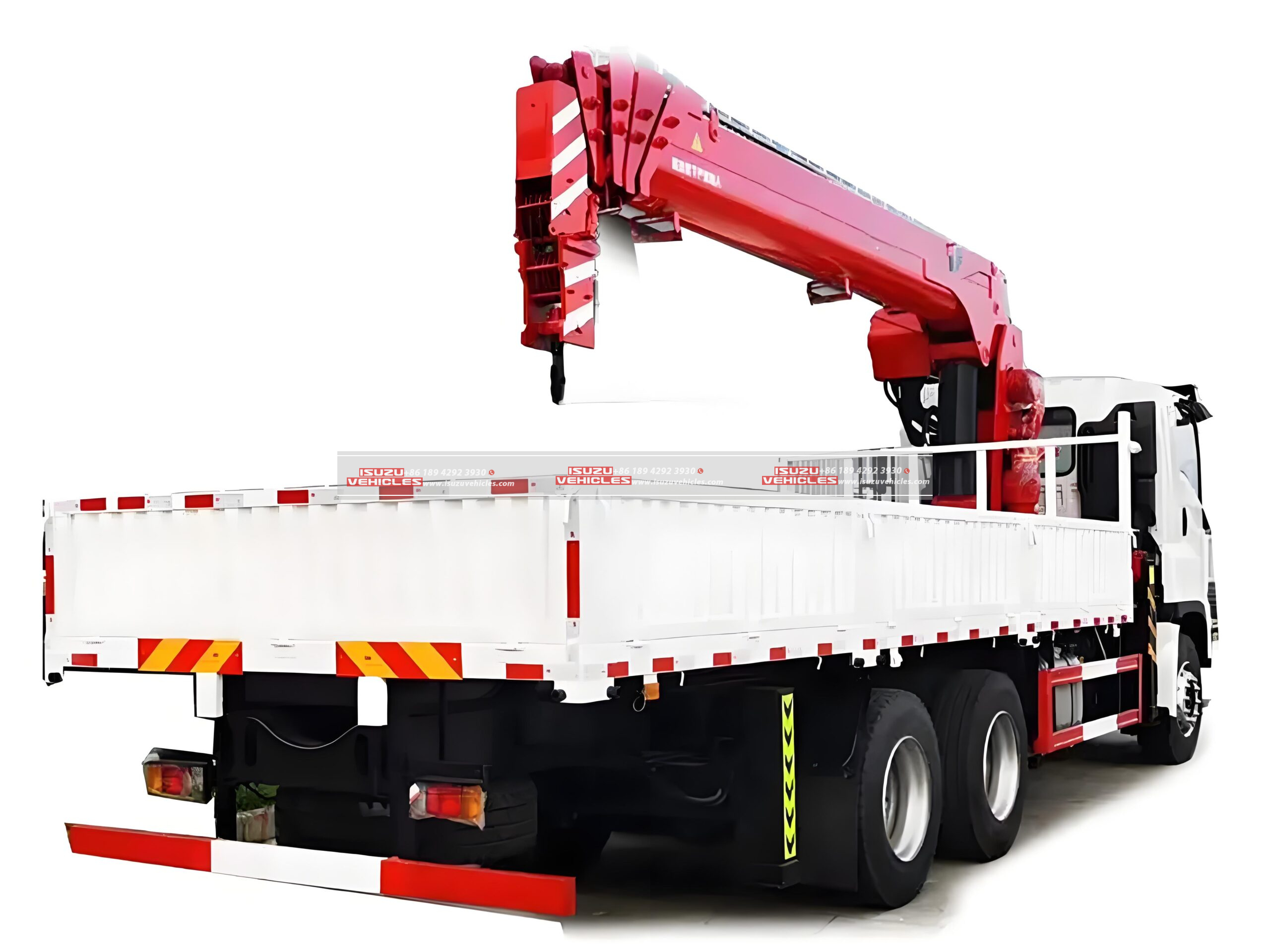

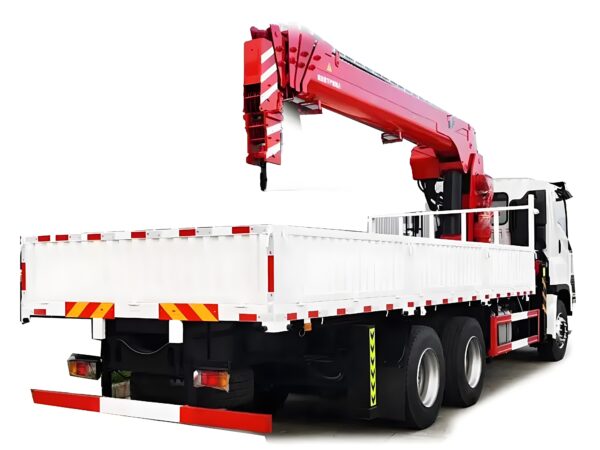

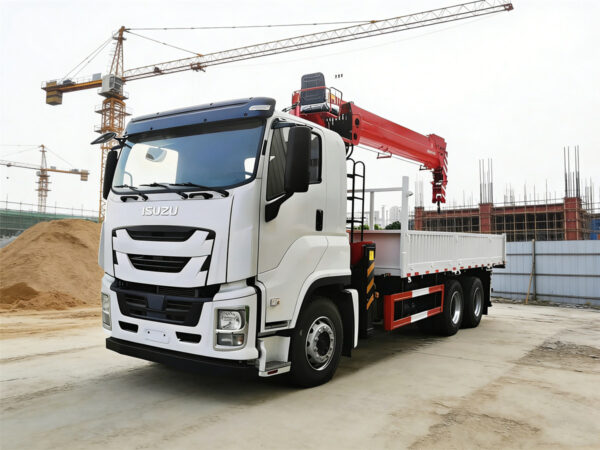

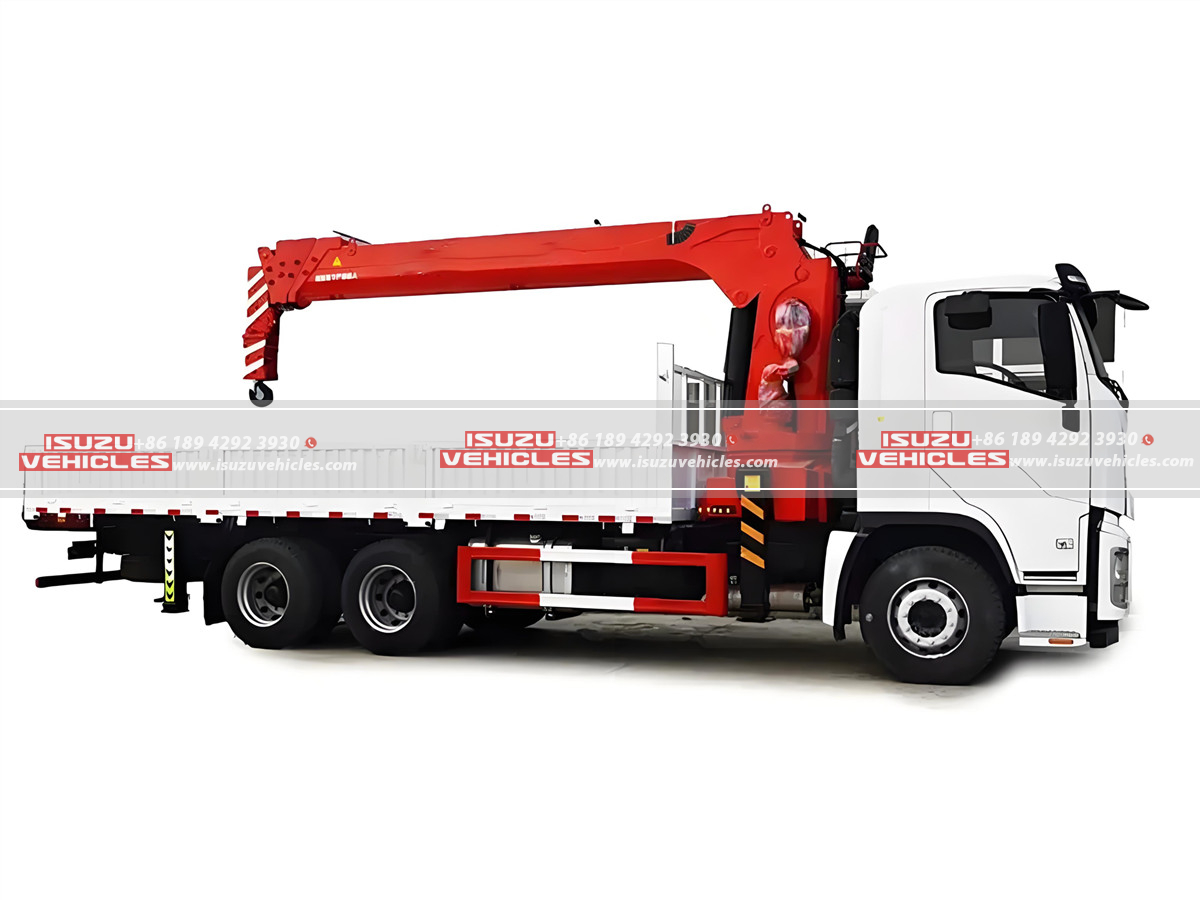

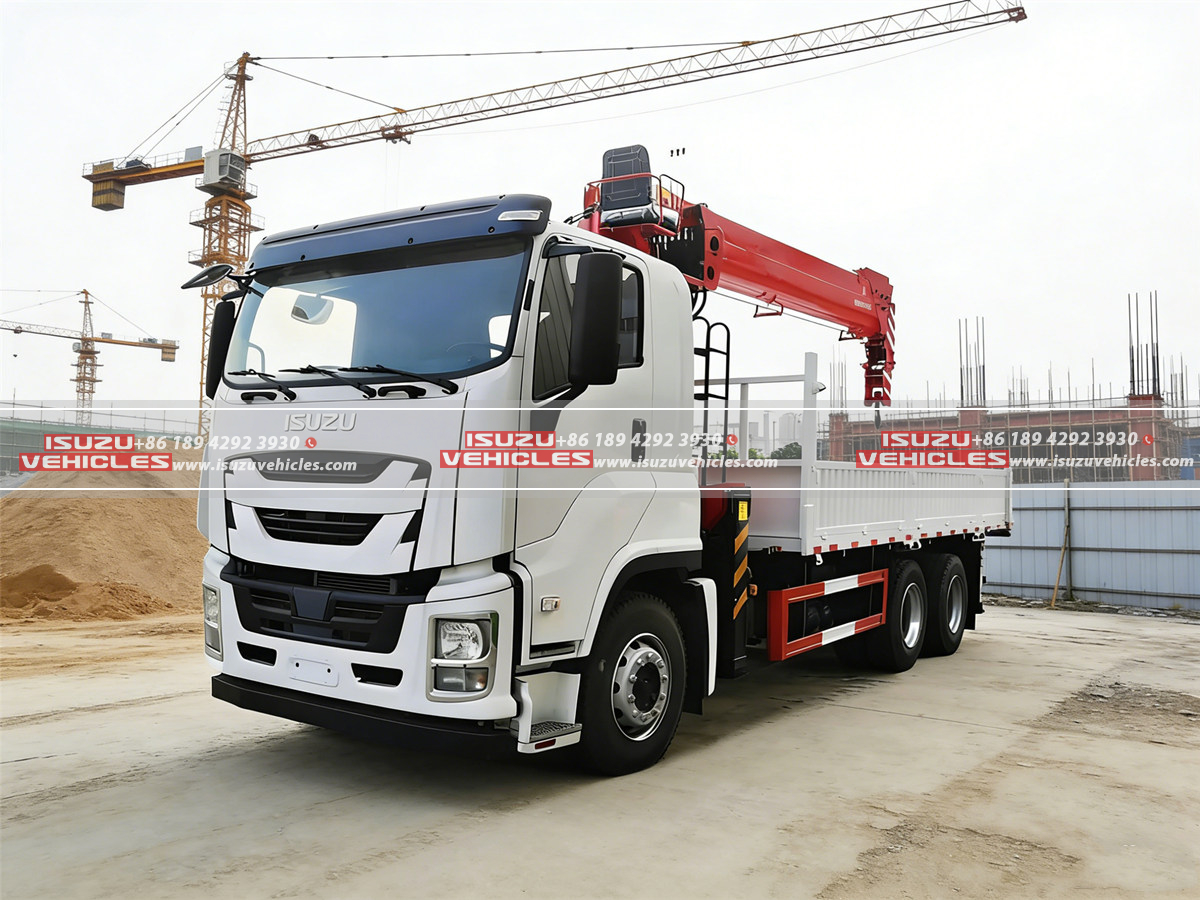

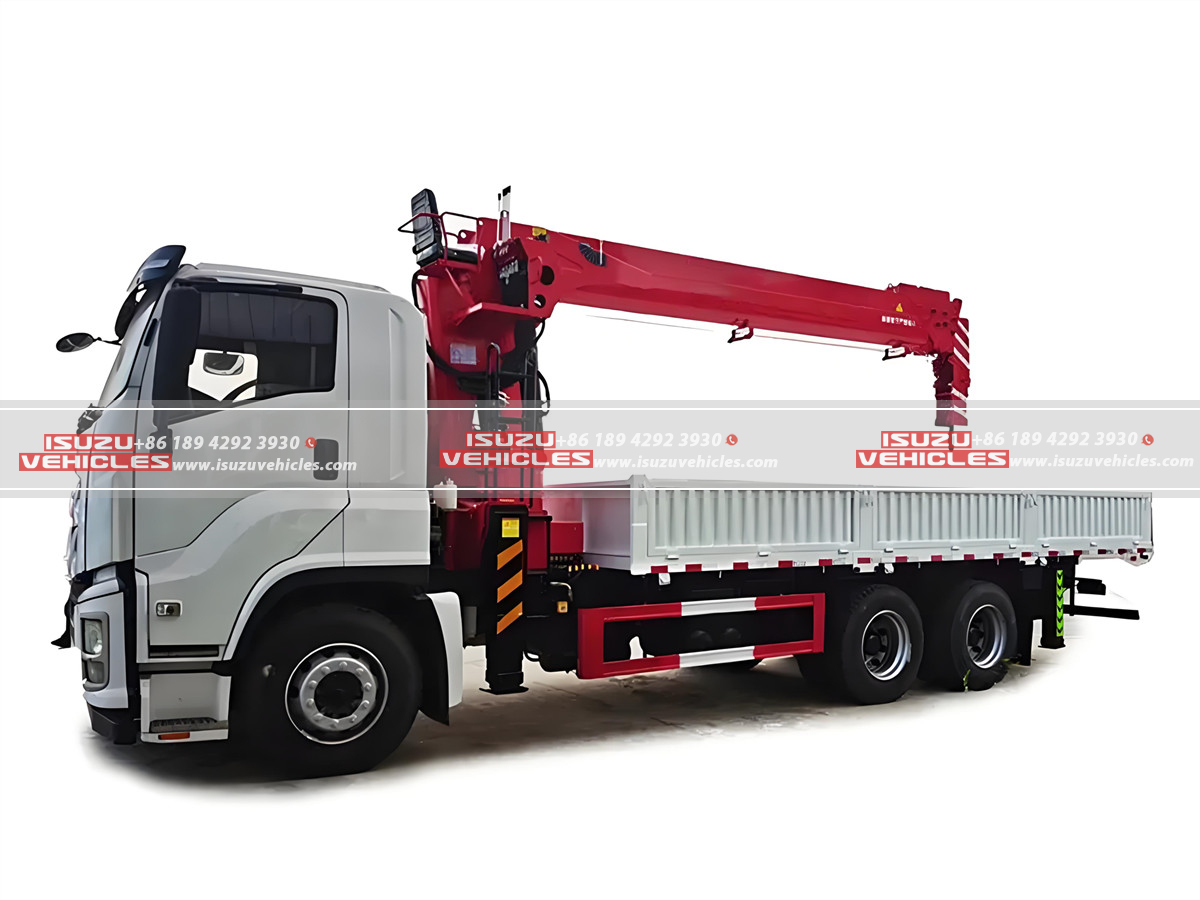

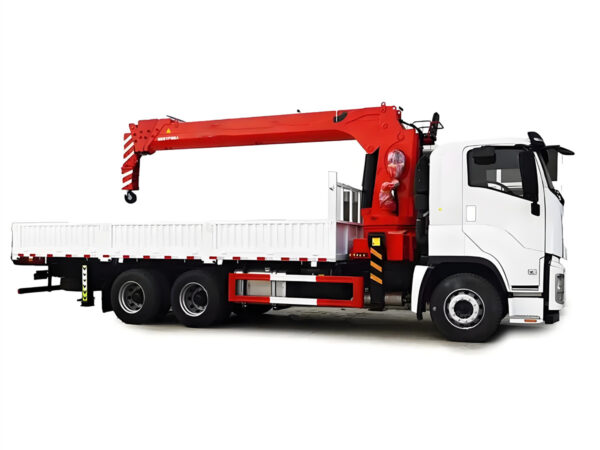

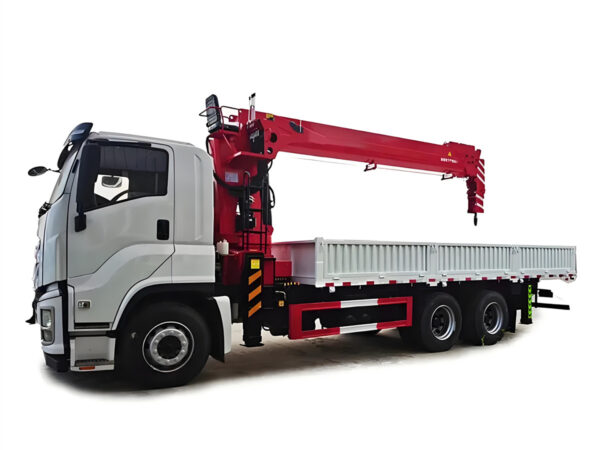

ISUZU 8 Ton Telescopic Boom Crane Truck
The ISUZU 8 Ton Telescopic Boom Crane Truck is a robust and highly adaptable lifting and transport solution, engineered on the reliable ISUZU QL1250FTFZY 6×4 chassis and integrated with the advanced PALFINGER SPS17500B-F crane, delivering superior lifting precision, structural durability, and operational efficiency for construction, logistics, and industrial applications.
At the core of this machine is the proven Isuzu Motors 6HK1-TCG60 engine, which produces 221 kW (300 HP) at 2400 rpm from a 7.79L turbocharged and intercooled inline 6-cylinder diesel engine, ensuring consistent power delivery and high torque output even under heavy-duty working conditions. Paired with a FAST 9-speed manual transmission (9JS119TA), featuring 9 forward gears and 1 reverse gear, the truck offers smooth shifting performance and precise control across varied terrains and load scenarios.
The 6×4 right-hand drive configuration enhances traction and load distribution, making it particularly suitable for demanding road conditions and heavy cargo transport. The extended wheelbase (5700+1370 mm) and reinforced multi-leaf spring suspension (7/10) further improve stability, load-bearing capacity, and long-term durability, ensuring reliable performance during continuous operations.
The ISUZU VC61 5X sleeper cabin, designed for both comfort and practicality, includes air conditioning, central locking, and electric windows, providing a comfortable and ergonomic environment for operators during long working hours. Complementing its lifting capability, the truck features a heavy-duty CSCTRUCK cargo box (8000 mm length) with 5 mm floor plates and 3 mm side plates, allowing efficient transport of materials alongside crane operations, thus maximizing operational productivity.
Features
Advanced PALFINGER SPS17500B-F Crane System
The integrated PALFINGER SPS17500B-F telescopic crane delivers a rated lifting capacity of 8,000 kg at 2.0 meters and a powerful rated lifting moment of 19.8 mt, ensuring efficient handling of heavy materials, machinery, and industrial components with high precision and safety.
Extended Reach and Versatile Lifting Performance
With a maximum outreach of 13.5 meters and a maximum lifting height of 15.3 meters, the crane provides excellent working coverage for both horizontal and vertical lifting tasks. The 4-section telescopic boom, extending from 4.8 meters to 13.8 meters, ensures flexibility and adaptability across diverse operational environments.
Precision Control and Smooth Operation
The crane system features continuous 360° slewing capability, allowing seamless rotation for efficient load positioning, while the boom raising angle from 0° to 75° enables precise handling under various working conditions. The floor control system ensures safe, intuitive, and responsive operation, enhancing overall work efficiency.
High-Performance Hydraulic System
Designed for demanding lifting applications, the crane is equipped with a high-efficiency hydraulic system featuring:
- Recommended system flow: 70 L/min
- Operating pressure: 25–28 MPa
- Recommended oil tank capacity: 100 L
This configuration ensures stable lifting performance, rapid response, and reliable operation even during intensive workloads.
Enhanced Stability and Structural Strength
The crane truck is equipped with fully extended outriggers spanning 5.6 meters, providing excellent stability during lifting operations, even at maximum outreach. Additionally, the system delivers a dynamic crane moment of 301.1 kNm (30.7 mt) and a torsional moment of 19.2 kNm, ensuring structural integrity and safe load handling under dynamic conditions.
Heavy-Duty Chassis and Road Performance
The ISUZU 6×4 chassis platform is engineered for durability and high performance, featuring:
- Gross vehicle weight of 27,000 kg
- High-capacity axles (7000 kg front, 2×10,000 kg rear)
- Durable tire configuration (295/80R22.5, 10+1 units)
- 400L fuel tank for extended operational range
- ABS braking system for improved safety
These features ensure reliable performance across long-distance transport and heavy-duty applications.
Integrated Transport and Lifting Solution
With an 8000 mm cargo box, high lifting capacity, and efficient hydraulic system, this vehicle serves as a comprehensive cargo truck and crane unit, reducing the need for additional machinery while significantly improving operational efficiency in logistics, construction, and industrial sectors.
The ISUZU 8 Ton Telescopic Boom Crane Truck combines powerful lifting performance, advanced hydraulic technology, and reliable chassis engineering, making it a highly efficient and dependable solution for businesses seeking productivity, durability, and versatility in a single integrated platform.

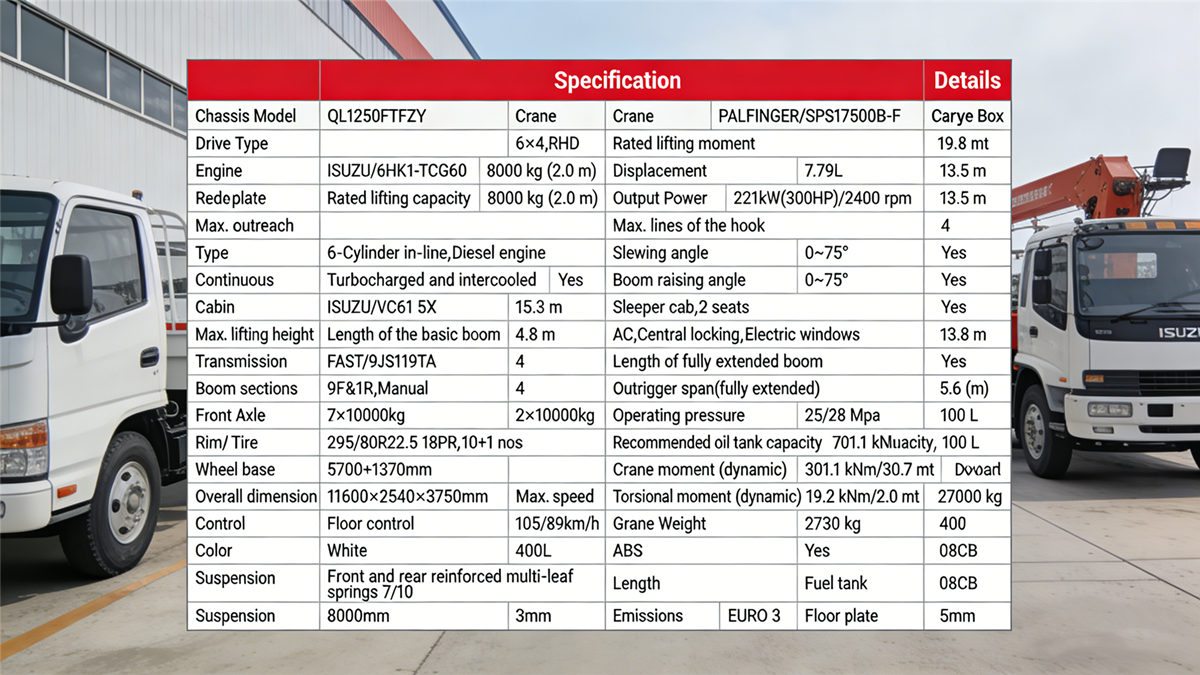

SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Model | QL1250FTFZY |
| Drive Type | 6×4, RHD |
| Engine | ISUZU/6HK1-TCG60 |
| Displacement | 7.79 L |
| Output Power | 221 kW (300 HP) / 2400 rpm |
| Engine Type | 6-Cylinder in-line, Diesel engine, Turbocharged and intercooled |
| Cabin | ISUZU/VC61 5X, Sleeper cab, 2 seats |
| Cabin Features | AC, Central locking, Electric windows |
| Transmission | FAST/9JS119TA, 9 forward & 1 reverse speeds, Manual |
| Front Axle Capacity | 7000 kg |
| Driving Axle Capacity | 2×10000 kg |
| Rim / Tire | 295/80R22.5 18PR, 10+1 nos |
| Wheel base | 5700+1370 mm |
| Overall Dimension | 11600×2540×3750 mm |
| Gross Weight | 27000 kg |
| Max. Speed | 105/89 km/h |
| Color | White |
| Fuel Tank | 400 L |
| ABS | Yes |
| Suspension | Front and rear reinforced multi-leaf springs (7/10) |
| Emissions | EURO 3 |
| Crane Model | PALFINGER/SPS17500B-F |
| Rated Lifting Moment | 19.8 mt |
| Rated Lifting Capacity | 8000 kg (at 2.0 m outreach) |
| Max. Outreach | 13.5 m |
| Max. Lines of the Hook | 4 |
| Slewing Angle | Continuous |
| Boom Raising Angle | 0~75° |
| Max. Lifting Height | 15.3 m |
| Length of Basic Boom | 4.8 m |
| Length of Fully Extended Boom | 13.8 m |
| Boom Sections | 4 |
| Outrigger Span (Fully Extended) | 5.6 m |
| Recommended System Volume | 70 L/min |
| Operating Pressure | 25/28 Mpa |
| Recommended Oil Tank Capacity | 100 L |
| Crane Moment (Dynamic) | 301.1 kNm / 30.7 mt |
| Torsional Moment (Dynamic) | 19.2 kNm / 2.0 mt |
| Control | Floor control |
| Crane Weight | 2730 kg |
| Cargo Box Model | 08CB |
| Cargo Box Length | 8000 mm |
| Cargo Box Side Plate Thickness | 3 mm |
| Cargo Box Floor Plate Thickness | 5 mm |
