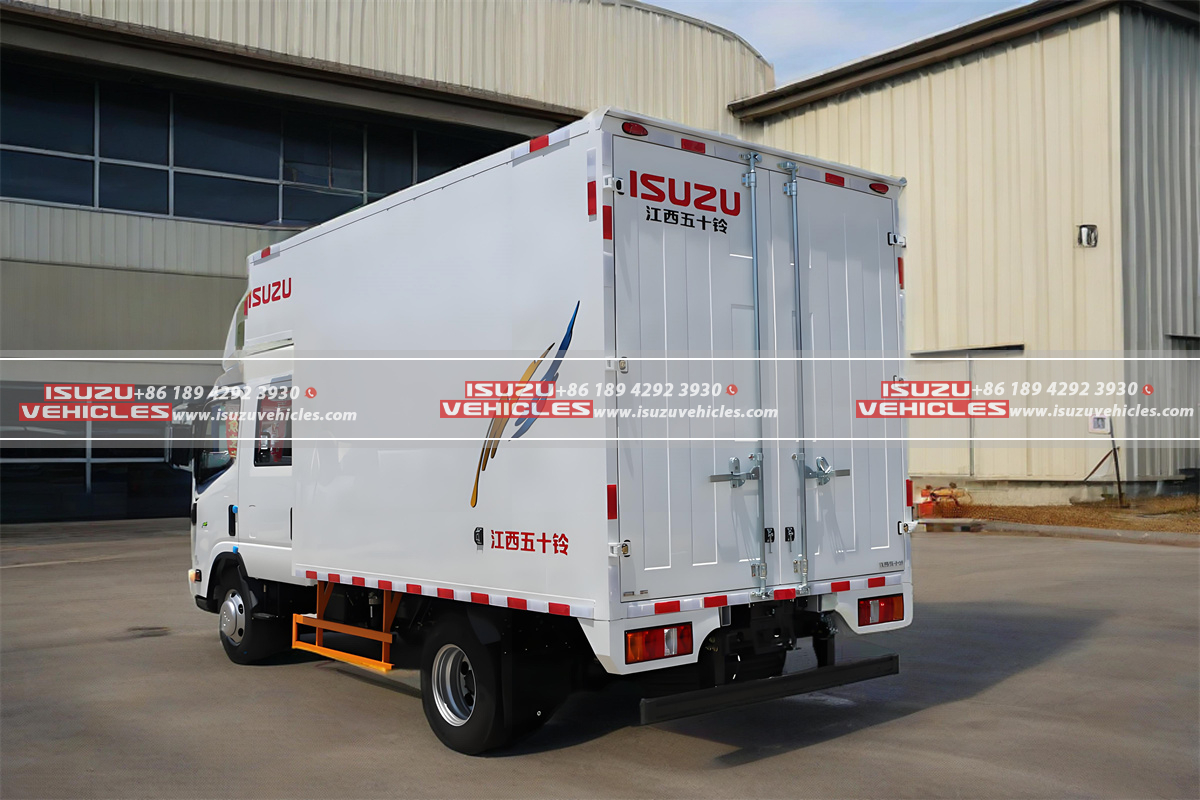

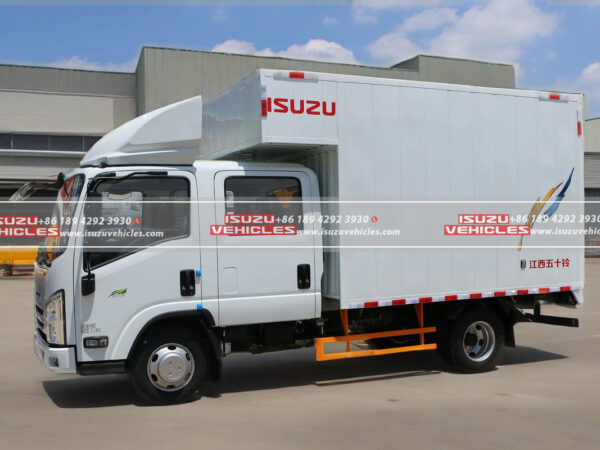

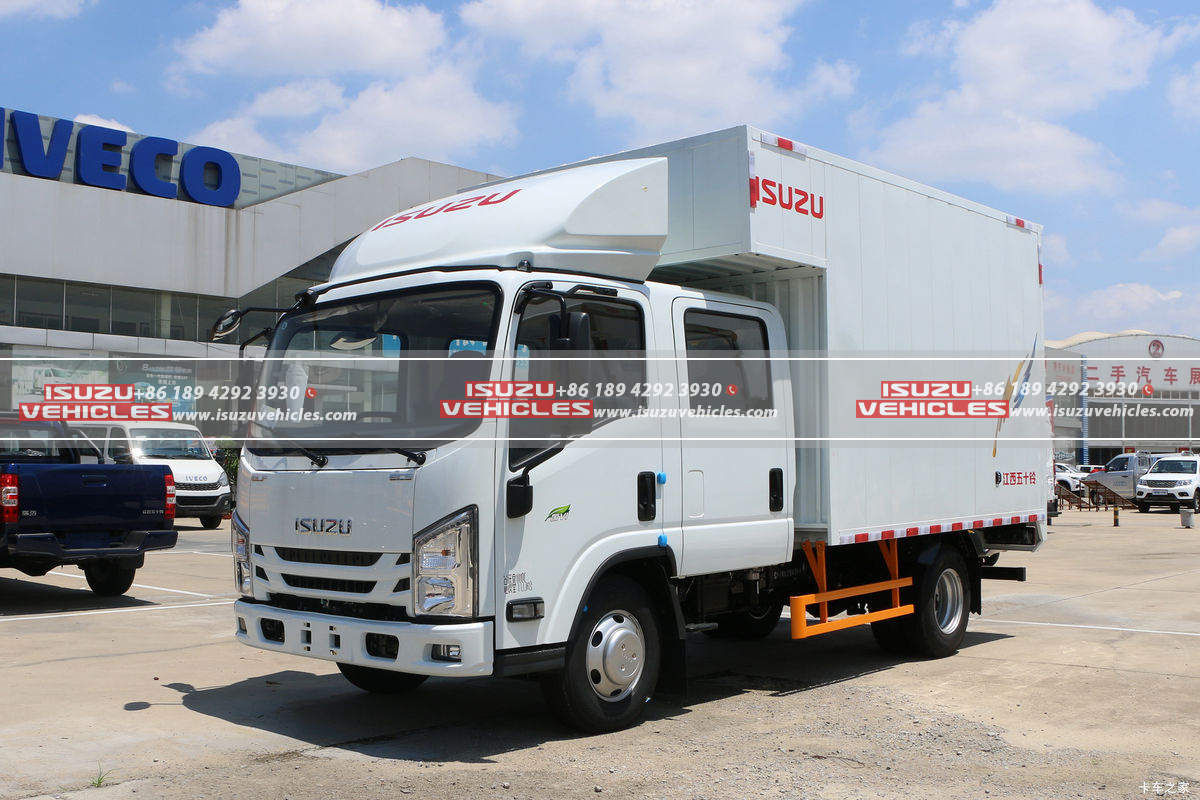

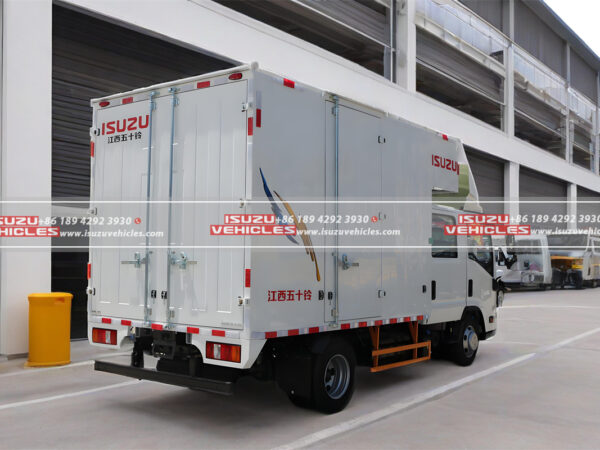

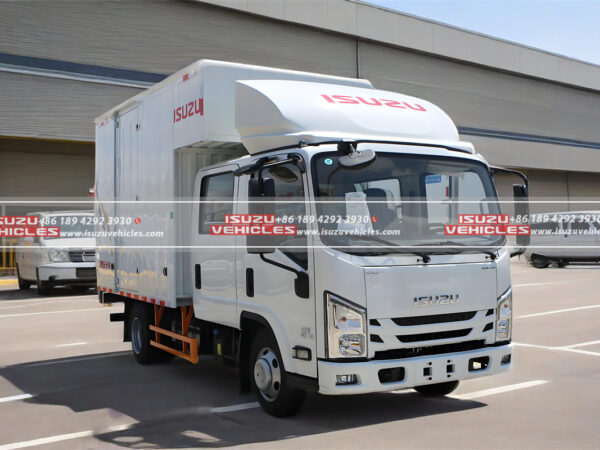

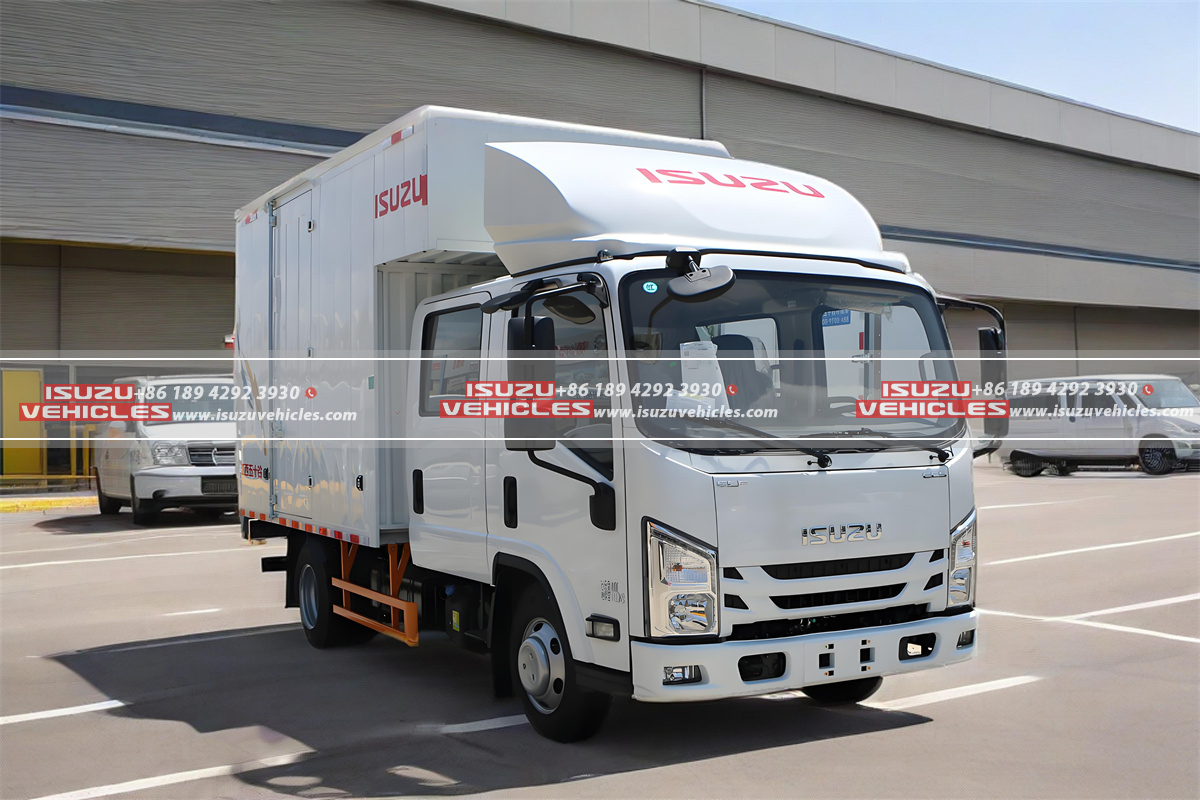

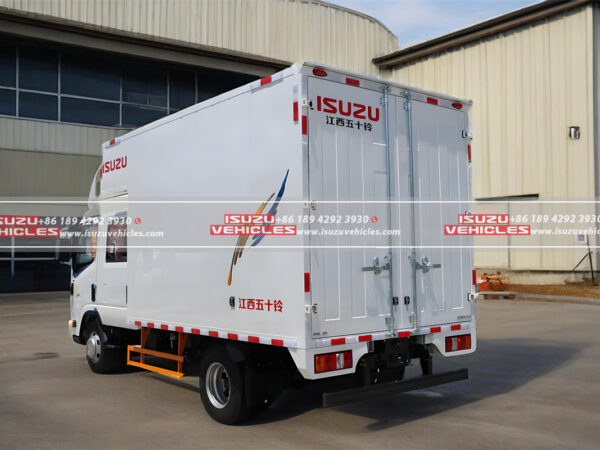

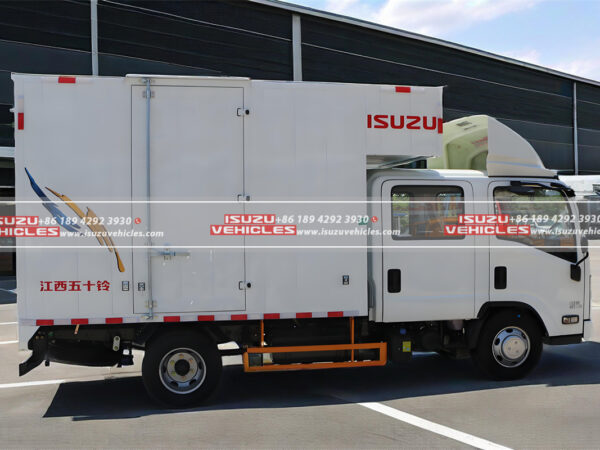

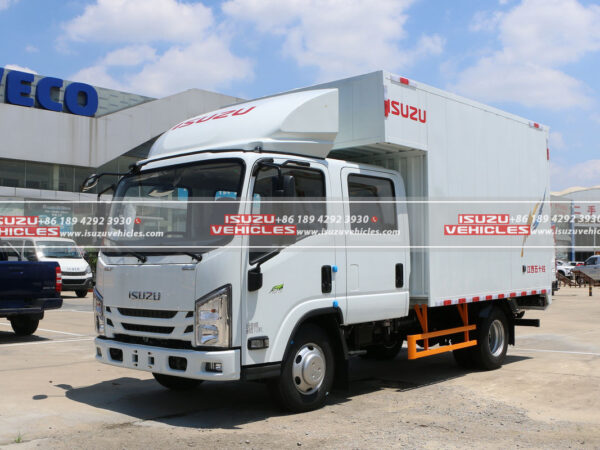

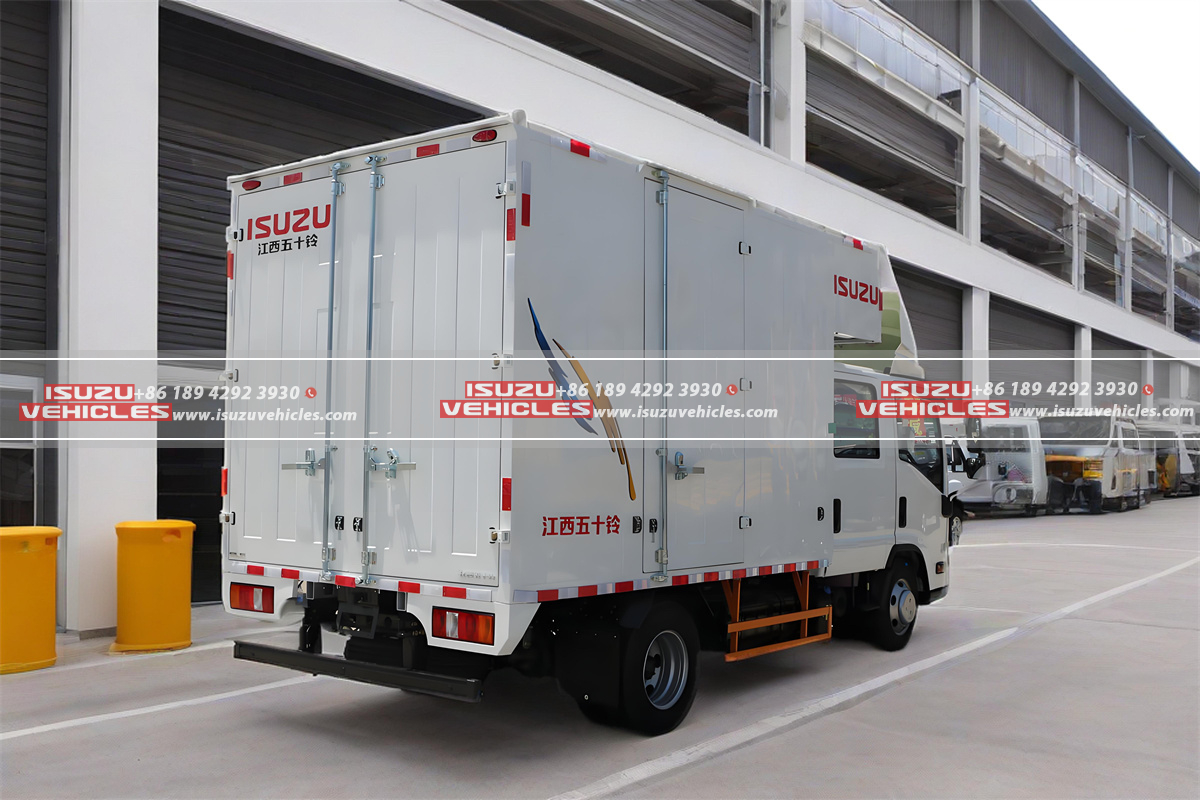

ISUZU ELF 3 Ton Van Box Truck

ISUZU ELF 3 Ton Van Box Truck

Designed as the ultimate urban logistics partner, the ISUZU ELF 3 Ton Van Box Truck combines compact agility with robust payload capabilities for congested city environments. Built on a 4×2 chassis with a strategic 3,360mm wheelbase, its 5.995-meter length, 2.16-meter width, and 3.09-meter height ensure seamless navigation through narrow streets while complying with urban access regulations. Powered by a Euro VI-compliant 3L diesel engine generating 170 horsepower, this light-duty workhorse achieves a 100 km/h top speed and carries a 1.7-ton payload within its 4.495-ton GVWR. Optimized for last-mile delivery, e-commerce logistics, and cold-chain operations, the ELF’s 4.08m³ cargo box (L4.08m × W2.1m × H2.1m) maximizes load flexibility while minimizing operational downtime.

Technical Features

I. Powertrain & Performance

• Advanced Diesel Engineering: The Jiangxi Isuzu 4JJ1GJ 3.0L inline-4 engine delivers 125kW (170HP) and a 450N·m torque plateau between 1,800–2,400 rpm, ensuring responsive acceleration even under full load.
• Optimized Driveline: A 6-speed manual transmission provides precise gear control for stop-start traffic, while the 3/5+6 spring suspension (front/rear) absorbs urban road imperfections.

II. Cargo System & Structural Integrity

• High-Utility Cargo Box: The fully enclosed van body offers 4.08m³ capacity with near-cubic dimensions (2.1m height/width), enabling efficient palletization and reducing reloading time.
• Chassis Durability: A 1,840kg front axle and 2,655kg rear axle distribute weight evenly, while 7.00R16LT 8PR tires (x6) enhance puncture resistance on rough urban routes.

III. Driver-Centric Cab & Connectivity

• Ergonomic Workspace: The 3-seater single-row cabin features standard air conditioning, electric windows, and an adjustable steering wheel with integrated controls for cruise and audio.
• Smart Fleet Integration: A 10-inch touchscreen with GPS/Beidou tracking, USB/AUX inputs, and digital radio enables real-time route optimization and compliance logging.

IV. Safety & Efficiency Technologies

• Active Safety Suite: Standard ABS pairs with exhaust braking and heated rearview mirrors for all-weather control, while the aerodynamic roof spoiler cuts fuel consumption by 4–6%.
• Operational Economy: Euro VI emissions compliance grants unrestricted city access, and optional features like heated fuel lines (-30°C operability) and leather air-suspension seats extend usability in extreme conditions.

Customization & Versatility

• Sector-Specific Adaptations: Pre-wired for refrigeration units (cold chain), reinforced floors (industrial goods), or partition walls (e-commerce parcels).
• Regulatory Readiness: Yellow license plate classification (China) permits higher GVW operations versus blue-plate competitors, ideal for growing fleets

SPECIFICATIONS
