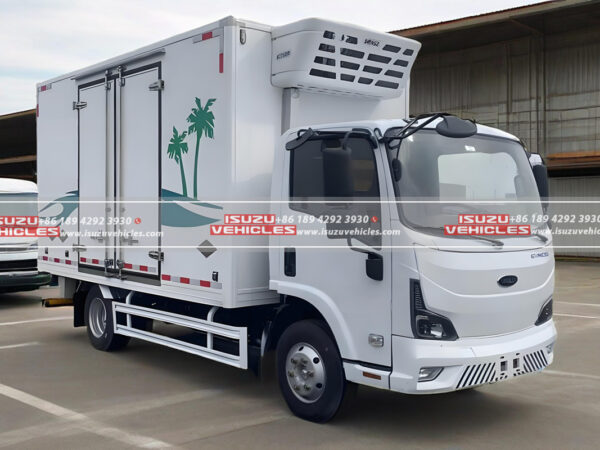

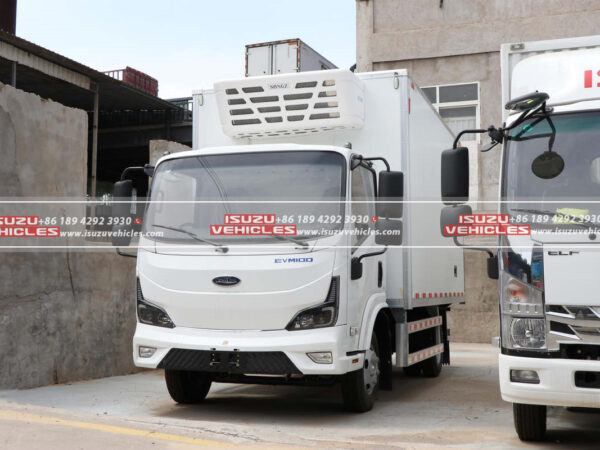

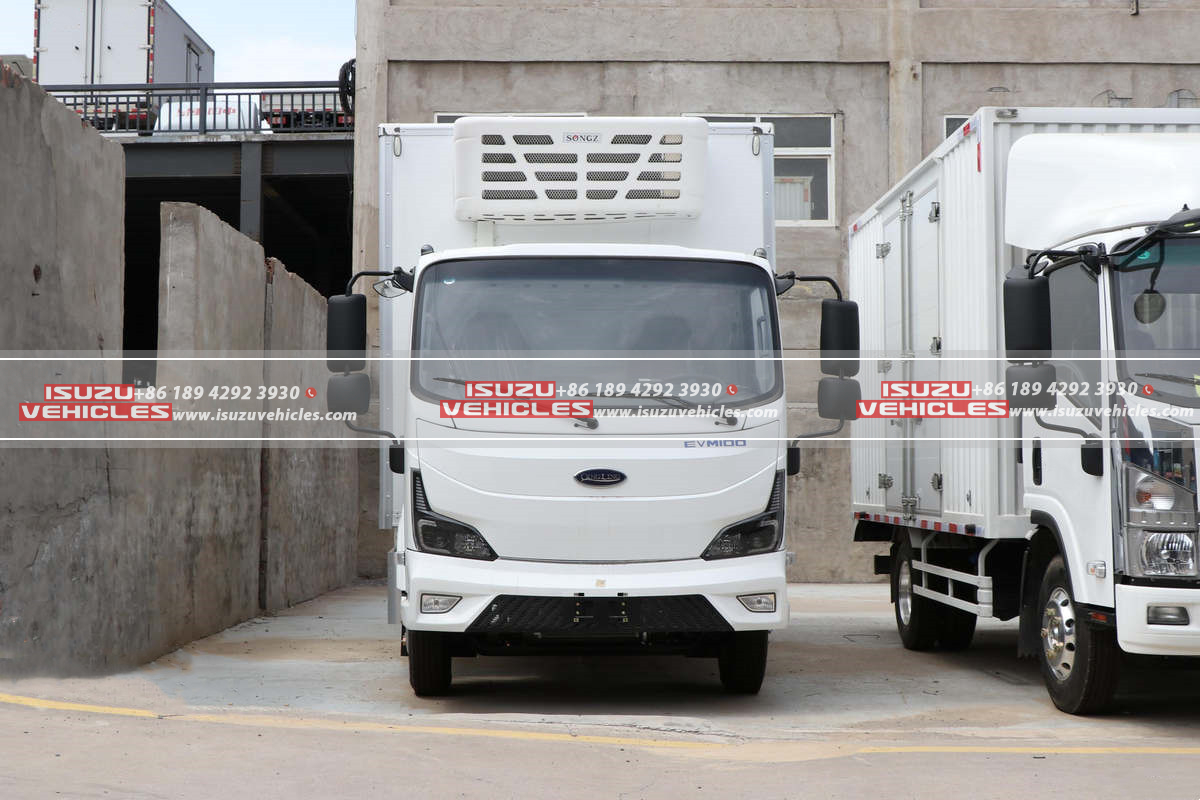

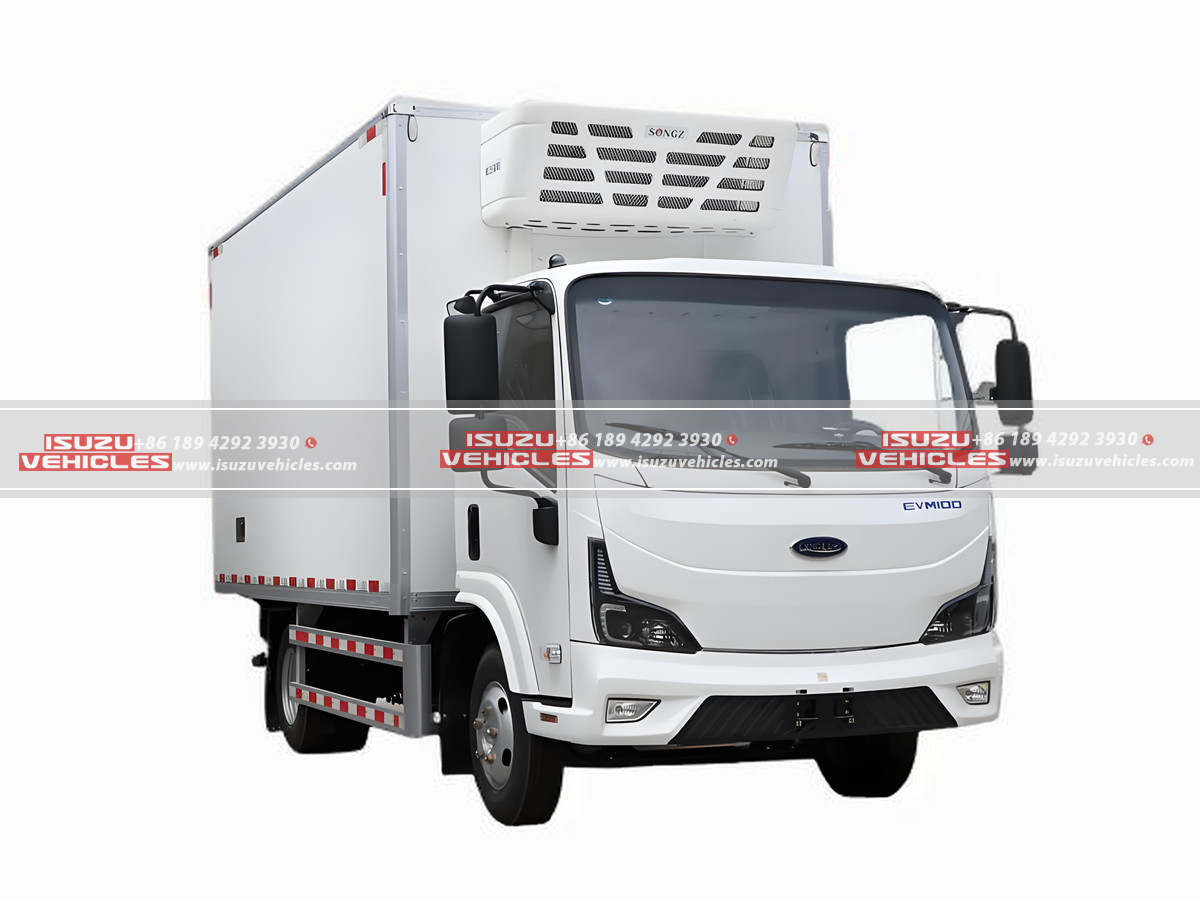

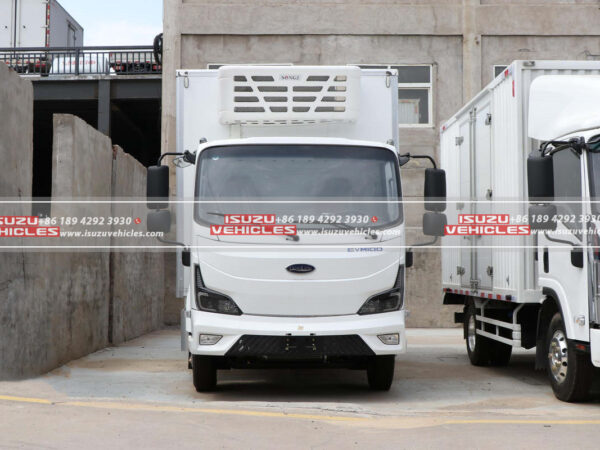

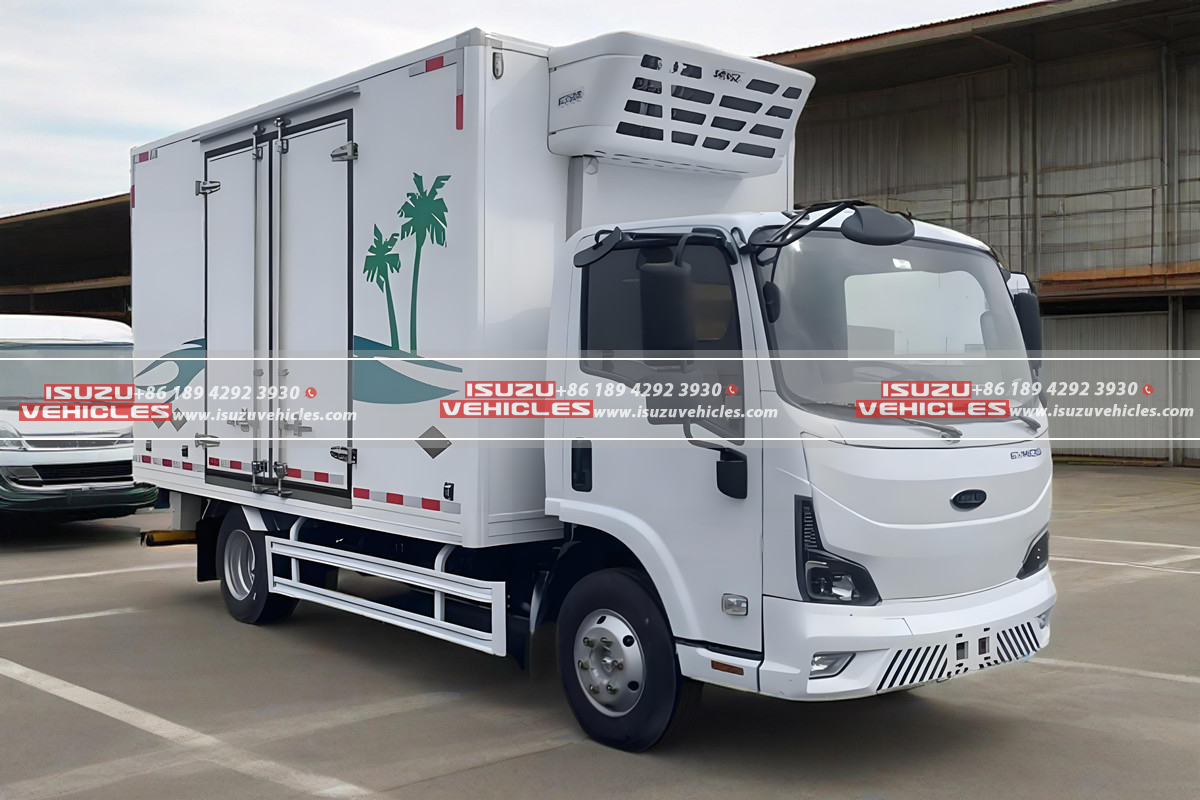

ISUZU EVM100 4 Meter Refrigerated Truck

ISUZU EVM100 4 Meter Refrigerated Truck

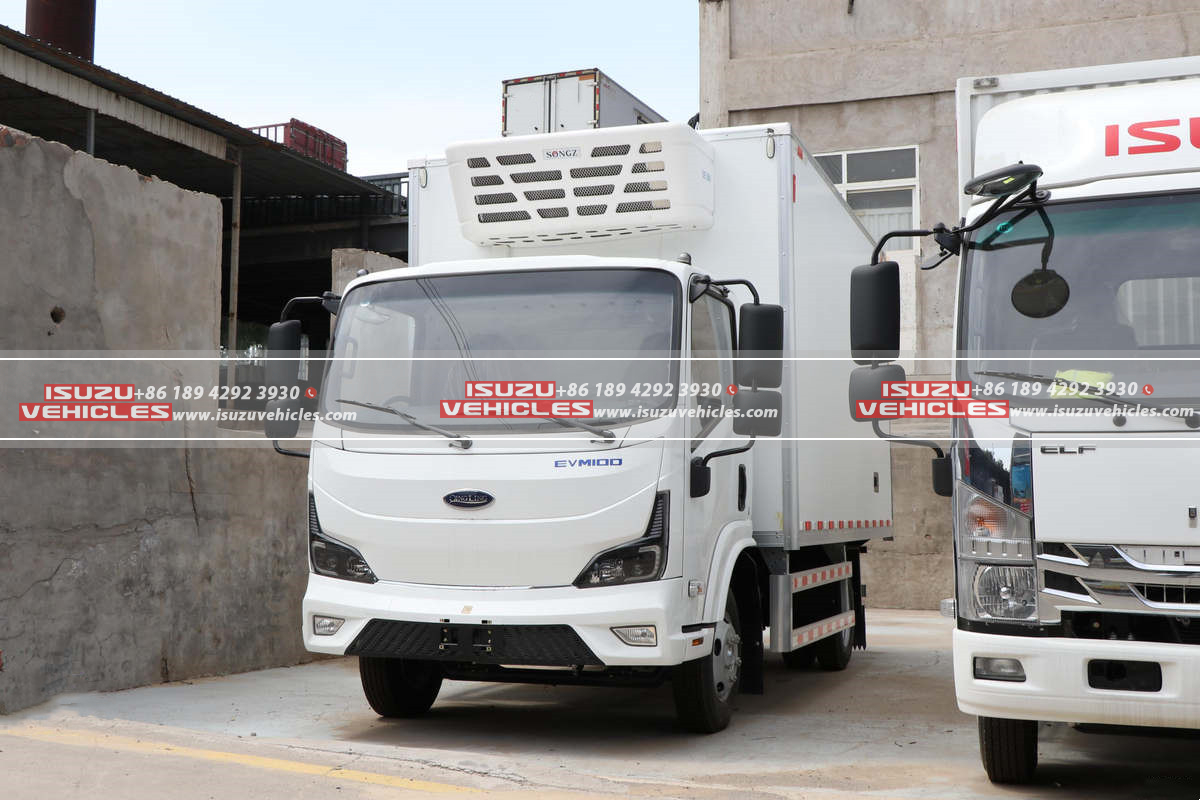

The ISUZU EVM100 4 Meter Refrigerated Truck redefines efficiency in urban cold-chain logistics, merging Isuzu’s proven reliability with zero-emission electric mobility for sustainable perishable goods transport. Manufactured in Chongqing Jiulongpo, this 4X2 chassis model features a compact yet highly functional design, measuring 5.995 meters in length with a maneuverable 3360mm wheelbase, ideal for navigating dense city streets and tight delivery zones. Its versatile body height options (3.17/3.3/3.11 meters) accommodate diverse loading dock constraints while optimizing cargo space efficiency. Engineered for practical payload performance, the refrigerated truck balances a curb weight of 3.19 tonnes with a 1.11-tonne rated payload capacity, achieving a 4.495-tonne gross vehicle weight (GVW) without compromising agility. With a top speed of 100 km/h, it ensures timely urban and suburban deliveries, while its pure electric drivetrain eliminates tailpipe emissions and operational noise, making it exceptionally suited for environmentally sensitive areas and nighttime operations where noise regulations apply. Designed as a turnkey solution for fresh produce, pharmaceuticals, and frozen goods transport, this vehicle integrates advanced thermal management with Isuzu’s electric commercial vehicle expertise.

Features

I. Electric Powertrain & Efficiency

• Motor System: Equipped with a rear-mounted permanent magnet synchronous motor (Model: TZ220XSA10) by Jingjin, delivering a robust 65kW rated power and an impressive 140kW peak power for rapid acceleration and hill-climbing capability, even under full refrigeration load.
• Energy Storage: Features a high-capacity 100.46kWh lithium iron phosphate (LFP) battery from industry leader CATL (Ningde时代), renowned for thermal stability, extended cycle life, and safety in demanding temperature environments.
• Charging: Supports fast-charging technology to minimize downtime, ensuring rapid energy replenishment during delivery windows or shift changes.

II. Refrigerated Cargo System

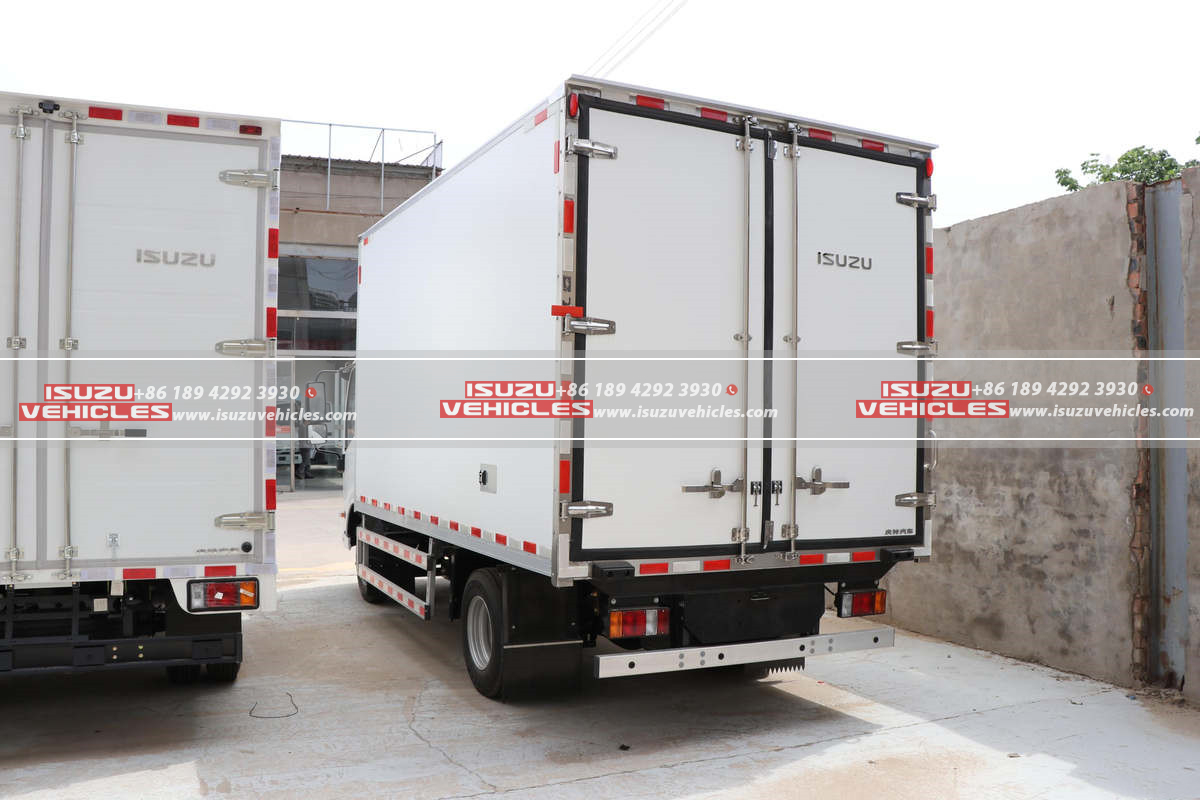

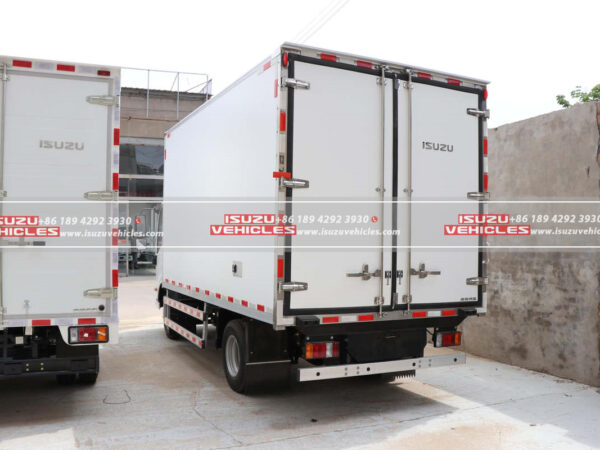

• Cargo Dimensions: Optimized 4-meter insulated body with a uniform internal profile (Width: 2.1m / Height: 2.1m), maximizing usable space while ensuring efficient air circulation for consistent temperature control.
• Thermal Performance: Designed for precision temperature management across diverse climates, critical for preserving sensitive goods like vaccines, dairy, or frozen products during multi-stop urban routes.

III. Chassis & Durability

• Platform: Built on Isuzu’s dedicated QL1040BEVBNHAY electric chassis (M600 series), engineered for commercial robustness with a 3/3+2 leaf spring suspension to absorb road shocks and protect cargo integrity.
• Braking & Safety: Features dual drum brakes (front/rear) for reliable stopping power under load, enhanced by regenerative braking for energy recovery during deceleration.
• Tires: Fitted with six heavy-duty 7.00R16LT 8PR tires, balancing load capacity (8-ply rating) with durability for urban potholes and long-haul wear resistance.

IV. Operational Advantages

• Urban Agility: Compact footprint (Width: 2.23m) and tight turning radius enable access to congested markets, narrow alleys, and underground parking facilities.
• Cost Efficiency: Eliminates fuel costs and reduces maintenance expenses (no engine oil, exhaust systems, or complex transmissions) while qualifying for green vehicle incentives in emission-restricted zones.
• Compliance-Ready: Meets stringent urban emission standards and noise regulations, future-proofing logistics fleets against evolving environmental policies.
