SUMMARY:

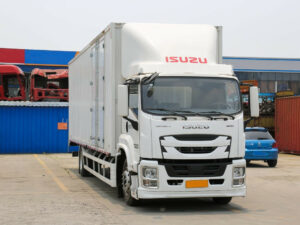

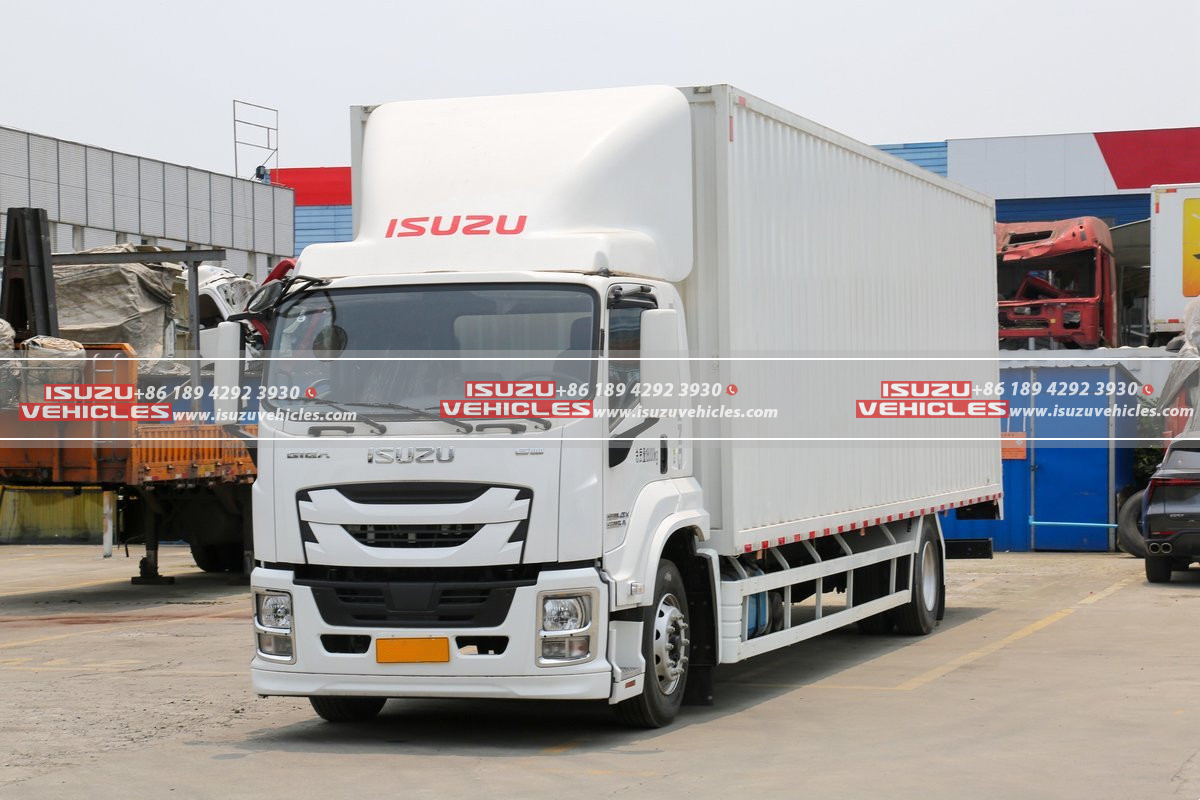

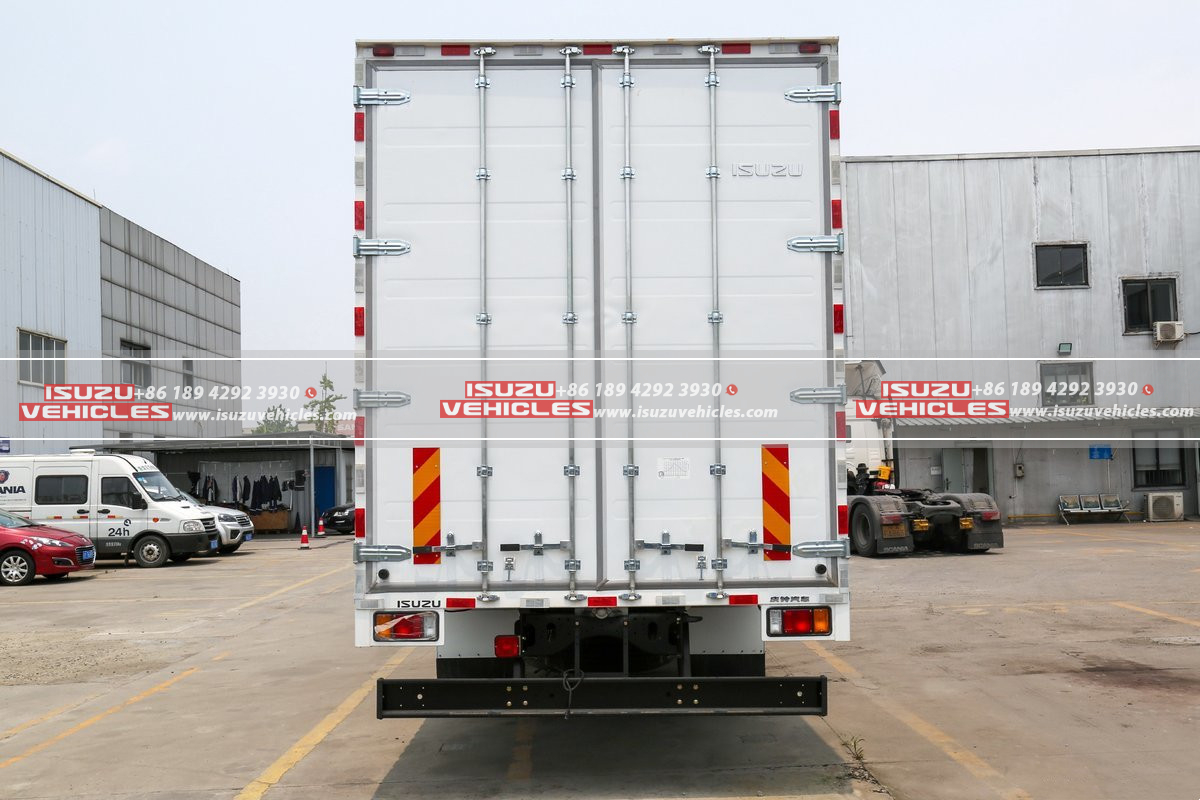

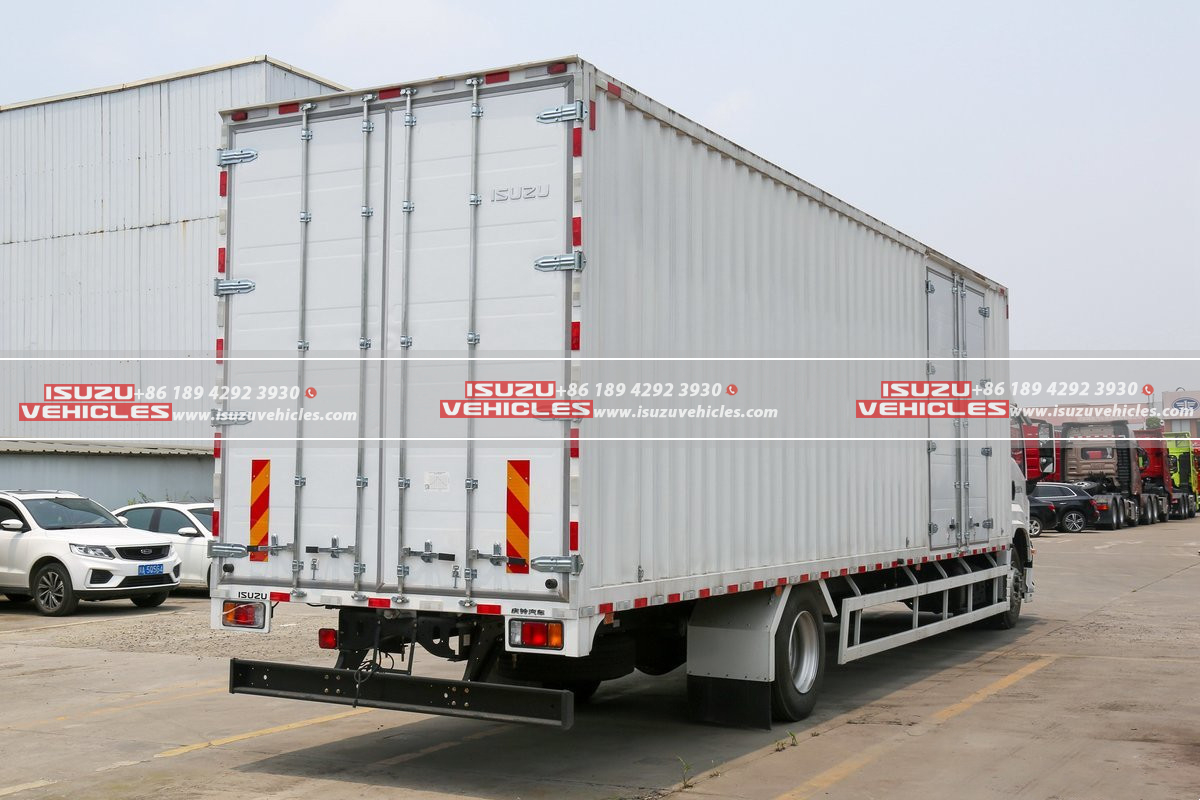

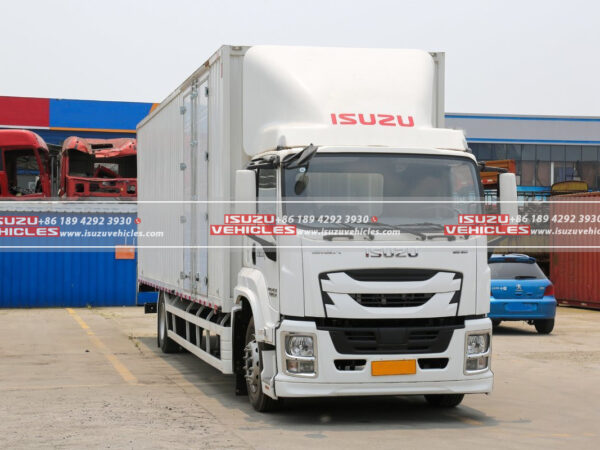

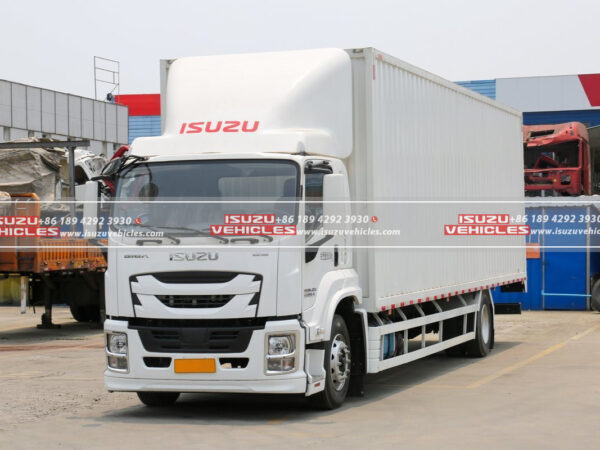

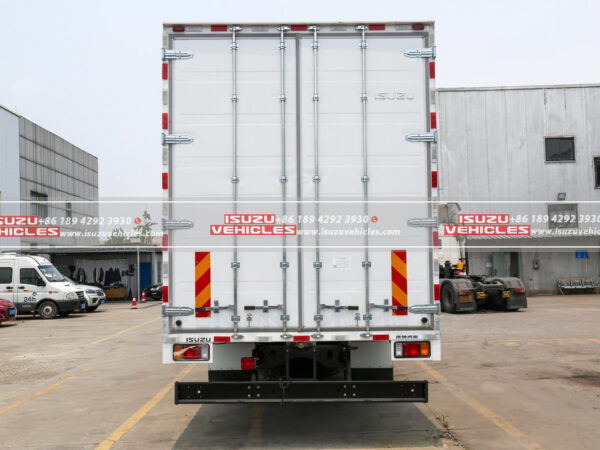

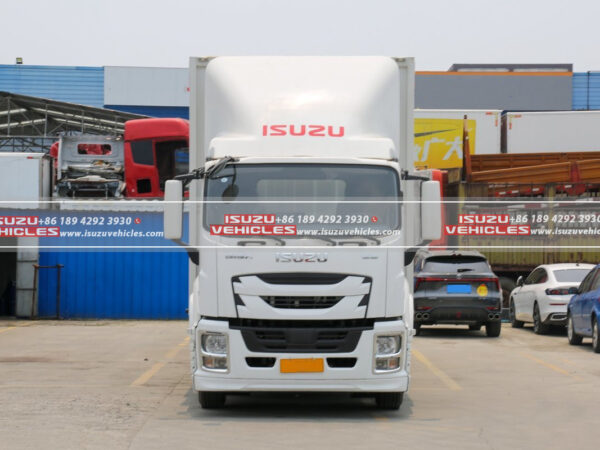

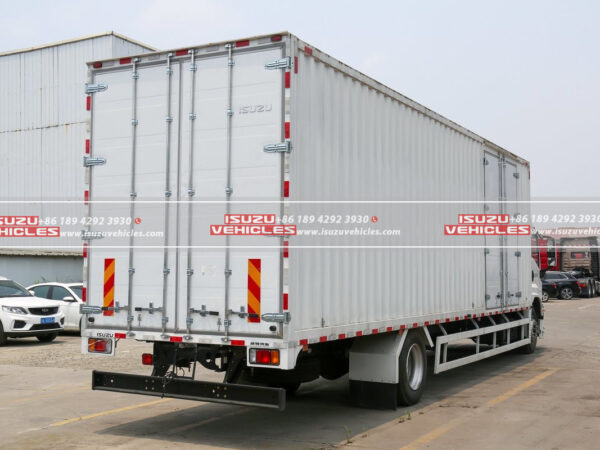

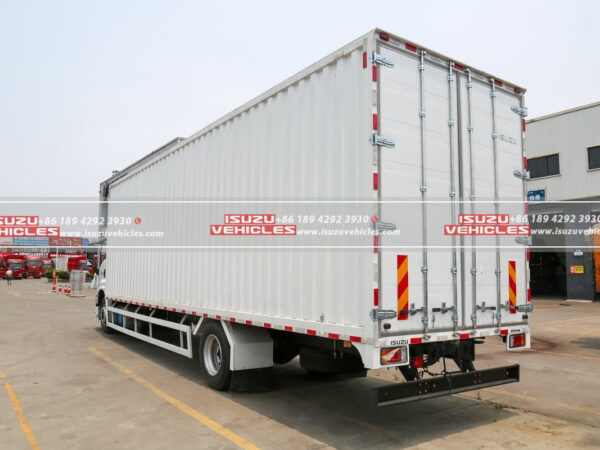

Introducing the ISUZU GIGA 9.78 Meter Box Cargo Truck, a versatile and powerful solution for medium-duty cargo transportation. This robust vehicle offers exceptional performance, safety, and reliability, making it an ideal choice for businesses and logistics operations.
The ISUZU GIGA 9.78 Meter Box Cargo Truck combines power, efficiency, and reliability to meet the demands of medium-duty cargo transportation. Whether you’re involved in express delivery, logistics, or general cargo transport, this truck is your trusted partner on the road.
FEATURES:
- Type and Drive Form:
- Type: Box Cargo Truck
- Drive Form: 4X2
- Wheelbase: 7200mm

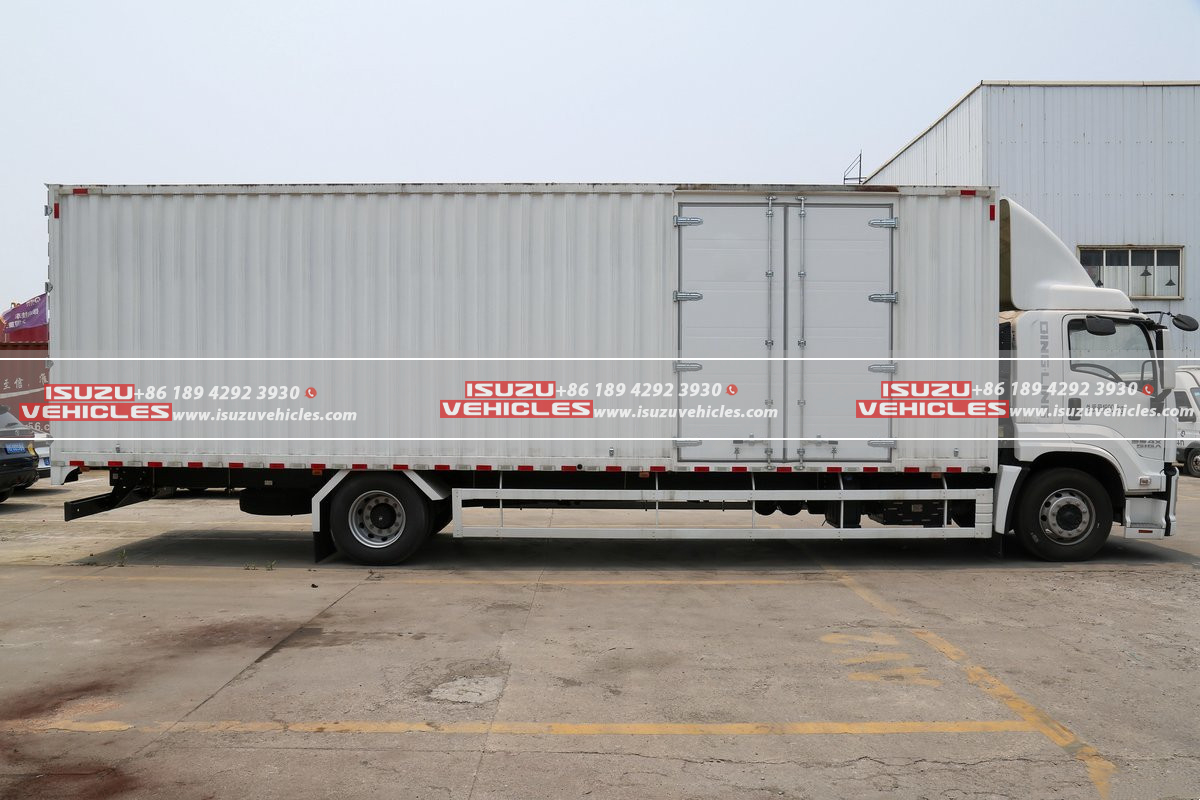

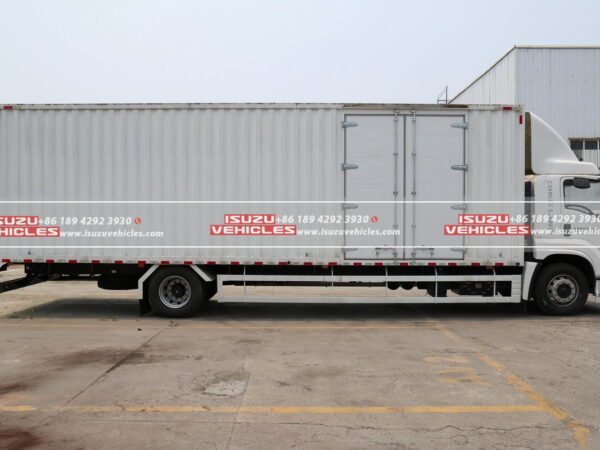

- Spacious Cargo Box:
- Box Length Level: 9.8 meters
- Cargo Box Form: Box Type
- Cargo Box Length: 9.78 meters
- Cargo Box Width: 2.49 meters
- Cargo Box Height: 2.81 meters
- Maximum Load Capacity: 9.655 tons
- Perfect for transporting a wide range of goods efficiently and securely.
- Powerful Engine:
- Engine: Isuzu 4HK1-TCG60
- Commonly Referred to as: Isuzu 4HK1
- Number of Cylinders: 4
- Displacement: 5.193L
- Fuel Type: Diesel
- Cylinder Arrangement: Inline
- Emission Standard: China VI
- Maximum Output Power: 151kw
- Maximum Horsepower: 205 horsepower
- Maximum Torque: 647N·m
- Engine Model: Isuzu 4HK1-TCG60
- Engine Brand: Isuzu
- Efficient Transmission:
- Transmission: Isuzu MLD-6Q
- Transmission Model: Isuzu MLD-6Q
- Gear Shifting Method: Manual
- Number of Forward Gears: 6 gears
- Number of Reverse Gears: 1
- High Load Capacity:
- Curb Weight: 8.15 tons
- Gross Weight: 18 tons
- Front Axle Allowed Load: 6500KG
- Rear Axle Allowed Load: 11500KG
- Number of Leaf Springs: 4/4+4
- Designed to handle heavy loads with ease, ensuring efficient transportation.
- Safety and Maneuverability:
- Maximum Speed: 89KM/h
- Approach Angle: 15 degrees
- Departure Angle: 7 degrees
- Excellent maneuverability and safety features for various road conditions.
- Comfortable Cabin:
- Spacious cabin with seating for three people.
- Number of Seats Rows: Half Row
- Comfortable driving experience for long journeys.
- Durable Tires:
- Tire Specification: 275/80R22.5 18PR
- Tire Type: Radial Tire
- Number of Tires: 6
- High-quality tires for enhanced stability and durability.
- Fuel Efficiency:
- Fuel Tank Material: Iron
- Fuel Tank Capacity: [Insert Capacity]
- Designed for fuel efficiency, reducing operational costs.
SPECIFICATIONS:
Attribute | Value |
---|---|
Model | QL5181XXYAJWH |
Type | Box Cargo Truck |
Drive Form | 4X2 |
Wheelbase | 7200mm |
Box Length Level | 9.8 meters |
Engine | Isuzu Isuzu 4HK1-TCG60 |
Transmission | Isuzu MLD-6Q |
Vehicle Length | 12 meters |
Vehicle Width | 2.55 meters |
Vehicle Height | 4 meters |
Front Wheelbase | 1920mm |
Rear Wheelbase | 1844mm |
Curb Weight | 8.15 tons |
Rated Load | 9.655 tons |
Gross Weight | 18 tons |
Maximum Speed | 89KM/h |
Origin | Chongqing |
Ton Level | Medium-Duty Cargo Truck |
Approach Angle | 15 degrees |
Departure Angle | 7 degrees |
Engine Model | Isuzu 4HK1-TCG60 |
Engine Brand | Isuzu |
Commonly Referred to as | Isuzu 4HK1 |
Number of Cylinders | 4 |
Fuel Type | Diesel |
Cylinder Arrangement | Inline |
Displacement | 5.193L |
Emission Standard | EURO 2, EURO 3, EURO 4, EURO 5, EURO 6 |
Maximum Output Power | 151kw |
Maximum Horsepower | 205 horsepower |
Maximum Torque | 647N·m |
Max Torque Speed | 1600RPM |
Rated Speed | 2600RPM |
Cargo Box Form | Box Type |
Cargo Box Length | 9.78 meters |
Cargo Box Width | 2.49 meters |
Cargo Box Height | 2.81 meters |
Allowed Passengers | 3 people |
Number of Seats Rows | Half Row |
Transmission Model | Isuzu MLD-6Q |
Gear Shifting Method | Manual |
Number of Forward Gears | 6 gears |
Number of Reverse Gears | 1 |
Fuel Tank Material | Iron |
Front Axle Allowed Load | 6500KG |
Rear Axle Allowed Load | 11500KG |
Number of Leaf Springs | 4/4+4 |
Tire Specification | 275/80R22.5 18PR |
Tire Type | Radial Tire |
Number of Tires | 6 |
