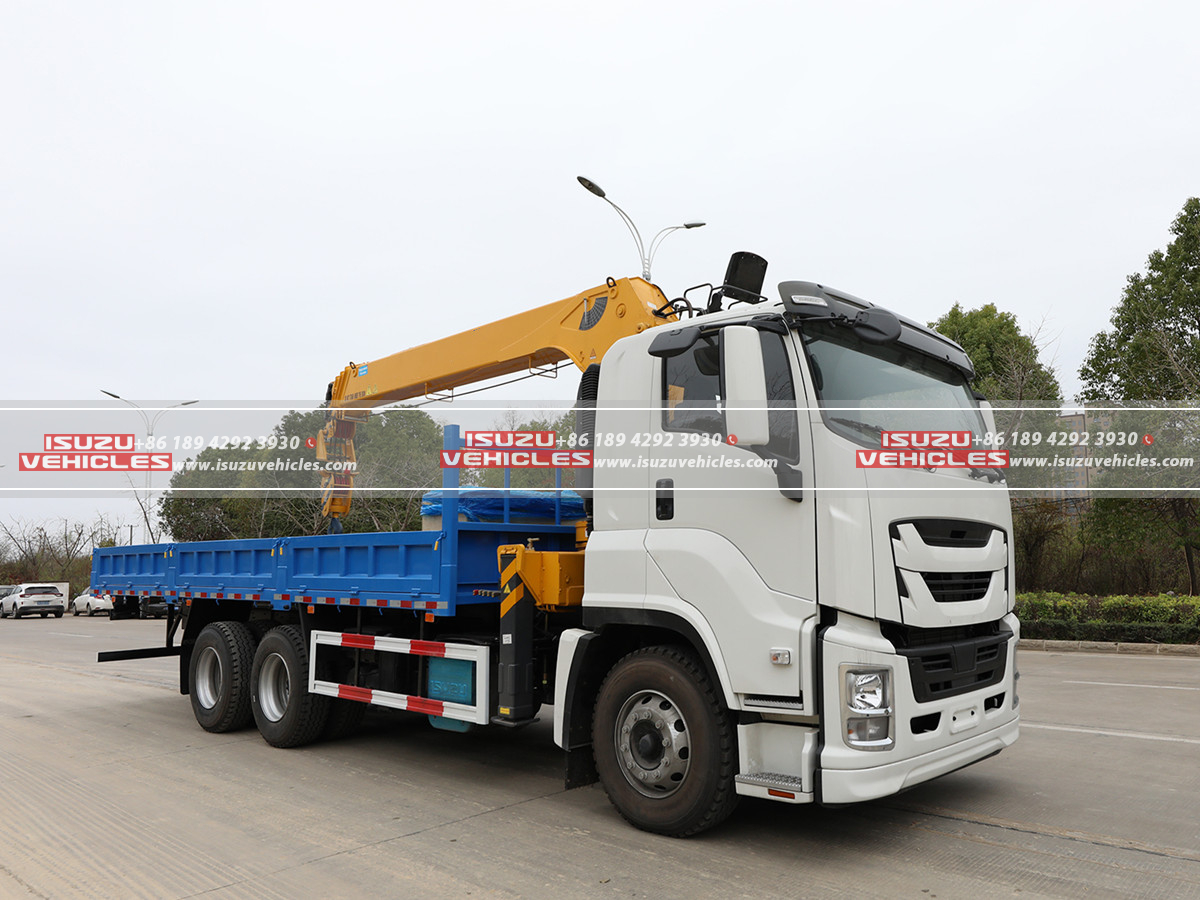

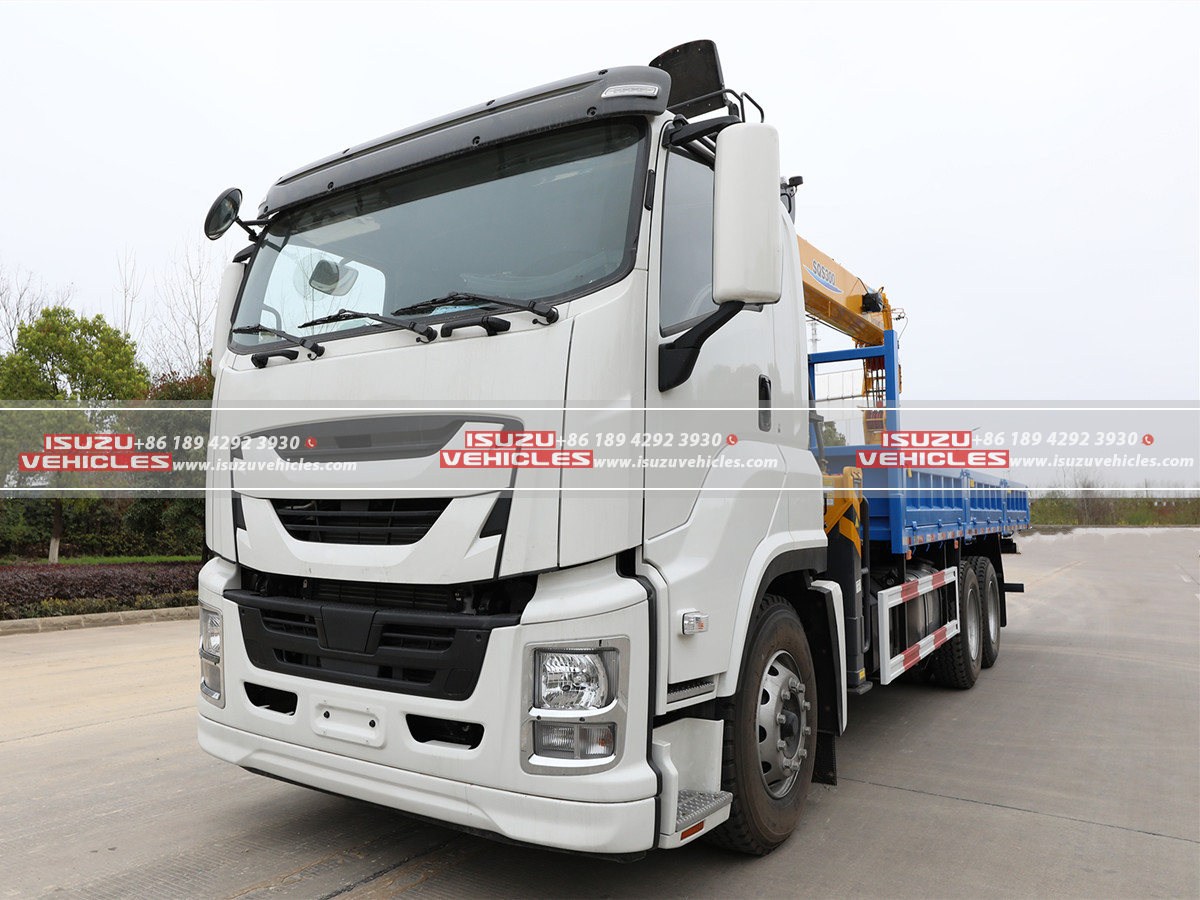

ISUZU Truck Mounted 12 Ton XCMG Crane
Robust Chassis & Configuration
Built on the ISUZU Truck Mounted 12 Ton XCMG Crane 6×4 LHD chassis, this truck combines durability with maneuverability, ideal for heavy lifting and transport operations. Its 10930×2530×3700mm overall dimensions and 4565+1370mm wheelbase ensure stability, while the 310mm ground clearance enhances off-road adaptability. The chassis supports a gross combined weight (G.C.W) of 36,000kg, with a gross vehicle weight (G.V.W) of 34,000kg, making it a powerhouse for industrial applications.

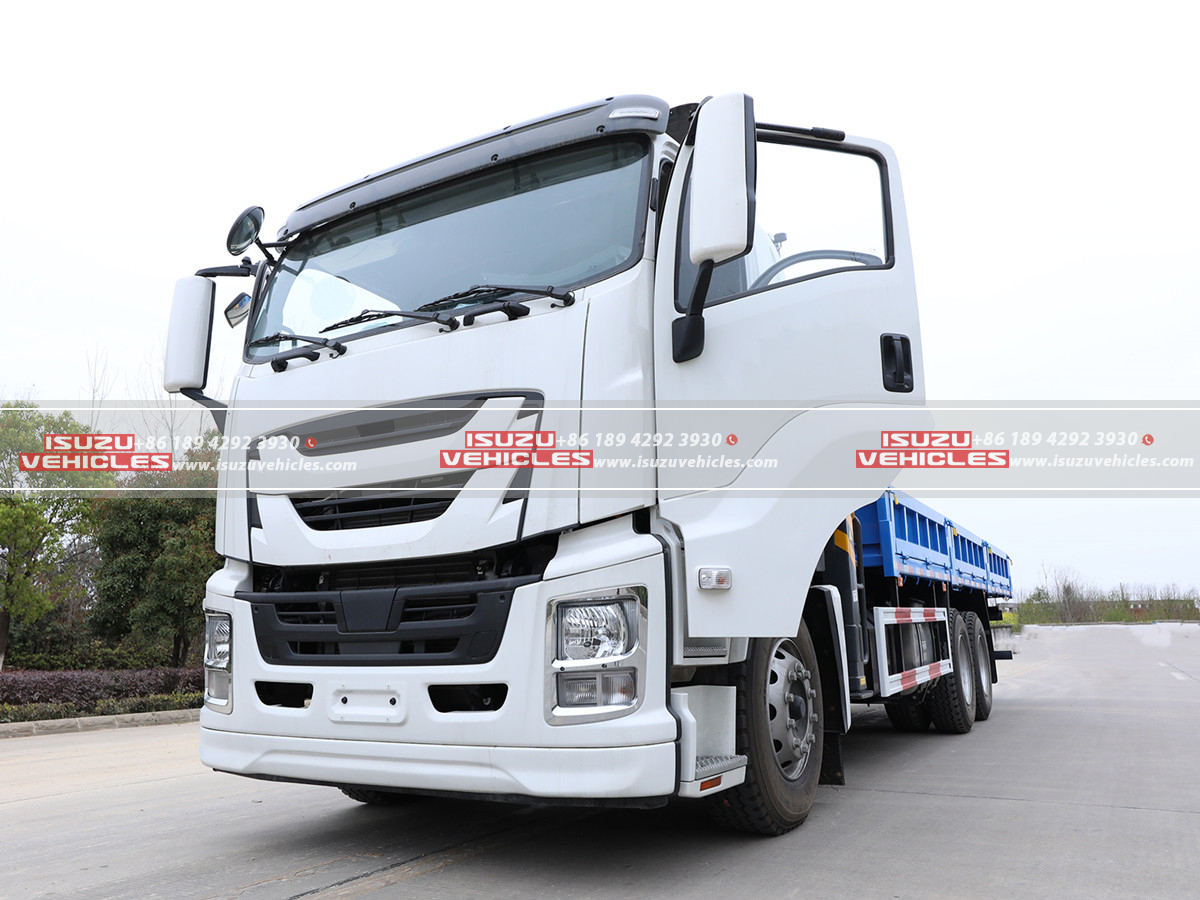

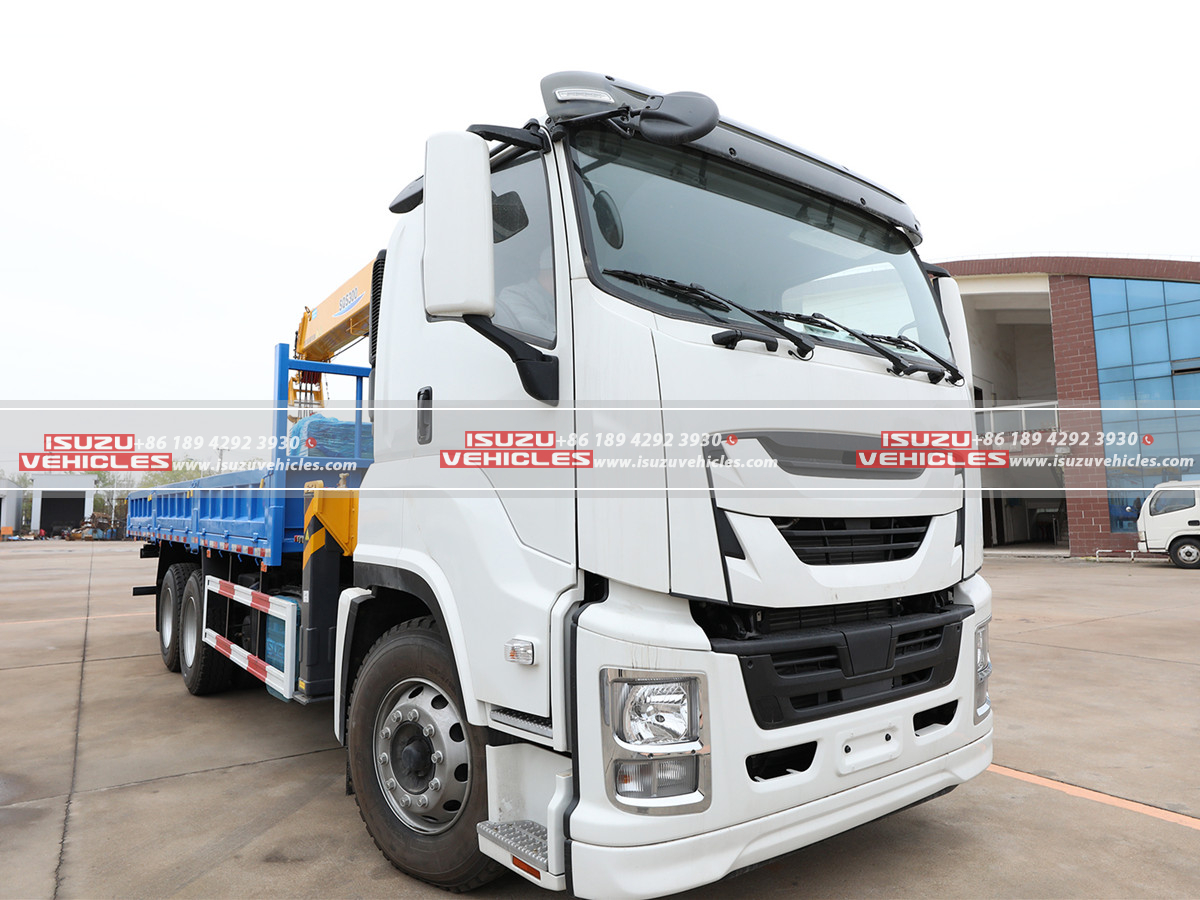

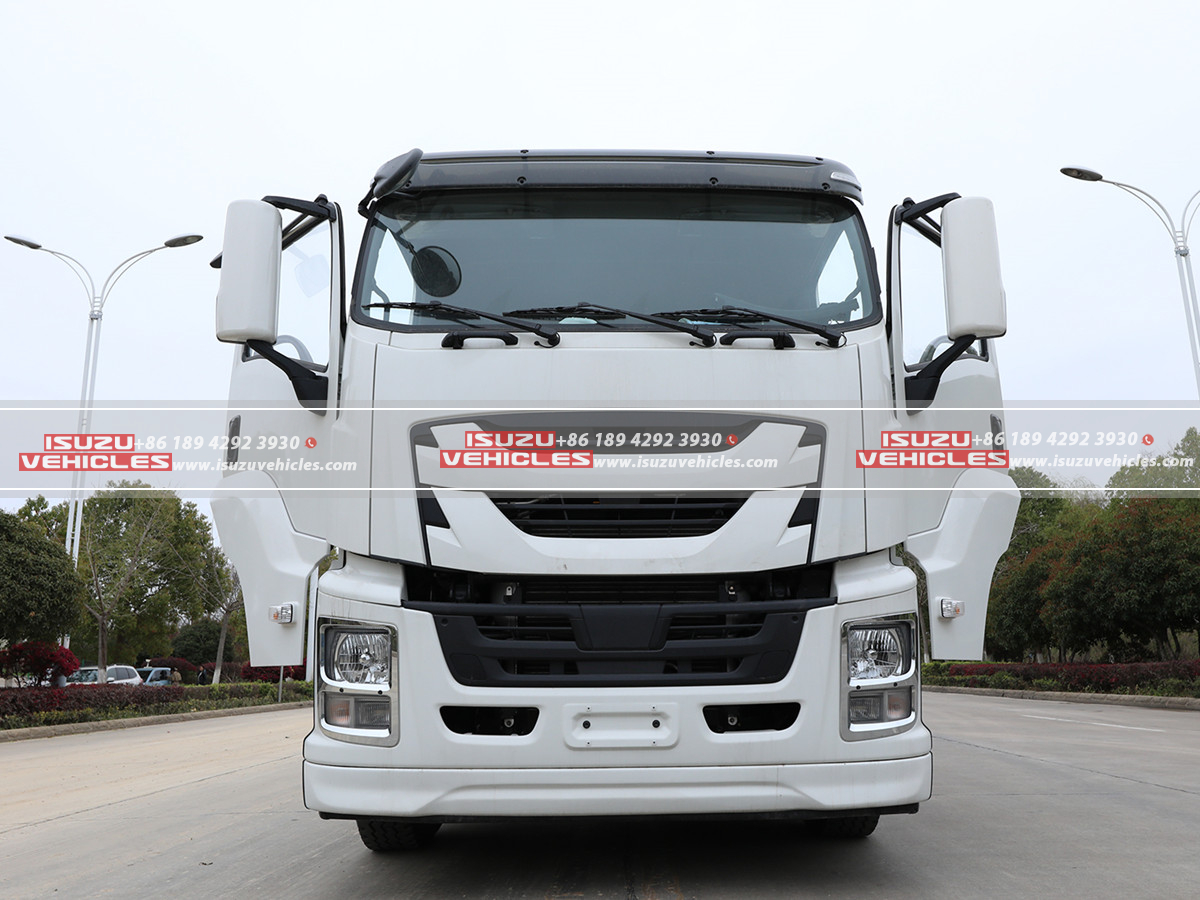

Ergonomic Cab Design
The VC61 Sleeper Cab features a 2400mm-wide, full steel-suspended structure with a low-profile roof for optimized aerodynamics. Designed for operator comfort, it includes 3 airbag-equipped seats, front-tiltable cab access, and climate control (AC). The intuitive dashboard layout and power steering ensure effortless handling during long shifts.
High-Performance Powertrain
Powered by the ISUZU/6UZ1-TCG50 turbocharged diesel engine, this truck delivers 279kW@2000rpm and a peak torque of 1800N.m@1420rpm, compliant with EURO 3 emission standards. Paired with the FAST12 manual transmission (12 forward + 2 reverse gears), it guarantees smooth power delivery across diverse terrains.
Features

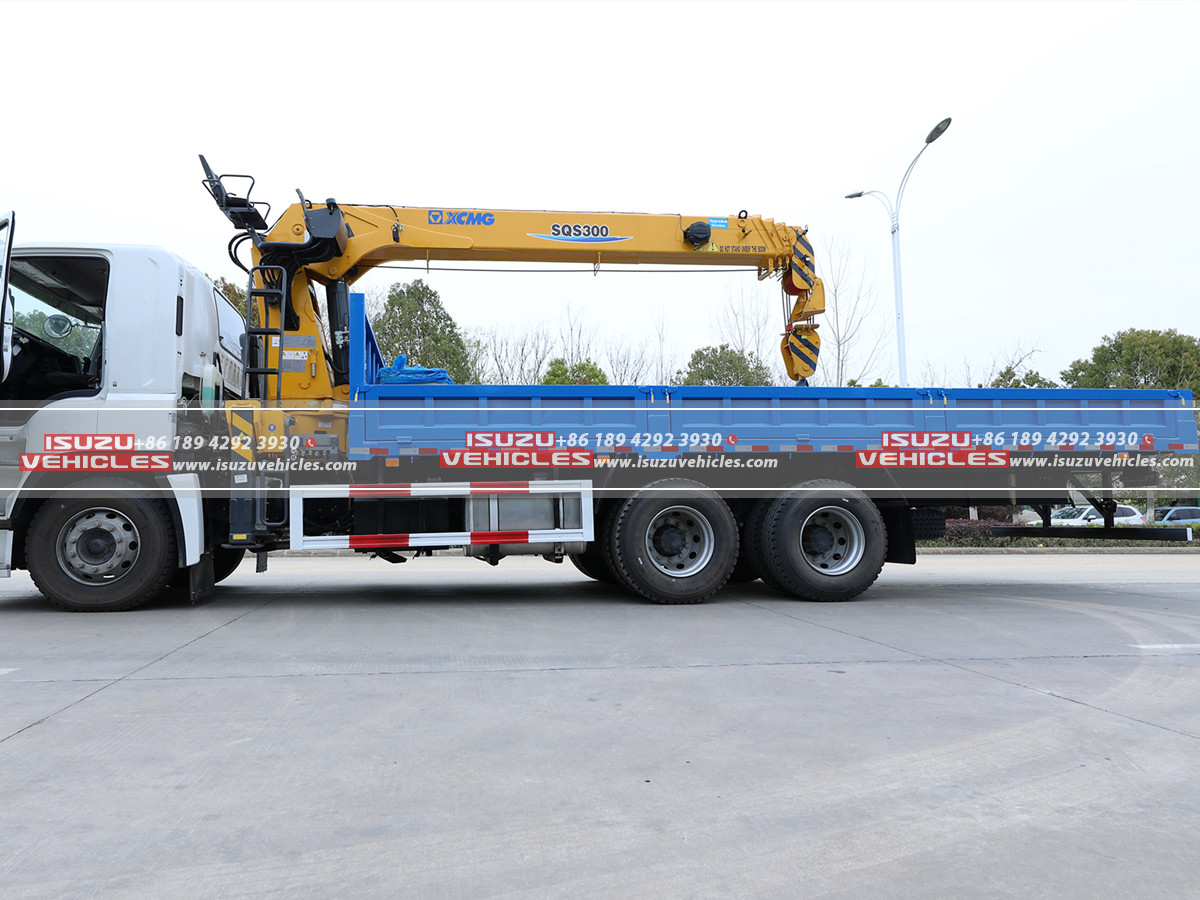

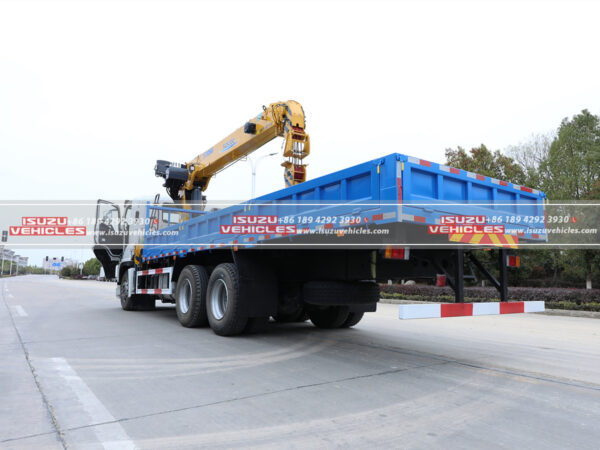

Precision Crane System

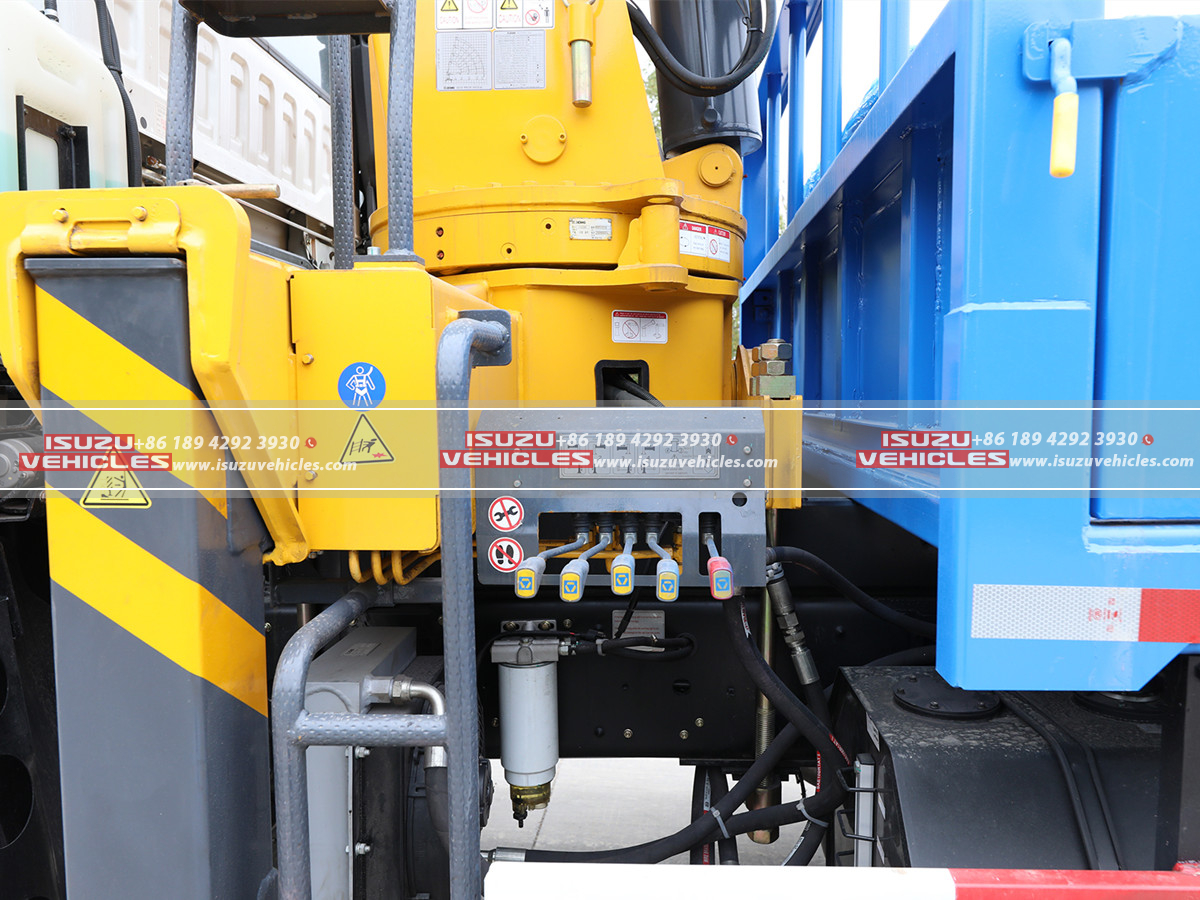

The integrated XCMG/SQS300 crane boasts a 12,000kg lifting capacity @ 2.5m radius, supported by a 30 T.M maximum lifting moment. Its 16.5m max outreach and 18m lifting height enable versatile material handling, while the 360° full rotation and 5900mm outrigger width ensure operational safety and stability. The hydraulic system operates at 26MPa pressure with an 80+32 L/min oil flow, powered by a 45kW recommended engine output for rapid, efficient lifts.

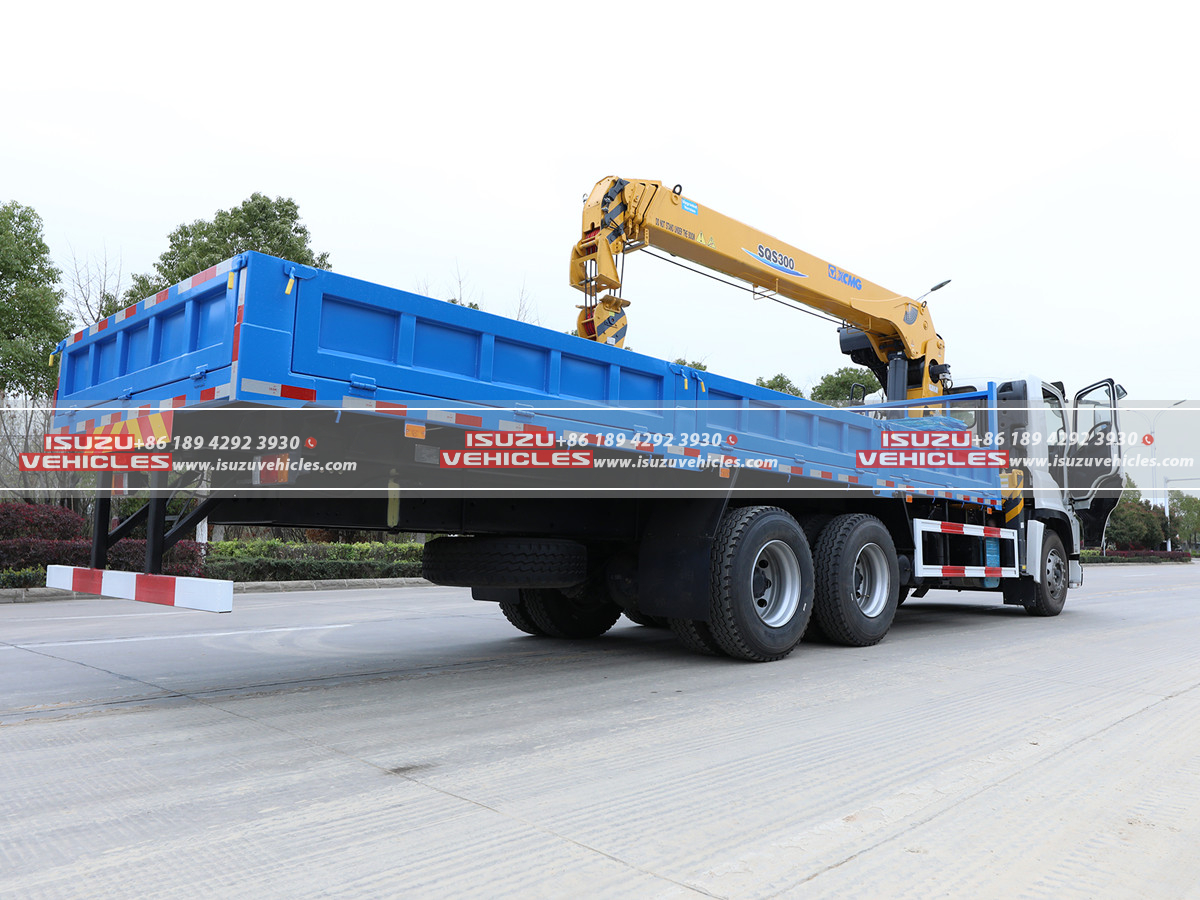

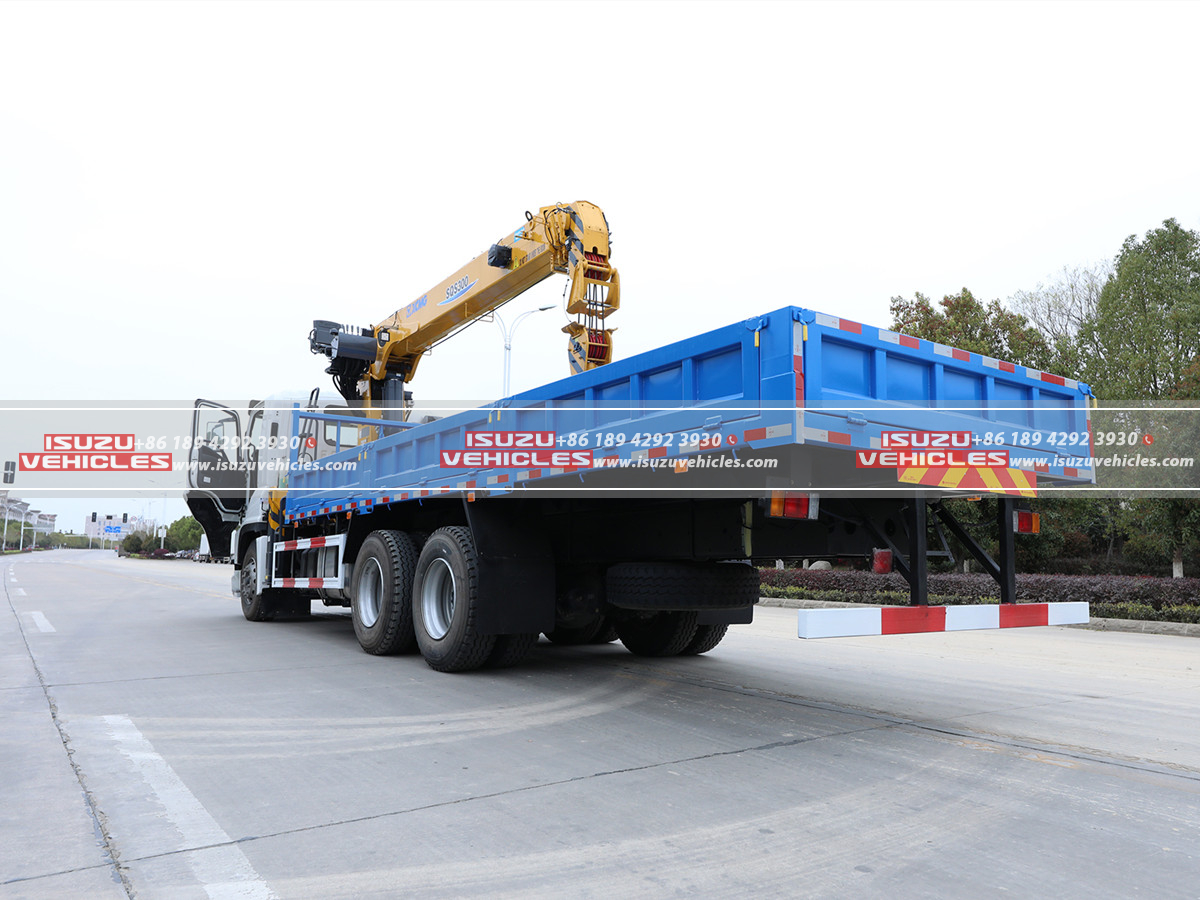

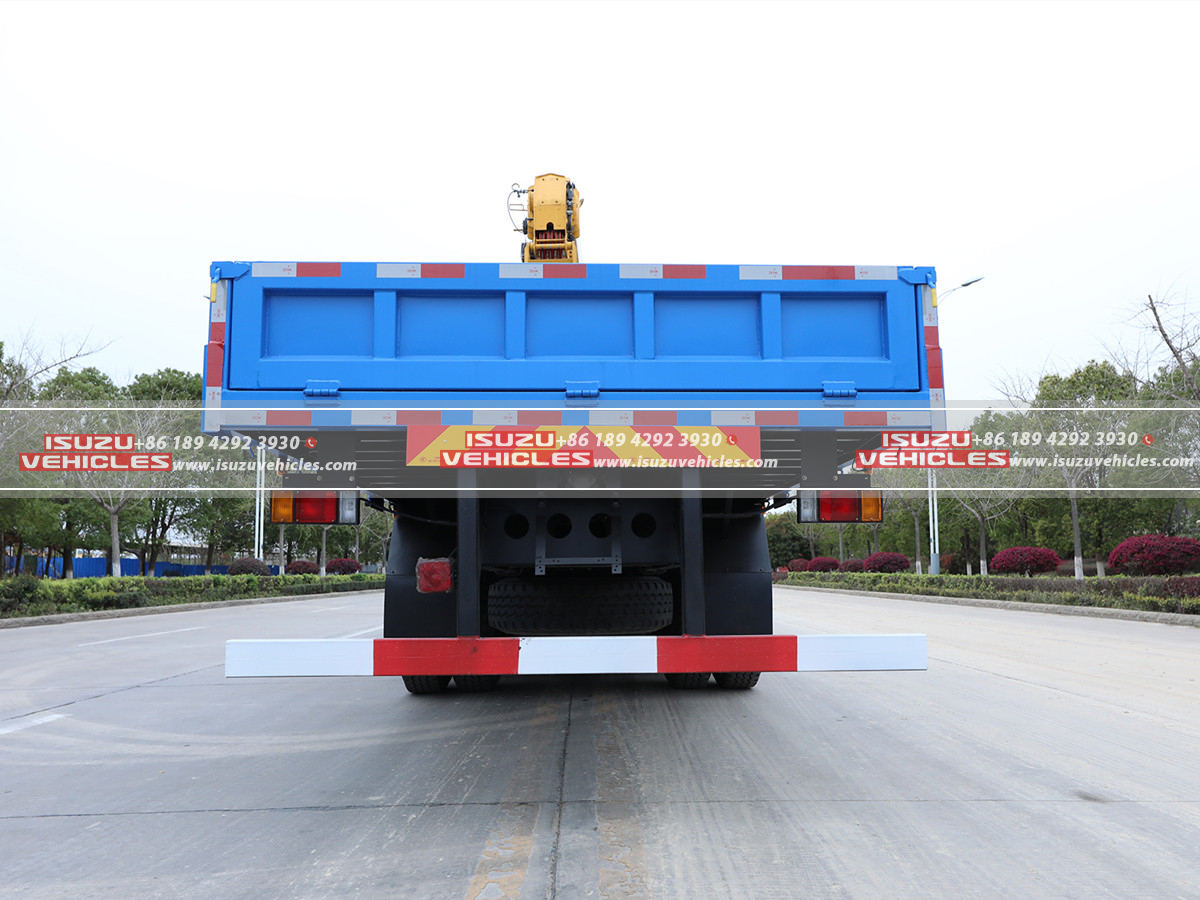

Durable Cargo Carrier
The 7.5×2.4×0.45m cargo box (model 08CB/CSCTRUCK) is engineered for heavy loads, featuring 2mm high-tensile steel sidewalls and a 5mm wear-resistant steel floor. The all-side-open door design simplifies loading/unloading, while the 18235kg payload capacity maximizes transport efficiency.
Optimized Safety & Reliability
- Front/Rear Axle Ratings: 7,000kg (front) and 26,000kg (rear) for balanced load distribution.
- Tire Configuration: 10+1 spare tires (315/80R22.5 20PR) ensure durability on rough terrain.
- Hydraulic Oil Tank: 200L capacity reduces downtime during extended operations.
Advanced Functional Components
- Boom Design: Retractable 5485mm boom for compact storage and quick deployment.
- Installation Space: 1300mm crane base integrates seamlessly with the chassis for minimal footprint.
Engineered to excel in construction, logistics, and industrial sectors, the ISUZU Truck with XCMG Crane redefines efficiency with its fusion of power, precision, and operator-centric design.
SPECIFICATIONS
| Category | Specification Item | Value |
|---|---|---|
| General Info | Cab Chassis Make/Model | ISUZU/QL5340GXFU2SDZY |
| Wheel Drive | 6×4 LHD | |
| Measurement | Overall Size (L×W×H) | 10930×2530×3700mm |
| Front/Rear Overhang | 1370/3625mm | |
| Front/Rear Track | 2065/1855mm | |
| Wheelbase | 4565+1370 mm | |
| Ground Clearance | 310mm | |
| Cargo Box Size | 7.5×2.4×0.45m | |
| Crane Max. Outreach | 16500mm | |
| Crane Hook Height | 18000mm | |
| Outrigger Extended Width | 5900mm | |
| Boom Length (retracted) | 5485mm | |
| Weights | Gross Combined Weight (G.C.W) | 36,000kg |
| Tare/Curb Weight | 15,415kg | |
| Gross Vehicle Weight (G.V.W) | 34,000kg | |
| Crane Lifting Weight | 12,[email protected] | |
| Cargo Carrier Payload Weight | 18,235kg | |
| Crane Tare Weight | 4,415kg | |
| Front/Rear Axle Rating | 7,000/26,000kg | |
| Cab | Cab Style | Sleeper Cab |
| Cab Model | VC61 | |
| Cab Roof | Standard (low roof) | |
| Cab Width | 2400mm | |
| Construction | Full steel suspended | |
| No. of Seats | 3 | |
| Instrument & Controls | Standard | |
| Driver Seats | Air bag | |
| Tiltable | Front tiltable | |
| Equipment & Device | AC, power steering | |
| Engine | Make/Model | ISUZU/6UZ1-TCG50 |
| Output Power/Speed | 279kW @ 2000rpm | |
| Max. Torque/Speed | 1800N·m @ 1420rpm | |
| Displacement | 9.839L | |
| Engine Type | Water-cooled, 6-cyl, 4-stroke, turbo diesel | |
| Emission Regulation | EURO 3 | |
| Transmission | Make/Model | FAST12 |
| Type | Manual | |
| Gear Numbers | 12 forward + 2 reverse | |
| Wheels | Wheel Numbers | 10 + 1 spare tire |
| Tires | 315/80R22.5 20PR | |
| Crane | Make/Model | XCMG/SQS300 |
| Max Lifting Capacity | 12,000kg @ 2.5m | |
| Max. Lifting Moment | 30 T·M | |
| Recommend Power | 45 kW | |
| Oil Flow (Hydraulic System) | 80+32 L/min | |
| Hydraulic Pressure | 26 MPa | |
| Oil Tank Capacity | 200 L | |
| Install Space | 1300 mm | |
| Rotation Angle | 360° all rotation | |
| Max Lifting Height | 18 m | |
| Working Radius | 16.5 m | |
| Cargo Box | Model | 08CB/ISUZU |
| Side Wall | 2mm high tensile steel | |
| Floor/Platform | 5mm wear-resistant steel | |
| Door | All side open |
