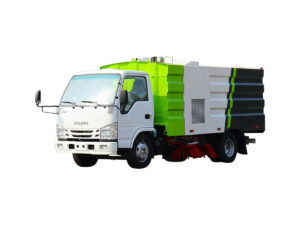

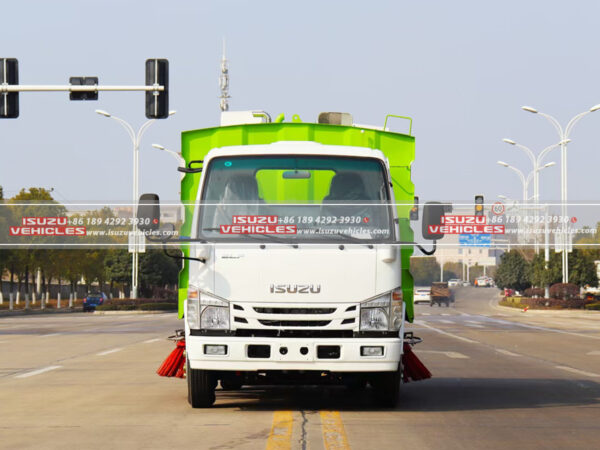

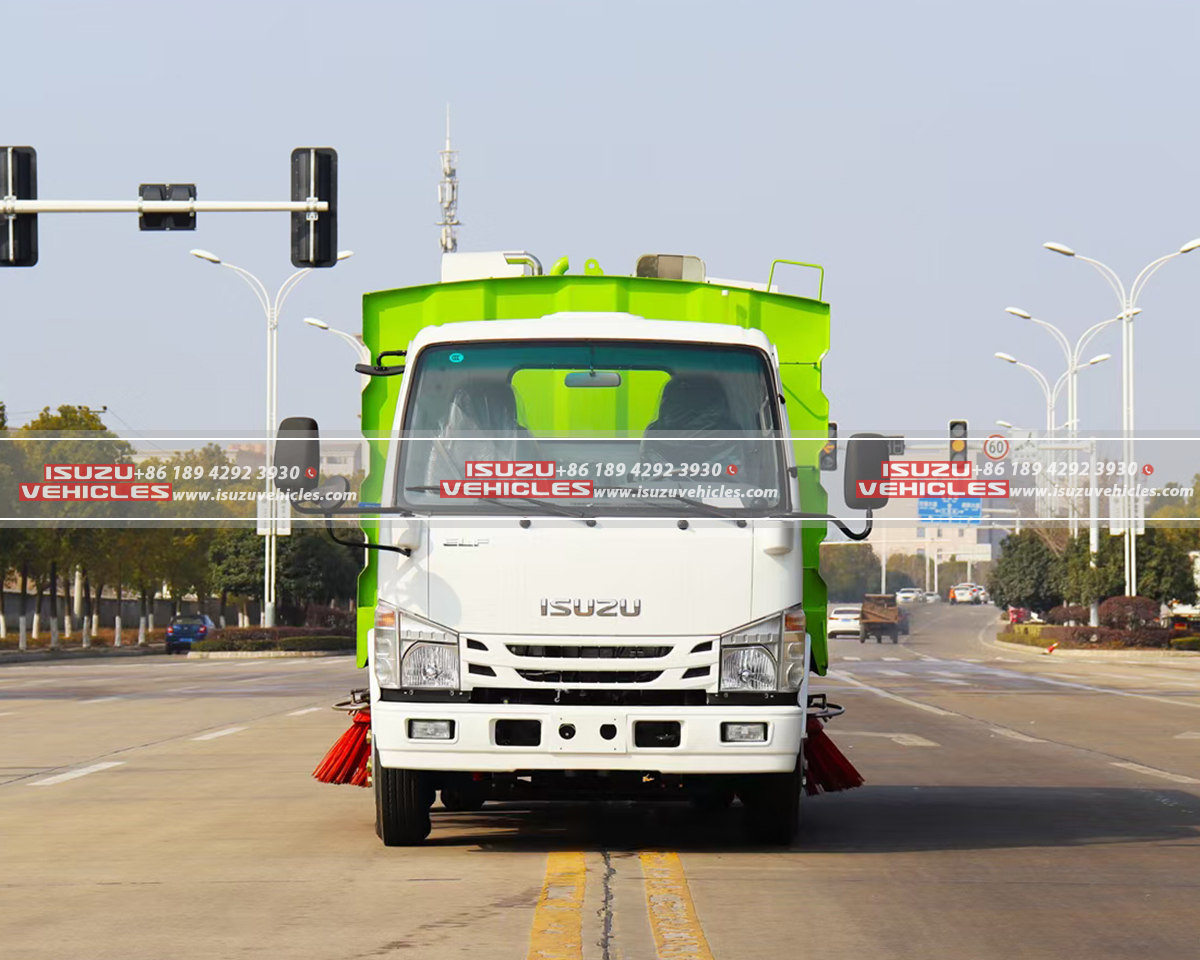

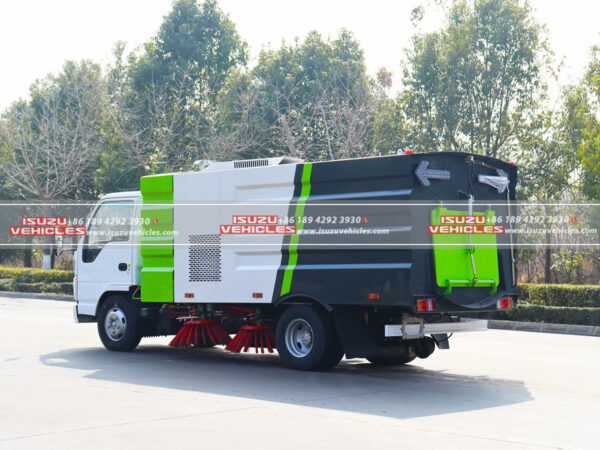

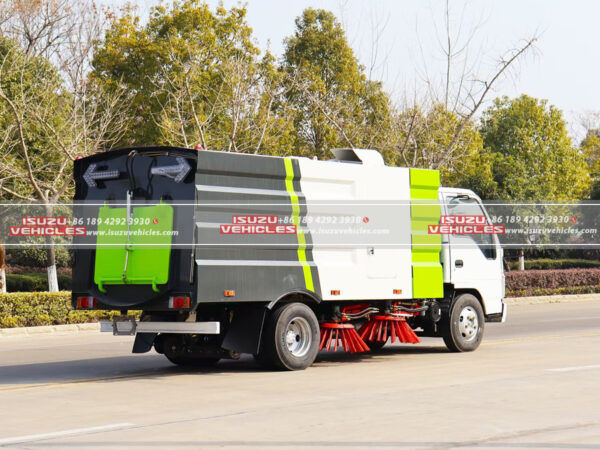

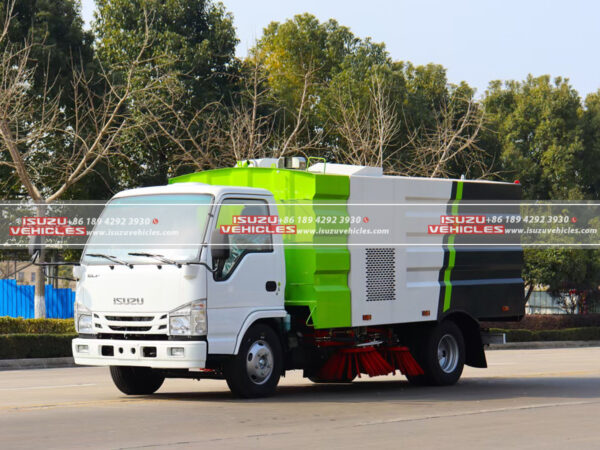

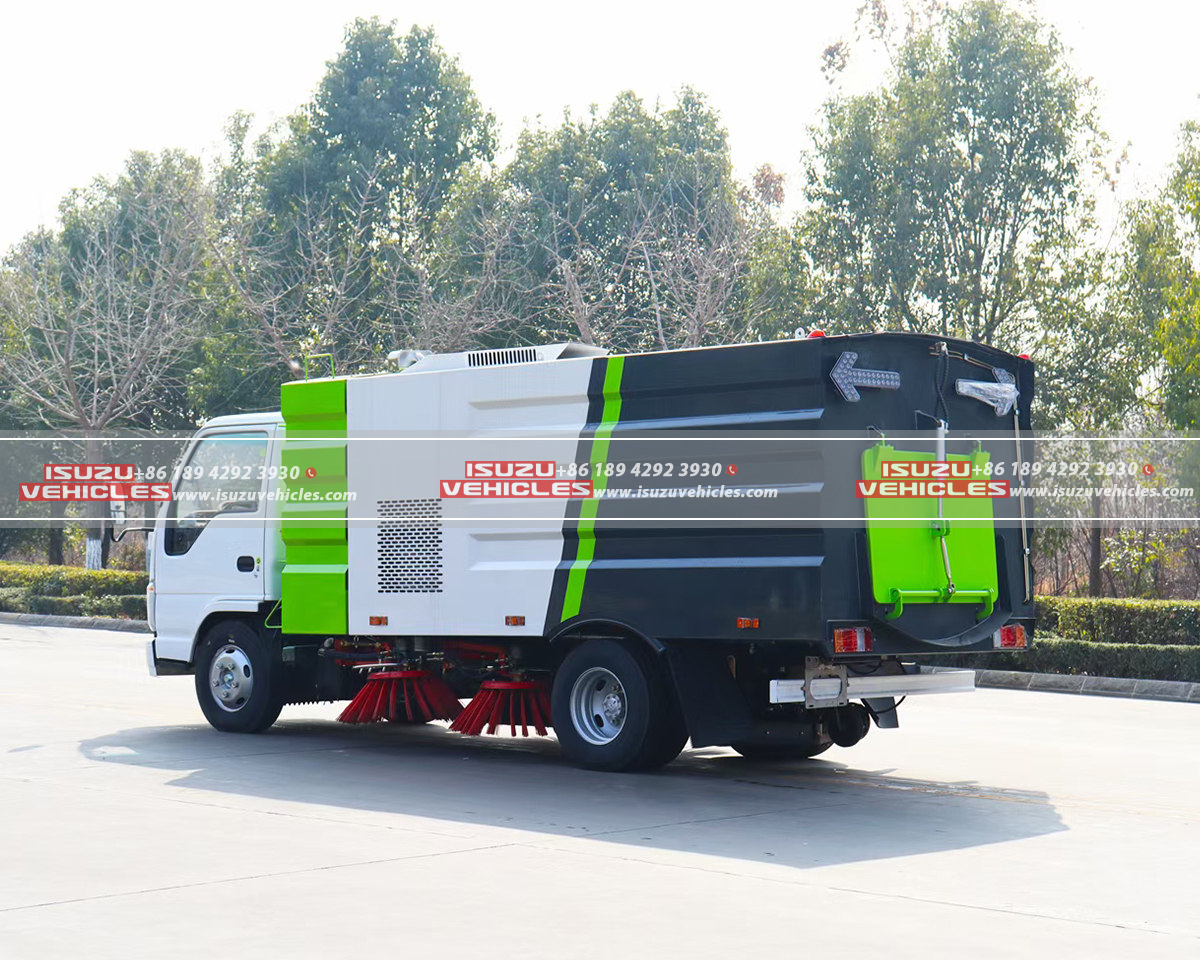

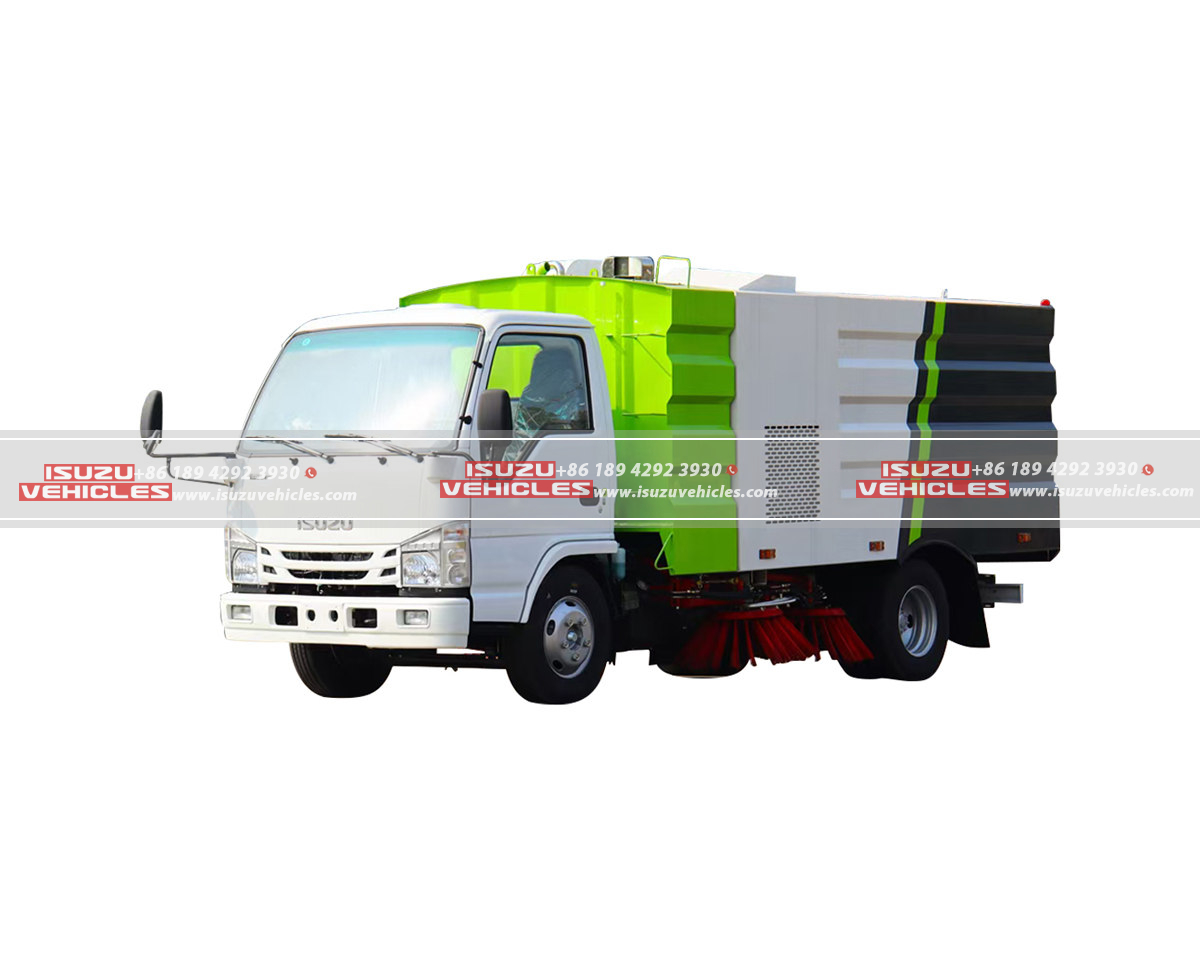

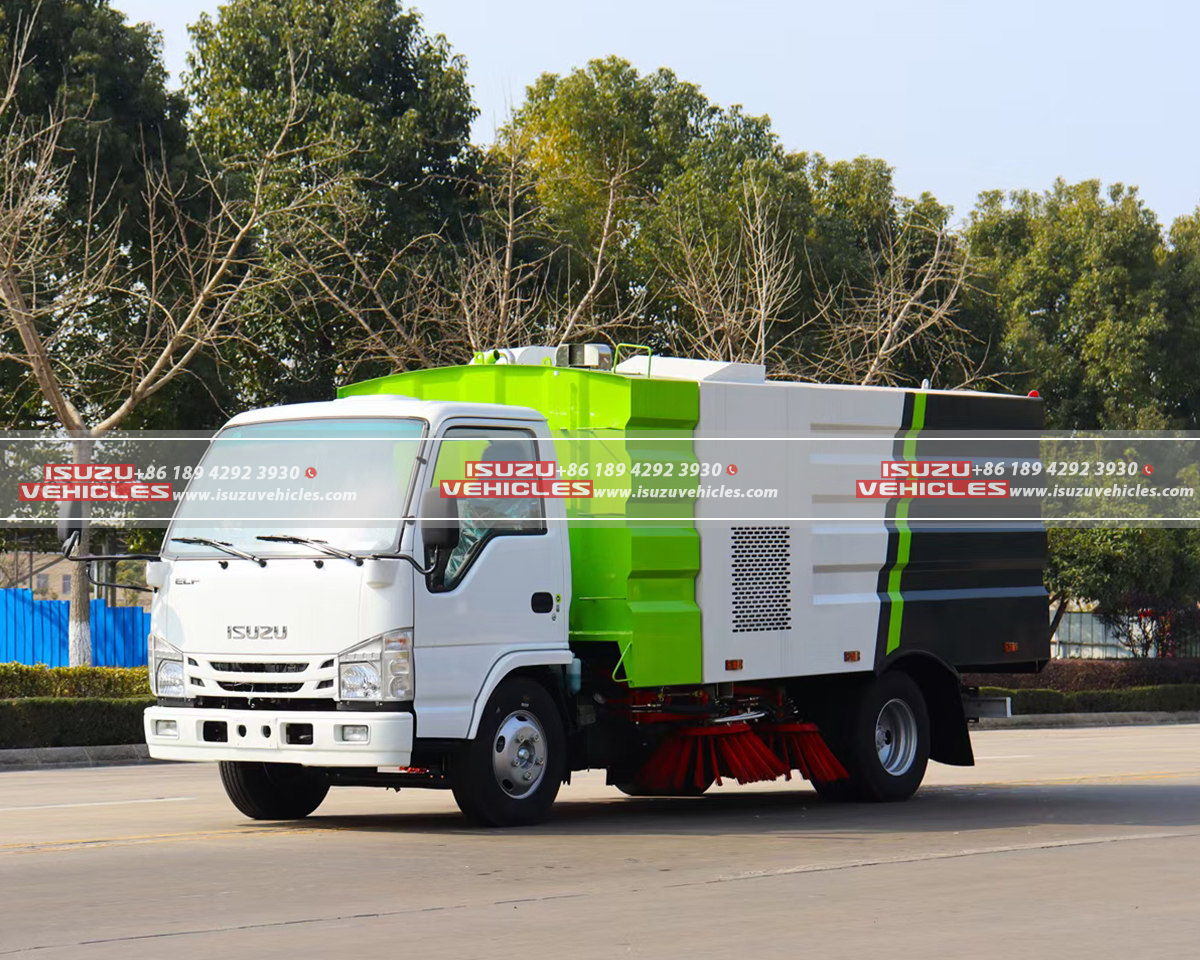

ISUZU Mini Street Sweeper Truck
100P Chassis Compact Agility
Built on the lightweight ISUZU 100P chassis, this ISUZU Mini Street Sweeper Truck combines urban maneuverability with robust performance. With overall dimensions of 5,180×2,000×2,470mm and a 3,360mm wheelbase, it supports a gross vehicle weight of 4,495kg while maintaining a nimble curb weight of 2,200kg. The 4+2 drive wheel configuration with 7.00R16 tires ensures stability in confined spaces and on narrow streets.
Euro 5-Compliant Powertrain
Powered by the ISUZU 4KH1CN5LS engine, the ISUZU sweeper truck delivers 98HP (72kW) @ 3,400rpm and 220N·m peak torque @ 1,700rpm, optimized for low-emission urban operations. The intercooled turbocharged design paired with an ISUZU/MSB manual transmission (5F+1R) ensures fuel efficiency and reliability during repetitive sweeping cycles.

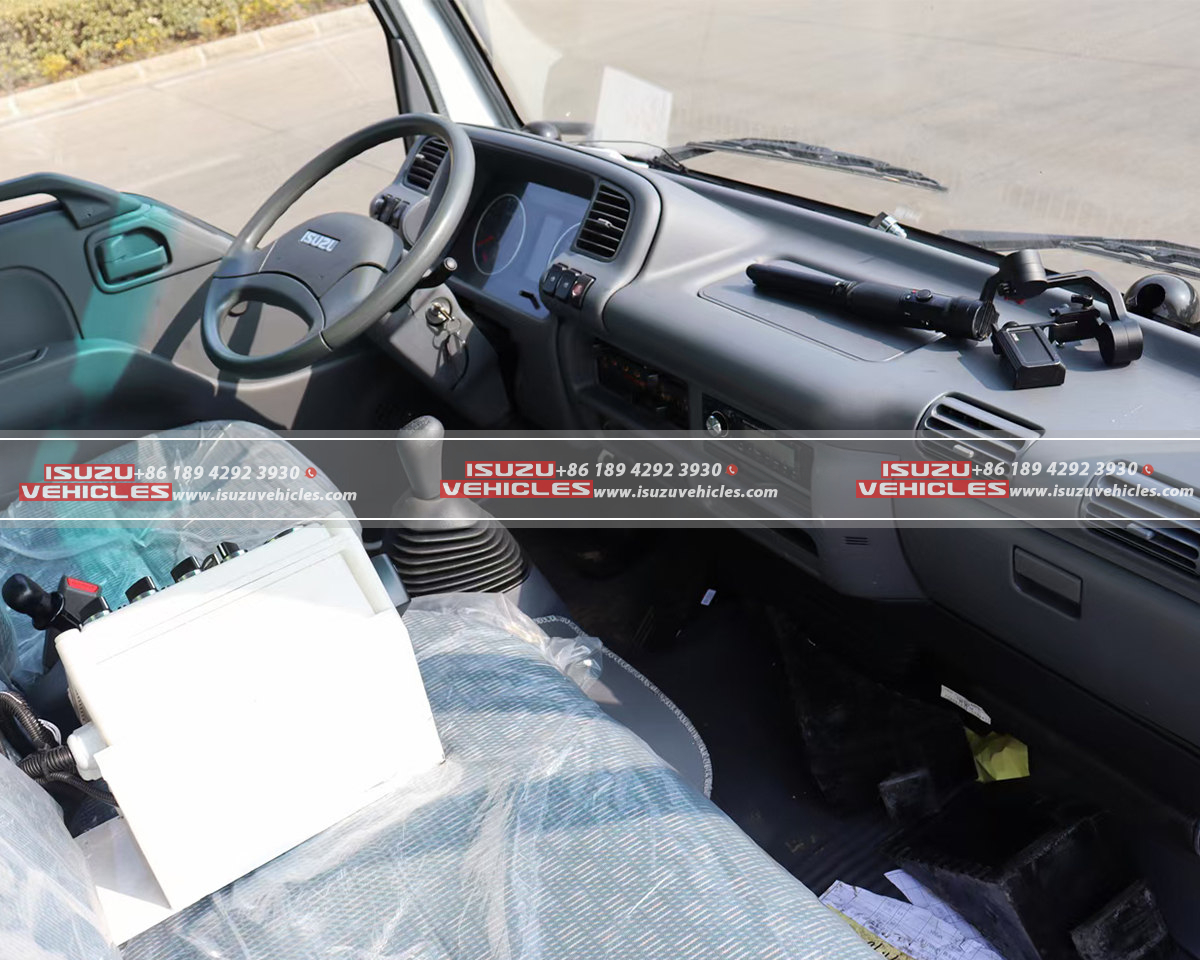

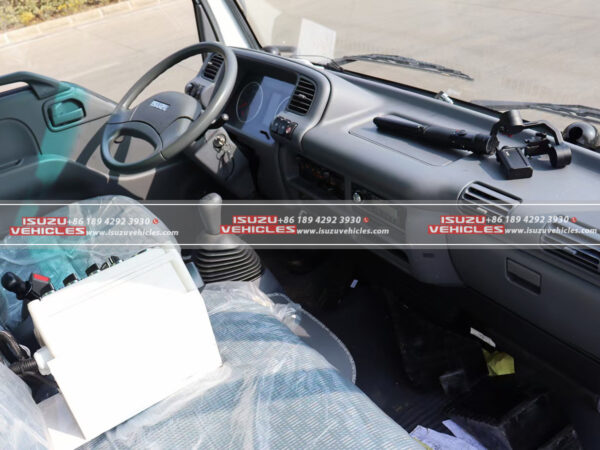

Operator-Focused Cabin
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring ergonomic controls and enhanced visibility for precision maneuvering in high-density environments.
Features
3CBM Dual-Function Tank System
Equipped with a 3CBM stainless steel 304 tank, the system integrates a 2m³ garbage compartment and a 1,000L water tank for simultaneous debris collection and dust suppression. The corrosion-resistant design ensures longevity in harsh urban conditions.
High-Efficiency Sweeping System
Four motor-driven disc brooms (900mm diameter) operate symmetrically between the axles, achieving a sweeping width of 2.6–3.2m and a maximum cleaning capacity of 60,000 m²/h. Adjustable sweeping speeds of 3–20km/h adapt to varying debris loads.
Advanced Suction & Airflow Technology
A full-floating suction nozzle with a 200mm intake port and hydraulic lift/lower function ensures debris capture across uneven surfaces. The high-pressure centrifugal blower (2,600–2,900r/min) and JMC 87HP auxiliary engine power continuous airflow for optimal particle removal, handling debris up to 100mm in size.
Anti-Dust Spraying Integration
DC 12V electric diaphragm pumps and nozzle-filter systems enable precise water spraying, minimizing airborne dust during operations.
Durability & Safety
Open-type hydraulic systems (16MPa pressure) with gear pumps, motors, and solenoid valves ensure reliable performance. The rear hopper design includes reinforced compaction and slide plates for efficient waste ejection.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SS03QL98L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,180 x 2,000×2,470 (mm) |
| Gross Vehicle Weight | 4,495kg |
| Curb Weight | 2,200kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU 100P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5LS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 98HP (72kw) @ 3,400rpm |
| Peak Torque | 220N.m@1,700rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
| CAPACITY | 3CBM |
| BODY SYSTEM | |
| Tanker Capacity | 3CBM(2m³ garbage tank+1,000L water tank) |
| Material | Stainless steel 304 |
| Auxiliary Engine | |
| Brand | JMC |
| Power | 87HP |
| AIR BLOWER | |
| Type | High-pressure, centrifugal, sweeping truck-specific used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt powered |
| SWEEPING EQUIPMENT | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Sweep Diameter | 900mm |
| Sweep Speed | 3~20km/h |
| Max. Cleaning Capacity | 60000 m2/h |
| SUCTION EQUIPMENT | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter suction port |
| Maximum Inhalation Particle Size | ≥100mm |
