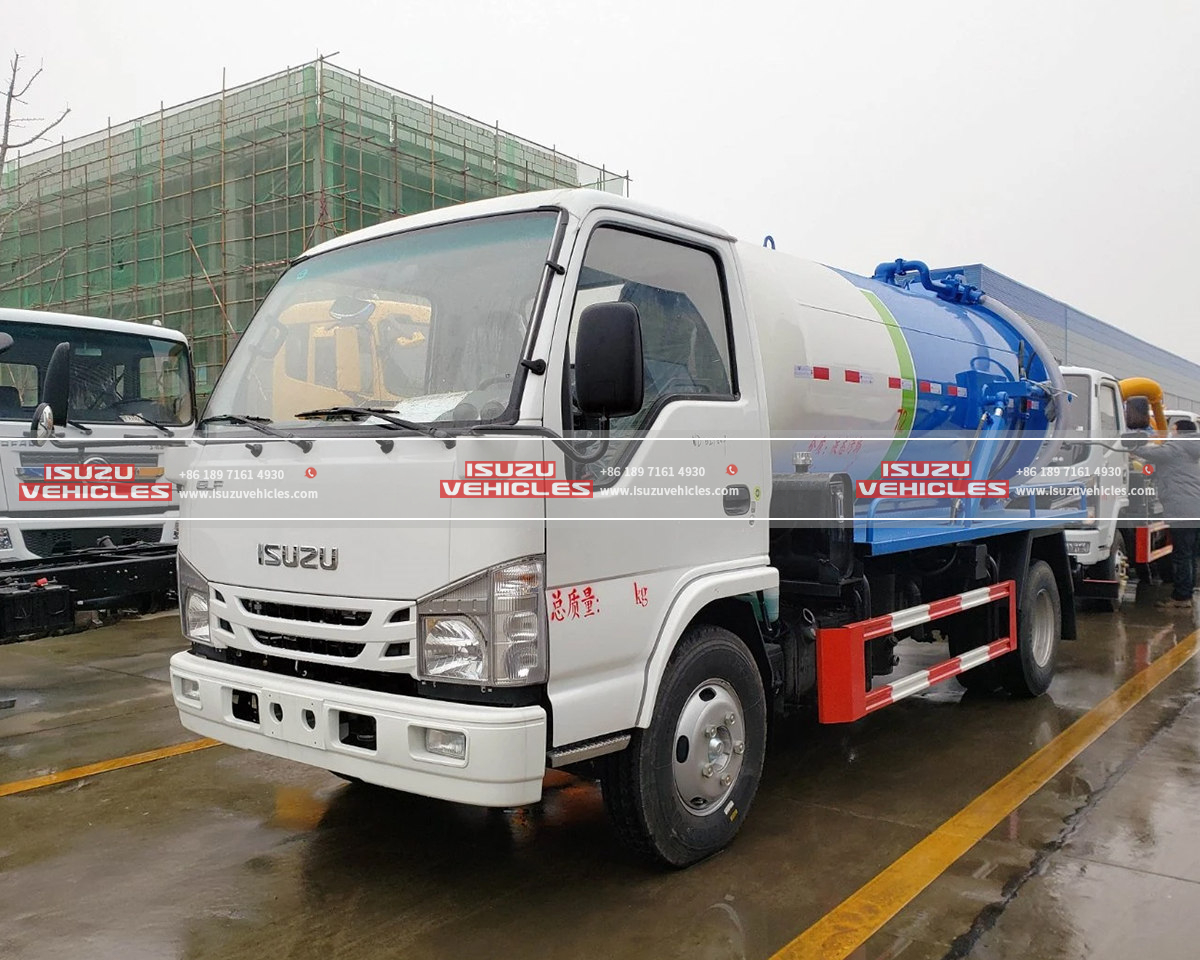

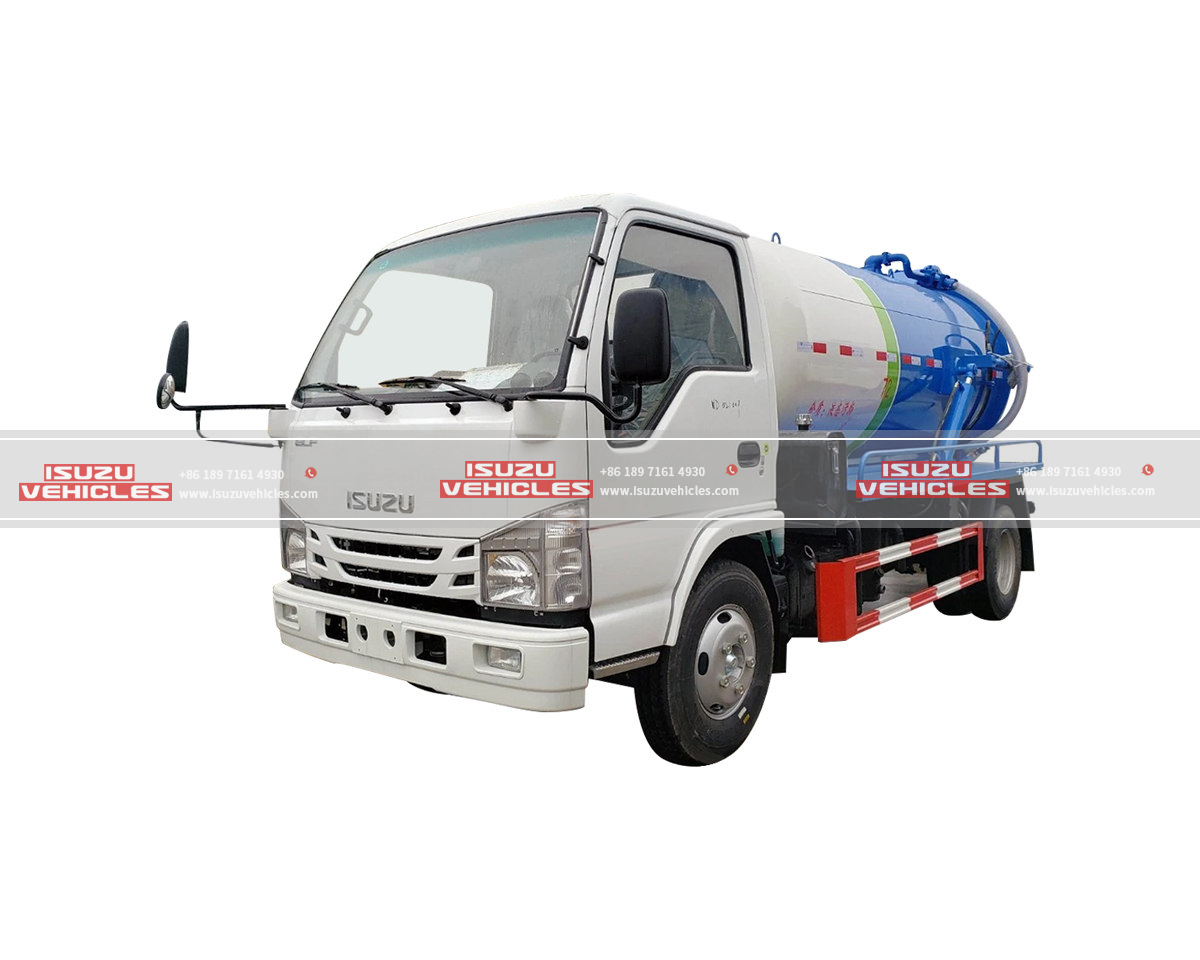

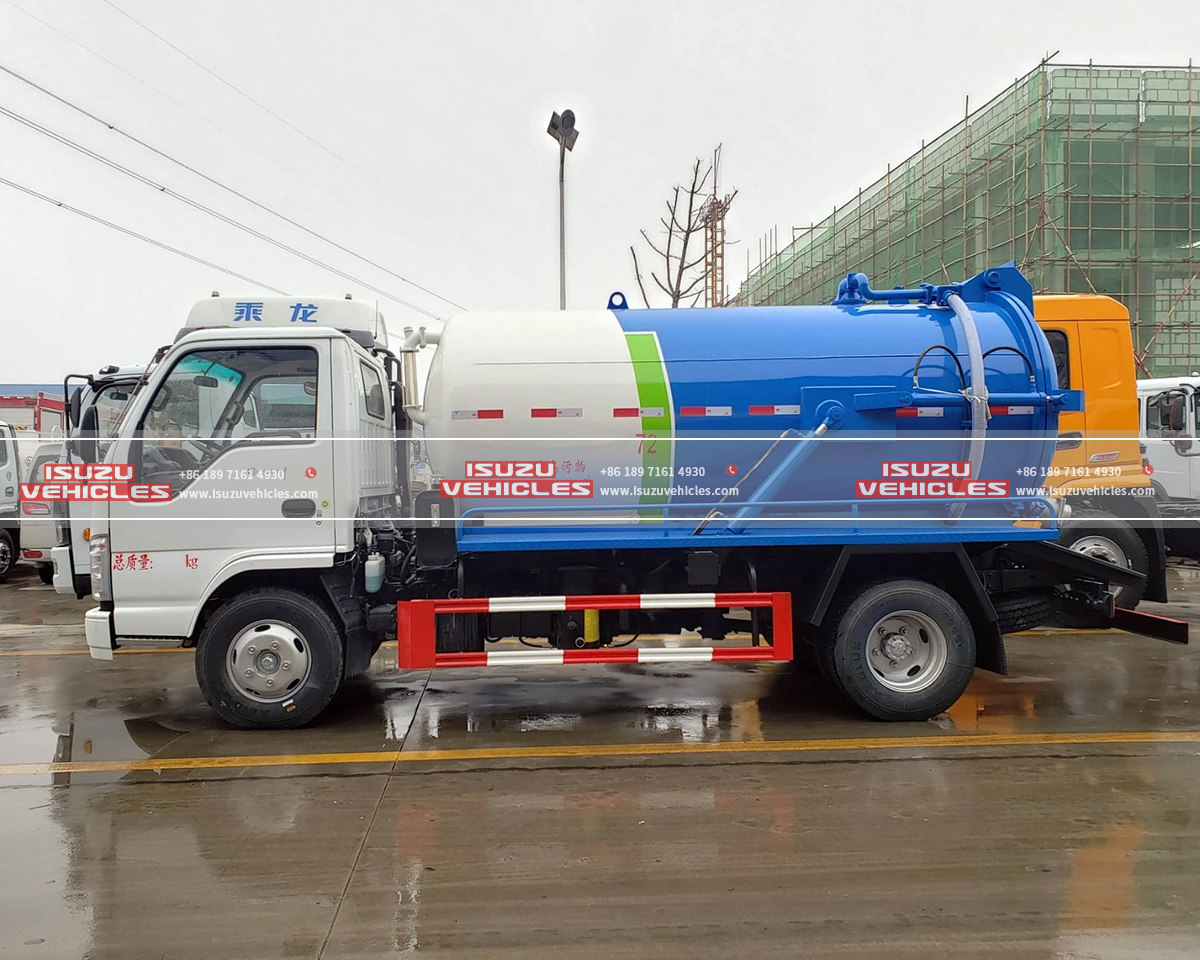

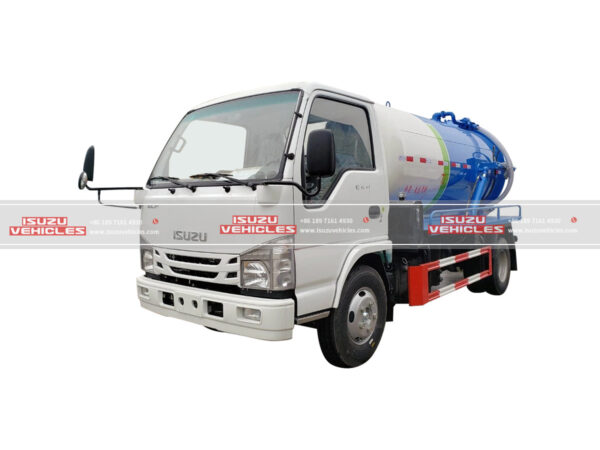

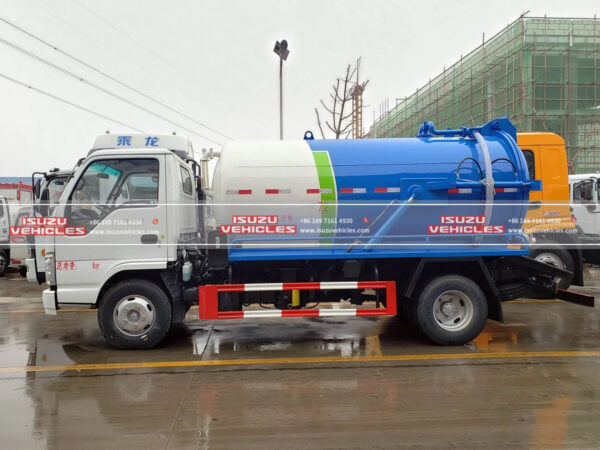

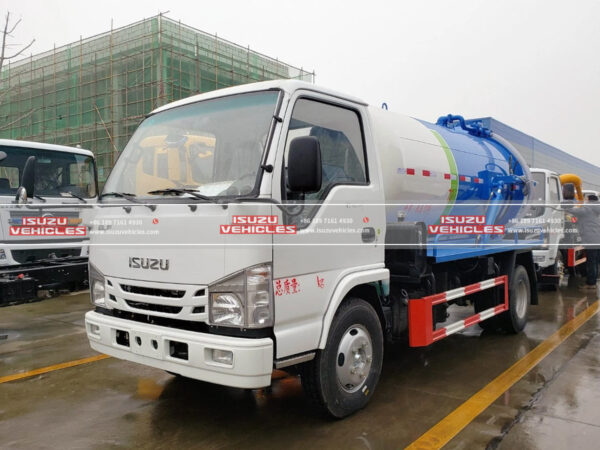

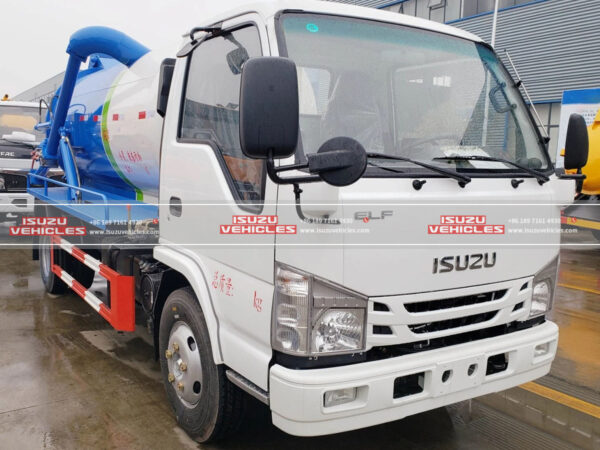

ISUZU NKR Sewage Pump Truck
100P Chassis Agility
This ISUZU NKR Sewage Pump Truck is built on the ISUZU 100P chassis and excels in urban and narrow-space operations. With an overall dimension of 5,900×1,950×2,400mm and a 3,360mm wheelbase, it balances maneuverability and stability, supporting a gross vehicle weight of 5,700kg and a curb weight of 3,010kg. The 4+2 drive wheel configuration with 7.00R16 tires ensures reliable traction across diverse terrains.
Efficient Powertrain
Powered by the ISUZU 4KH1CN5LS Euro 5 engine, the vacuum sewer truck delivers 98HP (72kW) at 3,400rpm and 220N.m peak torque at 1,700rpm. The intercooled turbocharged design and ISUZU/MSB manual transmission (5F+1R) guarantee fuel efficiency and seamless power delivery for continuous sewage handling.

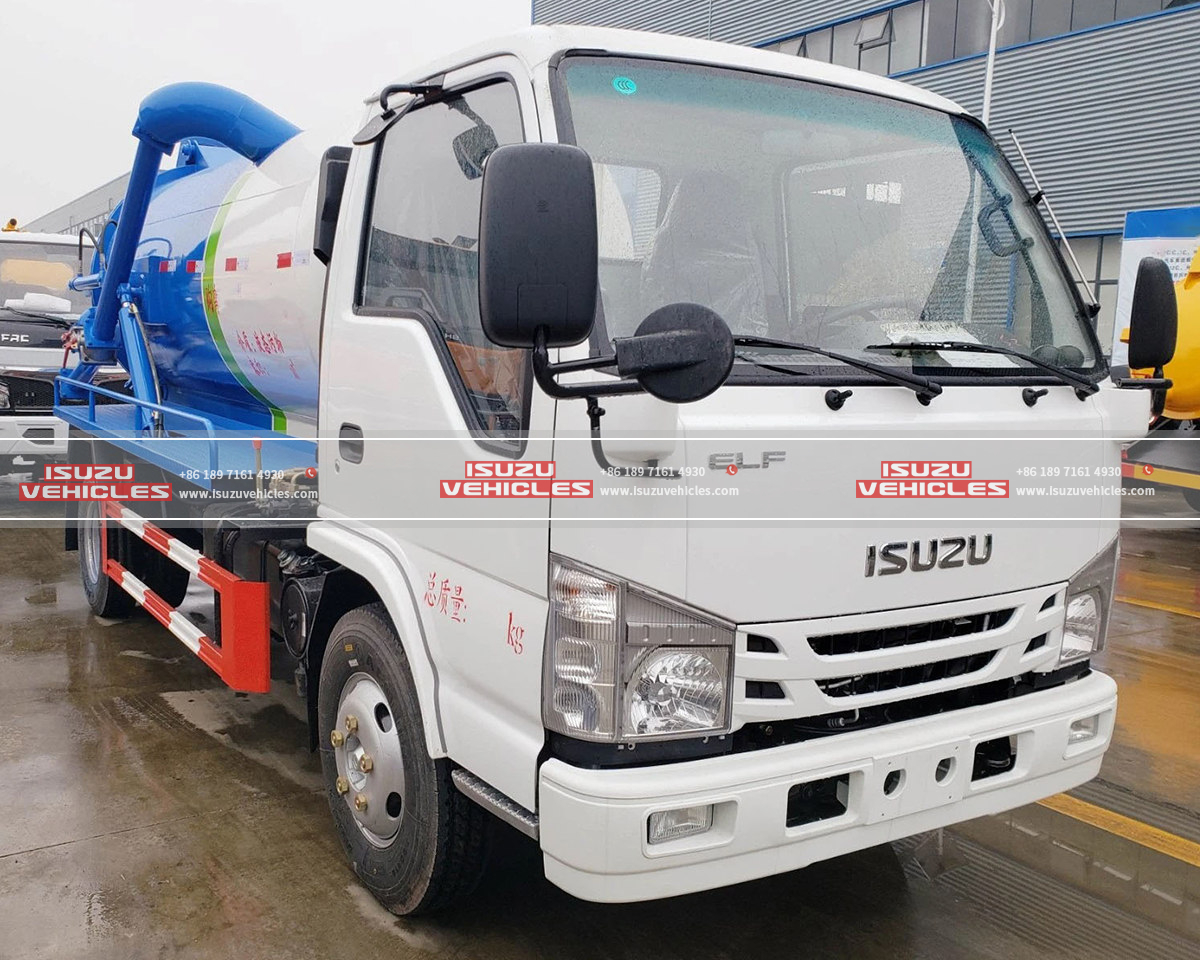

Compact Cabin Ergonomics
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, prioritizing operator comfort and visibility. Its lightweight yet robust structure enhances control during high-frequency waste management tasks.
Features
High-Capacity Vacuum System
Equipped with the VERYONG/68-7000 water-cooled vacuum pump, the system achieves a flow rate of 800m³/h and 93% maximum vacuum efficiency, ideal for rapid sludge extraction. The heavy-duty spiral suction hoses (4” diameter, 3m length) feature quick-connect fittings and aluminum/galvanized steel couplings for durability and ease of use.
Durable Sludge Tank Design

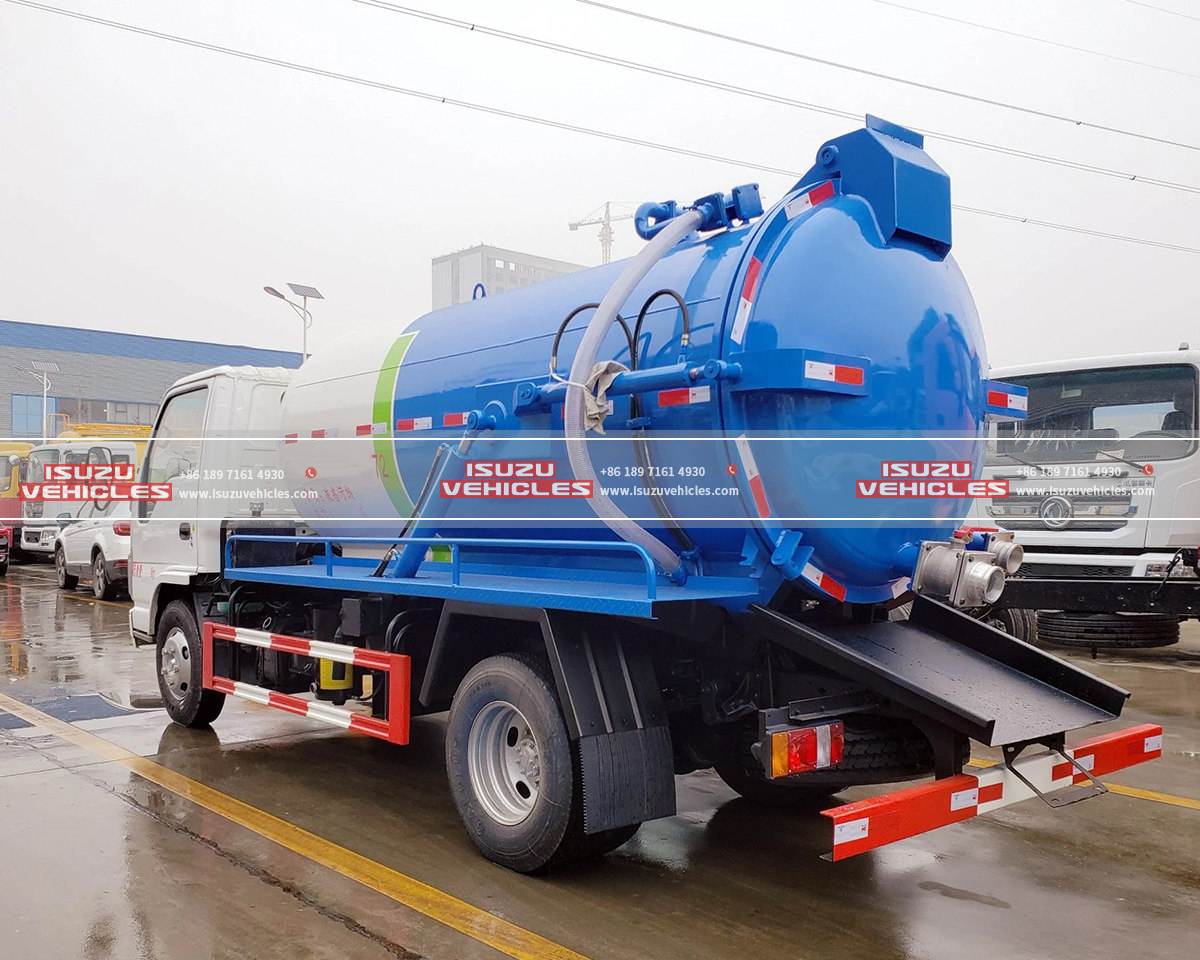

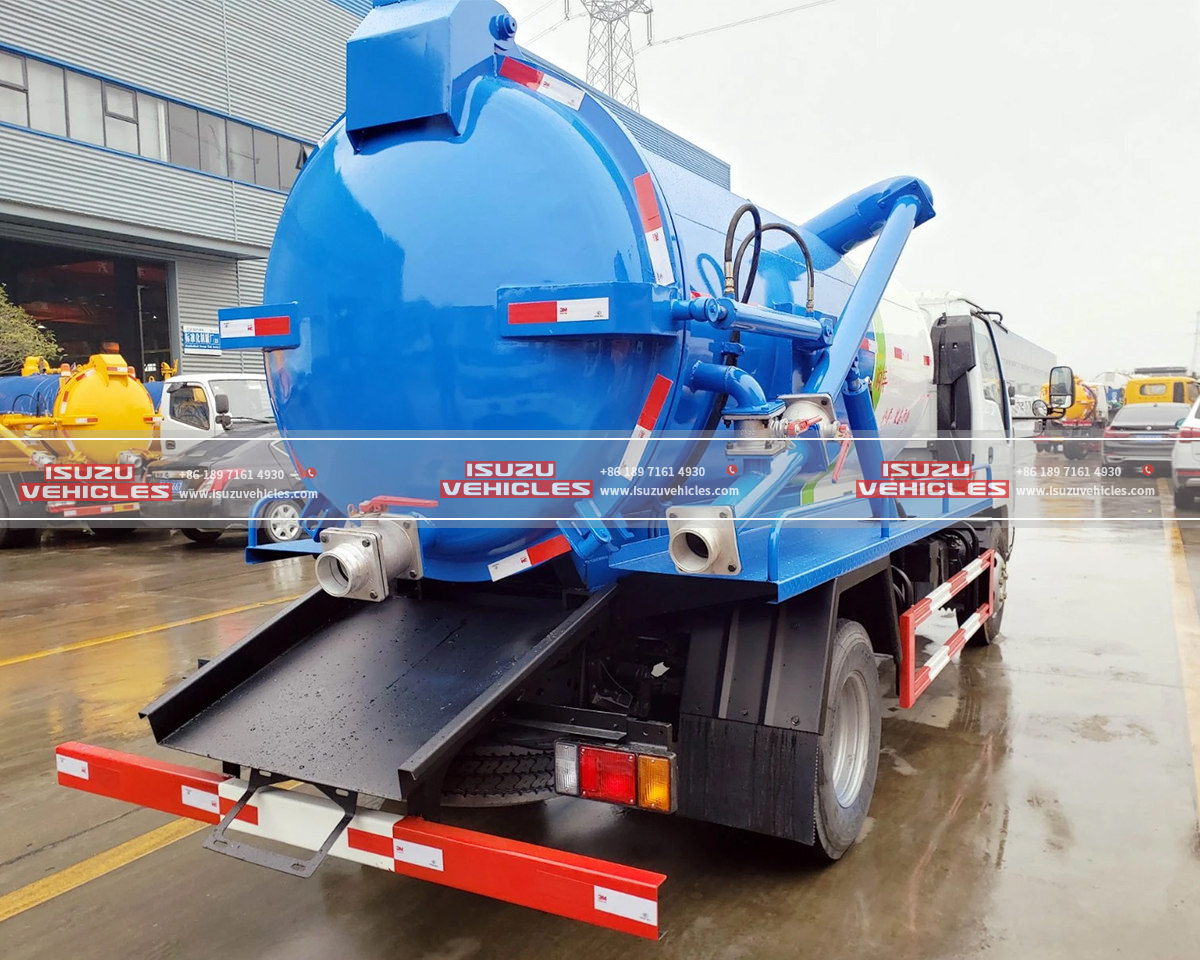

Constructed from 6mm reinforced steel, the 3,000L sludge tank includes a 5,000L compartment for high-volume storage. The rear door is reinforced and raises to 80° for efficient unloading, secured by self-compensating seals and manual latches to prevent leaks.
Anti-Flow Safety Mechanisms
Integrated anti-flow devices and dual shut-off valves ensure compliance with environmental regulations, minimizing contamination risks during operation.
User-Centric Monitoring
Transparent acrylic level indicators on both compartments provide real-time sludge volume tracking, while ergonomic manual controls streamline maintenance and operational adjustments.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / VST03QL98L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,900×1,950×2,400 (mm) |
| Gross Vehicle Weight | 5,700kg |
| Curb Weight | 3,010kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU 100P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spares (total of 7 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5LS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 98HP (72kw) @ 3400rpm |
| Peak Torque | 220N.m@1,700rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
| CAPACITY | 3,000L |
| Sludge Tank | |
| Tipping | The tank is mounted with an arrangement for the rear tipping |
| Thickness | 6mm |
| Compartment | Sludge/sewage tank compartment: 5,000liters |
| Level Indicators | Material: Transparent acrylic tubing with thick wall
Quantities: Total two units. One on each compartment. |

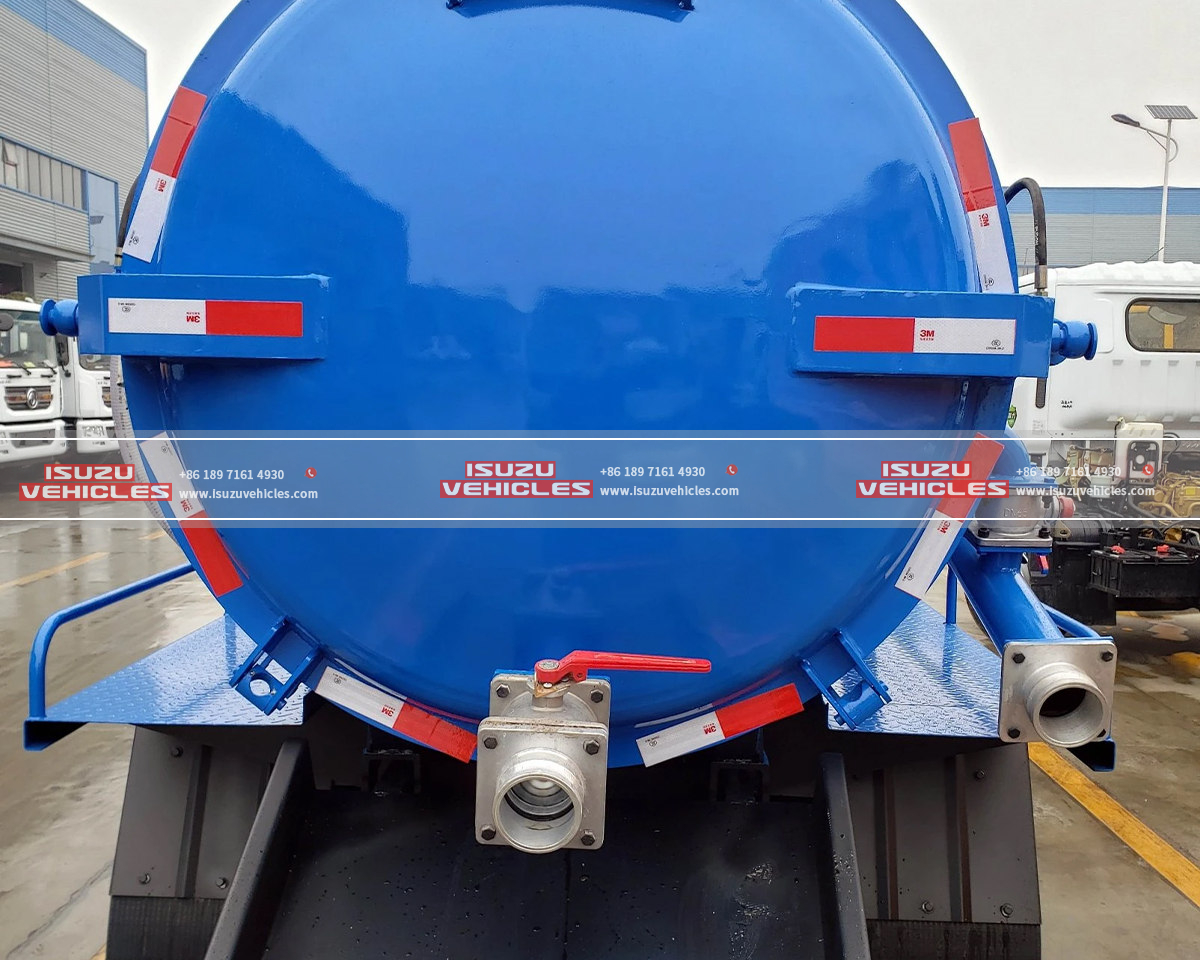

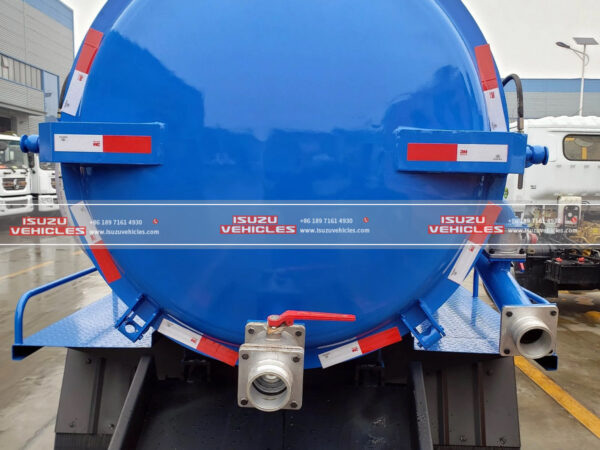

| Rear Door | Fully open-able type
It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
| Vacuum Pump | |
| Make/Model | VERYONG/68-7000 |
| Pump Capacity | 800m3/h |
| Speed | 950r/min |
| Maximum Vacuum | 93% |
| Type | Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. |
| Max. Exhaust Power | <=10kw |
| Hose | |
| Heavy Duty Spiral Suction Hoses | Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
| Safety Device | Equipped with anti-flow devices |
