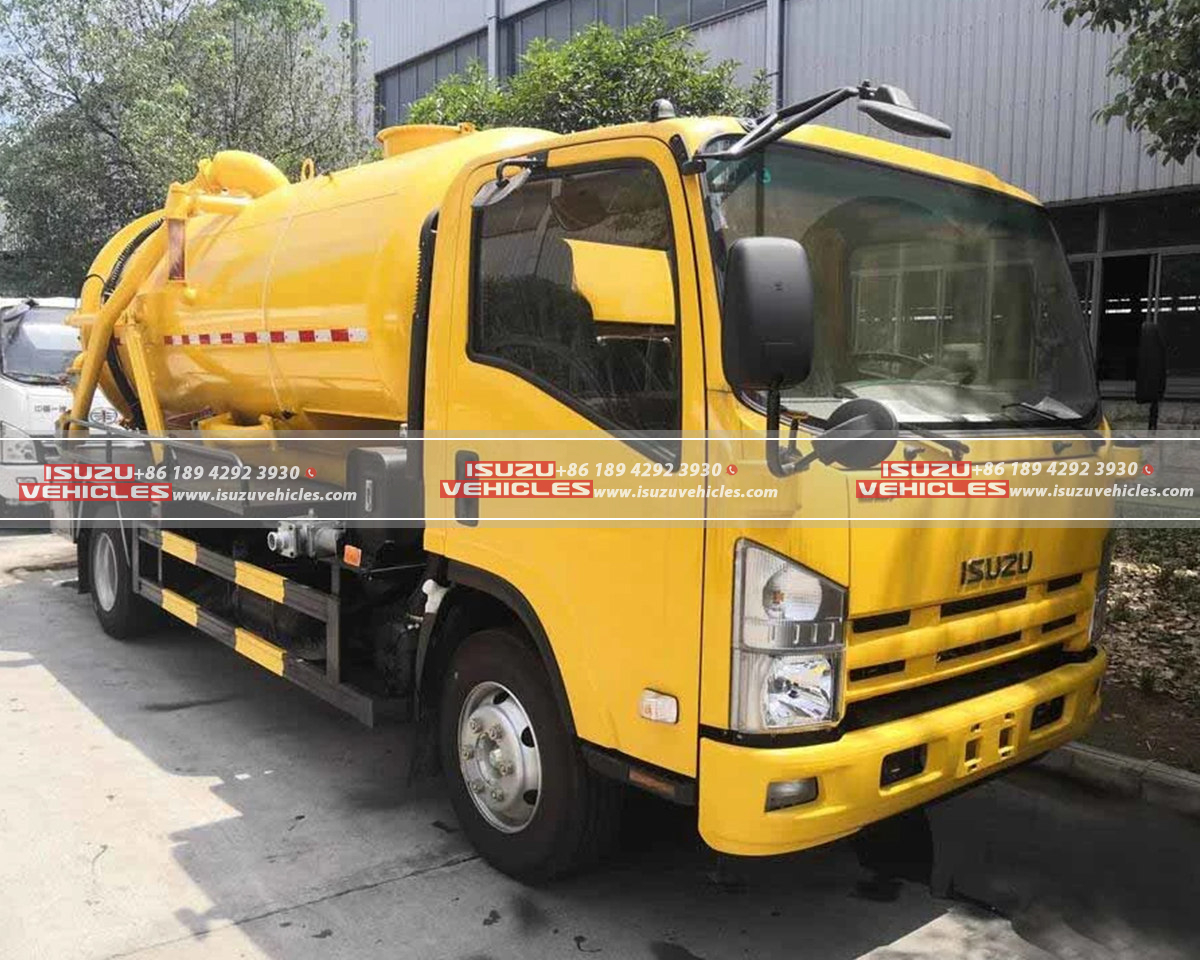

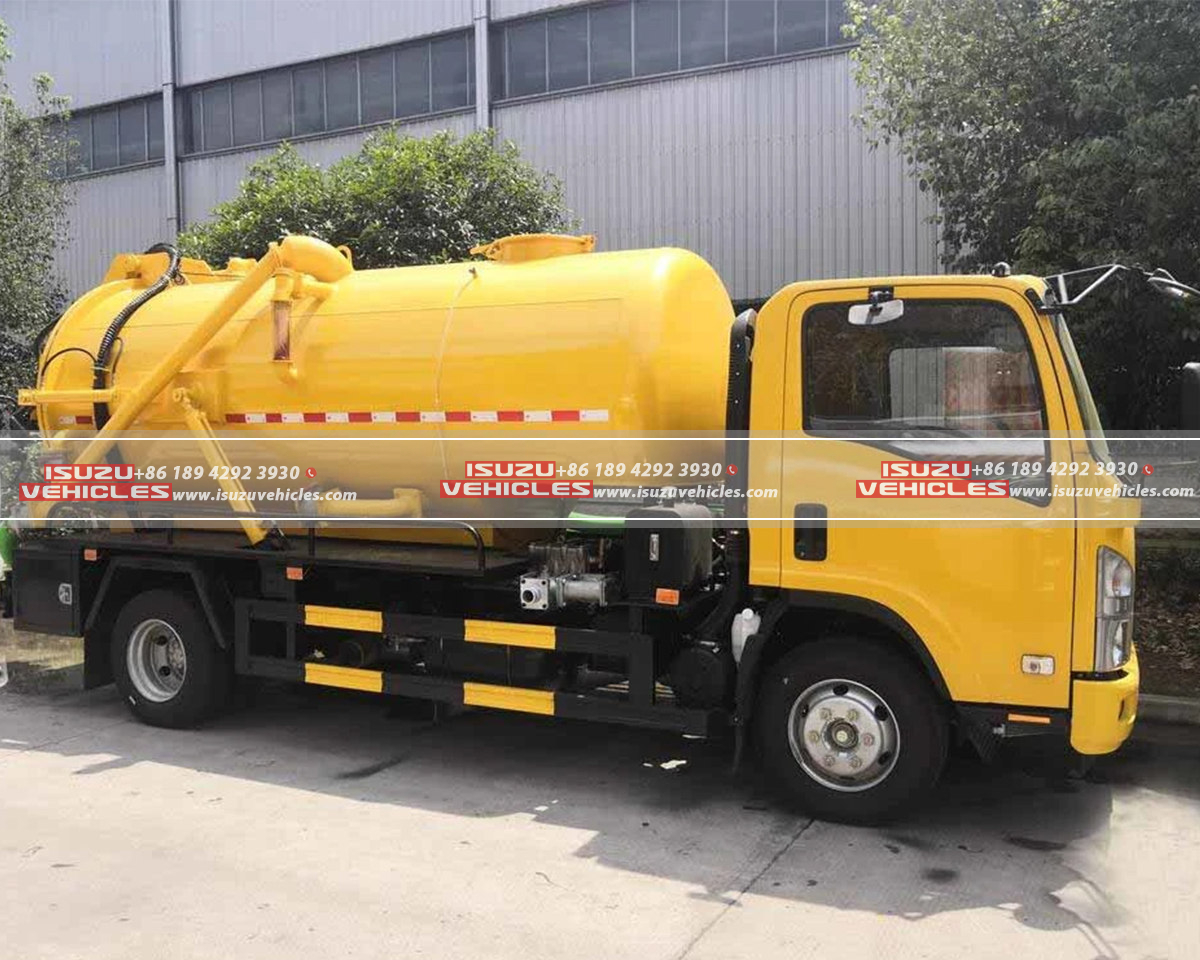

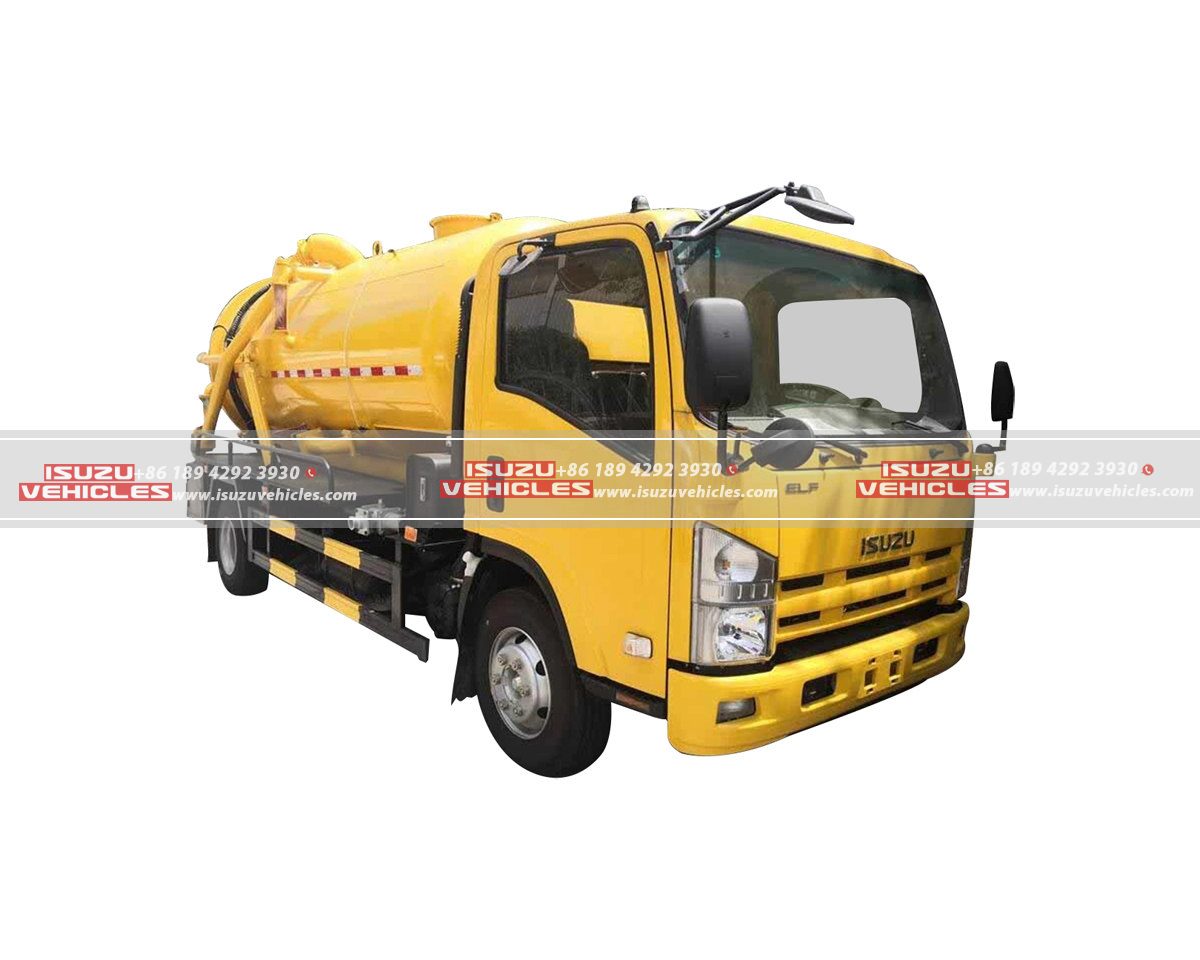

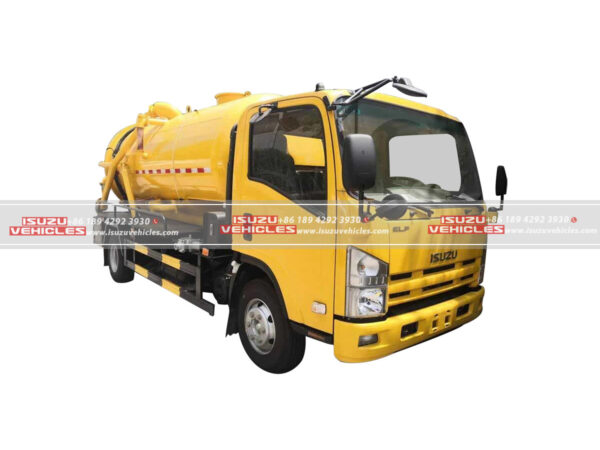

The ISUZU 6000L Drain Jetting Truck, model CSJ06QL190L5 from CSCTRUCK, is a versatile and powerful vehicle designed for efficient and effective drain jetting operations. Built on the robust ISUZU 700P chassis, this truck combines advanced engineering with practical design to meet the demanding needs of municipal and industrial cleaning tasks.
Key Features and Specifications
General Overview

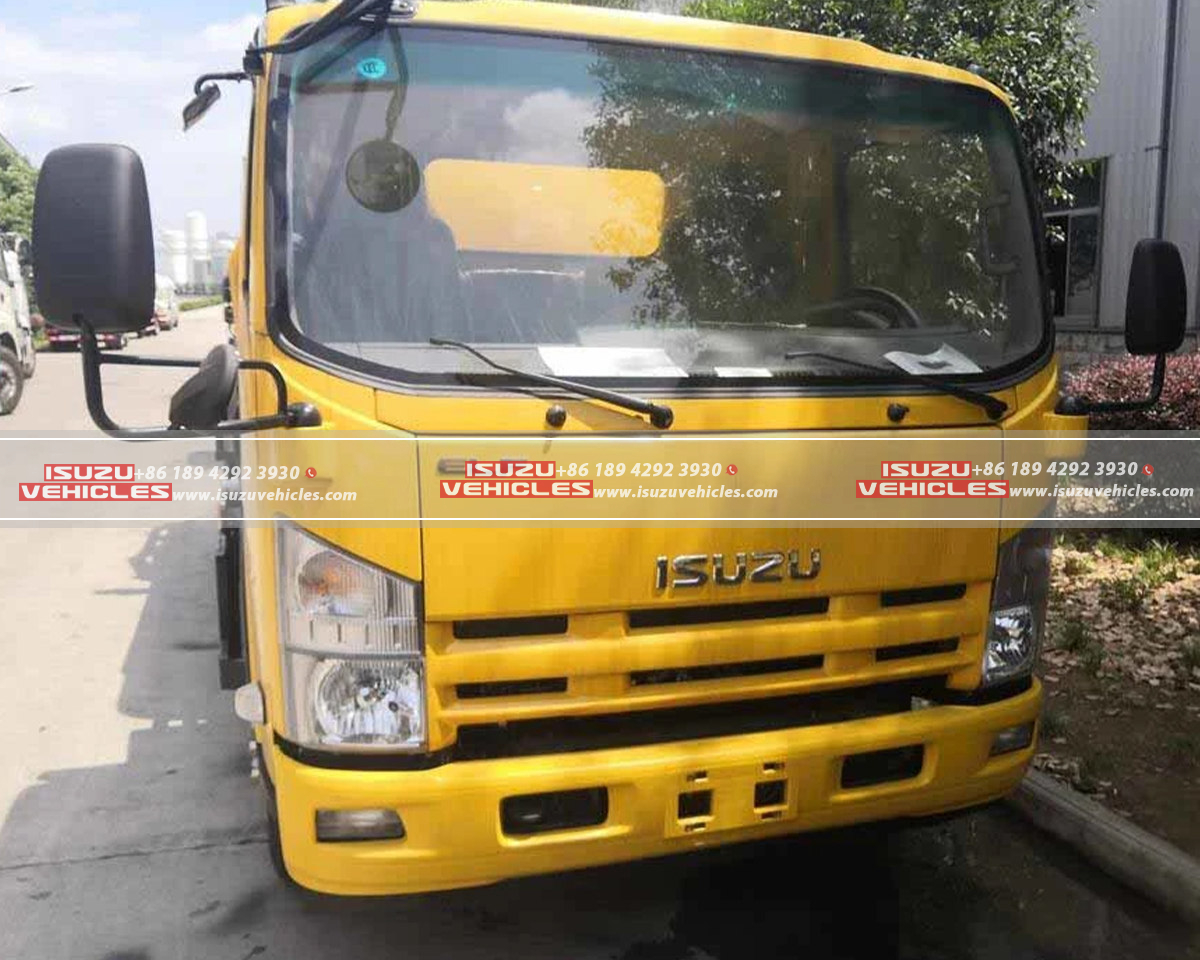

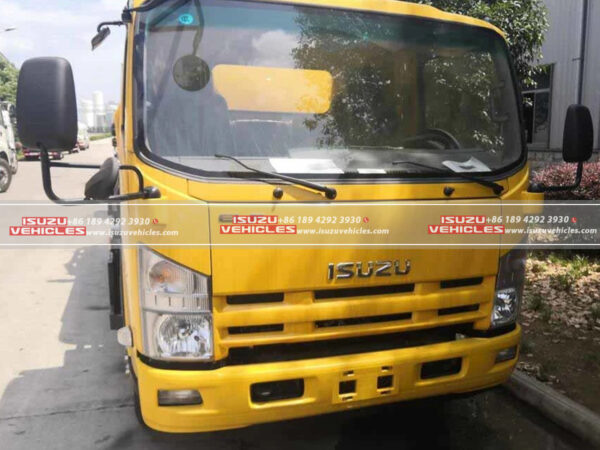

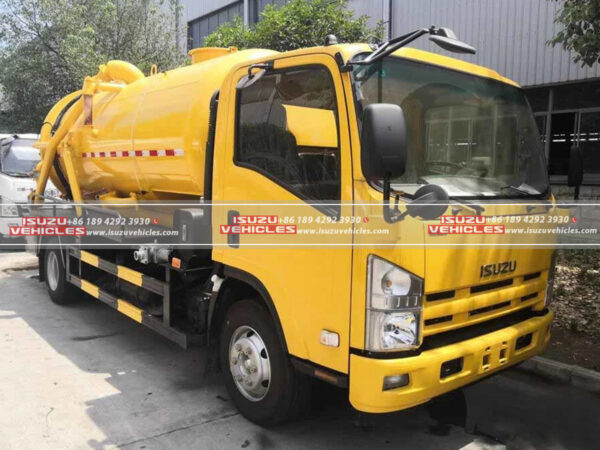

The ISUZU 6000L Drain Jetting Truck features a 4×2 Left-Hand Drive configuration, making it suitable for a wide range of driving conditions and ensuring maneuverability in urban environments. The truck’s overall dimensions are 6,700 mm in length, 2,300 mm in width, and 2,700 mm in height, providing a compact yet spacious design. With a gross vehicle weight of 10,000 kg and a curb weight of 6,158 kg, this truck balances capacity and performance. The 3,815 mm wheelbase enhances stability and handling, which is crucial for safety and efficiency during operations. The cabin, equipped with hydraulic power steering, accommodates one driver and two passengers comfortably.
Engine and Performance
Powered by the ISUZU 4HK1-TC51 engine, the truck boasts a 4-cylinder, inline, 4-stroke direct injection engine with water cooling and intercooled turbocharging. With a displacement of 5.193 liters, the engine delivers a nominal power of 190 HP (141 kW) at 2600 rpm and a peak torque of 510 Nm at 1600 rpm. The engine complies with Euro 5 emission standards, ensuring it meets stringent environmental regulations while providing powerful performance.
Transmission
The truck features a manual transmission system by ISUZU/MLD, designed for diesel operation. The transmission includes six forward speeds and one reverse speed, offering versatile handling and control for various driving conditions.
Construction and Capacity

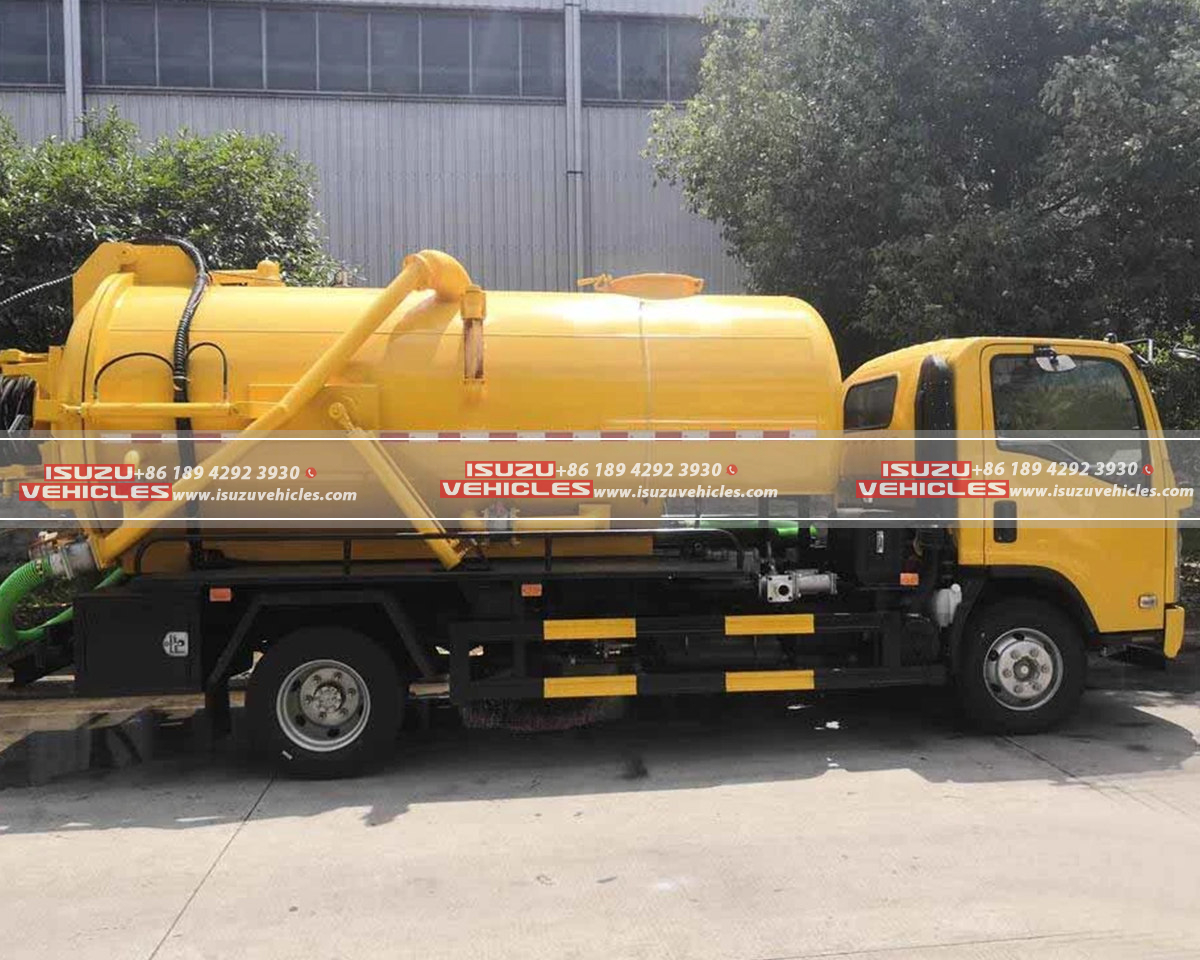

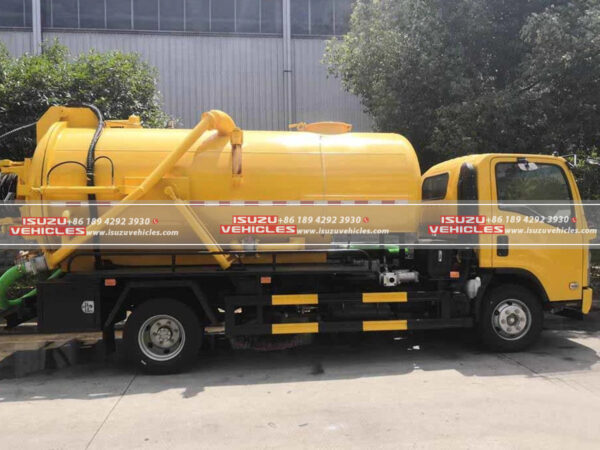

The ISUZU 6000L Drain Jetting Truck is constructed with a durable ISUZU chassis, body, and tailgate, including a rear hopper, ejection/discharging plate, compaction plate, and slide plate. The truck’s tank has a total capacity of 10,000 liters, divided into two compartments: a 4,000-liter cleaning water tank and a 2,000-liter sludge/sewage tank. The tank is designed with a 6 mm thickness for durability and features transparent acrylic level indicators for easy monitoring. The rear door is fully openable and reinforced for structural integrity, with a locking and sealing mechanism operated by hand wheel-operated bolts and self-compensating seals.
High-Pressure Jetting System

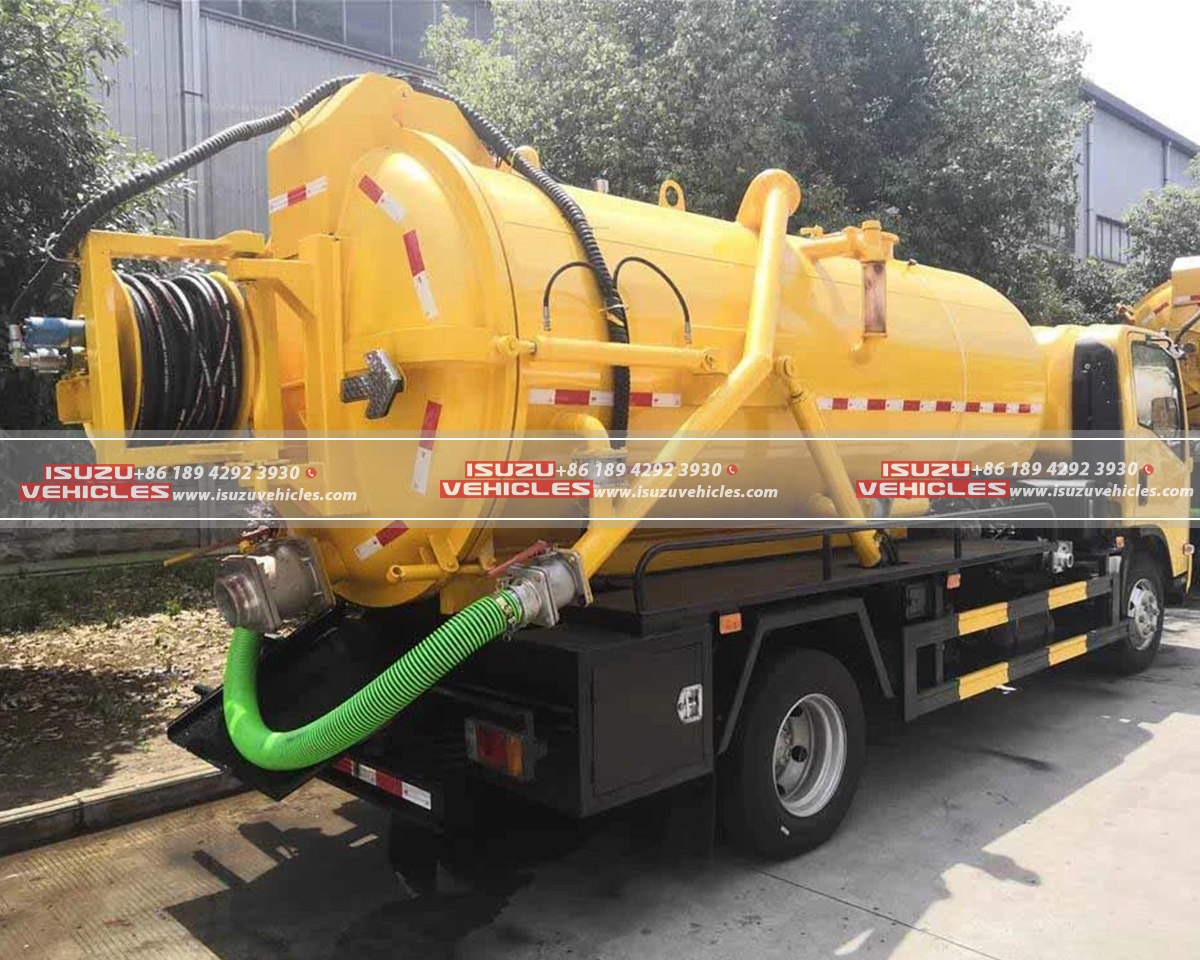

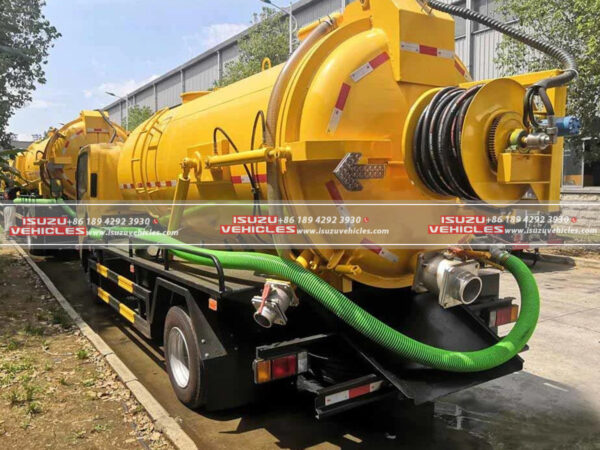

Equipped with a high-pressure jetting pump (model SY90-45 by SYLT), the truck delivers a rated power output of 90 kW. This heavy-duty, positive displacement single-acting triplex reciprocating pump provides a scavenging capacity of 170 liters per minute, driven by a split shaft from the total power take-off unit. The hose reel, located at the rear end of the combined tank, can store up to 120 meters of 1-inch sewer jetting hose. The hose delivery and recovery are managed by a low-speed, high-torque hydraulic system.
Vacuum Pump System
The vacuum pump system, model 68-7000 by VERYONG, features a rotary blade vacuum pump with a pump capacity of 800 cubic meters per hour. It offers continuous duty vacuum at 80% and a maximum vacuum of 93%, with a maximum exhaust power of 34 kW and a rotated speed of 950 rpm. This system ensures efficient suction and discharge of sludge and wastewater.
Hoses and Safety Devices
The truck comes with five heavy-duty spiral suction hoses, each 3 meters in length and 4 inches in diameter, made from light and easy-to-handle PVC with quick-connect fittings and male-female couplings for seamless suction applications. The truck is equipped with anti-flow safety devices, ensuring operational safety and preventing backflow during jetting and vacuuming processes.
SPECIFICATIONS:
| GENERAL | |
| Make/Model | ISUZU / CSJ06QL190L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
6,700 x 2,300 x 2,700 (mm) |
| Gross Vehicle Weight | 10,000kg |
| Curb Weight | 6,158kg |
| Wheelbase | 3,815mm |
| Chassis Designed | ISUZU 700P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total of 7 wheels) |
| Tire Size | 235/75R17.5 |
| ENGINE | |
| Make / Model | ISUZU / 4HK1-TC51 |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 5.193L |
| Nominal Power | 190HP (141kw) @ 2600rpm |
| Peak Torque | 510N.m@1,600rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MLD |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 6F+1R |
| CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
| CAPACITY | 10,000L |
| Sludge and Clean Tank | |
| Tipping | The tank is mounted with an arrangement for the rear tipping |
| Thickness | 6mm |
| Division of Compartment | The tank is divided into two compartments.
Cleaning water tank compartment: 4,000liters Sludge/sewage tank compartment: 2,000liters |
| Level Indicators | Material: Transparent acrylic tubing with thick wall
Quantities: Total two units. One on each compartment. |
| Rear Door | Fully open-able type
It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
| High-Pressure Jetting Pump | |
| Make/Model | SYLT / SY90-45 |
| Type | Heavy-duty positive displacement single-acting triplex reciprocating pump to be driven by a split shaft from total power take-off unit. |
| Pump Rated Power Output | 90kw |
| Scavenging Capacity | 170l/min |
| Vacuum Pump | |
| Make/Model | VERYONG/68-7000 |
| Pump Capacity | 800m3/h |
| Cont. Duty Vacuum | 80% |
| Maximum Vacuum | 93% |
| Type | Rotary blade vacuum pump |
| Max. Exhaust Power | 34kw |
| Rotated Speed | 950rpm |
| Hose | |

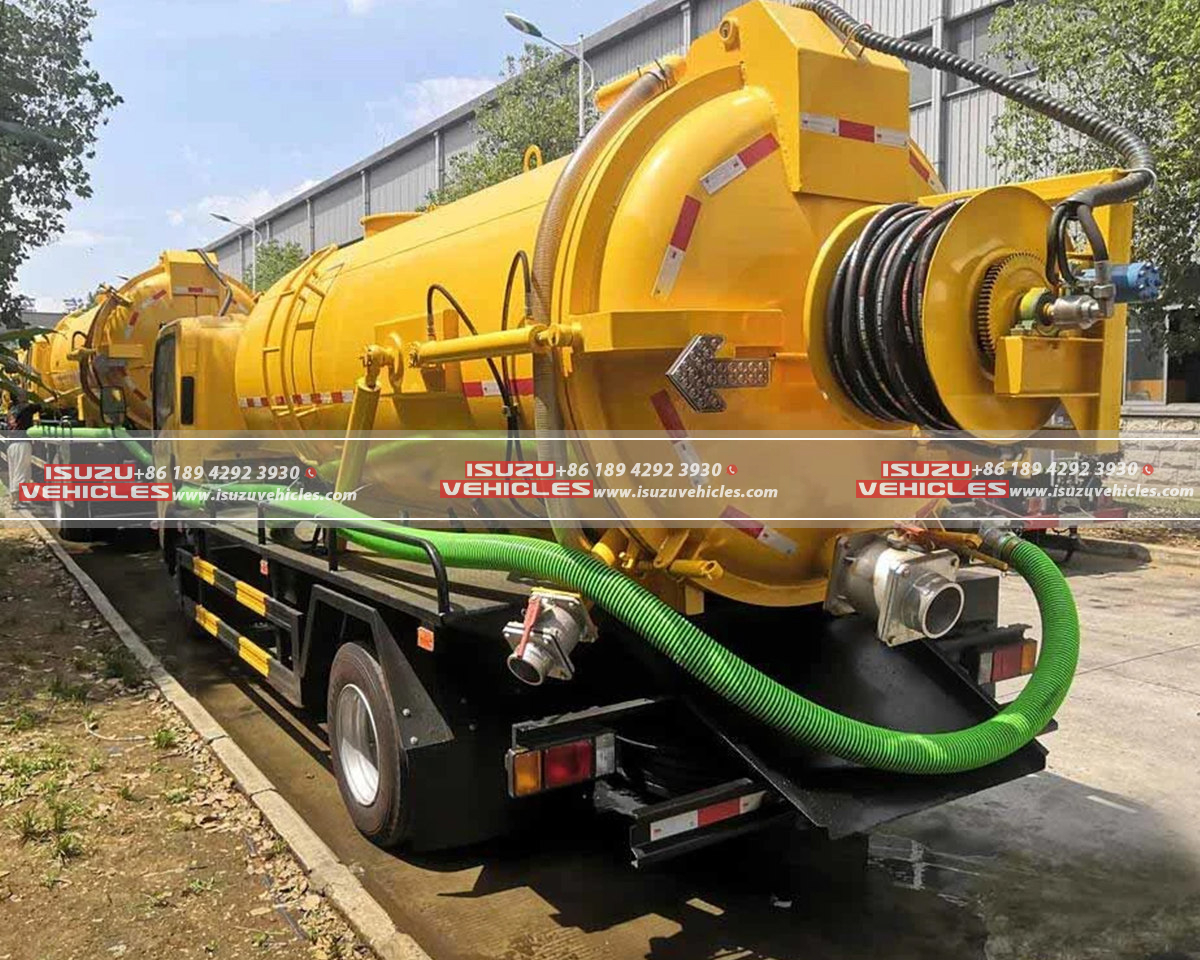

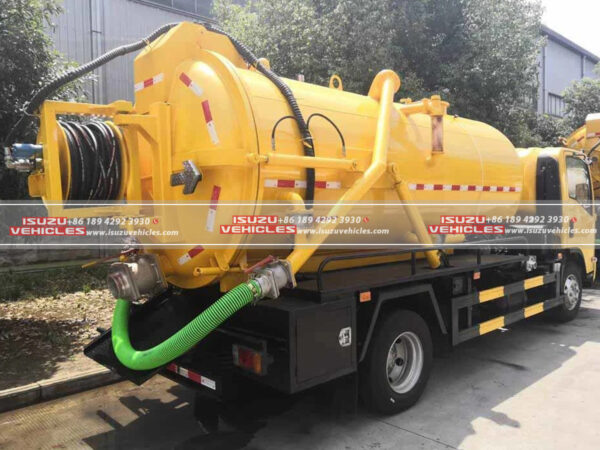

| Hose Reel | On the rear end of the Combined tank is provided the hose’s reel, which is designed to store up to 120 meters of the supplied sewer jetting hose 1″. Delivery and recovery of the jetting hose is done via a low-speed, high torque hydraulic. |
| Heavy Duty Spiral Suction Hoses | Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
| Safety Device | Equipped with anti-flow devices |
