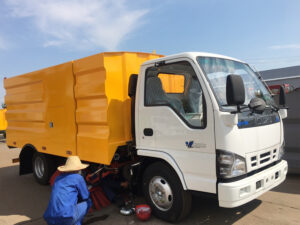

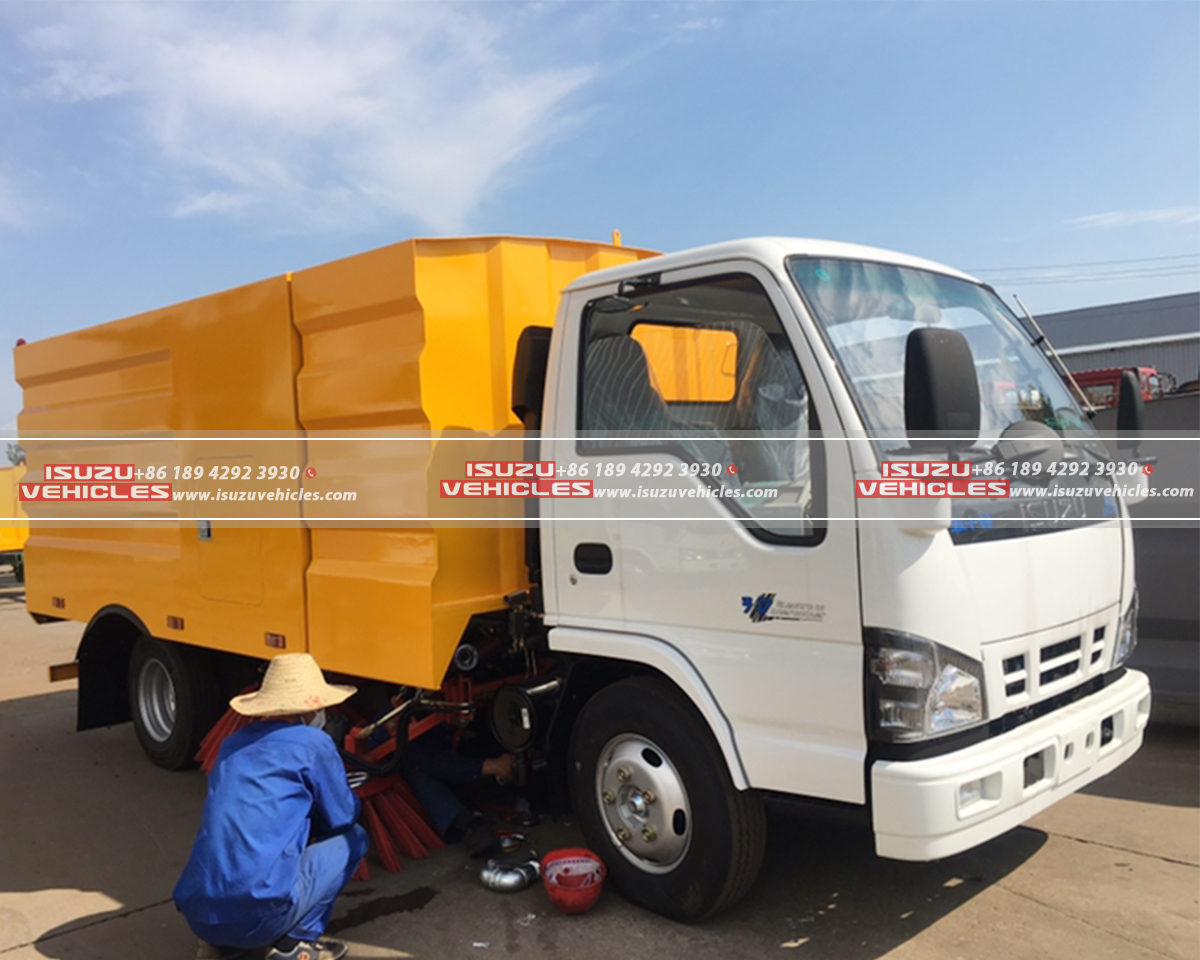

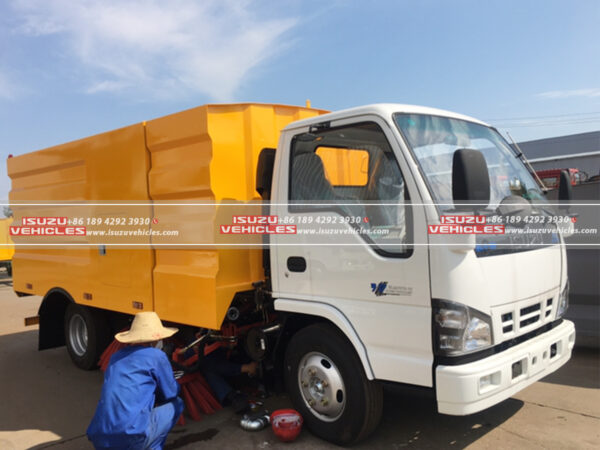

ISUZU Road Sweeper Cleaner Truck
600P Chassis Compact Design
Built on the agile ISUZU 600P chassis, this ISUZU Road Sweeper Cleaner Truck excels in urban and suburban cleaning operations. With compact dimensions of 5,995×2,260×2,650mm and a 3,360mm wheelbase, it balances a gross vehicle weight of 7,300kg and a curb weight of 4,600kg, ensuring nimble maneuverability. The 4+2 drive wheel configuration with 7.00R16 tires provides stability across narrow streets and uneven surfaces.
Euro 5-Compliant Power Efficiency
Powered by the ISUZU 4KH1CN5HS engine, this ISUZU sweeper truck generates 130HP (96kW) @ 3,400rpm and a peak torque of 290N·m @ 1,500rpm, optimized for low-emission, fuel-efficient performance. The intercooled turbocharged 4-cylinder design paired with an ISUZU/MSB manual transmission (5F+1R) ensures smooth power delivery in stop-and-go traffic.

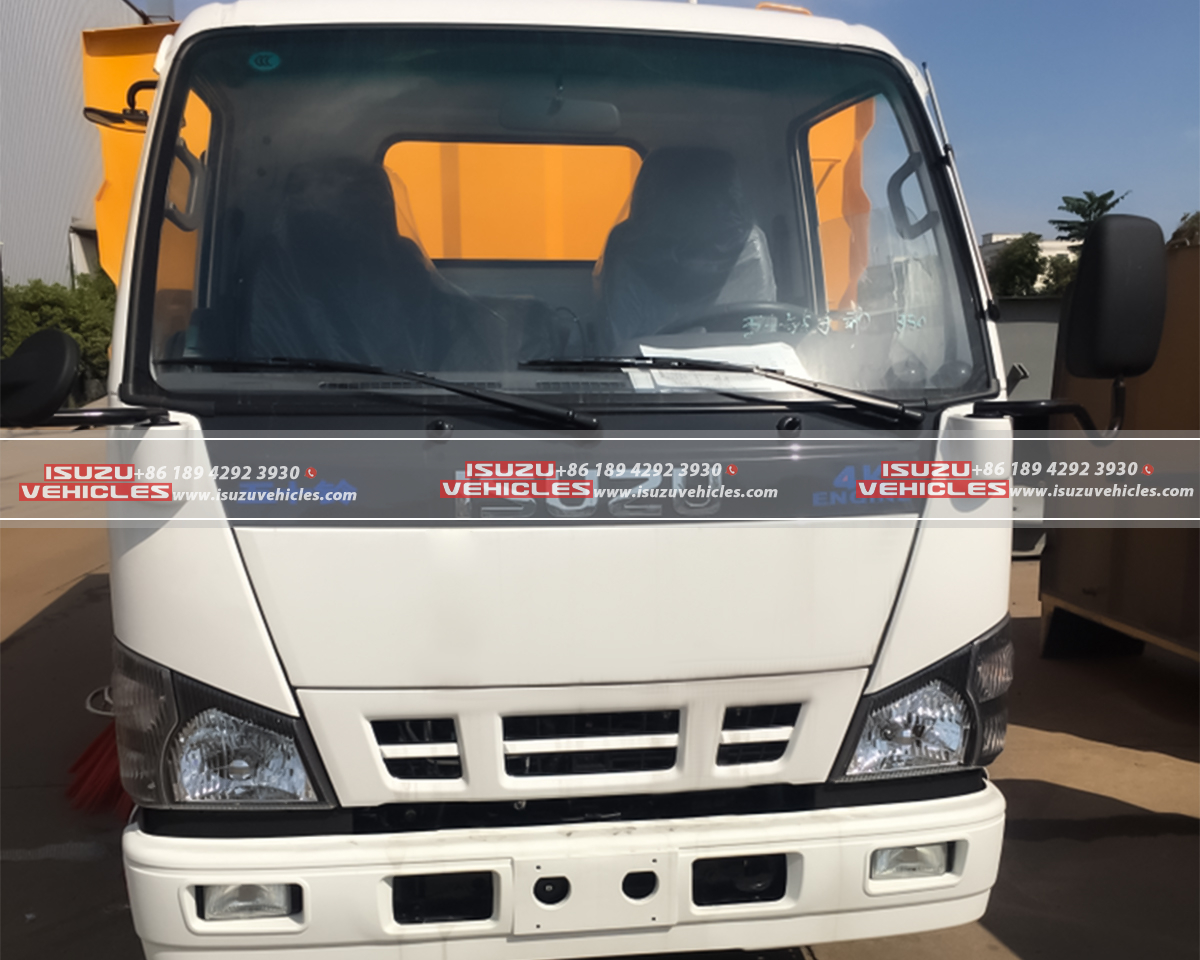

Ergonomic Operator Cabin

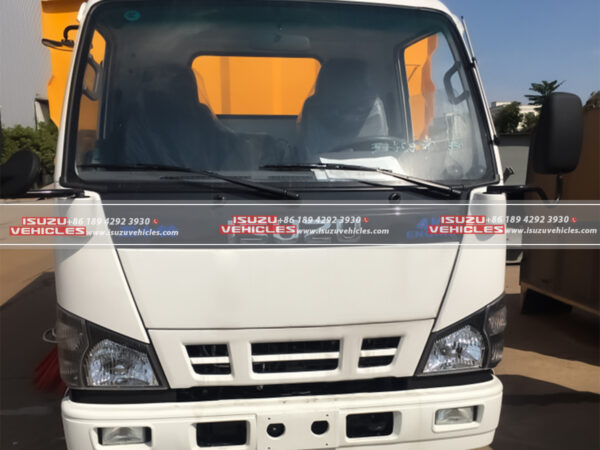

The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring intuitive controls and panoramic visibility for precision in dense urban environments.
Features

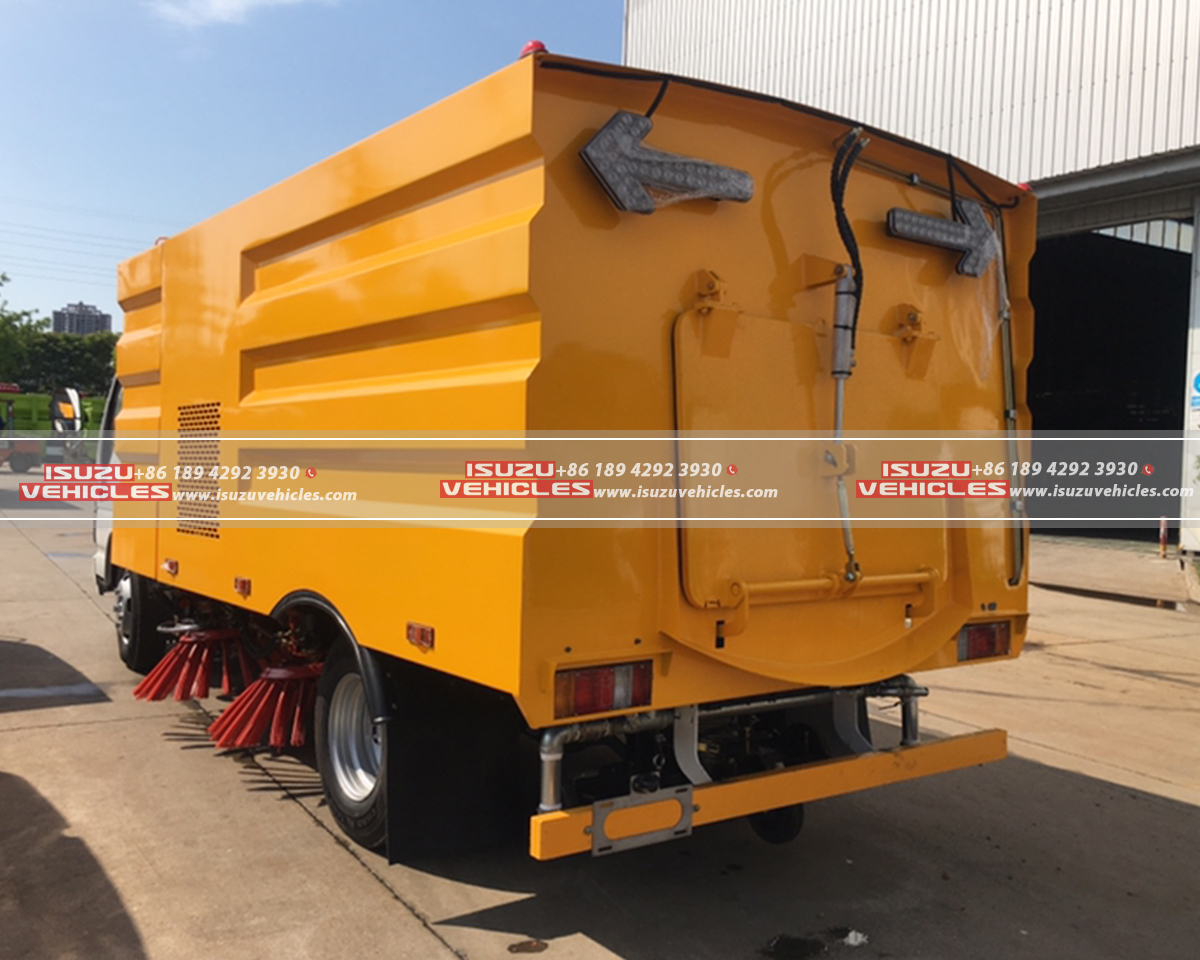

5CBM Dual-Function Tank System
Integrated with a 5CBM stainless steel 304 tank, the system combines a 4m³ garbage compartment and a 1,000L water reservoir for simultaneous debris collection and dust suppression. The corrosion-resistant construction ensures durability in harsh weather and chemical exposure.

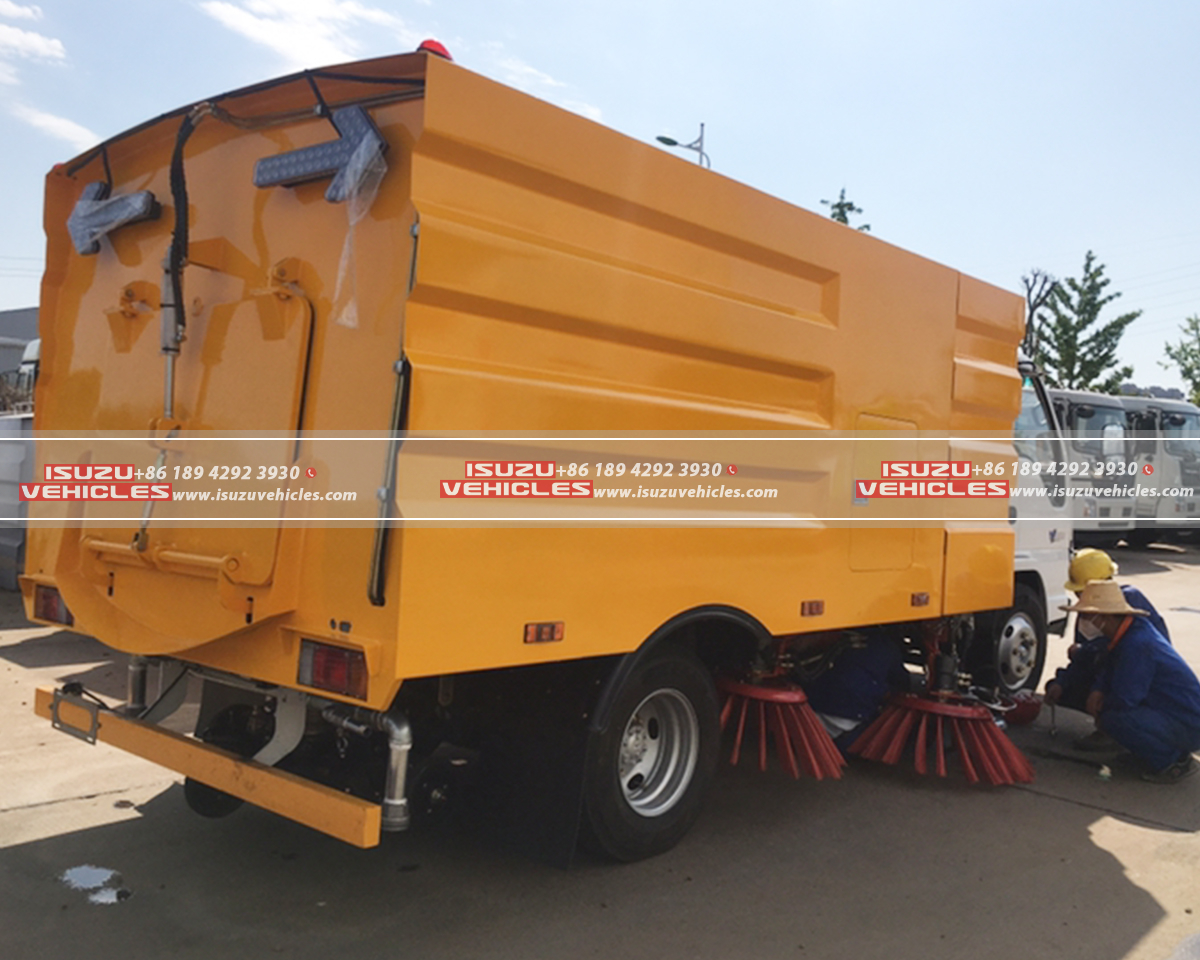

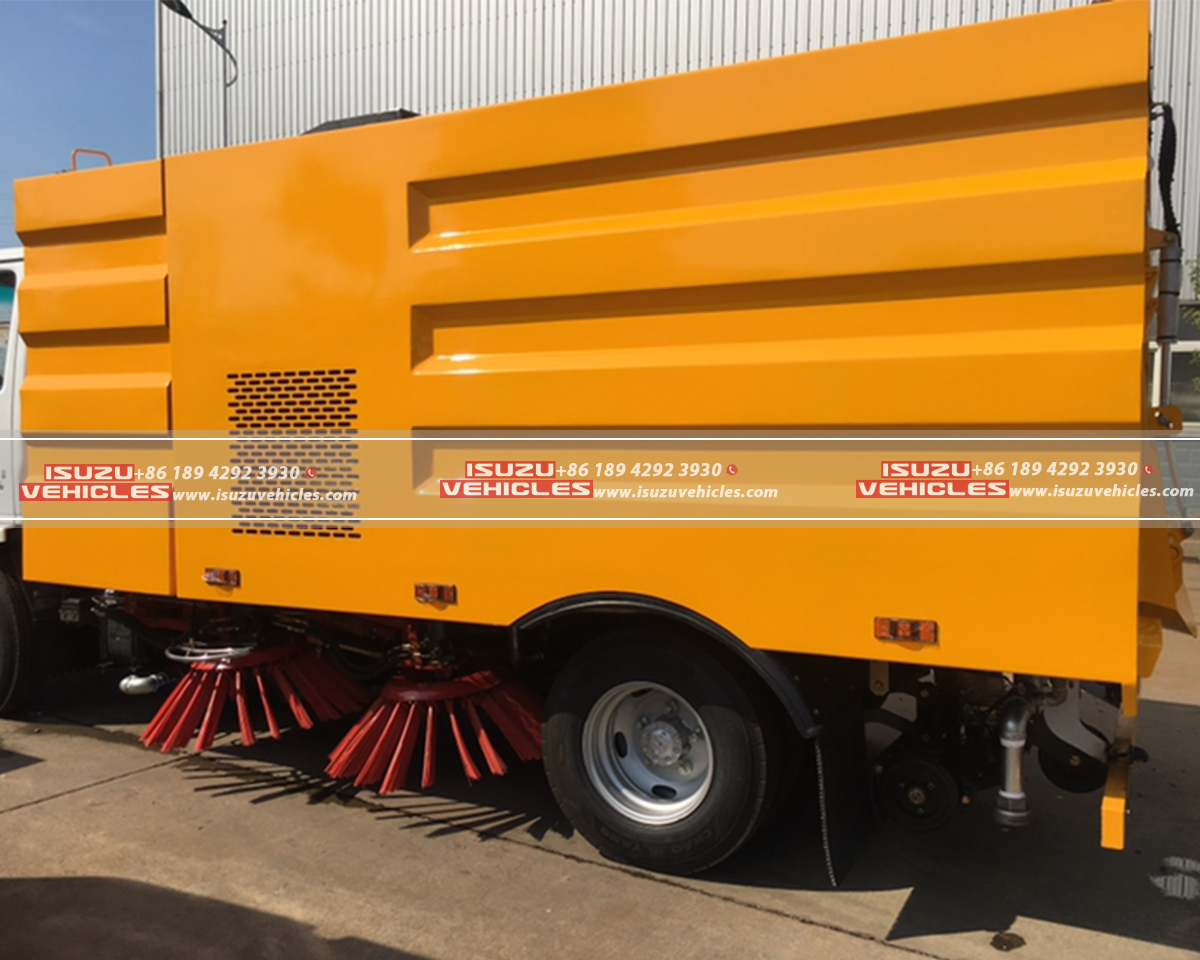

High-Efficiency Sweeping Technology

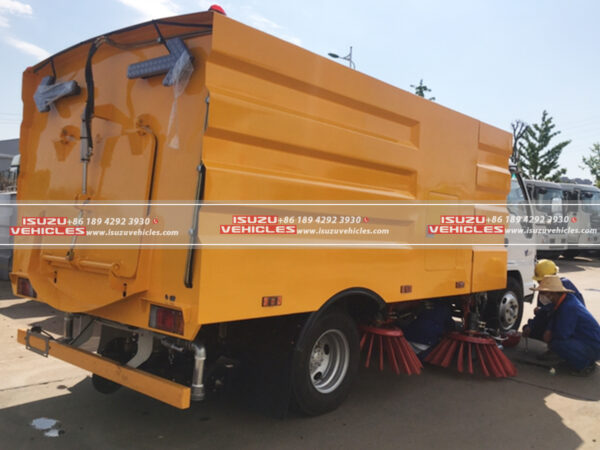

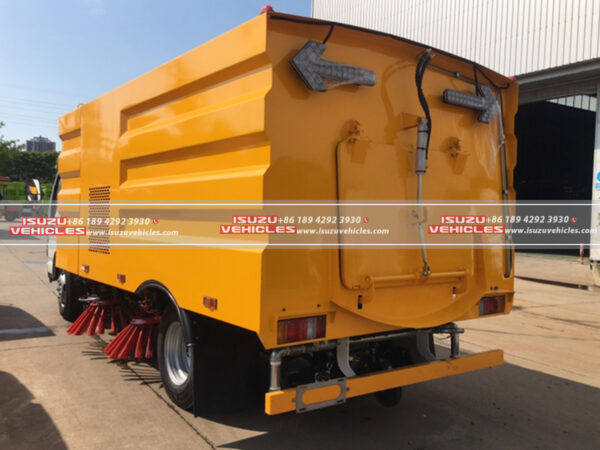

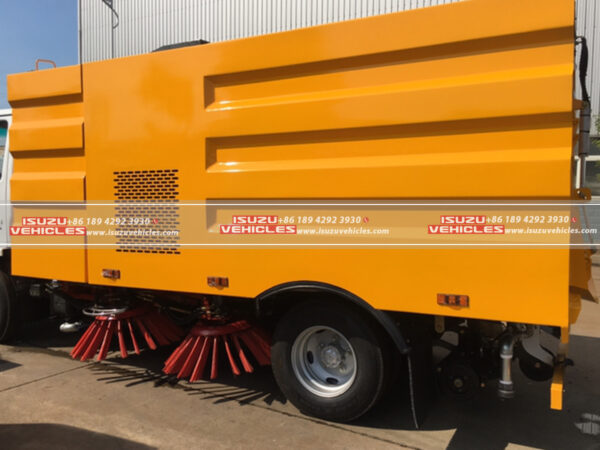

Four motor-driven disc brooms (900mm diameter) achieve a sweeping width of 2.6–3.2m and a max cleaning capacity of 60,000 m²/h. The centrifugal blower (2,600–2,900r/min) ensures debris-free surfaces even at operating speeds of 3–20km/h.
Full-Floating Suction System
Equipped with a 200mm hydraulic suction nozzle, the ISUZU truck captures debris ≥100mm in size. The independent forward operation and hydraulic raise/lower mechanism enhance adaptability to uneven road surfaces.
JMC-Powered Auxiliary Performance
A JMC 87HP auxiliary engine drives the blower and hydraulic systems, enabling continuous operation during extended cleaning cycles without taxing the main engine.
Operational Safety & Compliance
Anti-slip hydraulic controls and reinforced tire configurations ensure stability during high-speed sweeping. Compliance with Euro 5 emission standards aligns with global environmental regulations.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SL05QL130L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,995×2,260×2,650 (mm) |
| Gross Vehicle Weight | 7,300kg |
| Curb Weight | 4,600kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU 600P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5HS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 130HP (96kw) @ 3400rpm |
| Peak Torque | 290N.m@1,500rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| BODY SYSTEM | |
| Tanker Capacity | 5CBM(4m³ garbage tank+1,000L water tank) |
| Material | Stainless steel 304 |
| Auxiliary Engine | |
| Brand | JMC |
| Power | 87HP |
| AIR BLOWER | |
| Type | High-pressure, centrifugal, sweeping truck-specific used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt powered |
| SWEEPING EQUIPMENT | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Sweep Diameter | 900mm |
| Sweep Speed | 3~20km/h |
| Max. Cleaning Capacity | 60000 m2/h |
| SUCTION EQUIPMENT | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter suction port |
| Maximum Inhalation Particle Size | ≥100mm |
