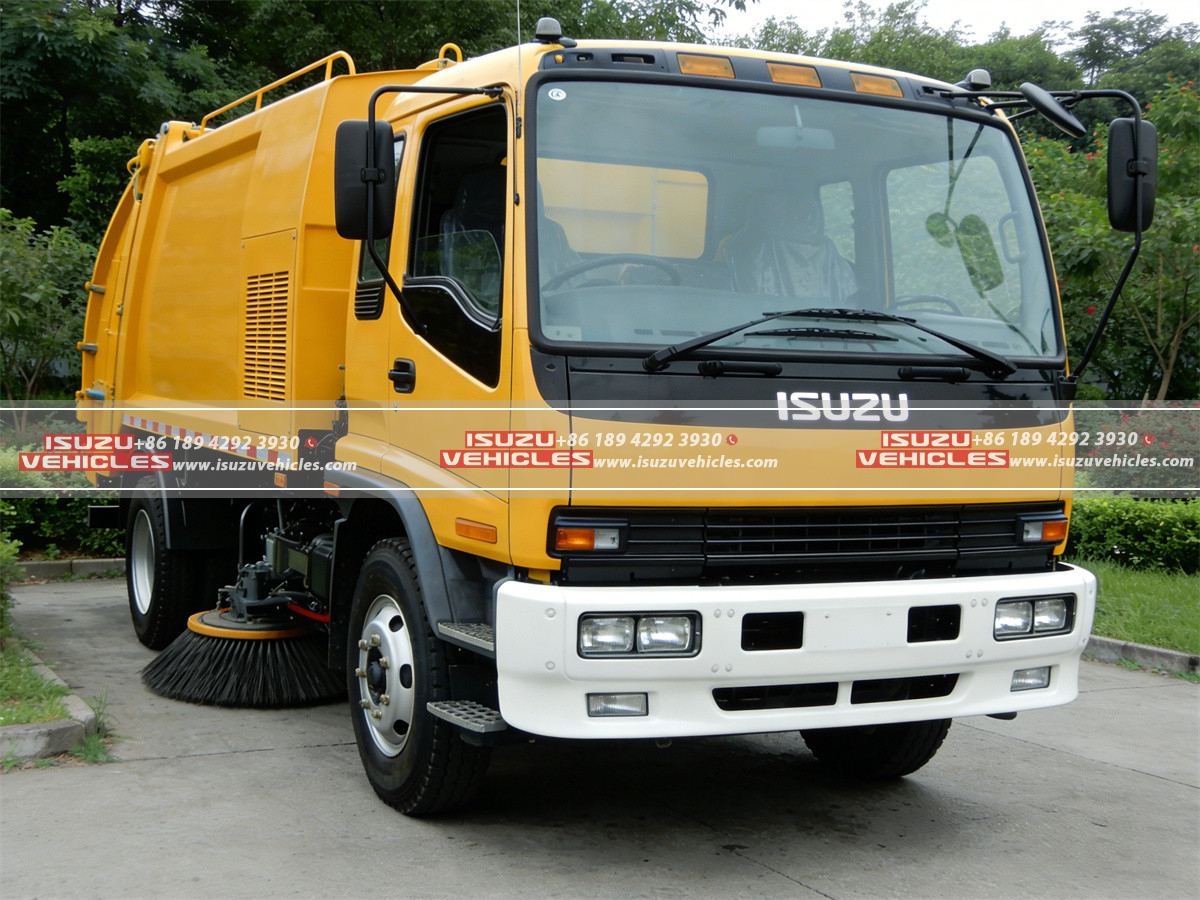

ISUZU 12 CBM Road Sweeper Truck
The ISUZU 12CBM Road Sweeper Truck is a high-efficiency sanitation vehicle engineered to deliver reliable and large-scale street cleaning performance for urban roads, highways, industrial parks, and municipal environments. Built on the dependable ISUZU Forward 4×2 chassis, the vehicle integrates a powerful sweeping system, advanced dust suppression technology, and a durable structural design, allowing municipalities and environmental service providers to maintain cleaner and safer road conditions with improved operational efficiency.
Powered by the robust ISUZU 6HK1-TCG61 diesel engine, the truck delivers 240 horsepower and 900 N·m of torque, providing strong and stable performance for both transportation and sweeping operations. The engine features turbocharging, intercooling, and high-pressure common-rail fuel injection, ensuring reliable power output while meeting Euro VI/China VI emission standards. Combined with the FAST 8-speed manual transmission, the drivetrain offers smooth gear transitions and efficient fuel consumption, allowing the vehicle to reach a maximum speed of 95 km/h during transit between cleaning locations.
With a gross vehicle weight of 18,000 kg and a wheelbase of 5000 mm, the truck provides excellent balance between maneuverability and load-carrying capacity. Its total cleaning system capacity reaches 12 cubic meters, consisting of a 7 CBM garbage container and a 5 CBM clean water tank, enabling extended working hours without frequent unloading or refilling. The truck’s well-proportioned dimensions of 9200 mm in length, 2500 mm in width, and 3200 mm in height ensure stable driving performance while accommodating the integrated sweeping and vacuum system.
Designed to handle demanding sanitation tasks, the truck incorporates a multi-brush sweeping mechanism, powerful vacuum suction system, and intelligent control interface, making it an ideal solution for large-scale municipal road maintenance and environmental management operations.
Key Features
Powerful ISUZU Engine and Reliable Transmission
At the core of the vehicle is the ISUZU 6HK1-TCG61 turbocharged diesel engine, which is widely recognized for its durability and high efficiency in commercial vehicle applications. With a displacement of 7.79 liters, the engine delivers consistent power and strong torque, enabling the truck to perform heavy-duty cleaning tasks while maintaining reliable road performance.
The engine works in combination with the FAST 8JS85E manual transmission, which provides 8 forward gears and 2 reverse gears, allowing the operator to select the optimal gear ratio for different working conditions. This combination ensures smooth power delivery during sweeping operations as well as efficient long-distance transportation.
Large Capacity Cleaning and Waste Storage System
The 12 CBM cleaning system is designed to maximize operational efficiency during daily sanitation work. The truck features a 7 cubic meter stainless steel garbage container, providing excellent corrosion resistance and durability for handling road debris, dust, and waste materials.
Complementing swthe waste container is a 5 cubic meter clean water tank constructed from carbon steel with an anti-corrosion coating, ensuring long service life and reliable water storage for dust suppression operations. The garbage tank can be emptied through a hydraulic lifting system with a dumping angle of over 50 degrees, allowing quick and efficient discharge of collected debris.
High-Efficiency Sweeping System
The vehicle adopts a four-brush sweeping configuration, which includes four vertical sweeping brushes with an 800 mm diameter positioned around the central suction nozzle. This configuration allows the truck to effectively sweep debris toward the center for vacuum collection.
With a maximum sweeping width of over 3.5 meters, the truck can cover large road sections in a single pass, significantly improving cleaning efficiency. The sweeping speed ranges from 3 to 20 km/h, enabling flexible operation depending on road conditions and debris density. The brush speed is controlled through an adjustable hydraulic drive system, allowing operators to optimize performance during various cleaning tasks.
Powerful Vacuum and Suction System
To ensure effective debris collection, the sweeper truck is equipped with a high-performance centrifugal fan system capable of producing strong suction airflow. The fan operates at a speed of 3000 to 3500 rpm, generating a maximum suction pressure of over 9000 Pa and an airflow volume of 12,000 m³/h.
This system works together with a floating central suction nozzle with a width of 700 mm, which automatically adjusts to road surfaces for consistent debris collection. The vacuum system is powered by an independent Cummins QSB3.9 auxiliary engine, delivering 115 kW of power, which ensures stable operation of the sweeping and suction equipment without affecting the main vehicle engine.
Advanced Hydraulic and Control System
The sweeping equipment is driven by a high-quality electro-hydraulic control system, utilizing reliable components such as Rexroth or Eaton hydraulic pumps and Eaton hydraulic motors. This configuration ensures smooth operation of the brushes, suction nozzle, and lifting systems.
The truck is also equipped with an intelligent electronic control system that allows operators to manage sweeping operations directly from the in-cab control panel. This centralized control improves operational convenience and enables precise adjustments during street cleaning tasks.
Effective Dust Suppression Technology
During sweeping operations, dust control is essential to maintain air quality and visibility. The truck integrates a water spray dust suppression system featuring multiple spray nozzles positioned around the sweeping brushes.
A high-pressure pump distributes water evenly to reduce airborne dust during cleaning. The water system also includes a multi-stage filtration unit, preventing impurities from entering the spraying components and ensuring reliable long-term operation.
Durable Chassis and Suspension Structure
The vehicle is built on the reliable ISUZU Forward chassis, which provides strong structural support for the sweeping equipment and waste storage system. The chassis features a front axle capacity of 7000 kg and a rear axle capacity of 13,000 kg, ensuring stable load distribution during operation.
A heavy-duty leaf spring suspension system with a 9 / 12 configuration enhances the vehicle’s durability and ride stability, particularly when operating on uneven road surfaces or construction areas.
Comprehensive Safety and Operation Features
To ensure safe and efficient operation in urban environments, the sweeper truck includes a range of practical safety features. The vehicle is equipped with a full air braking system, spring energy parking brake, and engine exhaust auxiliary brake, providing reliable braking performance under heavy load conditions.
Additional operational features such as a reverse camera, LED rear working lights, and LED warning beacon enhance visibility during night or low-light operations. The truck also includes an emergency stop system, allowing operators to immediately halt sweeping equipment if necessary, further improving operational safety.
The ISUZU 12CBM Road Sweeper Truck combines powerful sweeping capability, advanced vacuum technology, durable chassis engineering, and intelligent control systems, making it a dependable and efficient solution for large-scale municipal sanitation and environmental maintenance operations.
SPECIFICATIONS:
| Item | Details |
|---|---|
| Chassis Brand | ISUZU |
| Chassis Model | ISUZU Forward |
| Drive Type | 4×2 |
| Wheelbase | 5000 mm |
| Overall Length | 9200 mm |
| Overall Width | 2500 mm |
| Overall Height | 3200 mm |
| Gross Vehicle Weight (GVW) | 18,000 kg |
| Curb Weight | 10,200 kg |
| Rated Payload | 7,600 kg |
| Maximum Speed | 95 km/h |
| Fuel Type | Diesel |
| Emission Standard | Euro VI / China VI |
| Cab Type | Single Row Cab with Sleeper |
| License Plate Type | Yellow Plate |
| Engine Brand | ISUZU |
| Engine Model | 6HK1-TCG61 |
| Engine Type | Inline 6-cylinder Turbocharged Intercooled Diesel |
| Displacement | 7.79 L |
| Max Power | 177 kW |
| Max Horsepower | 240 HP |
| Max Torque | 900 N·m |
| Rated Speed | 2400 rpm |
| Fuel Injection | High Pressure Common Rail |
| Transmission Brand | FAST |
| Transmission Model | FAST 8JS85E |
| Transmission Type | Manual |
| Forward Gears | 8 |
| Reverse Gears | 2 |
| Clutch Type | Dry Single Plate |
| Power Take-Off | Equipped for hydraulic sweeping system |
| Sweeping Width | ≥ 3.5 meters |
| Maximum Sweeping Capacity | 70,000 m²/h |
| Sweeping Speed | 3 – 20 km/h |
| Sweeping Brushes | 4 Vertical Sweeping Brushes |
| Brush Diameter | 800 mm |
| Brush Speed | Adjustable Hydraulic Drive |
| Central Suction Nozzle | Floating Type |
| Suction Width | 700 mm |
| Garbage Container Capacity | 7 CBM |
| Clean Water Tank Capacity | 5 CBM |
| Total Capacity | 12 CBM |
| Garbage Tank Material | Stainless Steel |
| Water Tank Material | Carbon Steel with Anti-Corrosion Coating |
| Dumping Angle | ≥ 50° Hydraulic Lifting |
| Discharge Method | Hydraulic Self-Dumping |
| Fan Type | Centrifugal High-Pressure Fan |
| Fan Speed | 3000 – 3500 rpm |
| Maximum Suction Pressure | ≥ 9000 Pa |
| Airflow Volume | 12,000 m³/h |
| Drive Method | Auxiliary Engine Driven |
| Auxiliary Engine Brand | Cummins |
| Auxiliary Engine Model | QSB3.9 |
| Auxiliary Engine Type | 4-cylinder Diesel |
| Auxiliary Engine Max Power | 115 kW |
| Auxiliary Engine Rated Speed | 2200 rpm |
| Hydraulic Pump Brand | Rexroth / Eaton |
| Hydraulic Motor Brand | Eaton |
| Hydraulic Control | Electro-hydraulic Control |
| Hydraulic Oil Tank Capacity | 120 L |
| Spray Nozzles | Multiple Dust Suppression Nozzles |
| High Pressure Pump | Equipped |
| Spray Method | Brush Dust Suppression |
| Water Filtration | Multi-stage Filter |
| Front Axle Capacity | 7000 kg |
| Rear Axle Capacity | 13000 kg |
| Suspension Type | Heavy Duty Leaf Spring |
| Leaf Spring Configuration | 9 / 12 |
| Tire Size | 295/80R22.5 |
| Tire Type | Steel Radial |
| Number of Tires | 6 + 1 Spare |
| Fuel Tank Capacity | 300 L |
| Braking System | Full Air Brake |
| Parking Brake | Spring Energy Brake |
| Auxiliary Brake | Engine Exhaust Brake |
| ABS | Equipped |
| Operation System | Intelligent Electronic Control |
| Operation Mode | In-Cab Control Panel |
| Reverse Camera | Equipped |
| Rear Working Lights | LED |
| Warning Lights | LED Warning Beacon |
| Emergency Stop | Equipped |
| Dust Control | Water Spray Dust Suppression |
