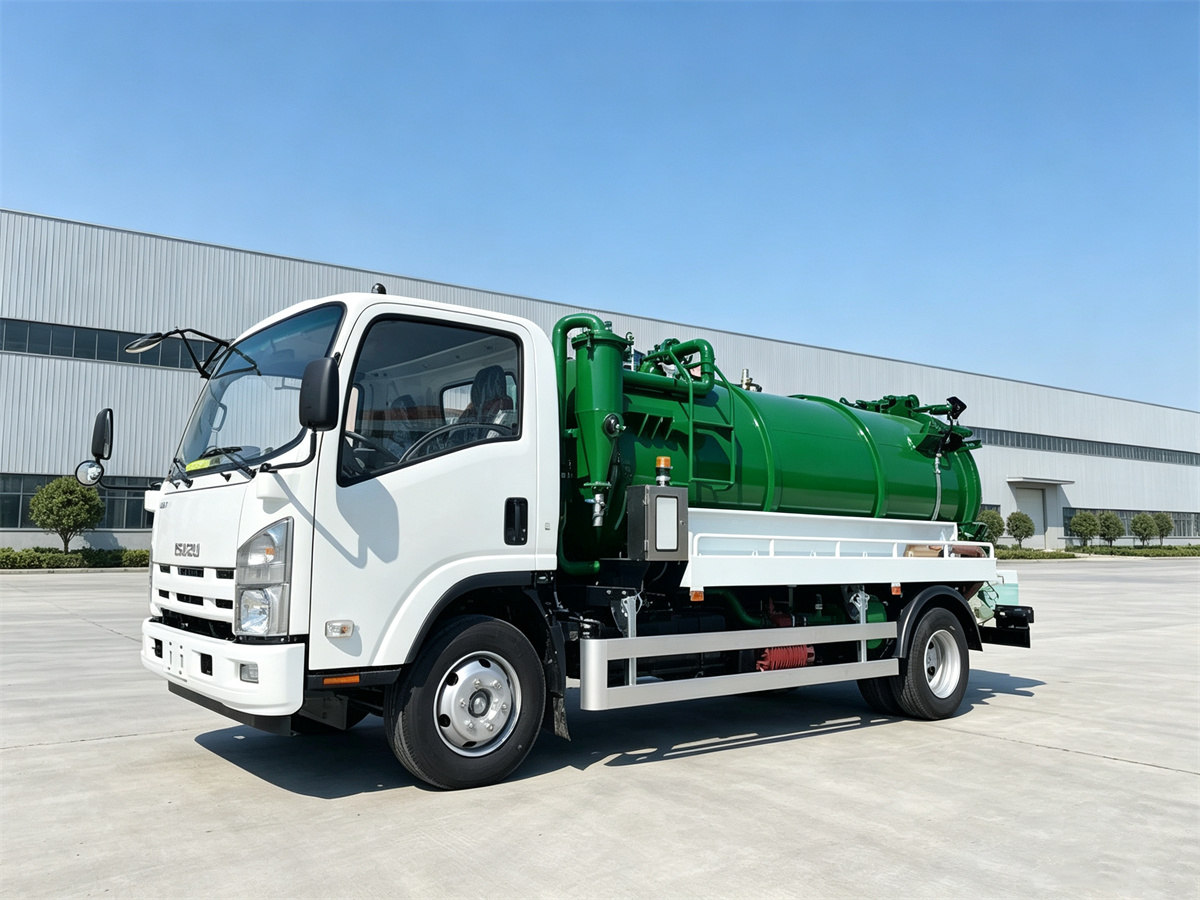

ISUZU 6000L Vacuum Sewer Truck
The ISUZU 6000L Vacuum Sewer Truck is a professional sanitation vehicle designed for efficient sewage suction, sludge transportation, and drainage cleaning operations. Built on the reliable ISUZU 700P QLT110ANHAY chassis, this vacuum sewer truck combines strong driving performance, advanced vacuum technology, and durable tank construction to meet the requirements of municipal services, industrial cleaning, and environmental maintenance projects.
Powered by an ISUZU 4HK1-TCG61 diesel engine with a displacement of 5.193L, the truck delivers 190 HP (139 kW) and a maximum torque of 507 N·m, providing excellent power output for both urban roads and more demanding off-road working environments. The Euro VI emission-compliant engine features turbocharging, intercooling, water cooling, and advanced electronic control systems, ensuring efficient operation with reduced emissions and improved fuel economy.
The vehicle adopts a 4×2 drive configuration with a gross vehicle weight of 10,550 kg and a payload capacity of 5,300 kg, making it suitable for various sewage and sludge transportation applications. Its compact overall dimensions of 6,200 × 2,350 × 2,650 mm allow flexible operation in narrow streets, industrial areas, and municipal facilities, while the reinforced chassis structure ensures reliable performance under heavy-duty working conditions.
Equipped with a 5,500-liter sludge tank and an Italian JUROP PN84D vacuum pump, this ISUZU vacuum sewer truck provides powerful suction capability for removing sewage, sludge, wastewater, and other liquid waste materials. The vacuum pump offers a capacity of 9,000 L/min, continuous vacuum operation of 60%, and maximum vacuum pressure up to 92%, ensuring fast and efficient cleaning performance for sewer networks, drainage systems, and septic facilities.
The truck is designed to operate effectively in Malaysia conditions and is suitable for both paved and unpaved roads. With a durable tank structure, advanced safety protection systems, and convenient control operation, the ISUZU 6000L Vacuum Sewer Truck provides a dependable solution for professional waste management and environmental service operations.
Features
Powerful Vacuum System for Sewer and Sludge Cleaning
The core working system of the ISUZU vacuum sewer truck is its high-performance JUROP PN84D vacuum pump, manufactured in Italy and driven through a reliable PTO system. The pump uses advanced vane vacuum technology with forced lubrication and a built-in vacuum-pressure changeover valve, allowing efficient suction of sewage, sludge, slurry, and drainage waste.
The powerful suction system enables the truck to clean sewer pipelines, septic tanks, drainage chambers, and industrial waste areas quickly, reducing operation time and improving cleaning efficiency. The vacuum pump is designed for continuous-duty applications, providing stable performance during long working periods.

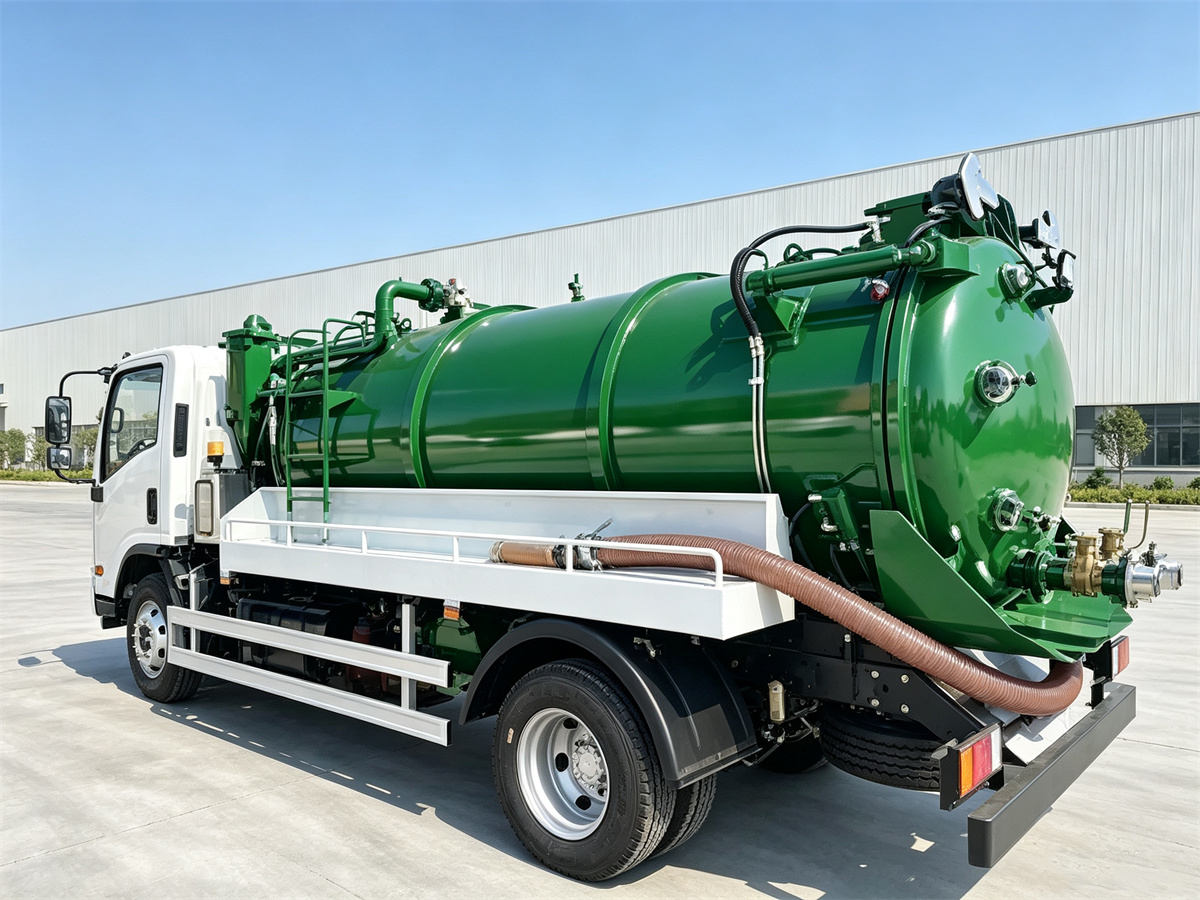

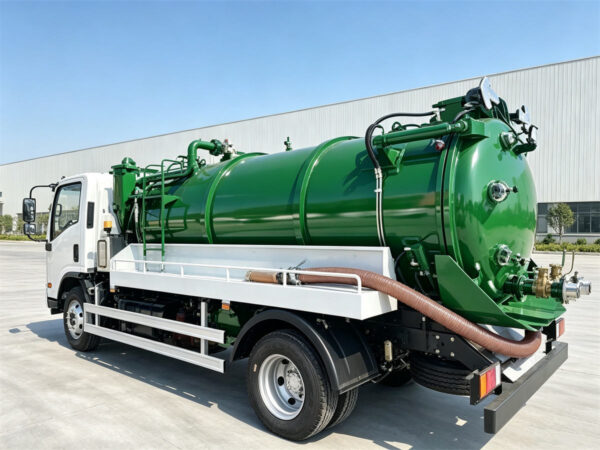

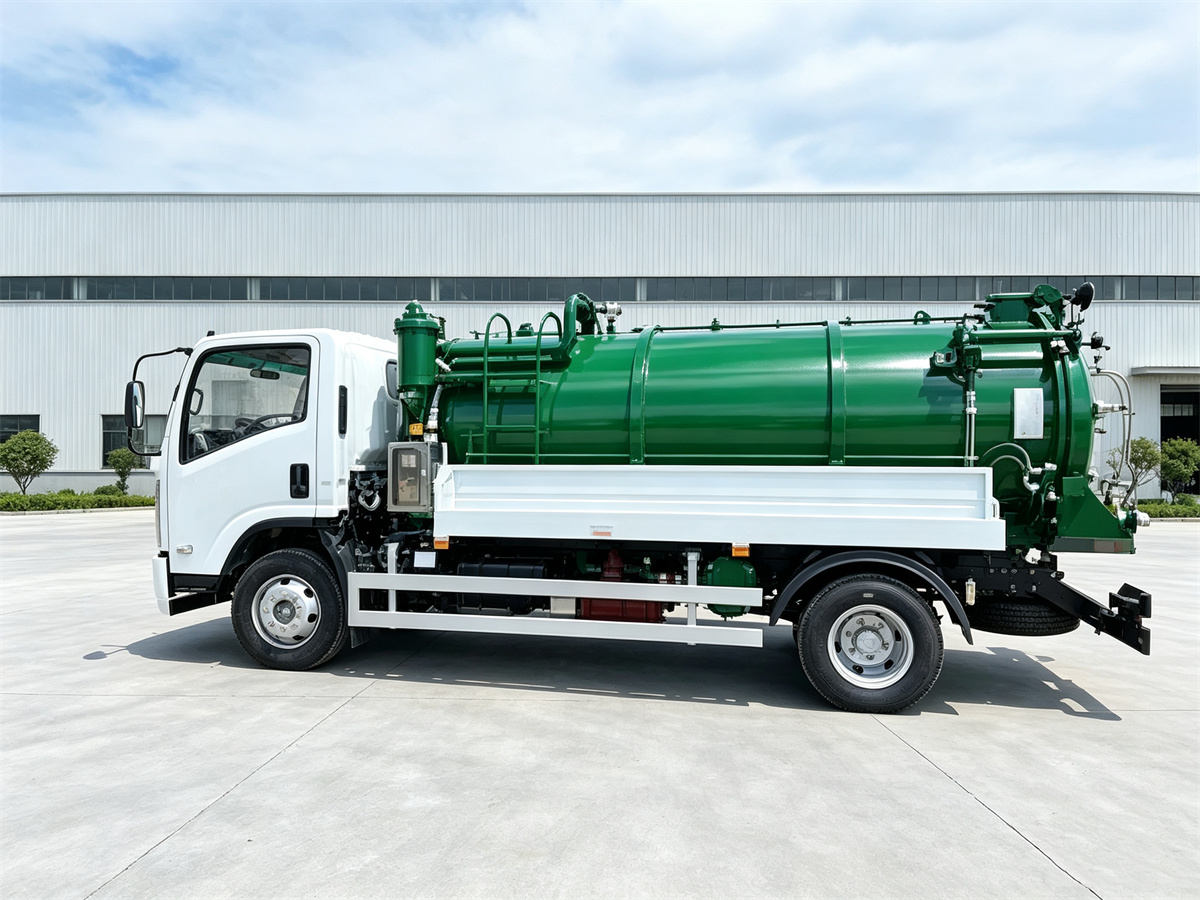

Durable 5,500L Sludge Tank Design
The sludge tank is manufactured from high-quality Q235 mild steel with a 6 mm thickness, providing excellent strength and corrosion resistance for long-term operation. The tank features a rear tipping structure, allowing convenient unloading after waste collection.

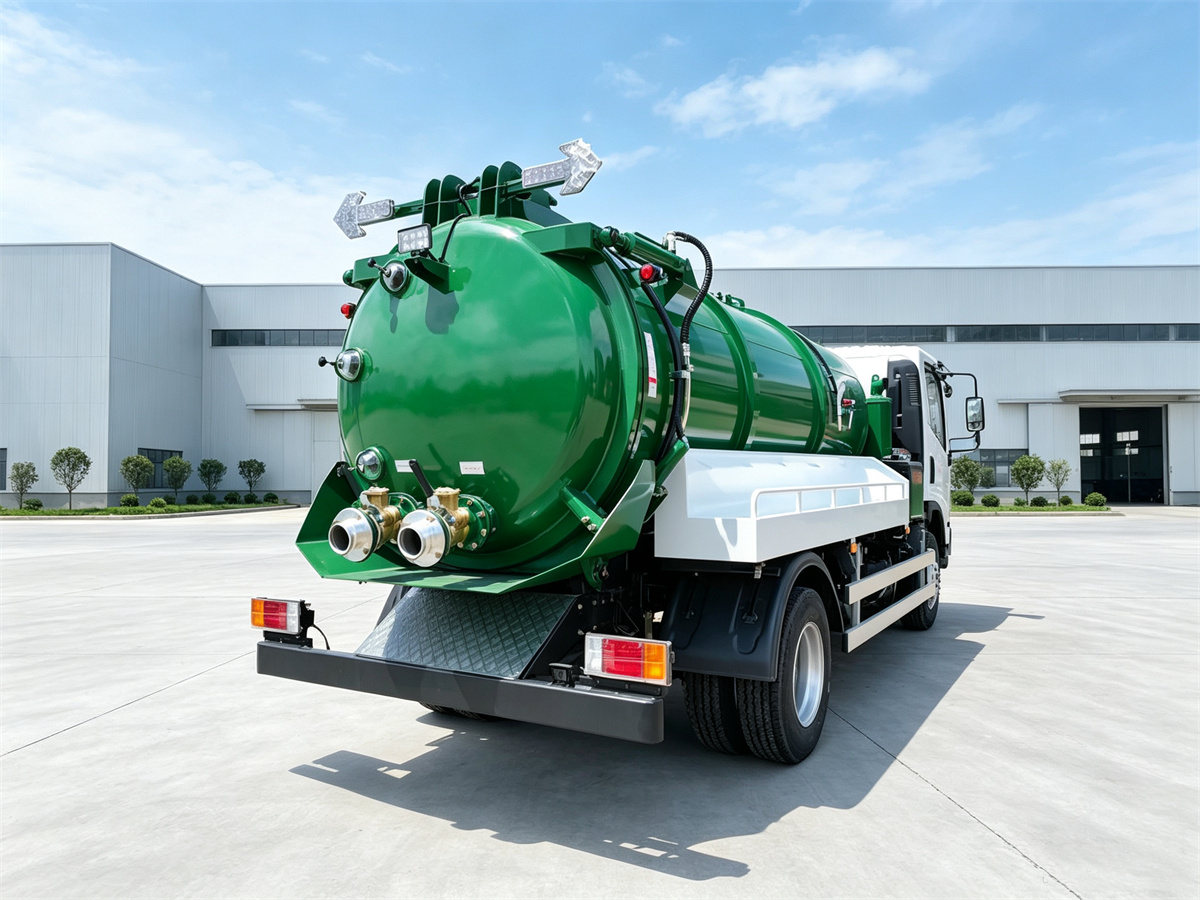

A fully openable rear door with hydraulic locking and sealing ensures safe discharge operations while preventing leakage. The reinforced rear structure improves durability, and the self-compensating sealing system provides reliable liquid-tight performance.
The tank is equipped with:
- Two transparent acrylic level indicators for monitoring sludge volume
- Three tempered glass sight glasses for easy inspection
- A manhole for cleaning and maintenance access
- Hydraulic connections using high-pressure pipes and flexible hoses for easy replacement and repair
Advanced Safety Protection Systems
Safety is a key consideration in vacuum sewer truck operation. The ISUZU 6000L model includes multiple protection systems to prevent equipment damage and improve operator safety.
The overflow safety system automatically stops the vacuum process when sludge reaches a critical level, preventing waste materials from entering the vacuum pump. The system also reduces engine speed, shuts down the vacuum line, and activates a warning buzzer.
Additional protection features include:
- Primary ball float shut-off system
- Secondary electronic overflow protection
- Adjustable over-pressure safety valve
- Vacuum relief valve for excessive vacuum conditions
These safety functions help ensure stable operation and protect both the vehicle and the operator.
Convenient Operation and Maintenance
The truck is equipped with an illuminated, waterproof, and lockable control panel mounted at the rear of the tank. All major functions, including vacuum operation, hydraulic controls, and safety systems, can be easily managed from this centralized control area.
Electrical components are splash-resistant, while hydraulic valves and servos are positioned for convenient inspection and maintenance. The intuitive control layout allows operators to manage suction and discharge processes efficiently.
The truck also includes heavy-duty spiral suction hoses with a DN100 diameter and 10-meter length, equipped with quick-release couplings, suction nozzles, and strainers. Hose trays installed on both sides of the tank provide secure storage and improve operational convenience.
Reliable ISUZU Chassis Performance
The ISUZU 700P chassis provides a strong foundation for professional sanitation applications. It features a 6-speed manual transmission, hydraulic power steering, air-assisted hydraulic clutch operation, and a heavy-duty suspension system designed for demanding road conditions.
Safety features include ABS drum brakes, dual-circuit pressure-air braking, and durable 235/75R17.5 tires. The single-row ISUZU cab includes air conditioning, an audio system, and safety belts, providing a comfortable working environment for two operators.
The truck is finished with high-quality anti-corrosion painting, including epoxy coating inside the sludge tank and protective coating under the chassis, helping extend service life in wet and corrosive environments.
With its powerful suction performance, durable construction, and professional sanitation configuration, the ISUZU 6000L Vacuum Sewer Truck is an ideal choice for municipal cleaning companies, wastewater service providers, and industrial maintenance operations requiring efficient and reliable sewage management equipment.
Specifications
| Parameter | Specification |
|---|---|
| 1. Chassis | |
| Make / Model | ISUZU 700P |
| Chassis Model | QLT110ANHAY |
| Date of Manufacturing | 2025 |
| Country of Origin | China |
| Trucks Capable Operating | Capable of operating in Malaysia condition |
| Most Suitable for Operating | On both “on and off” road conditions |
| Truck Unit’s Status | Brand new |
| Drive Type | 4×2 |
| Overall Dimension (L×W×H) | 6,200 × 2,350 × 2,650 mm |
| Gross Vehicle Weight | 10,550 kg |
| Curb Weight | 5,200 kg |
| Capacity Weight | 5,300 kg |
| Wheelbase | 3,360 mm |
| Max. Speed | 100 km/h |
| Fuel Tank Capacity | 100 L |
| Air Over Hydraulic System | The chassis system is an air-over hydraulic |
| Rear Tow / Pintail Hook | Installed |
| Standard Tool Kit | Supplied |
| Mud Flaps | Installed |
| Chassis Designed | The chassis is adequately designed and strengthened to accommodate the load-body and all associated equipment; and designed to heavy-duty export specs, capable of operating in conditions over paved and unpaved roads. |
| 2. Engine | |
| Make / Model | ISUZU / 4HK1-TCG61 |
| Country of Origin | China |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, intercooler turbocharged |
| Air Intake | Turbo-charged |
| Fuel | Diesel |
| Cooling System | Water cooling system |
| Displacement | 5.193 L |
| Nominal Power | 190 HP (139 kW) @ 2,600 rpm |
| Peak Torque | 507 N·m |
| Emission Standard | Euro VI |
| Electronics | The engine electronics accept a remote variable throttle for stationary operation through transmission-mounted PTO and transfer case-driven PTO equipment. The air cleaner is to be the manufacturer’s recommended dual air, air restriction gauge, dash-mounted or approved equal. |
| Included | Turbo, injectors, starter, and alternator. Automatic engine shutdown system with low oil pressure, high coolant temperature, and low coolant level. |
| 3. Clutch and Transmission | |
| Operation of Transmission | Manual |
| Hydraulic Clutch Actuation | Hydraulic operating with air assistance |
| Clutch Type | Single dry plate dry coil-spring clutch, diaphragm type clutch |
| Number of Speeds | 6F1R |
| Hydraulic Power Steering | Hydraulic power steering, left-hand drive |
| Fuel Type of Transmission | Diesel |
| Model / Make | ISUZU / MLD-6Q Transmission |
| 4. Brakes and Tyres | |
| Brakes | Hydraulic-pneumatic assisted, dual circuit, pressure-air, air dryer |
| Brake Type | Drum brake with ABS |
| Tire Size | 235/75R17.5 |
| Total Number of Wheels with Spare | 6 tires and 1 spare |
| Service Brake | A dual-circuit pressure-air brake acts on the wheels of all axles |
| Parking Brake | Spring type, acting on wheels of rear axles |
| 5. Suspension | |
| Front Type | Heavy-duty leaf springs with telescopic shock absorbers at the front |
| Rear Type | Heavy-duty leaf springs |
| 6. Cab | |

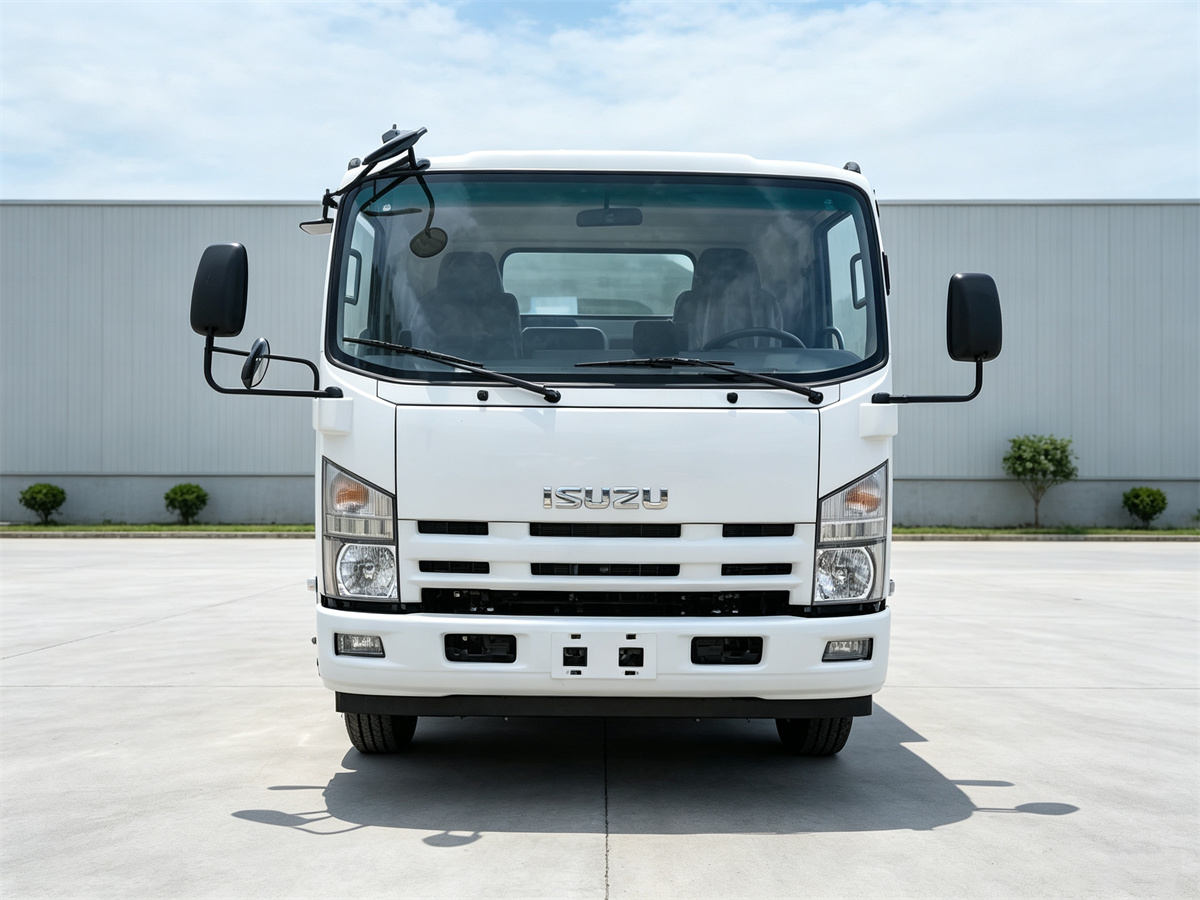

| Type | ISUZU 700P cab, single-row |
| Installed | Air-conditioned, audio system |
| Passengers Allowed | 2 persons |
| Color | White |
| Safety Belts | Installed |
| 7. Axles | |
| Loading Capacity of Front | 4,800 kg |
| Loading Capacity of Rear | 7,000 kg |
| 8. Electrical System on Chassis | |
| Working Voltage | 24V |
| 9. Sludge Tank | |
| Tipping | The tank is mounted with an arrangement for rear tipping |
| Total Internal Volume | 5,500 liters |
| Material | High quality mild steel model Q235 (equivalent as IS-2062 Grade A or ASTM A36) |
| Thickness | 6 mm |
| Level Indicators | Material: Transparent acrylic tubing with thick wall. Quantities: Total 2 units, 1 on each compartment. Location: On the tank to access the top of the tank. |
| Ladder | Designed to withstand conditions prevailing from the operating vacuum and pressure conditions. |
| Hydraulic Connections | All hydraulic connections are a combination of high-pressure pipes and flexible hoses, to facilitate easy replacements / repairs. |
| Rear Door | Fully open-able type. Reinforced for structural integrity. Raised to the angle of 90° to the vertical. Locking and sealing (no leakage) are done hydraulically, with a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight using a self-compensating seal and is locked by means of four (4) hydraulic latches. |
| Tank Testing | The tank is hydrostatically tested. |
| Sight Glass | The tank is provided with 3 sight glasses located at the end dish of the tank to measure the volume of sewage inside the tank. Sight glass is tempered proof material and is easily replaced. |
| Manhole | For tank filling and to allow man-entry in the tank for routine cleaning and inspection. |
| 10. Protection | |
| Overflow Safety | Provides secure working conditions to prevent sludge materials from reaching the vacuum pump. When the sludge level reaches a critical value, overflow safety stops the vacuum process automatically. The vacuum pump stops, the truck engine rpm decreases, the vacuum line shuts down, and the operator warning buzzer runs. |
| Primary Shut-off | A ball float type primary shut-off to prevent water from entering the pumping system due to an accidental overflow. |
| Secondary Shut-off | Mounted on the vacuum installation between the vacuum pump and the primary safety system; when the tank top overflow prevention valve fails, the sewage enters the secondary overflow prevention device and triggers the electronic liquid level. |
| Over-Pressure Safety Valve | Fitted in a suitable position, this device provides safety to the storage tank as the complete system. The valve is of a spring-loaded adjustable type and provides continuous relief when the system’s pressure exceeds the preset limit. |
| Vacuum Relief Valve | Mounted on the vacuum installation, providing secure working conditions in case of excessive vacuum force created in the vacuum tank. |
| 11. Vacuum Pump | |
| Make | JUROP |
| Model | PN84D |
| Country of Origin | Italy |
| Pump Capacity | 9,000 L/min |
| Cont. Duty Vacuum | 60% |
| Maximum Vacuum | 92% |
| Suction | Aspiration of the effluent from sewer and drain water lines and chambers is carried out on the principle of generating a high vacuum in the sludge compartment for siphoning out effluents, liquids, slurry, sludge, and other materials. |
| Type | Compressors and vane vacuum pumps. Air-cooled. Forced lubrication with adjustable oil drippers. Built-in vacuum-pressure changeover valve. Direct transmission (smooth or splined shaft) or with the gearbox. |
| Driven Method | The vacuum pump is driven by P-T-O. |
| 12. Suction Hose and Accessories | |
| Heavy Duty Spiral Suction Hoses | Provided with heavy duty spiral suction hoses DN100 diameter, 10 meters in length. Two-layer soft PVC hose with embedded galvanized steel spiral with polyester yarn reinforcement, for suction and delivery of liquids. |
| Exhaust Silencer | Installed |
| Suction Hose End Nozzle | A 100 mm diameter suction hose end nozzle attached to one of the hoses and a suction end strainer, both fitted with suitable quick-release couplings, are provided with the equipment as standard accessories. |
| Hose Trays | Provided with hose trays, one on each side of the tank and extending along the full length of the tank, capable of securely holding the quantity of hoses. |
| Bolts and Nuts | All bolts and nuts with direct contact with sludge are made of 304 stainless-steel materials. |
| 13. Controls | |
| Control Panel | The system is driven by a control panel fixed on the backside of the tank. All controls for the operation and the workings of the truck are fitted to an illuminated, lockable, water-resistant control panel. All controls are electrical or hydraulic and all actions are fully adjustable and at variable speeds for the operation of the machine. |
| Electrical Switches on Control Panel | Switches that activate the necessary function and servos either pneumatic |
| Servos and Valves | All servos and valves are mounted in a safe and easily accessible place for ease of maintenance. All electrical devices are splash-resistant. |
| All Necessary Controls & Gauges | The truck and the unit system are furnished with all necessary controls & gauges / safety devices for improved efficiency and easy-safe operation. |
| Hydraulic Control | Hydraulic control valves to use in emergency. |
| 14. P-T-O | |
| Quantity | 1 pc |
| Origin | China |
| Type | High-quality P-T-O drive for the vacuum pump |
| 15. Painting | |
| Both Painted | The exterior and interior of the tank are spray painted with high-quality painting. |
| Exterior | Spray-painted with 2 coats of superior quality anti-corrosive primer and 2 coats of enamel metal paint of a reputed make. |
| Sludge Compartment Tank | Internally coated with 2 coats of epoxy paint to resist corrosion due to weak acids. |
| Under Chassis | Coated with anti-corrosion. |
