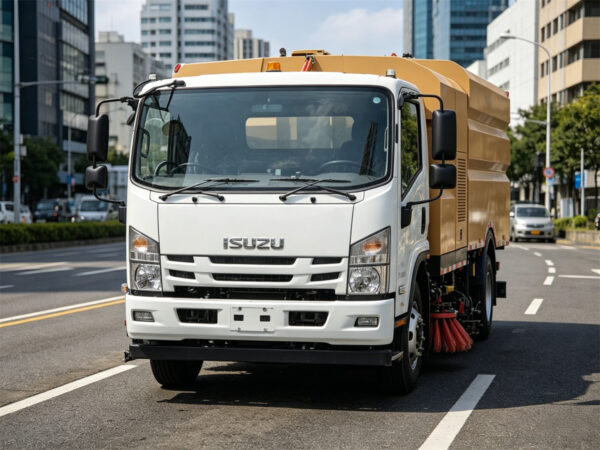

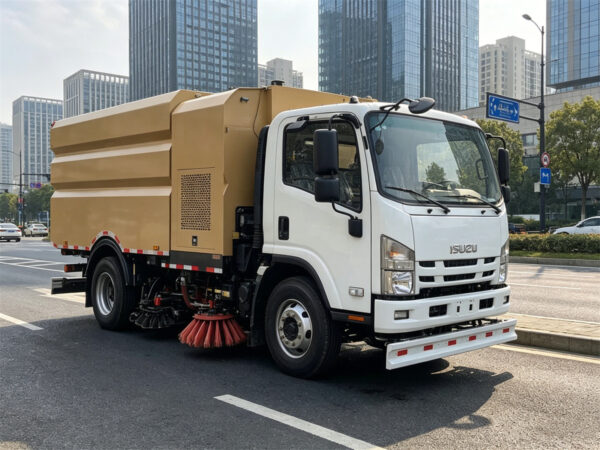

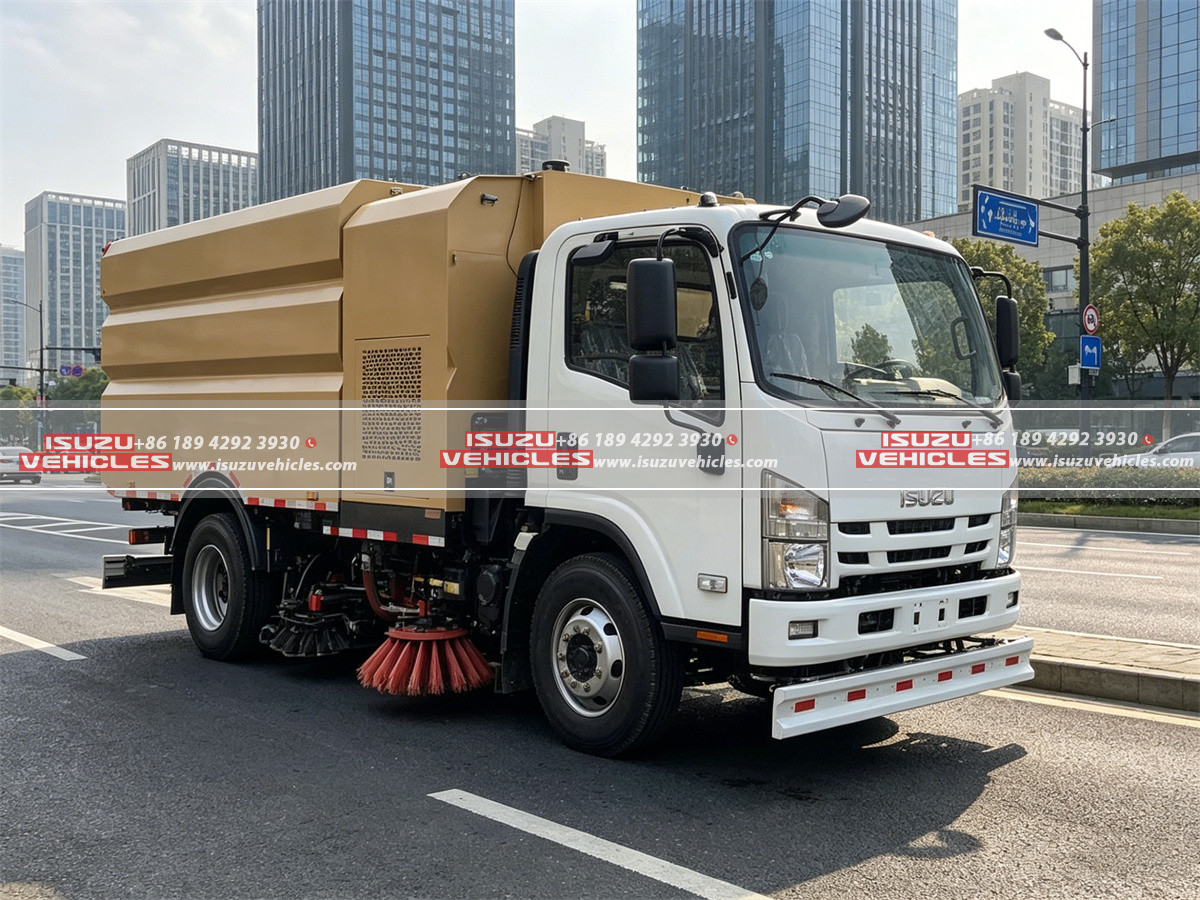

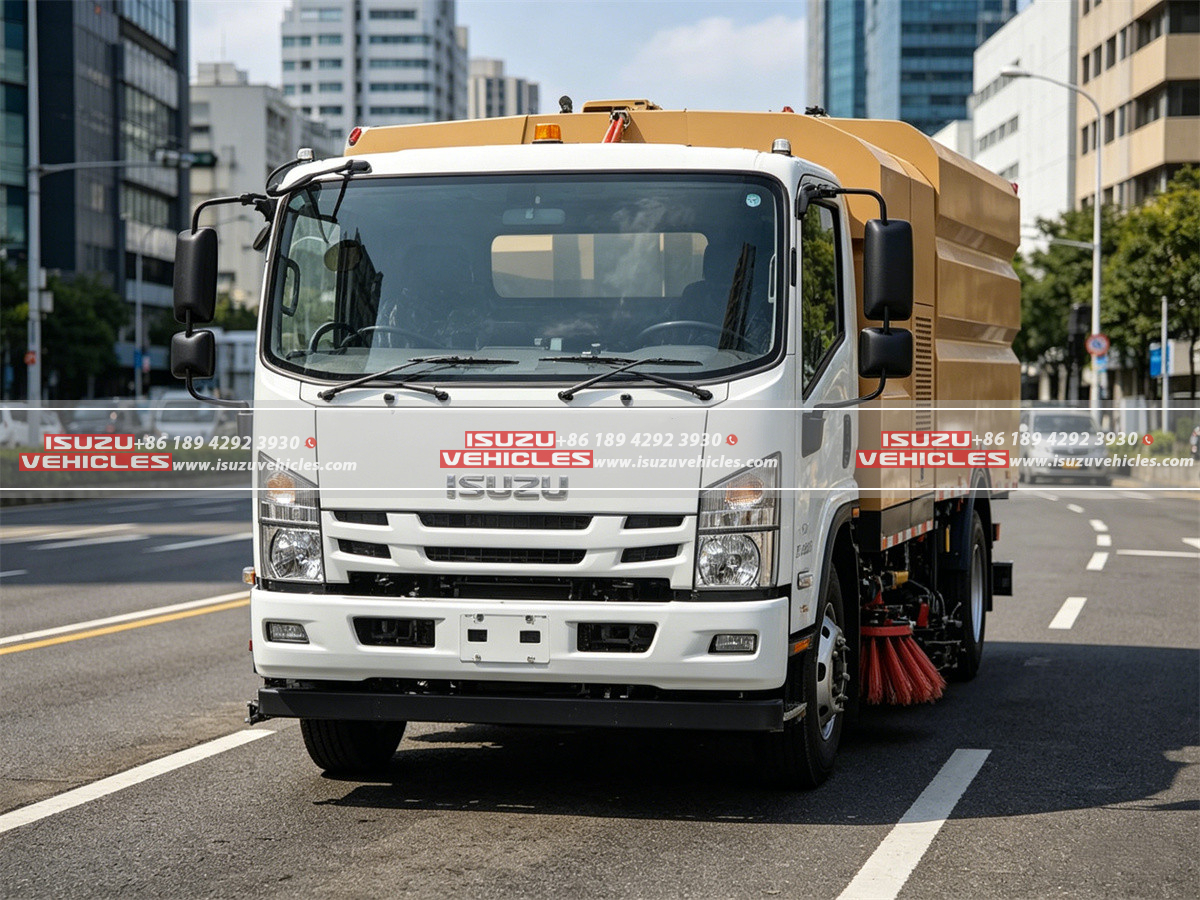

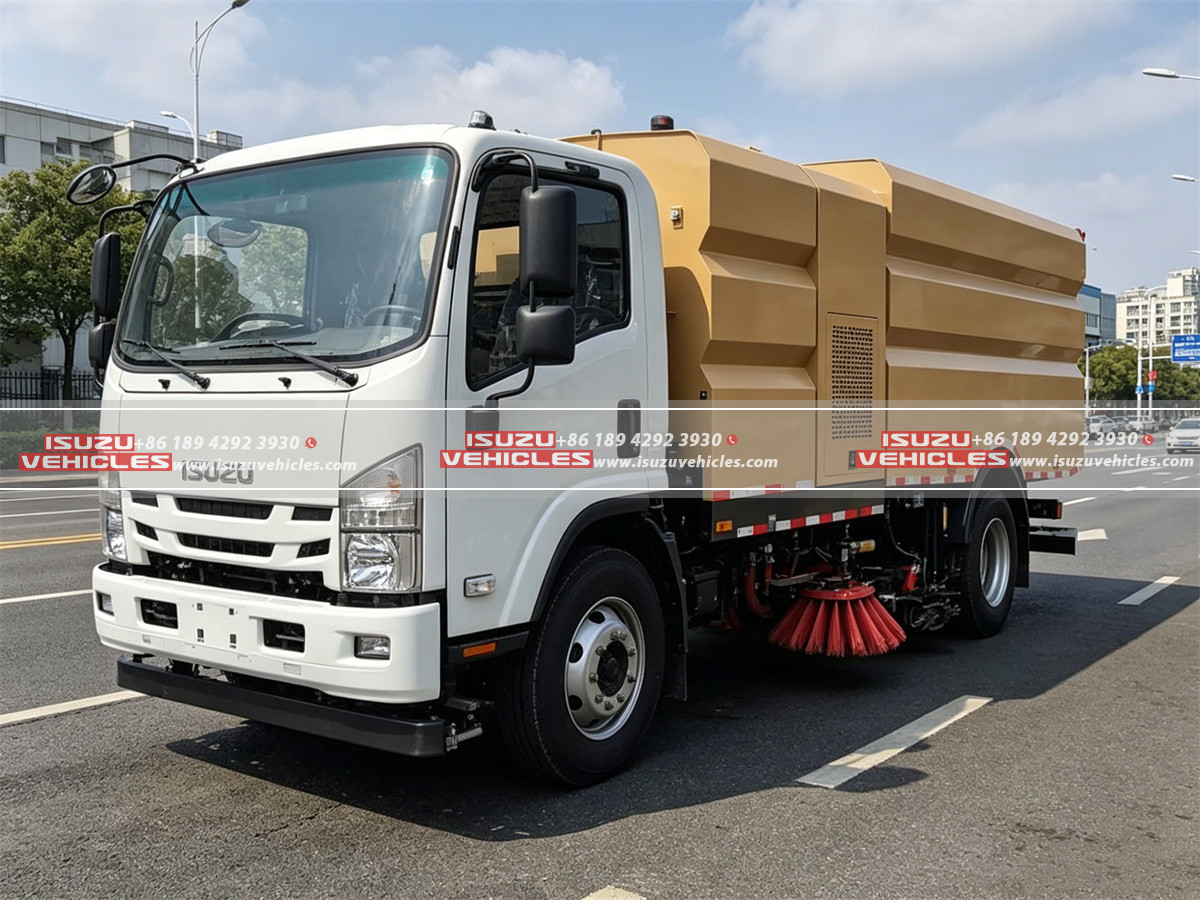

ISUZU Brush Street Cleaner Truck

ISUZU Brush Street Cleaner Truck

The ISUZU Brush Street Cleaner Truck represents a robust and dependable solution for municipal sanitation operations, combining Japanese engineering precision with practical mechanical sweeping technology. Built on the renowned ISUZU ELF/NPR wide-body chassis, this mechanical road sweeper delivers exceptional performance in urban cleaning applications while maintaining the reliability that ISUZU vehicles are celebrated for worldwide.

This street cleaner truck has been specifically engineered to address the demanding requirements of city sanitation departments, contracted cleaning services, and municipal infrastructure maintenance teams. The vehicle excels in removing sand, leaves, light debris, and various forms of urban waste from roads, sidewalks, parking lots, and residential areas with remarkable efficiency.

Key Highlights

The ISUZU Brush Street Cleaner Truck features a pure mechanical brush sweeping system complemented by an integrated dust suppression mechanism, which together ensure that cleaning operations achieve dust control efficiency of 85% or higher. The combination of two front side brushes and one central main roller brush provides comprehensive coverage, with a total sweeping width reaching 2,800 millimeters or more, enabling operators to clean larger surface areas in less time.

The vehicle’s compact dimensions of approximately 6,800 by 2,200 by 2,750 millimeters, coupled with a minimum turning radius of 8.5 meters or less, make it exceptionally well-suited for navigating narrow urban streets, crowded sidewalks, and confined residential areas where larger cleaning equipment would struggle to operate effectively.

Powered by the ISUZU 4KH1CN6LB turbocharged diesel engine producing 120 to 140 horsepower with maximum torque reaching 290 to 320 Newton-meters, this street sweeper delivers sufficient power for both driving and sweeping operations while meeting stringent Euro V or Euro VI emission standards. The engine’s 3.0-liter displacement ensures fuel efficiency without compromising on performance, allowing municipalities to operate their fleets economically over extended periods.

The 5 cubic meter garbage collection hopper constructed from durable Q235 carbon steel provides substantial capacity for debris storage, while the hydraulic tipping mechanism with a dumping angle exceeding 45 degrees enables quick and complete unloading at designated disposal sites. The 1.5 to 2.0 cubic meter water tank supplies the dust suppression system, ensuring that sweeping operations do not create secondary air quality issues.

---

Features

Chassis and Structural Configuration

The foundation of this street cleaner truck rests upon the ISUZU ELF/NPR wide-body cab chassis, which has established itself as one of the most trusted commercial vehicle platforms in the global market. The 4×2 drive configuration with left-hand drive orientation provides optimal visibility for the operator while maintaining simplicity in maintenance and servicing requirements.

The vehicle’s wheelbase measures 3,360 millimeters, contributing to stable handling characteristics during both transit and sweeping operations. The front axle carries a load capacity of 3,500 kilograms while the rear axle supports up to 6,000 kilograms, resulting in a gross vehicle weight rating of approximately 9,500 kilograms and a curb weight of around 5,800 kilograms. This configuration leaves a rated payload capacity of approximately 3,500 kilograms, providing ample margin for carrying collected debris and the vehicle’s operational equipment.

The ISUZU MSB 5-speed manual transmission serves as the standard drivetrain option, with an optional 6-speed transmission available for operators who prefer finer gear ratios for specialized applications. The dry single-plate clutch with a 300-millimeter diameter ensures reliable power transfer from the engine to the transmission, while the hydraulic power steering system delivers responsive and effortless maneuverability, particularly beneficial during extended cleaning operations that require constant steering adjustments.

Engine Performance and Specifications

At the heart of this street sweeper lies the ISUZU 4KH1CN6LB inline 4-cylinder turbocharged diesel engine, a powerplant that exemplifies ISUZU’s commitment to producing reliable and efficient commercial vehicle engines. This engine configuration delivers typical power output of of 132 horsepower, with the turbocharger ensuring that power delivery remains consistent across various operating conditions and loads.

The maximum torque figure of approximately 290 to 320 Newton-meters achieved at just 1,800 revolutions per minute provides the vehicle with excellent low-end pulling power, which proves particularly valuable when the sweeping system is engaged and additional power is required for hydraulic functions. The 3.0-liter displacement strikes an effective balance between performance capability and fuel economy, while compliance with Euro V or Euro VI emission standards ensures that the vehicle meets current and anticipated environmental regulations.

The 100-liter fuel tank capacity enables extended operational range between refueling stops, reducing downtime and improving overall productivity for municipal cleaning operations. The exhaust brake system serves as an auxiliary braking mechanism, providing additional stopping power during descents and enhancing driver confidence in varied terrain conditions.

Sweeping System Configuration

The sweeping capabilities of this ISUZU street cleaner truck center around a pure mechanical brush sweeping system that combines robust construction with effective debris collection. The brush layout consists of two front side brushes positioned on the left and right sides of the vehicle, complemented by one central main roller brush located beneath the chassis.

The main roller brush spans a width of 1,400 millimeters or more, while the combined total sweeping width reaches 2,800 millimeters or greater, enabling the vehicle to cover substantial road surface area with each pass. The side brushes feature diameters ranging from 700 to 850 millimeters, and the main roller brush maintains a diameter of approximately 400 millimeters, with all brushes equipped with hydraulic variable speed adjustment capabilities.

The hydraulic brush speed adjustment system allows operators to customize brush rotation speeds based on the type and amount of debris being清理, ensuring optimal cleaning performance while minimizing unnecessary wear on brush components. The mechanical sweeping approach proves particularly effective for handling sand, leaves, small stones, and light debris commonly encountered in urban environments.

Garbage Collection and Conveyor System

The 5 cubic meter hopper constructed from Q235 carbon steel provides generous capacity for storing collected debris during extended cleaning operations. The mechanical sweeping action combined with the conveyor collection system efficiently transfers debris from the brushes into the hopper without requiring manual intervention from the operator.

The chain plate or belt conveyor system features wear-resistant steel construction that withstands the abrasive nature of collected debris over prolonged use. The hydraulic motor drive ensures reliable conveyor operation, with debris being smoothly transported from the brush area to the hopper interior.

When the hopper requires emptying, the hydraulic tipping mechanism raises the collection bin to a dumping angle exceeding 45 degrees, allowing collected material to discharge completely through the rear of the vehicle. This automated unloading process significantly reduces manual labor requirements and minimizes the time spent at disposal sites.

Dust Suppression and Water System

Recognizing that effective street cleaning must address air quality concerns alongside surface debris removal, the ISUZU Brush Street Cleaner Truck incorporates a comprehensive dust suppression system that captures airborne particles during sweeping operations. The system achieves dust control efficiency of 85% or higher, substantially reducing the secondary pollution that can result from dry sweeping methods.

The 1.5 to 2.0 cubic meter water tank supplies the dust suppression system, with water being distributed through strategically positioned spray nozzles. Side brush spray nozzles target dust generation at the primary debris pickup points, while the front dust suppression spray prevents particles from becoming airborne ahead of the vehicle’s path. An optional rear spray system provides additional dust control for particles that may become disturbed during the sweeping process.

The electric diaphragm or centrifugal water pump ensures consistent water pressure and flow rate to all spray nozzles, with the operator able to adjust water distribution based on specific cleaning conditions and requirements. This flexibility allows the vehicle to operate effectively in various environments, from dry and dusty conditions to more moderate situations where minimal dust suppression is required.

Hydraulic System and Controls

The hydraulic system serves as the operational backbone of the ISUZU street cleaner truck, powering multiple essential functions through a gear pump driven by the power take-off unit. The system operates at pressures ranging from 12 to 14 megapascals, with the approximately 60-liter hydraulic oil tank providing sufficient fluid capacity for extended operation without frequent maintenance interruptions.

Through the hydraulic system, operators control brush lifting and rotation functions, enabling them to raise brushes for transit and lower them for sweeping operations with precision and ease. The hopper tipping mechanism operates through the same hydraulic infrastructure, as does the conveyor system that transfers debris from the brush area to the collection hopper.

The vehicle offers both in-cab control panel and external maintenance control panel options, allowing operators to manage sweeping functions from the comfortable cab environment during normal operations while providing maintenance personnel with convenient access for servicing and troubleshooting procedures.

Suspension, Braking, and Safety Features

The suspension system employs leaf springs with shock absorbers at the front axle and reinforced leaf springs at the rear, providing a balanced combination of load-carrying capability and ride comfort. This configuration handles the dynamic loads imposed during sweeping operations while maintaining stable vehicle behavior during high-speed transit between cleaning sites.

The hydraulic brake system with vacuum booster delivers reliable stopping power under all load conditions, complemented by the exhaust brake for additional deceleration capability during downhill operation. The mechanical parking brake engages the rear wheels to prevent unintended vehicle movement when stationary. Anti-lock braking system functionality is available as an optional feature for enhanced safety during emergency braking situations.

Safety considerations extend throughout the vehicle design, incorporating an emergency stop button that immediately halts all sweeping operations in hazardous situations. The reverse alarm system alerts nearby pedestrians and workers when the vehicle backs up, while side brush obstacle protection automatically retracts brushes when they encounter unexpected obstacles, preventing damage to the equipment and potential injury to bystanders.

The anti-slip working platform provides secure footing for operators who need to perform maintenance or inspection tasks on the vehicle, and rear working lights illuminate the sweeping area for operations conducted during low-light conditions. Optional rear-view camera systems enhance visibility during reversing and maneuvering operations.

Electrical System and Monitoring

The 24-volt electrical system powers all lighting, monitoring, and control functions throughout the vehicle. Working status indicator lights on the control panel provide operators with immediate feedback regarding the status of various sweeping system components, enabling quick identification of any operational issues that may arise during cleaning operations.

The optional rear-view camera displays video feed to monitors within the cab, significantly improving safety during reverse operations and providing better awareness of the sweeping area behind the vehicle. This feature proves particularly valuable when operating in crowded urban environments where pedestrians and other vehicles may approach from behind.

Optional Configurations and Customization

The ISUZU Brush Street Cleaner Truck offers numerous optional configurations that allow purchasers to tailor the vehicle to their specific operational requirements. The stainless steel hopper upgrade provides enhanced corrosion resistance for operations involving wet or chemically diverse debris, extending the vehicle’s service life in challenging environments.

The high-pressure washing system enables operators to perform more intensive cleaning tasks, using pressurized water to dislodge stubborn debris and caked material from road surfaces. The LED warning light bar enhances vehicle visibility during operations, alerting other road users to the presence of the slow-moving cleaning vehicle.

Fleet management capabilities receive a significant boost through the optional GPS fleet management system, which enables dispatchers to track vehicle location, monitor operational hours, and optimize route planning for maximum efficiency. The air-conditioned cabin option improves operator comfort during extended shifts in hot climates, potentially increasing productivity by reducing operator fatigue.

For operations requiring even wider sweeping coverage, the 3-brush configuration adds an additional side brush to the standard layout, increasing total sweeping width and reducing the number of passes required to clean large surface areas.

Performance and Operational Advantages

The compact 4×2 ISUZU chassis delivers excellent maneuverability that makes this street cleaner truck ideally suited for the narrow urban streets, crowded sidewalks, and confined residential areas that characterize modern city environments. The tight turning radius enables the vehicle to navigate around obstacles and execute turns in spaces that would challenge larger cleaning equipment.

The mechanical brush and conveyor system provides reliable sweeping performance with relatively low maintenance requirements, proving particularly effective for handling sand, leaves, and light debris that constitute the majority of urban street cleaning workloads. This mechanical approach offers durability and simplicity that translates to reduced operating costs over the vehicle’s service life.

The integrated dust suppression system significantly reduces airborne particles during sweeping operations, improving both environmental conditions and operator comfort while meeting increasingly stringent air quality regulations. Municipalities benefit from the ability to conduct cleaning operations without generating the secondary dust pollution that plague traditional dry sweeping methods.

With efficient hydraulic controls and the durable Q235 steel construction throughout the collection and structural components, this ISUZU street sweeper offers long service life and stable operation for the demanding requirements of municipal sanitation tasks. The combination of proven ISUZU drivetrain components and purpose-built sweeping equipment creates a vehicle that municipal fleet managers can rely upon for years of productive service.

Specification

Item	Details
General Vehicle Parameters
Vehicle Type	Brush Street Cleaner Truck (Mechanical Road Sweeper)
Chassis Brand	ISUZU
Drive Type	4×2 (Left-hand drive)
Overall Dimensions (L×W×H)	≈ 6,800 × 2,200 × 2,750 mm
Gross Vehicle Weight (GVW)	≈ 9,500 kg
Curb Weight	≈ 5,800 kg
Rated Payload Capacity	≈ 3,500 kg
Max Driving Speed	95 km/h
Minimum Turning Radius	≤ 8.5 m
Chassis Configuration
Cab Type	ISUZU ELF / NPR wide-body cab
Seating Capacity	2–3 persons
Wheelbase	3,360 mm
Axle Load Capacity	Front Axle: 3,500 kg; Rear Axle: 6,000 kg
Transmission	ISUZU MSB 5-speed manual or optional 6-speed
Clutch	Dry single plate, Ø300 mm
Steering System	Hydraulic power steering
Engine System
Engine Model	ISUZU 4KH1CN6LB (or equivalent)
Engine Type	Inline 4-cylinder, turbocharged diesel
Emission Standard	Euro V / Euro VI
Engine Power	120–140 hp (typical 132 hp)
Maximum Torque	≈ 290–320 Nm @ 1,800 rpm
Displacement	3.0 L
Sweeping System Configuration
Sweeping Type	Pure mechanical brush sweeping with dust suppression
Brush Layout	2 front side brushes, 1 central main roller brush
Main Brush Width	≥ 1,400 mm
Total Sweeping Width	≥ 2,800 mm
Brush Speed Adjustment	Hydraulic variable speed
Brush Diameter	Side Brushes: ≈ 700–850 mm; Main Roller Brush: ≈ 400 mm
Garbage Collection System
Hopper Volume	5 CBM
Material	Carbon steel Q235
Loading Method	Mechanical sweeping + conveyor collection
Unloading Method	Hydraulic tipping (rear dump)
Dumping Angle	≥ 45°
Dust Suppression & Water System
Water Tank Capacity	1.5–2.0 CBM
Water Pump Type	Electric diaphragm or centrifugal pump
Spray System	Side brush spray nozzles, front dust suppression spray, optional rear spray
Dust Control Efficiency	≥ 85%
Hydraulic System
Hydraulic Pump	Gear pump driven by PTO
System Pressure	12–14 MPa
Hydraulic Oil Tank Capacity	≈ 60 liters
Controlled Functions	Brush lifting and rotation, hopper tipping, conveyor operation
Conveyor System
Type	Chain plate conveyor or belt conveyor
Material	Wear-resistant steel
Function	Transfers debris from brushes to hopper
Drive Mode	Hydraulic motor
Suspension & Brake System
Front Suspension	Leaf spring with shock absorbers
Rear Suspension	Reinforced leaf spring
Brake System	Hydraulic brake with vacuum booster
Auxiliary Brake	Exhaust brake
Parking Brake	Mechanical rear wheel brake
ABS	Optional
Tire & Fuel System
Tire Specification	7.50R16 or 8.25R16 (6+1 spare)
Fuel Tank Capacity	≈ 100 liters
Electrical & Control System
Operating Voltage	24V
Control Modes	In-cab control panel, external maintenance control panel
Monitoring Features	Working status indicator lights, rear-view camera (optional)
Safety & Convenience Features	Emergency stop button, reverse alarm system, side brush obstacle protection, anti-slip working platform, rear working lights
Optional Configurations	Stainless steel hopper, high-pressure washing system, LED warning light bar, GPS fleet management system, air-conditioned cabin, additional side brush (3-brush configuration)
Performance Highlights	Compact 4×2 ISUZU chassis for excellent maneuverability in narrow urban streets, sidewalks and residential areas. Mechanical brush + conveyor system for reliable, low-maintenance sweeping of sand, leaves and light debris. Integrated dust suppression reduces airborne particles. Efficient hydraulic controls and durable Q235 steel structure ensure long service life and stable operation for municipal sanitation.
