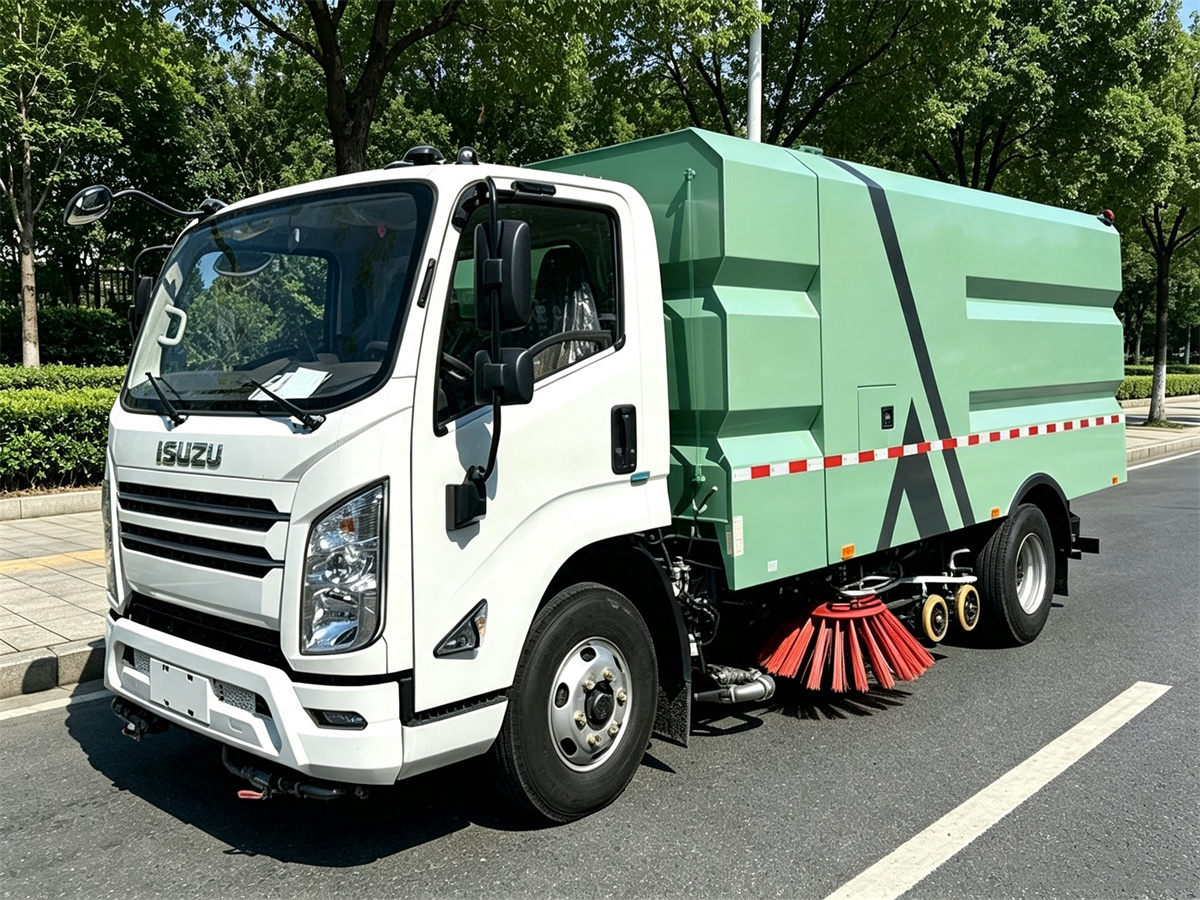

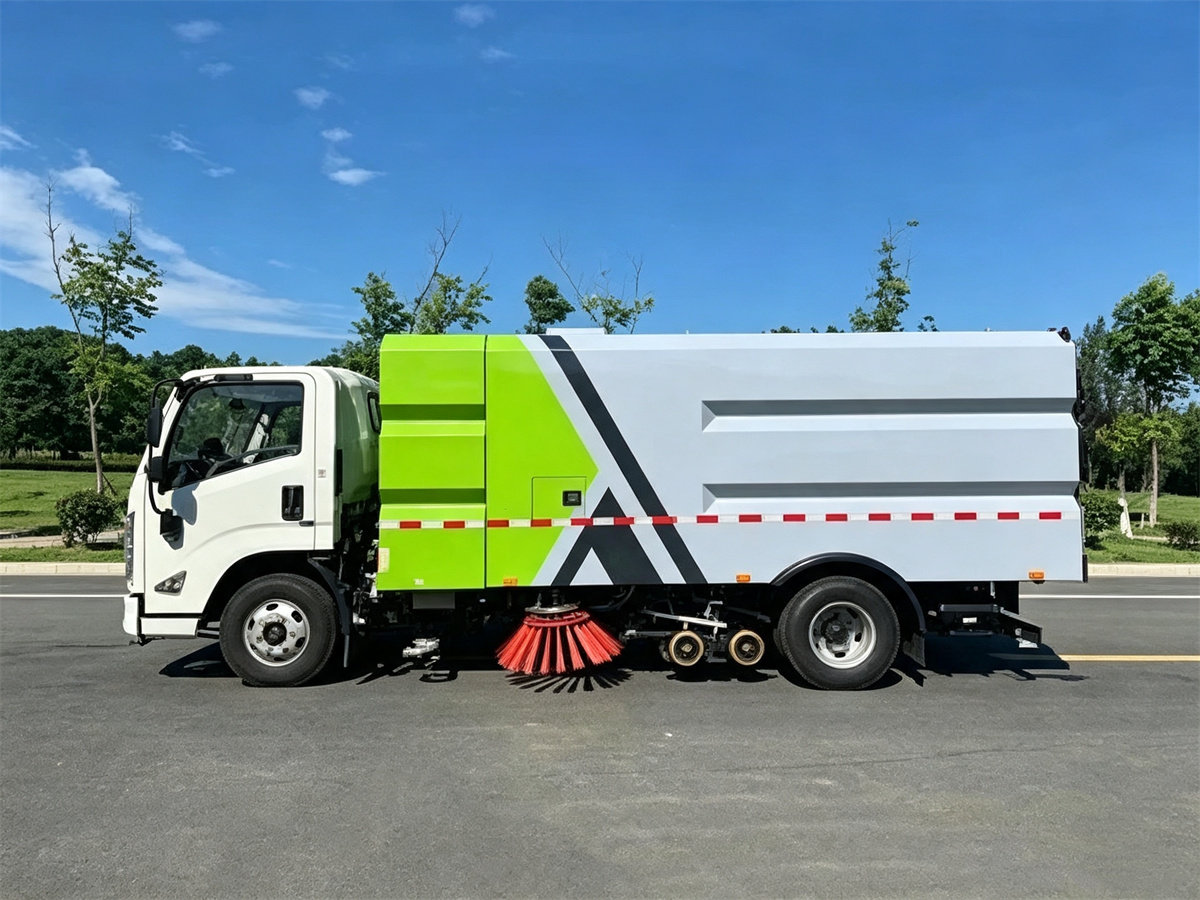

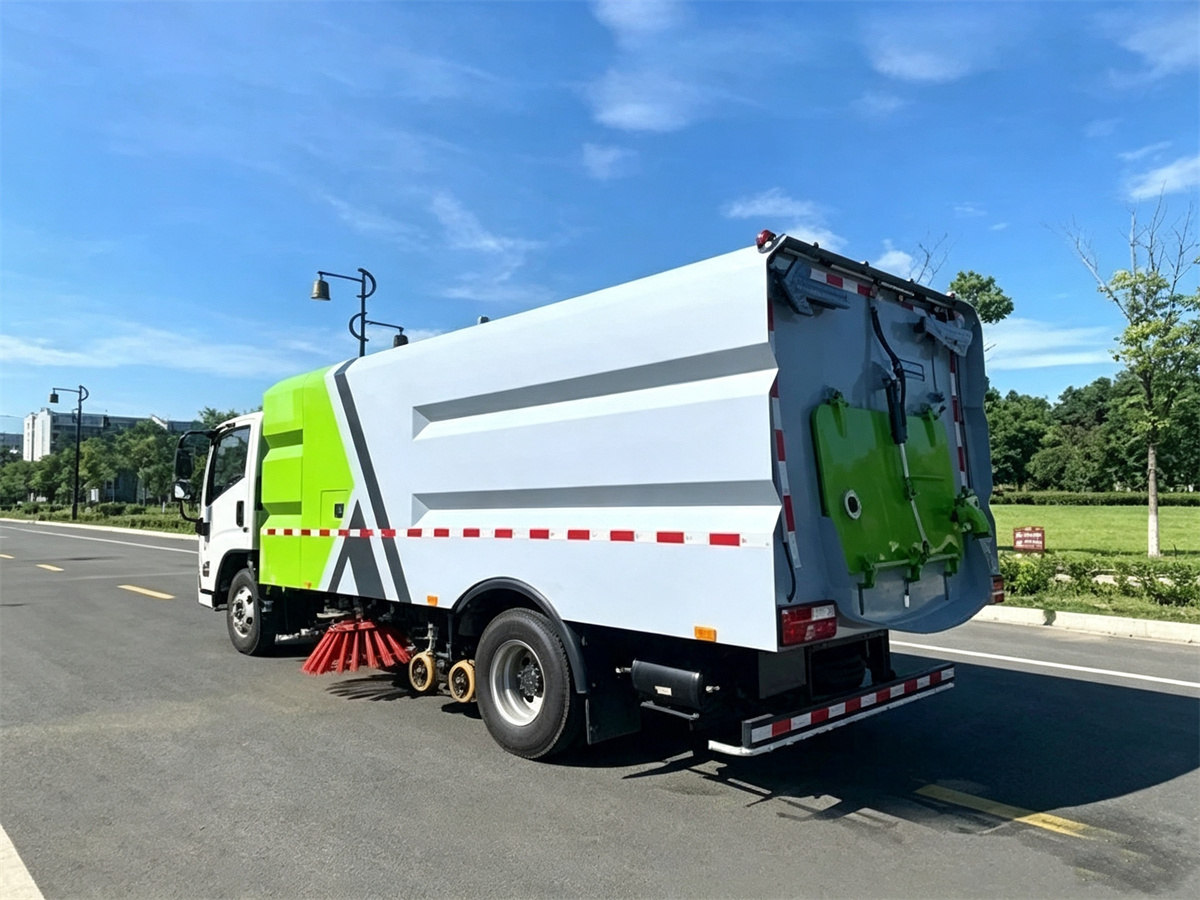

ISUZU 8 CBM Street Scrubber Sweeper Truck
The ISUZU 8 CBM Street Scrubber Sweeper Truck is a professional municipal cleaning vehicle designed for efficient road washing, dust suppression, garbage collection, and urban environmental maintenance. Built on a reliable Qingling ISUZU 6-wheel chassis, this street sweeper combines powerful driving performance, large-capacity storage systems, and advanced sweeping technology to provide an effective solution for city streets, highways, industrial areas, airports, and public facilities.
Equipped with a 4m³ stainless steel garbage tank and a 4m³ water tank, the vehicle offers excellent working endurance for long-distance cleaning operations while reducing the frequency of unloading and water refilling. The stainless steel tank structure provides strong corrosion resistance and durability, ensuring reliable performance in different working environments.
The ISUZU street scrubber sweeper truck adopts a high-performance diesel engine with 112kW power output, matched with a 6-speed manual gearbox, providing stable power transmission and efficient fuel consumption. The vehicle uses a 2-axle design with a 3-ton front axle and 6-ton rear axle, together with 7.50R16LT 14PR tires, delivering good load-bearing capacity and driving stability during daily cleaning operations.
With a maximum sweeping width of 2.8 meters, a cleaning efficiency of up to 42,000 m²/h, and a sweeping efficiency of 95%, this vehicle can quickly clean large areas while maintaining excellent road cleanliness. The two sweeping brushes, powerful suction system, and secondary engine with 125kW power work together to remove dust, leaves, sand, and other road debris efficiently.
The overall dimensions of the truck are 8,210×1,215×6,800mm, featuring a practical structure that allows flexible operation in urban environments. The ISUZU 8 CBM Sweeper Truck is an ideal choice for professional sanitation departments and cleaning service companies requiring high efficiency, reliability, and long-term durability.
Features of ISUZU 8 CBM Street Scrubber Sweeper Truck
1. Reliable Qingling ISUZU Chassis Performance
The Qingling ISUZU chassis provides a strong and durable foundation for continuous cleaning operations, offering excellent stability, easy maintenance, and long service life. The truck adopts a 6-wheel, 2-axle configuration with a wheelbase of 3,815mm, which provides a balanced combination of maneuverability and load capacity.
Powered by a 112kW diesel engine, the vehicle delivers sufficient power for urban road cleaning tasks, while the 6-speed manual transmission ensures smooth gear shifting and efficient operation. The air brake or oil brake system improves driving safety, making the truck suitable for both city roads and larger cleaning projects.
2. Large-Capacity Cleaning and Waste Collection System
The vehicle is equipped with a 4m³ stainless steel garbage tank and a 4m³ water tank, creating an integrated cleaning system that combines sweeping, suction, and washing functions. The stainless steel material helps prevent corrosion caused by water, dust, and waste materials, improving durability and reducing maintenance requirements.
The large water storage capacity supports continuous road washing and dust control operations, while the garbage tank provides sufficient space for collected debris. This design allows the street sweeper truck to maintain high productivity during extended working hours.
3. Efficient Sweeping and Suction Technology
The ISUZU 8 CBM Street Sweeper features two high-performance sweeping brushes and an advanced suction system designed to collect various types of road debris. With a maximum suction particle size of 100mm, the truck can effectively remove leaves, gravel, dust, and other solid waste from different road surfaces.
The sweeping width reaches 2.8 meters, enabling the vehicle to clean wider areas in fewer passes. The adjustable sweeping speed of 3-15km/h and road cleaning speed of 15-20km/h allow operators to select suitable working modes according to different road conditions and cleaning requirements.
4. High Cleaning Efficiency for Urban Applications
Designed for professional sanitation operations, this road sweeper truck achieves a maximum sweeping capacity of 42,000 m²/h with a cleaning efficiency of 95%, significantly improving productivity compared with traditional manual cleaning methods.
The vehicle is suitable for a wide range of applications, including urban streets, highways, residential areas, industrial parks, airport roads, ports, and municipal facilities. Its powerful cleaning capability helps maintain cleaner public spaces while reducing labor costs and improving environmental standards.
5. Independent Secondary Engine System
The truck is equipped with a powerful secondary engine system rated at 125kW, which provides dedicated power for the sweeping and suction equipment. This design allows the cleaning system to operate efficiently without placing excessive load on the main vehicle engine.
The independent power system improves fuel efficiency, enhances cleaning performance, and ensures stable operation during long working periods. It also helps extend the service life of the main chassis components by separating driving functions from cleaning functions.
6. Convenient Hydraulic and Unloading Design

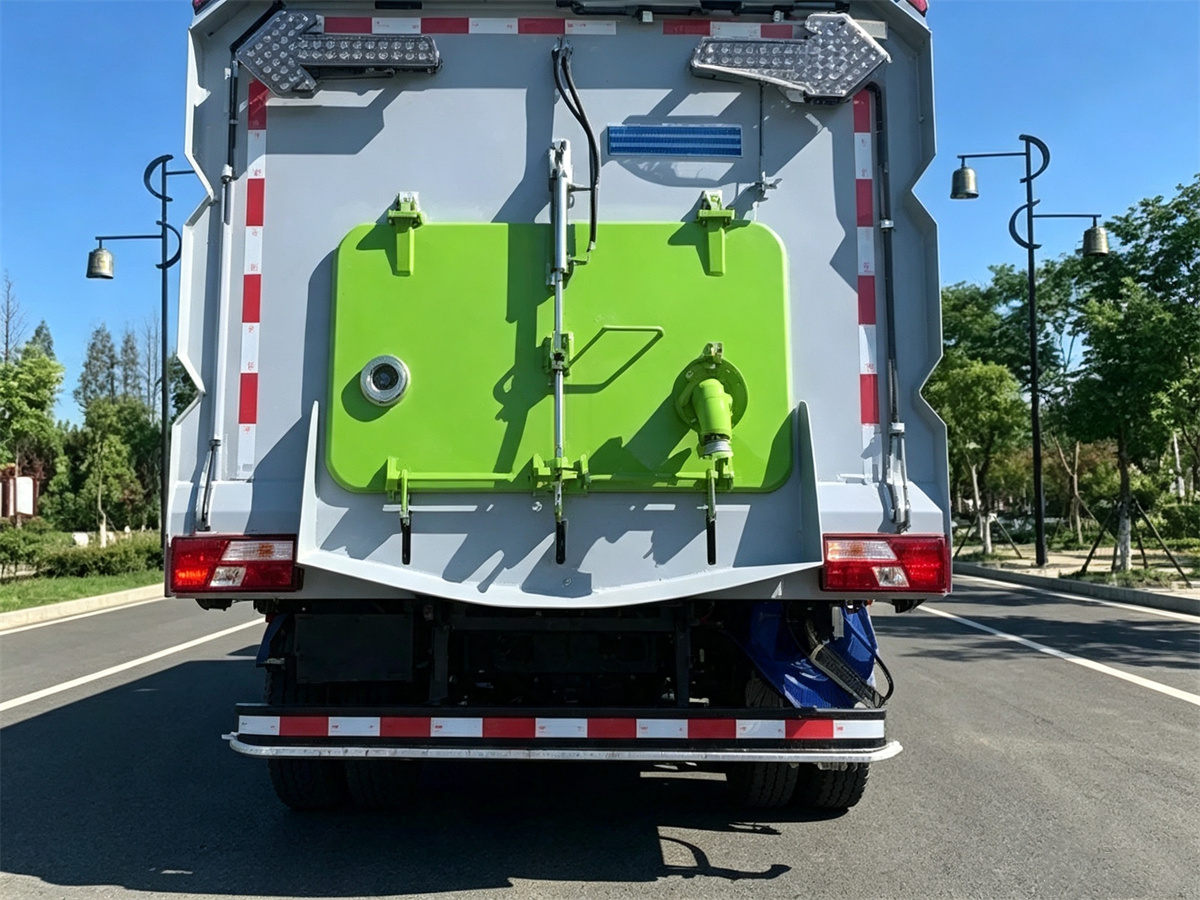

The ISUZU scrubber sweeper truck features a hydraulic unloading system with a 45° tipping angle, allowing collected garbage to be discharged quickly and conveniently. The efficient unloading process reduces downtime and improves daily operational efficiency.
The vehicle structure is designed for practical maintenance, with easily accessible components and reliable mechanical systems that help reduce service costs. Combined with the proven ISUZU chassis quality, the truck provides a dependable solution for professional road cleaning operations.
7. Professional Configuration for Different Cleaning Needs
The standard configuration includes the Qingling ISUZU chassis, stainless steel garbage tank, water tank, two sweeping brushes, suction system, secondary engine, hydraulic system, and cleaning control system. These components work together to deliver efficient sweeping, washing, and waste collection performance.
With its combination of high-capacity tanks, powerful suction performance, and durable ISUZU technology, the 8 CBM Street Scrubber Sweeper Truck provides an excellent choice for customers seeking a reliable and efficient municipal cleaning vehicle for modern urban sanitation projects.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | 8 CBM Street Scrubber |
| Overall Dimensions (L×W×H) | 8,210 × 1,215 × 6,800 mm |
| Curb Weight | 6,800 kg |
| Chassis Brand | Qingling ISUZU |
| Wheelbase | 3,815 mm |
| Axle Configuration | 2 Axles (6-Wheeler) |
| Front / Rear Axle Capacity | 3 t / 6 t |
| Brake System | Air Brake / Oil Brake |
| Number of Tires | 6 |
| Tire Specification | 7.50R16LT 14PR |
| Main Engine Power | 112 kW |
| Secondary Engine Power | 125 kW |
| Fuel Type | Diesel |
| Transmission | 6-Speed Manual |
| Garbage Tank Volume | 4 m³ |
| Water Tank Volume | 4 m³ |
| Tank Material | Stainless Steel |
| Number of Sweeper Brushes | 2 |
| Max. Cleaning Width | 2.8 m |
| Sweep Speed | 3 – 15 km/h |
| Road Cleaning Speed | 15 – 20 km/h |
| Max. Sweeping Capacity | 42,000 m²/h |
| Max. Suction Particle Size | 100 mm |
| Sweeping Efficiency | 95% |
| Tipper Unloading Angle | 45° |
