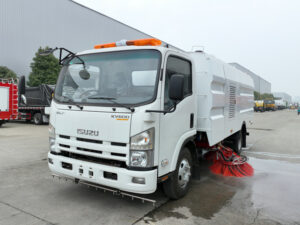

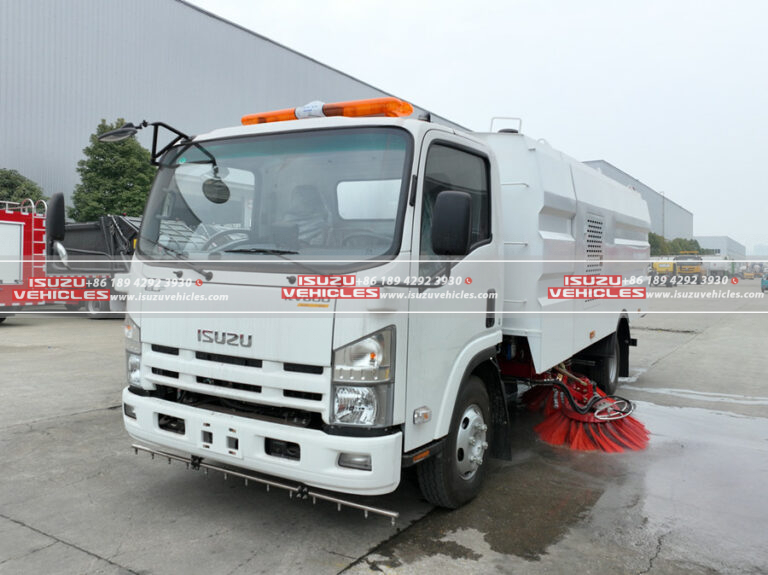

ISUZU 6 CBM Road Sweeper Truck

Product Brief: ISUZU 6 CBM Road Sweeper Truck

The ISUZU 6 CBM Road Sweeper Truck is a state-of-the-art, brand-new vehicle manufactured in 2024, designed for efficient street cleaning and maintenance. With a robust build and advanced features, this truck is equipped to operate effectively in various environments while meeting Euro V emission standards, ensuring compliance with modern environmental regulations. This versatile vehicle boasts a spacious dustbin capacity of 4 cubic meters, a powerful engine, and sophisticated sweeping mechanisms that allow for thorough cleaning operations.

Features:

• General Specifications: The ISUZU ST04QL130L5 model has overall dimensions of 5900 mm in length, 2100 mm in width, and 2530 mm in height, making it an ideal size for urban and suburban cleaning tasks. With a curb weight of 5050 kg and a wheelbase of 3360 mm, this truck is designed for stability and maneuverability while achieving a maximum speed of 90 km/h.
• Engine Performance: The truck is powered by the ISUZU 4KH1CN5HS diesel engine, which features four cylinders, a displacement of 2.999 liters, and delivers a nominal power of 130 HP (96 kW) alongside a peak torque of 290 N.m at 1500 rpm. This engine is compliant with Euro V emission standards, ensuring both efficiency and environmental responsibility.
• Transmission and Drive: The ISUZU Road Sweeper Truck features a manual transmission system identified as ISUZU MSB, with five forward gears and one reverse gear, designed for optimal control and performance during operation.
• Axles and Suspension: The vehicle incorporates a front axle rated at 3 tons and a rear axle rated at 7 tons, providing a robust framework to support its operations. Both front and rear suspensions are equipped with spring leaf systems, enhancing ride comfort and stability on various terrains.
• Braking and Tires: With a pneumatic brake system and equipped with tires sized 7.50R16, the truck includes six wheels and one spare, ensuring reliability and safety during sweeping operations.
• Cabin Features: The cabin of the ISUZU Road Sweeper Truck comes in a standard white color, with options for customization. It includes air conditioning, a radio, and various other amenities to ensure driver comfort and ease of operation.
• Dust Bin and Water Tank: The truck features a 4 cubic meter dustbin constructed from SS201 stainless steel, designed with a dump angle of ≥ 45° and a discharge angle of ≥ 85° for efficient waste disposal. Additionally, the 1500-liter water tank, also made from SS201, supports the sweeping process by providing necessary moisture for dust control.
• Suction and Sweeping Mechanism: The high-pressure centrifugal fan operates at a rotational speed of 2700 r/min, with a flow rate ranging from 5000 to 7800 m³/h, ensuring effective dust and debris removal. The sweeping width ranges from 2.8 to 3.0 meters, with a sweeping capacity capable of covering 38,000 m²/h at a sweeping efficiency of over 96%.

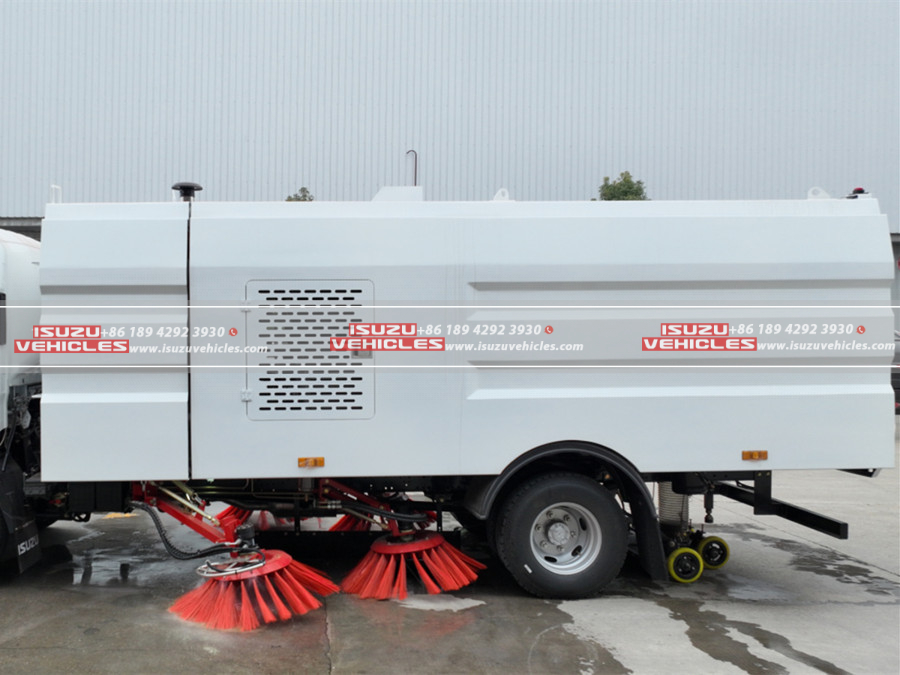

• Disc Brushes: This model includes four disc brushes, with two located on each side of the sweeping body. The hydraulic-driven disc brushes can operate separately or in tandem, allowing for flexibility during cleaning operations. The diameter of the disc brushes ranges from φ800 to 900 mm, ensuring effective surface contact and debris collection.
• Hydraulic System: The hydraulic system is an open type, electrically controlled, with a pressure rating of 16 MPa. It comprises essential components such as gear pumps, hydraulic motors, cylinders, and solenoid valves, contributing to the truck’s operational efficiency.

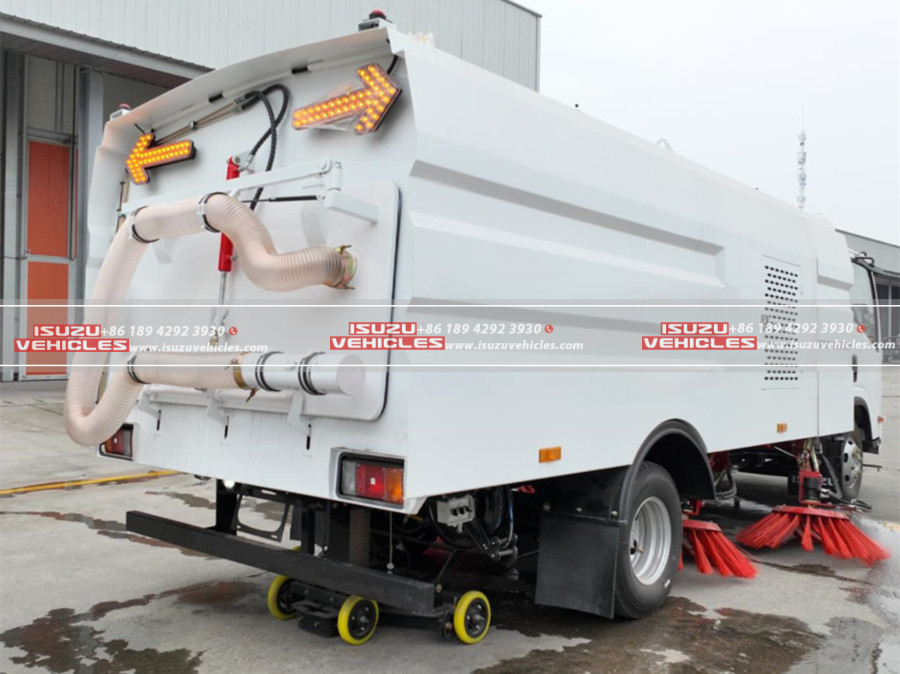

• Optional Features: Customization options are available, including SS304 material for the bin and tank, rear handles for the suction hose, and various colors and logos based on customer requirements.

The ISUZU 6 CBM Road Sweeper Truck represents an excellent solution for municipalities and organizations seeking to maintain clean and safe roadways efficiently while adhering to environmental standards.

SPECIFICATIONS:
