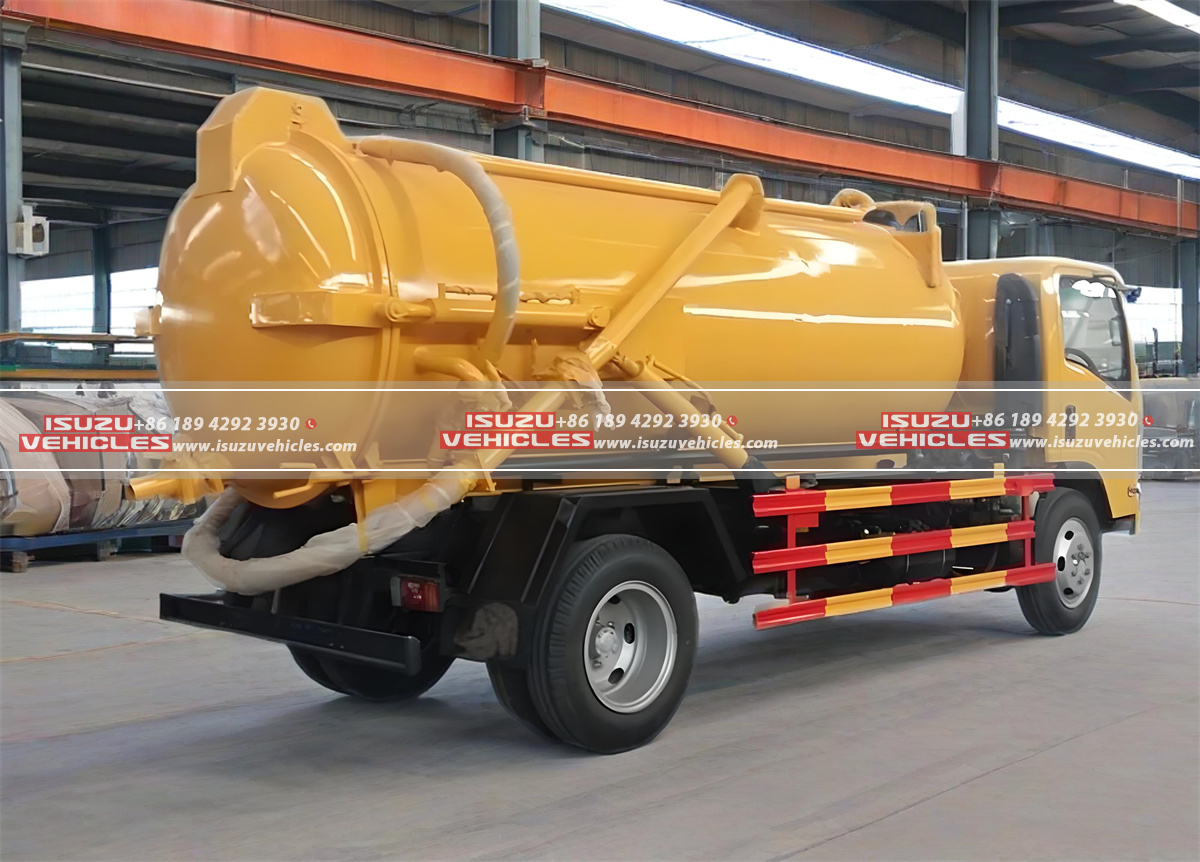

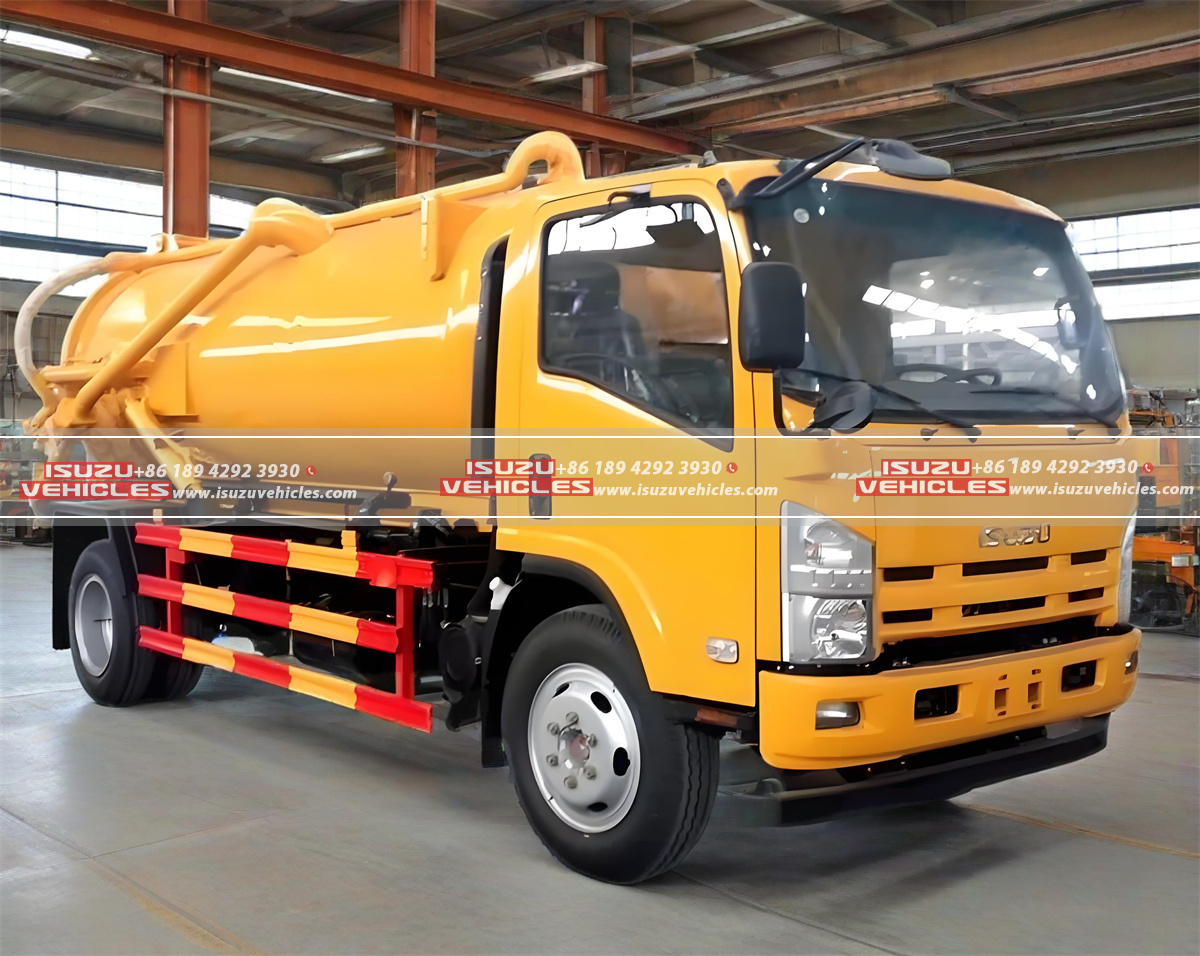

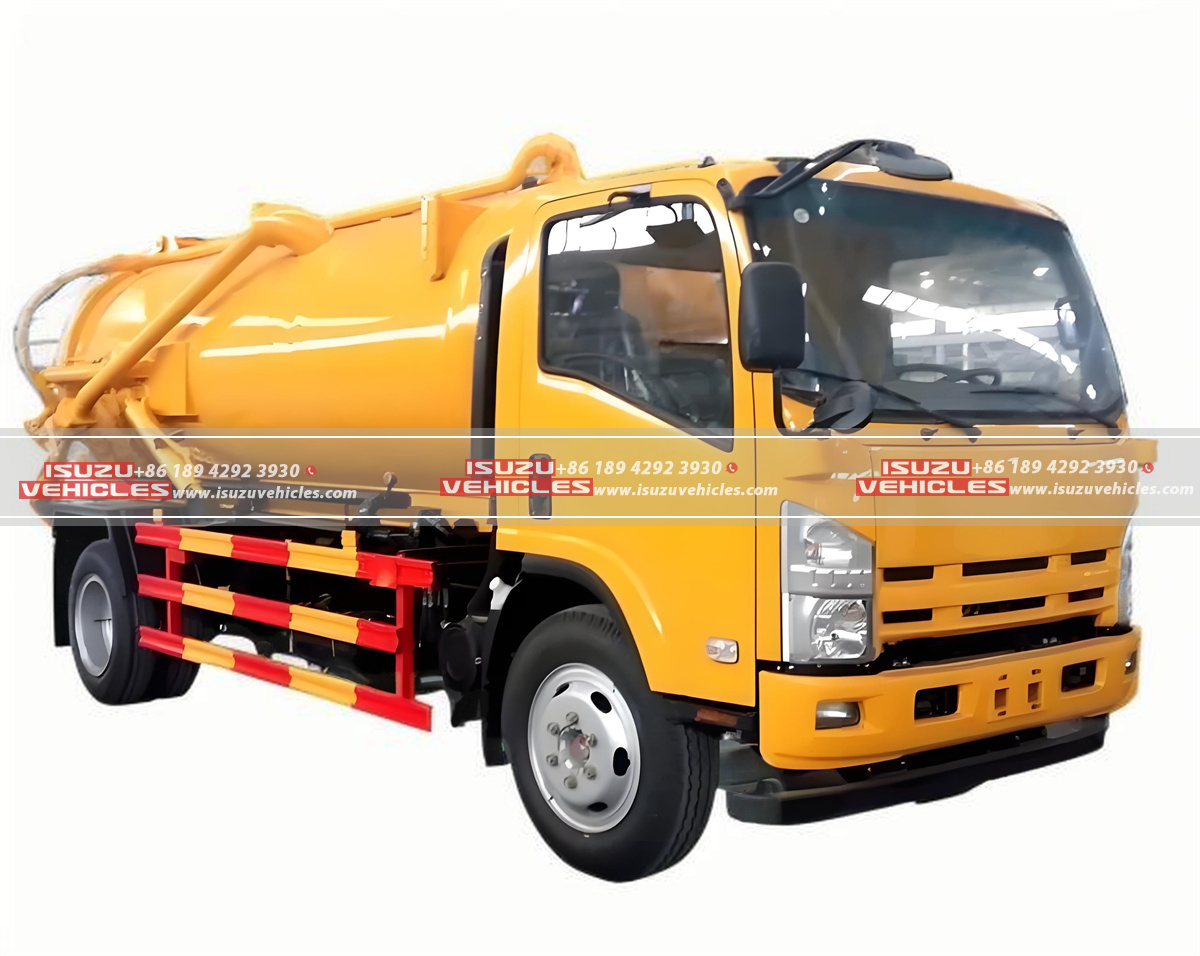

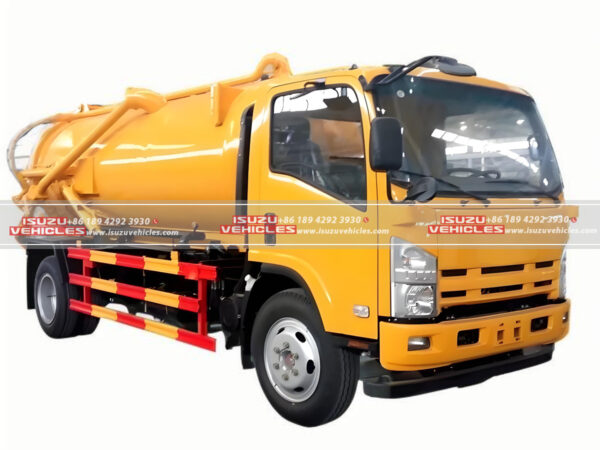

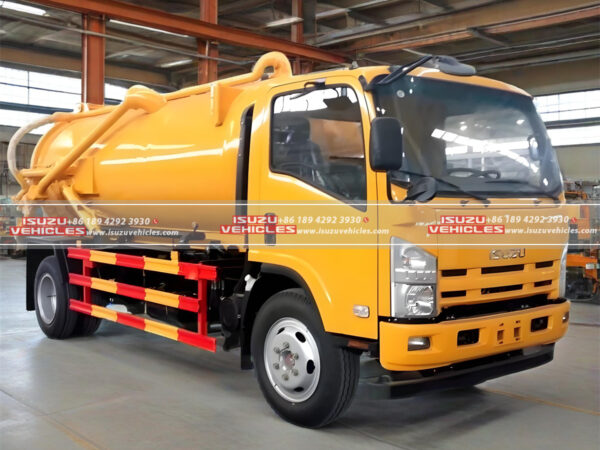

ISUZU 1600L Vacuum Sewer Truck
A. Core Construction & Dimensions

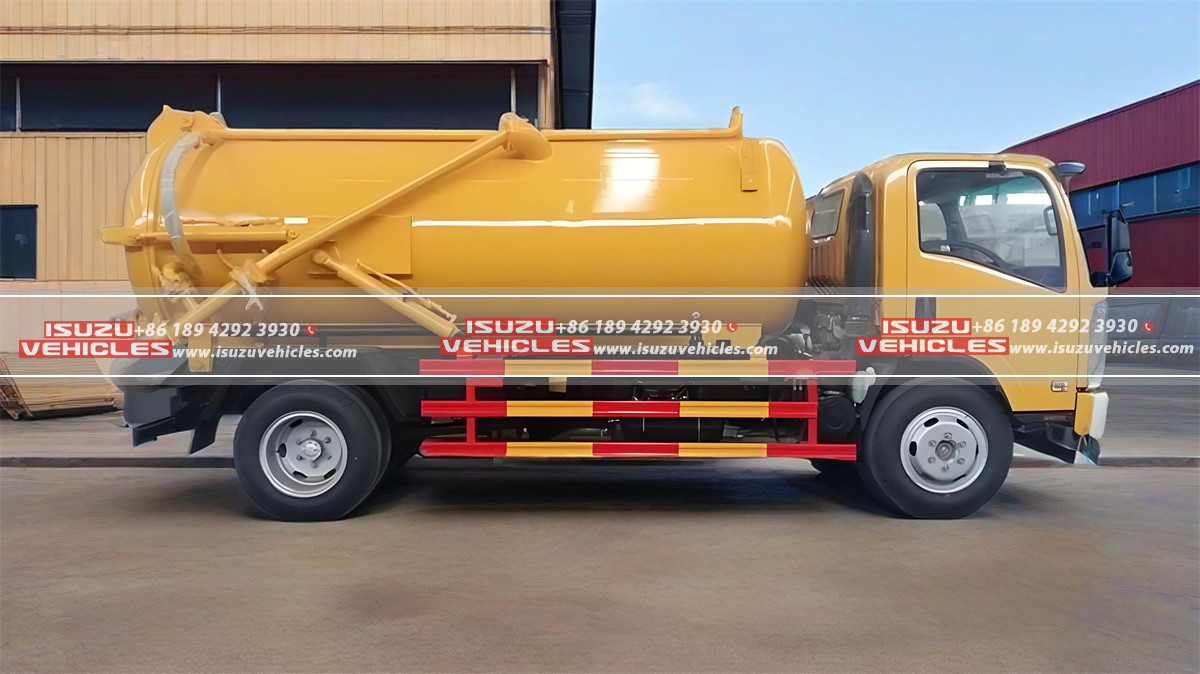

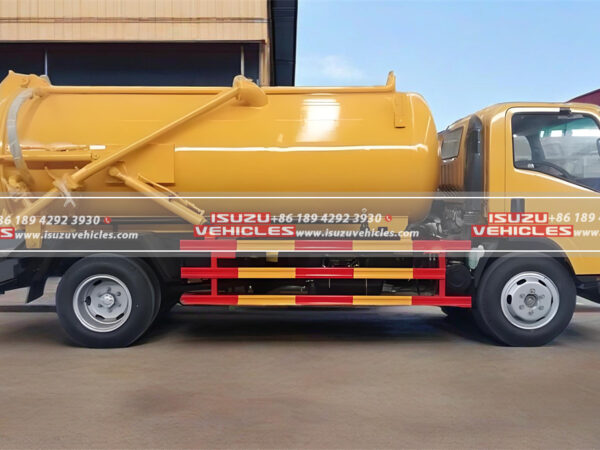

Built with a cylindrical 4,000-liter rigid steel tank (Length: 3,400mm × Diameter: 1,200mm), the ISUZU 1600L Vacuum Sewer Truck tanker utilizes Q235-grade steel for optimal durability—featuring a 5mm shell, 6mm rear rib, and 4mm internal baffles to resist deformation under extreme pressure. The chassis integrates a reinforced subframe and full-length hydraulic dump system with a 5-ton, 80-inch stroke two-stage cylinder, enabling rapid payload handling while maintaining structural integrity across rough terrain.
B. Performance & Operational Efficiency
- Hydraulic Systems: Equipped with a full-opening rear door assembly operated by heavy-duty wing clamps, facilitating effortless waste discharge in under 4 minutes, while the ≥8m vertical suction capability ensures deep-pit sludge extraction.
- Power & Mobility: The 3,150mm wheelbase and compact footprint (6,100×2,250×2,960mm) optimize maneuverability in confined industrial sites, supporting a GVW of 11,360kg with a recommended 4,450kg payload capacity.
Features: Precision Components for Uninterrupted Operations
A. Vacuum Pump System
The Italian Jurop PN45D pump delivers exceptional flow rates (318m³/h, 5,300L/min) and sustains 92% vacuum efficiency at 1,300 rpm, engineered for continuous operation under 21.8 PSI pressure with a 5.8kW power draw. Its corrosion-resistant design minimizes maintenance downtime, ideal for prolonged sewage, chemical, or oil-sludge recovery tasks.
B. Safety & Control Mechanisms
- Valves & Fittings: Features a 4″ heated brass drain valve (front-mounted), automatic pressure-release valves, and double-acting hydraulic cylinders to prevent over-pressurization risks during high-volume transfers.
- Operator Interface: Includes electronic/hydraulic pendant controls with a 25-foot cable (customizable) and sight-glass-equipped oil filters for real-time fluid monitoring.
C. Ergonomic & Protective Design
- Durable Exterior: Full-length steel checker-plate fenders and 1/4″ tubular handrails protect against impacts, while an ISUZU stainless-steel rear toolbox (rain-lip sealed) secures essential maintenance gear.
- Stability Enhancements: Internal baffles suppress liquid surge during transit, and the low-center-of-gravity tank profile enhances rollover resistance on uneven ground.
Engineered for municipal services, oil refineries, and hazardous waste management, this ISUZU Vacuum Truck tanker combines European vacuum technology with military-grade steel construction to achieve rapid cycle times, operator safety compliance, and 24/7 readiness in harsh environments.
SPECIFICATIONS
| Parameter Category | Specification Details |
|---|---|
| Tanker Structure | Cylindrical rigid steel tank (Ø1,200mm × L3,400mm) Material: Q235 steel (Shell: 5mm, Rear Rib: 6mm, Baffles: 4mm) Subframe: Reinforced hydraulic dump with 5-ton 80″ stroke 2-stage cylinder |
| Capacity & Performance | Volume: 4,000 liters Suction: ≥8m vertical reach Load Time: <5 minutes Discharge Time: <4 minutes Rear Access: Hydraulic full-opening door with 2 heavy-duty wing clamps |
| Vacuum System | Pump: Italy JUROP PN45D Flow Rate: 318m³/h │ 5,300L/min │ 187 CFM Vacuum Efficiency: 92% (max) │ 60% (continuous) Power: 5.8kW │ Pressure: 21.8 PSI │ Weight: 90kg |
| Valves & Fittings | Drain Valve: 4″ heated quick-acting brass (front-mounted) Pressure Control: Automatic release valve Hydraulics: Double-acting cylinder + sight glass oil filter Controls: Electronic/hydraulic pendant (25′ cable, customizable) |
| Safety & Exterior | Fenders: Full-length 1/8″ steel checker plate Handrails: 1/4″ tubular Toolbox: Weatherproof with rain lip |
| Dimensions | Overall Vehicle: 6,100 × 2,250 × 2,960mm (L×W×H) Wheelbase: 3,150mm |
| Weight Metrics | GVW: 11,360kg Curb Weight: 6,780kg Recommended Payload: 4,450kg |
