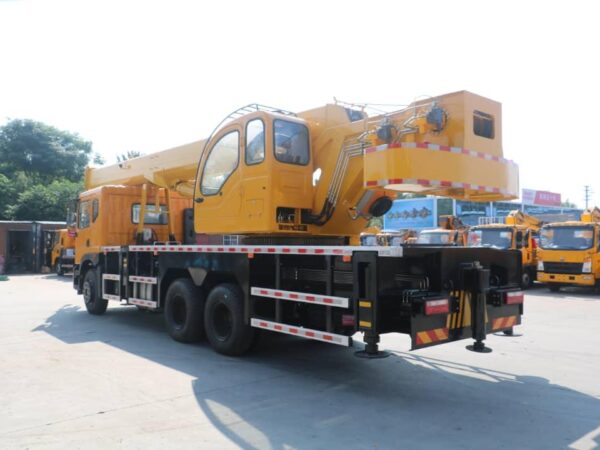

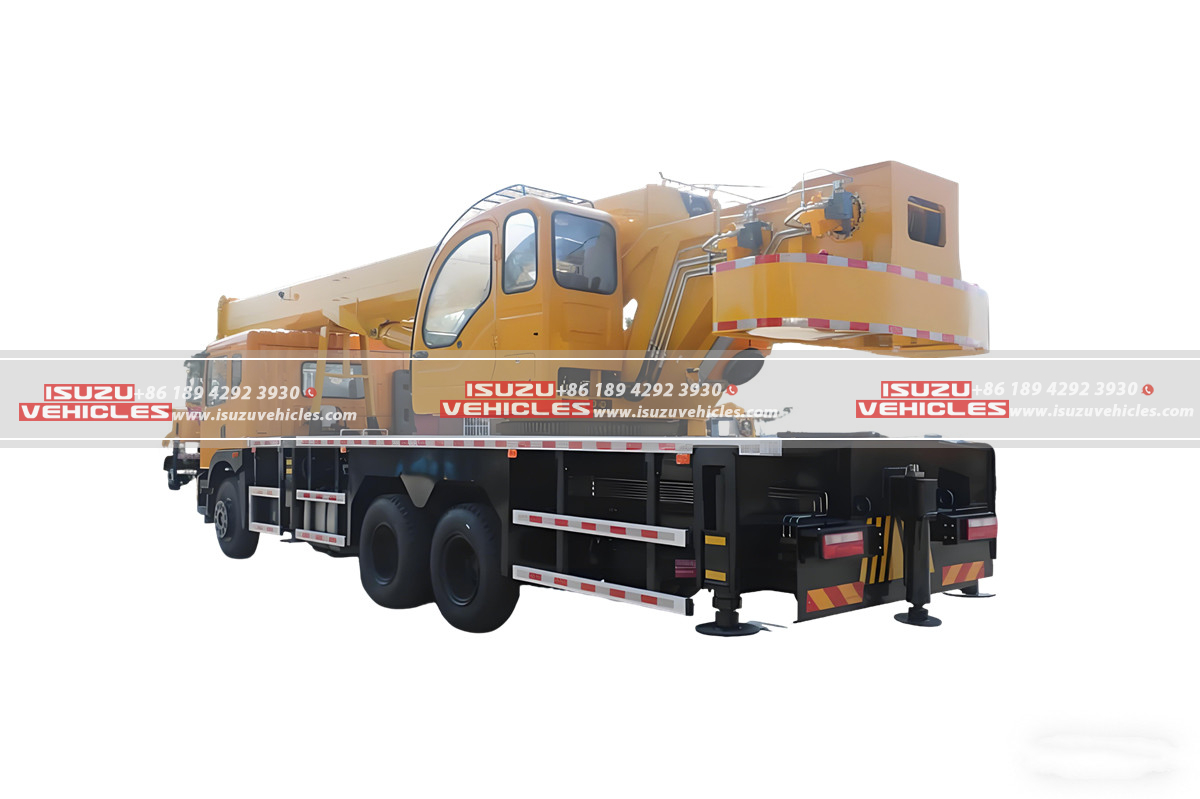

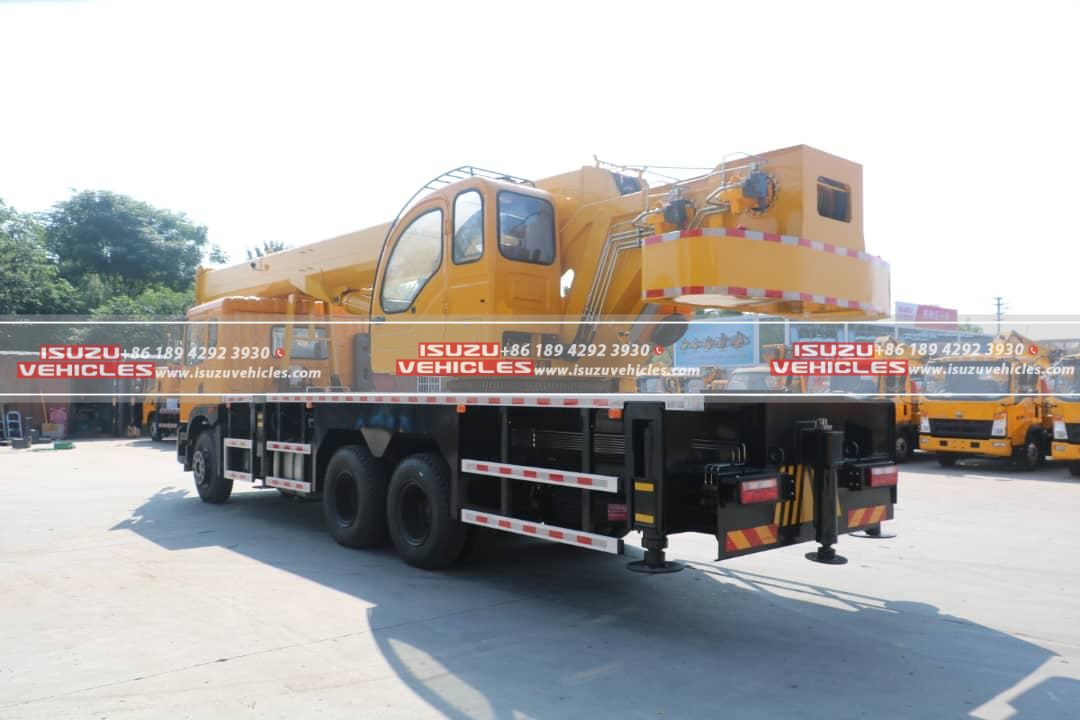

ISUZU 25 Ton Crane Truck
The ISUZU 25 Ton Crane Truck integrates industrial-grade lifting power with unparalleled mobility, engineered for complex construction, logistics, and infrastructure projects. Built on a rugged ISUZU FVZ 5X 6×4 chassis with a 300HP Euro VI-compliant diesel engine (6HK1-TCG60), this machine delivers 221kW peak power and 981N·m torque at 1,450 rpm, ensuring robust performance in extreme conditions. The chassis features a U-profile parallel ladder frame with 200×80mm cold-riveted cross-members and semi-elliptic leaf spring suspension (9/10 configuration), optimized for torsional rigidity and load distribution. With a 27-ton GVW and 7,000kg/20,000kg axle ratings, it balances heavy payloads while maintaining agility.
The sleeper cab (2,480mm width) prioritizes operator comfort during extended shifts, featuring four-point hydraulic suspension, air-conditioning, adjustable air suspension seats, and multi-instrument displays. Critical drivetrain components include a FAST 9-speed manual transmission (9JS119TC) with synchronized gears and a 381mm dry single clutch for seamless power transfer. Dual-circuit air brakes with ABS and exhaust auxiliary braking ensure safety during transit, while 24V electrical systems with twin 115E41L batteries support reliable starts in harsh environments.
Operational Features & Crane Capabilities
Precision Lifting Systems

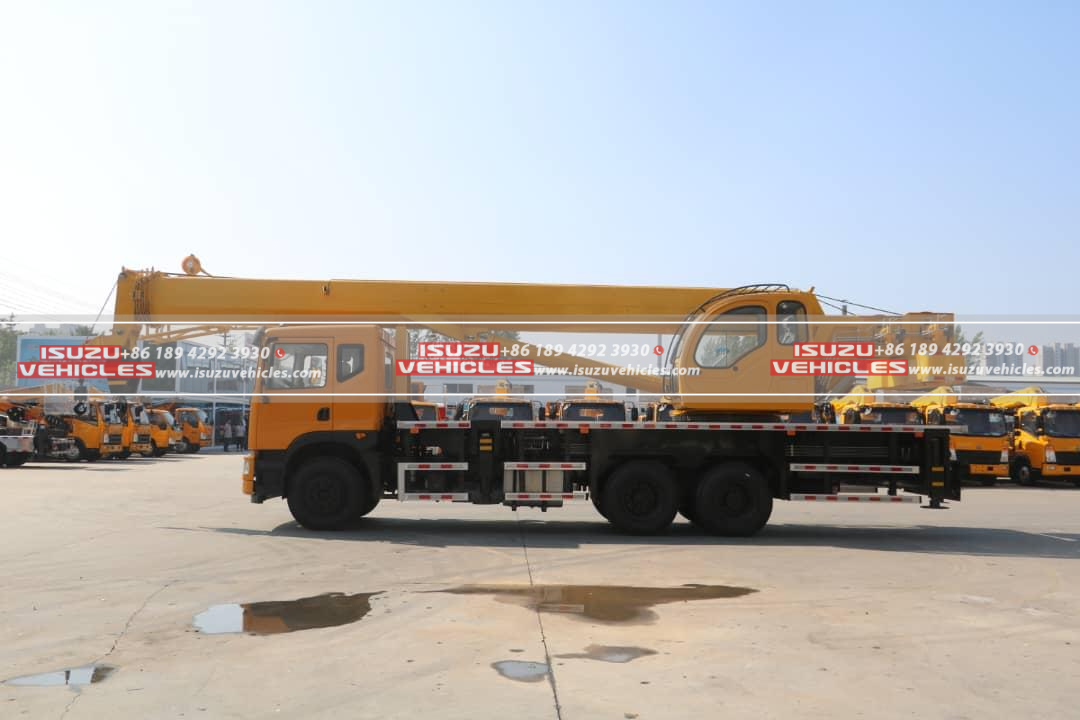

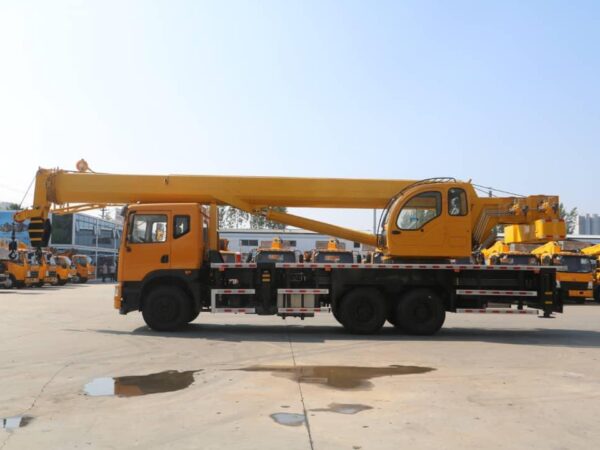

- 5-section telescopic boom achieves a 38-meter max lifting height and 24-meter outreach, supporting 25-ton capacity at close range.
- Dual winch systems enable rapid hoisting: 120 m/min main winch and 110 m/min auxiliary winch, with 8-line hook configurations for versatile load handling.
- 360° continuous slewing (0–2 rpm) and negative-angle capability allow precise positioning in confined spaces.
Intelligent Control & Safety
- Dual-side operation enables flexible control from either flank of the crane truck, while the XCMG operational cab offers panoramic visibility.
- Load moment indicator continuously monitors load dynamics, preventing overloading and ensuring stability.

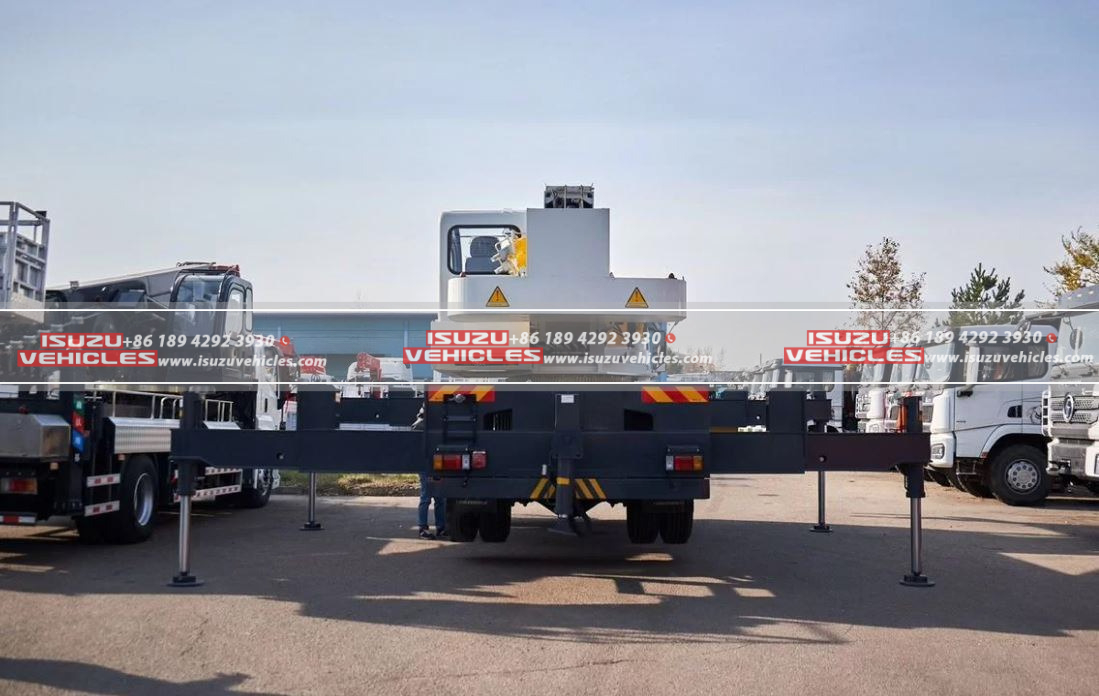

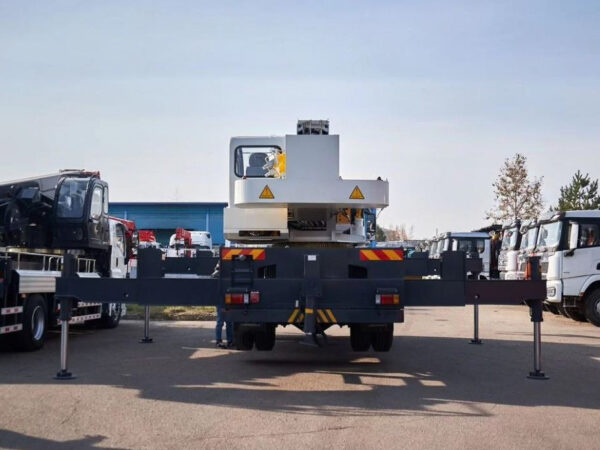

- Four hydraulic outriggers deploy in 40–50 seconds, providing a 5.65m lateral / 7m vertical span for secure footing on uneven terrain.
Resilient Design Enhancements
- Diesel heater maintains hydraulic fluid viscosity and operator comfort in sub-zero conditions.
- Chain break protection and emergency stop systems mitigate mechanical failures, while ceramic-coated components resist corrosion.
- Electronic throttle optimizes fuel efficiency during variable-load operations.
SPECIFICATIONS
| Category | Details |
|---|---|
| Basic Information | |
| Truck Make/Model | ISUZU / 6×4 300HP |
| Cab Chassis Make/Model | ISUZU / VC61 5X |
| Crane Series | Loader Crane (TBC Telescopic Boom Crane) |
| Engine | |
| Make/Model | ISUZU / 6HK1-TCG60 |
| Output Power/Speed | 221KW / 2400rpm |
| Max. Output Torque/Speed | 981N.m / 1450rpm |
| Displacement | 7.79L |
| Engine Type | Diesel |
| Emission Regulation | Euro Ⅵ |
| Transmission & Clutch | |
| Transmission Make/Model | FAST / 9JS119TC |
| Transmission Type | MT (9 forward gears + 1 reverse gear) |
| Synchronizer | Equipped |
| Clutch Make/Model | JiangZheng |
| Clutch Type | Dry Single Clutch |
| Clutch Diameter | 381mm |
| Chassis & Steering | |
| Chassis Type | U-profile parallel ladder cold riveted cross (200*80 mm module, 2 layers) |
| Steering Make/Model | ZhongXin / 6HH1/6HK1-TC |
| Steering Type | Recirculating ball, powered adjustable column (LHD) |
| Suspension | Mechanical, Semi-elliptic Leaf Springs 9/10 |
| Axle | |
| Front Axle Make/Model | MERITOR / FG941 (Steering Axle) |
| Front Axle Rating | 7,000kg |
| Rear Axle Make/Model | MERITOR / MT40-144GP (Driving Axle) |
| Rear Axle Rating | 10,000+10,000kg |
| Rear Axle Ratio | 6.142 |
| Cab | |
| Cab Type | Sleeper (2480 mm width, 2 seats) |
| Cab Construction | Four-point hydraulic suspension; 70° hydraulically tiltable; all-steel forward control; rod rearview mirror; laminated windscreen with casted-in radio aerial |
| Instrument & Controls | Multi information display, indicator lamps, central locking, electric doors and windows |
| Driver Seat | Hydraulically damped adjustable; air suspension seat (optional) |
| Cab Equipment | Electric air conditioning, electric window regulator, heating & ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn, single bunk |
| Electric System | |
| Working Voltage | 24V |
| Starter | 24 volt, 5.0 kW |
| Alternator | 90 amp |
| Battery | 2 x 115E41L (651 CCA) batteries (series connection) |
| Brake System | |
| Service Brake | Dual circuit full air front and rear drum brakes |
| Parking Brake | Spring park brake (all rear wheels) |
| Auxiliary Brake | Air controlled exhaust brake |
| Other Brake Features | ABS |
| Weights & Dimensions | |
| Gross Vehicle Weight | 27 T |
| Front/Rear Track | 2060mm / 1855mm |
| Front/Rear Overhang | 1370mm / 1870mm |
| Wheelbase | 4650+1370mm |
| Ground Clearance | 265mm |
| Overall Size | 13000×2540×3500mm |
| Crane Superstructure | |
| Max. Lifting Capacity | 25000 kg |
| Max. Lifting Height | 38 m |
| Max. Outreach | 24 m |
| Max. Hook Lines | 8 |
| Slewing Speed | 0-2 rpm |
| Basic Boom Length | 9.5 m |
| Boom Sections | 5 |
| Outrigger Span (Horizontal) | 5650 mm |
| Outrigger Span (Vertical) | 7000 mm |
| Main Winch Hoisting Speed | 120 m/min |
| Auxiliary Winch Hoisting Speed | 110 m/min |
| Crane Core Features | |
| Key Components | Hydraulic pump (manual hydraulic pump) |
| Operation Features | XCMG operational cab, load moment indicator, front/rear outriggers, dual-side operation, electronic throttle, negative angle |
| Other Features | Diesel heater (low-temperature adaptation), professional painting completed |
