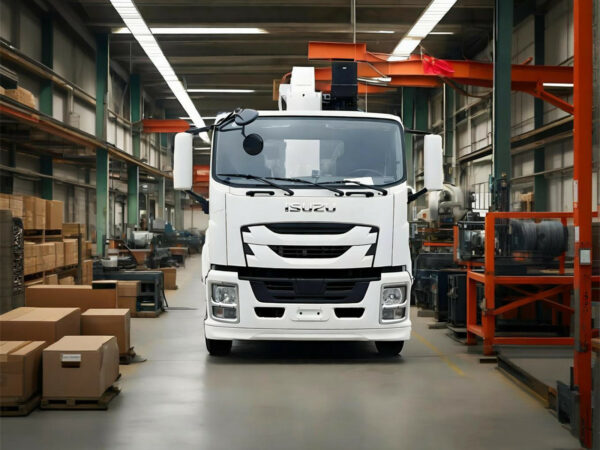

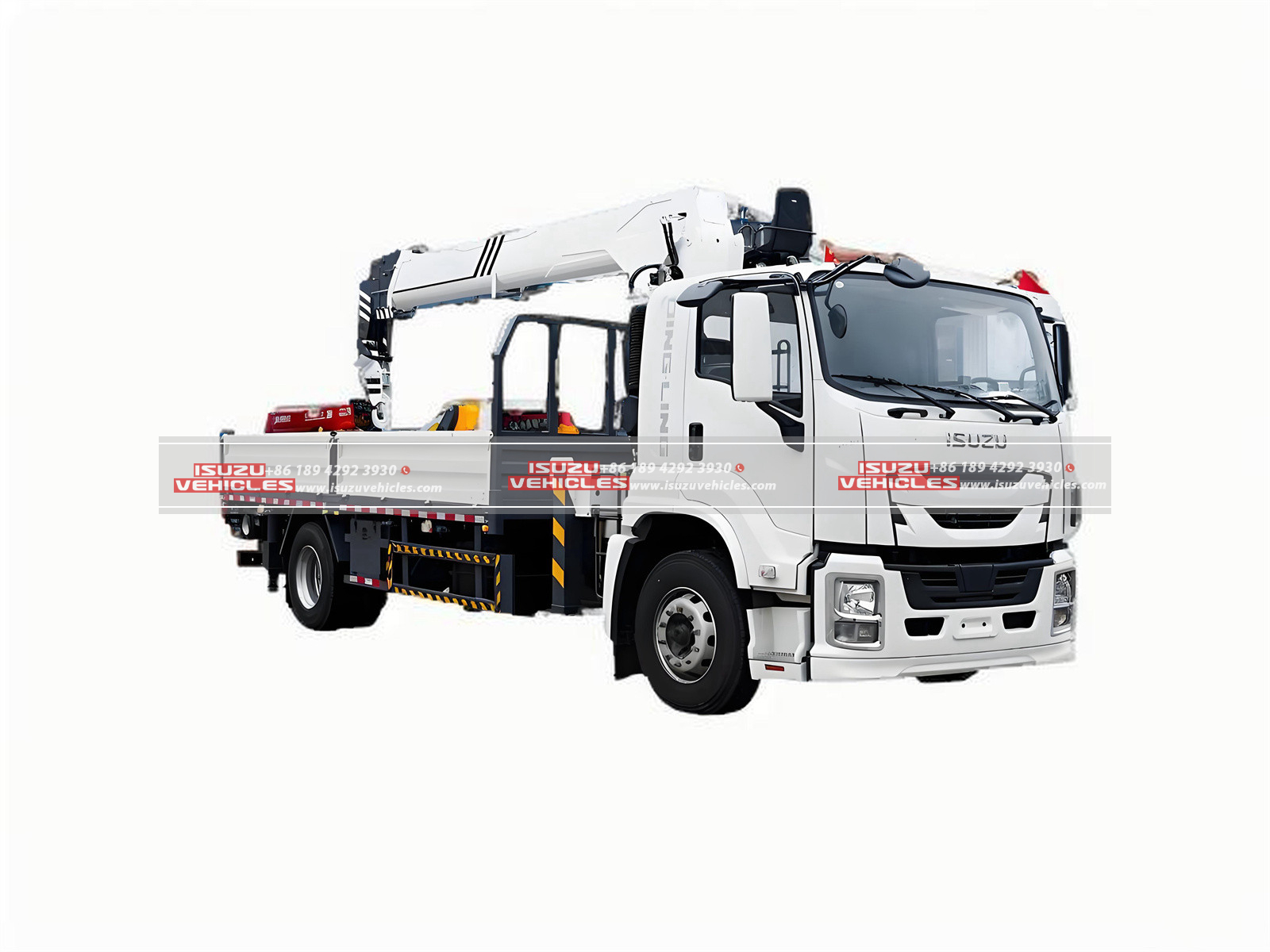

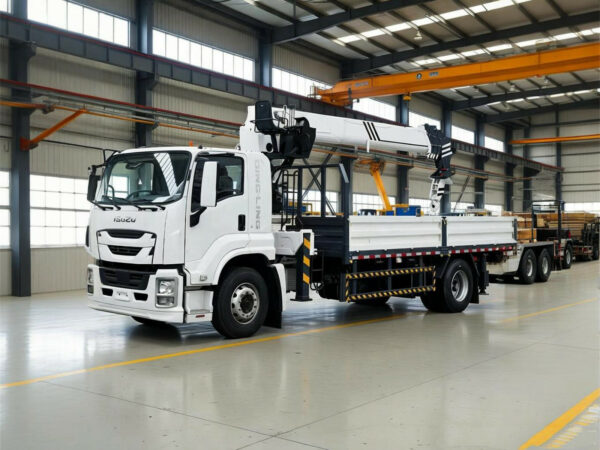

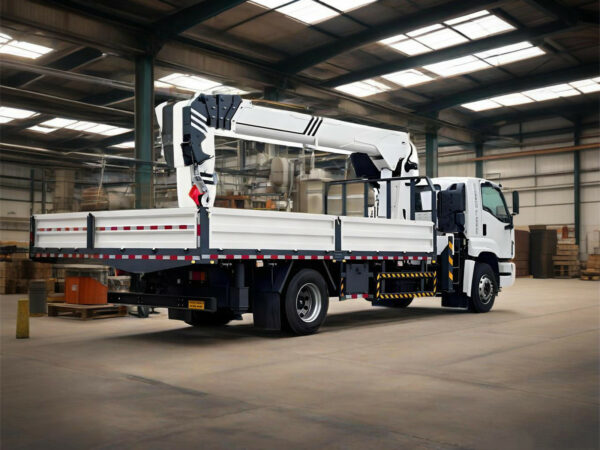

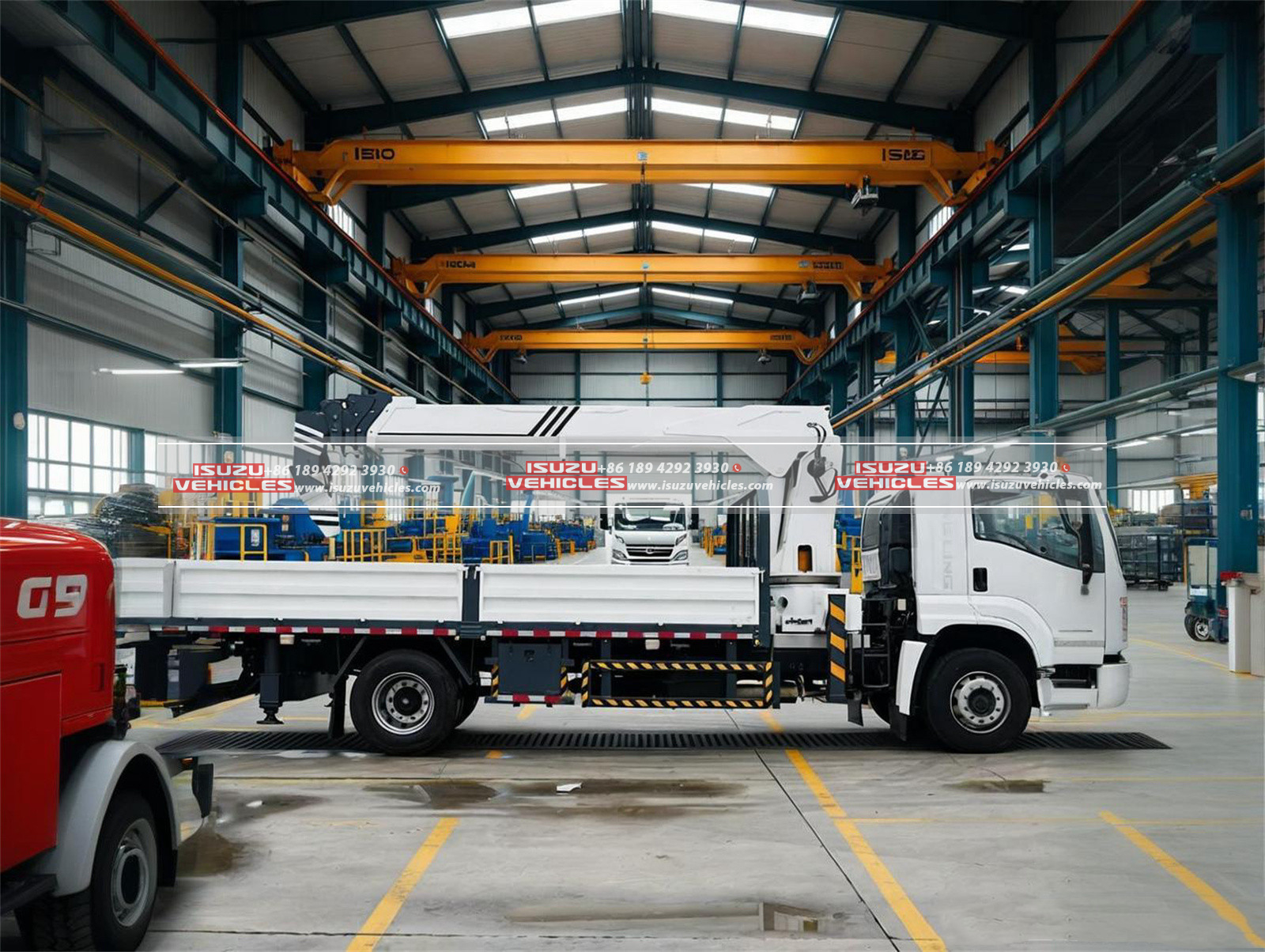

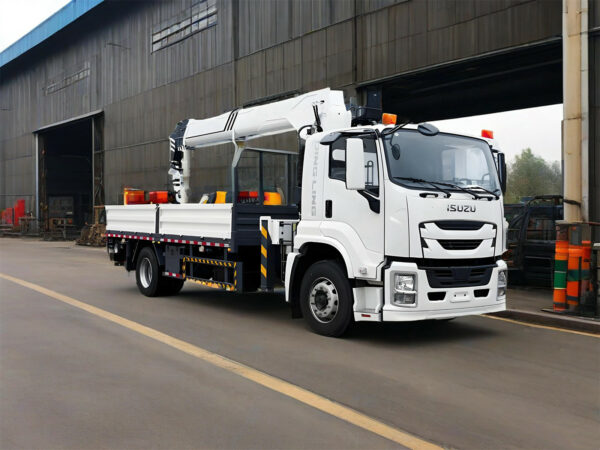

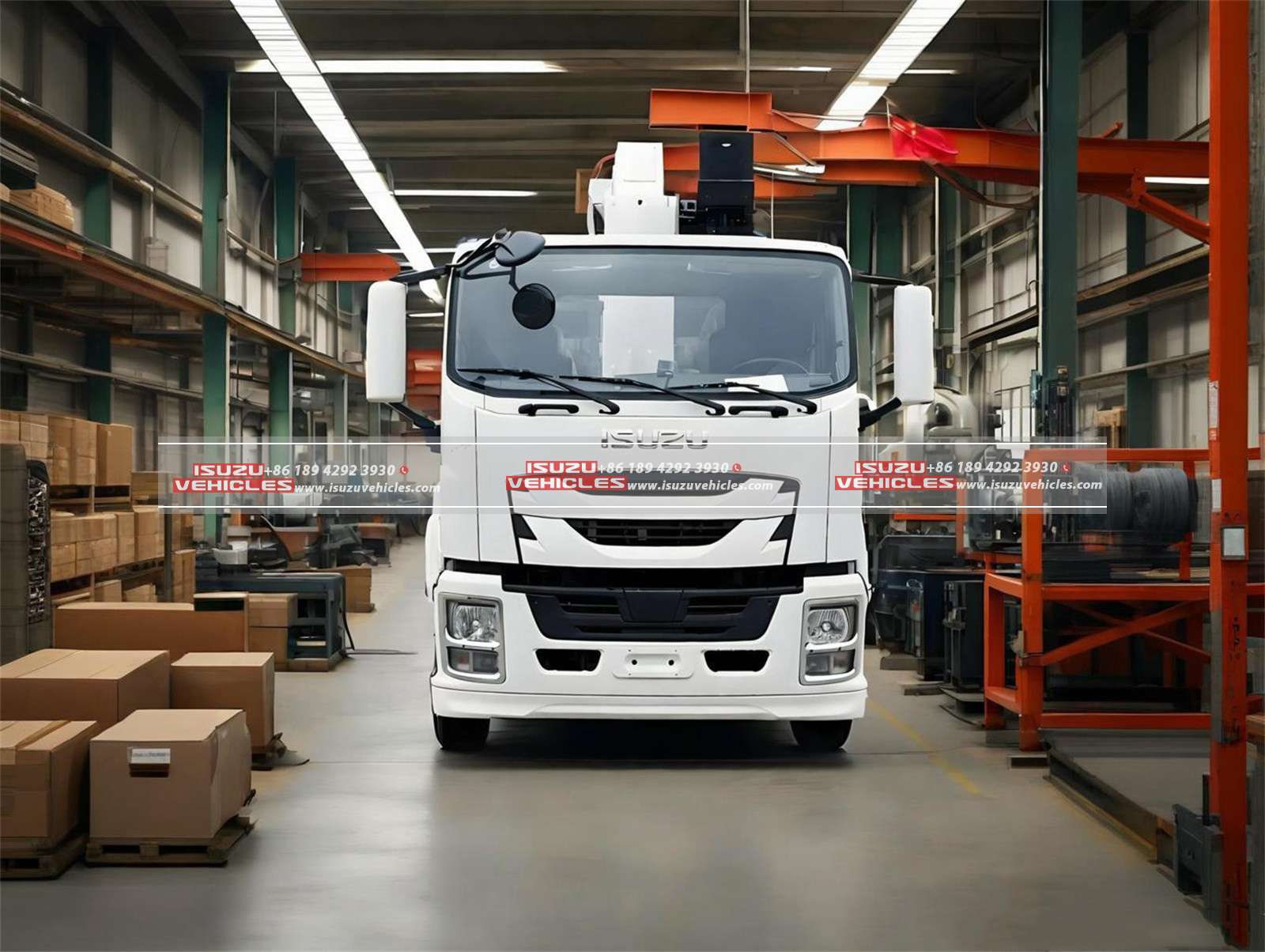

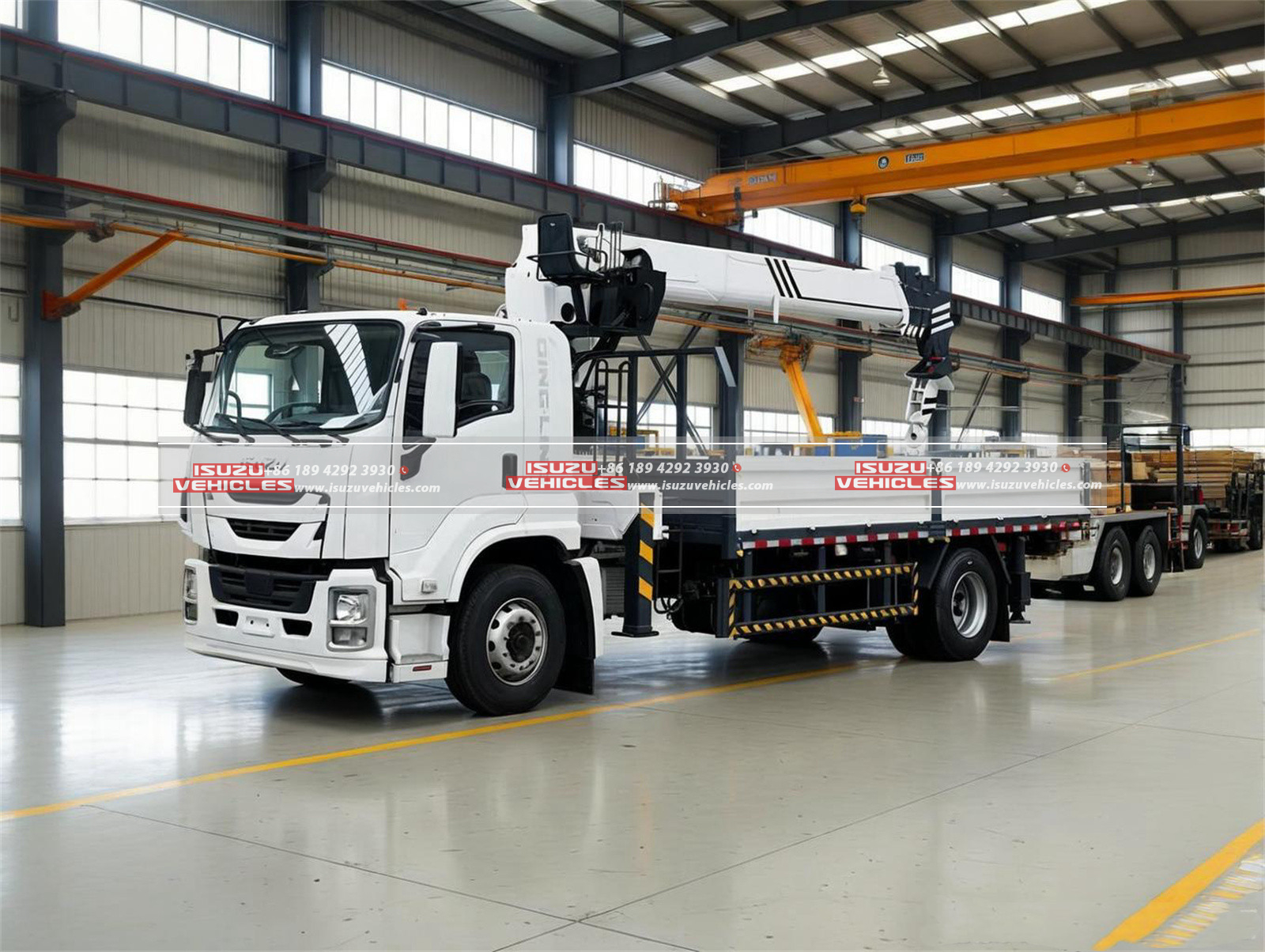

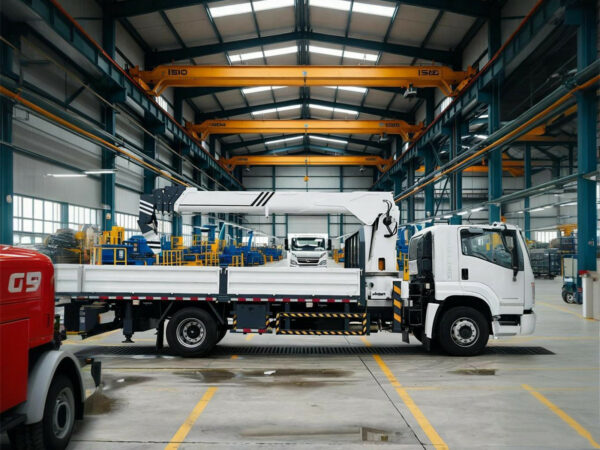

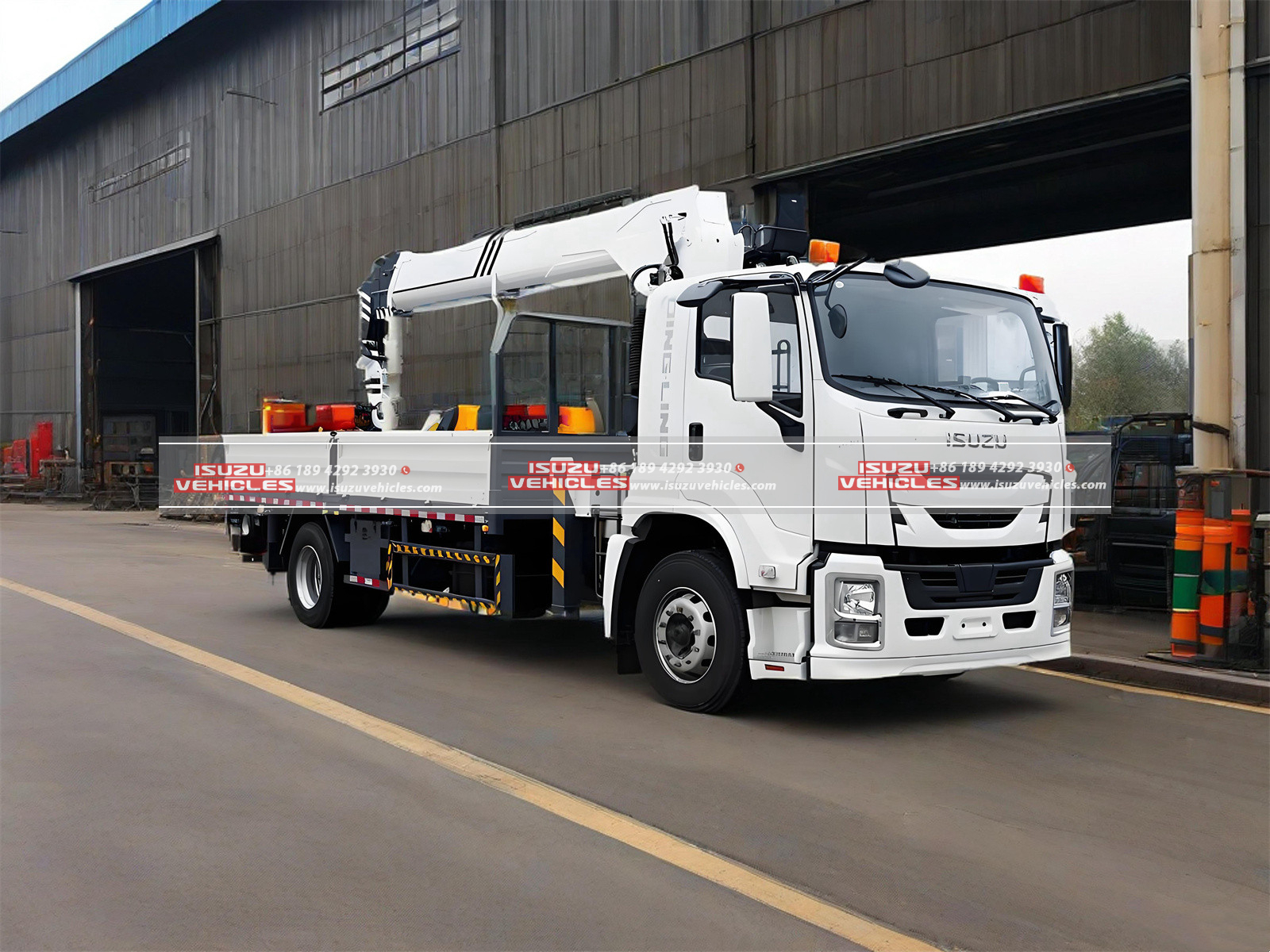

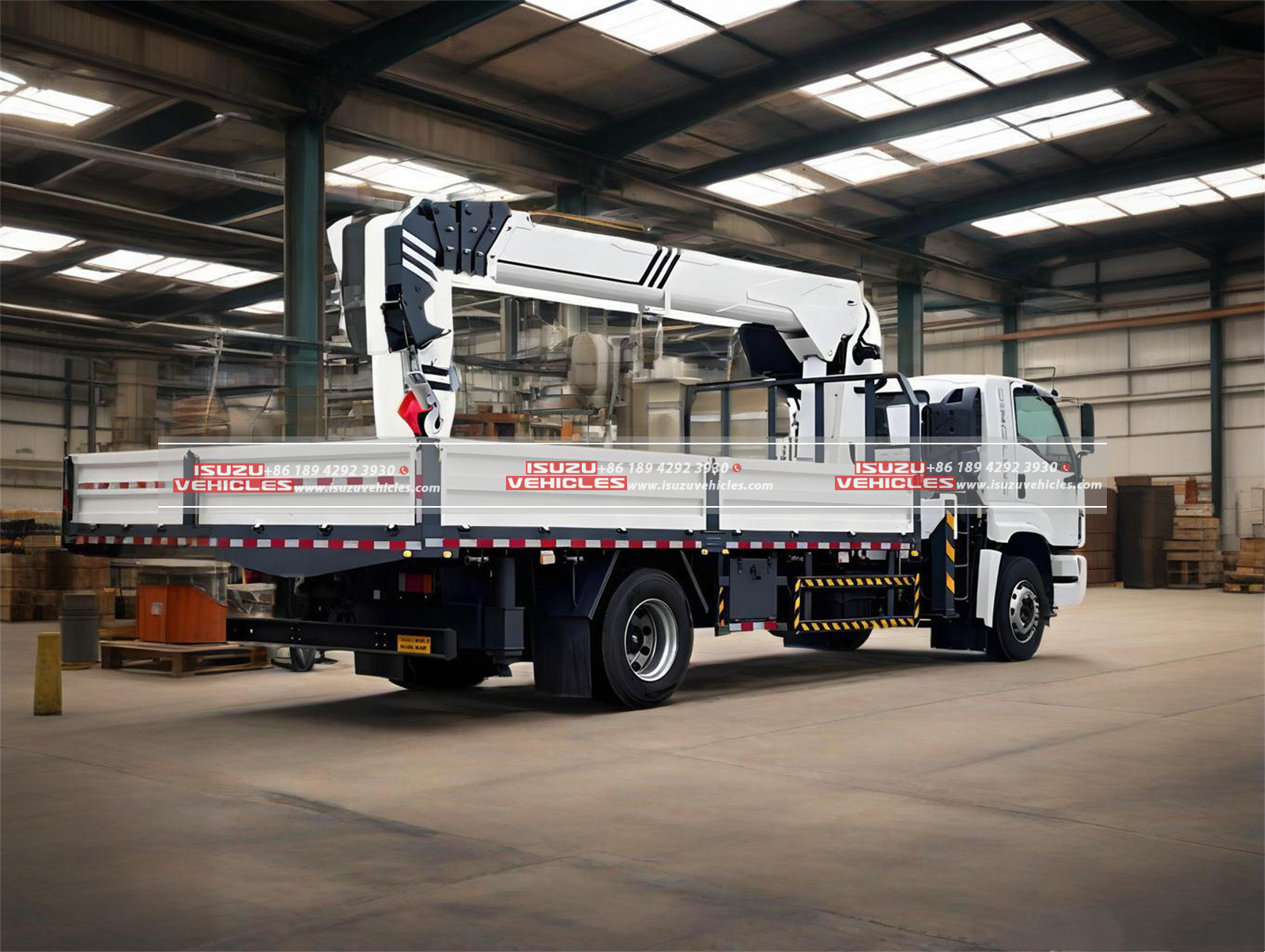

ISUZU 10 Ton FTR PALFINGER Telescopic Boom Crane

The ISUZU FTR 4×4 heavy-duty chassis forms the backbone of this robust lifting solution, integrating the PALFINGER SPS25000C telescopic boom crane for exceptional performance in demanding industrial and construction applications. Powered by a 205HP ISUZU 4HK1-TCG60 engine (compliant with Euro 6 emissions), this configuration delivers 647N·m torque at 1,600 rpm, paired with a 6-speed manual transmission (MLD-6Q) for precise power management. The double-layer U-profile chassis and 5,800mm wheelbase ensure stability during heavy lifts, while 255mm ground clearance enhances off-road capability.

The crane’s 10-ton lifting capacity (at 2.5m radius) and 25 ton-meter rated moment are supported by a 5-section boom extending to 18.1 meters, offering unparalleled reach. Key structural innovations include high-tensile steel construction, an octagonal boom profile for torsional resistance, and a proportional hydraulic system enabling millimeter-precision control. Safety is prioritized with continuous 360° slewing, automatic hook retraction, and emergency stop functionality, all mounted on a wide outrigger spread for optimal ground stability.

With a gross vehicle weight of 19,300kg and 13,000kg rear axle rating, this truck-crane combination is engineered for reliability in heavy-load scenarios, from material handling to infrastructure projects.

---

Features

1. Chassis & Cab

• ISUZU VC61 sleeper cab with 4-point hydraulic suspension, 2480mm width, and 2 adjustable seats.
• Driver-centric controls: Multifunctional LCD instrument panel, tilt/telescopic steering, and electric windows.
• Comfort features: Air conditioning, radio, and cassette player for extended operation comfort.

2. Crane System

• Boom & Mechanics:
  • 5-section telescopic boom (retracted: 4.7m; extended: 18.1m) with 75° max elevation angle.
  • Digitally optimized design for dynamic load handling (262.1 kN·m moment capacity).
• Hydraulics & Safety:
  • Proportional control valves (26MPa operating pressure) with high-pressure filtration.
  • Automatic safety systems: SYMC load moment limiter (optional), over-winding stop (OWS), and load indicator.

3. Operational Enhancements

• Stability & Support:
  • Rear hydraulic outriggers (5.3m span) for uneven terrain adaptation.
  • Dual-circuit air brakes with ABS and exhaust brake for downhill control.
• Optional Upgrades:
  • Radio remote control for off-board operation.
  • Sun-protected top seat and service timer for maintenance tracking.

4. Dimensions & Weights

• Overall size: 10,350×2,530×3,510mm (L×W×H).
• Payload capacity: 8,080kg (19,300kg GVW).

This ISUZU-PALFINGER integration combines Japanese chassis reliability with Austrian crane engineering, creating a versatile asset for logistics, utilities, and heavy construction sectors.

SPECIFICATIONS

Parameter	Specification
Rated Lifting Moment	25 metric tons
Rated Lifting Capacity	10,000 kg (at 2.5m radius)
Max. Outreach	17.7 m
Max. Lines of the Hook	6
Slewing Angle	Continuous 360°
Boom Raising Angle	0° to 75°
Max. Lifting Height	20.1 m
Boom Length (Retracted/Extended)	5.3 m / 18.1 m
Boom Sections	5
Outrigger Span (Extended)	5,600 mm
Hydraulic System
– Recommended Flow Rate	60-90 L/min
– Operating Pressure	31 MPa
– Recommended Oil Tank Capacity	200 L
Structural Capacity
– Crane Moment (Dynamic)	433.7 kN·m / 44.2 mt
– Torsional Moment (Dynamic)	26.3 kN·m / 2.7 mt
Crane Weight	4,110 kg (Floor Control)

Key Notes:

1. The 5-section boom provides exceptional reach (18.1m extended) while maintaining compact transport dimensions (5.3m retracted).
2. High-pressure hydraulics (31MPa) enable precise load control, supporting the crane’s 10-ton capacity at 2.5m working radius.
3. Continuous 360° slewing and 75° boom elevation offer flexible positioning in confined workspaces.
4. 5.6m outrigger span ensures stability during maximum load operations (44.2 mt dynamic moment capacity
