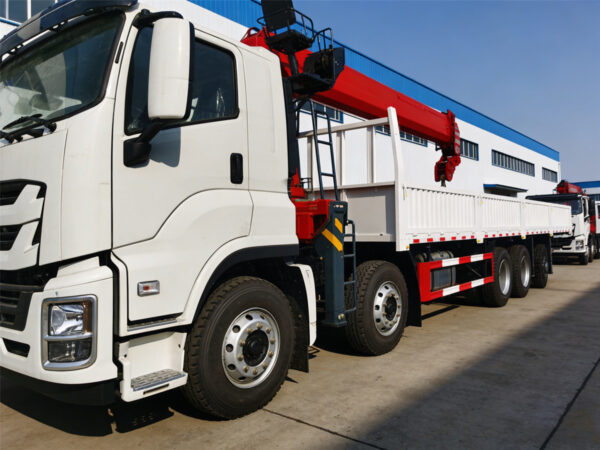

ISUZU GIGA UNIC 15T Telescopic Boom Crane Truck
The ISUZU GIGA UNIC 15T Telescopic Boom Crane Truck is a high-capacity, multi-functional lifting and transport solution engineered for demanding industrial applications, integrating the robust ISUZU GIGA chassis (QL5440TZZW6VDHY) with the advanced UNIC URV1505 telescopic crane, thereby delivering exceptional lifting performance, operational stability, and long-distance transport efficiency in a single platform.
Powered by the reliable Isuzu Motors 6WG1-TCG61 engine, this heavy-duty crane truck produces an impressive 338 kW (460 HP) output from a 15.681L turbocharged and intercooled inline 6-cylinder diesel engine, ensuring consistent high torque delivery under heavy load conditions and making it highly suitable for infrastructure construction, logistics handling, and large-scale industrial projects. The integration of a FAST 12-speed manual transmission (12JSD180TA) ensures smooth gear transitions, optimized fuel efficiency, and enhanced drivability across varied terrains.
The 10×4 drive configuration with a middle lift axle enhances payload flexibility while maintaining axle load compliance, and when combined with the long wheelbase (2100+4325+1370 mm) and reinforced leaf spring suspension (4/4/5), the vehicle achieves superior load distribution, stability, and durability even under continuous heavy-duty operations. The ISUZU VC61 5X cabin, designed with driver comfort and operational convenience in mind, is equipped with air conditioning, central locking, and power windows, providing a modern and ergonomic working environment for long-haul and job-site operations.
This model also features a high-strength CSCTRUCK cargo box (8000 mm length) constructed with 5 mm floor plates and 3 mm side plates, enabling the simultaneous transport of heavy materials alongside lifting operations, which significantly improves operational efficiency and reduces the need for additional transport equipment.
Key Features
High-Performance UNIC URV1505 Crane System
The integrated UNIC URV1505 telescopic boom crane is designed to deliver outstanding lifting capability, featuring a rated lifting capacity of 15,000 kg at 2.0 meters and a rated lifting moment of 15,000 kg × 2.0 m, making it ideal for handling heavy construction materials, machinery components, and industrial cargo with precision and safety.
Extended Reach and Lifting Efficiency

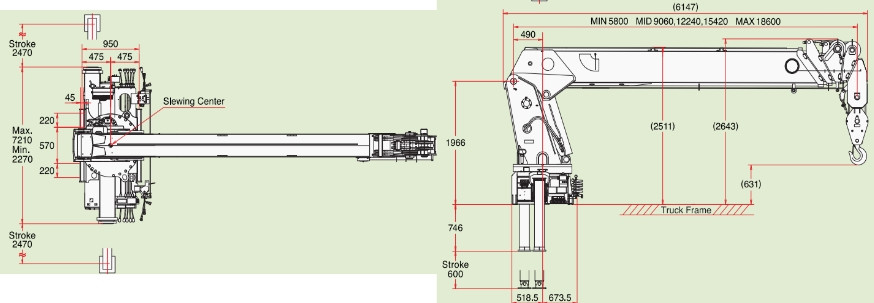

With a maximum outreach of 18.11 meters and a maximum lifting height of approximately 20 meters, the crane truck provides excellent vertical and horizontal working coverage, reducing the need for repositioning and improving job-site productivity. The 5-section telescopic boom, extending from 5.8 meters to 18.6 meters, allows for flexible operation in confined or complex environments.
Advanced Operational Control and Flexibility
The crane system features continuous 360° slewing capability, ensuring smooth and unrestricted rotation during lifting operations, while the boom raising angle ranging from 0° to 76° allows for precise load positioning under various working conditions. The floor control system provides intuitive and safe operation, enabling operators to maintain full control during lifting tasks.
Enhanced Stability with Outrigger System
Equipped with fully extended outriggers spanning 7200 mm, along with a rear outrigger configuration, the truck ensures maximum operational stability even when handling loads at full extension, effectively minimizing the risk of tipping and enhancing safety during heavy lifting operations.
Heavy-Duty Chassis and Load-Bearing Capacity
The ISUZU GIGA heavy-duty chassis is engineered for extreme durability, featuring:
- High-capacity fuel tank (400L) for extended operations
- Optimized axle configuration (14+1 tires) with 385/65R22.5 and 315/80R22.5 tires
- Robust suspension system for enhanced load absorption
These features collectively ensure long service life, reduced maintenance requirements, and reliable performance in harsh working environments.
Integrated Transport and Lifting Solution
The combination of a large-capacity cargo box (8000 mm) and a powerful crane system transforms this vehicle into a highly efficient all-in-one cargo truck and lifting equipment, significantly reducing operational costs by eliminating the need for separate transport and crane units.
This ISUZU GIGA UNIC 15T Telescopic Boom Crane Truck represents a comprehensive solution for industries requiring high lifting capacity, extended reach, and heavy cargo transport, making it an ideal choice for construction contractors, logistics operators, and infrastructure development projects seeking efficiency, durability, and performance in a single integrated platform.
SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Model | QL5440TZZW6VDHY |
| Drive Type | 10×4 (Middle lift axle), LHD |
| Cabin | ISUZU/VC61 5X |
| No. of Seats | 2 |
| Cabin Features | AC, Center lock, Power window |
| Engine | ISUZU/6WG1-TCG61 |
| Output Power | 338 kW (460 HP) |
| Displacement | 15.681 L |
| Engine Type | 6-Cylinder in-line, Turbocharged and Intercooled |
| Emissions | EURO 5 |
| Fuel Tank | 400 L |
| Transmission | FAST/12JSD180TA |
| Transmission Type | MT |
| Gear Numbers | 12 forward speeds, 2 reverse speeds |
| Front/Rear Track | 2140 / 1855 mm |
| Wheel base | 2100 + 4325 + 1370 mm |
| Rim / Tire | 385/65R22.5 20PR / 315/80R22.5 18PR (14 + 1 nos) |
| Suspension | Front and rear leaf spring suspension (4/4/5) |
| Crane Model | UNIC URV1505 |
| Rated lifting moment | 15000 kg × 2.0 m |
| Rated lifting capacity | 15000 kg (at 2.0 m outreach) |
| Max. outreach | 18.11 m |
| Slewing angle | Continuous |
| Boom raising angle | 0 ~ 76° |
| Max. lifting height | ~20.0 m |
| Length of the basic boom | 5.8 m |
| Length of fully extended boom | 18.6 m |
| Boom sections | 5 |
| Outrigger span (fully extended) | 7200 mm |
| Control | Floor control |
| Rear Outrigger | Equipped |
| Cargo box | CSCTRUCK/08CB |
| Cargo box Length | 8000 mm |
| Cargo box Side Plate Thickness | 3 mm |
| Cargo box Floor Plate Thickness | 5 mm |
