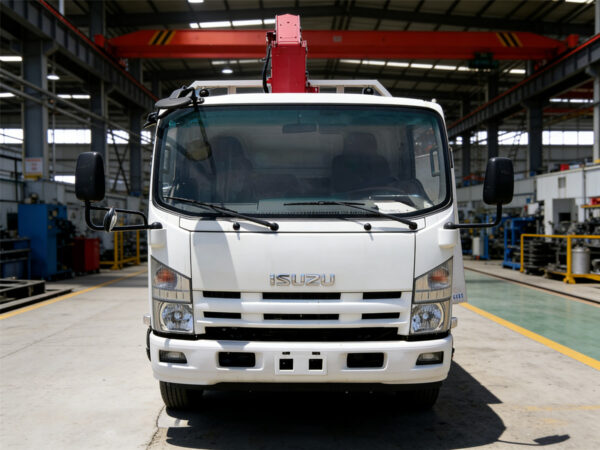

ISUZU 5T Telescopic Boom Crane Truck
The ISUZU 5T Telescopic Boom Crane Truck is a compact yet highly capable lifting and transport solution, engineered on the reliable ISUZU QL1110ANPAY chassis, and seamlessly integrated with the efficient UNIC URV505 telescopic crane, delivering a balanced combination of maneuverability, lifting performance, and operational versatility for urban construction, logistics handling, and light industrial applications.
Powered by the dependable Isuzu Motors 4HK1-TCG61 engine, this unit generates 139 kW (190 HP) from a 5.193L turbocharged and intercooled inline 4-cylinder diesel engine, ensuring stable power output, fuel efficiency, and long-term reliability under continuous working conditions. The pairing with a 6-speed manual transmission (ISUZU MLD-6Q) enables smooth gear shifting and optimal control across both urban roads and job-site environments.

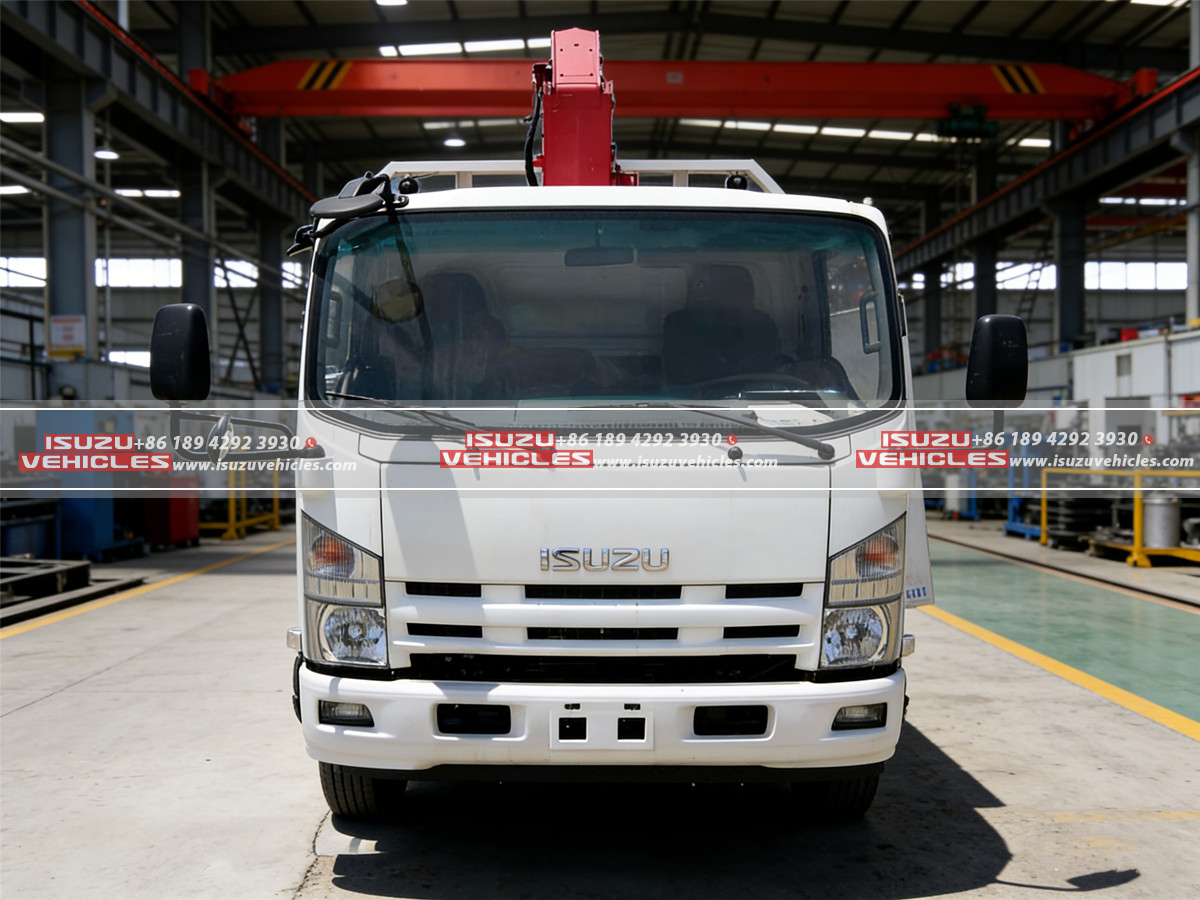

The 4×2 left-hand drive configuration enhances maneuverability in confined spaces, while the 5200 mm wheelbase provides a stable platform for both lifting and cargo transport operations. The ISUZU 700P 3X cabin, designed for practicality and operator comfort, includes air conditioning, central locking, and power windows, ensuring a comfortable working environment during extended operations.

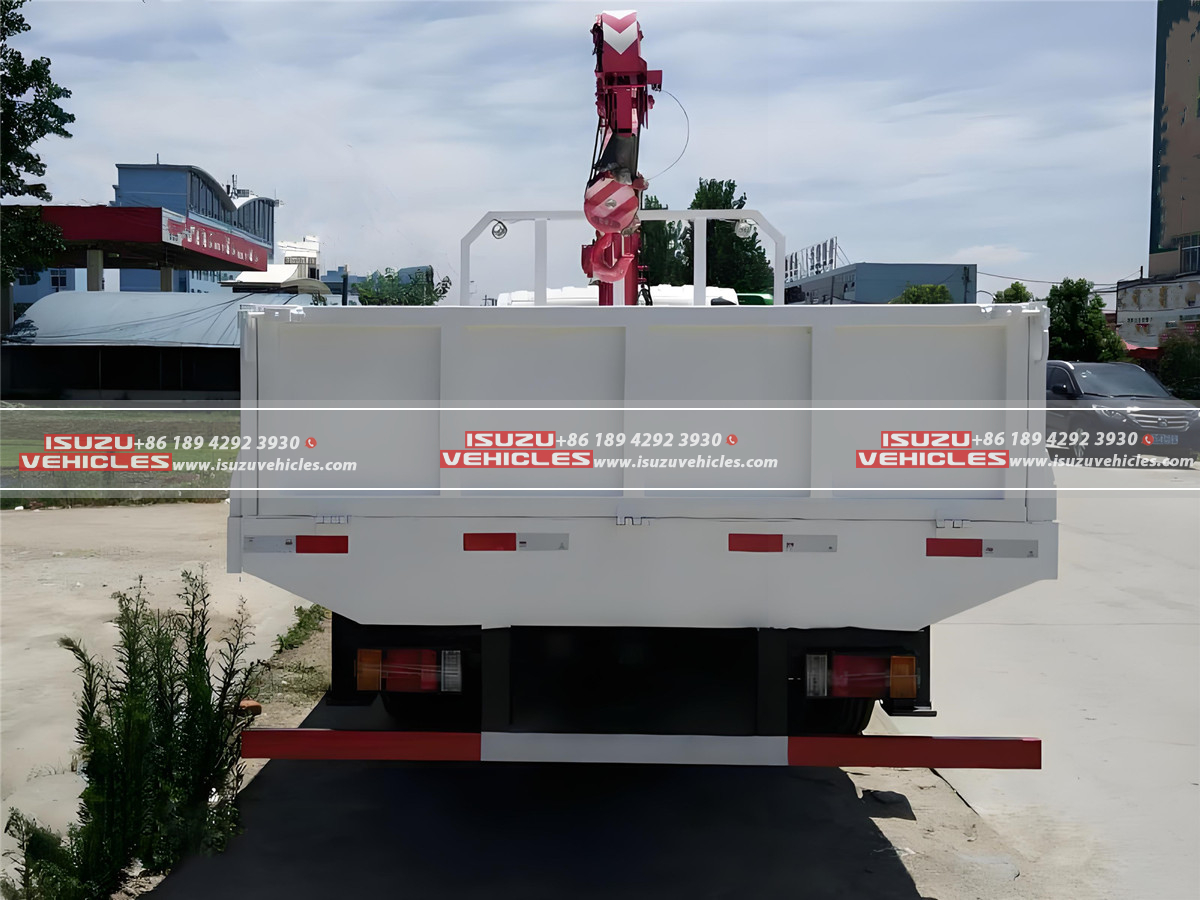

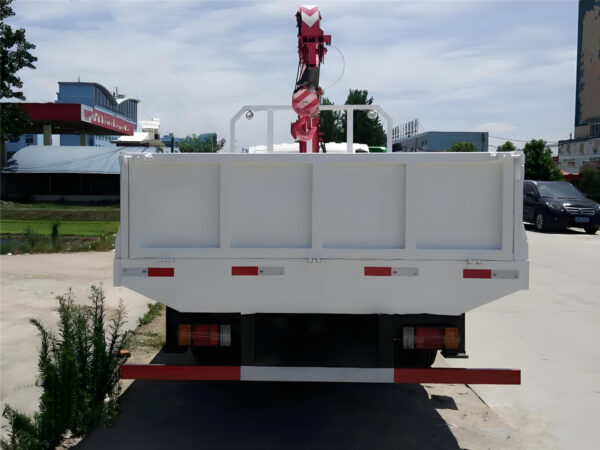

In addition, the truck is equipped with a durable CSCTRUCK cargo box (6000 mm length) constructed using 5 mm floor plates and 3 mm side plates, allowing efficient transport of construction materials and equipment alongside crane operations, thereby improving overall operational efficiency.
Features

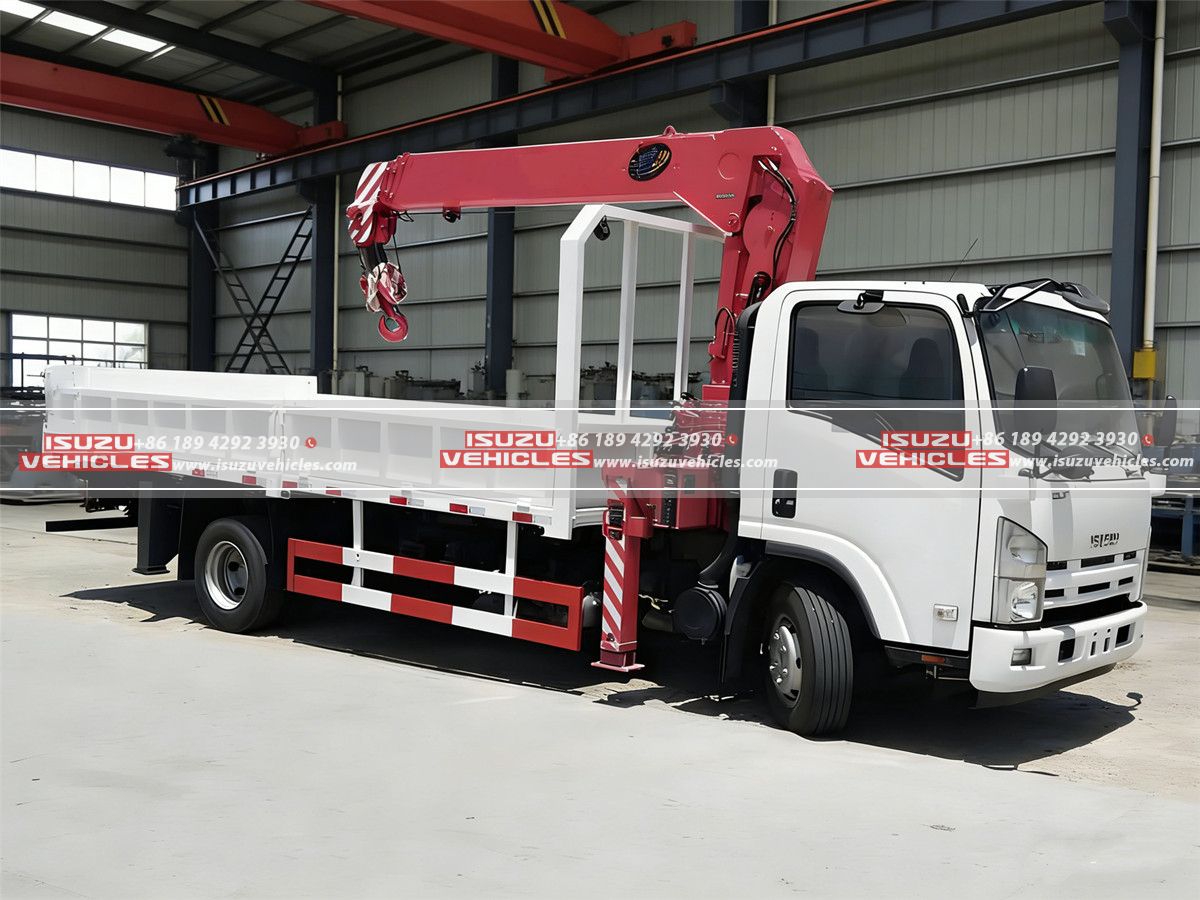

Efficient UNIC URV505 Crane Performance
The integrated UNIC URV505 telescopic boom crane offers a rated lifting capacity of 5,050 kg at 2.5 meters, along with a rated lifting moment of 5,050 kg × 2.5 m, making it well-suited for medium-duty lifting tasks such as equipment handling, material loading, and maintenance operations.
Extended Working Range and Flexibility

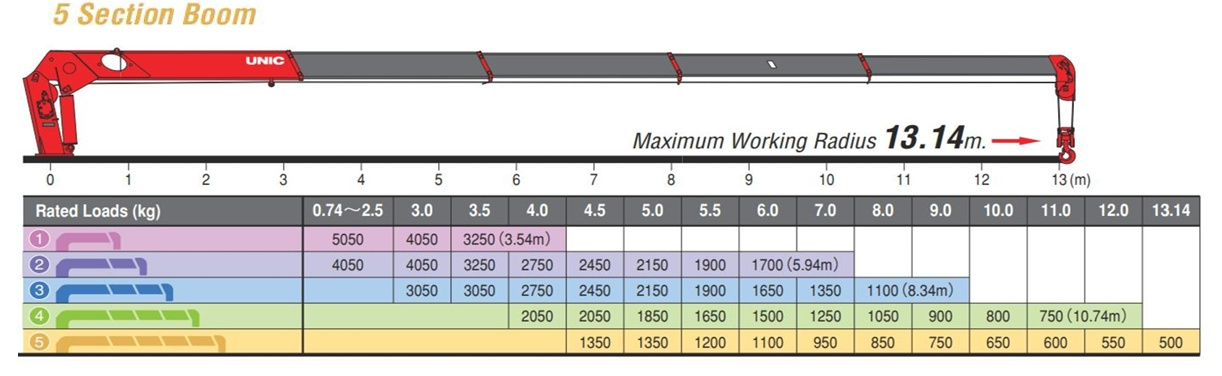

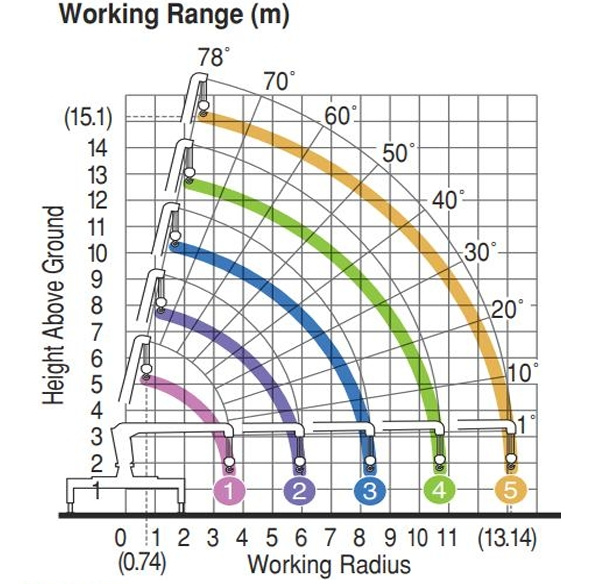

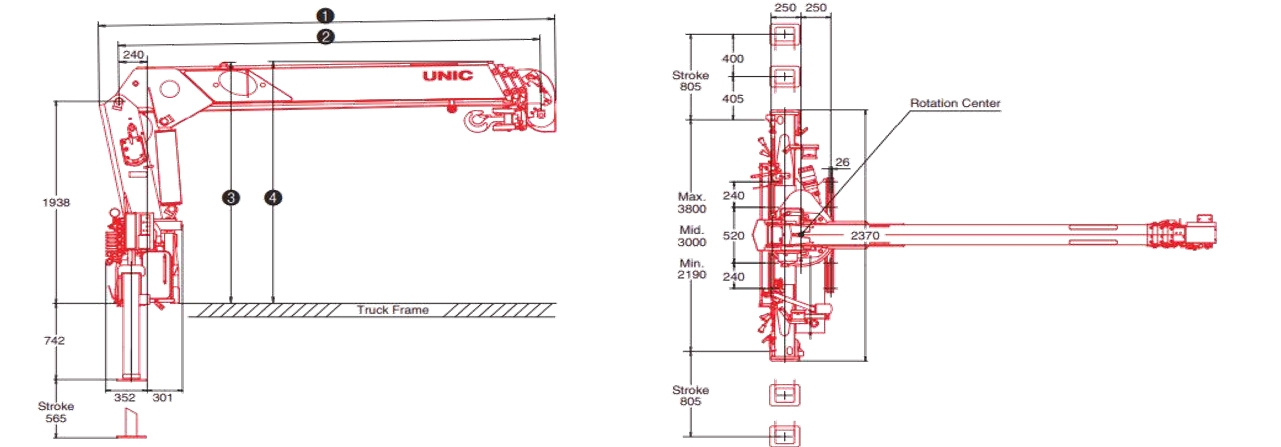

With a maximum outreach of 13.14 meters and a maximum lifting height of approximately 15 meters, the crane truck ensures excellent coverage for both horizontal and vertical lifting requirements. The 5-section telescopic boom, extending from 3.78 meters to 13.38 meters, allows for flexible adaptation to various job-site conditions.
Smooth and Precise Operation
The crane system supports continuous 360° slewing, enabling uninterrupted rotation for efficient load positioning, while the boom raising angle from 0° to 78° ensures precise control across different lifting scenarios. The floor control system provides intuitive and safe operation, allowing operators to maintain full visibility and control during lifting tasks.

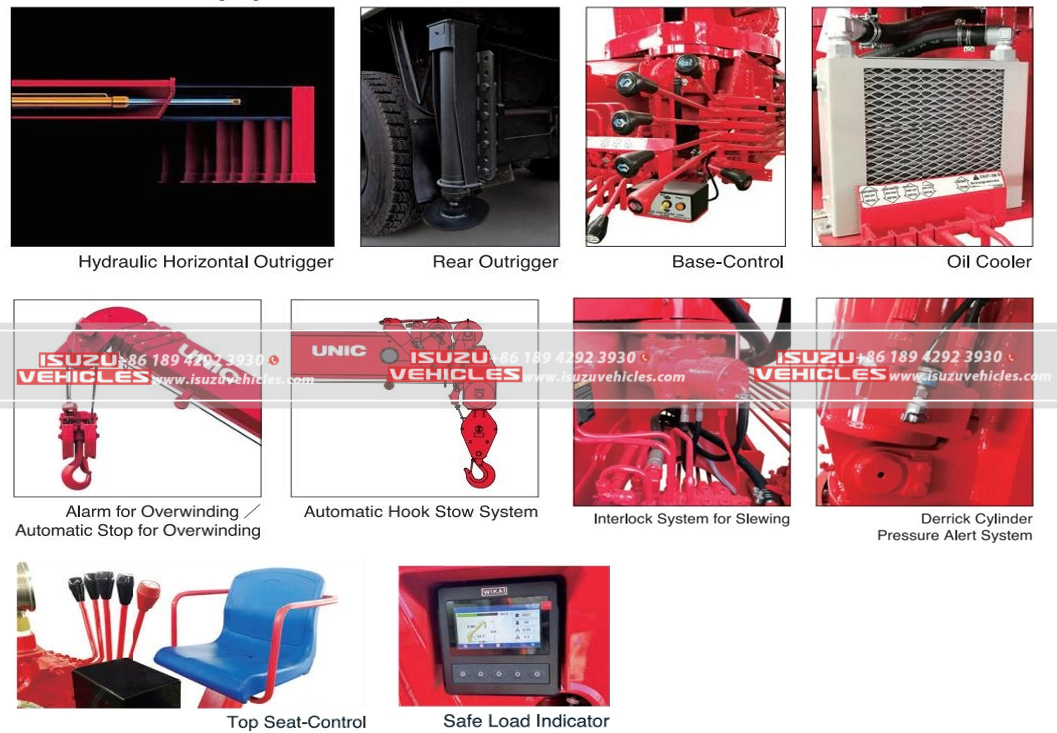

Stable Outrigger Support System
Equipped with fully extended outriggers spanning 5100 mm, the truck ensures stable lifting performance, even when operating at maximum outreach, effectively enhancing safety and reducing operational risks in demanding environments.
Reliable Chassis and Driving Performance
The ISUZU chassis platform is designed for durability and efficiency, featuring:
- 100L fuel tank for practical daily operations
- Optimized tire configuration (6+1 units) with 235/75R17.5 and 8.25R20 tires
- Leaf spring suspension system (8/10+6) for improved load-bearing and shock absorption
These attributes contribute to consistent performance, reduced maintenance, and long service life across various operating conditions.

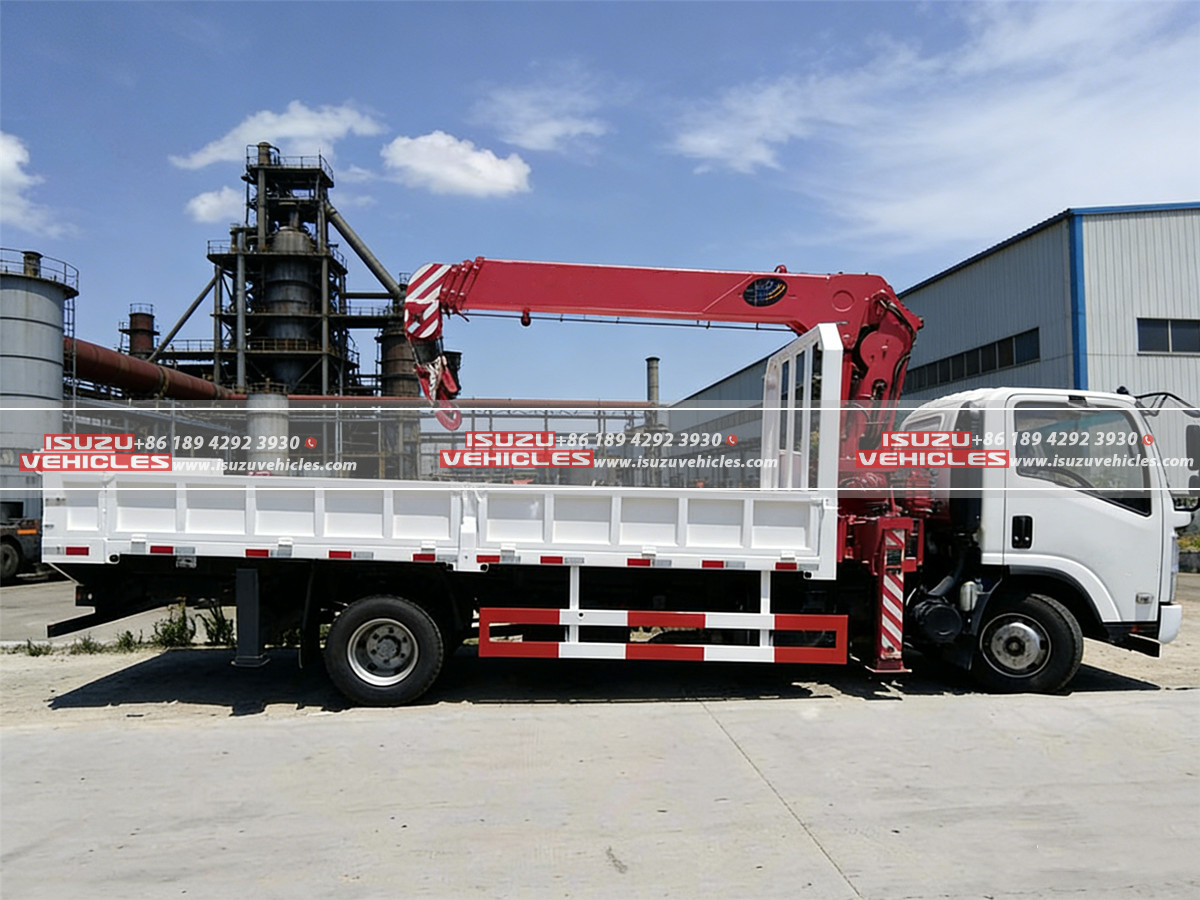

Integrated Cargo and Lifting Capability
The combination of a 6000 mm cargo box and a versatile crane system enables this unit to function as a highly efficient cargo truck with integrated lifting capability, reducing the need for additional equipment and improving operational productivity in logistics, construction, and municipal applications.
The ISUZU 5T Telescopic Boom Crane Truck stands out as a dependable and cost-effective solution for businesses requiring flexible lifting, efficient cargo transport, and reliable performance, particularly in environments where space, efficiency, and versatility are critical.
SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Model | QL1110ANPAY |
| Drive Type | 4×2, LHD |
| Cabin | ISUZU/700P 3X |
| No. of Seats | 2 |
| Cabin Features | AC, Center lock, Power window |
| Engine | ISUZU/4HK1-TCG61 |
| Output Power | 139 kW (190 HP) |
| Displacement | 5.193 L |
| Engine Type | 4-Cylinder in-line, Turbocharged and Intercooled |
| Emissions | EURO 5 |
| Fuel Tank | 100 L |
| Transmission | ISUZU/MLD-6Q |
| Transmission Type | MT |
| Gear Numbers | 6 forward speeds, 1 reverse speed |
| Front/Rear Track | 1680 / 1650 mm |
| Wheel base | 5200 mm |
| Rim / Tire | 235/75R17.5 16PR, 8.25R20 14PR (6+1 nos) |
| Suspension | Front and rear leaf spring suspension (8/10+6) |
| Crane Model | UNIC URV505 |
| Rated lifting moment | 5050 kg × 2.5 m |
| Rated lifting capacity | 5050 kg (2.5 m) |
| Max. outreach | 13.14 m |
| Slewing angle | Continuous |
| Boom raising angle | 0~78° |
| Max. lifting height | ~15.0 m |
| Length of the basic boom | 3.78 m |
| Length of fully extended boom | 13.38 m |
| Boom sections | 5 |
| Outrigger span (fully extended) | 5100 mm |
| Control | Floor control |
| Rear Outrigger | Not Equipped |
| Cargo box | CSCTRUCK/06CB |
| Cargo box Length | 6000 mm |
| Cargo box Side Plate | 3 mm |
| Cargo box Floor Plate | 5 mm |
