Truck Brief

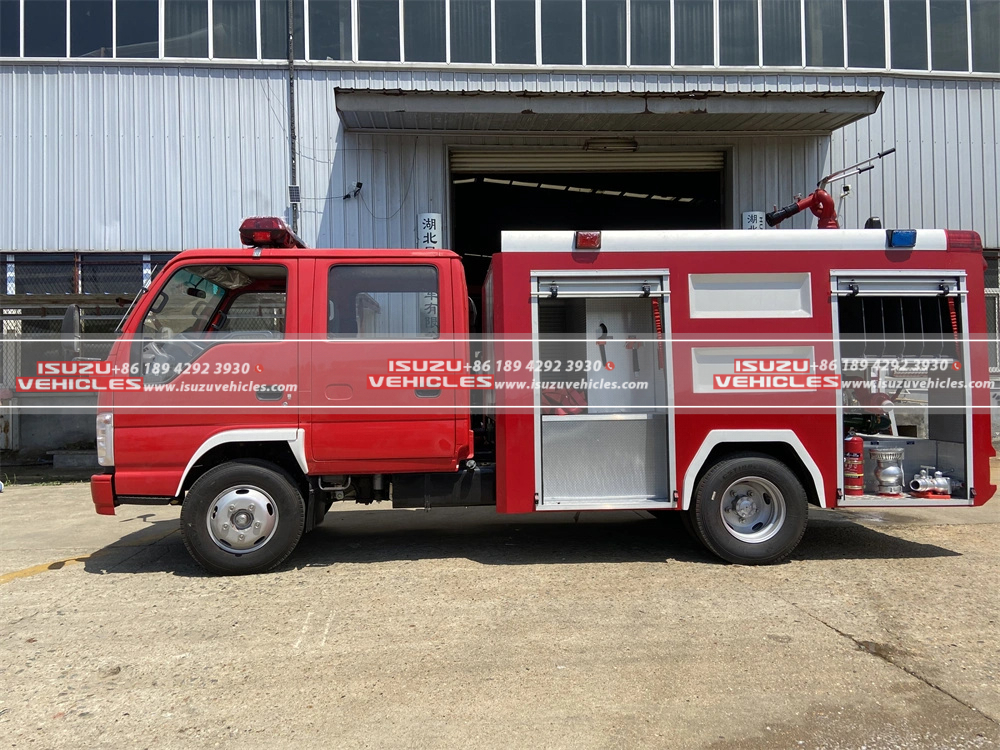

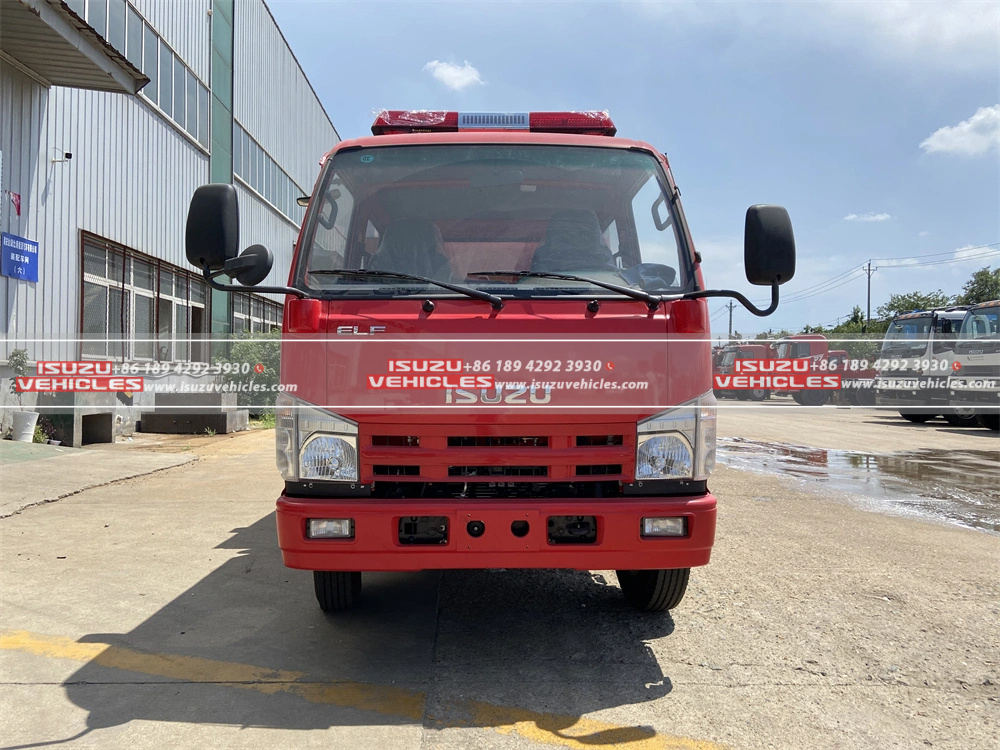

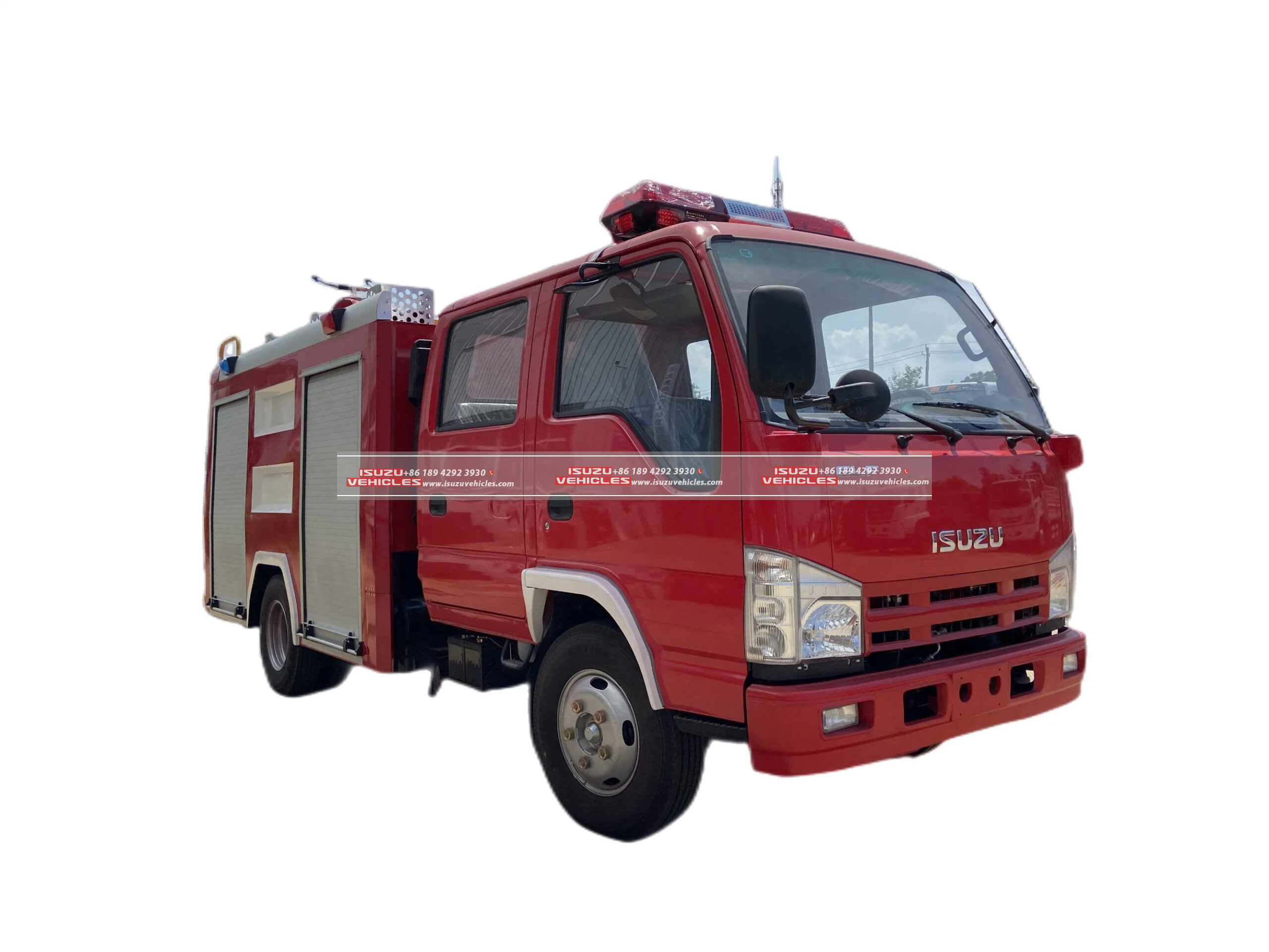

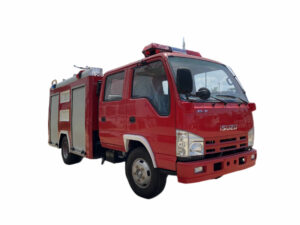

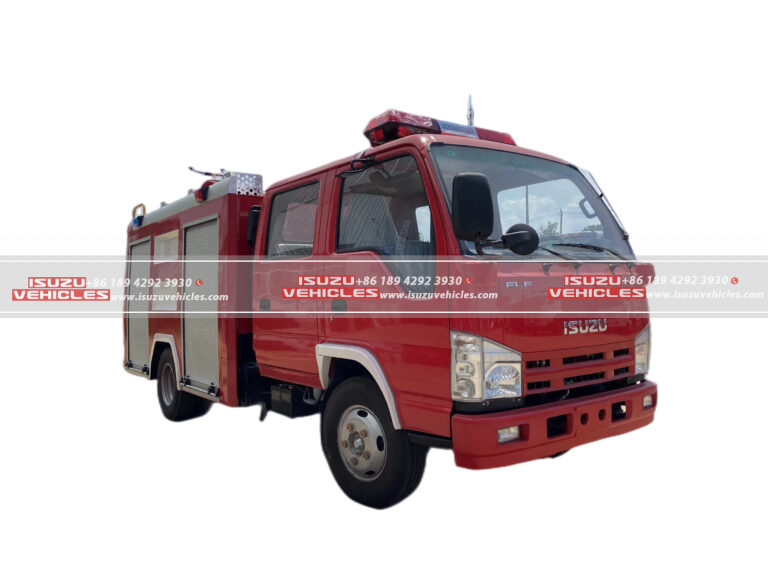

Built on the ISUZU QL1040 4×2 chassis, this ISUZU 3000 Litre 3 Ton – 5 Ton Mini Fire Fighting Truck combines maneuverability with robust performance for urban and rural firefighting. With overall dimensions of 6,820 × 2,000 × 2,820 mm and a total mass of 6,700 kg, it navigates narrow streets and confined spaces effortlessly. The 4KH1-TCG40 diesel engine delivers 120 HP (88 kW) and complies with Euro IV emission standards, ensuring eco-efficient operation. The double-row cabin accommodates 2+3 crew members, while the MSB 5-speed manual gearbox with ABS guarantees precise control. Rated for 4,330 kg payload capacity, it balances compact size with heavy-duty utility.
Features

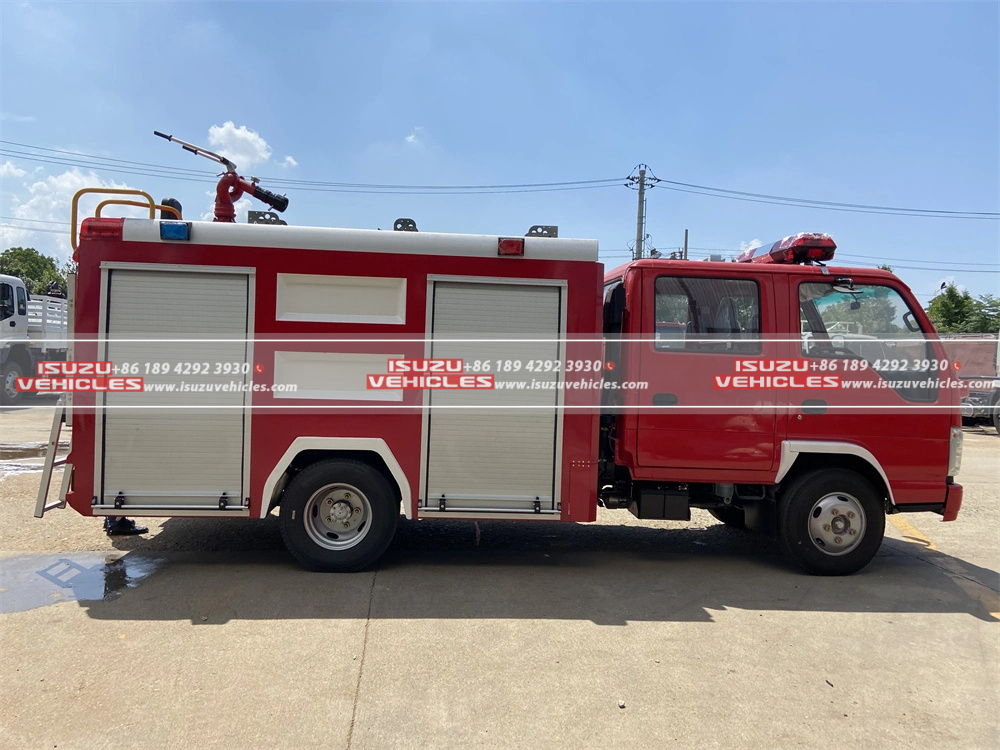

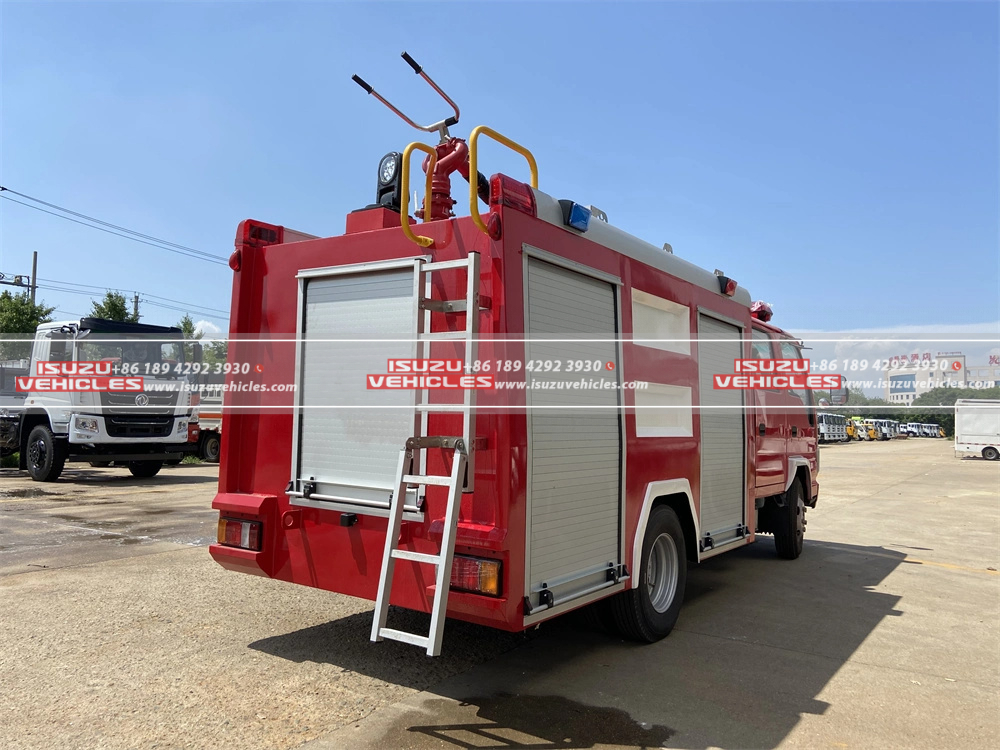

Equipped with a 2,500L carbon steel water tank and 1,000L foam tank, the ISUZU fire truck supports dual-agent firefighting for versatile emergency response. The CB10/30 normal-pressure pump delivers a 30 L/s flow rate at ≥1.0 MPa, achieving a ≤35-second water suction time from a 7-meter suction height. Mounted on the roof, the PL24 fire monitor projects water ≥45 meters and foam ≥40 meters with a 24 L/s flow rate, ideal for rapid containment of Class A and B fires. Dual Φ75 outlets enable simultaneous hose operations, while the left-hand steering and 7.00-16 tires (6 total) ensure stability on rugged terrain.
Operational Advantages:
- Durability: Reinforced 8/6+5 spring suspension and 3360 mm wheelbase for off-road resilience.
- Safety: ABS-equipped manual transmission and 24°/12° approach/departure angles for secure maneuvering.
- Compliance: Meets global standards for emissions (Euro IV) and firefighting efficacy.
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Type | Fire Truck |
| Dimensions (L×W×H) | 8,235 × 2,500 × 3,450 mm |
| Weight Metrics | G.V.W: 7,500 kg; Payload: 5,750 kg; Curb Weight: 9,100 kg |
| Chassis Configuration | Brand: ISUZU; Wheelbase: 3,360 mm; Engine: 4KH Series; Tire: 7.50R16 |
| Emission Standards | Euro II / Euro III / Euro IV / Euro V / Euro VI |
| Fire Suppression System | Water Tank: 2,000L; Pump: 20L/s @ 1.0 MPa; Canon Range: ≥65m @ 1.0 MPa; Max Suction Depth: 7m |
| Optional Configurations | Dust Vacuum Device, Rear Structure Modifications, Specialized Water Tanker, Filter Systems |
Versatile and customizable for urban firefighting, industrial safety, and hazardous material response.
