Overview:

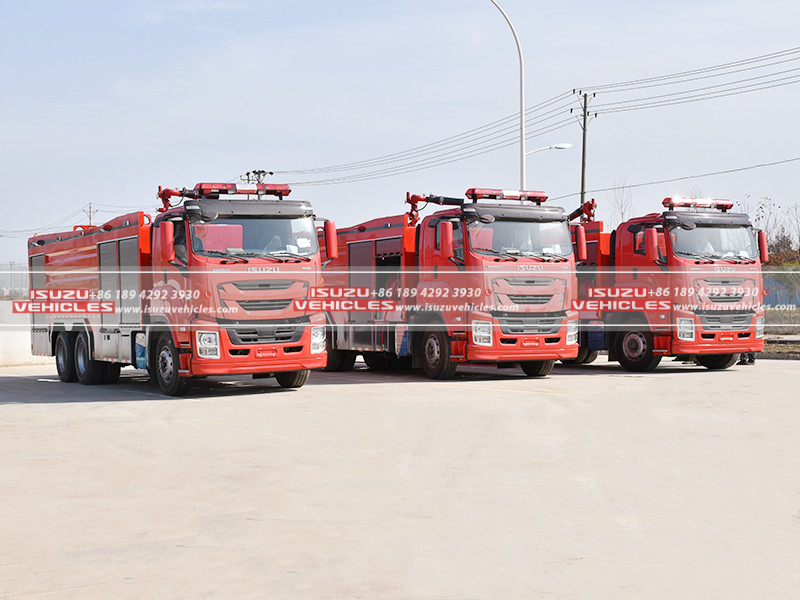

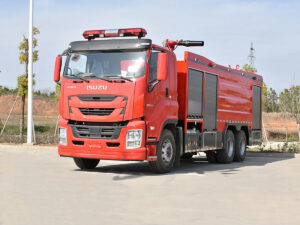

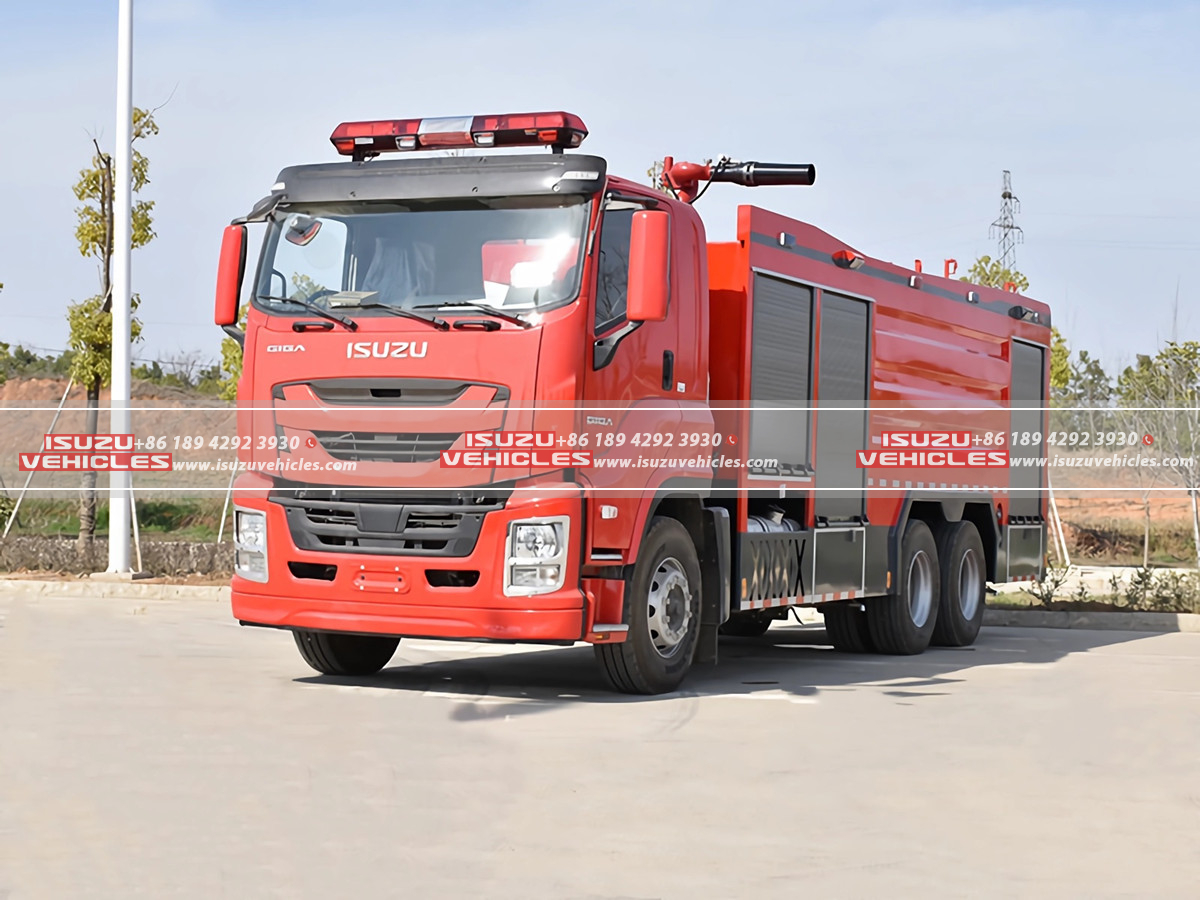

The Dry Powder Foam Combined Fire Truck is an innovative vehicle designed to meet the practical needs of firefighting, incorporating advanced design concepts from both domestic and international sources. Equipped with multiple safety measures, its technical and performance parameters are at the forefront of domestic standards.
Structure:

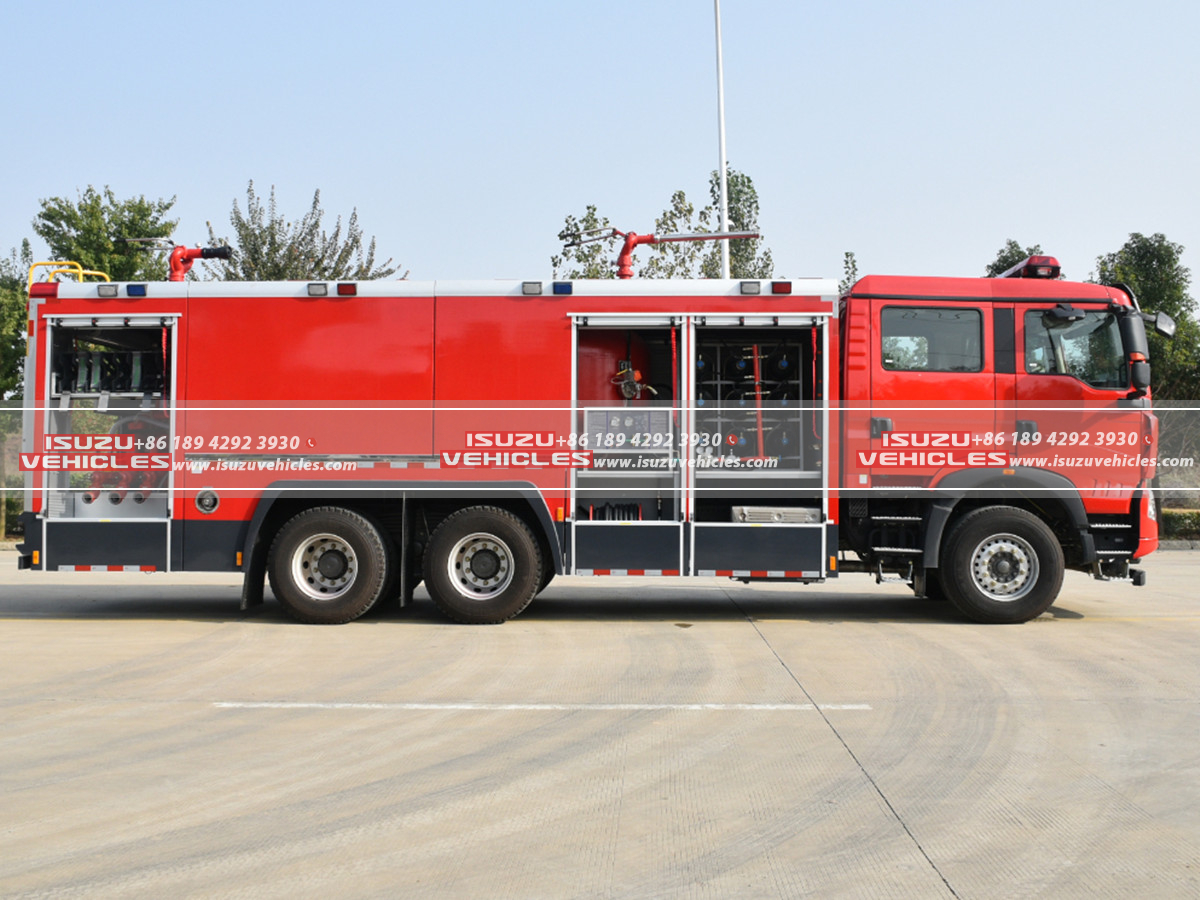

The vehicle has an ISUZU chassis, bodywork, nitrogen system, water system, electrical control system, and dry powder tank. It is equipped with dry powder fire suppression systems and foam-like systems, making it suitable for extinguishing fires involving flammable and combustible liquids, combustible gases, live electrical equipment, petrochemical storage facilities, as well as Class A fires in industrial and residential buildings. It serves as a primary vehicle for urban firefighting and rescue as well as petrochemical industry firefighting and rescue.
Function:
The DP11 is a powerful and reliable vehicle designed for tackling fires in various situations. As a Fire Suppression Vehicle, it is equipped with top-of-the-line Fire Fighting Equipment to ensure effective and efficient fire suppression. With its durable chassis, powerful drive system, and high flow rate fire monitors, the Fire Fighting Truck is an essential piece of equipment for any fire department.
Application Scenarios:
- Urban Areas: With its compact size and powerful fire extinguishing capabilities, the ISUZU firefighting vehicle is ideal for responding to fire emergencies in crowded urban areas. It can easily navigate through narrow streets and quickly reach the fire site.
- Rural Areas: The ISUZU firefighting vehicle is also suitable for responding to fire emergencies in rural areas. Its all-terrain capabilities allow it to access remote locations and tackle fires in challenging environments.
- Industrial Zones: Industries such as oil refineries, chemical plants, and warehouses are at a high risk of fire accidents. The ISUZU firefighting vehicle is equipped with advanced fire extinguishing agents and monitors, making it a valuable asset for fire response in industrial zones.
SPECIFICATIONS:
Main specification of the vehicle: | |
Overall dimension | ≤10200×2550×3620mm |
Capacity | Water 6000 liters &foam 2000 liters & Dry powder 3000liters |
Rated flowing of fire pump | 60L/[email protected] |
Rated flowing of fire monitor | 48L/s 0.8MPa |
The range of fire monitor | water”70m; foam”60m; |
Dry powder monitor | PF30, manual |
Tank | High-quality carbon steel, inner high corrosion-resisted |
Waterway system | Steel pipes |
Bodywork | Q235 carbon steel |
Main technical parameter | |
Dimension | |
LxWxH | ≤10200×2550×3620mm |
Wheelbase | 4800+1370mm |
Engine power | 309kw |
Agent volume | |
Water capacity | 6000L |
Foam capacity | 2000L |
Dry powder capacity | 3000kg |
Firefighting performance | |
Fire pump flow | ≥[email protected] |
Fire monitor flow | ≥2880 L/min |
Dry powder monitor flow | ≥30 Kg/s |
Spraying reach | ≥70m (Water)
≥65m (foam) ≥30m (dry powder) |
Chassis | |

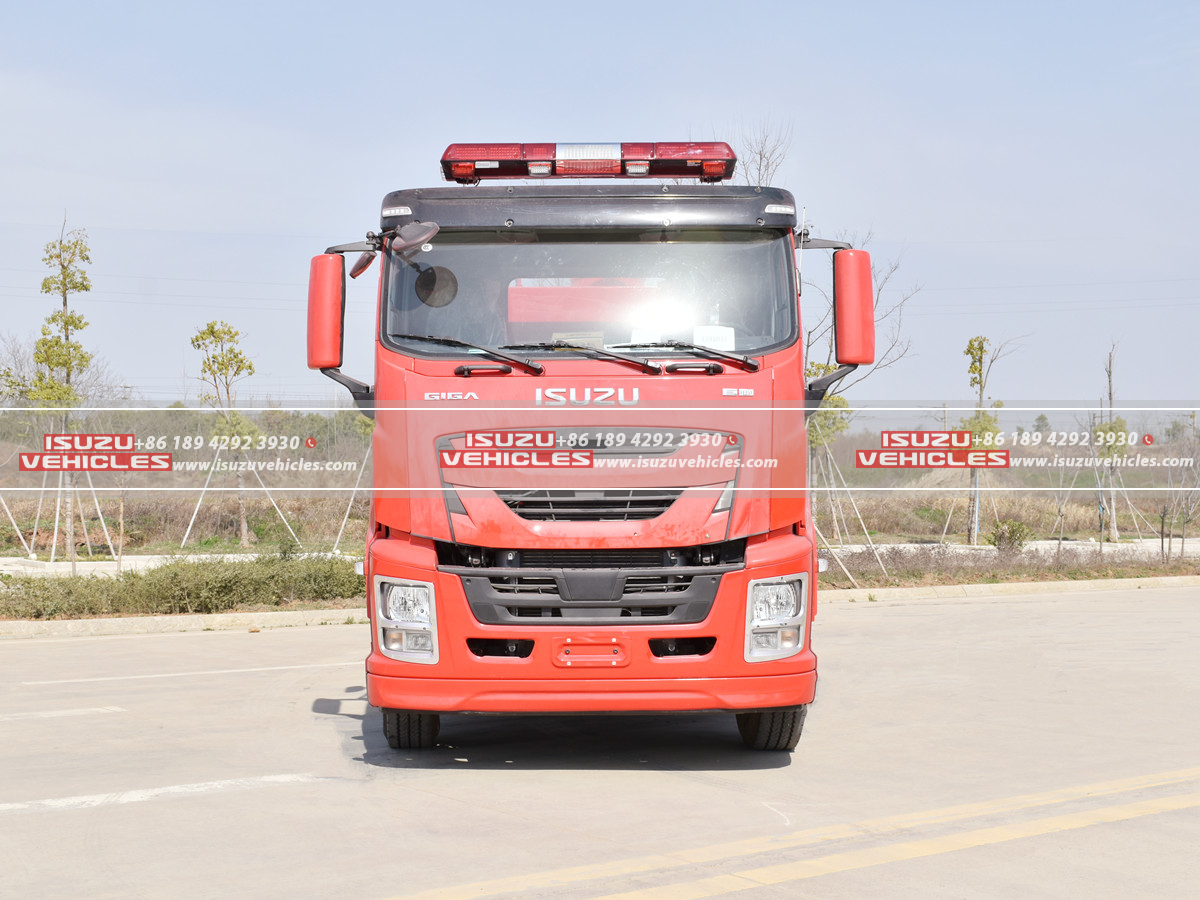

Chassis model | ISUZU/ QL5350THBW1SDZY |
Drive Mode
Engine Model |
6X4
6WG1-TCG52 |
Engine power | 309KW |
Wheelbase | 4800+1370mm |
Transmission | Manual |
Max speed | 100km/h |
Emission standard | Euro V |
Gearbox | Manual |
Electric system | Generator$28V
Battery$ 2x12V |
Fuel system | “300L |
Braking system | Parking brake: Air cut off parking brake;
Assist brake: engine exhaust brake; With ABS |
Waterway system
|
|
Fire monitor | XZ CB10/60(Made in China) |
Fire pump | WST PL8/48 (Made in China) |
Fire pump-rated flow | 3600 L/[email protected] |
Fire monitor-rated flow | 2880 L/min |
Fire monitor type | Electric control and ability to move horizontally and vertically |
Fire monitor position | On the top of the pump house |
Water tank capacity | 6000L |
Foam tank capacity | 2000L (Class B) |
Tank material | High-strength carbon steel with inner corrosion resisted painting |
Water pipes material | High-quality stainless steel or aluminum alloy |
Nitrogen system |
|
Nitrogen cylinder capacity | 70L×9=630L |
Other component | Pressure reducer, safety valve, vent valve, and pressure meter |
Dry powder tank
|
|
Capacity | 3000kg |
Rated working pressure | 1.4MPa |
Tank structure |
|
Dry powder monitor
|
|
Model | PF5`15/30
manual |
Rated spraying flow | ≥30kg/s |
Rated working pressure | 0.5-1.5 MPa |
Spraying reach | ≥35m |
Horizontal rotation (°) | 360° |
Pitching (°) | -10°~70° |
Dry powder hose reel
|
|
Working pressure | 0.5-1.4 MPa |
Length | ≥30m |
Diameter of hose | 25mm |
Dry powder gun spraying flow | ≥2kg/s |
Dry powder gun spraying reach | ≥12m |
Electrical system |
|

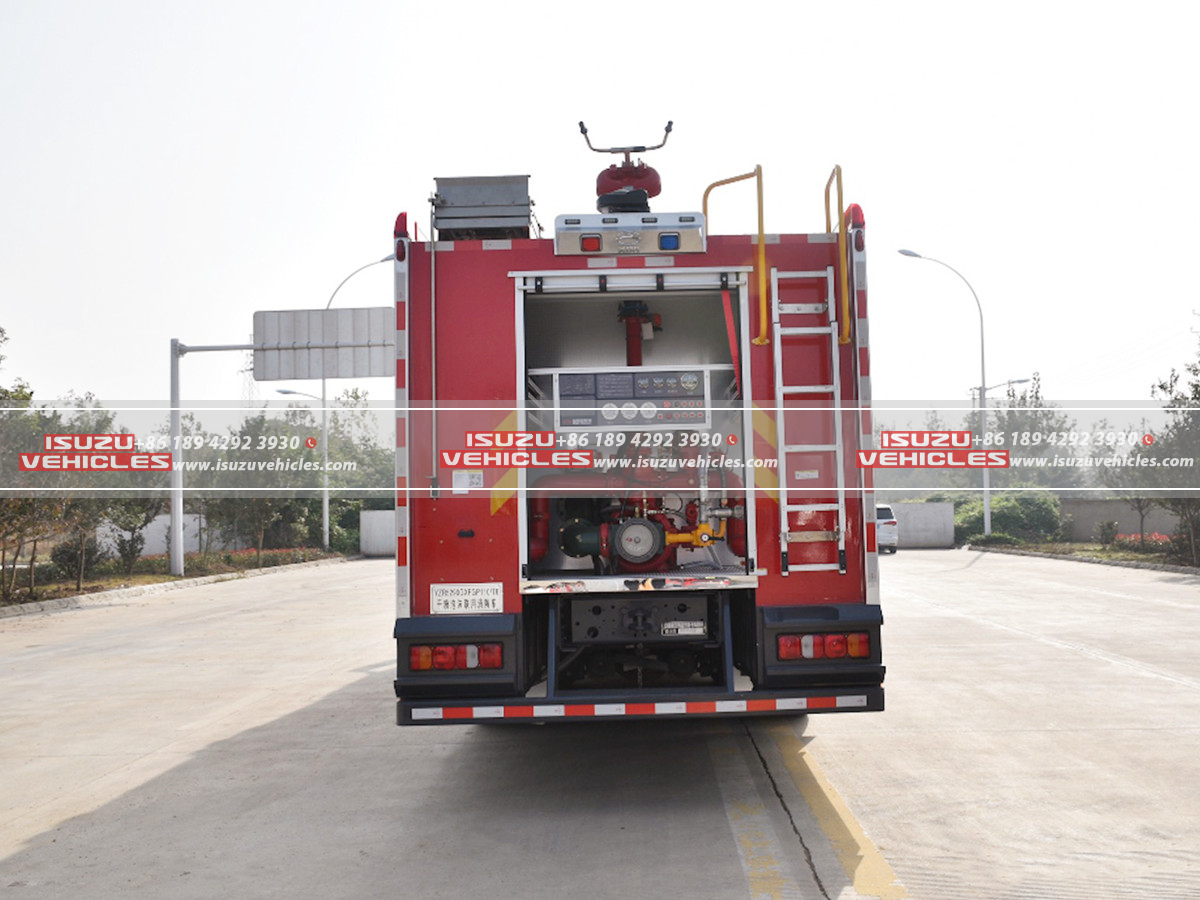

Operation and control | Integrated control panel on the rear of the vehicle with LCD monitor and display real-time performance data |
Alarming system | A lengthy red bar alarm lamp is mounted atop the cabin, accompanied by a red strobe alarm light situated on the vehicle’s roof. Integrated within the driver’s cabin are warning lights and sirens, offering functionalities such as fire alarms, sirens, and external announcements. |
Illumination | LED work lights are positioned on both the upper left and right sides of the vehicle body, while a remote-controlled LED searchlight is situated at the rear of the vehicle. |
Couplings and connectors | Water resistance and compliance with IP67 standard |
PTO operation | PTO can be operated in the cabin with status indicators |
Auto charging device | Applied with 220V mains electricity to recharge the battery. The charging plug automatically disconnects when the vehicle is started |
Reverse assisting system | With an alarm buzzer, rearview camera, and display monitor in the cabin |
Safety protection system |
|
PTO protection device | A protective mechanism is implemented to prevent unintentional activation or deactivation of the firefighting pump, guaranteeing continuous power supply, mitigating gear engagement problems, and averting unintended vehicle movement. |
Engine speed limit protection | To prevent the firefighting pump from operating at excessive speeds |
Flip up padel position warning | An amber indicator light that will automatically flash when the padel has deployed |

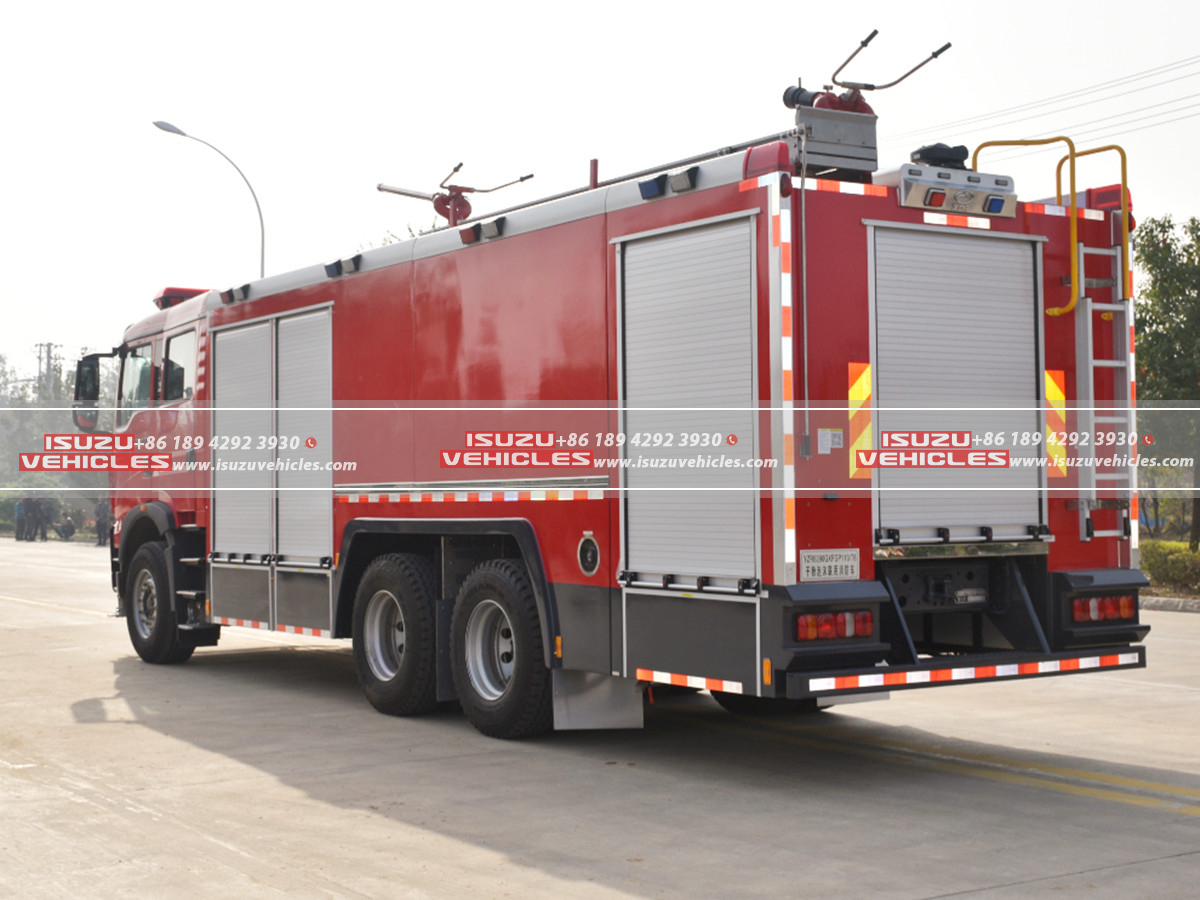

Roller shutter open alert | If the roller shutter is not closed, the driver’s cabin will automatically give a warning light to prevent accidents while driving |
Attachment list | |
1. Fire hose (Snap type) | 16-65-20 |
2. Fire hose (Snap type) | 16-80-20 |
3. Water separator (Snap type) | FII80/65×3-1.6 |
4. Water collector (Snap type) | JII150/65×2-1.0 |
5. Water suction pipe | 150×4 |
6. Water filter | FLF150 |
7. Adapter | KJK65 |
8. Hose bandage | DT-SB |
9. Hose Hook | |
10. Above-ground hydrant wrench | 375 |
11. Underground fire hydrant wrench | 970 |
12. Water pipe hydrant | FS150 |
13. Bore smooth water gun ((Snap type) | QZG3.5/7.5!65 |
14. Fog water gun (Snap type) | QDH6.0/8 |
15. Foam gun | PQ4/0.7Z |
16. Fire extinguisher | 4kg/ABC |
17. Rubber hammer | |
18. Fire axe | |
19. Hose bridge | |
20. Dry powder filling funnel | |
21. Fire Bucket | |
22. Inflatable Hose | 20m |
