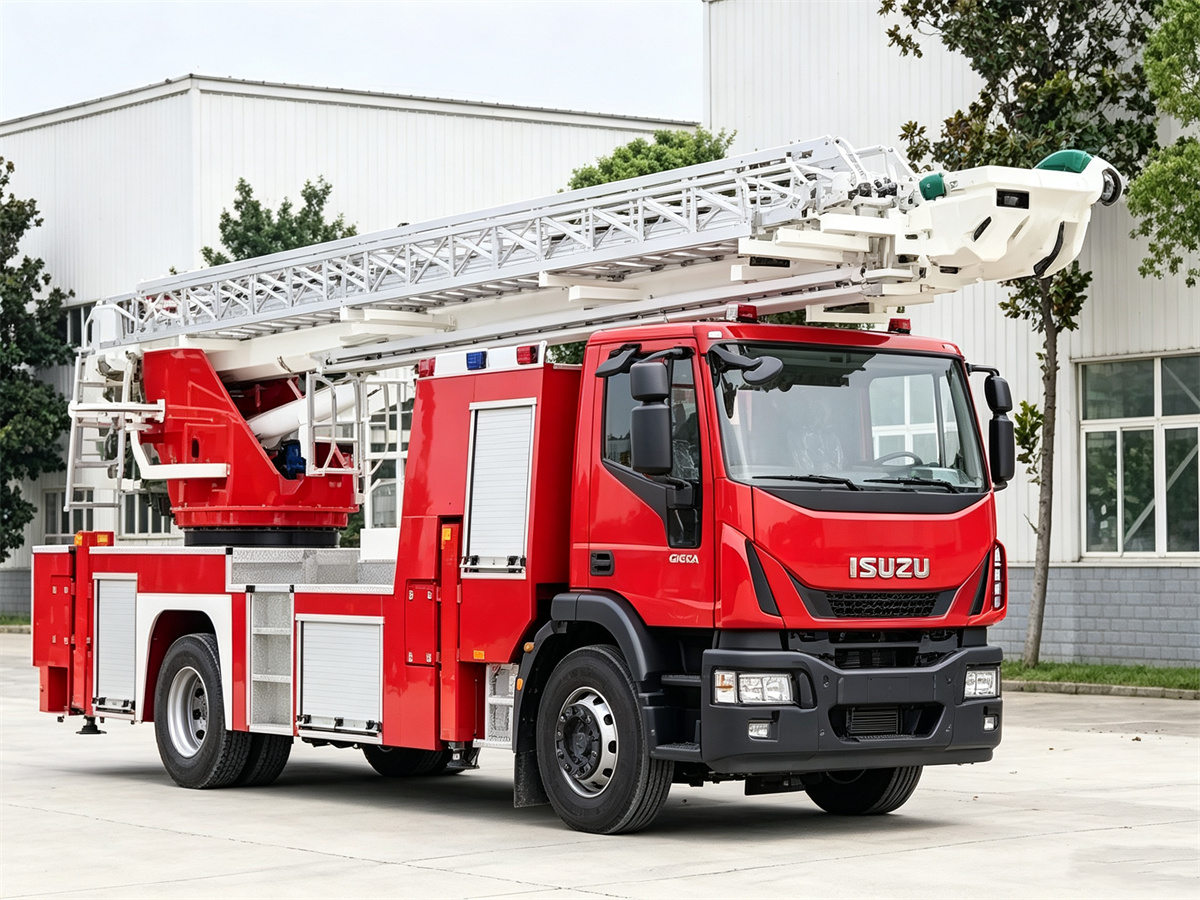

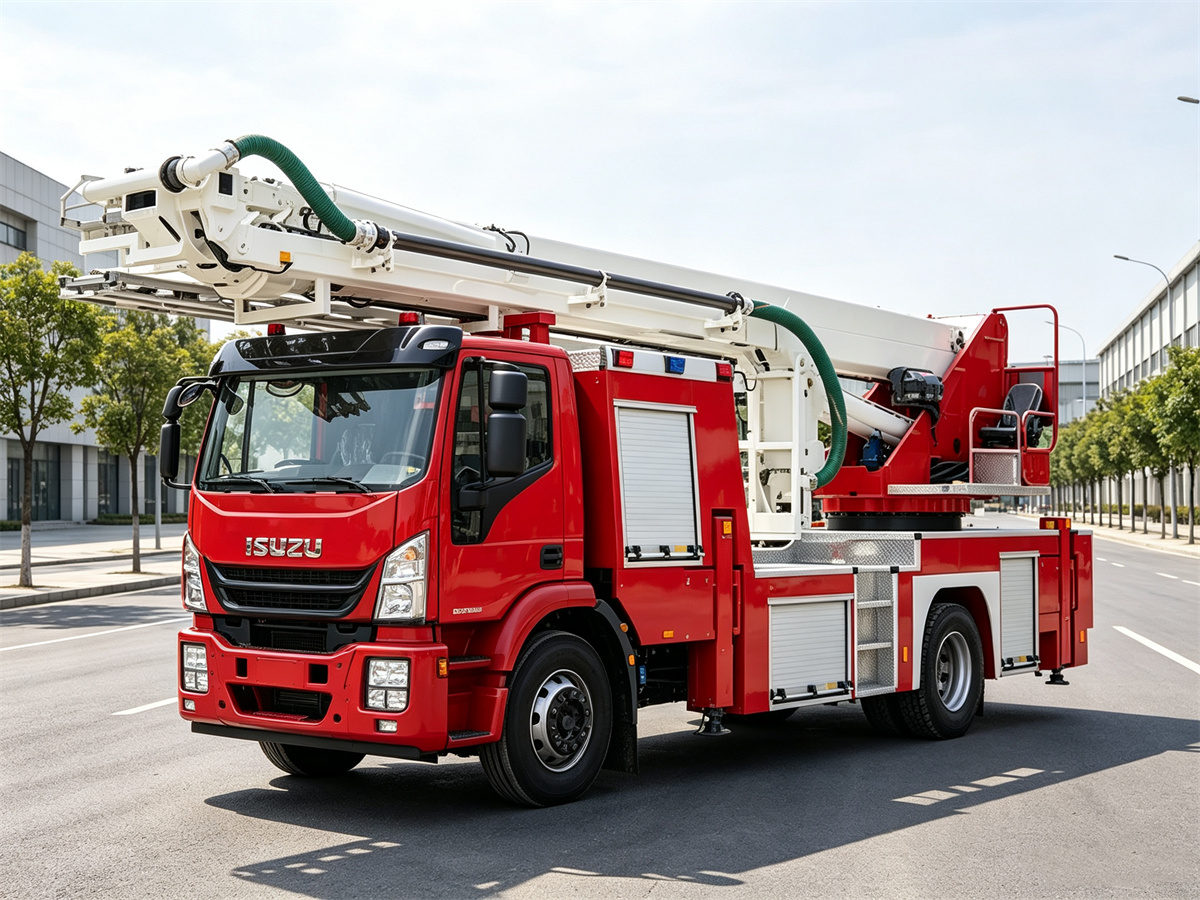

ISUZU 32M Aerial Platform Fire Truck
The ISUZU 32M Aerial Platform Fire Truck is a modern firefighting and aerial rescue vehicle engineered for demanding municipal, industrial, airport, and emergency response operations where rapid access to elevated locations is essential. Built on the dependable Qingling ISUZU QL5180JQFRY heavy-duty chassis, this vehicle combines outstanding driving stability, powerful hydraulic aerial performance, and excellent operational safety into one highly integrated rescue platform.
Designed with a maximum 32-meter working height, the truck enables firefighters to reach upper floors of residential buildings, commercial complexes, factories, warehouses, and other elevated structures with confidence. The robust chassis, combined with the high-strength aerial platform system, provides excellent rigidity during deployment while maintaining smooth road performance during long-distance travel.
Power is supplied by the proven ISUZU 6HK1-TCG61 Euro VI diesel engine, delivering 240 HP and strong low-speed torque for dependable acceleration, efficient fuel consumption, and reliable PTO-driven aerial operations. For customers requiring greater lifting performance under demanding rescue conditions, an optional 380 HP ISUZU 6UZ1-TCG61 engine is also available.
The upper structure is manufactured using lightweight yet durable aluminum alloy profiles, significantly reducing vehicle weight while improving corrosion resistance and extending service life. Combined with LED lighting systems, ergonomic compartments, anti-slip access platforms, and an intelligently designed control layout, the truck allows rescue teams to operate efficiently under challenging conditions both day and night.
Whether serving city fire departments, petrochemical facilities, airports, ports, or industrial parks, the ISUZU aerial platform fire truck delivers dependable performance, excellent maneuverability, and long-term operational reliability, making it a valuable asset for modern emergency rescue fleets.
Features
Reliable Qingling ISUZU Heavy-Duty Chassis
The truck is mounted on the proven Qingling ISUZU QL5180JQFRY chassis with a 4×2 left-hand-drive configuration, providing excellent road stability and dependable performance for both urban and highway emergency operations.
- Chassis Manufacturer: Qingling ISUZU
- Chassis Model: QL5180JQFRY
- Drive Type: 4×2
- Overall Dimensions: Approx. 9,850 × 2,500 × 3,780 mm
- Gross Vehicle Weight: 18,000 kg
- Wheelbase: 5,550 mm
- Maximum Road Speed: 95 km/h
- Crew Capacity: 2 persons
- Fuel Tank: 200 L aluminum alloy tank
The reinforced ladder frame is specifically engineered to support heavy aerial equipment while maintaining excellent structural integrity throughout continuous rescue operations.
Powerful ISUZU Euro VI Diesel Engine
The vehicle is equipped with the internationally recognized ISUZU 6HK1-TCG61 turbocharged diesel engine, combining strong power output with excellent fuel efficiency and environmental performance.
Engine Specifications
- Engine Model: ISUZU 6HK1-TCG61
- Manufacturer: Qingling ISUZU
- Type: Inline 6-cylinder, turbocharged, intercooled, direct-injection diesel
- Displacement: 7.790 L
- Rated Power: 177 kW (240 HP)
- Maximum Torque: 706 N·m
- Emission Standard: Euro VI
Optional upgrade:
- ISUZU 6UZ1-TCG61
- 279 kW (380 HP)
- Designed for customers requiring enhanced aerial operating capability.
Efficient Transmission and Stable Chassis Performance
The drivetrain is carefully matched to maximize power delivery for both highway transportation and aerial platform deployment.
Driveline Components
- FAST 9JS119TA / ISUZU matching manual transmission
- 9 forward gears + 1 reverse gear
- Hydraulic-assisted single dry plate clutch
- Full-power sandwich PTO
- Hydraulic power steering
Suspension and Axles
- Front Suspension: Heavy-duty semi-elliptic leaf springs with shock absorbers
- Rear Suspension: Reinforced multi-leaf springs
- Front Axle Capacity: 6,500 kg
- Rear Axle Capacity: 13,000 kg
- Heavy-duty single reduction rear drive axle
The suspension system effectively absorbs road vibration while ensuring outstanding stability during aerial platform deployment.
Advanced 32-Meter Aerial Rescue Platform
The highlight of this vehicle is its 32-meter aerial platform, engineered for safe, stable, and efficient elevated rescue operations.
High Working Capability
- Maximum Working Height: 32 meters
- Suitable for high-rise firefighting
- Building evacuation
- Industrial rescue
- Utility maintenance support
- Airport emergency response
The high-strength special steel sub-frame connects the aerial structure to the chassis through elastic mounting seats, effectively reducing stress concentration and extending structural lifespan.
The aerial platform offers smooth hydraulic movement, excellent positioning accuracy, and stable operation even during extended rescue missions.
Lightweight Aluminum Superstructure and Complete Safety Equipment
The upper body adopts corrosion-resistant aluminum alloy construction, greatly reducing maintenance requirements while improving overall durability.
Aluminum Equipment Compartments
- Fully welded high-strength aluminum profiles
- Lightweight construction
- Never-rust material
- Roof safety railings
- Rear aluminum access ladder
- Spacious equipment storage
Premium Roller Shutter Doors
Each compartment features anodized aluminum alloy roller shutters equipped with:
- Rain gutters
- Lock handles
- Pull straps
- Dual-position locking system
- Integrated LED lighting
- Door-open sensors
Foldable Safety Pedals
The truck is equipped with anti-slip aluminum alloy folding foot pedals featuring:
- 500 mm width
- Over 300 kg load capacity
- Double-lock safety mechanism
- Convenient access from both sides
These details significantly improve operational safety during emergency deployments.
Modern Electrical System for Emergency Operations
The electrical system has been designed to maximize visibility, operator convenience, and rescue efficiency.
Exterior Lighting
- Roof-mounted LED warning light bar
- Electronic siren
- High-intensity LED strobe lights
- Compartment LED work lights
- Roof-mounted flood lighting
- Yellow LED side marker lights
Operator Convenience
All emergency lighting and warning equipment are centrally controlled from the driver’s cabin, allowing firefighters to activate systems immediately upon arrival at an incident scene.
The bright LED lighting ensures safe operation during nighttime rescues, severe weather, and low-visibility environments while reducing electrical power consumption.
With its dependable ISUZU engineering, durable aluminum construction, advanced aerial platform technology, and outstanding operational reliability, this firefighting vehicle represents an excellent solution for professional rescue organizations seeking long-term performance and lower lifecycle operating costs. As ISUZU Vehicles continue to expand their portfolio of specialized commercial equipment, complementary solutions such as fire truck, rescue units, municipal service vehicles, and equipment related to bucket truck applications further demonstrate the versatility of the brand in meeting the evolving demands of emergency response agencies worldwide.
Specification
| Item | Specification |
|---|---|
| Overall Dimensions (L×W×H) | Approx. 9,850 × 2,500 × 3,780 mm |
| Gross Vehicle Weight (GVW) | 18,000 kg |
| Crew Capacity | 2 Persons (Including Driver) |
| Maximum Speed | 95 km/h |
| Aerial Platform Working Height | 32 meters |
| Chassis Manufacturer | Qingling ISUZU |
| Chassis Model | QL5180JQFRY |
| Drive Type | 4×2 Left-Hand Drive |
| Wheelbase | 5,550 mm |
| Cab | ISUZU GIGA Wide Crew Cab |
| Passengers | 2 Persons |
| Engine Model | ISUZU 6HK1-TCG61 |
| Engine Manufacturer | Qingling ISUZU |
| Engine Type | Inline 6-cylinder, Turbocharged, Intercooled, Water-cooled Direct Injection Diesel |
| Displacement | 7.790 L |
| Rated Power | 177 kW (240 HP) |
| Maximum Torque | 706 N·m |
| Emission Standard | Euro VI |
| Optional Engine Upgrade | ISUZU 6UZ1-TCG61 – 279 kW (380 HP) for higher aerial operation performance |
| Transmission Model | FAST 9JS119TA / ISUZU Matching |
| Transmission Type | Manual |
| Gearbox | 9 Forward + 1 Reverse |
| PTO | Full Power Sandwich PTO |
| Clutch | Hydraulic Assisted Single Dry Plate |
| Steering | Hydraulic Power Steering |
| Front Suspension | Heavy-duty Semi-Elliptic Leaf Spring with Shock Absorbers |
| Rear Suspension | Reinforced Multi-Leaf Spring Suspension |
| Front Axle Capacity | 6,500 kg |
| Rear Axle Capacity | 13,000 kg |
| Rear Axle Type | Heavy-duty Single Reduction Drive Axle |
| Brake Type | Full Air Dual-Circuit Brake |
| ABS | Equipped |
| Parking Brake | Spring Energy Brake |
| Auxiliary Brake | Engine Exhaust Brake |
| Tire Size | 295/80R22.5 Steel Radial Tire |
| Tire Quantity | 6 + 1 Spare Tire |
| Fuel Tank Capacity | 200 L Aluminum Alloy Fuel Tank |
| Sub-frame Material | High-strength special steel rectangular tube; elastic mounting connecting aerial platform to chassis |
| Equipment Compartment Construction | High-strength aluminum alloy profiles, fully welded lightweight structure; roof safety railings with LED lighting; rear-mounted aluminum access ladder |
| Roller Shutter Doors | Anodized aluminum alloy, with rain gutters, lock handles, pull straps, dual-position locking, LED compartment lighting, and door-open sensors |
| Foldable Foot Pedals | High-strength anti-slip aluminum alloy, width 500 mm, load >300 kg, double-lock safety mechanism, both sides |
| Electrical Equipment | Roof-mounted LED warning light bar & electronic siren, in-cab control panel, LED strobe lights both sides, high-brightness compartment LED work lights, roof-mounted LED illumination, side-mounted yellow LED marker lights along body and access steps |
