BRIEFS:

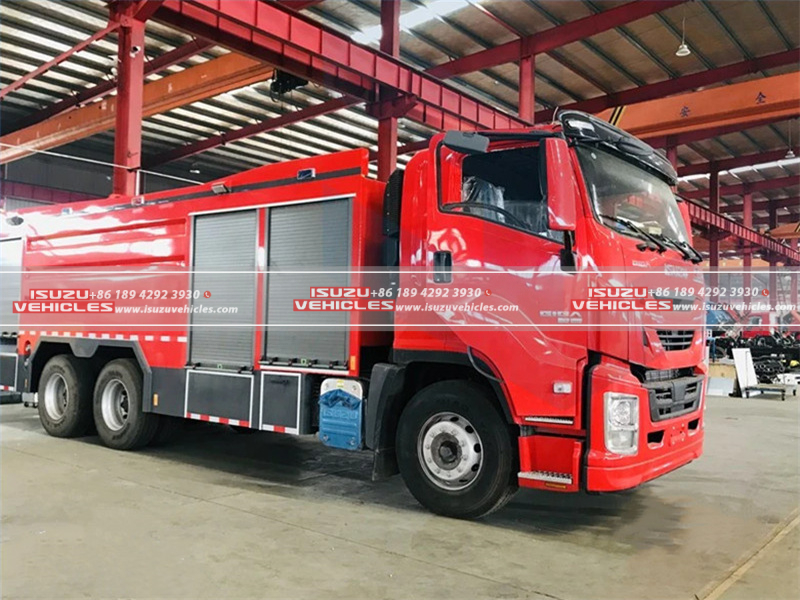

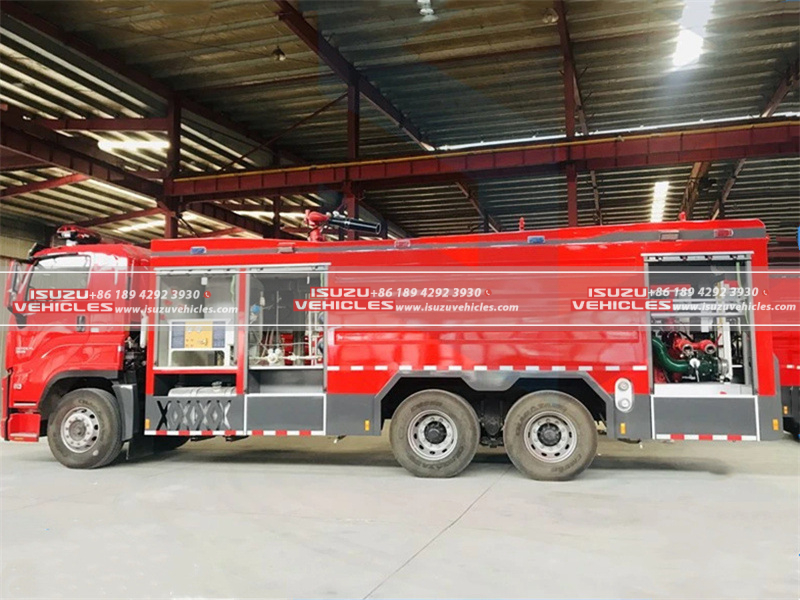

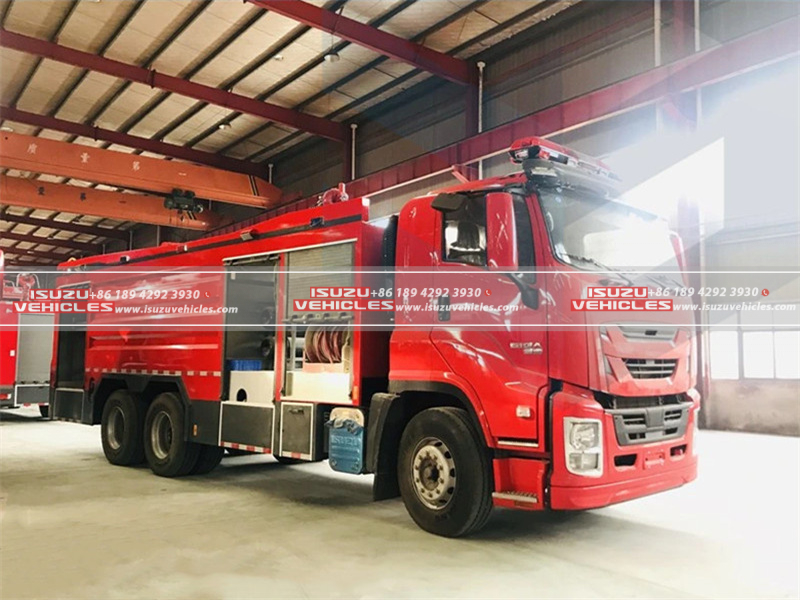

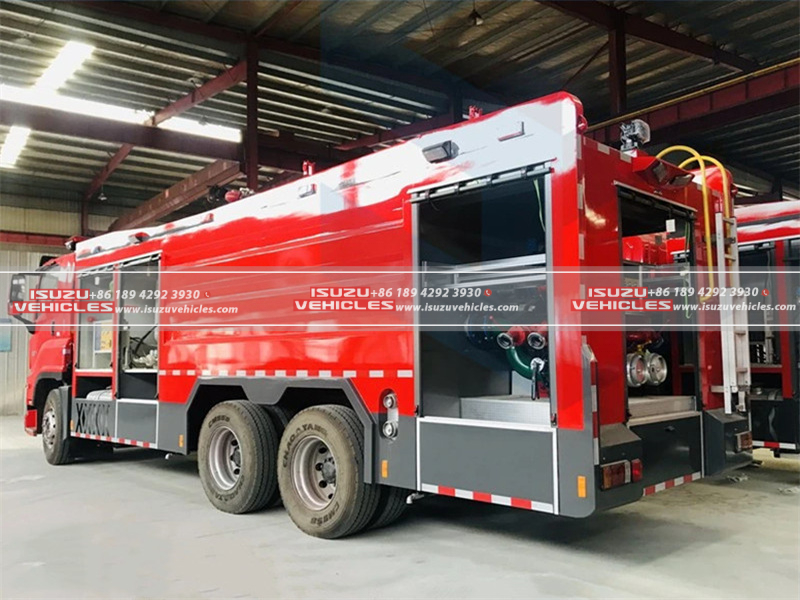

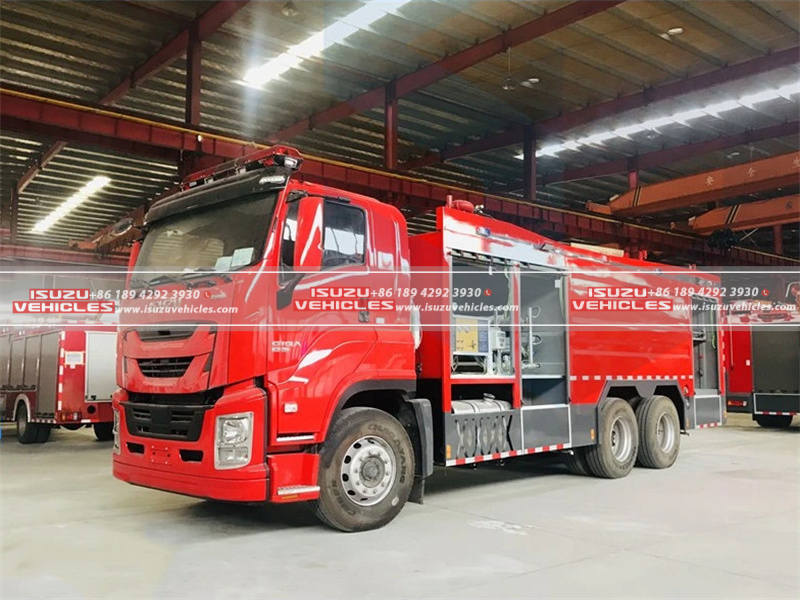

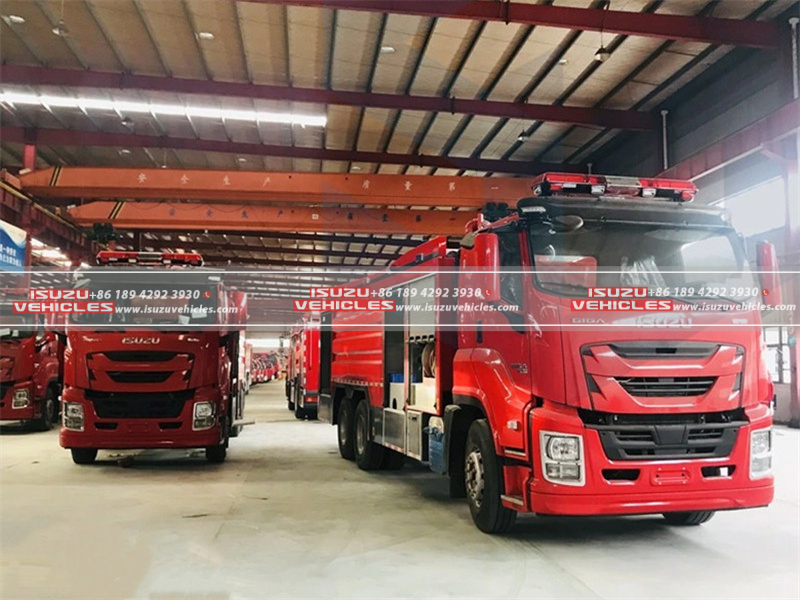

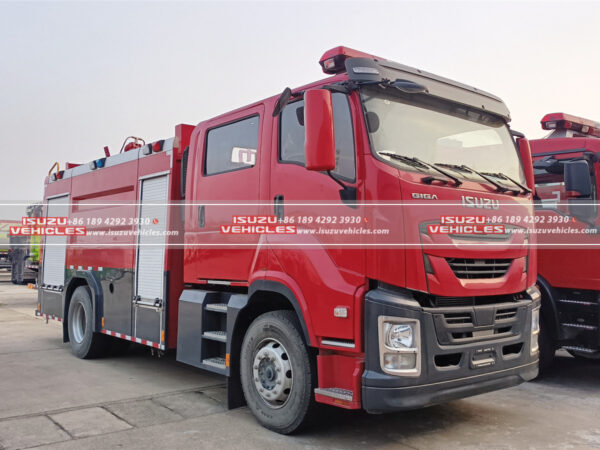

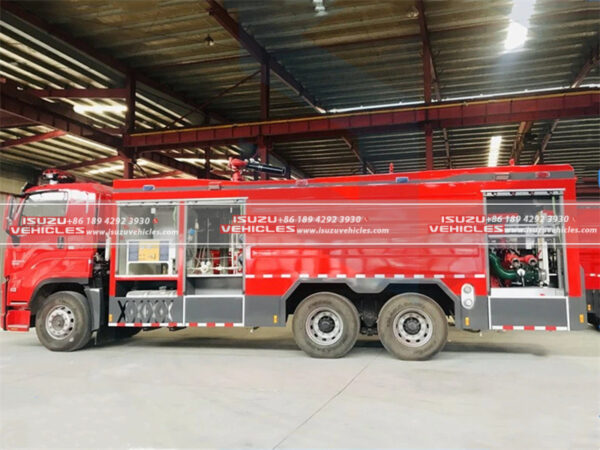

The ISUZU Water Tank and Rescue Service Fire Fighting Truck is a formidable and reliable vehicle designed to combat fires effectively and provide essential rescue services. With its robust chassis and powerful engine, this truck ensures rapid response and efficient firefighting capabilities.
This ISUZU Fighting Truck is a comprehensive solution for fire emergencies, combining a robust chassis, powerful engine, large water and foam tank capacity, and essential firefighting and rescue equipment. It stands ready to protect lives and property when every second counts.
FEATURES:
Vehicle Description:
- Overall Dimensions: The truck measures 10050 x 2500 x 3670 mm, providing ample space for firefighting and rescue equipment.
- GVW (Gross Vehicle Weight): Capable of handling up to 26800 kg, ensuring stability during firefighting operations.
- Curb Weight: Weighing in at 14350 kg, this truck remains agile and maneuverable.
- Chassis Brand: Built on an ISUZU chassis known for its durability and performance.
- Traction Type: Equipped with a 6×4 drive system, offering excellent off-road capabilities.
Tanker Description:
- Tanker Capacity: The water tanker boasts a 12 cbm capacity, while the foam tanker carries 4 cbm, both constructed from sturdy carbon steel.
- Configuration: Features include 1 set of manholes with quick lock and open devices, overflow device, fluid level gauge, and drain outlet with manual control.
- Fire Pump: Equipped with a CB10/60 normal pressure pump with a flux rate of 60 L/S, providing a powerful firefighting capability.
- Fire Monitor: The PL48 fire monitor has a range of 60 m for water and 55 m for foam, with a 360° rotation angle (up 750, down 450).
- Other Configuration: Includes a sandwich PTO, pipeline system, equipment box, pump box, flip pedal, and electric system for added functionality.
Chassis Description:
- Chassis Model: Built on a rugged ISUZU chassis, renowned for its reliability and robustness.
- Cab: Features an extended cab with seating for 6, equipped with safety belts featuring double locking mechanisms, an exterior sunroof, and an air-conditioner for comfort during operations.
- Wheelbase: A wheelbase of 4600 + 1350 mm ensures stability and maneuverability.
- Tire Specification: Fitted with 11.00R20 tires, providing excellent traction and durability.
- Tire Quantity: Equipped with 10 + 1 spare tires for uninterrupted operations.
- Engine: Powered by a 280 hp 6HK1-TCSG40 engine, ensuring ample horsepower for firefighting and rescue missions.
- Gearbox: Features a 9JS119TA gearbox with 9 forward gears and 1 reverse, offering versatility during operations.
- Axle: Front axle HF-7T and rear axles ST-18T * 2 provide load-bearing capacity for firefighting equipment and water.
SPECIFICATIONS:
Vehicle Description | |
---|---|
Overall dimensions | 10050 x 2500 x 3670 mm |
GVW (Gross Vehicle Weight) | 26800 kg |
Curb weight | 14350 kg |
Chassis brand | ISUZU |
Traction type | 6×4 |
Tanker Description | |
---|---|
Tanker capacity | Water tanker: 12 cbm, carbon steel<br>Foam tanker: 4 cbm, carbon steel |
Configuration | 1 set manhole with quick lock and open device<br>1 set overflow device<br>1 set fluid level gauge<br>1 set drain outlet with manual control |
Fire pump | Model: CB10/60, normal pressure pump<br>Flux: 60 L/S<br>Pressure: 1.0 Mpa<br>Range: 55 m |
Fire monitor | Model: PL48<br>Pressure: 1.0 Mpa<br>Range: Water 60 m, Foam 55 m<br>Rotation angle: 360° (up 750, down 450) |
Other configuration | Equipped with sandwich PTO, pipeline system<br>Equipped with equipment box and pump box<br>Equipped with flip pedal and electric system |
Chassis Description | |
Chassis model | ISUZU |
Cab | ISUZU-extended cab, 6-standard seats, safety belt with double locking mechanism, exterior sunroof, air-conditioner |
Wheelbase | 4600 + 1350 mm |
Tire specification | 11.00R20 |
Tire quantity | 10 + 1 units |
Engine | Engine model: 6HK1-TCSG40<br>Horsepower: 280 hp |
Gearbox | Model: 9JS119TA<br>Number of gears: 9 forward gears & 1 reverse |
Axle | Front: HF-7T<br>Rear: ST-18T * 2 |
