ISUZU 3000L Water Tank Fire Truck

ISUZU 3000L Water Tank Fire Truck

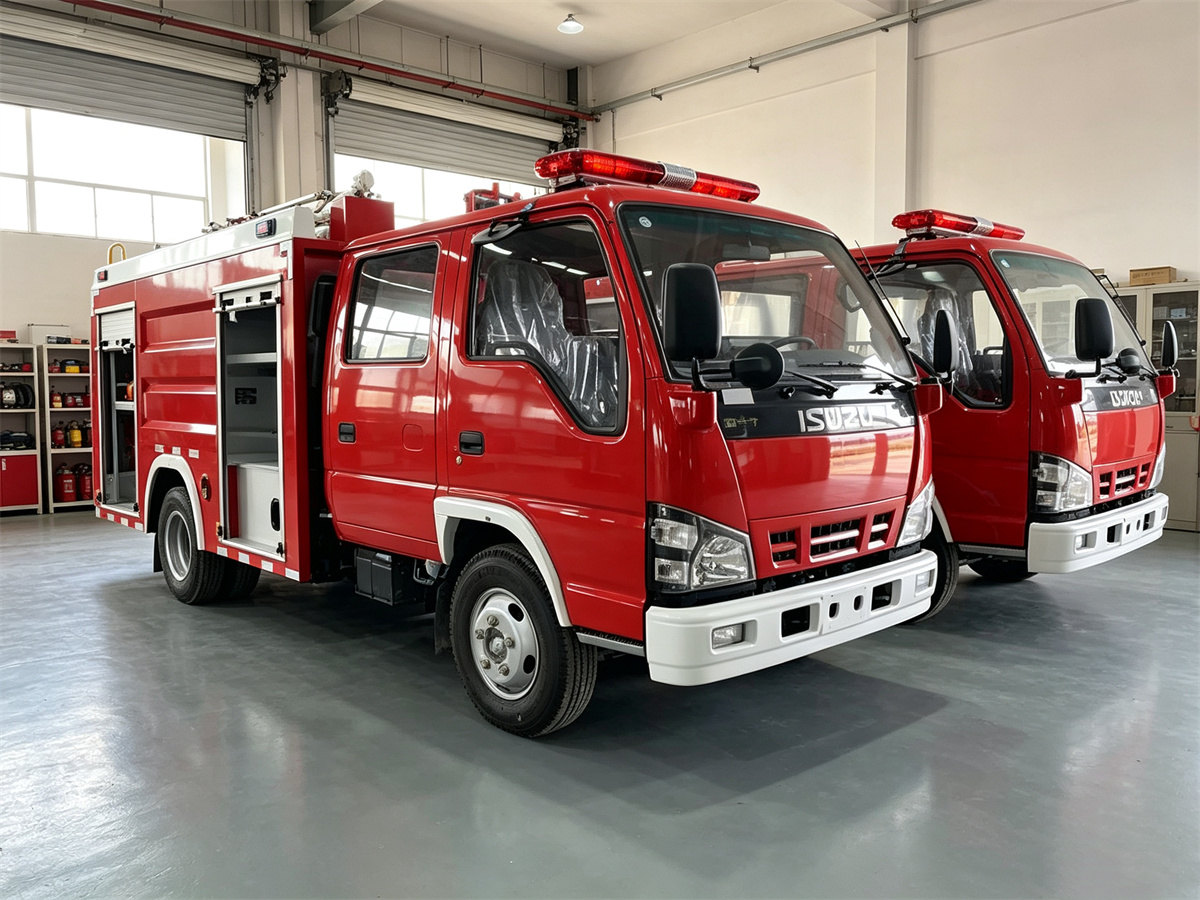

The ISUZU 3000L Water Tank Fire Truck is a compact and versatile firefighting vehicle designed for rapid emergency response, initial fire suppression, municipal fire protection, industrial facilities, warehouses, residential areas, and other locations where a maneuverable water fire truck is required. Built on a reliable ISUZU chassis with a 3,000-liter water tank, the vehicle combines practical road performance with a dedicated firefighting pump and monitor, allowing firefighters to quickly deliver pressurized water to the fire scene.

With overall dimensions of 6,360×2,000×2,740mm and a wheelbase of 3,360mm, the truck offers a relatively compact configuration that is well suited to urban roads and confined operating areas. The vehicle has a tare weight of approximately 6,530kg, a maximum speed of 95km/h, and a 4×2 drive configuration, providing a useful balance between mobility and firefighting equipment capacity.

The truck is powered by an ISUZU 4KH1-TCG40 diesel engine with a displacement of 2,999cc and an output of approximately 120HP. The Euro 3 engine is matched with a manual transmission, while 7.00R16 tires are configured as six working tires plus one spare tire, providing dependable support for routine emergency response and transportation.

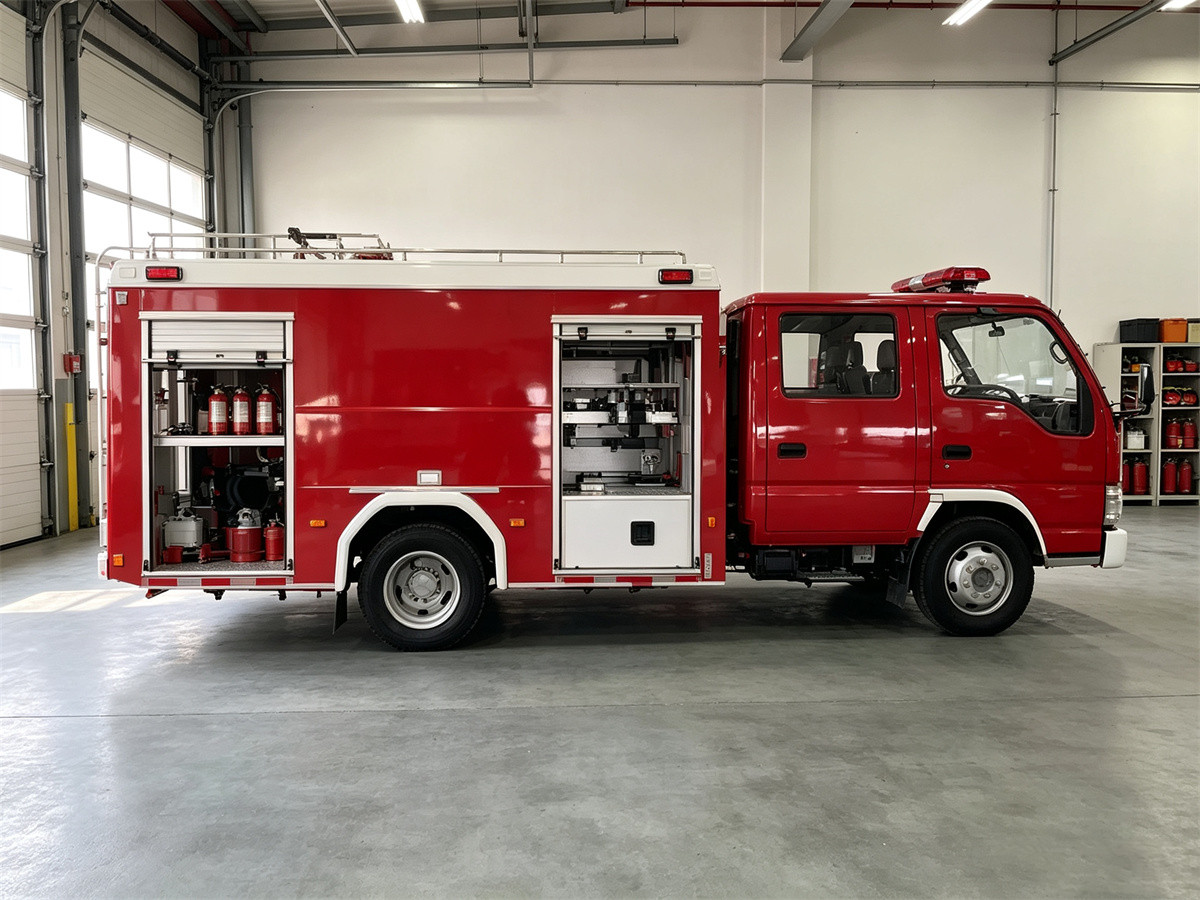

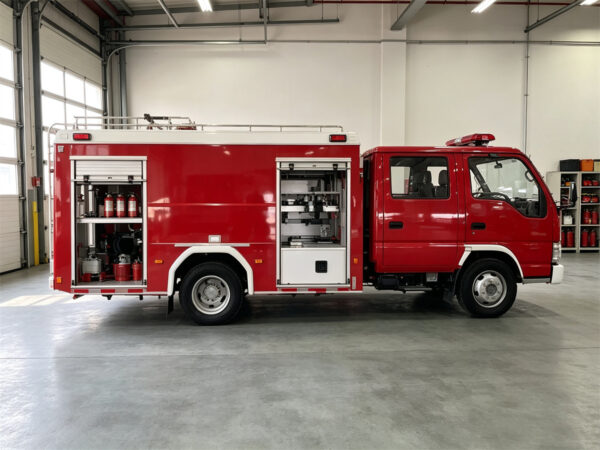

The firefighting body incorporates front and rear equipment cupboard compartments for storing firefighting tools and accessories, together with a top-mounted fire monitor, adjustable rear ladder, and optical and audible warning equipment. The 3,000-liter water tank provides a practical onboard water supply for initial firefighting operations.

The firefighting system is equipped with a Shanghai CB10/20 fire pump with a rated capacity of 1,200L/min, while the PS20 fire monitor provides a water range of up to approximately 48 meters at a working pressure of 1.0MPa. This configuration enables the truck to perform both close-range firefighting and longer-distance water delivery when responding to emergency incidents.

Features

1. Compact and Reliable ISUZU Chassis

The ISUZU chassis provides a dependable foundation for the firefighting superstructure, with overall dimensions of 6,360×2,000×2,740mm and a 3,360mm wheelbase. Its compact body dimensions make the truck easier to maneuver through urban streets, industrial compounds, residential communities, and other areas where larger firefighting vehicles may have difficulty accessing the incident location.

The vehicle uses a 4×2 drive configuration and is fitted with 7.00R16 tires, with six working tires plus one spare tire mounted on a carrier, providing practical road performance for daily fire-service operations.

2. 120HP ISUZU Diesel Engine

The truck is powered by an ISUZU 4KH1-TCG40 diesel engine producing approximately 120HP from a 2,999cc displacement. The four-cylinder diesel powertrain provides sufficient performance for a compact 3,000-liter fire truck while maintaining a straightforward configuration for routine operation and maintenance.

The manual transmission gives the driver direct control over power delivery, while the vehicle’s maximum road speed of approximately 95km/h allows it to respond quickly when traveling between the fire station and emergency locations.

3. 3,000-Liter Firefighting Water Tank

The vehicle is equipped with a 3,000-liter water tank, providing an onboard supply for immediate firefighting before additional water sources or larger fire appliances arrive at the scene.

The tank capacity is well suited to initial fire suppression tasks, particularly in residential areas, workshops, warehouses, agricultural facilities, construction sites, and small industrial premises where a compact firefighting vehicle can provide rapid first-response capability.

4. Shanghai CB10/20 Fire Pump

The firefighting system uses a Shanghai CB10/20 fire pump with a rated water delivery capacity of approximately 1,200L/min, providing the pressure and flow required for effective water discharge during emergency operations.

The pump works together with the onboard water tank and fire monitor, allowing the crew to quickly establish a pressurized water stream after arriving at the fire scene.

5. PS20 Fire Monitor with 48-Meter Range

The truck is equipped with a PS20 fire monitor capable of delivering water over a range of approximately 48 meters, with a specified working pressure of 1.0MPa.

The elevated monitor allows the operator to direct a concentrated water stream toward flames from a safer distance, making it particularly useful when dealing with larger outdoor fires, building exteriors, storage areas, and other situations where extended water projection is beneficial.

6. Practical Firefighting Equipment Storage

The fire body features front and rear equipment cupboards, providing dedicated storage space for firefighting tools, hoses, fittings, protective equipment, and other emergency accessories.

Keeping firefighting equipment organized within the body helps firefighters access essential tools more quickly when arriving at an emergency scene, while the enclosed compartments provide additional protection for the equipment during transportation.

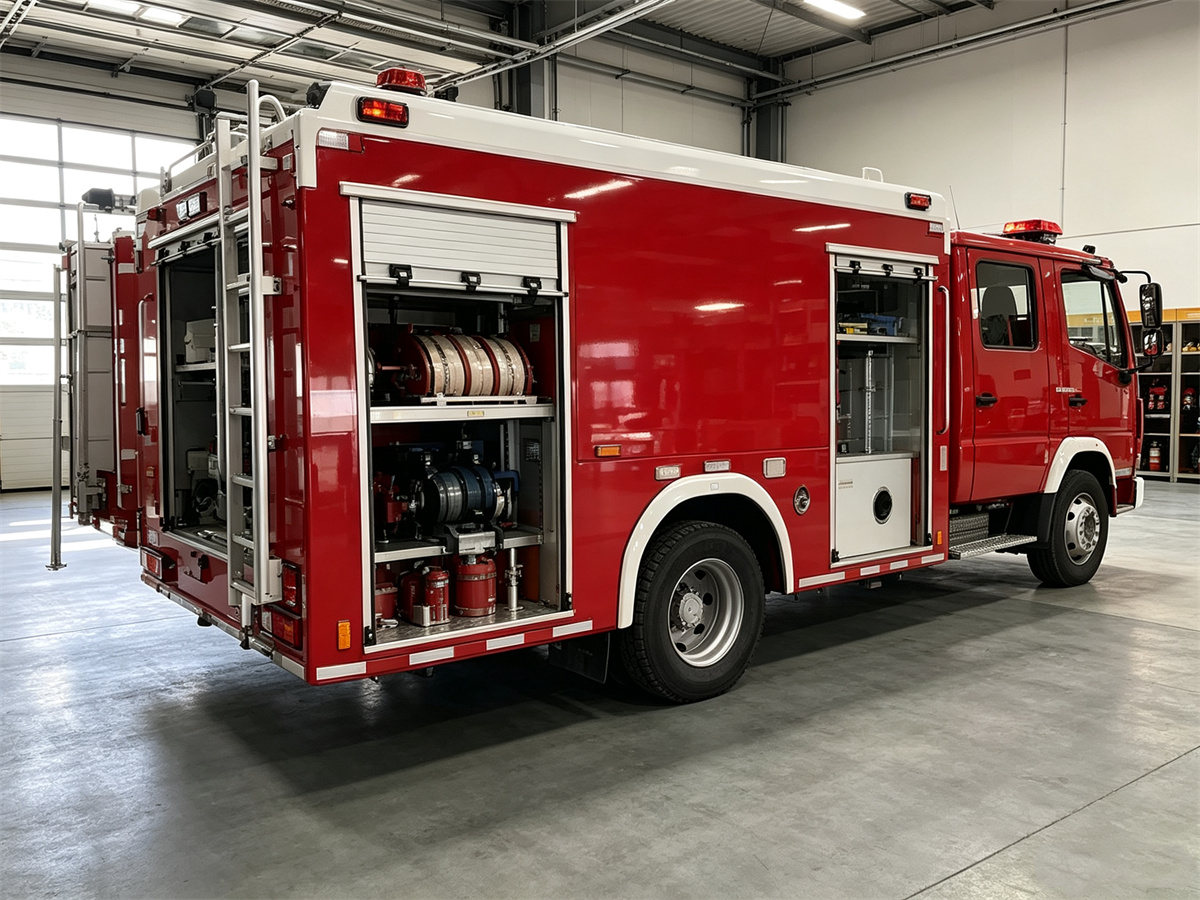

7. Adjustable Rear Ladder

An adjustable rear ladder is installed on the upper structure to provide access to the top of the truck and its firefighting equipment. This makes routine inspection, maintenance, and operation of the water tank and top-mounted fire monitor more convenient for the firefighting crew.

The ladder is particularly useful when firefighters need to inspect equipment or access the upper portion of the vehicle during preparation and maintenance procedures.

8. Emergency Warning Equipment

The truck is equipped with optical and audible warning packages, helping alert surrounding vehicles and pedestrians when the fire truck is responding to an emergency.

The warning equipment supports safer emergency driving by making the vehicle more visible and recognizable, particularly when operating in busy urban traffic or approaching an incident location.

9. Suitable for Multiple Firefighting Applications

The ISUZU 3000L Water Tank Fire Truck can be used for a wide range of initial firefighting and emergency water-supply applications, including municipal fire protection, industrial fire response, warehouse fire suppression, residential area protection, agricultural facilities, construction sites, and other locations where rapid water delivery is required.

Its combination of a compact ISUZU chassis, 3,000-liter water capacity, 1,200L/min fire pump, 48-meter fire monitor range, equipment storage compartments, and emergency warning system makes it a practical solution for organizations seeking a maneuverable fire truck for fast initial response and everyday fire protection duties.

Specifications

ITEM	VALUE
Chassis Make	ISUZU
Overall Dimension	6360×2000×2740mm
Tare Weight	6530kg
Front/Rear Track	1504/1425mm
Approach/Departure Angle	24/14(°)
Front/Rear Suspension	1015/1890
Leaf Spring	8/6+5
Cab Seats	5.6
Air conditioner	Cool
Drive Type	4×2
Transmission	Manual
Wheelbase	3360mm
Tire Specification	7.00R16
Tire No.	6+1 spare tire with carrier
Max Speed	95km/h
Finish Paint	Red or as request
Engine – Fuel Type	diesel
Engine – Model	4KH1-TCG40
Engine – Make	ISUZU
Engine – Power	120hp
Engine – Displacement	2999cc
Engine – Emission Standard	Euro 3
Body – Features	Front and rear cupboard room, top mounted fire monitor, rear Adjustable ladder, top mounted optical and audible warning packages
Body – Capacity	3000 Liters/ 1370 Gallons/ 3 Tons/ 3m³
Fire Package – Pump Make	Shanghai
Fire Package – Pump Model	CB10/20
Fire Package – Pump Capacity	1200LPM
Fire Package – Fire Monitor	PS20
Fire Package – Watering Range	48m
Fire Package – Pressure	1.0Mpa
