ISUZU 4 CBM Skip Loader Garbage Truck

Engineered for efficient municipal and commercial waste collection in dense urban environments, the ISUZU 4 CBM Skip Loader Garbage Truck integrates the renowned reliability of the ISUZU 600P chassis with a purpose-built, high-capacity skip handling system. Designed for rapid container swapping, this compact yet robust solution features a 4 CBM capacity waste container constructed from high tensile wear-resistant carbon steel, optimized for durability under daily loading cycles. Powered by a fuel-efficient, Euro 5-compliant 130HP ISUZU diesel engine and paired with a rugged 5-speed manual transmission, this truck delivers exceptional maneuverability in tight spaces thanks to its 3360mm wheelbase and compact footprint (6,755×2,020×2,460mm), enabling efficient servicing of narrow streets, commercial alleys, and residential complexes while maintaining a substantial 7,300kg GVW capacity for versatile operational deployment.

Features

• Optimized Chassis & Powertrain
  Built on the proven ISUZU 600P 4×2 platform with a Left-hand Drive configuration, the chassis (6,755×2,020×2,460mm) provides a stable foundation with a 7,300kg Gross Vehicle Weight and a 4,200kg curb weight, ensuring ample payload capacity within compact dimensions. The robust drivetrain features a 2.5T front axle and 4.8T rear axle, supported by 7.00R20 tires (6+1 configuration) for durability and load distribution. The heart of the powertrain is the advanced ISUZU 4KH1CN5LS direct-injection diesel engine, generating 130 horsepower while meeting stringent Euro 5 emission standards for reduced environmental impact. This is seamlessly matched to the reliable ISUZU/MSB manual transmission offering 5 forward gears + 1 reverse gear, delivering precise control and optimal torque for stop-start collection duties.
• Functional Operator Cabin & Safety
  The steel-construction, single-row, flat day cabin prioritizes operator comfort and visibility with a minimalist, ergonomic layout designed for extended shifts. Accommodating up to 3 personnel, it features intuitive controls strategically placed for effortless access to the hydraulic system during skip operations. The cabin’s reinforced structure enhances driver safety, while the forward placement and large windows ensure excellent sightlines essential for navigating congested routes and positioning the loader arms accurately during container engagement.
• Core Garbage Handling System

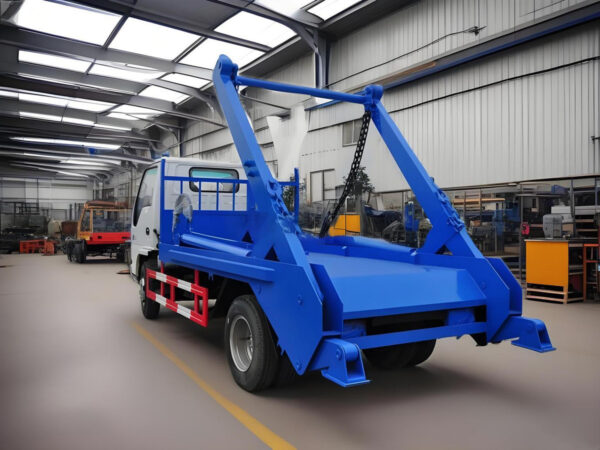

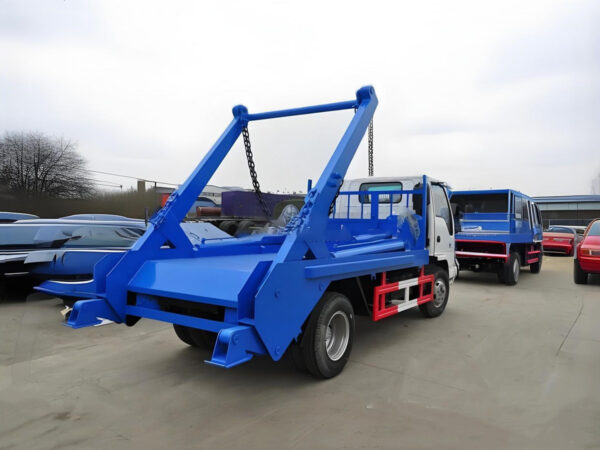

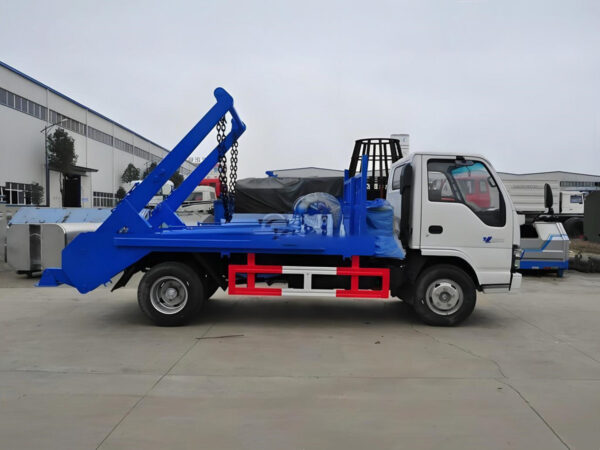

  The garbage truck‘s defining feature is the high-efficiency skip loading mechanism, centered on a 4 cubic meter (CBM) container fabricated from 4mm thick high tensile wear-resistant carbon steel throughout (sides, top, and bottom), providing exceptional resistance to impact, abrasion, and waste corrosion. The system is driven by a chassis-mounted Power Take-Off (PTO) unit supplying pressurized hydraulic fluid to two double-acting balance valves and four hydraulic cylinders – two dedicated to the lifting arm for engaging and hoisting containers, and two powering sturdy landing legs for stabilization during lifting operations. Container locking pins guarantee secure retention during transit. Crucially, the system supports both underground and aboveground container types, offering operational flexibility for diverse waste collection infrastructures.
• Performance & Customization
  Engineered for maximum workflow efficiency, the skip loader achieves an exceptionally fast container loading cycle of just 30 seconds and an unloading cycle of 50 seconds, dramatically increasing daily collection rounds and reducing labor costs. To address specific operational needs, several key options are available: upgrading to stainless steel container material for enhanced corrosion resistance in harsh environments (e.g., coastal areas, food waste); adding a sealed cover to minimize odor escape, litter scatter, and ingress of rainwater; and configuring the system to manage multiple containers simultaneously, enabling pre-placed swaps for continuous collection without downtime. These features collectively establish this unit as a versatile, high-productivity asset for modern waste management fleets.

SPECIFICATIONS
