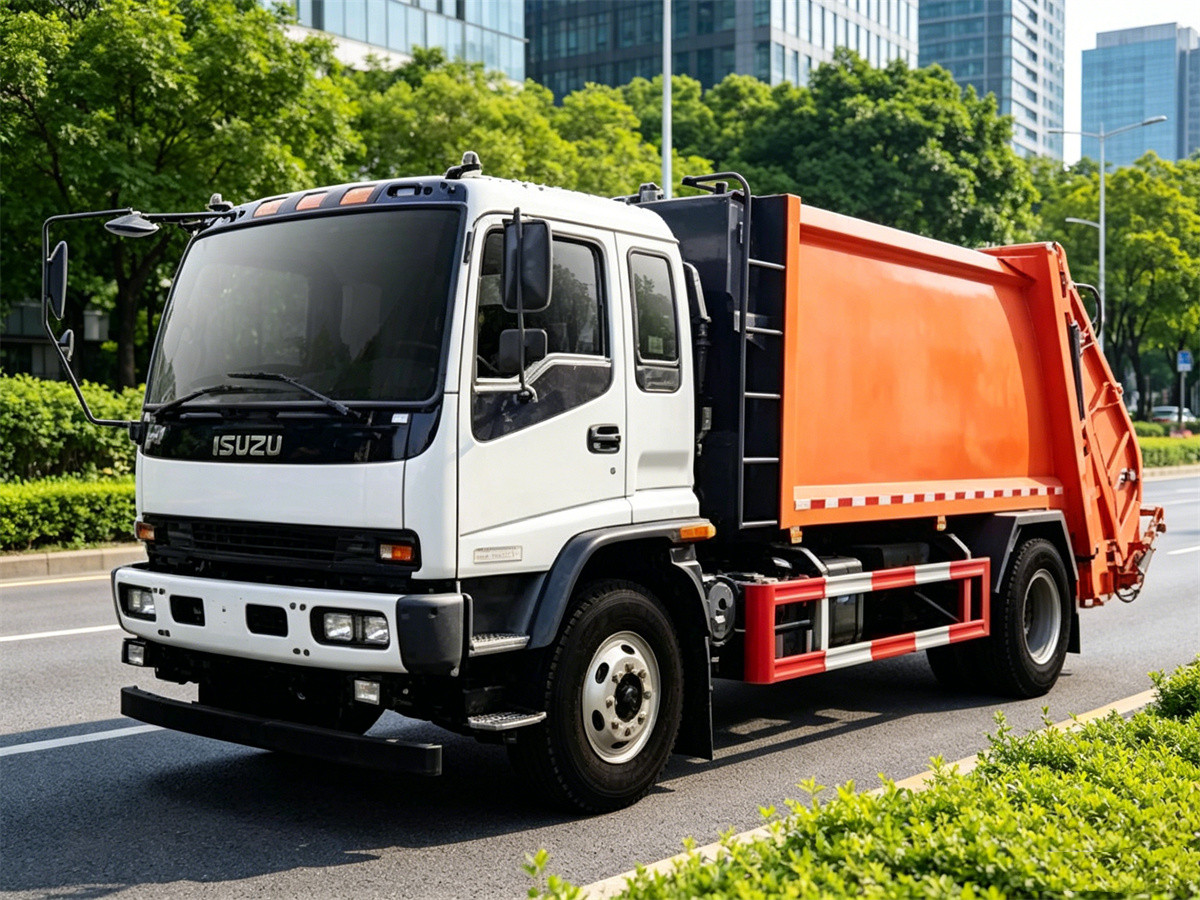

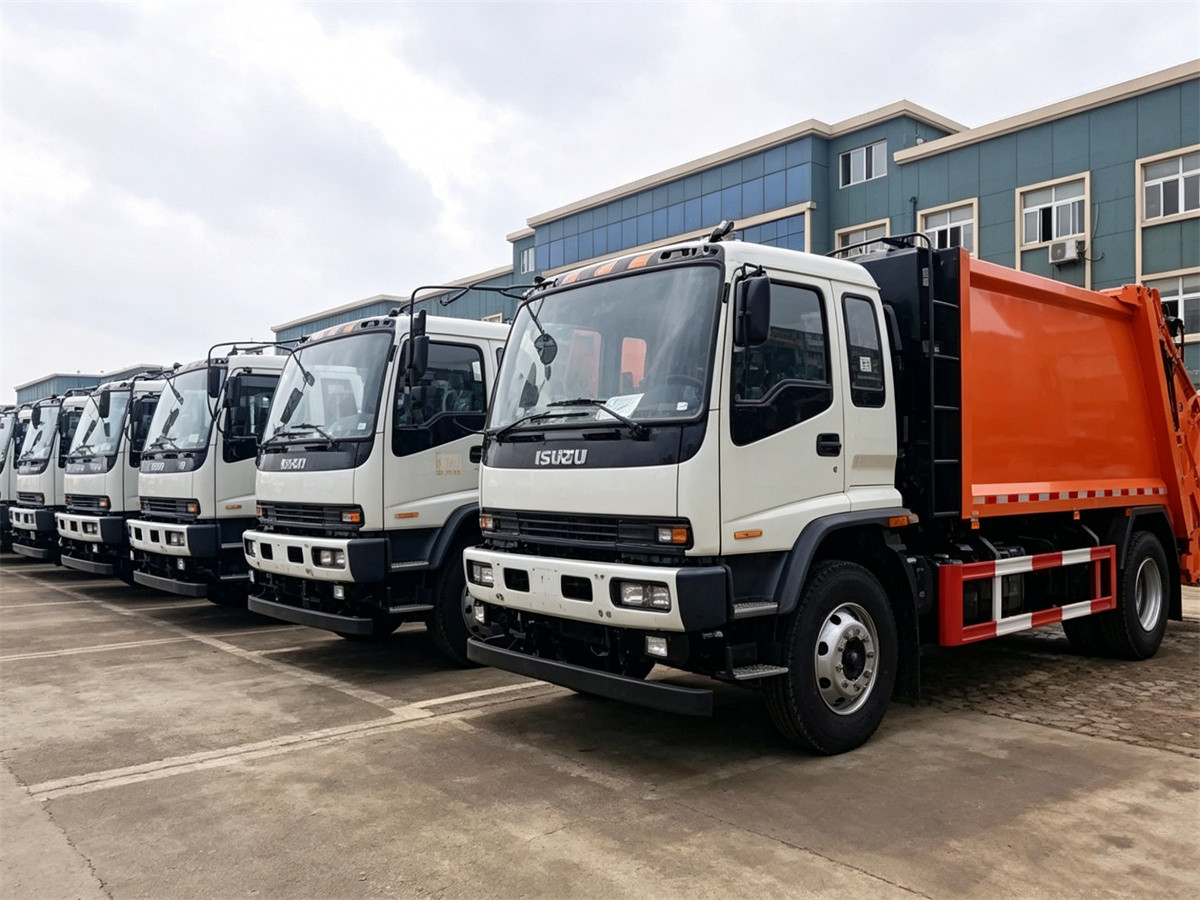

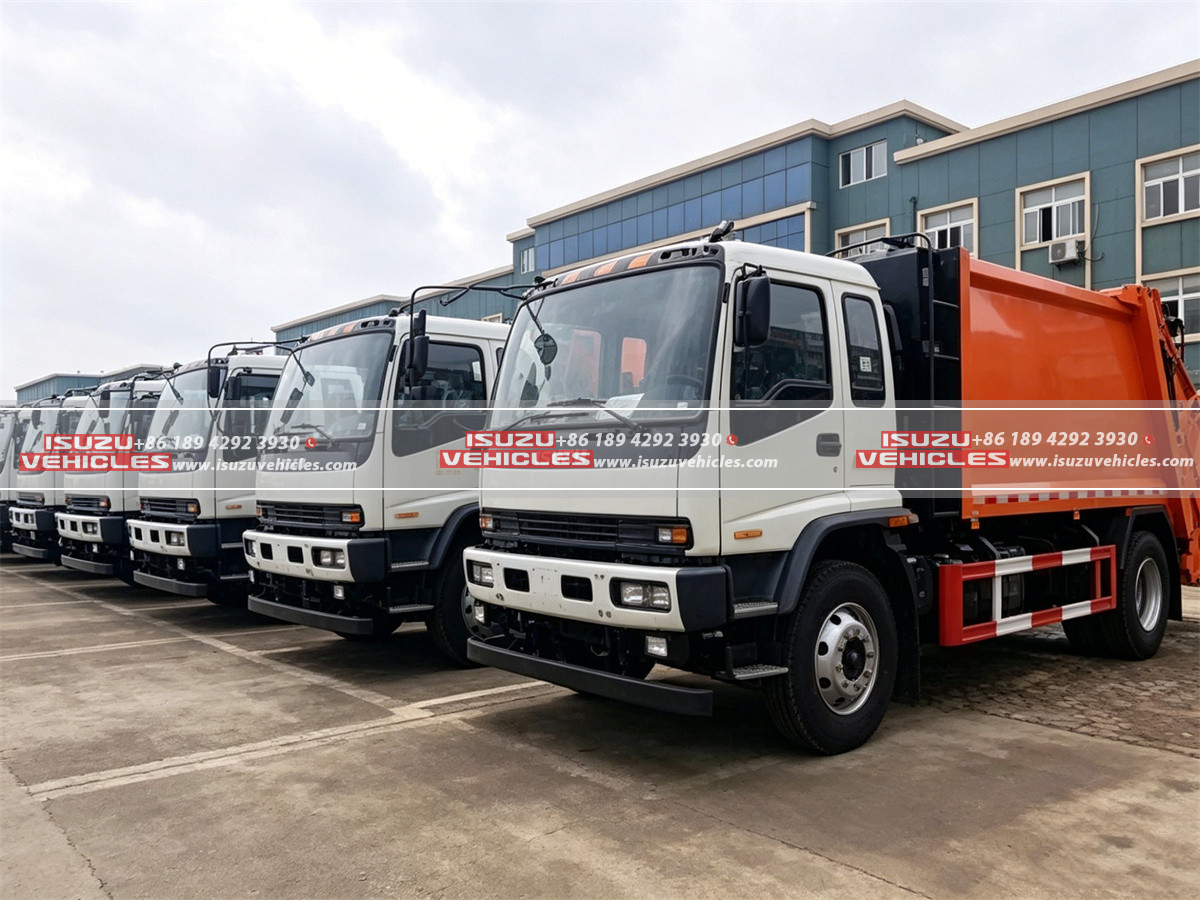

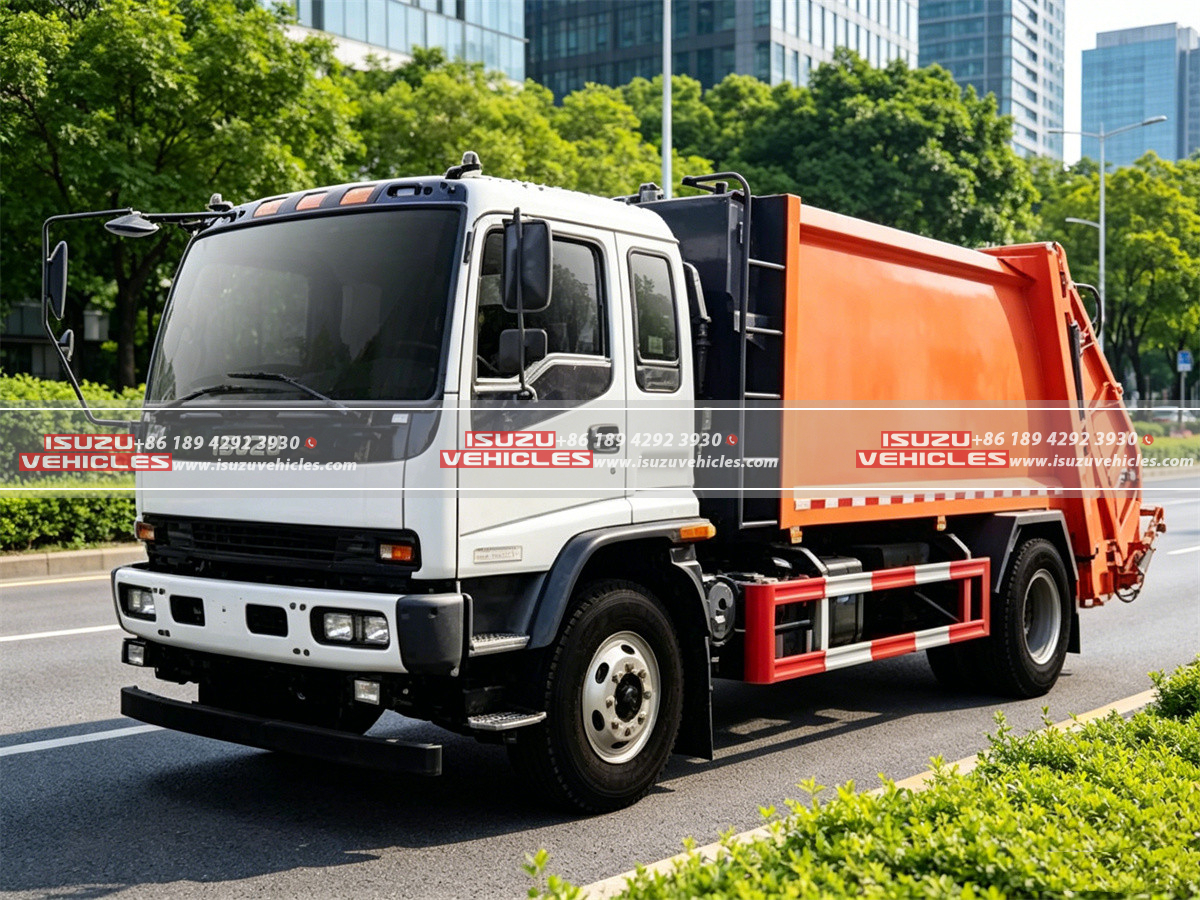

ISUZU FVR 6 CBM Waste Collection Truck
The ISUZU FVR 6 CBM Waste Collection Truck is a compact and highly efficient refuse management vehicle designed for municipal sanitation departments, residential communities, industrial parks, commercial districts, and environmental service contractors. Built on the reliable ISUZU QL1090 chassis, this truck combines dependable performance, advanced waste compression technology, and user-friendly operation, making it an excellent solution for daily garbage collection and transportation tasks.
Featuring a 6 CBM refuse compactor body, the vehicle is engineered to maximize waste loading efficiency while minimizing transportation frequency. Its advanced hydraulic compression system significantly increases waste density, allowing operators to collect and transport larger amounts of refuse in a single trip. The compact overall dimensions also enable the truck to operate efficiently in narrow urban streets, residential neighborhoods, and other restricted-access areas where larger refuse trucks may encounter difficulties.
Powered by the proven ISUZU 4KH1CN5LS diesel engine, the garbage truck delivers reliable fuel economy, stable power output, and long-term durability. Combined with a robust waste compaction mechanism and intelligent control system, this vehicle provides a practical and cost-effective solution for modern waste management operations.
Features
Reliable ISUZU Chassis and Efficient Powertrain
The truck is built on the durable ISUZU QL1090 4×2 chassis, providing excellent maneuverability and stability for urban waste collection applications. With a wheelbase of 3,360 mm, the vehicle maintains a balanced structure while offering convenient access to narrow streets and densely populated areas.
Under the cab, the truck is powered by the ISUZU 4KH1CN5LS Euro 5 diesel engine, delivering 98 horsepower from a 2.9-liter turbocharged and intercooled power unit. The engine utilizes advanced direct injection technology and water-cooling systems to ensure dependable performance, fuel efficiency, and reduced emissions.
The matching 5-speed manual transmission provides smooth gear shifting and reliable power delivery, helping operators maintain productivity during stop-and-go collection routes.

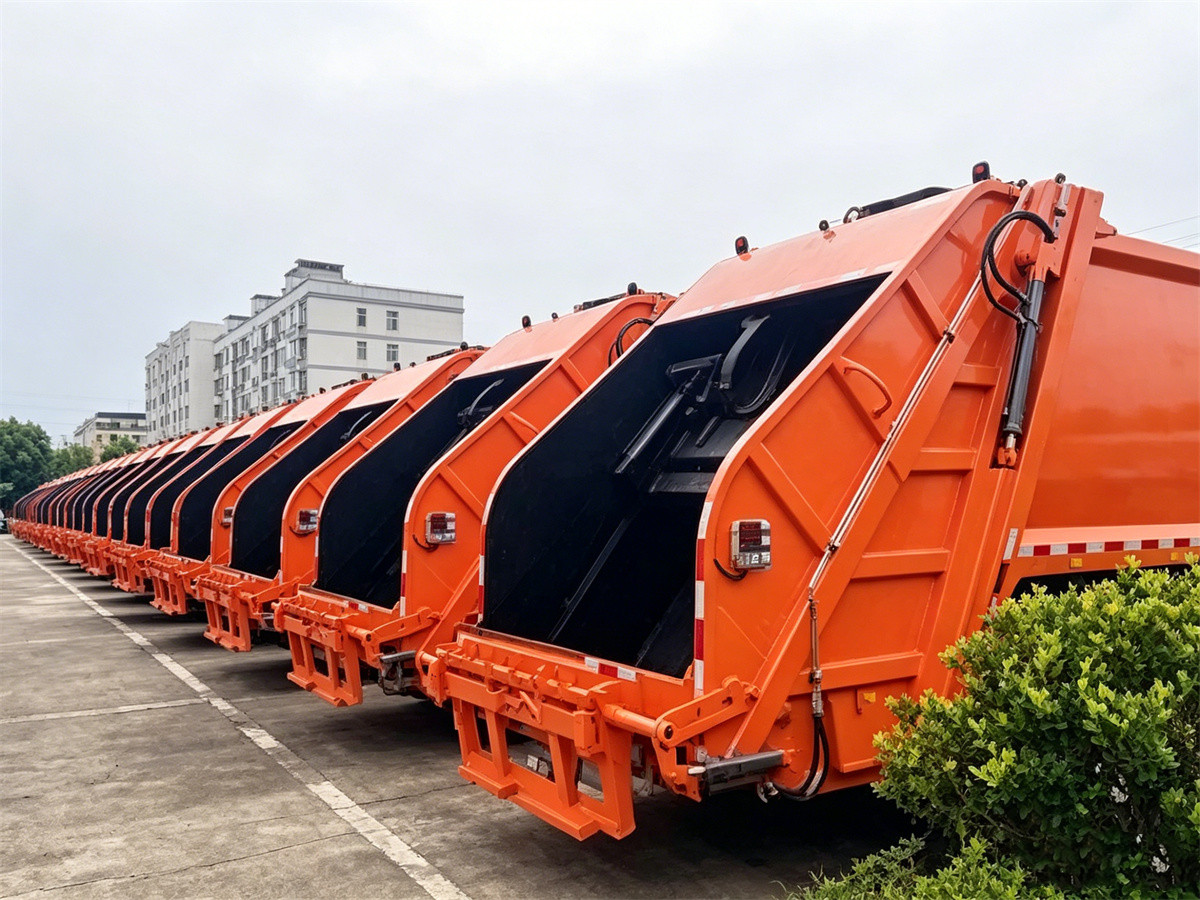

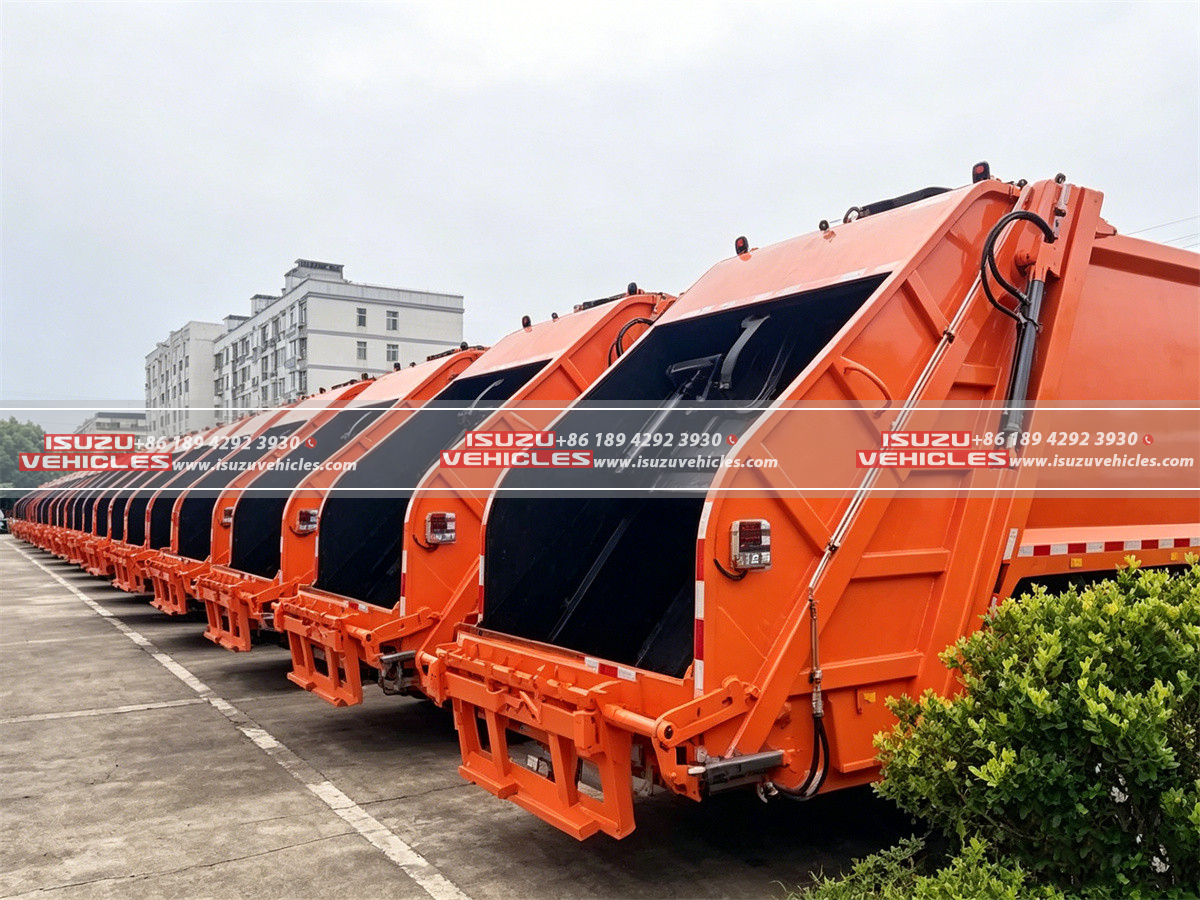

High-Efficiency 6 CBM Compactor Body
The truck features a 6 cubic meter refuse compactor body designed to improve waste collection efficiency while reducing transportation costs. The body adopts an aerodynamic arc-shaped structure, which enhances waste movement during compression and unloading operations.
Manufactured from high-strength T420 special steel, the garbage body offers excellent resistance to wear, corrosion, and impact, ensuring long service life under demanding operating conditions. Both the side panels and floor plates are constructed using 4 mm thick steel, providing additional structural strength and durability.
Powerful Waste Compression System
One of the key advantages of this vehicle is its advanced hydraulic compaction system, which delivers a compression ratio of 22.5:1. This high compression capability significantly increases loading efficiency by reducing the volume of collected waste, allowing operators to transport more refuse per trip.
The effective bucket volume reaches approximately 20.8 cubic meters after compression, helping municipalities and sanitation companies improve route productivity while lowering operational expenses.
The hydraulic system operates at a maximum pressure of 20 MPa, ensuring powerful and consistent compaction performance even when handling mixed municipal waste.
Fast Loading and Unloading Operations

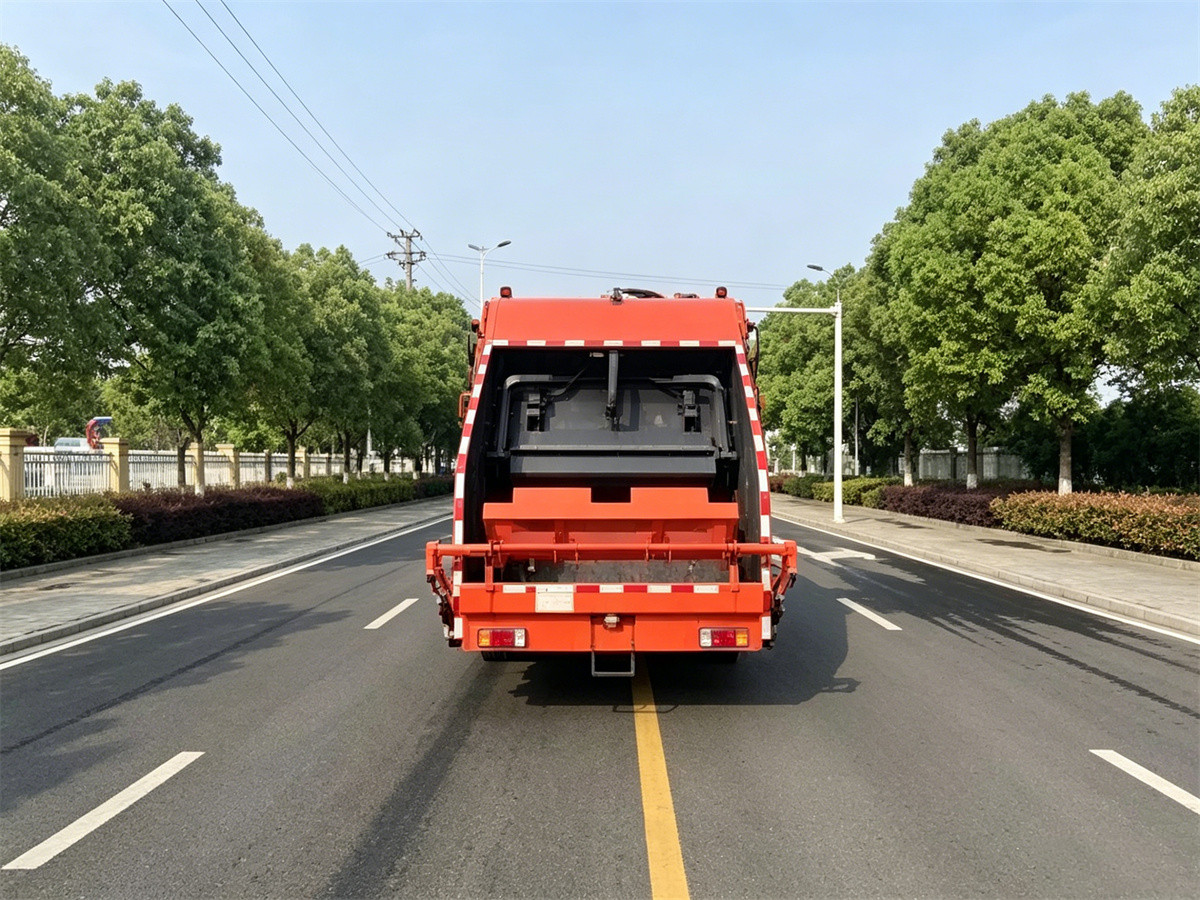

The truck is engineered to maximize daily collection efficiency through rapid loading and unloading cycles. The loading cycle can be completed in 40 seconds or less, while full unloading operations require only 55 seconds or less, helping reduce downtime and increase route capacity.
The rear loading mechanism is compatible with 240-liter standard garbage bins, with additional container options available to meet different customer requirements and waste collection systems.
Intelligent Control System
The vehicle is equipped with an advanced Siemens PLC control system, providing reliable and precise operation of all hydraulic and compaction functions. Operators can choose between automatic and manual control modes, allowing flexibility based on operational requirements and working conditions.
The fully automatic power management system intelligently coordinates engine speed and hydraulic performance, improving fuel efficiency while ensuring smooth and responsive operation during waste collection activities.
Enhanced Safety and Operational Reliability
Designed for intensive municipal service, the truck incorporates multiple safety and reliability features that help ensure long-term performance. The durable hydraulic components, reinforced compactor structure, and intelligent control technology work together to minimize maintenance requirements and maximize uptime.
With a gross vehicle weight of 7,300 kg, front axle capacity of 3,000 kg, rear axle capacity of 4,500 kg, and a maximum road speed of 105 km/h, the vehicle provides stable driving performance and dependable transportation capability across urban and suburban collection routes.
Ideal for Modern Municipal Waste Management
The ISUZU FVR 6 CBM Waste Collection Truck is perfectly suited for residential garbage collection, municipal sanitation services, commercial waste transportation, industrial facility cleaning operations, and environmental management projects. Its combination of compact dimensions, efficient waste compression, intelligent controls, and reliable ISUZU engineering makes it a valuable asset for organizations seeking dependable and productive refuse collection equipment.
Specification
| ISUZU FVR 6 CBM Waste Collection Truck Technical Specifications | |
| Item | Specification |
| General & Chassis Specifications | |
| Product Name | ISUZU FVR 6 CBM Waste Collection Truck |
| Model No. | CSCRCT006 |
| Chassis No. | QL1090 |
| Driving Type | 4×2 |
| Gross Vehicle Weight | 7,300 kg |
| Rated Loading Mass | 4,000 kg |
| Curb Weight | 4,000 kg |
| Overall Dimensions (L×W×H) | 6,400 × 2,150 × 2,650 mm |
| Wheelbase | 3,360 mm |
| Front Axle Loading Capacity | 3,000 kg |
| Rear Axle Loading Capacity | 4,500 kg |
| Approach Angle | 20° |
| Departure Angle | 13° |
| Front Suspension Length | 1,130 mm |
| Rear Suspension Length | 2,140 mm |
| Maximum Speed | 105 km/h |
| Engine Parameters | |
| Engine Parameters | |
| Engine Model | 4KH1CN5LS |
| Horse Power | 98 hp |
| Displacement | 2,900 cc |
| Emission Standard | Euro 5 |
| Engine Type | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbocharging, and inter-cooling |
| Gear Box & Clutch | |
| Transmission Model | MLD-6Q |
| Transmission Brand | ISUZU |
| Transmission Type | Manual |
| Number of Forward Speeds | 5 |
| Number of Reverse Speeds | 1 |
| Clutch Type | Dry Single Plate with cushioning Spring, Hydraulic control with Air Assisted |
| Cabin & Steering System | |
| Cab Model | ELF 700P short roof |
| Cab Style | Crew cab |
| Passenger Capacity | 6 persons |
| Seats Configuration | Driver seat and double co-driver seats |
| Steering Type | Recirculating Ball with Power Assisted, Left hand drive |
| Chassis, Suspension & Axles | |
| Chassis Type | |
| Chassis Width | 840 mm |
| Chassis Sectional Modular | 216×70×6+3mm |
| Front Suspension | Semi-elliptical, Alloy Steel Leaf Spring, Double Acting Telescopic shock Absorber, Anti-roll Bar, 8pcs |
| Front Axle Type | 4T Reverse Elliot “I” Beam |
| Front Axle Rating | 3350 kg |
| Rear Suspension | Semi-elliptical, Alloy Steel Leaf spring 10+6pcs |
| Rear Axle Type | 7T Banjo, Full Floating Type |
| Rear Axle Rating | 6625 kg |
| Rear Axle Ratio | 4.1 |
| Wheels & Brake System | |
| Tire Size | 7.00R16 |
| Tire Quantity | 6+1 spare tire |
| Service Brake | Front & Rear Drum, Air Over Hydraulic, Brake Auto Adjuster |
| Anti-lock Brake System (ABS) | Optional |
| Parking Brake | Spring Brake Actuators Acting on Rear wheels |
| Auxiliary Brake | Exhaust Brake, Hill-start-Aid (HSA) |
| Superstructure Parameters | |
| Tank Volume | 6 CBM |
| Tank Shape | Arc-shape |
| Tank Material Thickness | Bottom: 4mm, Side: 4mm |
| Garbage Tank Material | T420 (Special steel) |
| Compression Ratio | 22.5 |
| Effective Volume of the Bucket | 20.8m³ |
| Loading Cycle Time | ≤40s |
| Unload Garbage Time | ≤55s |
| Control Method | Automatic, Manual |
| Maximum Pressure of Hydraulic System | 20MPa |
| Control System | Siemens PLC |
| Engine Power Control | Fully automatic control |
| Compatible Garbage Bin | 240L Garbage bin (others Optional) |
