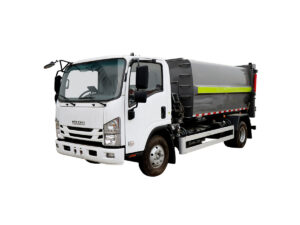

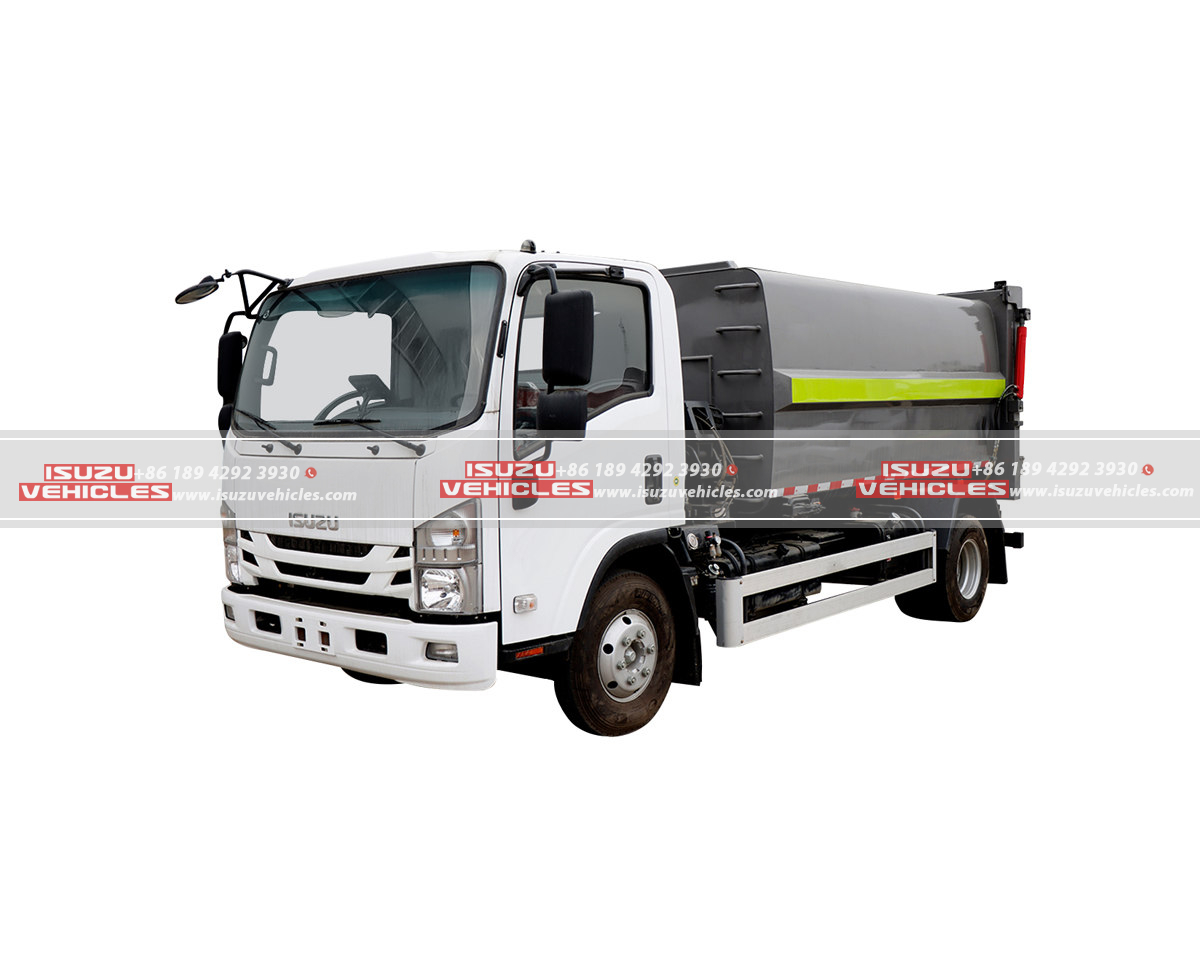

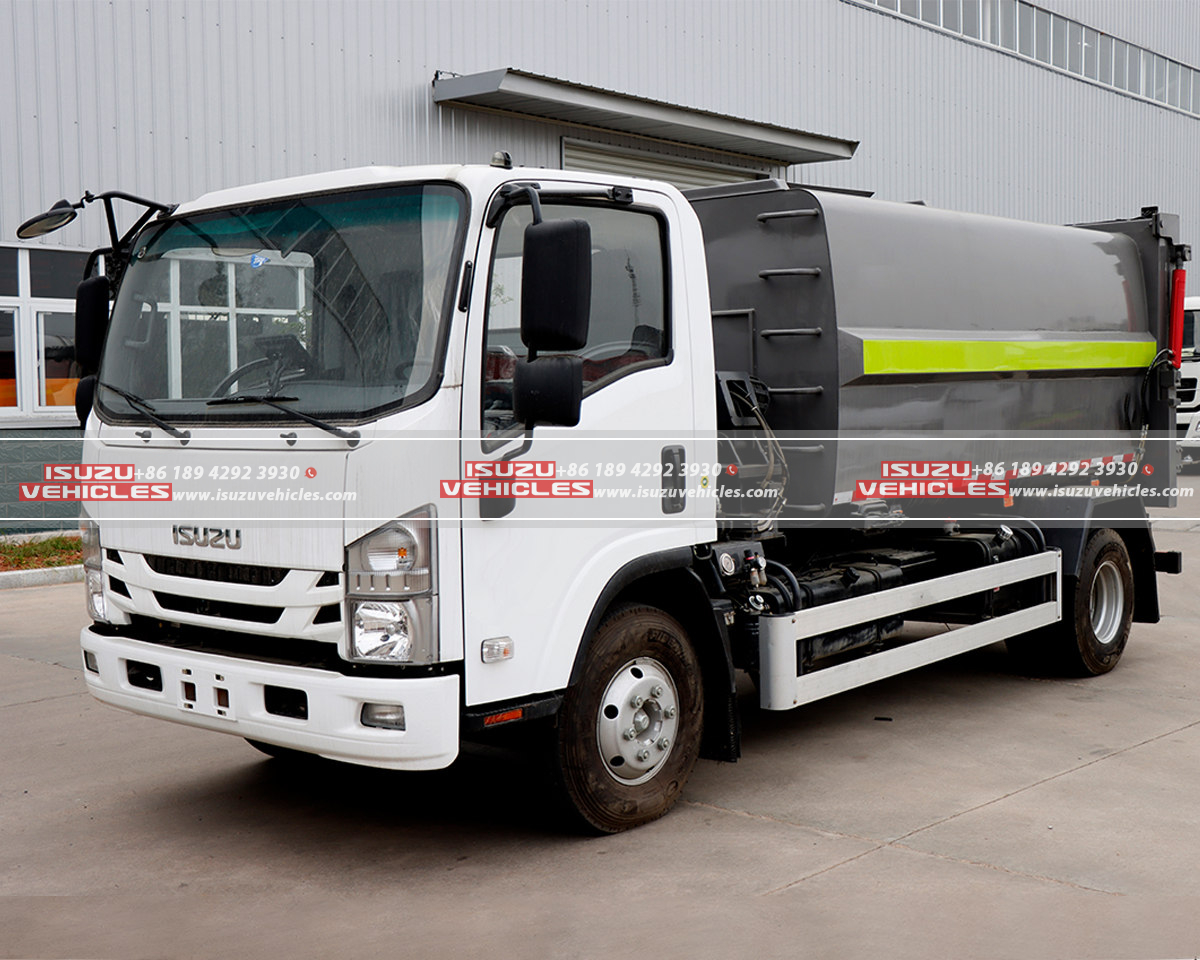

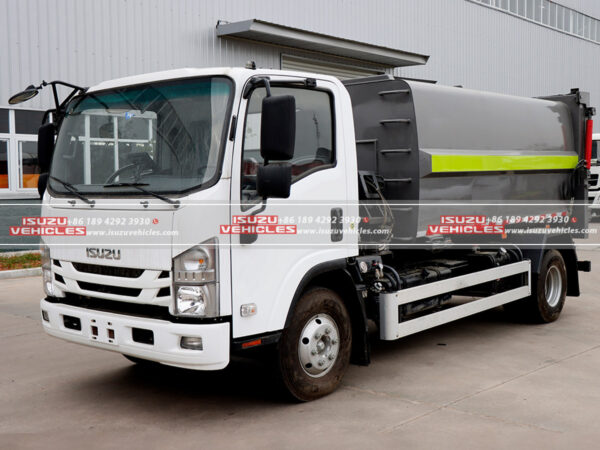

ISUZU Rufuse Side Loader Garbage Truck
Compact Urban Efficiency

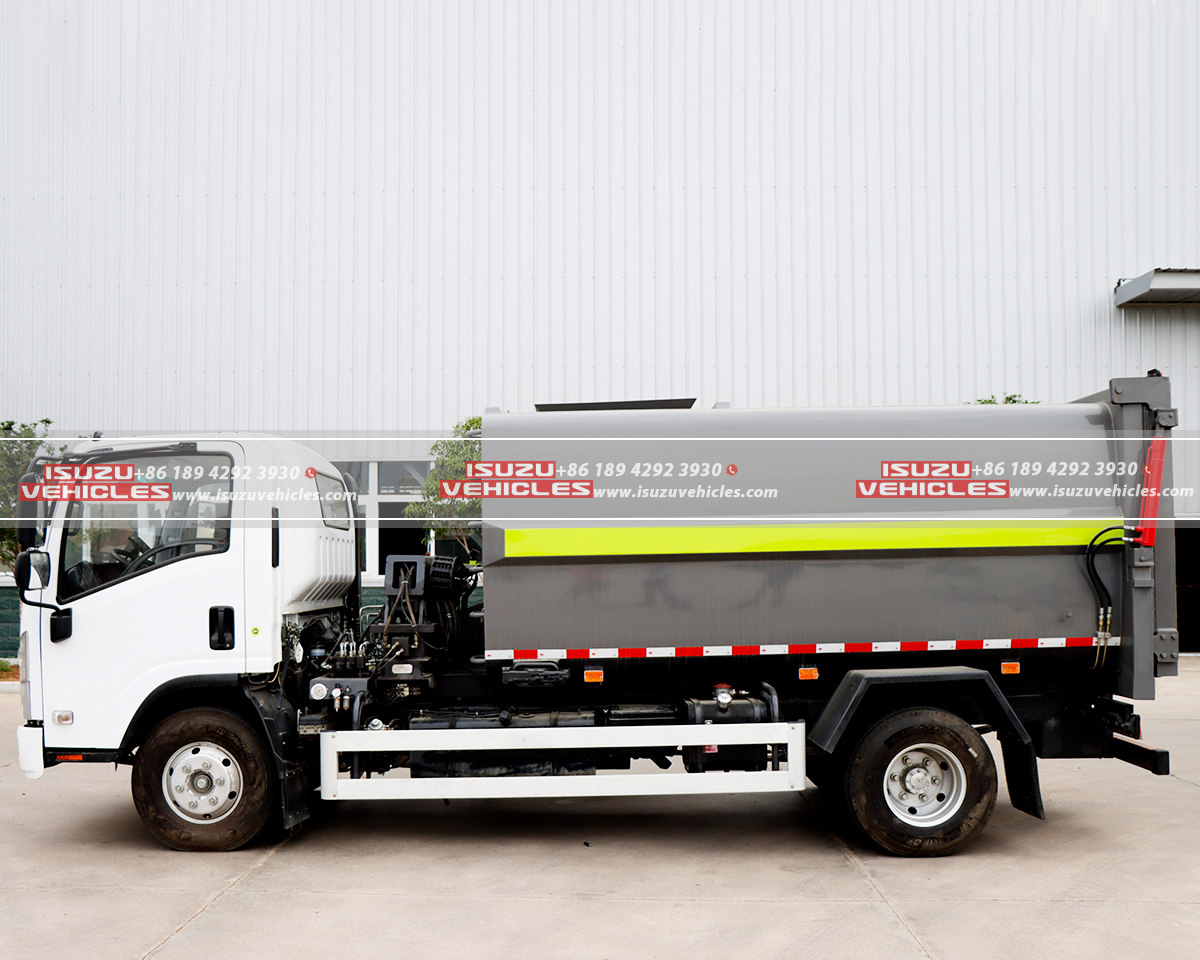

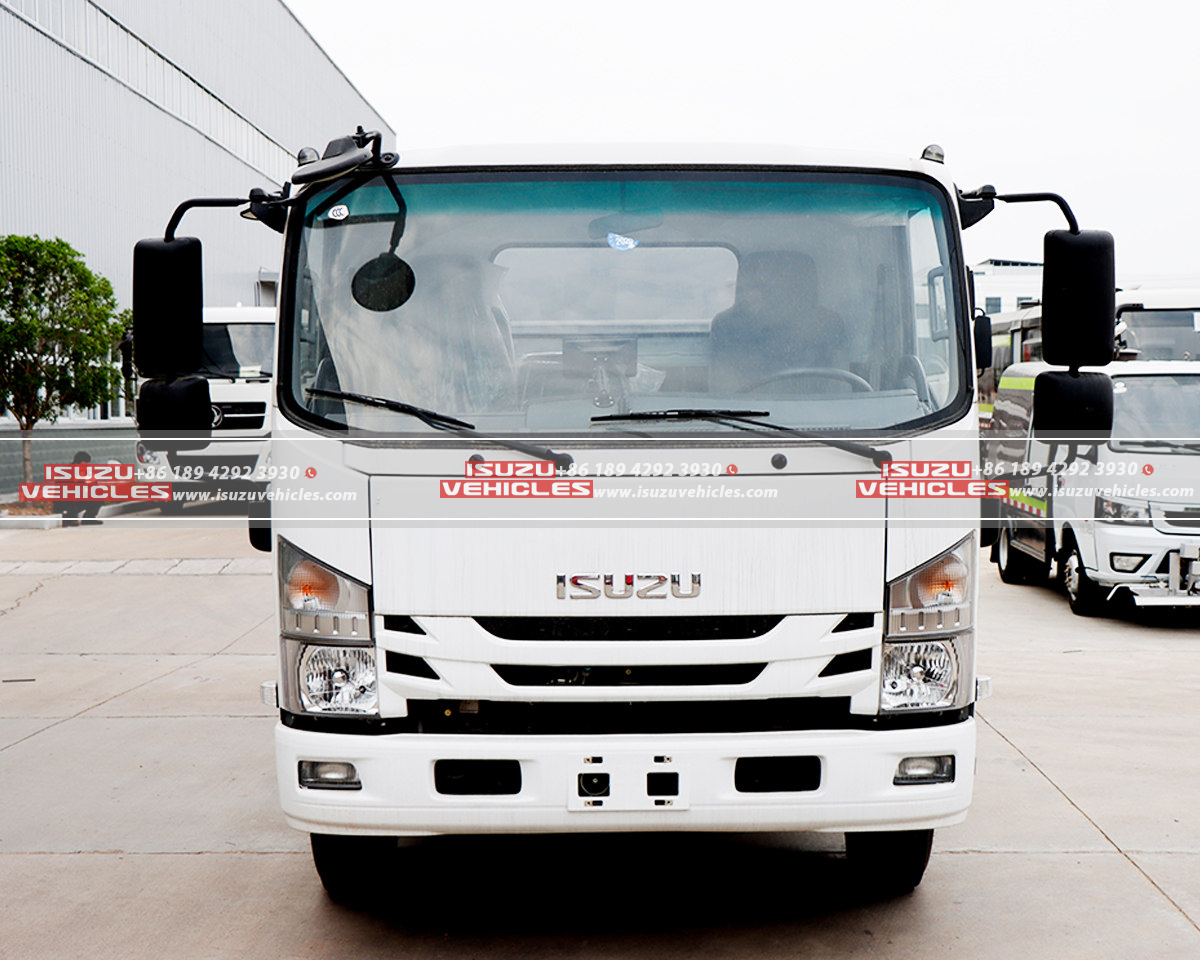

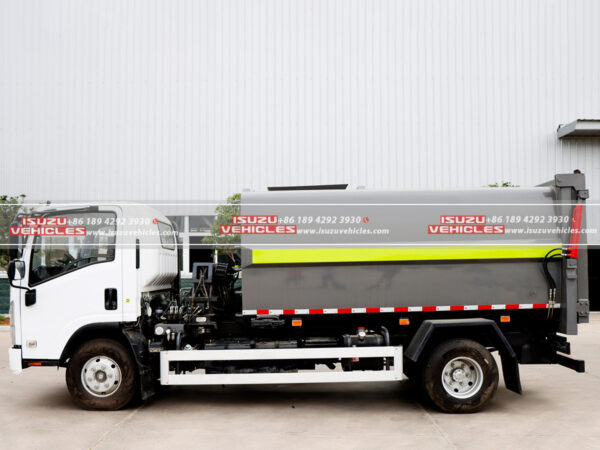

Designed on the ISUZU KV100 chassis, this 4×2 left-hand drive ISUZU Rufuse Side Loader Garbage Truck delivers agile performance with overall dimensions of 5,995×2,260×2,650mm and a 3,815mm wheelbase, ideal for navigating congested urban routes. The 8,280kg gross vehicle weight and 4,600kg curb weight optimize payload capacity while maintaining maneuverability. Equipped with 7.50R16 tires (4+2+1 spare) and a hydraulic power steering cabin (seating 1 driver + 2 passengers), this ISUZU garbage truck ensures responsive handling during waste collection cycles.
Euro 5-Compliant Performance
Powered by the ISUZU 4KH1CN6HB engine (4-cylinder intercooled turbocharged), it generates 132HP @ 2,900rpm and 290N·m torque @ 1,500rpm, tailored for low-speed, high-torque waste hauling. The ISUZU/MSB manual transmission (5F+1R) provides reliable power distribution across frequent stops and starts.
Features
Robust Construction & Waste Compression

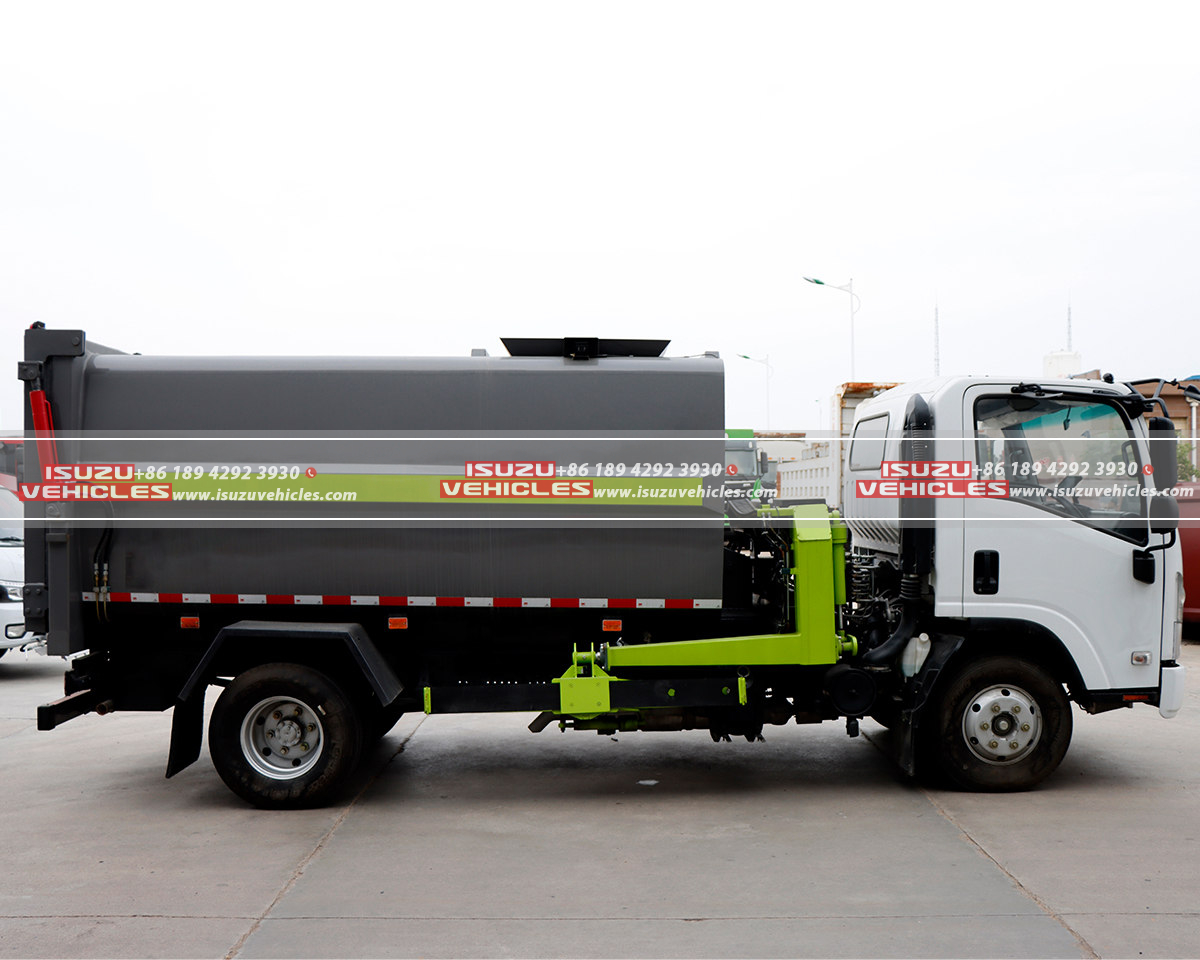

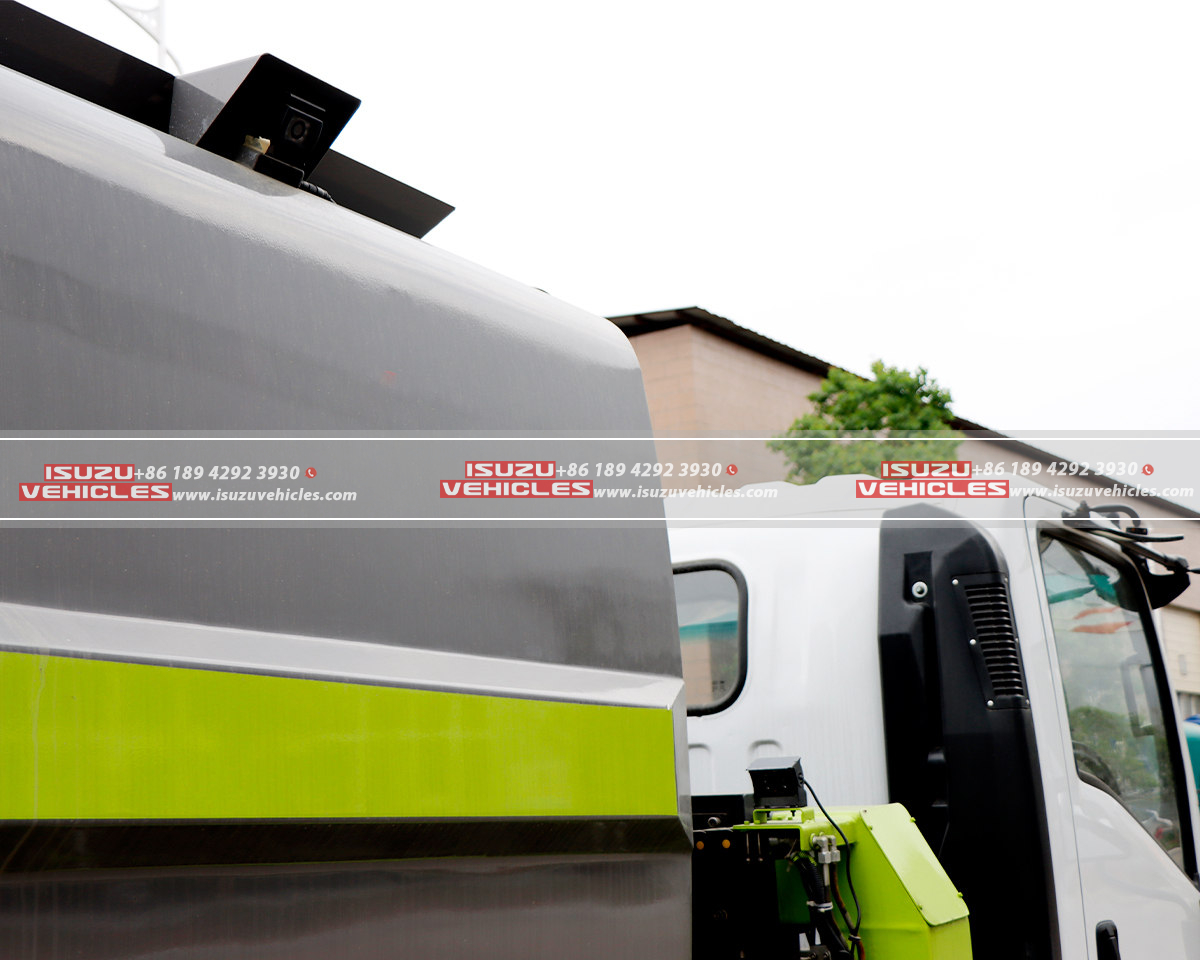

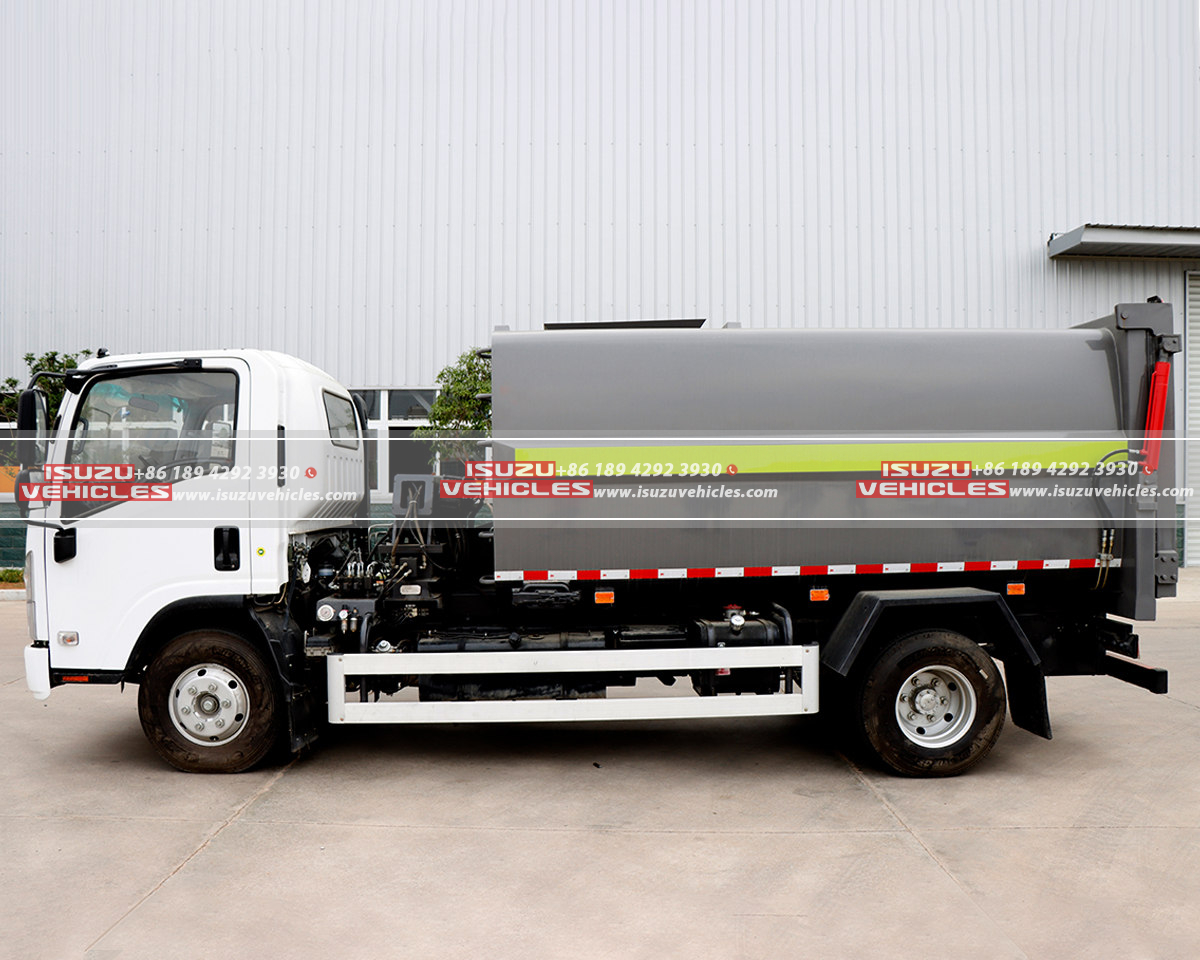

The 6m³ cargo body utilizes Q345B corrosion-resistant steel (5mm floor, 4mm sides/roof) for longevity. A 4mm high-tensile steel push plate enables 3:1 waste compression, integrating a scraper system for efficient unloading. The sludge tank beneath the hopper features a leakproof discharge outlet, preventing environmental contamination.

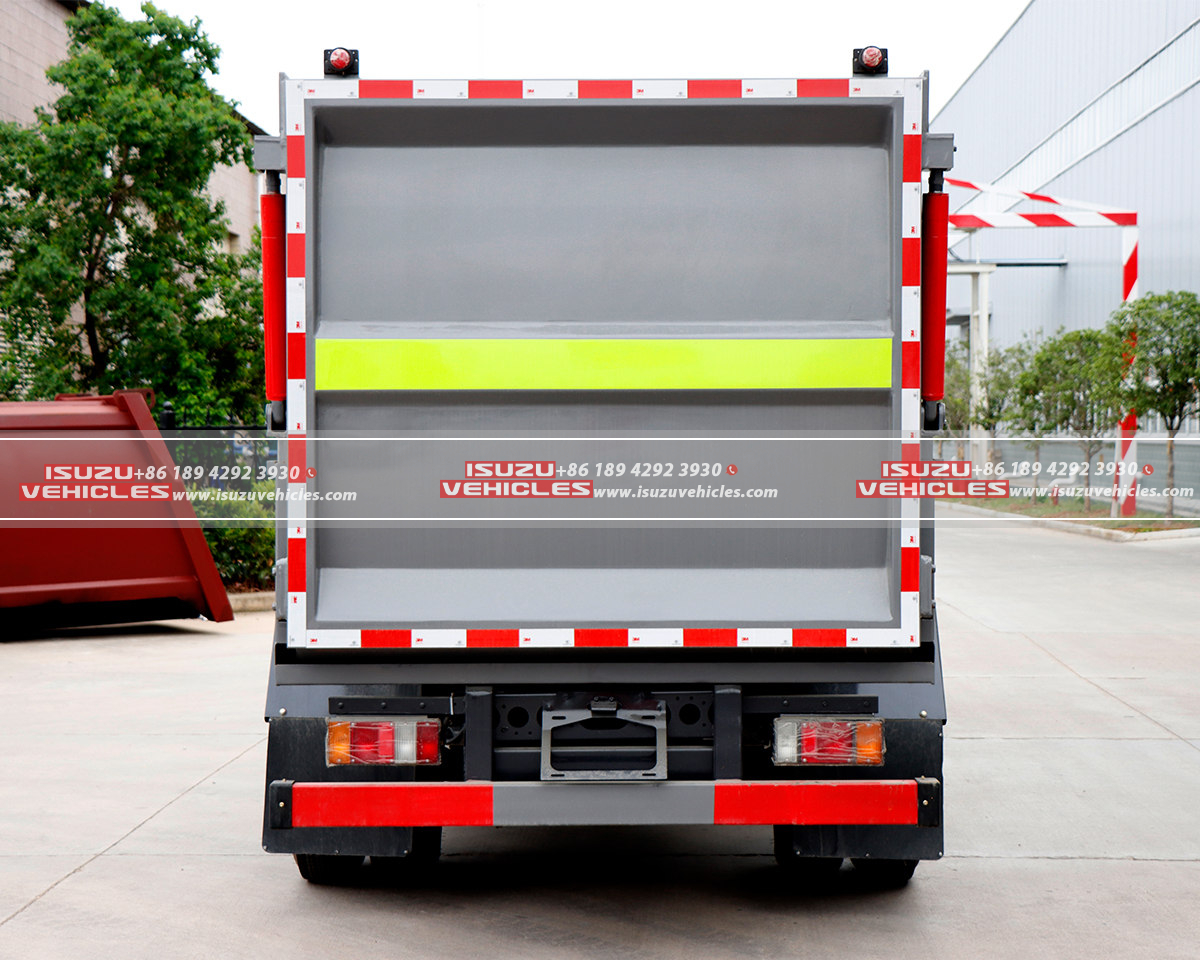

Leak-Proof Safety Assurance

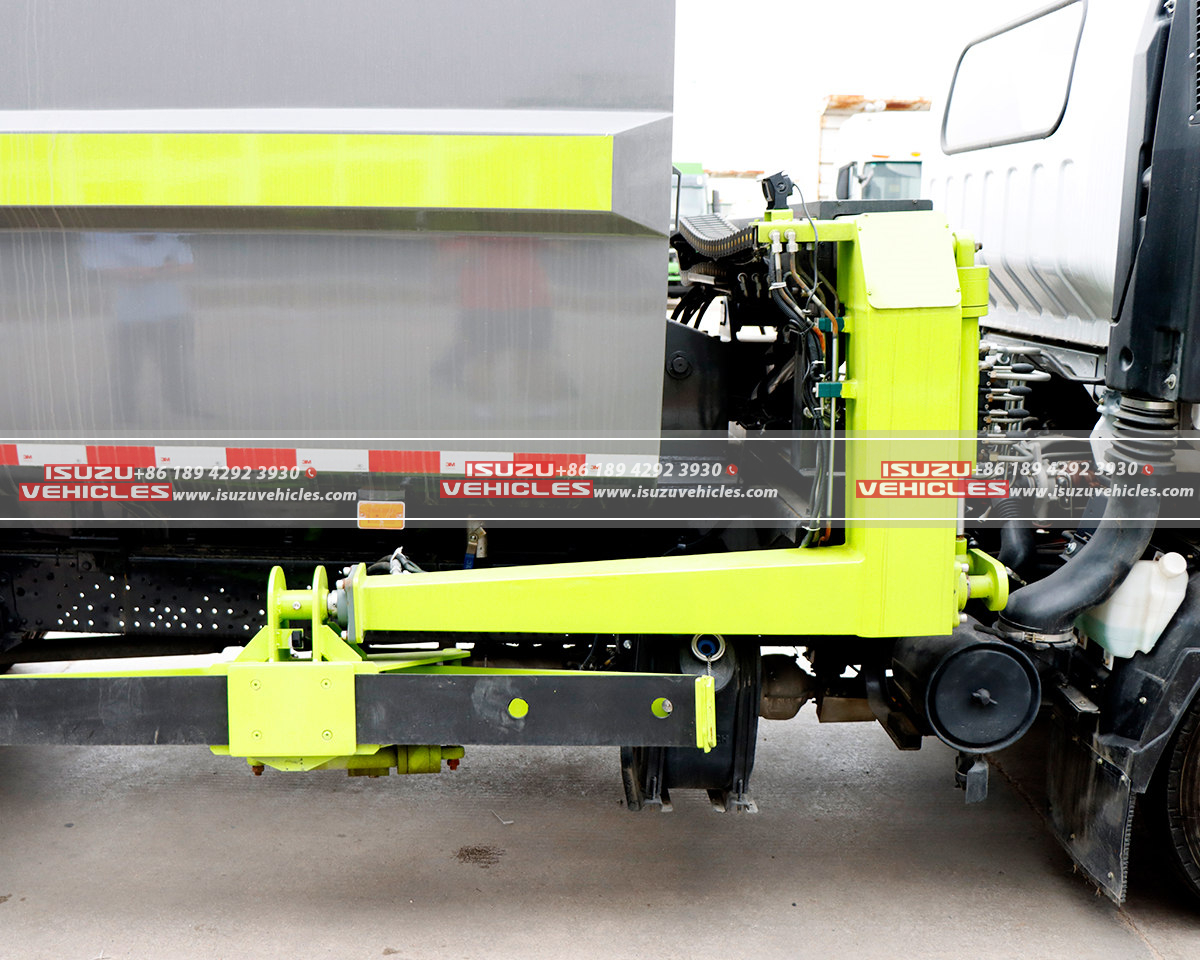

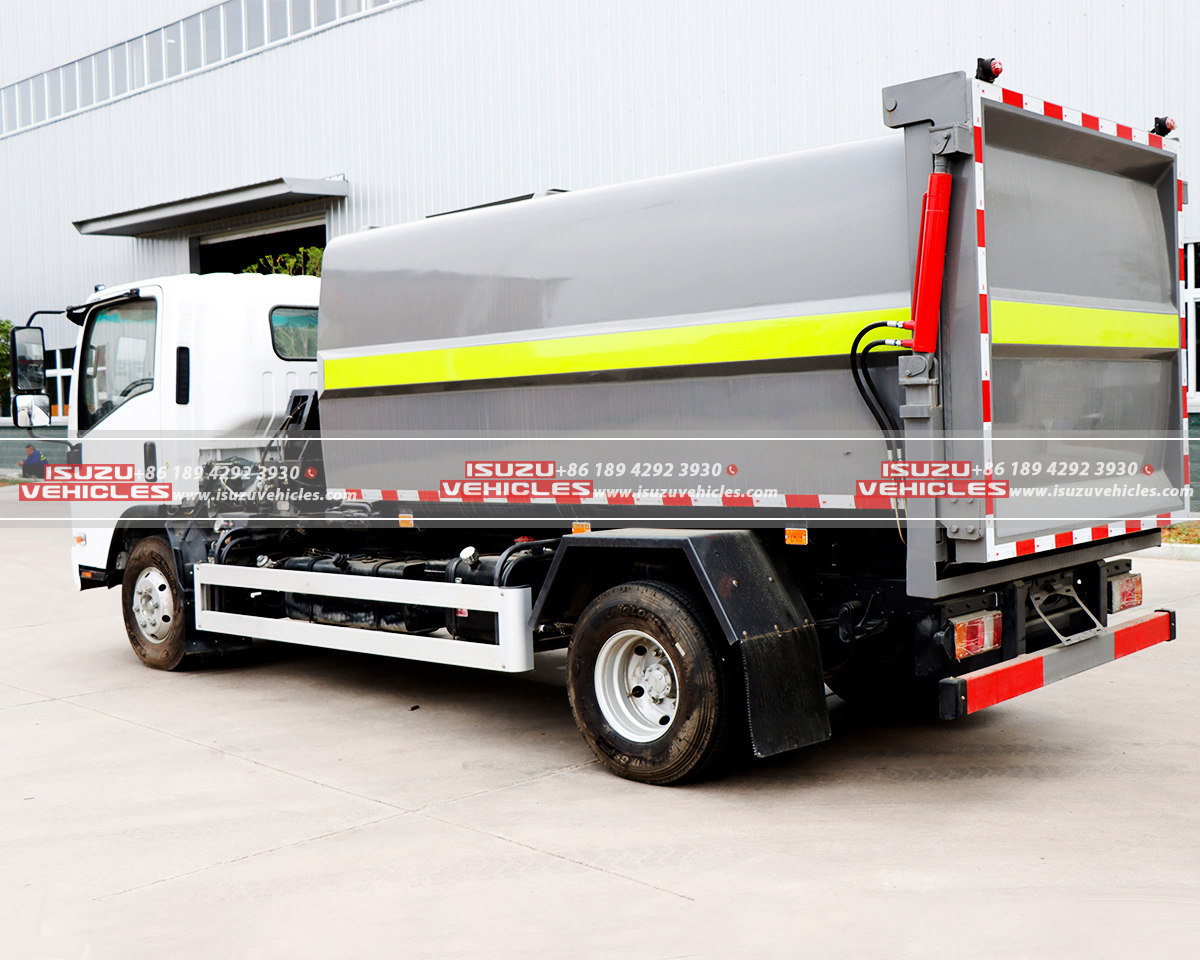

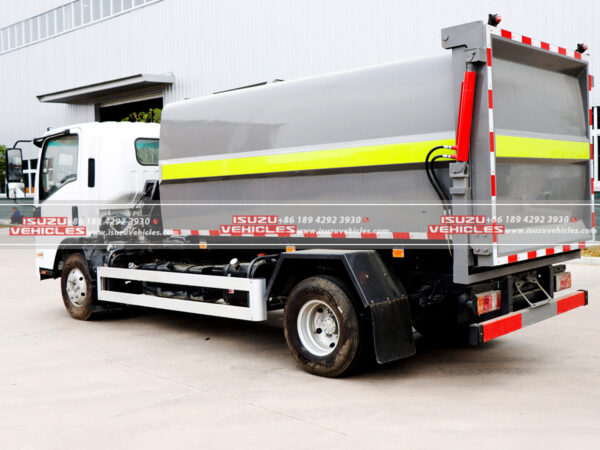

Hydraulic rear-door locks and reinforced rubber seals eliminate secondary pollution risks. The side-loading mechanism employs chain/pull-rod hydraulic lifters (operated via manual push-button controls) to handle 120L/240L standard bins, with high-strength steel arms ensuring durability under repetitive use.

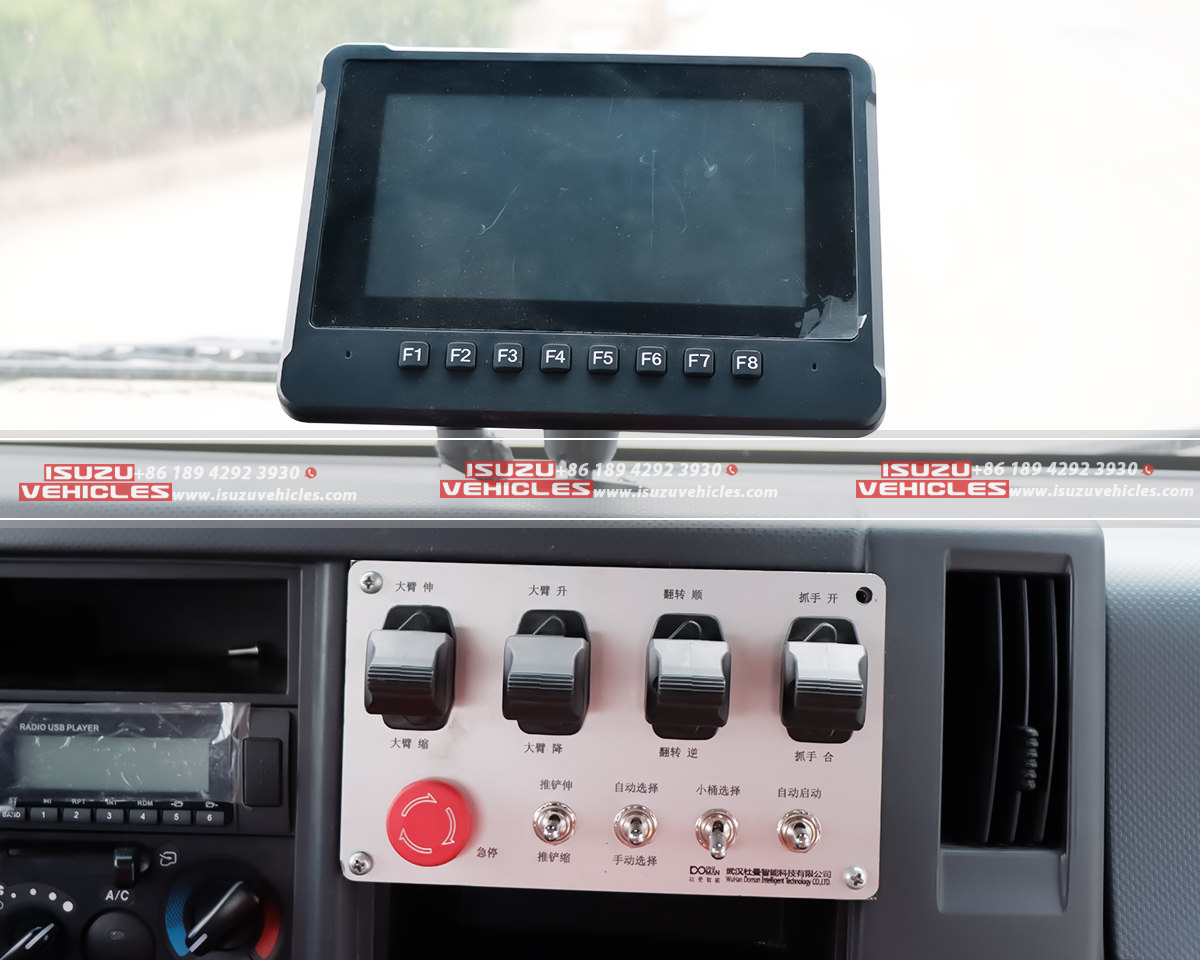

Operator-Focused Controls
The dual hydraulic cylinders enable smooth bin lifting/dumping, while the manual control panel prioritizes intuitive operation. Optional upgrades include stainless steel components and customizable container configurations for diverse waste streams.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SL06QL132L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,995×2,260×2,650 (mm) |
| Gross Vehicle Weight | 8,280kg |
| Curb Weight | 4,600kg |
| Wheelbase | 3,815mm |
| Chassis Designed | ISUZU KV100 |

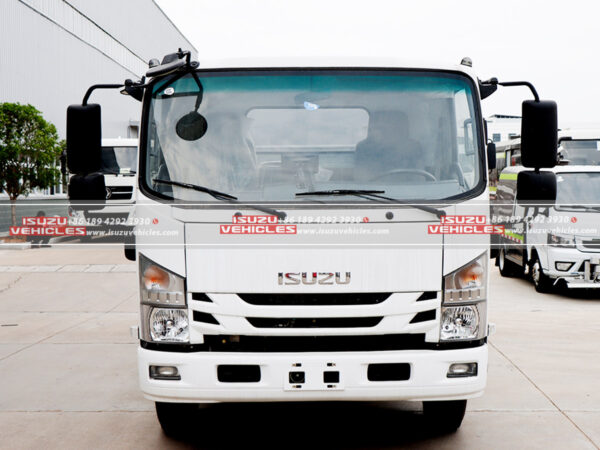

| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 7.50R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN6HB |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 132HP (97kw) @ 2900rpm |
| Peak Torque | 290N.m@1,500rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| Upper Body | |

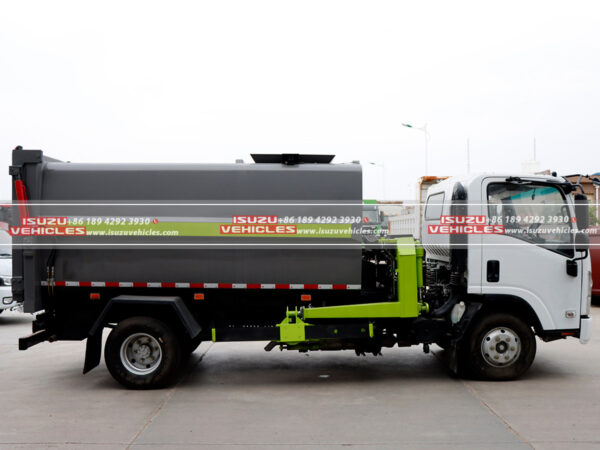

| Capacity | 6m3 |

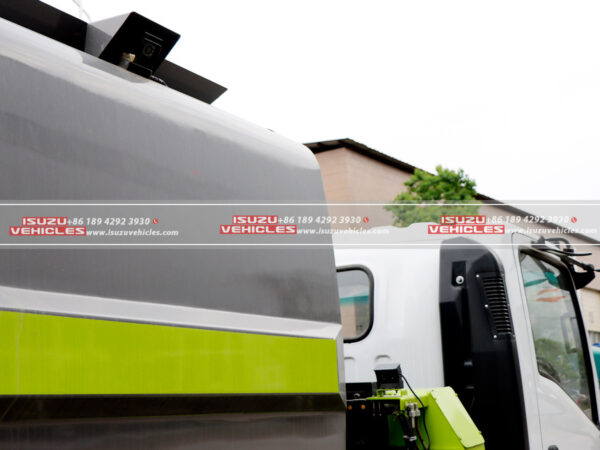

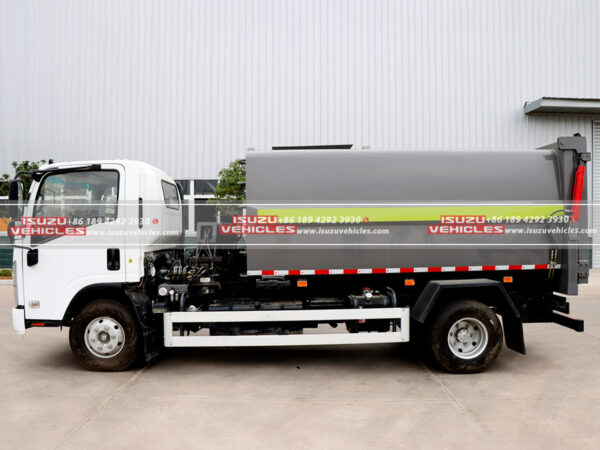

| Garbage Container | High corrosion resistance Q345B steel 5mm thickness of body floor, 4mm thickness of side and roof. |
| Pusher and Scraper | High tensile steel sheet 4 mm thickness
The push plate with its compressible function, not only realizes the compression and volume reduction of the garbage but also pushes and unloads garbage |
| Sludge Tank | Sewage water relief of sludge tank of capacity under garbage tank and tailgate with leakproof discharging outlet. |

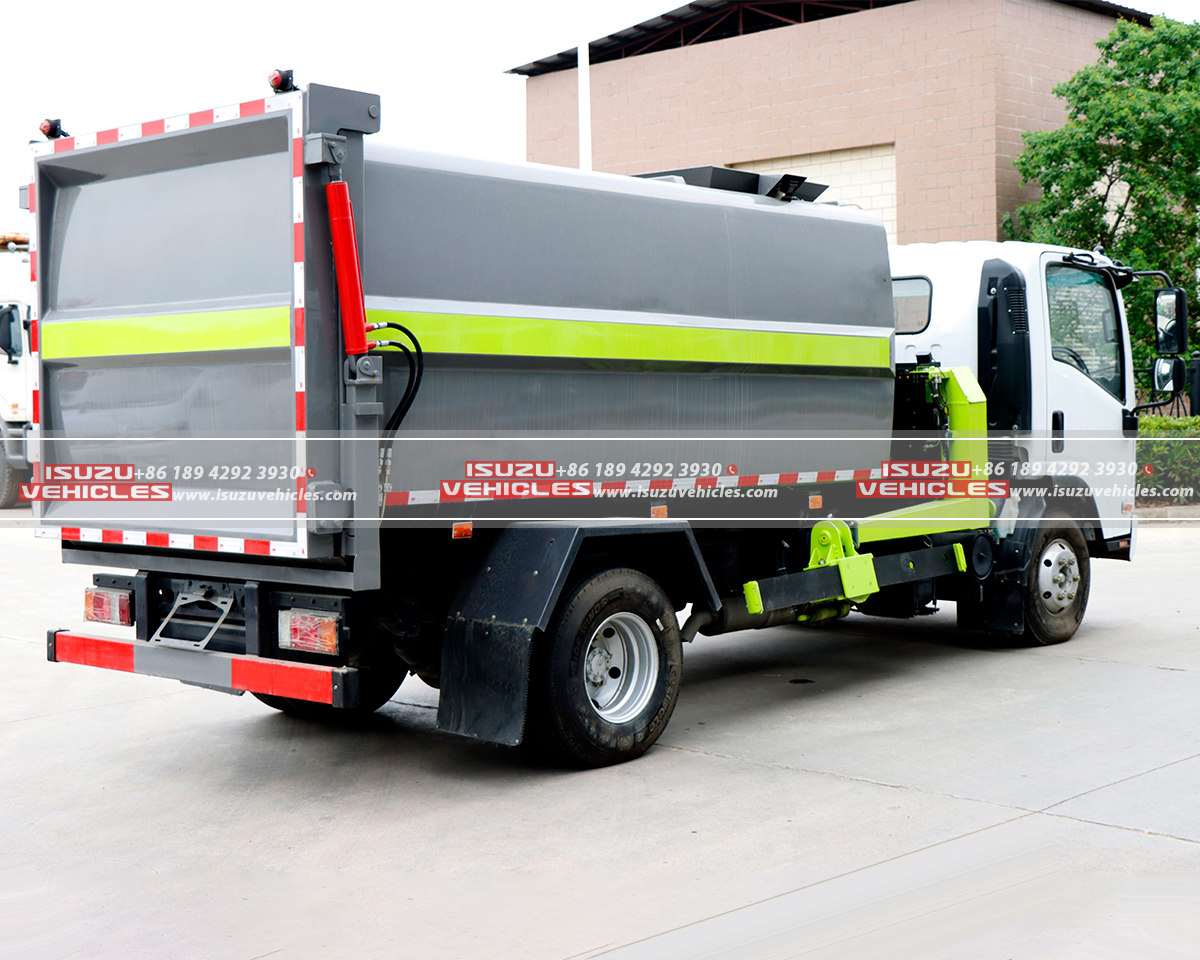

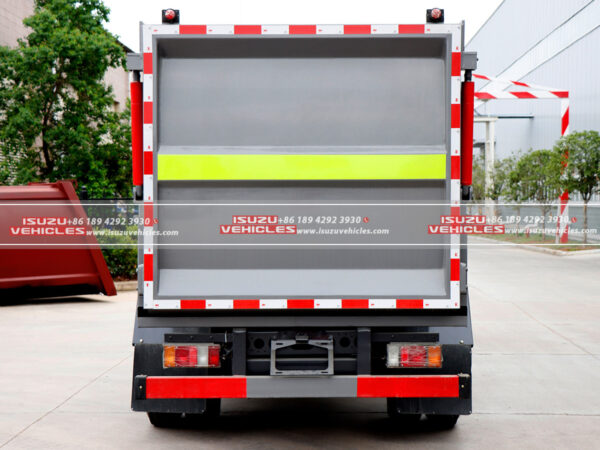

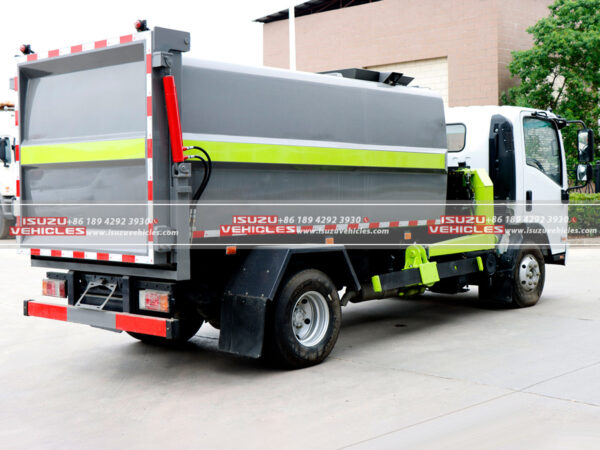

| Leakage Proof Design | Hydraulic locking is adopted between the rear door and the box body, and a specially reinforced rubber strip is used to seal between the garbage bin and the rear door assembly, which has good sealing performance and prevents secondary pollution |
| Containers Lifting Devices | |

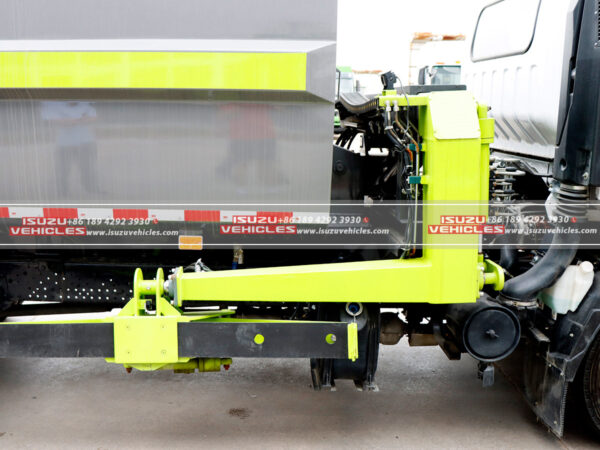

| Type | Side loading with a bin lifting device of chain type or pull rod type works in two hydraulic cylinders on the top of the tank to ensure the lifting and lowering of |
| Lifting Device | Suitable to lift standard 120L/240L plastic containers. (All lifting device arms and parts are made of High Strength Steel). |

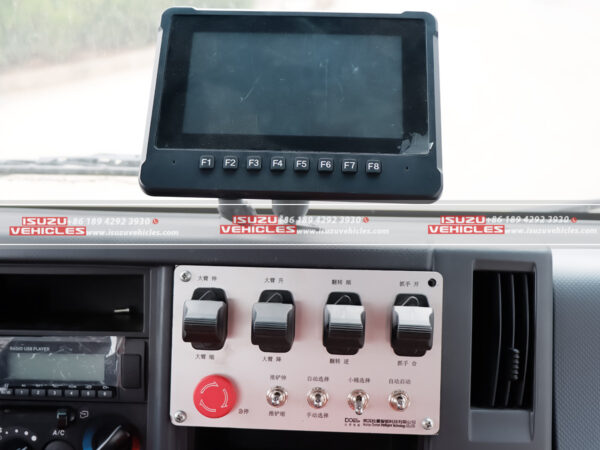

| Control System | The system is manual and pushes button control for box lifting and lifting device operations. |
