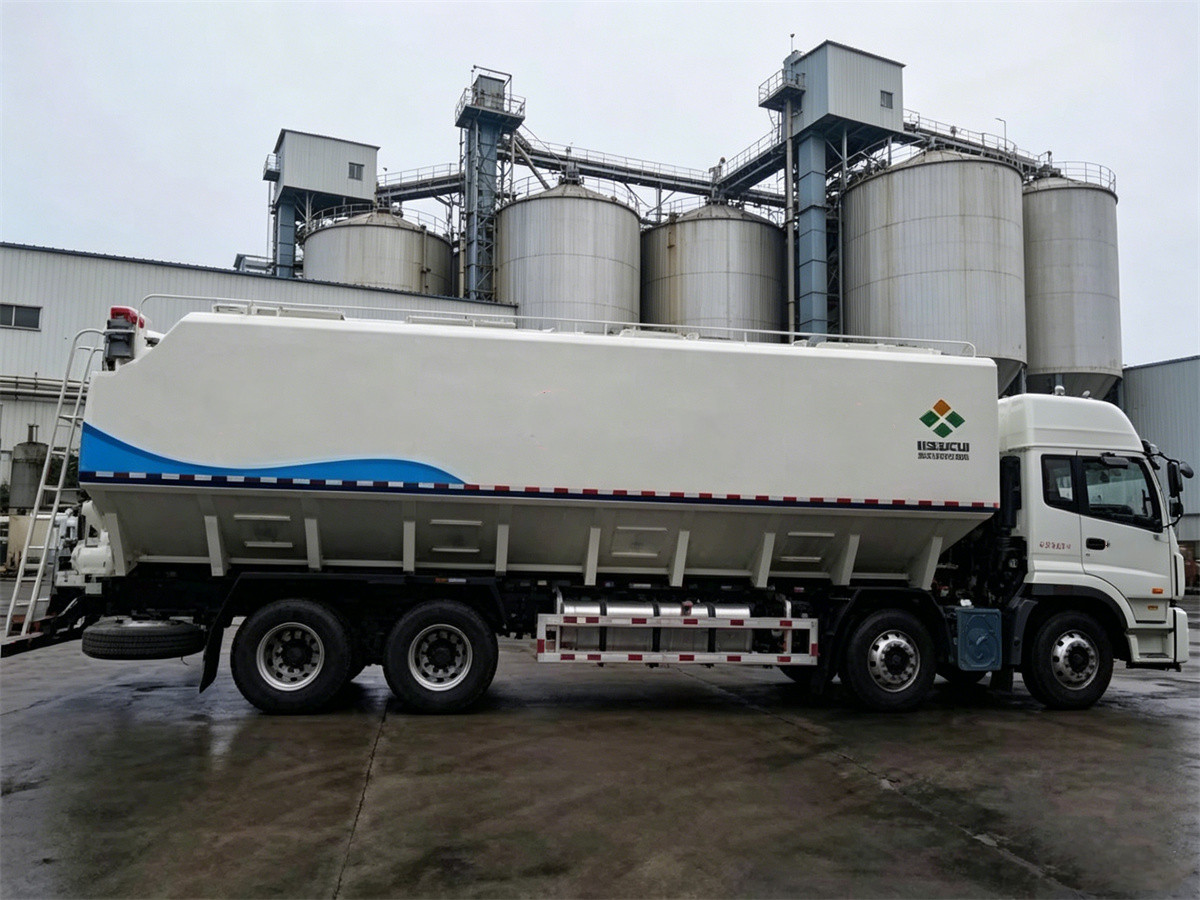

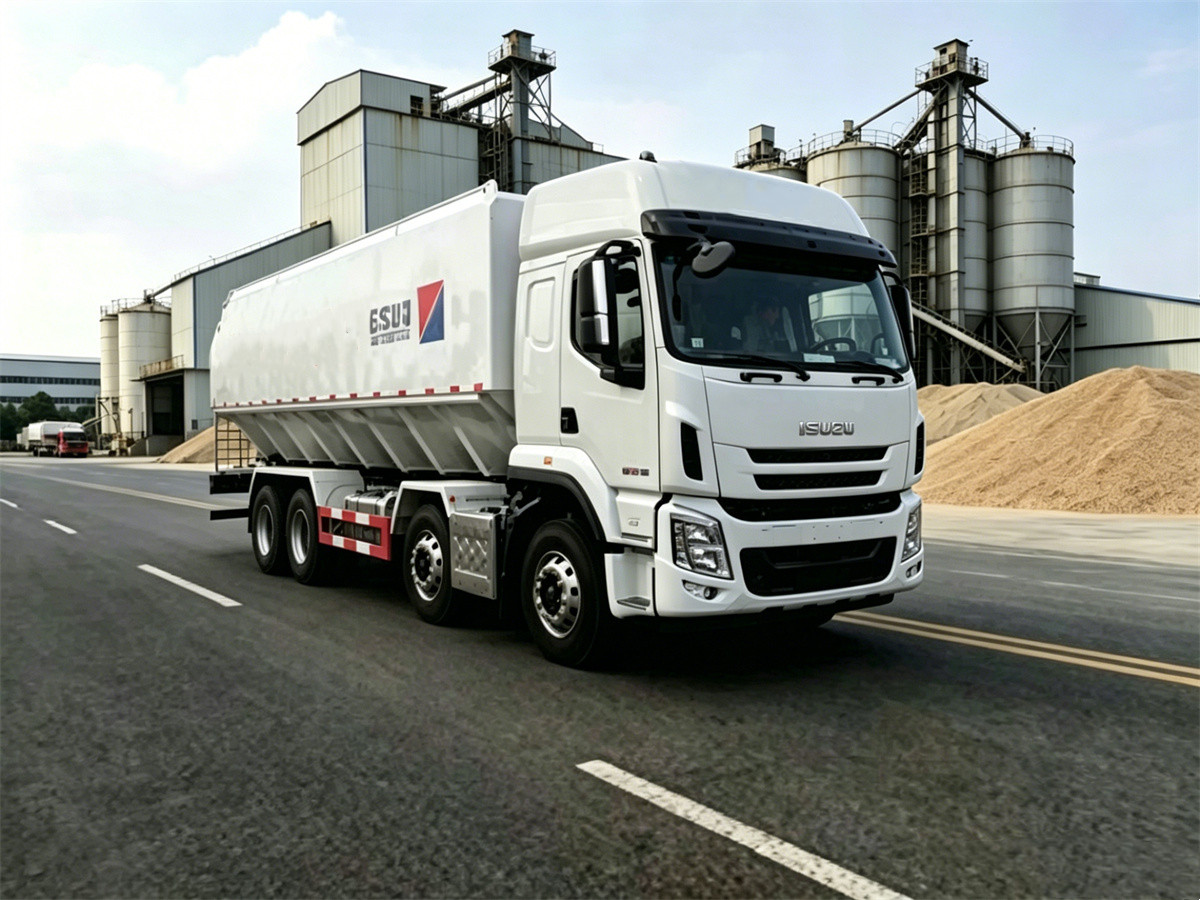

ISUZU 44 CBM Bulk Feed Truck
The ISUZU 44 CBM Bulk Feed Truck is a high-capacity feed transportation vehicle specifically engineered for large-scale livestock farms, poultry production facilities, feed manufacturers, and agricultural distribution companies. Built on a robust ISUZU GIGA 8×4 chassis, this truck combines exceptional carrying capacity, efficient feed delivery performance, and reliable long-distance transportation capability, making it an ideal solution for modern feed logistics operations.
Featuring an impressive 44 cubic meter aluminum alloy feed tank, the truck is designed to transport large volumes of bulk feed while maintaining product quality and minimizing transportation costs. The six-compartment tank configuration allows different feed types to be carried simultaneously, providing greater flexibility for customers serving multiple farms or livestock operations during a single trip.
Powered by the dependable ISUZU 6UZ1-TCG61 diesel engine delivering 380 horsepower, the vehicle offers strong pulling power, excellent durability, and smooth performance even under full-load conditions. Combined with a heavy-duty transmission, reinforced suspension system, and advanced hydraulic unloading equipment, the truck is capable of handling demanding agricultural transportation tasks while maintaining outstanding operational efficiency.
With its large payload capacity, long conveying distance, and fast unloading performance, the ISUZU 44 CBM Bulk Feed Truck provides a practical and cost-effective solution for feed transportation businesses seeking maximum productivity and reliability.
Features
Large 44 CBM Aluminum Alloy Feed Tank
The tanker truck is equipped with a high-capacity 44 CBM bulk feed tank manufactured from high-strength aluminum alloy, providing excellent durability while reducing overall vehicle weight. The horizontal silo structure is designed to maximize storage volume while maintaining vehicle stability during transportation.
The tank features six independent compartments, allowing operators to transport different feed formulations separately, including poultry feed, pig feed, cattle feed, fish feed, and grain powder. This flexible compartment arrangement helps improve delivery efficiency and reduces the need for multiple transport vehicles.

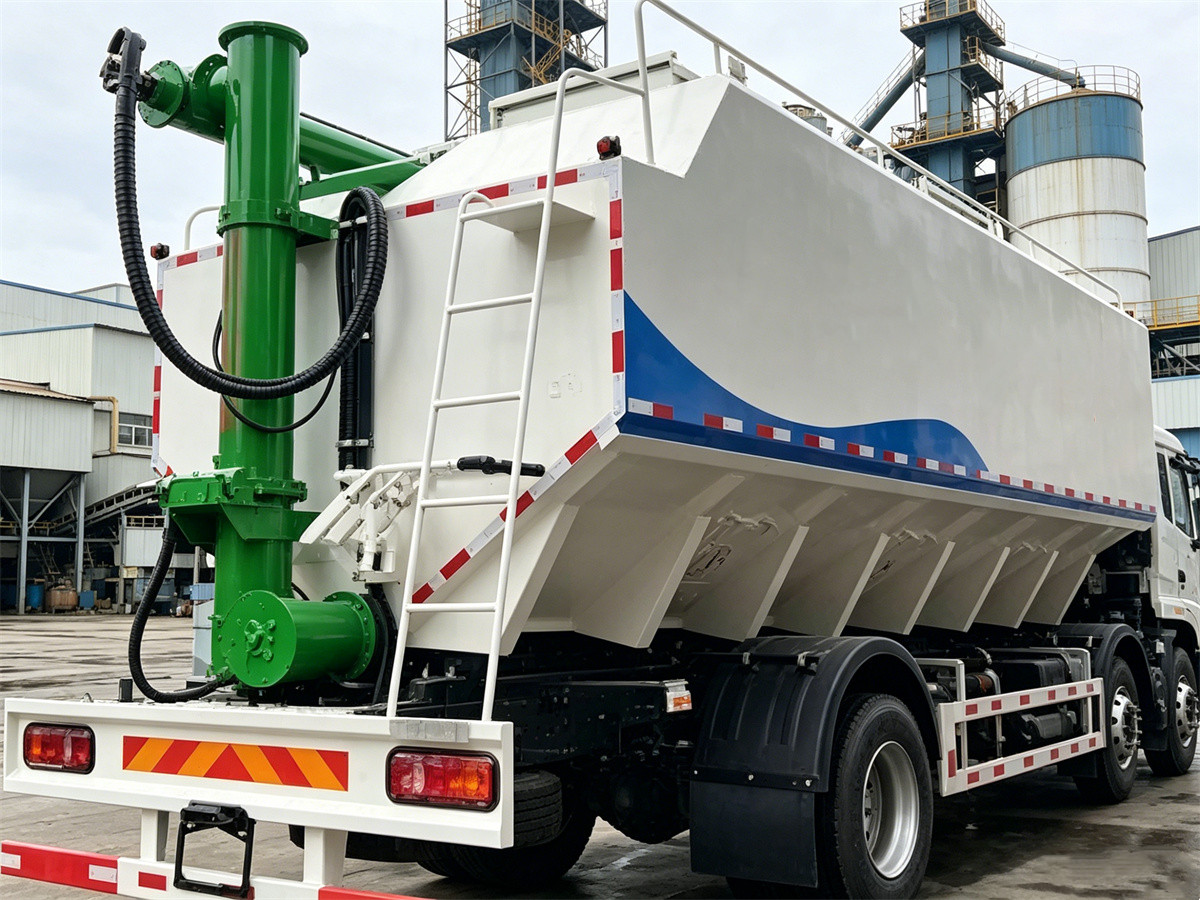

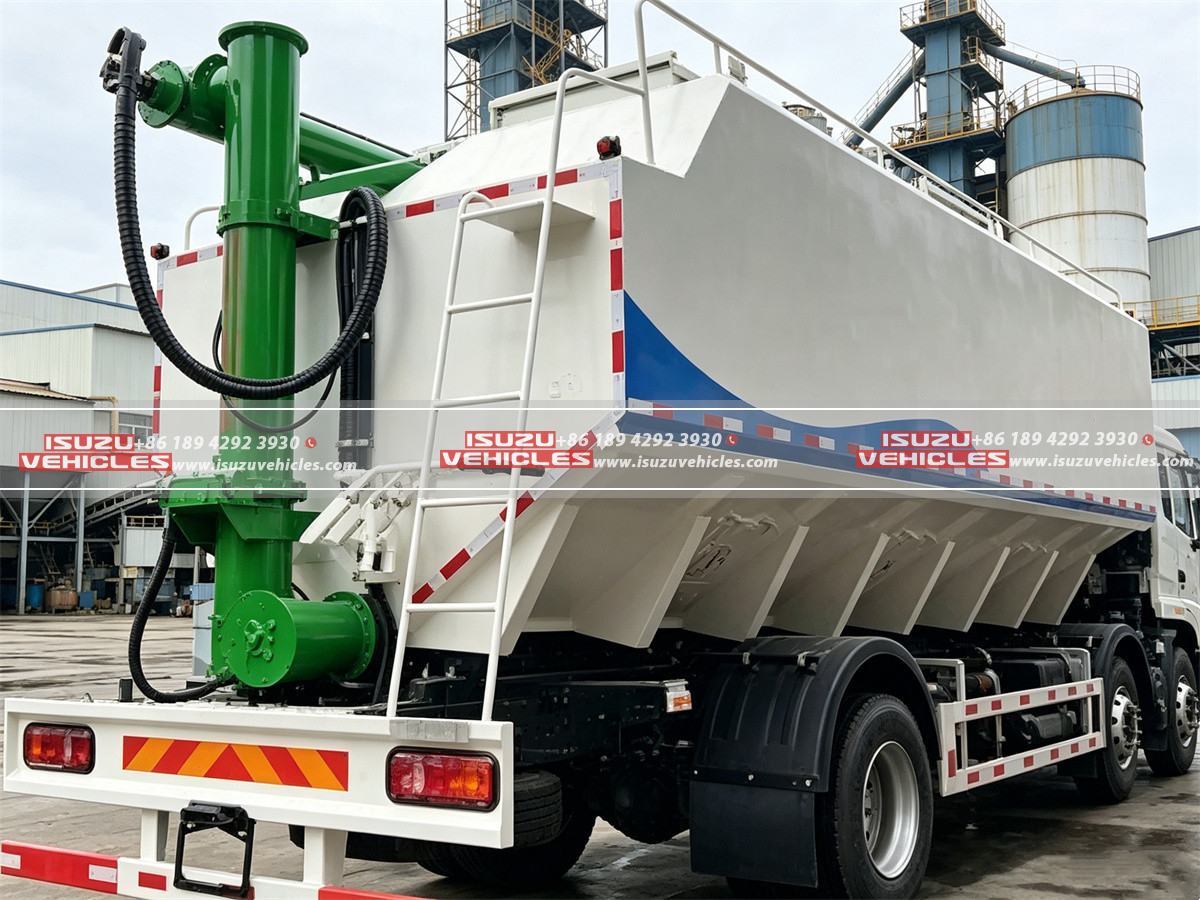

High-Efficiency Hydraulic Unloading System
The advanced hydraulic auger conveyor system enables fast and reliable feed discharge directly into storage silos and feeding facilities. Powered by a PTO-driven hydraulic system, the truck achieves a conveying capacity of 1,000 to 1,200 kg per minute, significantly reducing unloading time and labor requirements.
The unloading system provides a maximum vertical conveying height of 29.5 meters and a horizontal conveying distance of 28.5 meters, allowing operators to access elevated storage facilities and difficult unloading locations with ease. The auger can rotate 180 degrees left and right, improving operational flexibility on-site.
Powerful ISUZU GIGA Chassis Performance
Built on the proven ISUZU GIGA 8×4 chassis, the truck offers excellent load-carrying capability and long-term durability. The heavy-duty chassis supports a gross vehicle weight of 30,600 kg and an approximate payload capacity of 18,000 kg, making it suitable for high-volume feed transportation operations.
The truck is powered by the reliable ISUZU 6UZ1-TCG61 turbocharged diesel engine, producing 380 HP and 1,200 N.m of torque. This powerful engine delivers outstanding performance for highway transportation, rural roads, and demanding agricultural routes.
Heavy-Duty Transmission and Suspension System
The vehicle utilizes a FAST 12-speed manual transmission with 12 forward gears and 2 reverse gears, providing smooth gear transitions and efficient power delivery under varying load conditions. The transmission is designed to handle up to 1,600 N.m of torque, ensuring dependable operation during long-distance transportation.
The reinforced multi-leaf spring suspension and heavy-duty axle configuration improve vehicle stability and durability, even when operating at maximum payload capacity. Double steering axles and double drive axles further enhance load distribution and driving performance.
Driver Comfort and Operational Safety
The spacious ISUZU GIGA sleeper cabin provides a comfortable working environment for drivers during long transportation journeys. Features such as air conditioning, power steering, adjustable seating, sleeper berth, and ergonomic controls help reduce operator fatigue and improve overall driving comfort.
Safety features include a dual-circuit compressed air brake system, spring parking brake, engine exhaust brake, ABS, reflective safety markings, reverse alarm, and emergency stop system, ensuring safe operation in various road and working conditions.
Practical Tank Accessories and User-Friendly Design
To support daily operation and maintenance, the truck is equipped with multiple practical accessories including European-standard manholes, anti-slip aluminum catwalk, foldable safety handrails, rear access ladder, mechanical feed level indicator, inspection ports, and safety relief valves.
These features improve loading efficiency, facilitate routine inspections, and enhance operator safety during feed transportation and unloading operations.
Superior Corrosion Protection and Finish
The entire vehicle undergoes professional surface preparation before painting. The chassis is shot-blasted, while the tank body receives sandblasting treatment to improve coating adhesion and durability. Internal tank surfaces are protected with food-grade anti-corrosion coatings to maintain feed quality and extend service life.
A high-performance epoxy primer and polyurethane topcoat provide outstanding resistance to weather, corrosion, and abrasion, ensuring the truck maintains its appearance and operational value throughout years of demanding agricultural service.
Specification
| Chassis Specifications | |
| Item | Specification |
| Vehicle Model | ISUZU 44 CBM Bulk Feed Truck |
| Drive Type | 8×4 Left Hand Drive |
| Cabin | ISUZU GIGA Sleeper Cabin |
| Cab Features | All-steel construction, forward tilting cab, adjustable driver’s seat with seat belt, sleeper berth, power steering, mud flaps, handholds, full metric instrumentation, air conditioning |
| Overall Dimensions (L×W×H) | 11,980 × 2,550 × 3,980 mm |
| Wheelbase | 1,950 + 4,250 + 1,300 mm |
| Kerb Weight | 12,505 kg |
| Gross Vehicle Weight (GVW) | 30,600 kg |
| Payload Capacity | Approx. 18,000 kg |
| Fuel Tank Capacity | 350 L Aluminum Alloy Fuel Tank |
| Electrical System | 24V |
| Battery | 2 × 12V, 165Ah |
| Engine & Transmission | |
| Item | Specification |
| Engine Model | ISUZU 6UZ1-TCG61 |
| Engine Type | 6-Cylinder, In-line, Turbocharged, Intercooled Diesel |
| Power Output | 380 HP (279 kW) |
| Displacement | 9.839 L |
| Maximum Torque | 1,200 N.m |
| Emission Standard | EURO 3 |
| Transmission Brand | FAST 12JSD160T |
| Transmission Type | Manual |
| Gear Configuration | 12 Forward + 2 Reverse |
| Transmission Max Torque | 1,600 N.m |
| Gear Ratios | |
| Gear | Ratio |
| 1st | 15.53 |
| 2nd | 12.08 |
| 3rd | 9.39 |
| 4th | 7.33 |
| 5th | 5.73 |
| 6th | 4.46 |
| 7th | 3.48 |
| 8th | 2.71 |
| 9th | 2.10 |
| 10th | 1.64 |
| 11th | 1.28 |
| 12th | 1.00 |
| Reverse 1 | 14.86 |
| Reverse 2 | 3.33 |
| Clutch, Suspension & Axles | |
| Item | Specification |
| Clutch Type | Single Plate Dry Clutch |
| Clutch Diameter | 430 mm |
| Front Suspension | Multi-Leaf Spring |
| Rear Suspension | Reinforced Multi-Leaf Spring |
| Front Axle | Double Steering Axles |
| Front Axle Capacity | 6,400 kg + 6,400 kg |
| Rear Axle | Double Drive Axles |
| Rear Axle Capacity | 10,000 kg + 10,000 kg |
| Rear Axle Ratio | 4.44 |
| Brake System | |
| Item | Specification |
| Service Brake | Dual-Circuit Compressed Air Brake |
| Parking Brake | Spring Energy Air Brake |
| Auxiliary Brake | Engine Exhaust Brake |
| ABS | Equipped |
| Wheels & Tires | |
| Item | Specification |
| Tire Size | 11.00R20 Radial Tires |
| Tire Quantity | 12 + 1 Spare |
| Wheel Type | Heavy-Duty Steel Rims |
| Bulk Feed Tank Specifications | |
| Item | Specification |
| Tank Capacity | 44 CBM |
| Tank Material | High-Strength Aluminum Alloy |
| Tank Body Dimensions | 9,200 × 2,480 × 2,550 mm |
| Tank Shape | Horizontal Cylindrical Silo Structure |
| Tank Shell Thickness | 4 mm |
| Front/Rear End Plate Thickness | 5 mm |
| Internal Baffle Thickness | 4 mm |
| Number of Compartments | 6 Compartments |
| Medium Transported | Poultry Feed, Pig Feed, Cattle Feed, Fish Feed, Grain Powder |
| Loading Method | Top Loading through European Standard Manholes |
| Discharge Method | Hydraulic Auger Conveyor System |
| Hydraulic Drive | PTO Driven Hydraulic Pump |
| Discharge Speed | 20–25 m³/h |
| Conveying Capacity | 1,000–1,200 kg/min |
| Maximum Vertical Conveying Height | 29.5 m |
| Maximum Horizontal Conveying Distance | 28.5 m |
| Residue Rate | ≤ 0.02% |
| Bracing Support Quantity | 10 Sets |
| Discharge Auger Rotation | 180° Left and Right Rotation |
| Tank Accessories | |
| Item | Specification |
| Manholes | 6 European Standard Manholes |
| Toolbox | 1 Heavy-Duty Lockable Toolbox |
| Catwalk | Anti-Slip Aluminum Alloy Walkway |
| Handrails | Foldable Safety Handrails |
| Ladder | Rear Access Ladder with Safety Guard |
| Feed Level Indicator | Mechanical Type |
| Inspection Ports | Equipped |
| Safety Relief Valve | Equipped |
| Hydraulic Oil Tank | Equipped |
| Standard Equipment | |
| PTO (Power Take-Off) System | |
| Hydraulic Pump and Hydraulic Motor | |
| Hydraulic Auger Conveyor Assembly | |
| Feed Discharge Control System | |
| Air Conditioning | |
| Power Steering | |
| Reverse Alarm | |
| Reflective Safety Markings | |
| Fire Extinguisher | |
| Wheel Chocks | |
| Complete Tool Kit | |
| Rear Working Lamp | |
| Emergency Stop System | |
| Surface Treatment & Painting | |
| Complete chassis shot-blasted before assembly. | |
| Tank body sandblasted for enhanced coating adhesion. | |
| Internal tank surfaces treated with food-grade anti-corrosion coating. | |
| Epoxy zinc-rich primer applied before top coating. | |
| High-quality polyurethane paint finish with excellent UV and weather resistance. | |
| Customized company logo, color scheme, and graphics available upon request. | |
