ISUZU 5000L Aircraft Refueling Truck

ISUZU 5000L Aircraft Refueling Truck

The ISUZU 5000L Aircraft Refueling Truck is a specialized aviation fuel service vehicle designed to provide safe, efficient, and accurate refueling operations for a wide range of aircraft. Built on the reliable ISUZU 4×2 chassis, this refueler combines dependable performance, advanced fuel handling technology, and precise flow control systems to meet the demanding requirements of airports, military airbases, aviation service providers, and aircraft maintenance facilities.

Equipped with a 5,000-liter stainless steel fuel tank, the truck is engineered for the transportation and delivery of aviation fuel while maintaining strict fuel quality standards. Its compact dimensions and excellent maneuverability allow operators to work efficiently in confined airport environments, making it suitable for servicing helicopters, private aircraft, regional jets, and other aviation equipment.

Powered by a robust 190 HP ISUZU diesel engine that complies with Euro 6 emission standards, the vehicle delivers strong performance, excellent fuel economy, and reliable operation in various climatic conditions. The professionally designed refueling system ensures fast, accurate, and contamination-free fuel transfer, helping operators maximize efficiency while maintaining aviation safety requirements.

---

Features

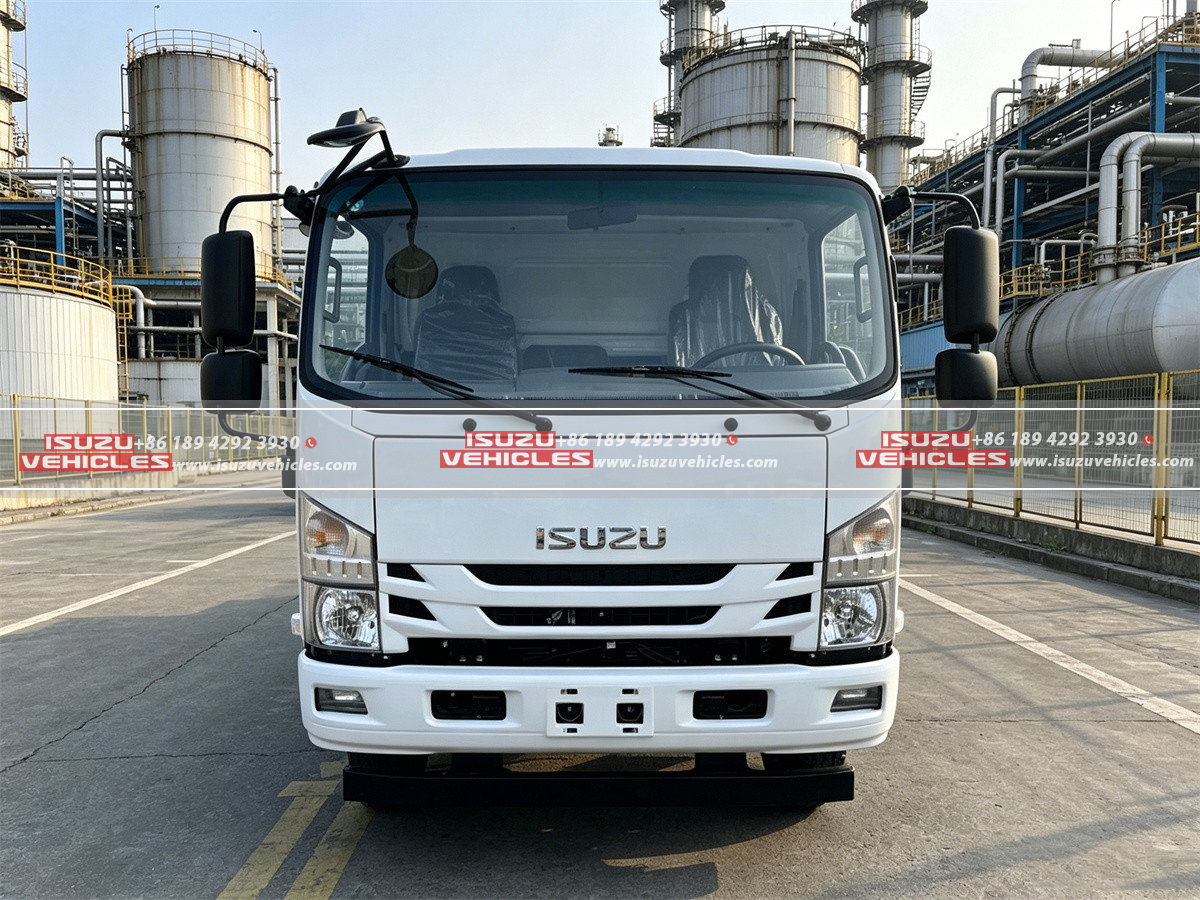

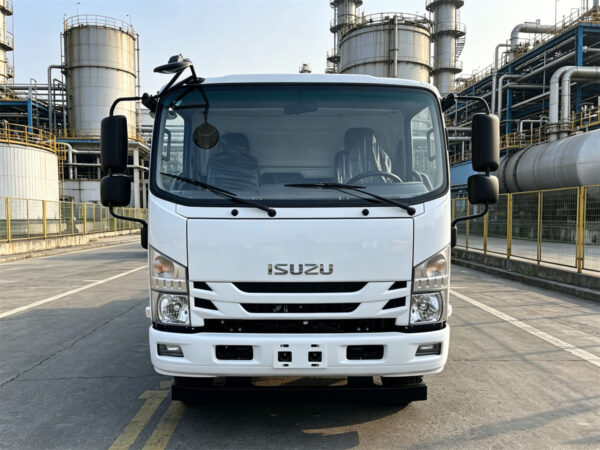

Reliable ISUZU Chassis Platform

The truck is built on the dependable ISUZU QL1110ANHAY chassis, offering outstanding durability and operational reliability for airport ground support applications.

Key chassis specifications include:

• 4×2 drive configuration
• Right-hand drive (RHD)
• Wheelbase of 3,360 mm
• Gross vehicle weight of 11,000 kg
• Compact overall dimensions of 6,085 × 2,030 × 2,540 mm

These features provide excellent maneuverability and stability during airport fueling operations.

High-Performance Euro 6 Powertrain

The vehicle is powered by the proven ISUZU 5.193L turbocharged diesel engine, delivering strong performance for both road transportation and stationary fueling activities.

Engine highlights include:

• 190 horsepower output
• 507 N·m maximum torque
• Turbocharged and intercooled design
• Euro 6 emission compliance
• Rated speed of 2,600 rpm
• Low-temperature starting device for reliable cold-weather operation

The engine is matched with an ISUZU MLD6 manual transmission featuring 6 forward gears and 1 reverse gear, ensuring smooth and efficient driving performance.

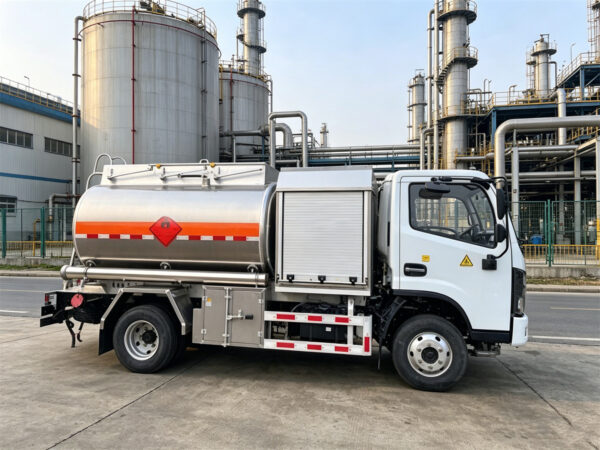

Premium Stainless Steel Fuel Tank

The refueling truck is equipped with a 5,000-liter aviation fuel tank manufactured from high-quality SUS304 stainless steel, providing excellent corrosion resistance and long-term durability.

Tank advantages include:

• Single-compartment design
• Food-grade stainless steel construction
• 4 mm tank wall thickness
• Superior resistance to fuel contamination
• Long service life under intensive operational conditions

This design helps maintain fuel cleanliness while ensuring structural strength during transportation and refueling activities.

Efficient Aircraft Refueling Performance

The vehicle is designed to deliver fast and precise fueling operations for various aircraft categories.

Refueling capacities include:

On-Wing Refueling

• Flow rate: 200 L/min

Suitable for controlled fueling operations where precision and safety are essential.

Under-Wing Refueling

• Flow rate: 1,200 L/min

Ideal for larger aircraft requiring rapid fuel transfer and reduced turnaround times.

These capabilities help improve operational efficiency while minimizing aircraft downtime.

Advanced Fuel Filtration System

To ensure aviation fuel purity, the truck is equipped with a professional filtration package utilizing internationally recognized components.

The system includes:

• SHV2848 Filter Separator (USA)
• High-efficiency contaminant removal
• Water separation capability
• Reliable fuel quality protection

This filtration process helps ensure that only clean and properly conditioned fuel reaches the aircraft.

Precision Metering and Flow Control

The refueling system incorporates advanced metering equipment designed for accurate fuel measurement and operational control.

Key components include:

Flow Meter

• MKA3351 Flow Meter (Germany)
• Measuring range: 100–3000 L/min
• Operating temperature: -40°C to +60°C

Pressure Control Valve

• CCMMY8600M2 PCV Valve (Germany)

These premium components provide highly accurate fuel delivery and stable operating performance under varying environmental conditions.

Flexible Pump Options

The truck can be configured with different fuel transfer pumps according to customer operational requirements.

Available options include:

• BX-150QZ Fuel Pump (China)
• GORMAN-RUPP Fuel Pump (USA)

Both pump systems are designed to deliver reliable performance, high transfer efficiency, and long service life in demanding aviation environments.

Operator Comfort and Convenience

The day cab is designed to provide a comfortable working environment for operators during extended service periods.

Standard cab equipment includes:

• Air conditioning
• Electric windows
• Central locking system
• Multifunction steering wheel
• Ergonomic driver controls
• Spacious visibility for airport operations

These features improve operator comfort while enhancing safety and productivity.

Safety-Oriented Design

Safety is a critical requirement for aviation fueling operations, and this vehicle incorporates multiple safety features to support secure performance.

Standard safety equipment includes:

• ABS braking system
• Stable chassis design
• Professional fuel handling components
• Dedicated PTO electronic throttle interface
• Reliable low-temperature starting system
• Aviation-grade fuel transfer equipment

These systems help ensure dependable operation while meeting the strict standards expected within the aviation industry.

The ISUZU 5000L Aircraft Refueling Truck offers an excellent combination of fuel handling precision, operational reliability, aviation-grade safety, and ISUZU durability, making it a valuable solution for modern airport fueling operations and aviation support services.

Specification



Category & Item	Specification Description
1. General Vehicle Specifications
Drive Model	4×2
Drive Type	RHD
Tank Volume	5,000L
Overall Dimensions (L×W×H)	6,085×2,030×2,540 mm (approx.)
Gross Vehicle Weight (Total Mass)	11,000 kg (approx.)
Compartment Configuration	One compartment
Wheelbase	3,360 mm
2. Engine Specifications
Engine Make / Model	ISUZU / QL1110ANHAY
Engine Type	Diesel, 4-cylinder, turbocharged inter-cooling
Maximum Horsepower	190HP
Emission Standard	Euro 6
Engine Displacement	5.193L
Rated Engine Speed	2,600rpm
Maximum Torque / Torque Speed Range	507 N·m / 1,600-2,600rpm
Additional Engine Features	Low temperature starting device; only the PTO remote electronic throttle interface is retained, with the electronic throttle interface installed at the battery box
3. Transmission Specifications
Transmission Make / Model	MLD6
Transmission Type	Manual
Gear Configuration	6 Forwards / 1 Reverse
4. Axle Specifications
Front Axle Load Capacity	4T
Rear Axle Load Capacity	7T
5. Tires & Braking System
Tire Specification	235/75R17.5
Anti-lock Braking System (ABS)	Installed
6. Cab Configuration
Cab & Interior Features	Day cab, air conditioning, electric glass, central locking, multi-function steering wheel
7. Tank Body Specifications
Tank Volume	5,000L
Tank Material	SUS304 Stainless Steel
Tank Thickness (body + head)	4 mm
8. Refueling System Specifications
Refueling Flow Rating (On-Wing)	200 L/min
Refueling Flow Rating (Under-Wing)	1,200 L/min
9. Standard Main Configurations
Vectored Filter	SHV2848 (America)
Flow Meter (Model MKA3351)	100-3000L/min (German), operating temperature range: -40℃ to +60℃
PCV Valve	CCMMY8600M2 (German)
10. Optional Equipment
Pump Options	a. BX-150QZ (China) b. GORMAN-RUPP (America)
