ISUZU 5 CBM Fence Cleaning Sweeper Truck

The ISUZU 5 CBM Fence Cleaning Sweeper Truck is a purpose-engineered solution designed for efficient, high-reach cleaning of fences, barriers, sound walls, and similar vertical structures. Built on the robust and reliable ISUZU KV100 4×2 chassis featuring a steel construction, single-row, flat day cab and powered by a compliant Euro 5 diesel engine, this truck integrates a substantial 5 cubic meter (CBM) stainless steel water tank with a powerful, dedicated cleaning system. Equipped with a high-pressure air blower driven by a separate 87HP JMC auxiliary engine, dual cylindrical brushes, and a high-capacity water spray system, it delivers exceptional cleaning performance at heights up to 6.5 meters, making it an indispensable asset for municipal authorities, highway maintenance crews, and industrial facility managers seeking productivity and thoroughness.

Features

1. Chassis & Powertrain: Dependable Foundation

• Robust Platform: Utilizes the proven ISUZU KV100 4×2 Day Cab (Left-hand Drive), offering a comfortable and functional workspace for 3 passengers.
• Dimensions & Capacity: Measures 5960×2130×2650mm with a wheelbase of 3,360mm, ensuring good maneuverability for urban and roadside operations. It has a gross vehicle weight (GVW) of 7,300kg and a curb weight of 4,480kg, supported by a front axle capacity of 2.58T and a rear axle capacity of 4.72T, rolling on durable 7.00R16 6+1 tires.
• Efficient Main Power: Powered by the ISUZU 4KH1CN5LS diesel engine, delivering 98 horsepower and meeting stringent Euro 5 emission standards.
• Reliable Drivetrain: Features the ISUZU/MSB manual transmission with 5 forward gears and 1 reverse gear (5F+1R), providing precise control essential for cleaning operations.

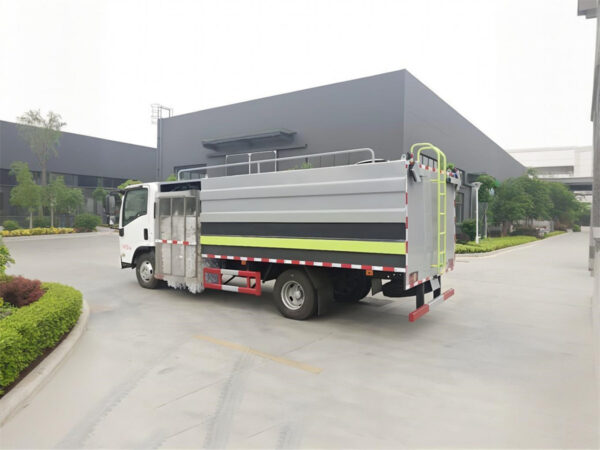

2. Tank & Body System: Capacity and Durability

• Ample Water Supply: Features a large 5 CBM (5,000L) water tank, enabling extended operation periods without frequent refilling stops, crucial for large-scale cleaning projects.
• Premium Construction: The tank is fabricated from high-grade stainless steel 304, ensuring excellent resistance to corrosion from water and potential cleaning agents. The tank body thickness is a robust 6mm, guaranteeing structural integrity and long service life under demanding conditions.

3. Cleaning Performance System: Engineered for High-Reach Efficiency

• Dedicated Auxiliary Power: Equipped with an 87HP JMC auxiliary engine, providing independent and ample power solely for the demanding cleaning systems, ensuring consistent performance regardless of truck movement.
• High-Pressure Air Blower: Incorporates a specialized high-pressure, centrifugal blower designed specifically for sweeping trucks. Operating between 2600～2900 rpm, it generates powerful airflow to dislodge debris. The blower is driven by the auxiliary engine via an automatic clutch and V-belt system.
• Dual Brush System: Features two cylindrical brushes made from durable stick cloth material. Each brush has a diameter of 650mm and a length of 1000mm, rotating at a cleaning speed of 250~450 rpm to effectively scrub surfaces.
• Exceptional Reach: Achieves a maximum cleaning height of 6.5 meters, making it highly effective for tall fences, walls, and barriers.
• Targeted Spray: Includes 8×2 sets of nozzles strategically placed to pre-wet surfaces, suppress dust during scrubbing, and assist in final rinsing.

4. Water Spray System: Precision Cleaning Support

• Effective Water Delivery: The system of this sweeper truck operates at an eject water pressure of 0.3Mpa, providing sufficient force for cleaning tasks without damaging most surfaces.
• High-Capacity Pump: Driven by a powerful 11Kw electric motor, the water pump delivers a substantial flow rate of 50 liters per minute (LPM), ensuring a consistent and ample water supply to all nozzles for thorough cleaning and dust control.

SPECIFICATIONS
