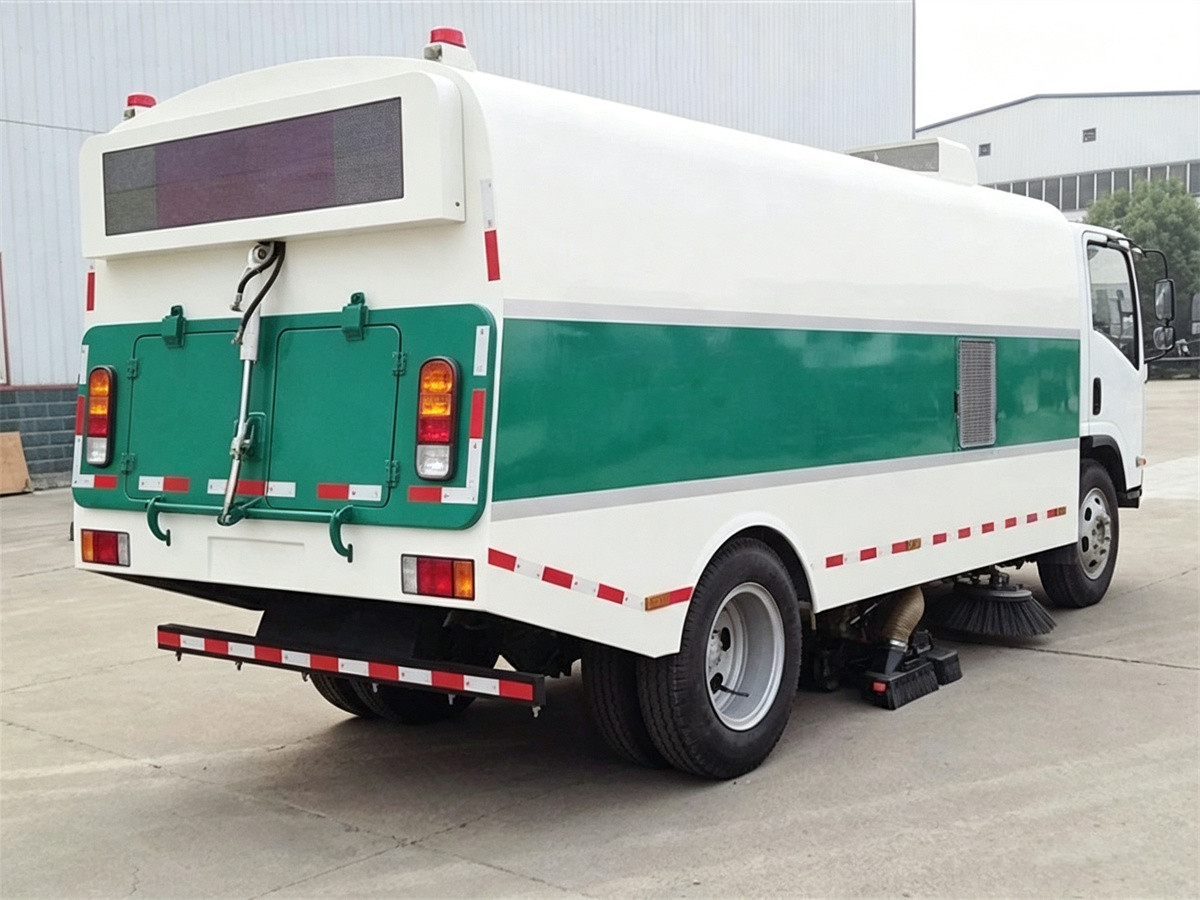

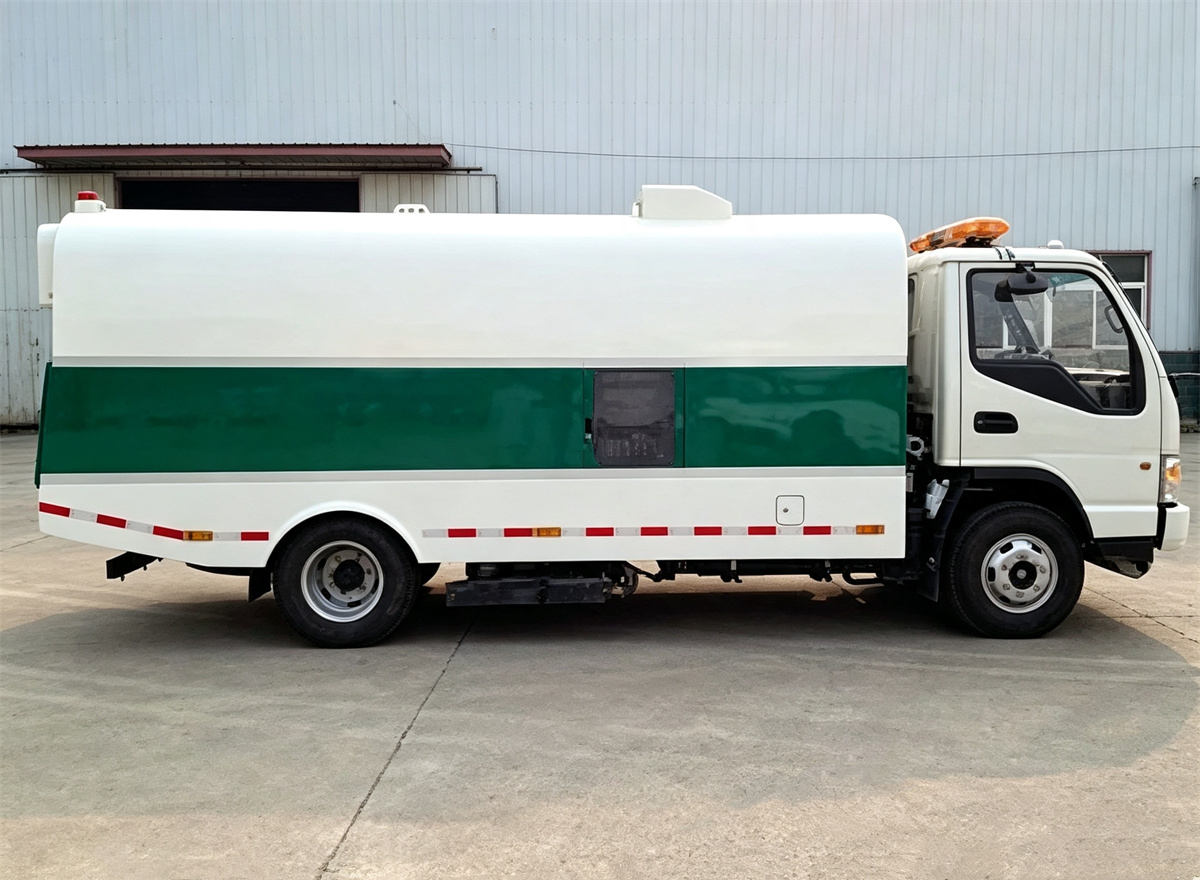

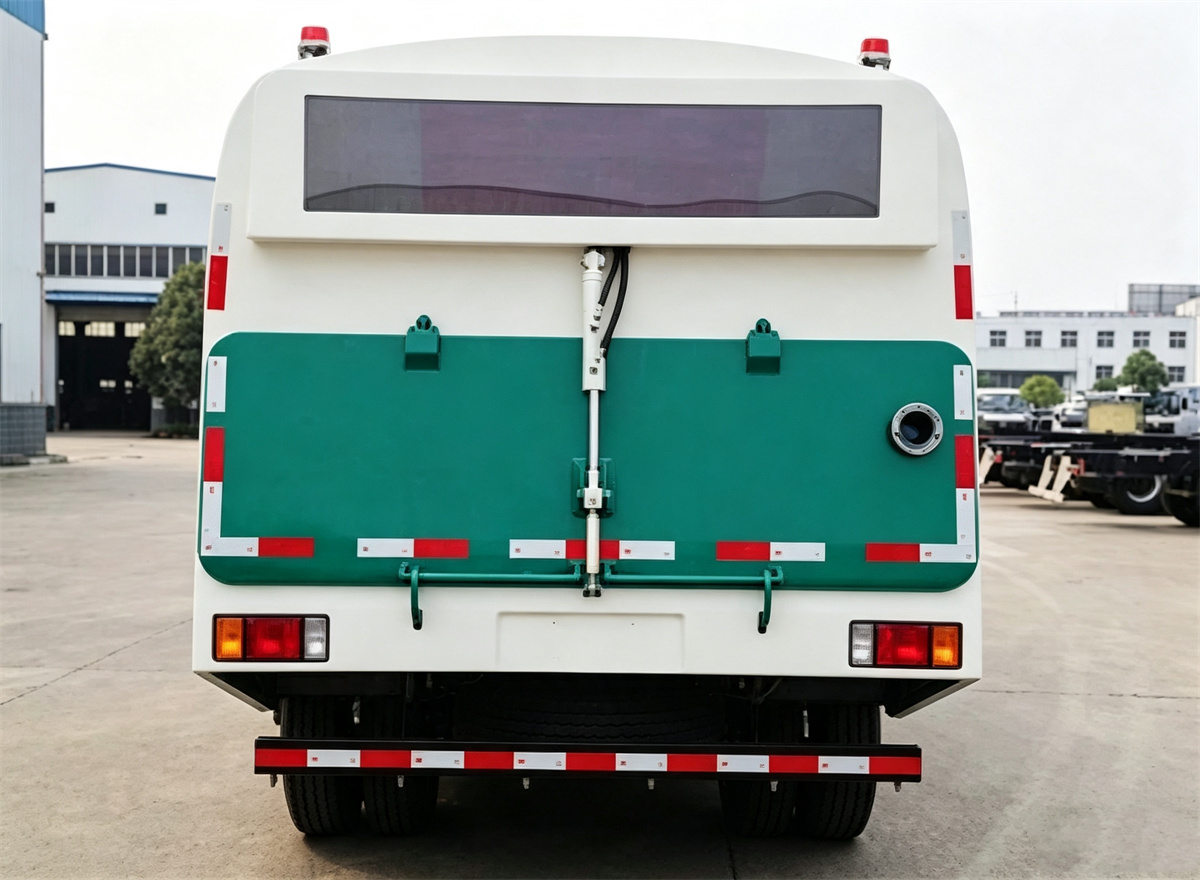

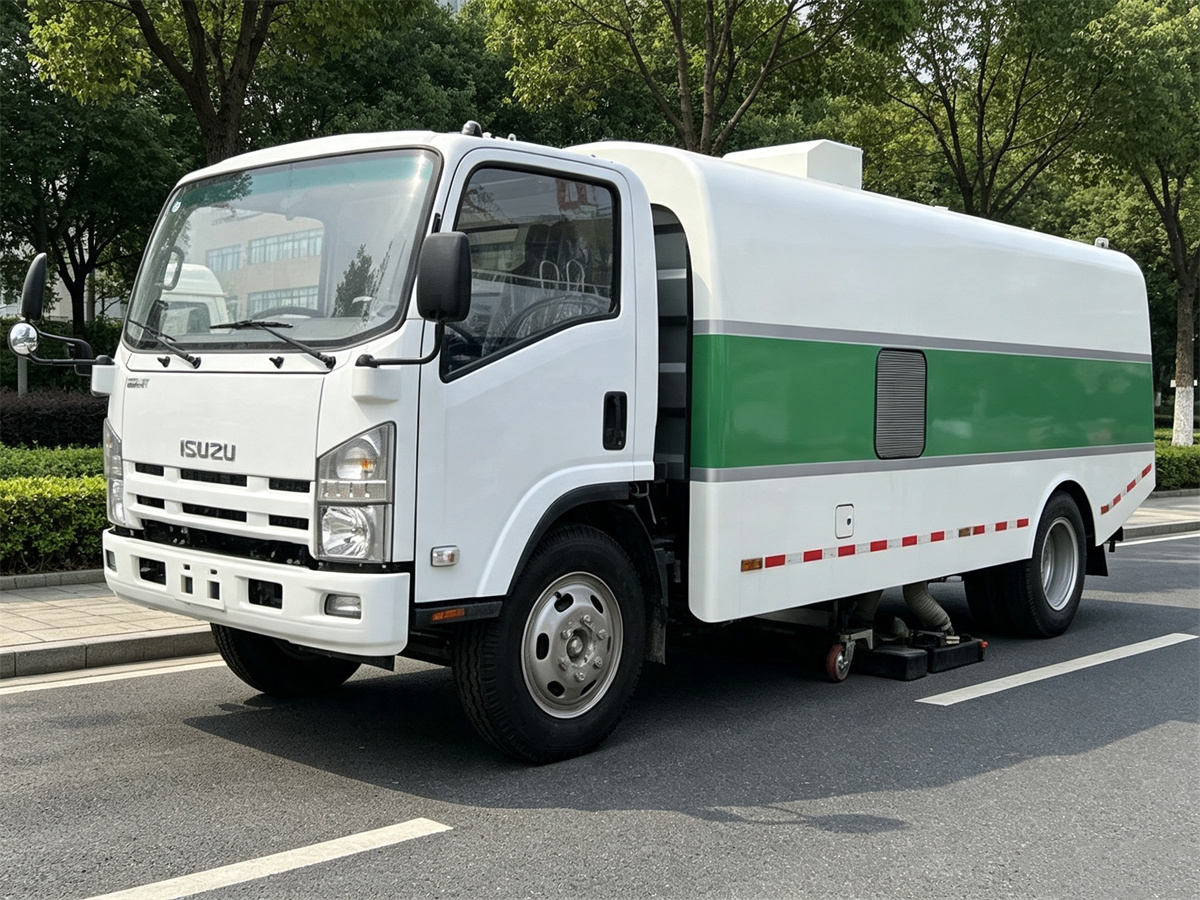

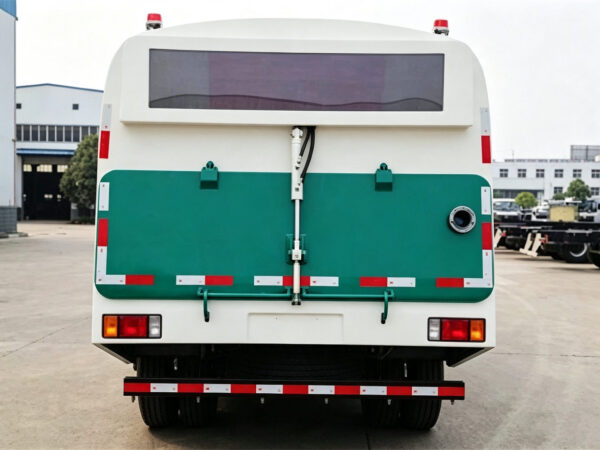

ISUZU 6 CBM Dry Sweeper Truck

ISUZU 6 CBM Dry Sweeper Truck

The ISUZU 6 CBM Dry Sweeper Truck is a professional road cleaning vehicle designed for efficient dust collection, garbage sweeping, and urban environmental maintenance. Combining a reliable ISUZU light-duty chassis, advanced sweeping technology, and a practical dry cleaning system, this sweeper truck provides an effective solution for cleaning city roads, residential communities, industrial parks, airports, and public areas where efficient dust removal is required.

Built on an ISUZU 4×2 chassis, the vehicle features a compact body structure with overall dimensions of 6,300×2,000×2,600mm, allowing excellent maneuverability in narrow streets and crowded urban environments. The truck adopts a 3,300mm wheelbase, reinforced diaphragm clutch, and manual 6-speed forward plus 1-speed reverse gearbox, ensuring stable driving performance and convenient operation under different road conditions.

The truck is powered by an ISUZU diesel engine with a 4-cylinder design, 2,770ml displacement, and 98HP output, providing reliable power while maintaining good fuel economy. The engine complies with Euro 4 emission standards, making it suitable for modern environmental requirements and long-term commercial operation.

Equipped with a 2 CBM stainless steel 304 garbage tank and a 4 CBM stainless steel 304 water tank, the ISUZU dry sweeper truck integrates sweeping, suction, and dust suppression functions into one efficient cleaning platform. The stainless steel tanks provide excellent corrosion resistance and durability, ensuring stable performance during frequent daily operations.

The sweeping system includes four sweeping brushes, a rear vacuum cleaner, blower system, and water spray bar, providing a working width of 2.7-2.8 meters for effective road cleaning. Powered by an independent JMC auxiliary engine with 57kW (77HP), the cleaning system can operate efficiently without affecting the main vehicle engine, improving reliability and extending service life.

---

Features

1. Durable ISUZU Chassis with Excellent Driving Performance

The ISUZU chassis provides a strong and dependable foundation for continuous cleaning operations, featuring excellent durability, easy maintenance, and stable driving performance. The vehicle adopts a practical light-duty configuration with a front axle load capacity of 2,000kg and rear axle load capacity of 4,000kg, providing sufficient carrying ability for municipal cleaning applications.

The truck is equipped with 7.00-16 tires, six standard tires plus one spare tire, improving reliability during long-distance operations. The power-assisted hydraulic steering system ensures easier handling, while the dual-circuit compressed air brake system, spring energy parking brake, and engine exhaust valve auxiliary brake provide multiple levels of braking safety.

2. Efficient ISUZU Diesel Power System

The ISUZU 98HP diesel engine features a 4-cylinder structure with a displacement of 2,770ml, delivering stable power output for both transportation and cleaning operations. The engine is designed for durability and fuel efficiency, making the truck suitable for frequent daily use in urban sanitation projects.

The reinforced diaphragm clutch and 6-speed manual transmission provide smooth power transfer, while the maximum driving speed reaches 90km/h, allowing the vehicle to quickly move between different cleaning areas and improve overall working efficiency.

3. Large-Capacity Stainless Steel Cleaning Tanks

The ISUZU 6 CBM Sweeper Truck is equipped with a 2 CBM stainless steel 304 garbage tank and a 4 CBM stainless steel 304 water tank, creating an efficient combination of debris collection and dust control functions.

The stainless steel construction offers excellent resistance against corrosion, moisture, and environmental wear, helping extend the service life of the tank system. The large water storage capacity supports continuous dust suppression through the water spray system, while the garbage tank provides enough capacity for collecting road debris during extended cleaning operations.

4. Advanced Sweeping and Vacuum Cleaning System

The vehicle adopts a professional sweeping structure with four sweeping brushes, a rear vacuum cleaner, and a powerful blower system to achieve efficient road surface cleaning. The sweeping width reaches 2.7-2.8 meters, allowing the truck to cover a wider cleaning area during each operation.

The combination of mechanical sweeping and rear suction technology enables the truck to effectively collect dust, leaves, sand, and other debris from different road surfaces. This makes the dry sweeper truck suitable for streets, industrial areas, parking lots, campuses, and municipal sanitation projects.

5. Independent Auxiliary Engine for Reliable Cleaning Operation

The sweeping system is powered by an independent JMC auxiliary engine with 57kW (77HP) power, which provides dedicated energy for brushes, blower, and vacuum equipment. This design separates the cleaning operation from the main driving engine, reducing engine load and improving operational stability.

The independent power system allows the sweeping equipment to maintain strong performance even during long working periods, while also improving fuel efficiency and reducing unnecessary wear on the main chassis components.

6. Convenient Self-Unloading and User-Friendly Design

The ISUZU Dry Sweeper Truck features a self-unloading box body design, making garbage discharge faster and more convenient after cleaning operations. The hydraulic unloading structure reduces manual labor requirements and improves daily operational efficiency.

The vehicle is also equipped with a rear LED pilot lamp to enhance visibility and safety during road cleaning operations, especially when working at night or in areas with heavy traffic. The cabin provides comfortable operation with left-hand drive configuration, air conditioning, and seating for two passengers, ensuring a better working environment for drivers.

7. Practical Configuration and Customizable Options

The standard configuration includes the ISUZU chassis, diesel engine, stainless steel garbage tank, stainless steel water tank, auxiliary engine, four sweeping brushes, water sprayer bar, rear vacuum cleaner, blower, rear LED pilot lamp, and self-unloading box body.

The vehicle appearance color can be customized according to customer requirements, allowing the ISUZU 6 CBM Road Sweeper Truck to meet different market preferences and municipal fleet standards. With its combination of reliable performance, efficient cleaning capability, and flexible configuration options, this sweeper truck is a practical choice for professional road maintenance and environmental sanitation applications.

Specifications

Parameter	Specification
Brand	ISUZU
Overall Dimensions (L×W×H)	6,300 × 2,000 × 2,600 mm
Wheelbase	3,300 mm
Front / Rear Overhang	1,032 / 1,868 mm
Curb Weight	100 kg
Maximum Driving Speed	90 km/h
Approach / Departure Angle	19° / 12°
Front / Rear Wheel Track	1,506 / 1,404 mm
Front / Rear Axle Load	2,000 / 4,000 kg
Tire Specification	7.00-16
Number of Tires	6 + 1 spare
Cabin Configuration	Left-Hand Drive, 2-passenger capacity, air-conditioned
Clutch	Reinforced diaphragm type
Gearbox / Transmission	6-speed manual (6 forward + 1 reverse)
Main Engine Model	ISUZU 4-cylinder diesel
Engine Displacement	2,770 ml
Engine Power	98 HP
Emission Standard	Euro 4
Brake System	Service: Dual-circuit compressed air Parking: Spring-energy, rear-wheel air brake Auxiliary: Engine exhaust valve brake
Steering System	Hydraulic power-assisted steering
Garbage Tank	Material: Stainless Steel 304 | Volume: 2 m³ (CBM)
Water Tank	Material: Stainless Steel 304 | Volume: 4 m³ (CBM)
Auxiliary Engine	JMC Engine, 57 kW (77 HP)
Sweeping Brushes	4 units | Working Width: 2.7 – 2.8 m
Additional Features & Remarks	Water sprayer bar, rear vacuum cleaner, blower, rear LED pilot lamp, self-unloading box body, custom exterior paint options available
