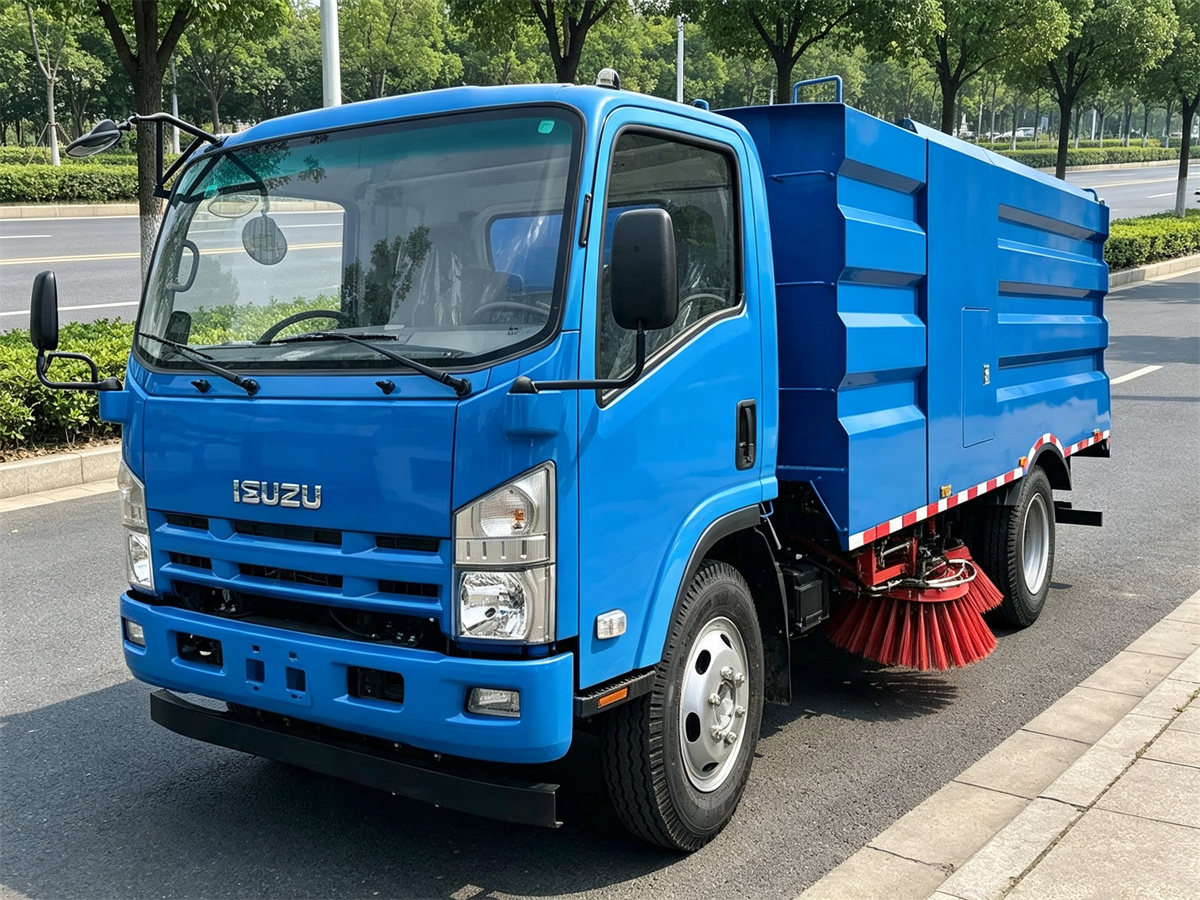

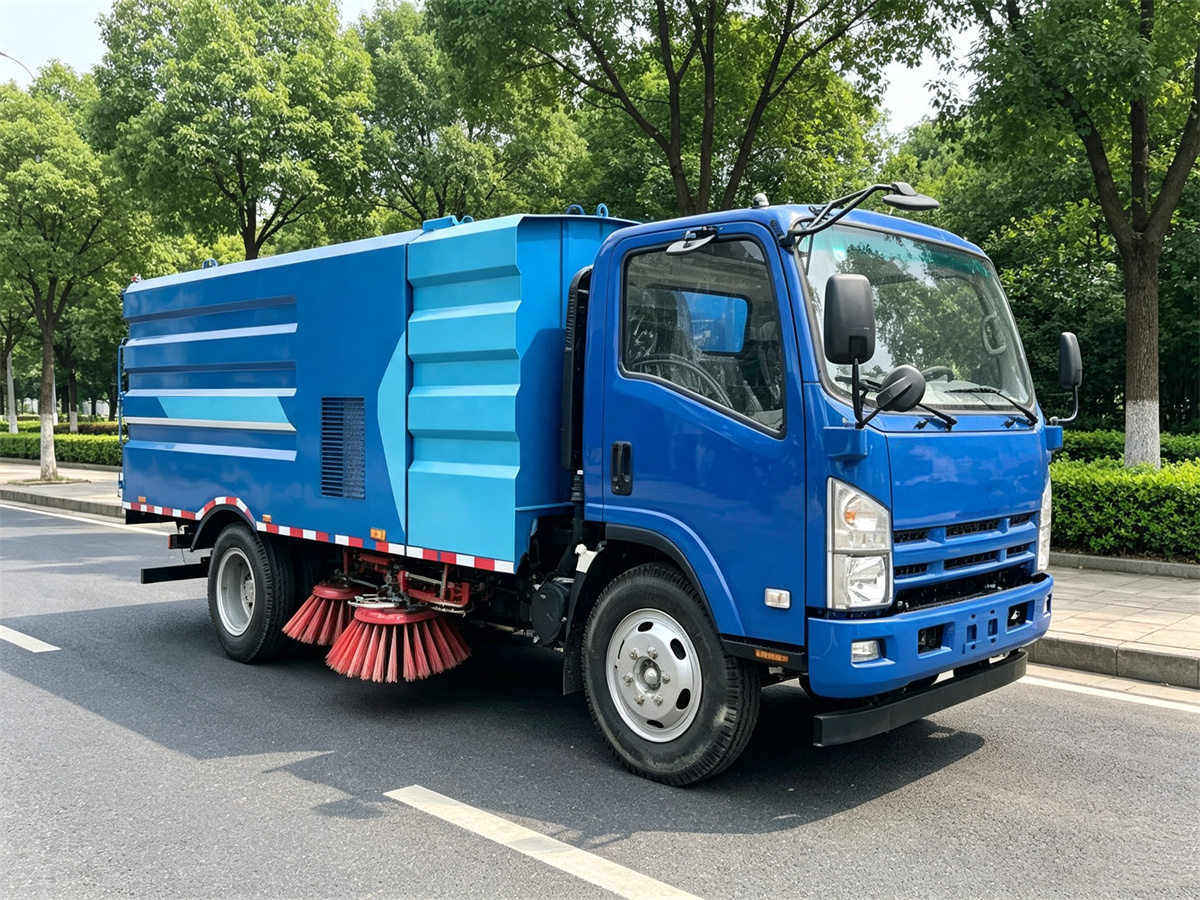

ISUZU 6 CBM Pressure Wash Sweeper Truck
The ISUZU 6 CBM Pressure Wash Sweeper Truck is a versatile municipal cleaning vehicle designed to combine road sweeping, high-pressure washing, dust suppression, and debris collection in one efficient working platform. Built on a reliable ISUZU chassis, this compact 4×2 sweeper is particularly suitable for urban roads, residential communities, industrial parks, parking areas, public facilities, and other locations where regular road cleaning and dust control are required.
Powered by a CY4100 diesel engine rated at 69kW (95HP), the truck provides dependable power for daily transportation and sanitation operations, while the 5-speed manual gearbox and single-disc dry diaphragm spring clutch deliver practical and stable power transmission. With a maximum road speed of 98km/h, a 30% maximum gradeability, and a minimum turning diameter of 13.6m, the vehicle can move efficiently between different cleaning areas while maintaining good maneuverability in relatively confined urban environments.
The truck has overall dimensions of 5,950×1,995×2,380mm, a 3,300mm wheelbase, and a gross vehicle weight of 7,300kg, providing a compact body that is easy to operate on city streets without sacrificing useful working capacity. Its 4,000L garbage tank provides sufficient storage for collected dust and debris, while the 1,500L water tank supplies the spraying system for dust suppression and pressure washing operations.
The sweeping system features four hydraulically driven sweeping devices arranged symmetrically between the axles, with three selectable brush speeds of 110rpm, 80rpm, and 60rpm. Combined with a 200mm U-shaped suction nozzle and a high-performance auxiliary draught fan, the system achieves a maximum sweeping width of 3 meters and a maximum sweeping capacity of 70,000m²/h, making the vehicle suitable for efficient large-area road cleaning.
With a maximum inhalation particle size of 110mm or more, a sweeping speed of 3-15km/h, and a cleaning fuel consumption of approximately 2.7L per 10,000m², the ISUZU Pressure Wash Sweeper Truck offers a practical balance between cleaning efficiency, operating cost, and everyday usability.
Features

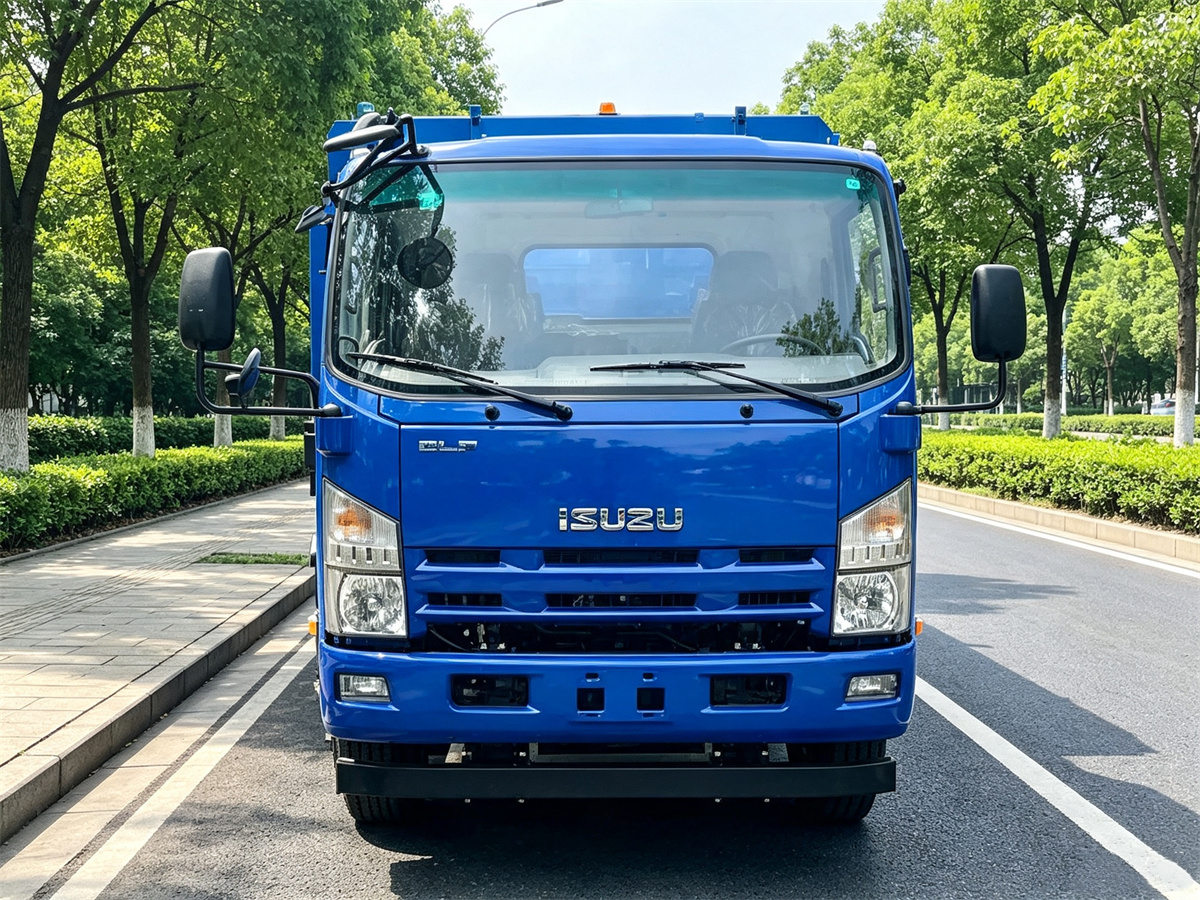

1. Compact and Reliable ISUZU Chassis
The ISUZU chassis provides a durable foundation for municipal sanitation applications, combining a compact 4×2 configuration with dependable road performance. The 3,300mm wheelbase and 1,506mm front track allow the truck to maneuver effectively through urban streets, while the 1.5-ton front axle and 4-ton rear axle provide an appropriate load-bearing structure for the cleaning equipment and collected waste.
The vehicle is fitted with 7.00-16 tires and a hydraulic steering system, while the maximum gradeability reaches 30%, allowing the sweeper to operate effectively on roads with moderate slopes. Its maximum driving speed of 98km/h also makes it convenient to travel between separate cleaning locations.
2. Large 4,000L Garbage Tank and 1,500L Water Tank
The vehicle combines a 4,000L garbage tank with a 1,500L water tank, providing sufficient capacity for continuous sweeping and dust suppression operations. The large garbage tank reduces the frequency of unloading, allowing operators to spend more time working and less time returning to disposal facilities.
The water tank supplies the electric water pump, filtration system, and spray nozzles, helping suppress dust generated during sweeping and improving the overall cleanliness of the road surface. This combination makes the truck suitable for both routine sweeping and water-assisted cleaning applications.
3. Four Independent Hydraulic Sweeping Devices

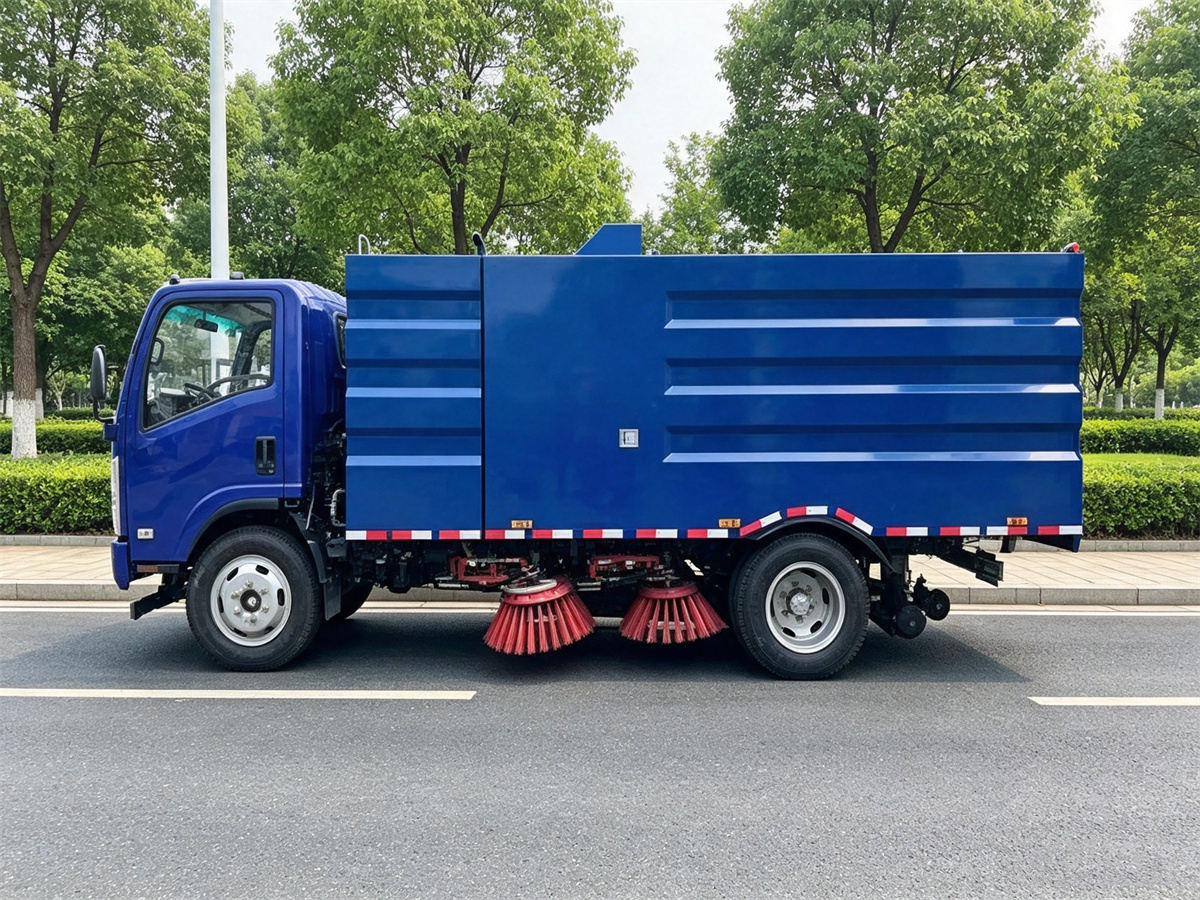

The sweeping system incorporates four sweeping brushes positioned between the vehicle axles and symmetrically distributed on both sides, with each device driven by a hydraulic motor and independently controlled. Operators can select from three brush speeds of 110rpm, 80rpm, and 60rpm, making it possible to adjust brush performance according to the amount and type of debris present on the road.
The brushes have a diameter of approximately 900mm, while the adjustable forward rake and outward inclination help maintain effective contact with the road surface. This configuration provides broad coverage and consistent sweeping performance while allowing the operator to adapt the system to different working conditions.
4. Powerful Draught Fan and Suction System
The high-performance suction system uses a specialized high-pressure centrifugal draught fan powered by a 57kW (78HP) auxiliary engine. The fan operates at approximately 2,600-2,900r/min and drives the suction system through a transmission shaft, automatic clutch, and narrow V-belt transmission.
The U-shaped suction nozzle has a diameter of 200mm and a ground clearance of only 5-10mm, helping create effective suction close to the road surface. With a maximum inhalation particle size of at least 110mm, the system can collect relatively large debris together with fine dust and other loose material.
5. High Cleaning Capacity and Wide Sweeping Coverage
The ISUZU 6 CBM Sweeper Truck provides a maximum sweeping width of 3 meters and a maximum sweeping capacity of 70,000m²/h, enabling it to cover large road areas efficiently. The recommended sweeping speed ranges from 3-15km/h, allowing operators to balance working speed and cleaning quality according to actual road conditions.
The system is also designed for economical operation, with reported fuel consumption of approximately 6.5L/h when sweeping at 8km/h and around 2.7L per 10,000m² of cleaning, helping control operating costs during regular municipal sanitation work.
6. Independent 57kW Auxiliary Engine
The sweeping and suction equipment is powered by an independent 57kW/78HP auxiliary diesel engine, which shares the chassis fuel tank and provides dedicated power for the cleaning system. This arrangement separates the major cleaning functions from the main driving engine, allowing the vehicle to maintain effective sweeping performance even when operating at relatively low road speeds.
The auxiliary engine drives the centrifugal fan and related cleaning equipment through an automatic clutch and transmission system, providing stable power while helping reduce unnecessary loading on the main chassis engine.
7. Electro-Hydraulic Control and Water Spraying System
The truck adopts an open-type electro-hydraulic control system incorporating a gear pump, cycloidal motor, hydraulic cylinders, magnetic valves, and a hydraulic hand pump, with a hydraulic relief pressure of up to 14MPa. This system provides reliable control of the sweeping brushes and other upper-body functions while keeping the operating process straightforward for the driver.
The water spraying system consists of an electric water pump, water filtration system, and spray nozzles, providing controlled water distribution during sweeping. The combination of water spraying and mechanical sweeping helps reduce airborne dust and improves the final appearance of the cleaned road surface.
8. Practical Safety and Operator-Friendly Equipment

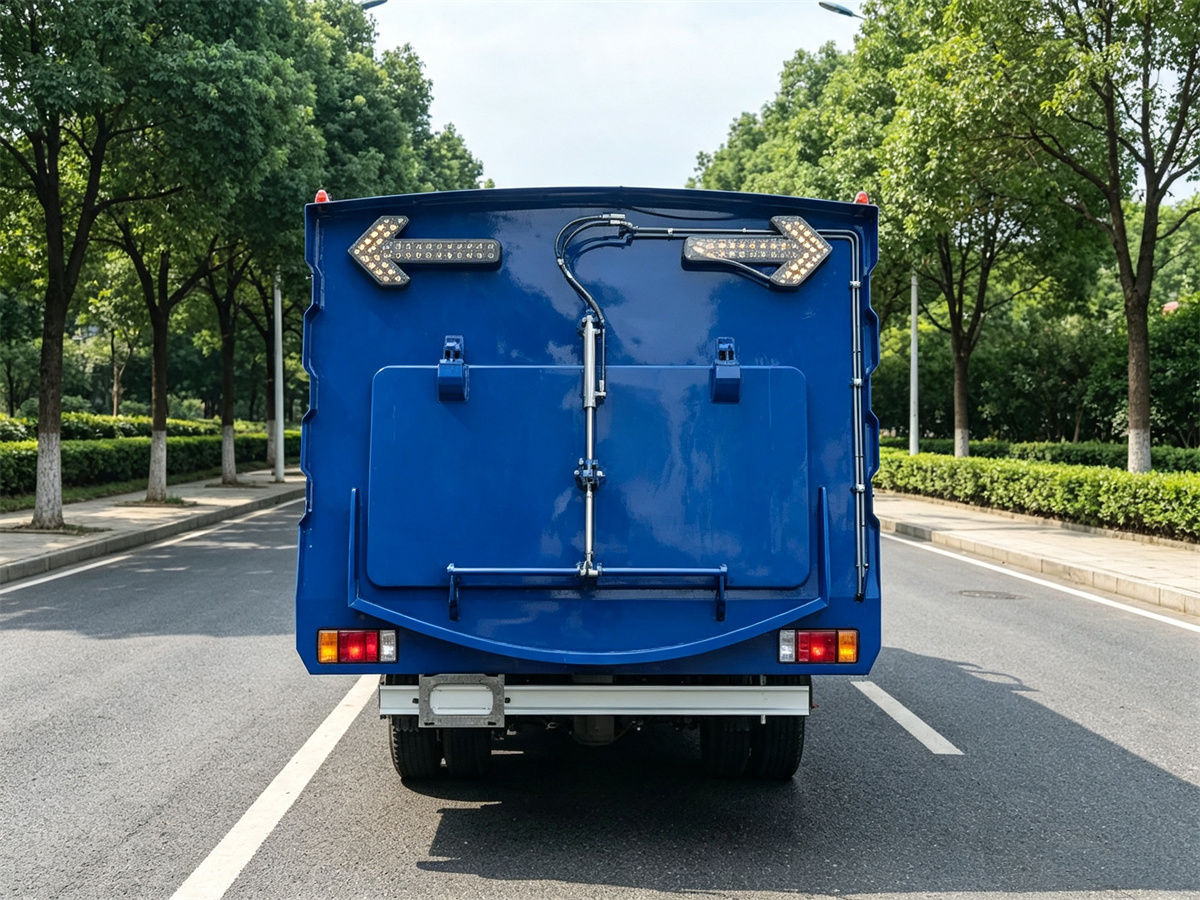

The ISUZU road sweeper is equipped with LED arrow lamps that provide additional visibility when the vehicle is working on public roads, helping other road users recognize the truck’s operating status. A Schneider control switch provides convenient operation of key cleaning functions, while the maintenance-free draught fan reduces routine service requirements.
A manual pump emergency system is also included, providing an alternative method of operating the hydraulic system when necessary. Together, these features make the truck practical for continuous municipal cleaning work while improving operational reliability and maintenance convenience.
Specifications
| Parameter | Value |
|---|---|
| Sweeping speed | 3-15 km/h |
| Max. Sweeping width | 3 m |
| Max. sweeping capacity | 70,000 m³/h |
| Max. Inhalation granularity | ≥110 mm |
| Volume of garbage tank | 4,000 l |
| Volume of water tank | 1,500 l |
| Max. speed | 98 km/h |
| Max. Gradeability | 30% |
| Braking distance | ≤10 m |
| Min. Turning diameter | ≤13.6 m |
| Fuel consumption (when driving) | ≤12 L/100 km |
| Fuel consumption (when sweeping at 8km/h) | 6.5 L/h |
| Fuel consumption per 10,000m | 2.7 L |
| Curb weight | 4,800 kg |
| Rated capacity | 2,400 kg |
| GVW | 7,300 kg |
| Overall dimensions (LxWxH) | 5,950×1,995×2,380 mm |
| Wheelbase | 3,300 mm |
| Track front | 1,506 mm |
| Track rear | 1,466 mm |
| Front suspension | 1,032 mm |
| Rear suspension | 1,618 mm |
| Approach angle | 19° |
| Departure angle | 16° |
| Chassis brand | ISUZU |
| Engine model | CY4100 |
| Engine power | 69kW/95hp |
| Clutch system | Single disc, dry type, diaphragm spring clutch |
| Gearbox | 5-speed + 1-reverse |
| Driving axle | 1.5T/4T |
| Tire | 7.00-16 |
| Vice-fan Engine Rated power | 57kW/78hp |
| Fuel type | Diesel, share with chassis fuel tank |
| Draught fan Type | High-pressure centrifugal specialized draught fan |
| Draught fan Rated speed | 2,600-2,900 r/min |
| Actuator type | Drive by vice-fan engine through transmission shaft, automatic clutch, narrow V-type belt transmission |
| Hydraulic System Type | Open-type and electrohydraulic control system |
| Hydraulic System Main part | Gear pump, cycloid motor, hydro cylinder, magnetic valve, hydraulic hand pump |
| Hydraulic relief pressure | 14 MPa |
| Water System Main part | Electric water pump, water filtration system, spray nozzle, water tank |
| Electric System Composition | Made of chassis electric system and vice-fan engine with other work operating system |
| System voltage | 12 V |
| Battery model | 12-80 A.H |
| Sweeping Device Type | 4 sweeping devices between 2 axles in the middle, symmetric distribution on both sides, driven by hydraulic motor, 3-speed level control, independent control |
| Sweeping Device Diameter | φ900 mm |
| Sweeping Device Rotate speed | 3 levels: 110 r/min, 80 r/min, 60 r/min |
| Sweeping Device Dip angle | Forerake 4°-6°, Out incline 2°-4° |
| Suction Nozzle Type | U-shaped, Free to move |
| Suction Nozzle Diameter | φ200 mm |
| Suction Nozzle Ground clearance | 5-10 mm |
| Accessories | 1. LED arrows lamp; 2. Schneider control switch; 3. Draught fan (maintenance-free); 4. Manual pump emergency system |
