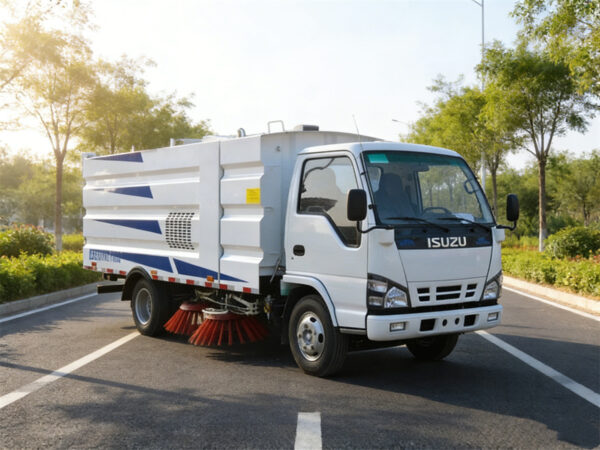

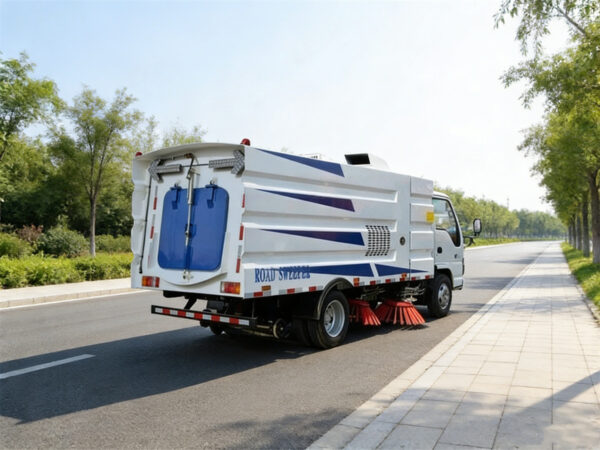

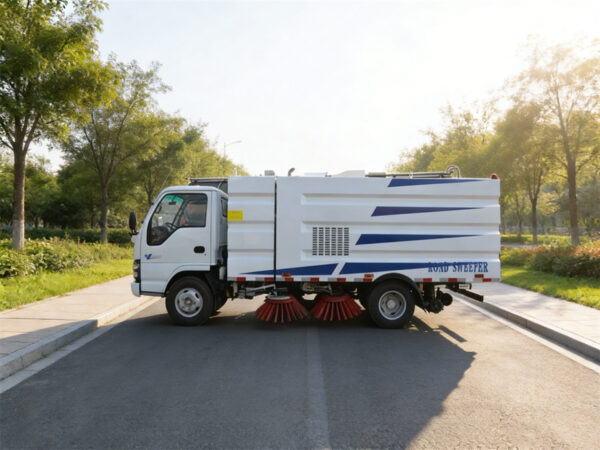

ISUZU 6000 Liter Road Sweeper Truck
The ISUZU 6000 Liter Road Sweeper Truck is a compact yet highly efficient municipal sanitation vehicle designed for urban road cleaning, industrial park maintenance, airport pavement sweeping, residential community sanitation, and public infrastructure cleaning operations. Built on the reliable ISUZU 600P chassis, this sweeper combines powerful debris collection performance, efficient dust suppression, and excellent maneuverability, making it an ideal solution for maintaining clean and safe road environments.
Equipped with a 4,500-liter dust collection tank and a 1,500-liter clean water tank, the vehicle delivers continuous sweeping performance while effectively controlling airborne dust during operation. Its advanced sweeping and vacuum collection system allows the truck to remove dust, sand, leaves, gravel, and other road debris with high efficiency, helping municipalities and contractors improve environmental cleanliness while reducing manual labor requirements.
Powered by the dependable ISUZU 4KH1-TCG40 diesel engine, the sweeper truck provides reliable performance, low fuel consumption, and excellent durability for daily sanitation tasks. The compact dimensions and flexible operation make it particularly suitable for city streets, sidewalks, industrial facilities, logistics centers, and commercial districts where efficient cleaning is essential.
Features
Efficient Sweeping and Cleaning Performance
The truck is equipped with a professional road sweeping system capable of achieving a sweeping width of 3,000 mm, allowing large surface areas to be cleaned quickly and effectively. With a cleaning capacity ranging from 9,000 to 60,000 square meters per hour, the vehicle significantly improves productivity compared with traditional cleaning methods.
Its operating speed of 3–20 km/h allows operators to adjust cleaning performance according to road conditions, traffic environments, and cleaning requirements.
Large Dust Collection and Water Storage Capacity
The vehicle incorporates a 4,500-liter stainless steel dust collection tank, providing sufficient storage capacity for extended cleaning operations without frequent unloading. The tank is designed to efficiently collect and retain dust, leaves, sand, and other debris generated during sweeping.
A separate 1,500-liter water tank supports the dust suppression system, helping minimize airborne particles and improving environmental protection during operation.
Advanced Vacuum and Suction System
The road sweeper utilizes a powerful vacuum collection system equipped with a 5-ton high-performance fan and a professionally designed suction nozzle. The system can effectively collect particles with a maximum diameter of 120 mm, ensuring excellent cleaning results across a wide range of road conditions.
The minimum ground clearance of the suction nozzle is 200 mm, providing stable suction performance while protecting the equipment from road surface irregularities.
Reliable ISUZU Chassis and Powertrain
Built on the proven ISUZU QL1070A1KAY chassis, the truck features a wheelbase of 3,815 mm, providing excellent stability and maneuverability during urban cleaning operations. The chassis is manufactured by Qingling Motors Group, renowned for its durability and dependable performance.
Power comes from the efficient ISUZU 4KH1-TCG40 Euro 4 diesel engine, delivering 120 horsepower from a 2.999-liter turbocharged and intercooled power unit. The engine offers smooth performance, low operating costs, and long service life.
The vehicle is equipped with the reliable ISUZU MSB 5-speed transmission, ensuring efficient power delivery and easy operation under varying road conditions.
Comfortable and Operator-Friendly Cab
The truck features an ergonomic ISUZU 600P single-row cab designed to accommodate two occupants comfortably. Standard equipment includes air conditioning, a USB radio interface, comfortable interior trim, and a vacuum-assisted braking system, creating a pleasant working environment for operators during extended cleaning shifts.
The left-hand-drive configuration and power-assisted steering further enhance driving comfort and operational convenience.

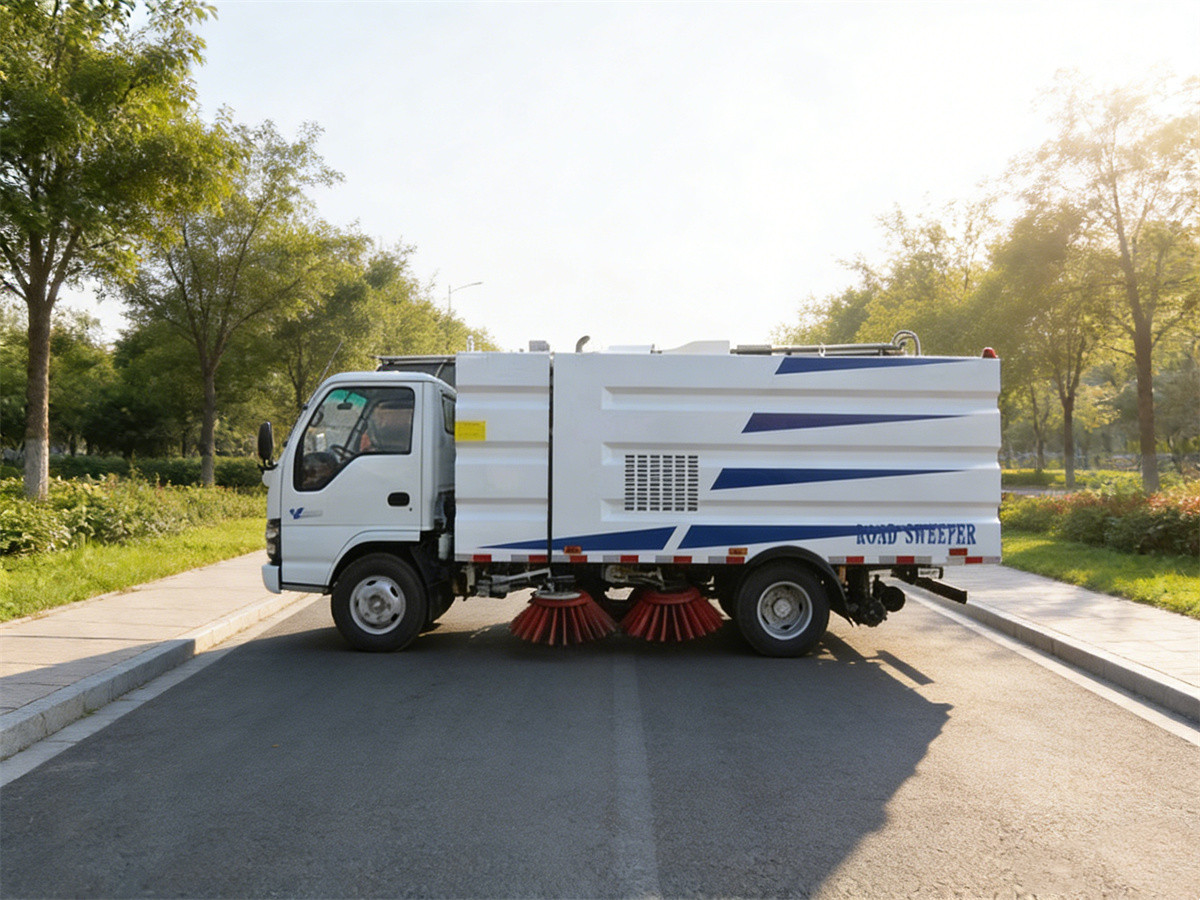

Durable Sweeping Structure
The sweeping assembly consists of four high-performance sweeping brushes, a heavy-duty suction system, hydraulic controls, sprinkler components, and an advanced electrical control system. This coordinated design ensures consistent cleaning performance while minimizing maintenance requirements.

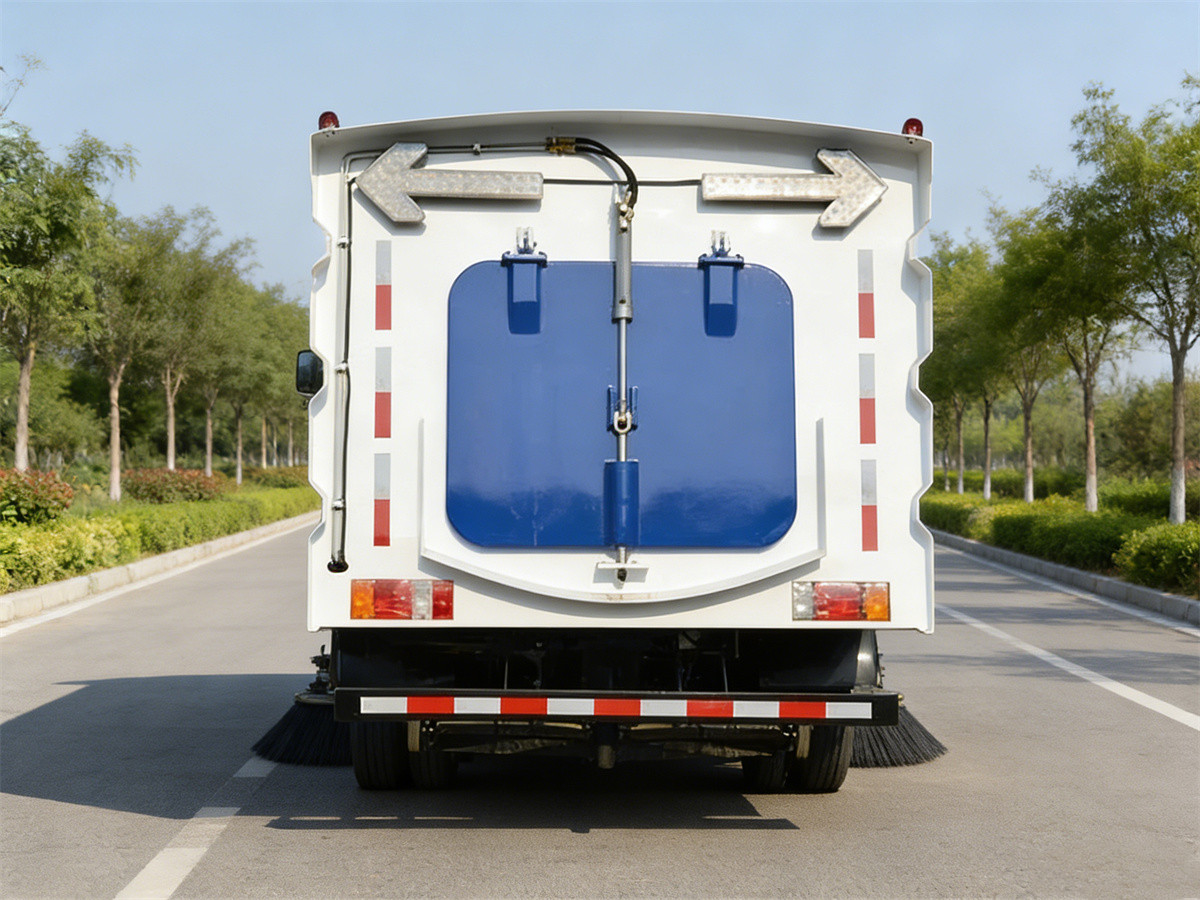

The dust tank can be unloaded at a 45-degree tipping angle, while the unloading height reaches 970 mm, enabling convenient and efficient debris disposal.
Comprehensive Standard Equipment
The vehicle comes equipped with a complete sanitation package including a subframe, body structure, stainless steel vacuum tank, water tank, auxiliary engine, electromagnetic control valves, hydraulic system, sprinkler system, suction nozzle, and electrical control components.
These integrated systems work together to provide stable, reliable, and highly efficient road-cleaning performance under a wide range of operating conditions.
Optional Intelligent Monitoring System
For customers seeking enhanced operational control and safety, optional equipment includes a surveillance monitoring system and additional rolling brush configurations. These upgrades improve operator visibility, enhance cleaning efficiency, and support more demanding sanitation applications.
With its combination of efficient sweeping performance, durable ISUZU engineering, large-capacity collection system, and user-friendly operation, the ISUZU 6000 Liter Road Sweeper Truck is an ideal choice for modern municipal sanitation departments and professional cleaning service providers.
Specification
| Category & Parameter | Specification Details |
| 1. General Vehicle Information | |
| Vehicle Model | ISUZU 6000 Liters Road Cleaner |
| Vehicle Brand | CSCTRUCK |
| Overall Dimensions (L×W×H) | 6,465×1,980×2,435mm |
| Curb Weight | 5,600kg |
| Dust Tank Volume | 4,500L |
| Water Tank Volume | 1,500L |
| 2. Chassis Parameters | |
| Chassis Model | QL1070A1KAY |
| Chassis Brand | ISUZU |
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. |
| Chassis Overall Dimensions (L×W×H) | 6,645×1,880×2,160mm |
| Wheelbase | 3,815mm |
| Front/Rear Wheel Track | 1,504/1,425mm |
| Approach/Departure Angle | 24/14° |
| Front/Rear Suspension Length | 1,015/1,815mm |
| Maximum Speed | 105km/h |
| Parameter Note | If there is a slight change in the chassis parameters above, please take the actual product as the standard |
| 3. Cab Configuration | |
| Cab Model | 600P |
| Cab Layout & Passenger Capacity | Single row cab, allowable 2 passengers |
| Interior Features | Car interior, air conditioner, USB radio interface |
| Brake Assist System | Oil brake vacuum booster pump |
| Body Color | White and other colors are optional |
| 4. Engine Specifications | |
| Engine Model | 4KH1-TCG40 |
| Emission Standard | EURO 4 |
| Engine Type | 4 cylinders, in-line, 4-stroke, water-cooled, turbo inter-cooling, 4-valve diesel engine |
| Rated Power | 120hp @ 3,400rpm |
| Displacement | 2,999ml |
| Engine Manufacturer | ISUZU Engine (Chongqing) Co., Ltd. |
| 5. Drivetrain & Steering System | |
| Drive Type | 4X2 |
| Transmission | ISUZU MSB 5-speed transmission, 5 forward gears + 1 reverse gear |
| Steering Device | Power-assisted steering |
| Steering Wheel Layout | Left-hand drive |
| 6. Axles, Suspension & Tire | |
| Front Axle Load Capacity | 2.5 tons |
| Rear Axle Load Capacity | 4.8 tons |
| Suspension Type | Multi-leaf springs |
| Tire Quantity | 6 + 1 nos. |
| 7. Electrical System | |
| Rated Voltage | 24V, DC |
| 8. Road Sweeper Structure & Performance Parameters | |
| Dust Tank Volume | 4,500L |
| Water Tank Volume | 1,500L |
| Sweep Width | 3,000mm |
| Cleaning Ability | 9,000-60,000m²/h |
| Maximum Suction Particle Diameter | 120mm |
| Unloading Angle | 45° |
| Cleaning Speed | 3-20km/h |
| Cleaning Efficiency | ≥98% |
| Min. Clearance of Suction Nozzle | 200mm |
| Unloading Height | 970mm |
| 9. Standard & Optional Configuration | |
| Standard Configuration | Chassis, subframe, body, 4 sweeping brushes, stainless steel vacuum tank, water tank, 5T fan, auxiliary engine electromagnetic control valve, suction cup, sprinkler system, hydraulic system, and electrical system |
| Optional Configuration | Surveillance system, rolling brush |
