ISUZU 20 CBM Roll Off Garbage Truck

ISUZU 20 CBM Roll Off Garbage Truck

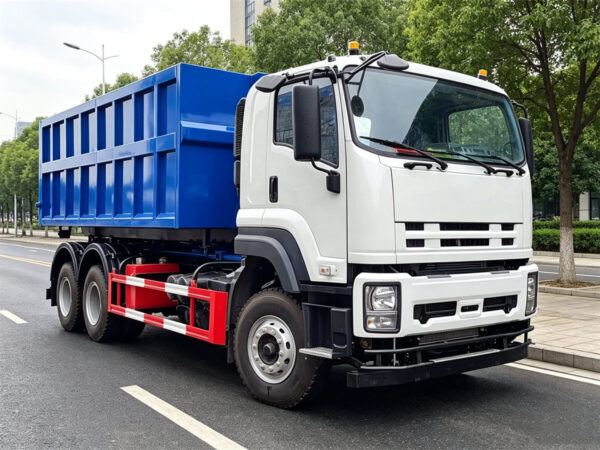

The ISUZU 20 CBM Roll Off Garbage Truck is a heavy-duty waste transportation vehicle designed for large-volume municipal, industrial, construction, and commercial waste collection, particularly where detachable containers are required for flexible loading, transportation, and unloading operations. Built on a robust ISUZU 6×4 chassis, this roll-off truck combines a 20 CBM ground-type garbage container with a hydraulic self-loading system, allowing the vehicle to efficiently handle large quantities of solid waste while reducing the need for separate loading equipment.

The truck has overall dimensions of 8,865×2,500×3,290mm and is equipped with a 20 CBM garbage hopper with a specified loading capacity of approximately 16-18 tons. The 5mm-thick Q235B carbon steel container provides a strong structure for demanding waste transportation applications, while the reinforced hydraulic roll-off system is designed to withstand frequent loading, lifting, transportation, and unloading cycles.

Power is supplied by a WD615.69 336HP diesel engine, paired with an HW13710 transmission offering 10 forward and 2 reverse gears. The 6×4 drive configuration, together with a 7-ton HF7 front axle and 16-ton HC16 rear axles, provides the heavy-duty load-bearing capability required when transporting large and heavy garbage containers.

The hydraulic system uses a reinforced hydraulic mechanism with double hydraulic cylinders, swing arms, chains, and a hydraulic multi-way valve, enabling the truck to load and unload the detachable container efficiently. The hydraulic cylinder lifting and self-loading system allows the container to be handled directly by the vehicle, while a hydraulic rear outrigger provides additional support during container loading and unloading.

With left- or right-hand-drive options, 295/80R22.5 tires in a 10+1 configuration, ZF hydraulic power steering, and a maximum hydraulic system pressure of 16MPa, the ISUZU 20 CBM Roll Off Truck provides a practical and powerful solution for high-volume waste transportation operations.

Features

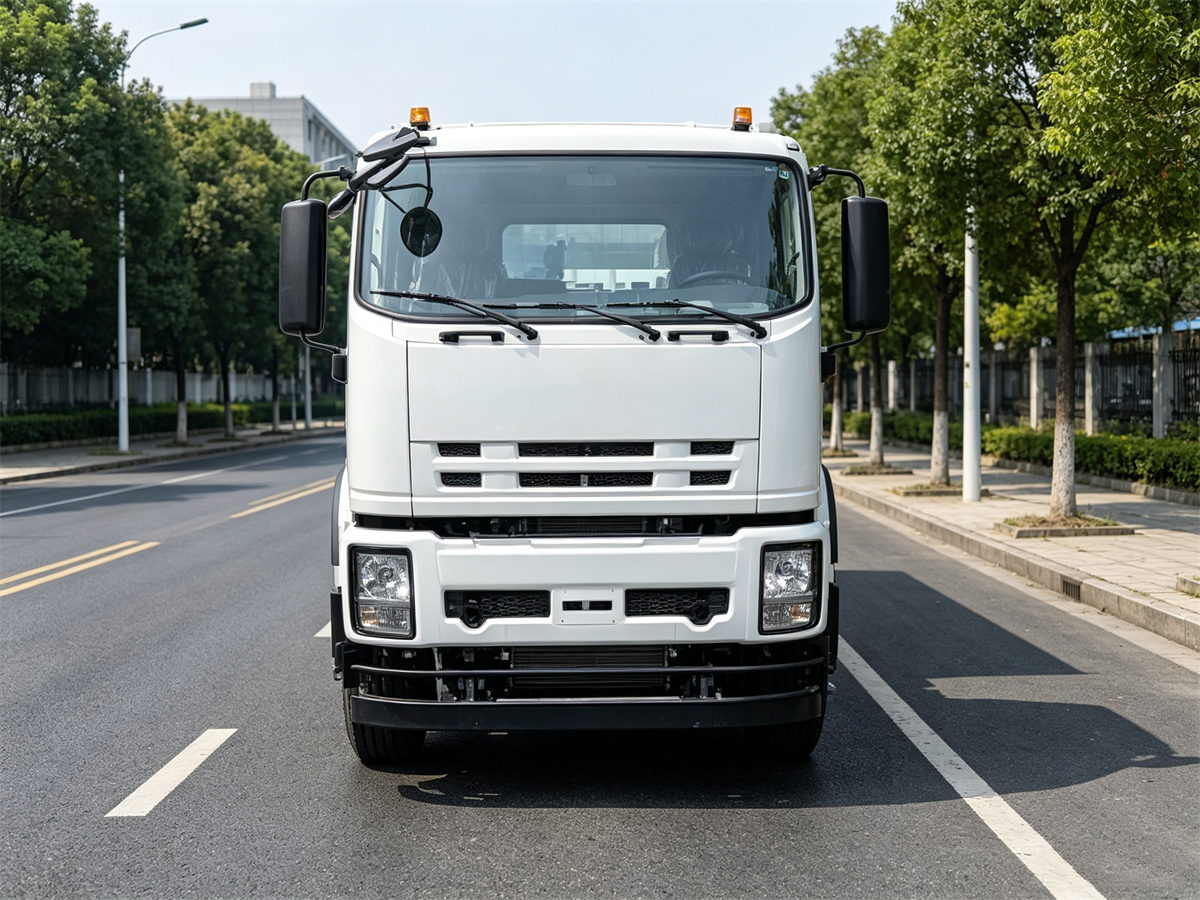

1. Heavy-Duty 6×4 Chassis

The ISUZU 6×4 chassis provides a strong foundation for transporting large and heavy waste containers, with a 7-ton front axle and 16-ton rear axles designed to distribute the load effectively across the vehicle. The 6×4 drivetrain also provides improved traction when operating with a heavily loaded container, making the truck suitable for municipal waste transfer, industrial waste transportation, construction debris, and other demanding applications.

The chassis is fitted with 295/80R22.5 tires, with 10 working tires and one spare tire, providing a suitable combination of load-bearing capacity, road stability, and durability for heavy-duty transportation.

2. Powerful 336HP Diesel Engine

The truck uses a WD615.69 336HP engine to provide the substantial power required for transporting heavy 20 CBM containers. The engine is matched with an HW13710 transmission featuring 10 forward and 2 reverse gears, allowing the driver to select appropriate gearing according to road conditions and load requirements.

The combination of a powerful engine, multi-speed transmission, and 6×4 drivetrain gives the roll-off garbage truck sufficient capability for demanding transportation routes, including industrial areas, waste transfer stations, and long-distance disposal operations.

3. Large 20 CBM Roll-Off Container

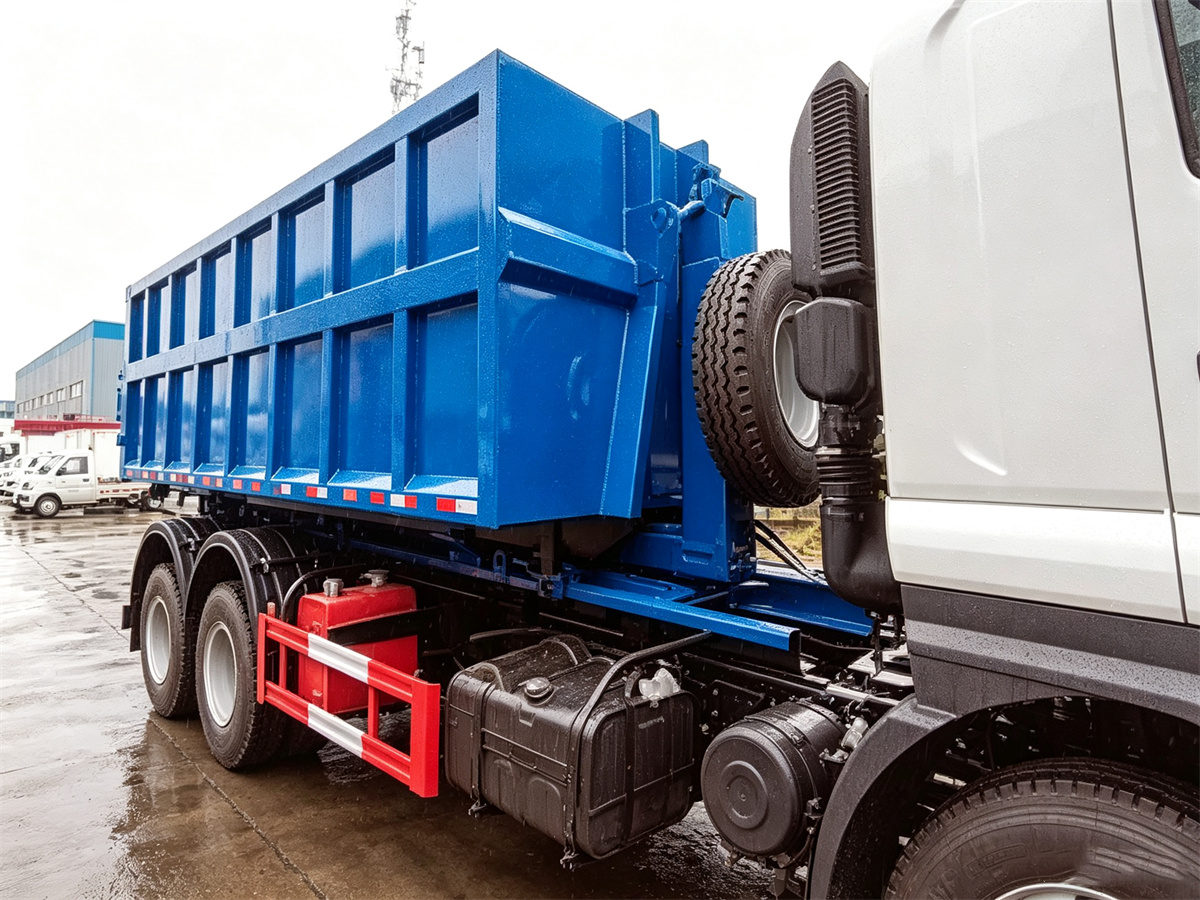

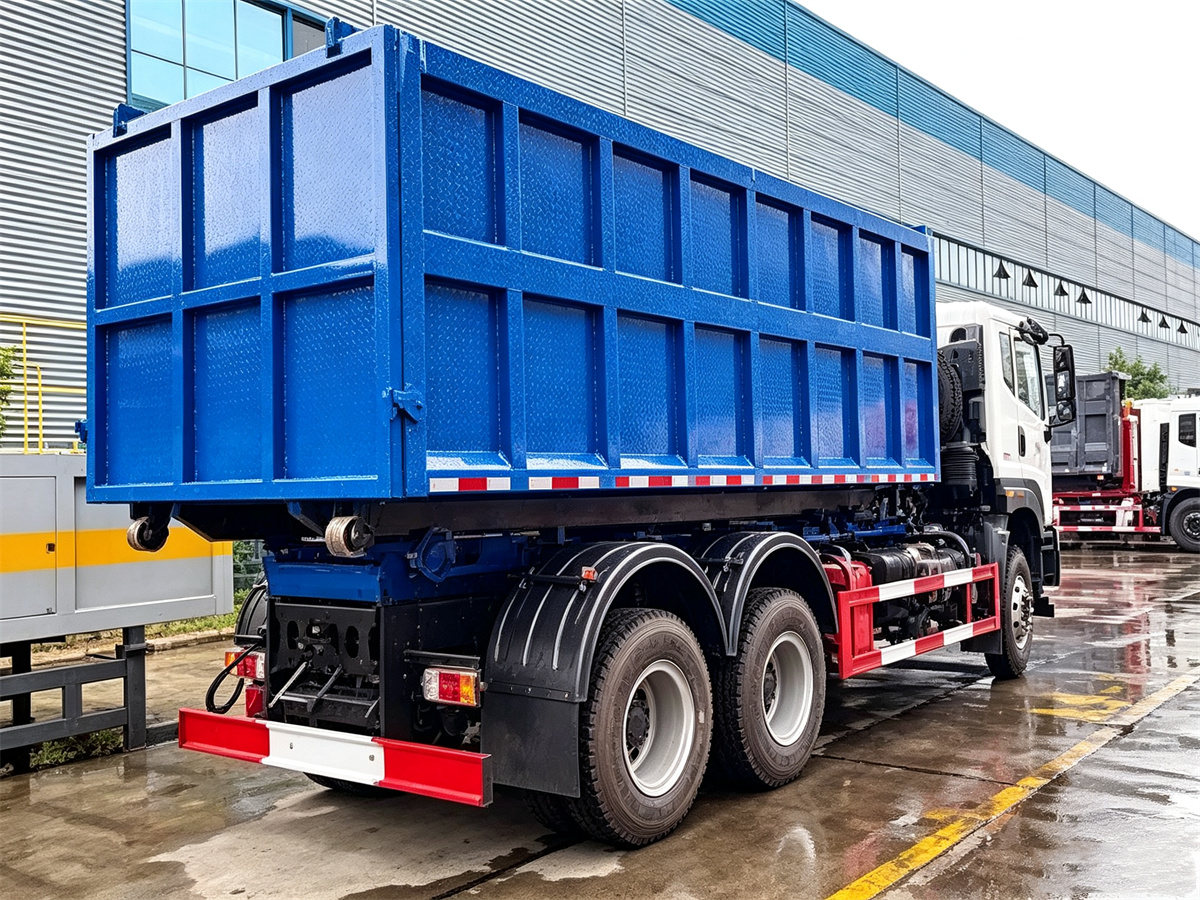

The vehicle is equipped with a 20 CBM ground-type garbage container measuring approximately 5,600×2,300×1,500mm, providing substantial capacity for collecting and transporting bulky or high-volume waste.

The container is manufactured from 5mm Q235B carbon steel, offering good structural strength and resistance to deformation during regular loading and transportation. With a specified loading capacity of approximately 16 or 18 tons, the container can accommodate a wide range of municipal, commercial, industrial, and construction waste.

4. Hydraulic Self-Loading and Unloading System

The hydraulic roll-off system enables the truck to load, transport, and unload detachable garbage containers using its own hydraulic mechanism, eliminating the need for separate lifting equipment in many operating situations. The hydraulic cylinder lifting system raises the container onto the chassis during loading and controls the container during unloading.

A reinforced hydraulic swept-body system with double hydraulic cylinders, swing arms, and chains provides the mechanical strength required for repeated container handling, while the hydraulic multi-way valve allows the operator to control the main lifting and loading functions conveniently.

5. Hydraulic Rear Outrigger for Greater Stability

A hydraulic rear outrigger is included in the standard configuration to provide additional support when the container is being loaded or unloaded. Because the roll-off mechanism generates substantial forces during lifting, the rear outrigger helps stabilize the vehicle and distribute operational loads more effectively.

This configuration is particularly useful when the truck is handling heavy containers at waste transfer stations, construction sites, factories, and other locations where containers may contain dense materials.

6. Reliable Hydraulic Control System

The hydraulic system operates at a maximum pressure of approximately 16MPa and uses a three-way hydraulic control valve for practical operation. The system is designed to provide sufficient hydraulic force for lifting, self-loading, and unloading the 20 CBM container.

The hydraulic components can also be configured with an electronically controlled valve system according to customer requirements, providing additional flexibility for operators who require more advanced control of the roll-off mechanism.

7. Flexible Drive and Container Configurations

The ISUZU 20 CBM Roll Off Truck can be supplied with either left-hand-drive or right-hand-drive configurations, allowing it to be adapted to different international markets and local road regulations. This flexibility makes the model suitable for a wide range of overseas municipal and industrial waste transportation projects.

Customers can also select different electronically controlled valves, garbage container configurations, and container quantities according to their specific collection system. This allows the truck to be integrated into existing waste transfer and container management operations rather than requiring a completely new collection infrastructure.

8. Durable Structure for Heavy-Duty Waste Transportation

The combination of a reinforced Q235B carbon steel container, heavy-duty 6×4 chassis, hydraulic double-cylinder lifting mechanism, swing arms, chains, and rear outrigger creates a robust working platform for intensive waste transportation.

The hydraulic dump mechanism provides a dumping angle of approximately 45°, allowing the container to be raised effectively for waste discharge. With its large 20 CBM capacity and high load-bearing configuration, the ISUZU Roll Off Garbage Truck is well suited for applications where high-volume waste must be collected efficiently and transported to centralized disposal, recycling, or treatment facilities.

Specifications

ITEM	VALUE
Truck model	ISUZU 20 CBM Roll off Truck
Drive style	Left or right-hand drive
Drive model	6×4
Overall Dimensions (LxWxH)	8,865×2,500×3,290 MM
Cargo body	20 CBM
Loading Weight	20 ton
Engine	WD615.69, 336hp
Emission standard	EURO II
Front axle	HF7, 7tons loading capacity
Rear axle	HC16, 16tons loading capacity
Transmission	HVV13710, 10 forward & 2 reverse
Steering system	ZF8118, hydraulic steering with power assistance
Tires	295/80R22.5, 10+1 spare
Upper Structure Dimension	5,600×2,300×1,500mm
Upper Structure Standard Configuration	With one garbage bin, with a hydraulic rear outrigger
Garbage Hopper Volume	Ground type, 20cbm
Garbage Hopper Loading Capacity	16tons or 18Tons
Garbage Hopper Thickness	5mm, Carbon Steel Q235B
Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	245°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder. Swing Arm, Chain. Hydraulic multi-way valve control
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.
