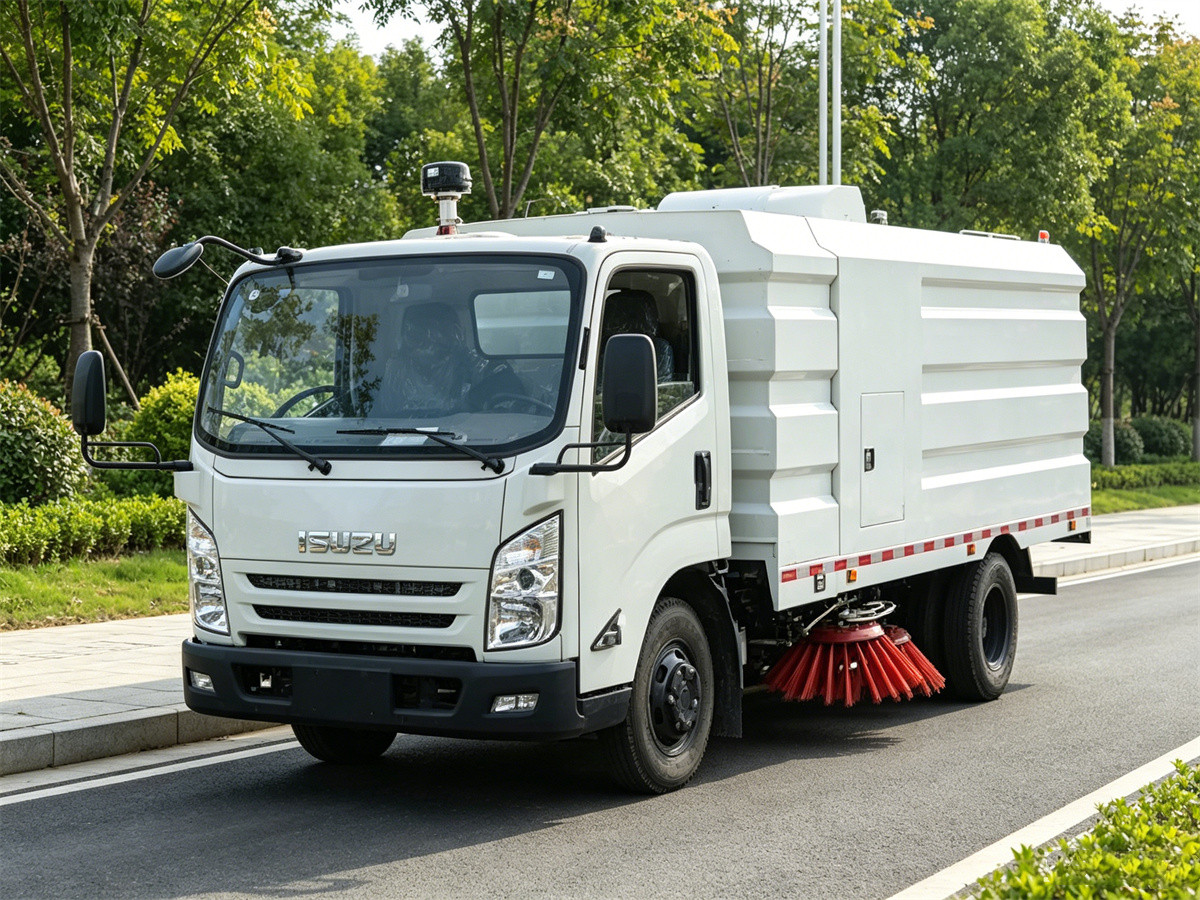

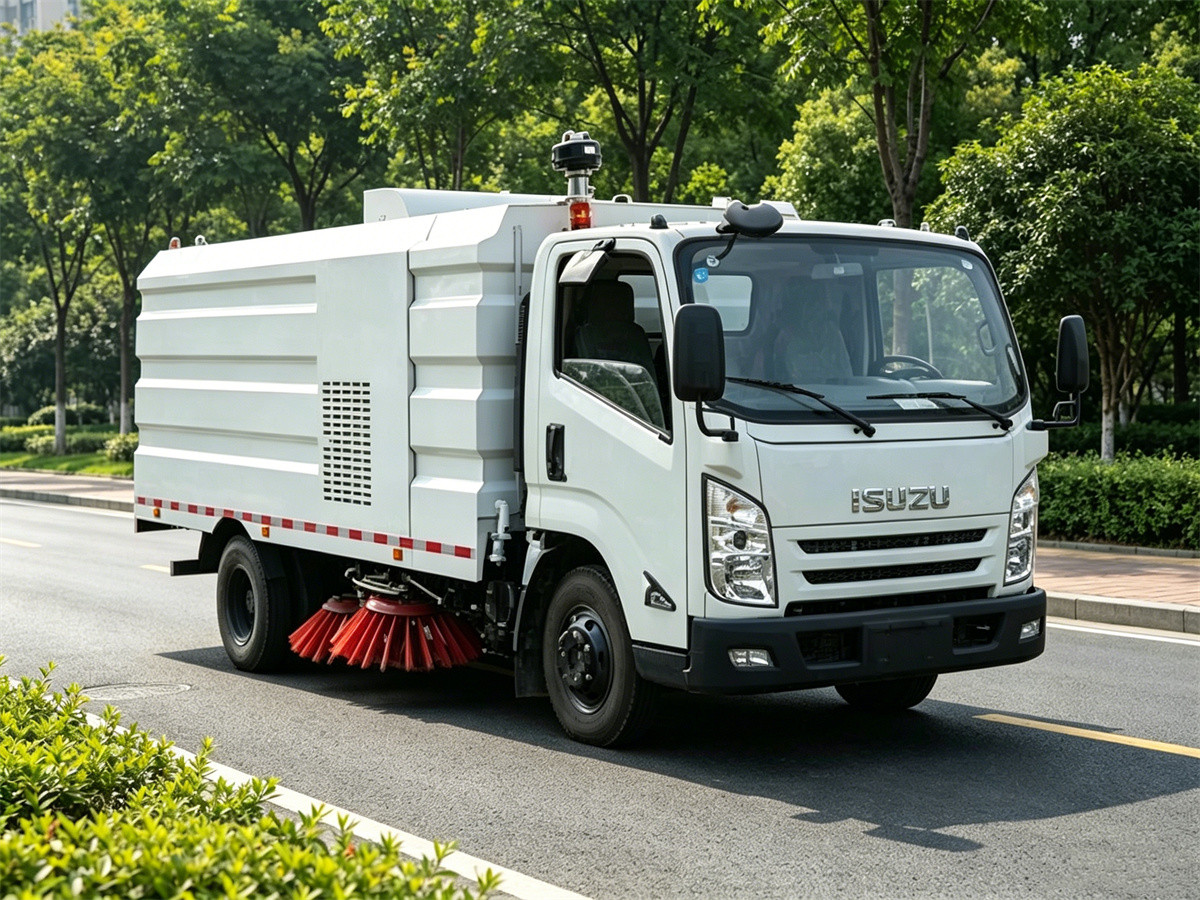

ISUZU 9 CBM Dust Sweeper Truck

ISUZU 9 CBM Dust Sweeper Truck

The ISUZU 9 CBM Dust Sweeper Truck is a highly efficient road cleaning vehicle designed for municipal sanitation departments, industrial parks, airports, logistics centers, highways, and urban environmental maintenance operations. Combining advanced sweeping technology, powerful vacuum suction, and effective dust suppression systems, this vehicle provides an ideal solution for maintaining clean and dust-free road surfaces in a wide variety of working environments.

Built on a reliable 4×2 chassis platform, the truck features a spacious 7 CBM dust collection tank and a 2 CBM water tank, allowing long-duration cleaning operations with minimal interruptions. The integrated sweeping and vacuum collection system efficiently removes dust, sand, leaves, gravel, and other debris while reducing airborne particles through a controlled water spray system.

Powered by a dependable ISUZU 152 HP turbocharged diesel engine and supported by an auxiliary sweeping engine, the sweeper vehicle delivers strong performance, excellent fuel economy, and stable operation throughout demanding daily sanitation tasks. Its compact structure, large cleaning capacity, and user-friendly controls make it an excellent choice for modern road cleaning applications.

---

Features

High-Efficiency Sweeping and Dust Collection System

The truck is equipped with a professional sweeping system capable of achieving a maximum sweeping width of 3 meters, allowing operators to clean large road surfaces quickly and effectively. With a maximum cleaning capacity of 40,000 square meters per hour, the vehicle significantly improves operational efficiency compared to traditional manual cleaning methods.

The powerful vacuum system works together with the sweeping brushes to collect fine dust, leaves, sand, and larger debris, helping maintain cleaner roadways and healthier urban environments.

Large-Capacity Dust and Water Tanks

The upper structure incorporates a 7 CBM dust collection tank and a 2 CBM water tank, both manufactured from durable 304 stainless steel. This corrosion-resistant construction provides excellent durability and long service life while ensuring reliable performance under demanding working conditions.

The large tank capacities allow extended cleaning operations with reduced downtime for unloading debris or refilling water.

Reliable ISUZU Engine Performance

The vehicle is powered by a robust ISUZU turbocharged diesel engine producing 152 HP (112 kW). The 4-cylinder direct-injection engine utilizes intercooling and turbocharging technology to deliver efficient fuel consumption, strong torque output, and dependable operation.

Key engine advantages include:

• 3,550 ml displacement
• Euro 3 emission standard
• Turbocharged intercooler design
• Excellent fuel efficiency and durability

The engine is matched with a 5-speed manual transmission and power steering system, ensuring smooth driving performance in both urban and industrial environments.

Independent Auxiliary Sweeping Engine

To optimize sweeping performance and reduce wear on the main engine, the truck is equipped with an independent ISUZU auxiliary engine delivering 57 kW (78 HP).

This dedicated power source drives the sweeping and vacuum systems, ensuring stable cleaning performance while improving overall operational efficiency and extending the service life of the main powertrain.

Advanced Sweeping Brush Design

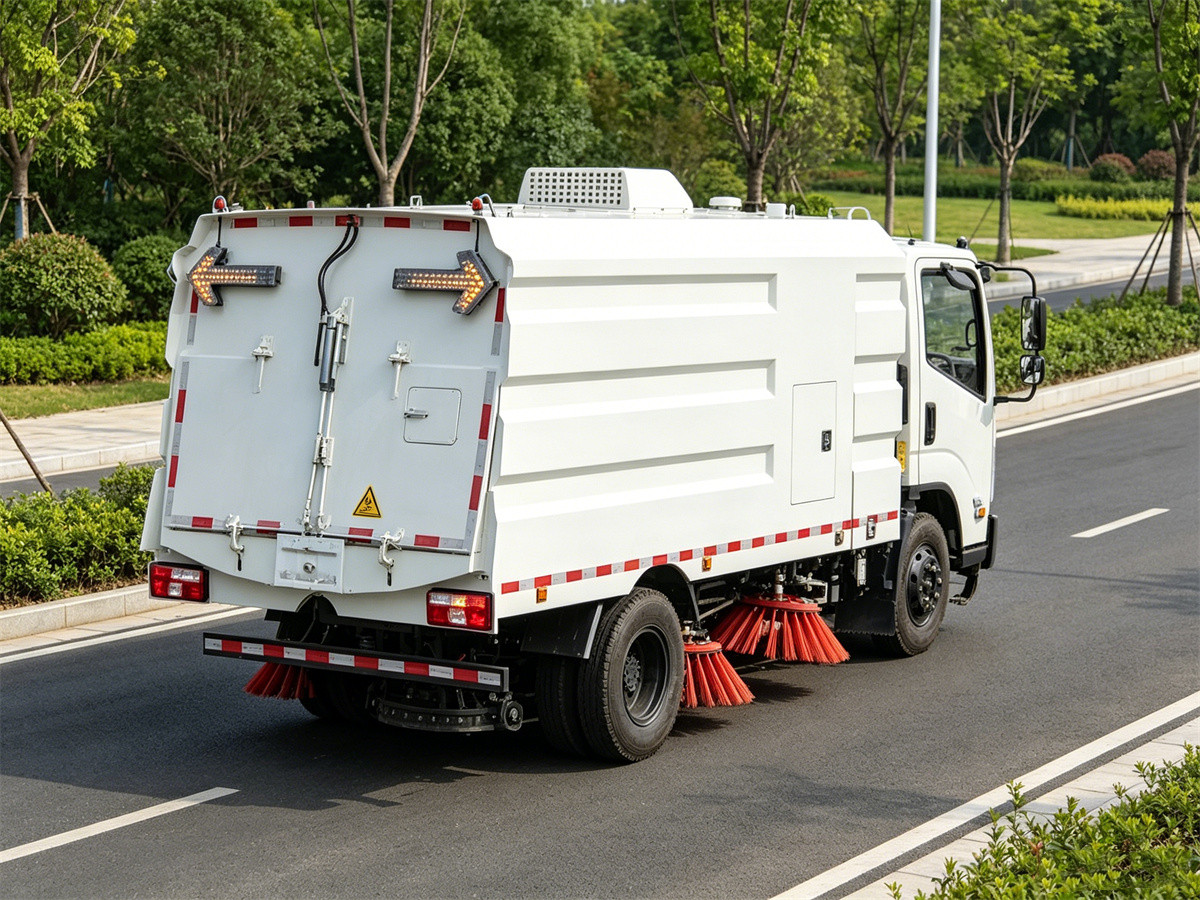

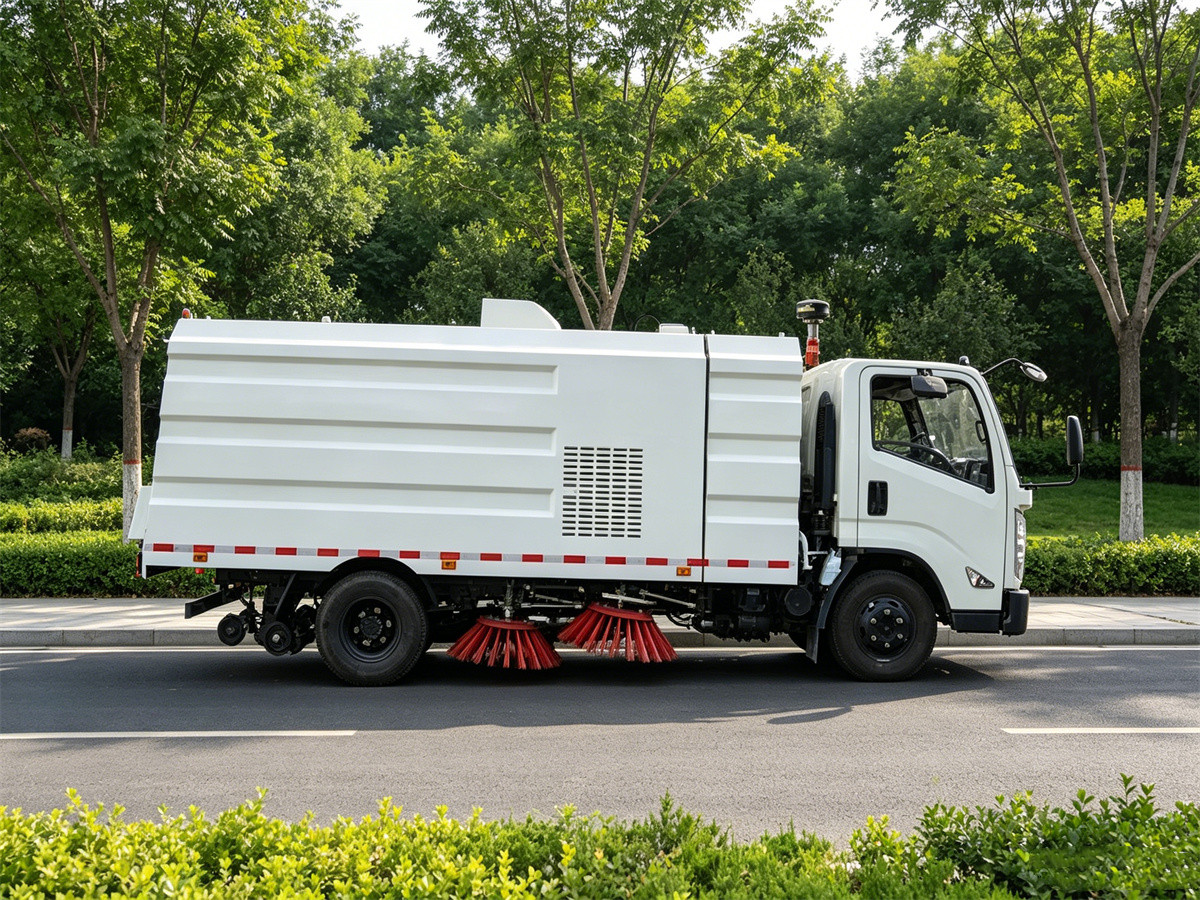

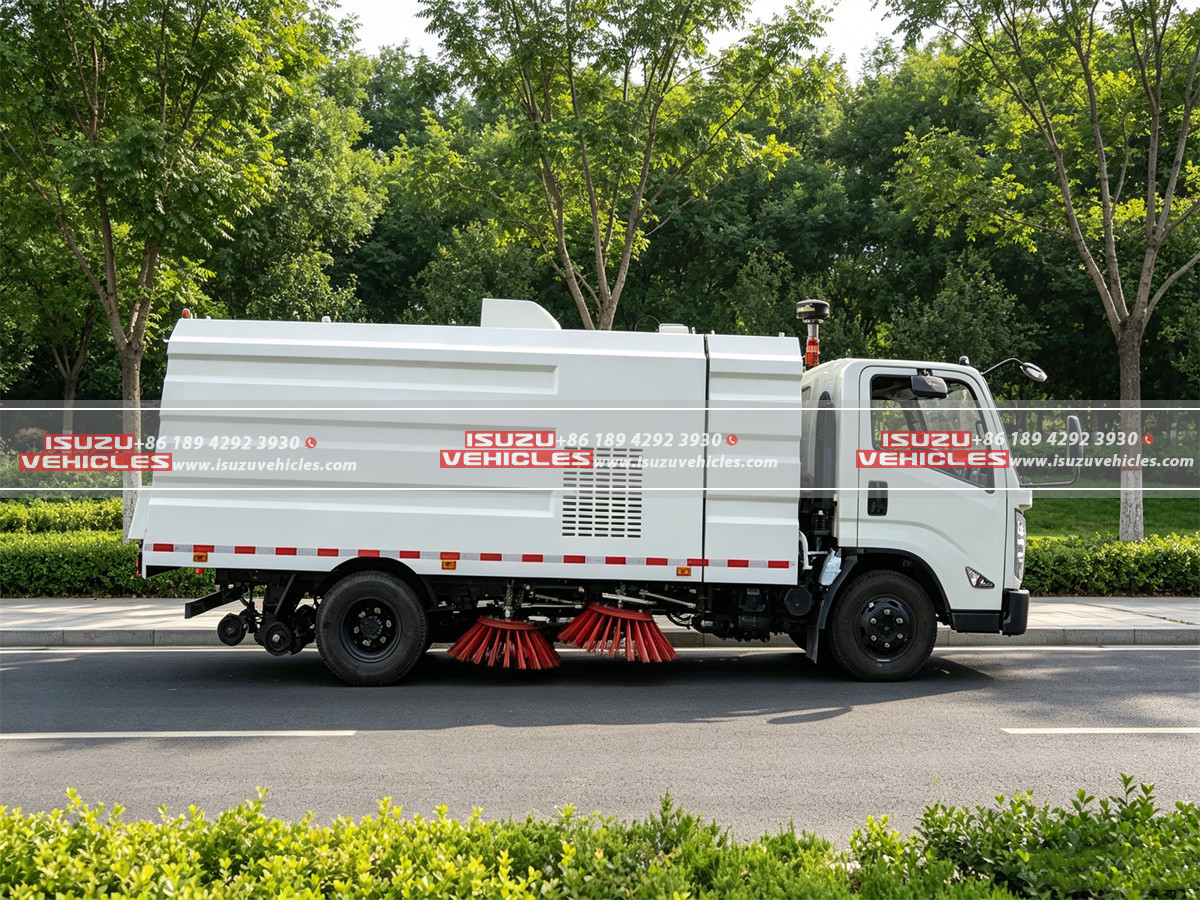

The vehicle utilizes four sweeping brushes, with two brushes positioned on each side of the truck. This arrangement effectively gathers debris toward the suction area for efficient collection.

The sweeping system is supported by:

• High-performance hydraulic drive
• Continuously variable speed automatic clutch
• Precision brush control
• Optimized debris collection efficiency

This design allows the truck to achieve excellent cleaning results across various road conditions.

Professional Dust Suppression Technology

To reduce airborne dust during operation, the truck is equipped with an advanced water spray system featuring electronic water pumps and strategically positioned spray nozzles.

The dust suppression system helps improve air quality while enhancing cleaning effectiveness, making the vehicle particularly suitable for urban roads, industrial facilities, and environmentally sensitive areas.

An emergency manual pump system is also included to ensure operational continuity when needed.

Premium Hydraulic and Electrical Systems

The truck incorporates high-quality hydraulic and electrical components designed for long-term reliability and precise control.

Key components include:

• HIP-5D-7 electromagnetic valve set
• Sanyo motor
• German Schneider control switches
• Hydraulic lifting control system

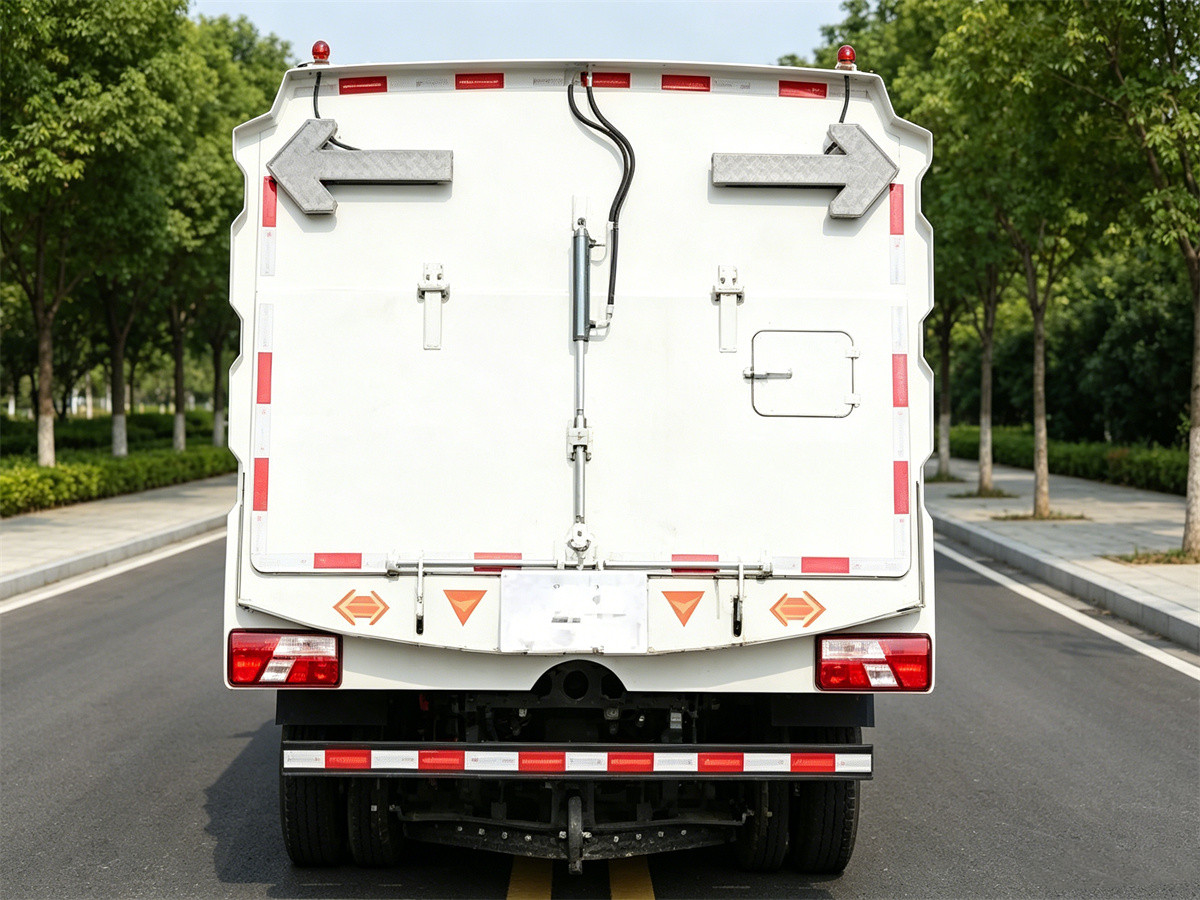

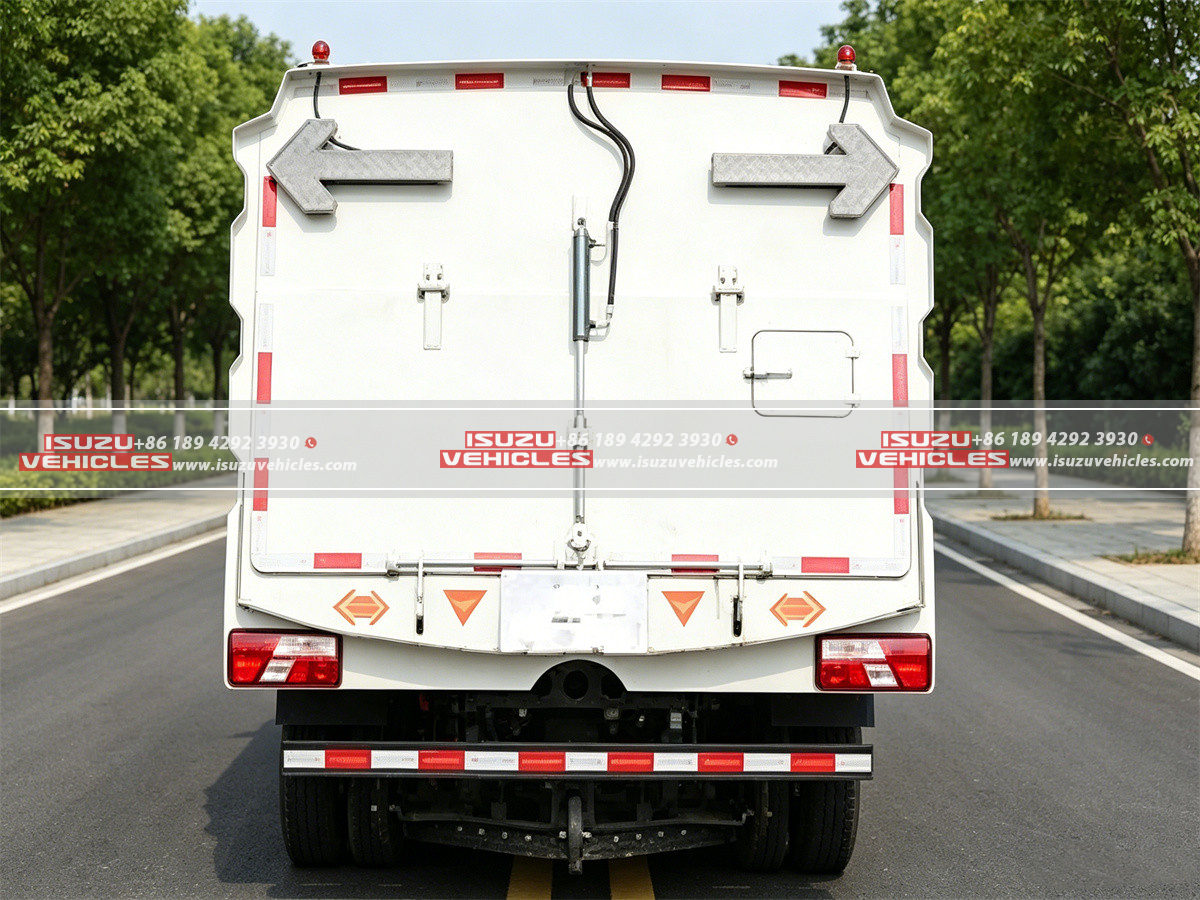

• Rear door hydraulic opening mechanism

These premium components contribute to smooth operation, low maintenance requirements, and dependable performance.

Operator-Friendly Safety Features

Designed with operator safety and convenience in mind, the vehicle includes:

• Air-conditioned cab
• Comfortable seating for two occupants
• Power steering
• Rear LED directional warning lights
• Easy-access control systems
• Comprehensive operation manual

These features help improve working comfort while enhancing safety during daily road cleaning operations.

Flexible Optional Equipment

To meet different operational requirements, several optional features are available, including:

• Front flushing system
• Rear sprinkler system
• Side spraying system
• Dust tank self-cleaning function
• Hose reel with water gun
• Customized vehicle colors
• Aerial working platform options

These upgrades allow customers to tailor the vehicle to specific environmental sanitation and maintenance tasks.

The ISUZU 9 CBM Dust Sweeper Truck offers an excellent combination of sweeping efficiency, durable construction, advanced dust control technology, and reliable ISUZU power, making it a valuable asset for professional road cleaning and municipal sanitation operations.

Specification



Category & Item	Specification Description
1. General Technical Parameters
Overall Dimensions (L×W×H)	6,830×2,220×2,650 mm
Gross Vehicle Weight	9,000 Kg
Curb Weight	2,800 Kg
2. Chassis Specification
Chassis Brand	Qingling ISUZU/JMC
Drive Model	4×2
Cabin Configuration	Single row, LHD, with air conditioning
Passenger Capacity	2 persons
Wheel Base	3,815 mm
Front/Rear Axle Loading	3,500/5,000 Kg
Suspension Type	Mechanical Suspension, 11/9+7H
Tire Specification	7.50R16, steel wire tire, 6 pcs with 1 spare tire
Gearbox	5 Forwards & 1 Reverse, with power steering
Brake System	Oil brake
3. Main Engine Parameters
Engine Model	ISUZU
Rated Power	112KW/152HP
Engine Type	4-stroke direct injection, 4-cylinder in-line, turbocharged intercooler, with ABS
Emission Standard	EURO 3
Displacement	3,550 ml
Fuel Type	Diesel
4. Auxiliary Engine & Tank Parameters
Auxiliary Engine Model	ISUZU
Auxiliary Engine Rated Power	57KW/78HP
Water Tank Material	Stainless steel 304
Water Tank Volume	2 CBM
Dust Tank Material	Stainless steel 304
Dust Tank Volume	7 CBM
5. Sweeping Performance Parameters
Sweeping Speed Range	3-20 km/h
Maximum Sweep Width	3 m
Maximum Cleaning Capacity	40,000 m²/h
6. Standard Configuration
1. Sweeping Brush Assembly	2 sweeping brushes on each side
2. Drive Motor	Sanyo Motor
3. Solenoid Valve Set	HLP-5D-7 electromagnetic valve set
4. Clutch System	Continuously variable speed automatic clutch
5. Control Switch	German Schneider control switch
6. Vacuum System	Maintenance-free centrifugal fan, vacuum tube, and rear suction device
7. Water Spray & Dust Suppression System	Electronic water pump with water-spray nozzle for dust restraint, manual pump emergency system
8. Hydraulic System	Hydraulic system for control box lift and rear door open
9. Warning Light	Rear LED arrow lights
10. Operation Document	1 set of user’s operation manual
7. Optional Configuration
Optional Accessories & Functions	Front flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, aerial work platform, optional body color, etc.
