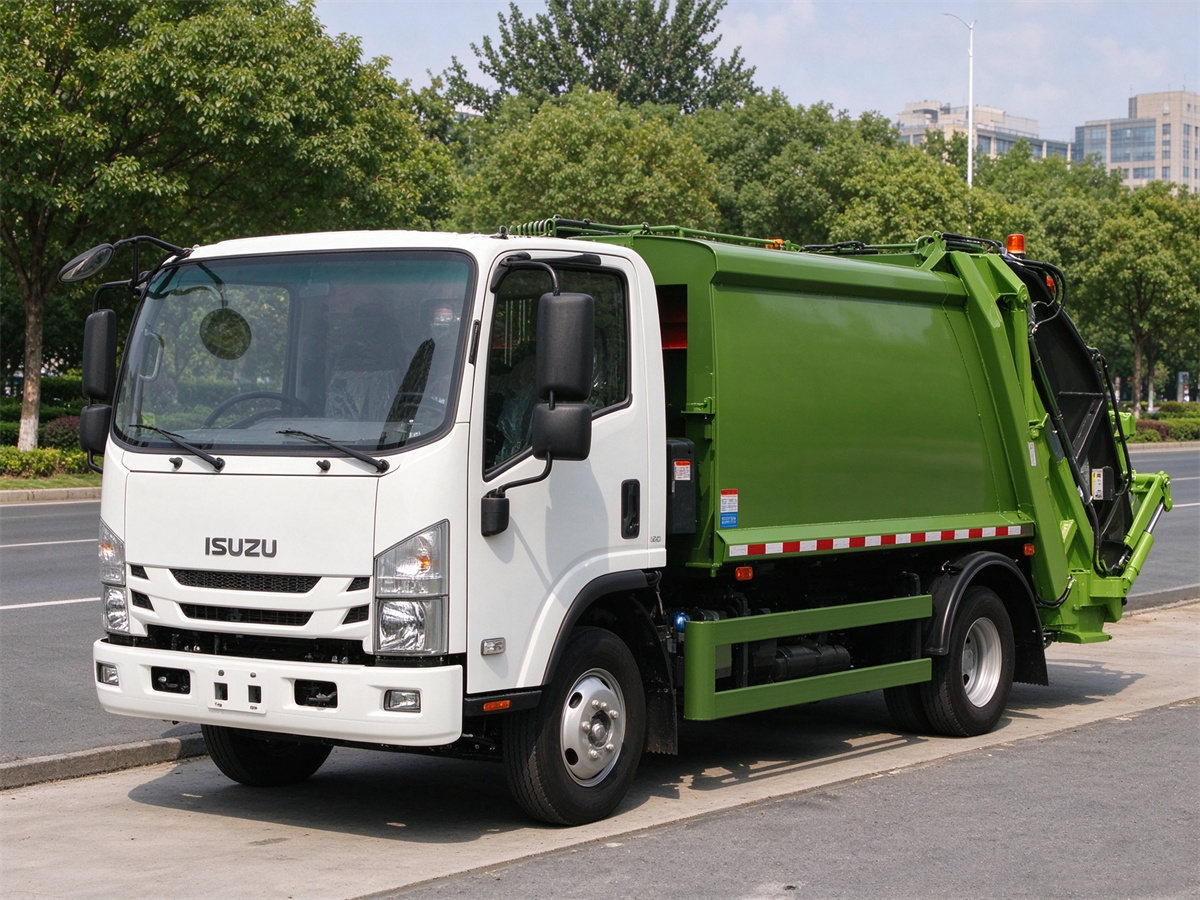

ISUZU 6 CBM Waste Compactor Truck

ISUZU 6 CBM Waste Compactor Truck

The ISUZU 6 CBM Waste Compactor Truck is a compact and practical sanitation vehicle designed for municipal waste collection, residential garbage disposal, commercial waste management, and daily cleaning operations in urban and suburban areas. Built on the ISUZU KV100 3X chassis with a 4×2 left-hand-drive configuration, this vehicle combines a maneuverable body design with a sealed garbage compaction system, making it suitable for collection routes where road space, operating efficiency, and waste containment are important considerations. With overall dimensions of 6540 × 2300 × 2480 mm and a wheelbase of 3360 mm, the truck is designed to navigate residential streets, community roads, and commercial districts while providing a useful 6 CBM waste-loading capacity.

Power comes from the ISUZU 4KH1CN6LB diesel engine, a 2,999 ml, four-cylinder engine delivering 120 HP (88 kW), paired with an ISUZU MSB five-speed manual transmission. The powertrain provides practical performance for frequent stop-and-go driving, repeated garbage collection, and transportation between collection points and disposal facilities. The specified Euro VI emission standard makes this configuration suitable for markets where the corresponding emissions certification is required, subject to confirmation of local regulations and vehicle certification. A single-row cab accommodates two passengers and includes air conditioning, creating a straightforward working environment for the driver and collection crew.

The truck has a gross vehicle weight of 7,300 kg and a listed curb weight of 3,120 kg, giving a nominal weight difference of approximately 4,180 kg before considering the final body configuration and applicable payload restrictions. The actual allowable payload must be confirmed against the manufacturer’s certified vehicle weight and axle-load limits before operation. For customers comparing different municipal sanitation vehicles, the garbage collection truck range offers additional body capacities and loading configurations, while the compact KV100 platform provides a practical starting point for operations that do not require a large refuse truck.

Features

1. Reliable Diesel Powertrain and Practical Chassis

The ISUZU 4KH1CN6LB engine combines a four-cylinder, four-stroke, direct-injection design with turbocharging, intercooling, and water cooling to support dependable everyday operation. Its rated output of 120 HP (88 kW) and 2,999 ml displacement are matched to the truck’s compact chassis and waste collection duties, while the five-speed manual transmission allows the driver to select suitable gears for urban traffic and road conditions. The 4×2 drive configuration, 3,360 mm wheelbase, and 7.00R16 tires with six road tires plus one spare provide a conventional light-duty truck layout for routine municipal work.

The braking system includes a dual-circuit compressed-air service brake, a spring-operated parking brake controlled by compressed air and acting on the rear wheels, and an engine exhaust brake for auxiliary braking assistance. Together with the 24 V negative-ground electrical system and two 12 V, 165 Ah batteries, these components support the truck’s regular driving and equipment-operation requirements.

2. Six-Cubic-Meter Compactor Body with Sealed Construction

The 6 CBM garbage compactor body is designed to collect and compress refuse before transporting it to a designated disposal or transfer facility. The body specification includes 4 mm side panels and a 5 mm bottom panel, providing a robust structure for routine waste-handling duties. Its sealed, leak-proof design helps contain liquid waste during collection and transportation, reducing the likelihood of leakage onto roads and collection areas when the body is properly maintained and operated.

A 200-liter sewage collection tank collects liquid associated with garbage handling, helping maintain cleaner working conditions around the vehicle. The compaction system has a stated compression ratio of approximately 3:1 to 4:1, although actual results depend on the composition, moisture content, and compressibility of the collected waste. By reducing the volume of suitable refuse, the compactor can help improve collection efficiency and reduce unnecessary trips to disposal sites, subject to the truck’s rated weight and legal loading limits.

3. Efficient Loading Cycle and Horizontal Ejection

The filling mechanism has a specified operating cycle of approximately 20–25 seconds, allowing the crew to process successive loads during routine collection work. The actual cycle time depends on operating conditions, the type of waste, and the selected control mode. The horizontal ejection discharge method enables the compacted garbage to be pushed out of the body during unloading, supporting a more organized discharge process at an authorized waste disposal or transfer station.

The loading and compaction equipment is designed for repeated use throughout a working shift, making it suitable for residential communities, apartment complexes, shopping areas, public institutions, and other locations that generate regular quantities of refuse. Customers managing different sanitation tasks can also explore the road sweeping vehicle selection for street cleaning operations or the vacuum cleaning truck range for liquid waste removal and sewer maintenance, depending on the requirements of their municipal fleet.

4. PLC Control System and Operator Safety

The compactor uses a programmable logic controller (PLC) for electrical operation, with functions including start, stop, single-cycle operation, continuous-cycle operation, and emergency recovery. The system is designed to simplify routine operation by organizing the main compaction functions into a consistent control process, while manual emergency operation provides an additional means of responding to certain equipment situations according to the manufacturer’s procedures.

The control panel can be supplied in English or a customized language to suit the customer’s operating team. Standard equipment includes a dustbin lifter, access ladder, warning lights, emergency stop button, handrail, fire extinguisher, basic tool kit, and English operation manual. Optional equipment includes a reversing camera and reversing alarm to assist the driver when maneuvering in crowded collection areas. Operators should follow the supplied safety instructions, keep personnel clear of moving mechanisms, and use the emergency controls only in accordance with the manufacturer’s guidance.

5. A Practical Solution for Daily Municipal Waste Collection

With its compact dimensions, 6 CBM body, diesel powertrain, and integrated compaction equipment, the ISUZU 6 CBM Waste Compactor Truck is intended for waste collection routes that require a balance between loading capacity and maneuverability. Its sealed body and sewage collection tank are useful for routine refuse handling, while the horizontal ejection mechanism supports unloading at suitable waste management facilities. The combination of a two-person cab, manual transmission, and straightforward control functions also makes the vehicle adaptable to different municipal and commercial collection workflows.

For waste management contractors, local authorities, sanitation departments, and fleet operators, this truck offers a compact configuration for regular refuse collection in areas where a larger compactor vehicle may be less convenient. Final specifications, certified payload, emissions compliance, and optional equipment should be confirmed with the supplier before ordering so that the vehicle can be configured for the intended working environment and local operating requirements.
