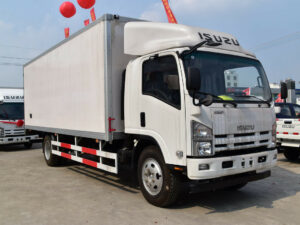

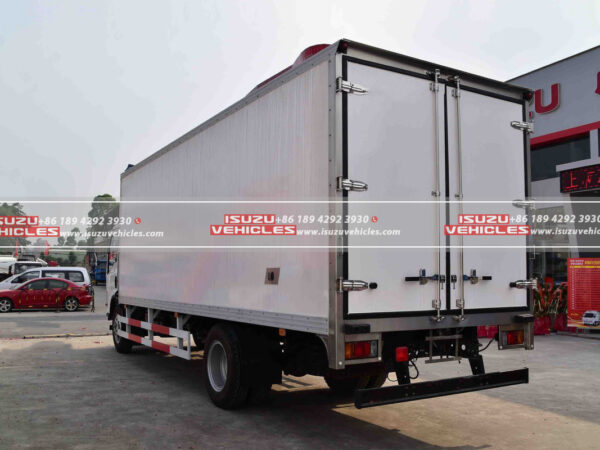

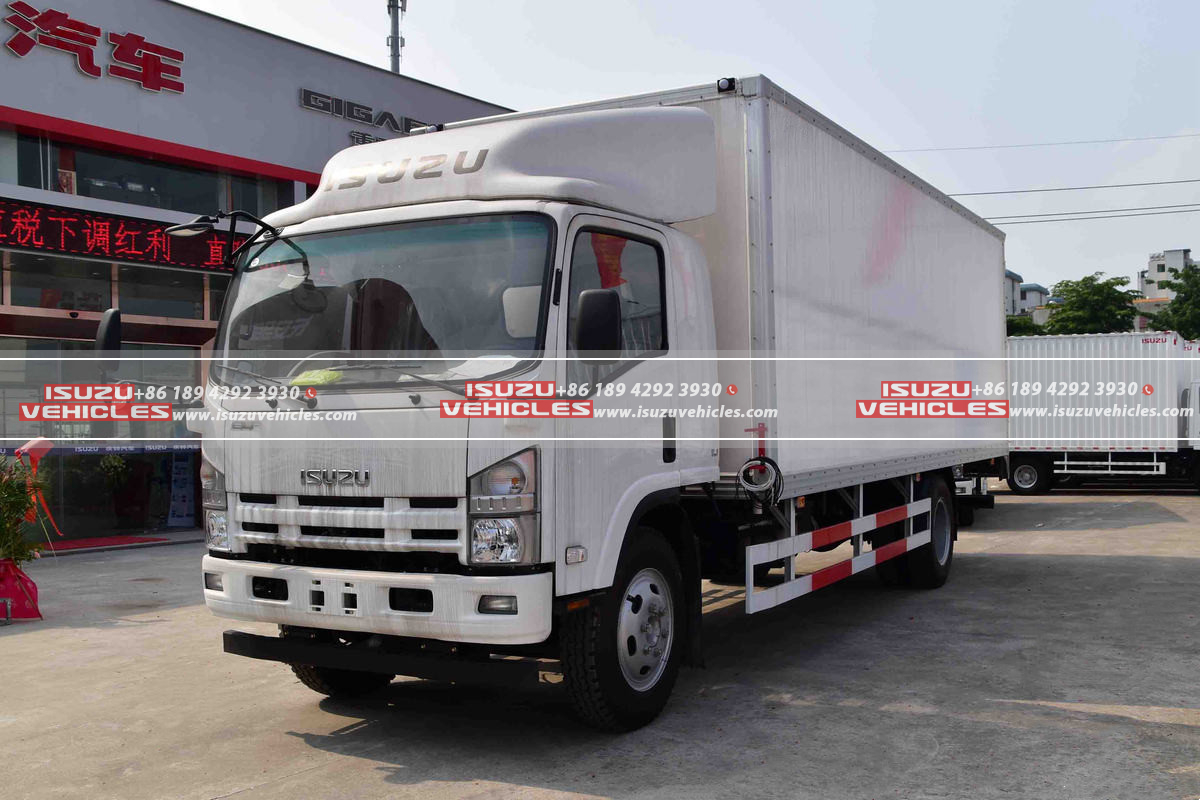

ISUZU 700P 6 Meter Box Van Truck
The ISUZU 700P 6-Meter Box Van Truck is a medium-duty commercial vehicle designed for efficient and reliable cargo transportation. Built with a 4×2 drive system and a 5200 mm wheelbase, this truck offers exceptional stability and maneuverability, making it ideal for urban and regional logistics. With a 6.7-meter cargo box length, it provides ample space for transporting goods securely, while its 9.645-ton gross vehicle weight and 4.69-ton payload capacity ensure it can handle heavy loads with ease.
Manufactured in Chongqing, China, the ISUZU 700P is powered by a Qingling Isuzu 4HK1-TC51 diesel engine, delivering 190 horsepower and 510 N·m of torque. Its 6-speed manual transmission ensures smooth gear shifts, while the 4.1 rear axle ratio enhances fuel efficiency and performance. Whether for delivery services or industrial use, this truck is built to deliver reliability and efficiency.
Features
Performance and Engine
The ISUZU 700P is equipped with a 4HK1-TC51 diesel engine, featuring a 5.193L displacement and compliance with China V emission standards. This 4-cylinder, inline engine delivers a maximum output power of 141 kW and a top speed of 110 km/h, ensuring powerful performance for long-distance hauls. The high-pressure common rail fuel system enhances fuel efficiency, while the 1600 rpm maximum torque ensures strong pulling power even under heavy loads.
Design and Dimensions

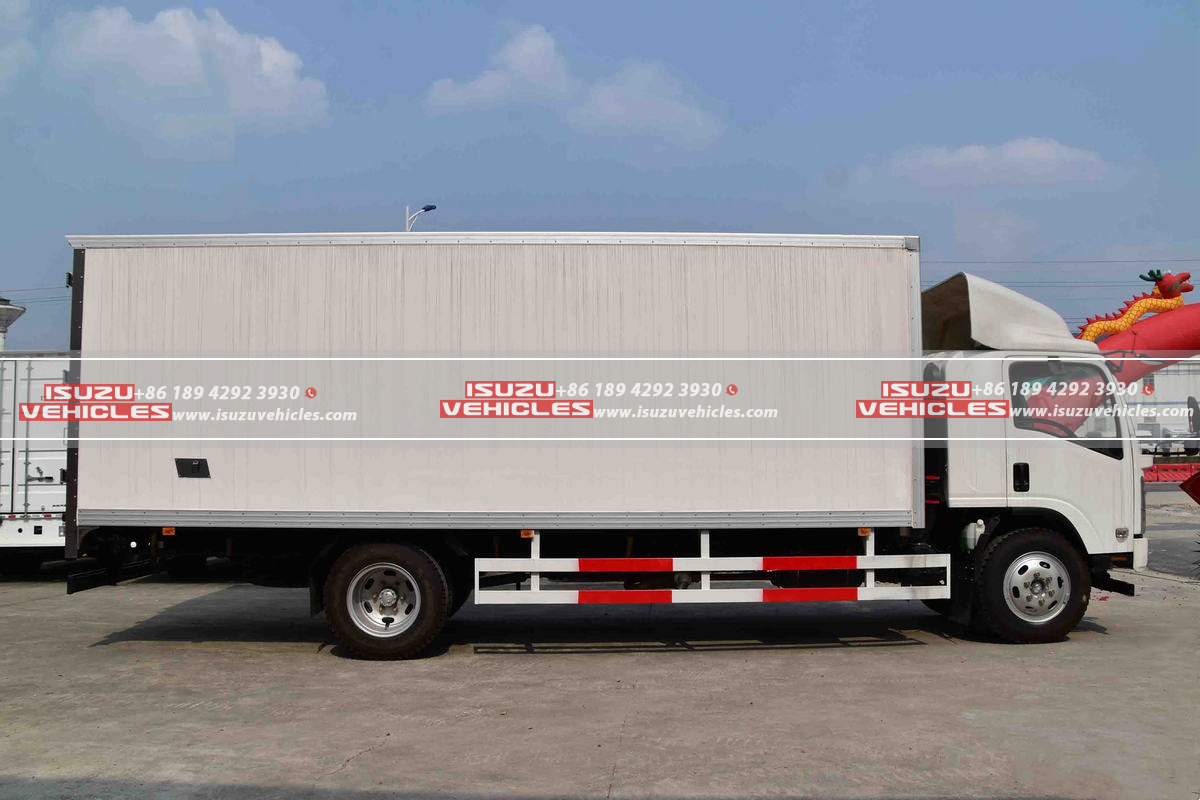

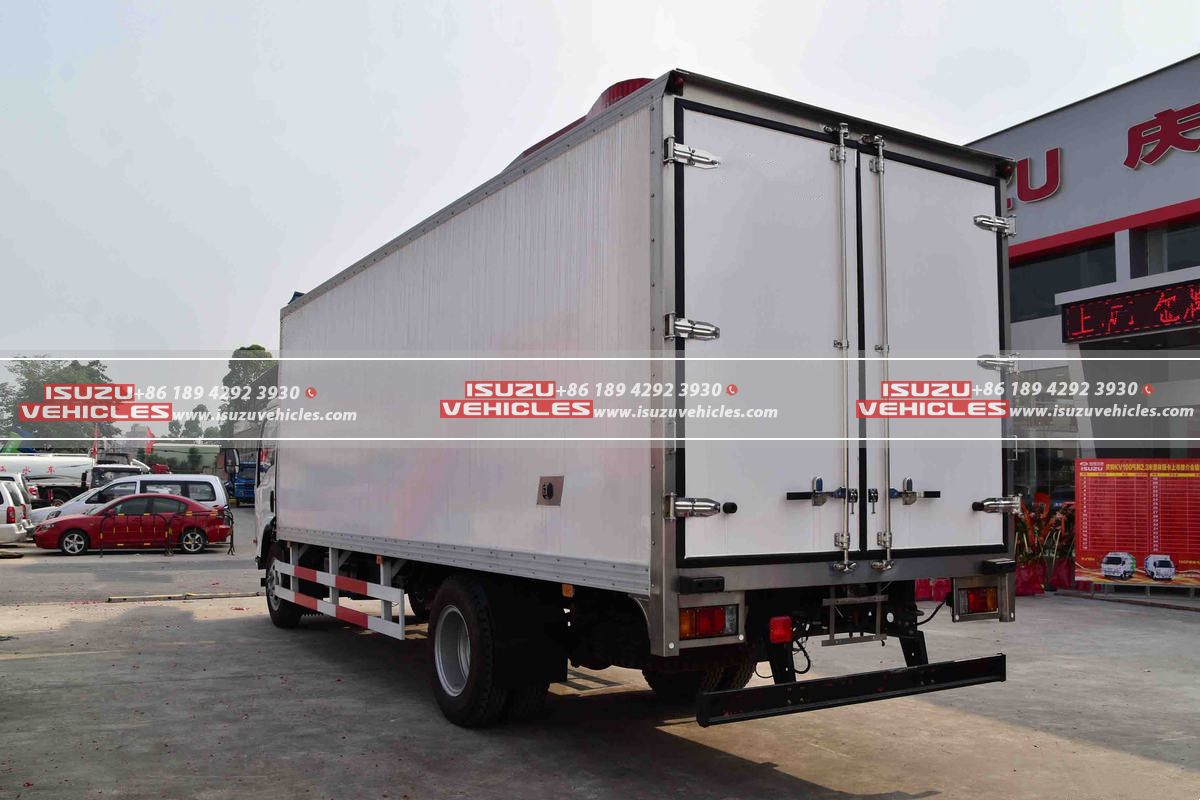

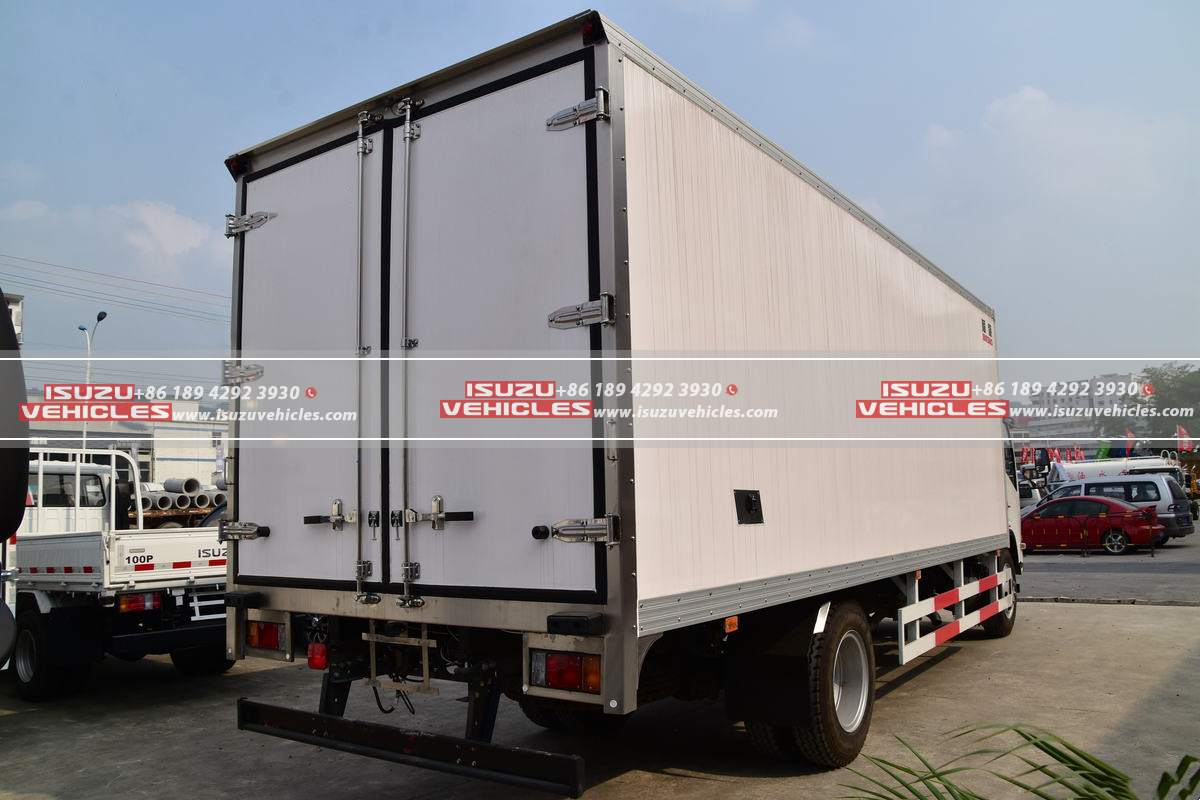

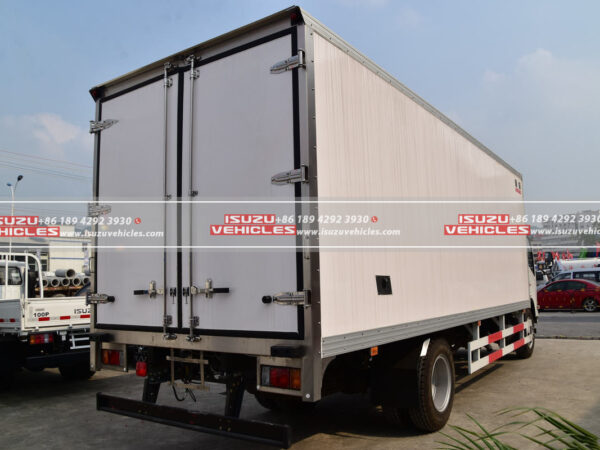

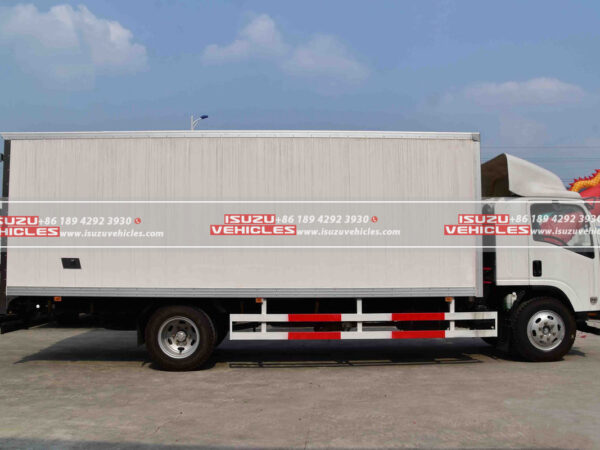

The truck boasts a 8.955-meter body length, 2.396-meter width, and 3.3-meter height, providing a commanding presence on the road. The 6.672-meter cargo box offers a 2.25-meter width and 2.203-meter height, making it suitable for transporting large or bulky items. The steel cargo box ensures durability and protection for your goods.
Safety and Comfort
Safety is a priority in the ISUZU 700P, with ABS anti-lock braking as a standard feature, ensuring reliable stopping power in all conditions. The single-row cabin comfortably seats up to three passengers, with ergonomic seating and a spacious interior designed for driver comfort during long journeys.
Tire and Suspension
The truck is fitted with 6 tires of size 8.25R20 14PR, providing excellent traction and durability. The 8/10+6 spring leaf suspension ensures a smooth ride, even on uneven roads, while the 3300 kg front axle load capacity and 6345 kg rear axle load capacity guarantee stability under heavy loads.
The ISUZU Box Van Truck is a versatile and dependable solution for businesses requiring efficient cargo transportation. With its powerful engine, spacious cargo box, and advanced safety features, this truck is designed to meet the demands of modern logistics.
SPECIFICATIONS:
| Specification | Details |
|---|---|
| Type | Van Truck |
| Drive Form | 4X2 |
| Wheelbase | 5200mm |
| Box Length Grade | 6.7m |
| Engine | Qingling Isuzu 4HK1-TC51 |
| Transmission | Isuzu MLD-6Q |
| Rear Axle Ratio | 4.1 |
| Body Length | 8.955m |
| Body Width | 2.396m |
| Body Height | 3.3m |
| Front Track | 1680mm |
| Rear Track | 1650mm |
| Gross Vehicle Weight | 9.645t |
| Curb Weight | 4.76t |
| Rated Payload | 4.69t |
| Max Speed | 110km/h |
| Place of Origin | Chongqing |
| Tonnage Grade | Medium Truck |
| Approach Angle | 19° |
| Departure Angle | 13° |
| Market Segment | N/A |
| Front/Rear Overhang | 1.11/2.645m |
| License Plate (Yellow/Blue) | Yellow |
| Energy Type | Diesel |
| Engine Parameters | |
| – Engine Brand | Qingling Isuzu |
| – Engine Model | Qingling Isuzu 4HK1-TC51 |
| – Engine Info | Isuzu 4HK1 |
| – Cylinder Count | 4 |
| – Fuel Type | Diesel |
| – Cylinder Arrangement | Inline |
| – Displacement | 5.193L |
| – Emission Standard | Euro 5 |
| – Max Output Power | 141kW |
| – Max Horsepower | 190hp |
| – Max Torque | 510N·m |
| – Max Torque RPM | 1600rpm |
| – Rated RPM | 2600rpm |
| – Engine Form | High-pressure Common Rail |
| Transmission Parameters | |
| – Transmission Model | Isuzu MLD-6Q |
| – Transmission Brand | Isuzu |
| – Shift Mode | Manual |
| – Forward Gears | 6 |
| – Reverse Gears | 1 |
| Cargo Box Parameters | |
| – Cargo Box Form | Van |
| – Cargo Box Length | 6.672m |
| – Cargo Box Width | 2.25m |
| – Cargo Box Height | 2.203m |
| – Cargo Box Material | Steel Tile |
| – Cargo Box Internal Width | 2.25m |
| Cab Parameters | |
| – Cab | N/A |
| – Cab Width | N/A |
| – Passenger Capacity | 3 |
| – Seat Rows | Single |
| Chassis Parameters | |
| – Front Axle Load Capacity | 3300kg |
| – Rear Axle Load Capacity | 6345kg |
| – Gear Ratio | 4.1 |
| – Leaf Spring Count | 8/10+6 |
| Tires | |
| – Tire Specification | 8.25R20 14PR |
| – Number of Tires | 6 |
| – Tire Specification (Metric) | 8.25 |
| Control Configuration | |
| – ABS Anti-lock Braking System | Yes |
