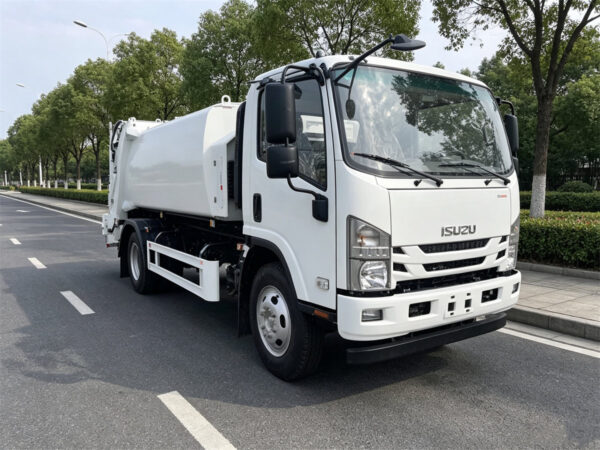

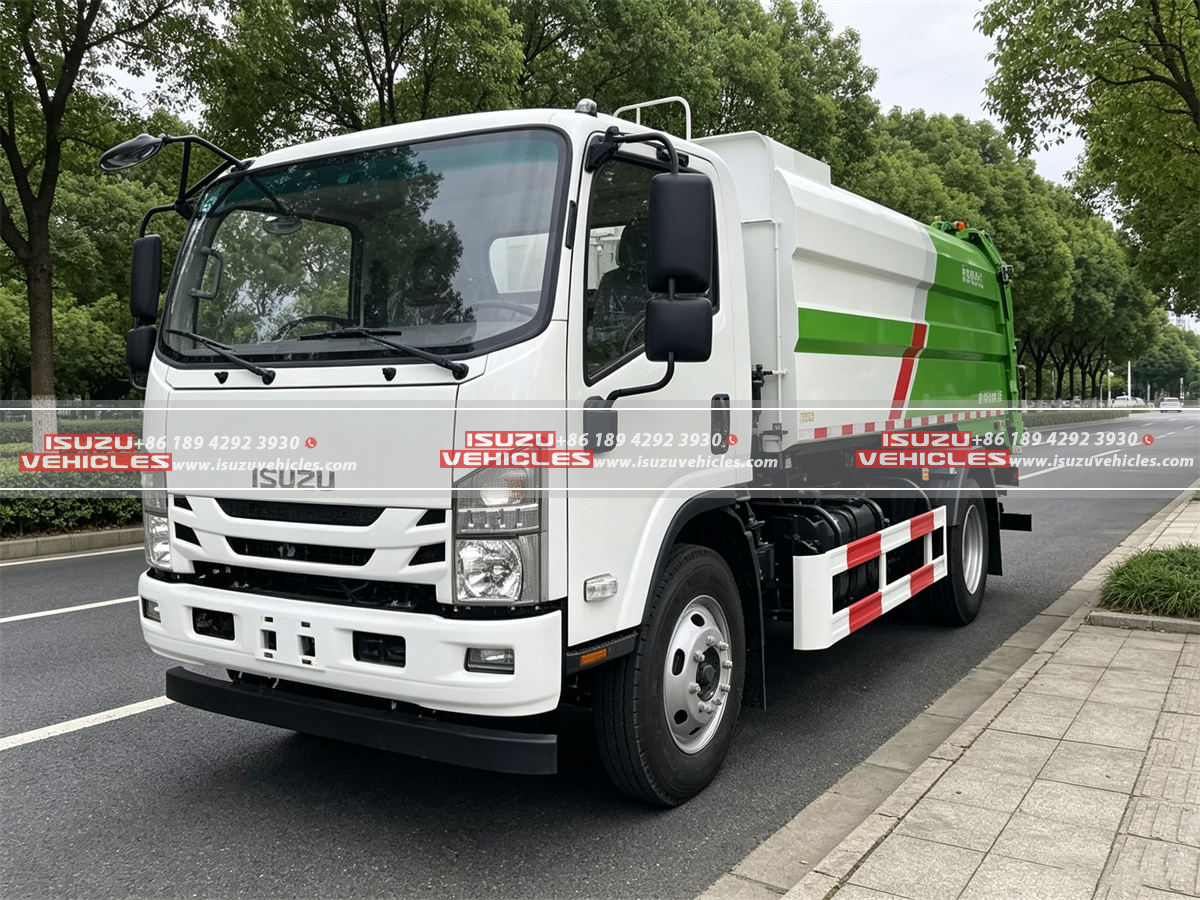

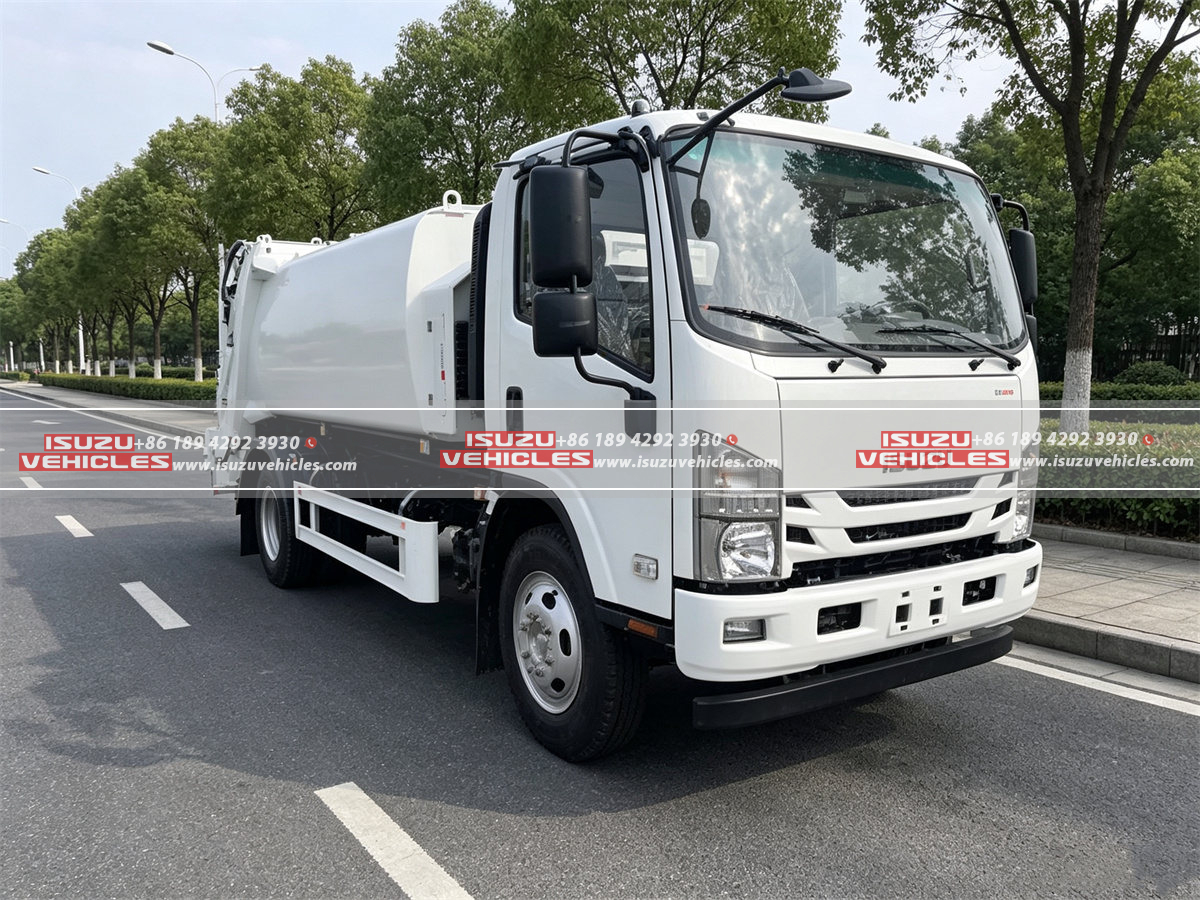

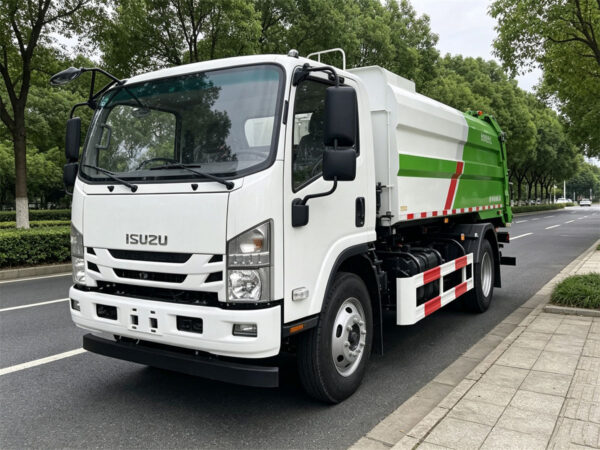

ISUZU 8 CBM Compactor Garbage Truck
The ISUZU 8 CBM Compactor Garbage Truck is a professional municipal waste collection vehicle designed to improve the efficiency of household garbage transportation through hydraulic loading, mechanical compaction, and sealed rear discharge. Built on a reliable ISUZU 4×2 chassis, this garbage compactor is well suited for residential communities, urban streets, commercial areas, industrial parks, schools, and other locations where regular and hygienic waste collection is required.
The truck is powered by an ISUZU 4HK1-TCG61 diesel engine that complies with Euro 5 emission standards, providing dependable power for daily urban sanitation operations while maintaining good fuel economy and durability. The engine is paired with an ISUZU MLD six-speed manual transmission, while the left-hand-drive configuration, hydraulic steering system, air brake system, and drum-type brakes provide practical control and reliable driving performance.
With overall dimensions of 7,500×2,350×2,800mm and a 3,815mm wheelbase, the vehicle provides a stable platform for the compaction equipment while retaining suitable maneuverability for urban streets. The chassis features a 4-ton front axle and 7-ton rear axle, reinforced frame beams, and 8.25R20 steel tires in a 6+1 configuration, providing the durability required for frequent loading and transportation of municipal waste.
The garbage body is manufactured from durable Q355 manganese steel, with reinforced side plates, bottom plates, and top structures designed to withstand repeated loading, compression, and transportation operations. The rear hopper incorporates a hydraulic loading mechanism and sealing structure, helping reduce leakage and odor during waste collection.
The compaction system uses a hydraulic multi-way valve and operating handles for convenient control, while the internal push plate helps compress collected waste and maximize the usable capacity of the garbage body. With a loading cycle time and trash discharge time of ≤25 seconds, the ISUZU 8 CBM Garbage Compactor Truck can significantly improve collection efficiency and reduce the time spent at individual collection points.
Features
1. Reliable ISUZU 4×2 Chassis
The ISUZU chassis provides a strong foundation for intensive municipal waste collection, combining a 4×2 drive configuration with a 3,815mm wheelbase and reinforced vehicle frame. The front axle is rated at 4 tons and the rear axle at 7 tons, providing a balanced load-bearing structure for the garbage body and hydraulic compaction equipment.
The truck is equipped with 8.25R20 steel tires in a 6+1 configuration, including one spare tire, while the 8/10+6 leaf spring suspension provides additional support for frequent loading and unloading operations. ABS, air brakes, and a 24V electrical system further contribute to safe and reliable vehicle operation.
2. Powerful Euro 5 ISUZU Engine
The vehicle uses an ISUZU 4HK1-TCG61 engine designed to provide dependable power for urban waste transportation and compaction operations. The Euro 5 emission configuration makes the truck suitable for markets where stricter environmental standards are required, while the ISUZU MLD six-speed transmission provides smooth and practical power delivery.
The combination of the diesel engine, six-speed gearbox, hydraulic steering, and reinforced chassis enables the garbage truck to move efficiently between multiple collection points even when the garbage body is heavily loaded.
3. Durable Q355 Manganese Steel Garbage Body
The garbage body is constructed from Q355 manganese steel, providing a strong combination of strength, durability, and resistance to repeated mechanical loading. The side plates are approximately 4mm thick, while the bottom plate is 5mm and the top plate is 4mm, creating a reinforced structure suitable for continuous municipal waste collection.
The internal push plate is also manufactured from 5mm material, helping withstand the forces generated during waste compression and discharge. This robust construction helps extend the service life of the garbage body even when the truck is used frequently in demanding sanitation environments.
4. Efficient Hydraulic Compaction System
The compactor garbage truck uses a hydraulic operating system with a multi-way valve and operating handle, allowing the driver or sanitation operator to control the loading and compression functions conveniently. The hydraulic system provides consistent force for moving the push plate, operating the rear hopper, and completing garbage discharge.
A hydraulic oil tank with a capacity of 90L supports the working system, while the power take-off and PTO interface provide the necessary connection between the chassis engine and hydraulic equipment. This integrated design makes the truck practical for continuous daily operation.

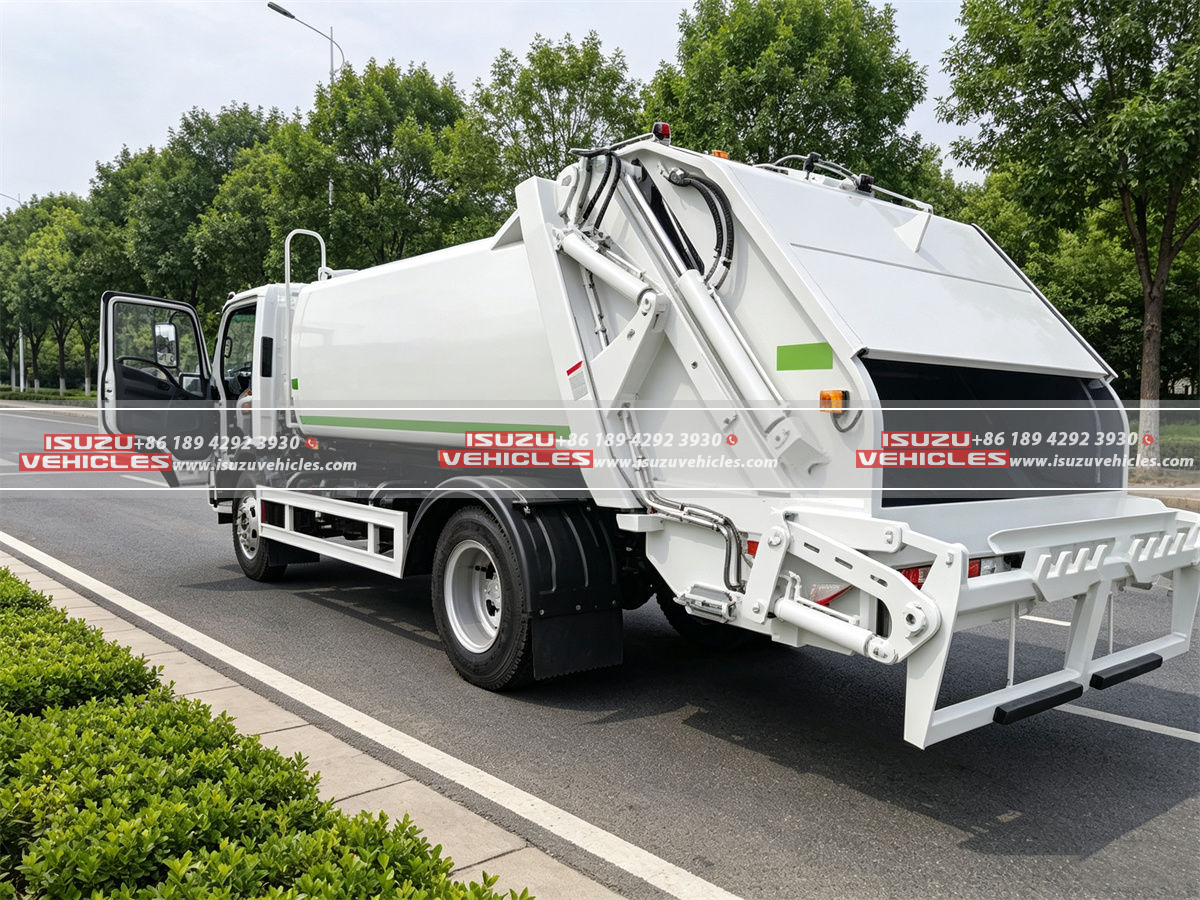

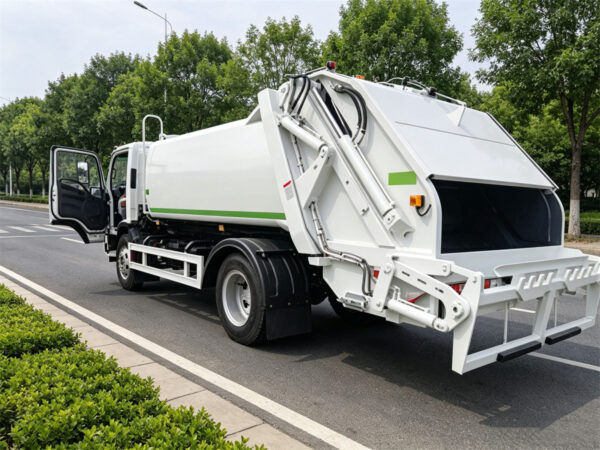

5. High-Efficiency Rear Loading System
The rear hopper is designed to facilitate fast and convenient garbage loading, with a hanging bucket flip mechanism or floor-standing sealing bucket available according to customer requirements. The feed hopper uses a 6mm scraper and a 5mm side structure to provide sufficient strength for repeated garbage loading.
The filler lifting angle reaches approximately 295°, allowing the system to effectively lift and transfer waste into the main garbage body. This design makes the vehicle compatible with different municipal collection methods and improves the efficiency of centralized waste loading.
6. Fast Loading and Garbage Discharge
Efficiency is particularly important in municipal sanitation, and the ISUZU 8 CBM Compactor Truck is designed with short operating cycles to minimize downtime. Both the loading cycle time and trash discharge time are specified at ≤25 seconds, allowing the truck to complete collection and unloading operations quickly.

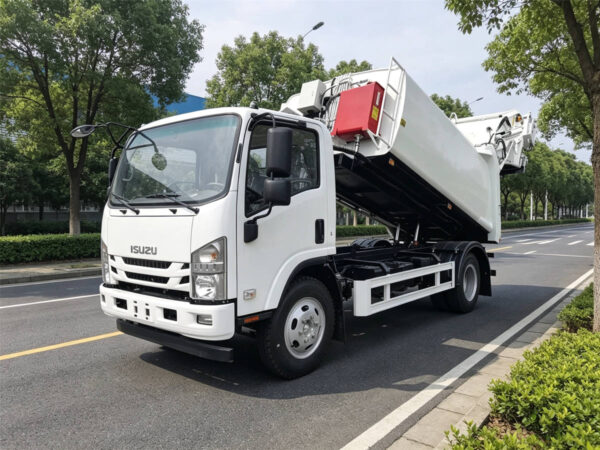

The rear discharge system uses hydraulic operation to push compressed garbage out of the container, reducing the need for manual intervention. A hydraulic rear support system further improves stability when the rear body is being operated during unloading.
7. Sealed Structure for Cleaner Waste Transportation
The garbage body incorporates rubber sealing strips and a sealed rear hopper structure to help prevent garbage leakage and reduce the escape of unpleasant odors during transportation. A dedicated sewage tank is also provided to collect liquid generated from household waste, helping keep roads cleaner during collection and transportation.
The sealed structure is particularly valuable for residential neighborhoods and densely populated urban areas, where controlling waste leakage, wastewater, and odors is an important part of professional sanitation management.
8. Convenient Electrical and Hydraulic Controls
The vehicle is equipped with a 24V electrical system, PTO system, hydraulic operating system, and rear control buttons, allowing operators to manage the major garbage loading, compaction, and unloading functions from practical control positions.
The rear tail device can be operated hydraulically, while the hydraulic multi-way valve and operating handle provide straightforward control of the compaction mechanism. Combined with the ABS system, air brakes, LED lighting, spare tire rack, and hydraulic rear support, these configurations make the ISUZU 8 CBM Garbage Compactor Truck a practical and dependable solution for modern municipal waste collection.
Specifications
| ITEM | VALUE |
|---|---|
| Overall Dimensions (LxWxH) | 7,500×2,350×2,800 mm |
| Front axle | 4 tons |
| Rear axle | 7 tons |
| Gearbox | ISUZU MLD six-speed transmission |
| Vehicle frame | Through reinforced beam |
| Tires | 8.25R20 type steel tire 6+1 |
| ABS | Yes |
| Power take-off interface | Yes |
| Power take-off | Yes |
| Front/rear overhang (mm) | Front:1,110, rear:2,575 |
| Departure angle (°) | Front:17, rear:13 |
| Suspension | Leaf spring 8/10+6 |
| Leaf spring | Front 8, rear 10+6 |
| Number of axles | A |
| Wheelbase (mm) | 3,815 |
| Track (mm) | 1,680/1,650 |
| Drive type | 4×2 |
| Engine model | 4HK1-TCG61 |
| Emission standard | Euro 5 |
| Drive mode | Steering wheel type, left-hand drive |
| Brakes | Drum type |
| Brake system | Air brake |
| Spare tire rack | Yes |
| Lights | Yes |
| Voltage | 24V |
| Fuel tank | 120L |
| Color | According to user requirements |
| Trash bin material | Q355 manganese steel |
| Thickness of trash bin material | Side plate:4mm, bottom plate 5mm, top plate 4mm |
| Push the plate inside the bin | 5mm |
| Material of the rear hopper system | Q355 manganese steel |
| Feed hopper filler scraper | 6mm |
| Feed hopper | 5mm |
| Rear hopper side plate | 4mm |
| Sewage tank | 5mm |
| Number of cylinders | 7 pieces |
| Rubber seal strip | Yes |
| Hydraulic tank | 90L |
| Electrical item operation | Yes/tail button operation |
| Hydraulic operation | Yes/multi-way valve and operating handle |
| Rear tail device | Hanging bucket flip mechanism or floor-standing sealing bucket |
| Loading cycle time | ≤255 |
| Trash discharge time | ≤255 |
| Filler lifting angle | 295 degrees |
| Trash bin dumping function | Yes/rear discharge |
| Vehicle rear support | Yes/hydraulic support |
