ISUZU 4 CBM Skip Lift Garbage Truck

ISUZU 4 CBM Skip Lift Garbage Truck

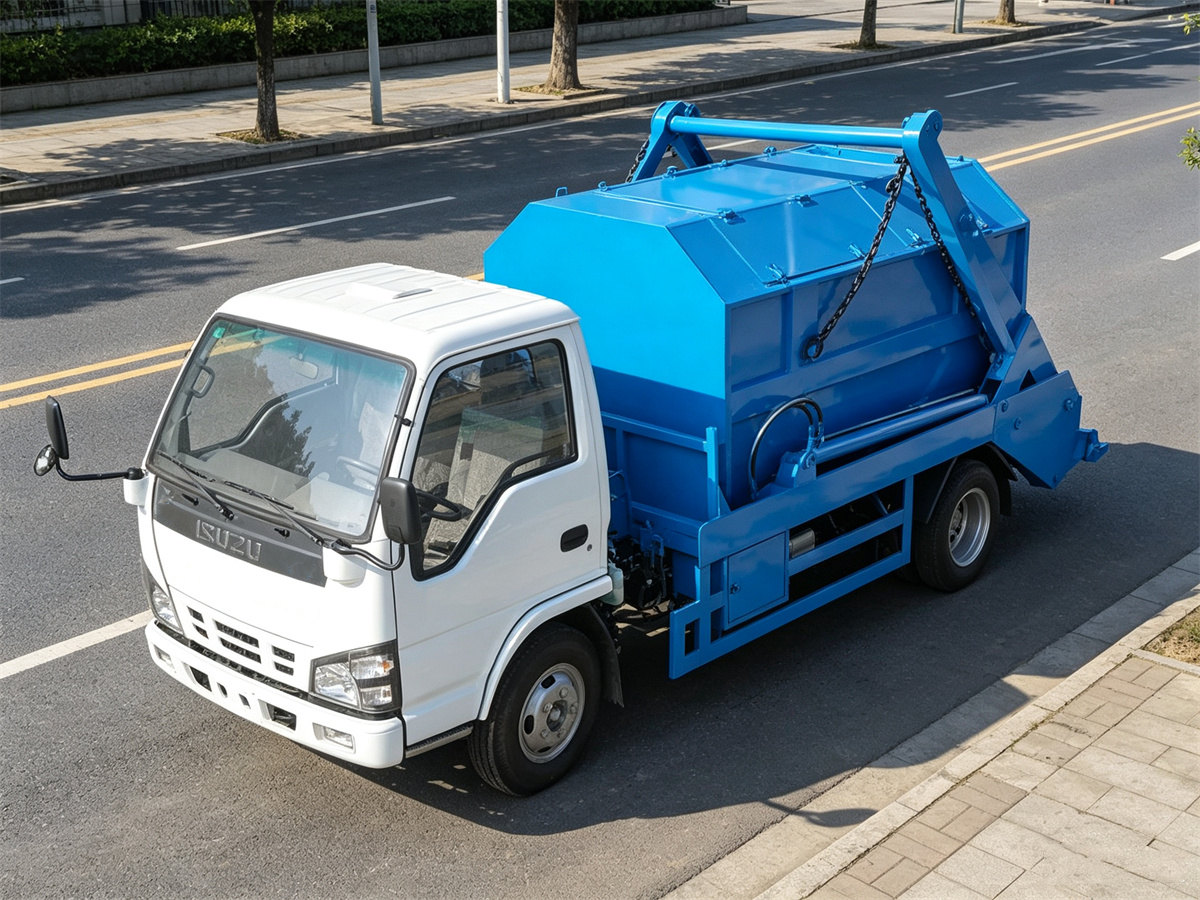

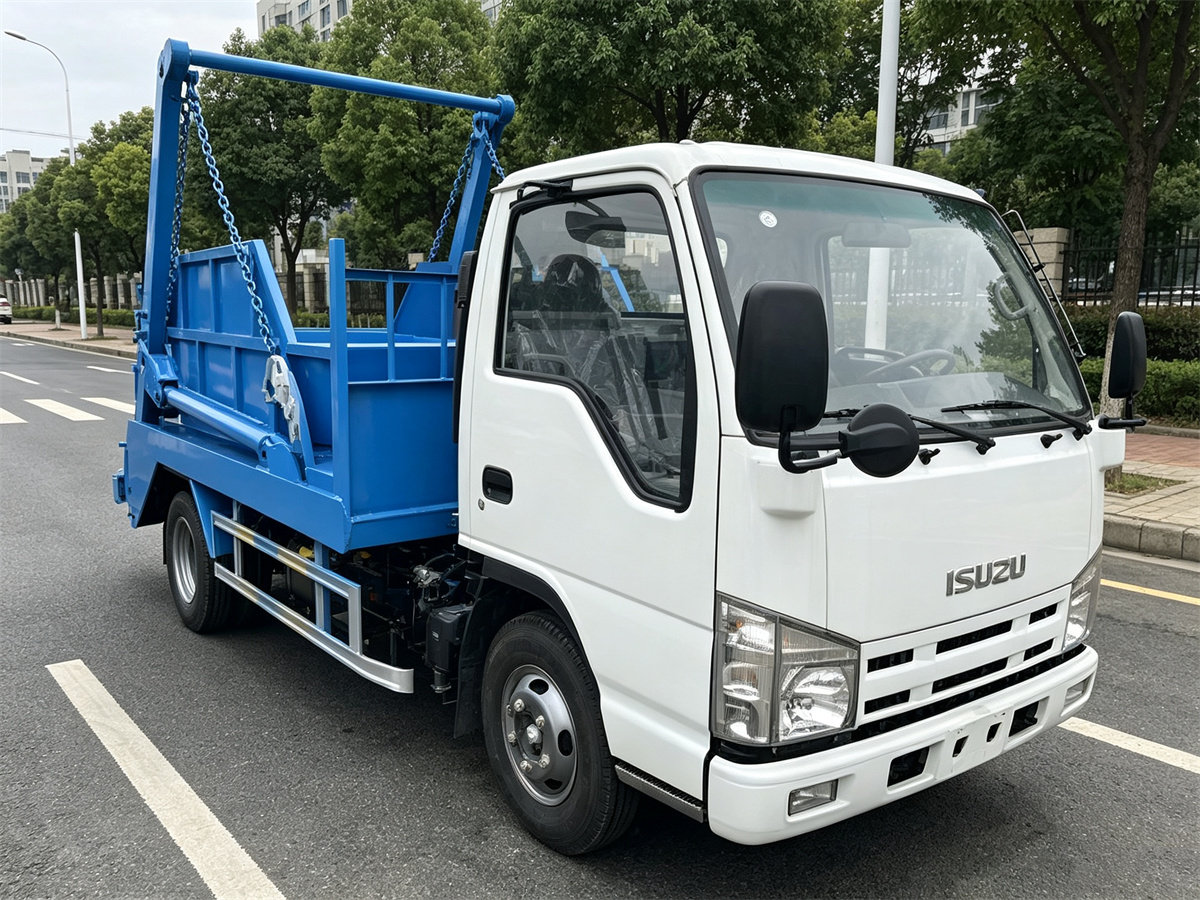

The ISUZU 4 CBM Skip Lift Garbage Truck is a compact and versatile waste collection vehicle designed for municipal sanitation, residential communities, commercial areas, construction sites, factories, and other locations where detachable garbage containers are used for waste collection. Built on a reliable ISUZU 4×2 chassis, the truck combines a compact body with a hydraulic skip-lifting mechanism, allowing operators to load, transport, and unload detachable containers efficiently without requiring separate lifting equipment.

The truck has overall chassis dimensions of 6,000×2,100×2,900mm, a 3,360mm wheelbase, and a gross vehicle weight of approximately 6,600kg, while the curb weight is around 3,600kg. The 2-ton front axle and 4.8-ton rear axle provide a stable load-bearing foundation, while 7.00R16 tires in a 6+1 configuration provide suitable support for regular urban waste transportation.

Power is supplied by an ISUZU 4KH1CN5LS diesel engine producing approximately 98HP and meeting the Euro 5 emission standard, while the ISUZU MSB5 manual transmission provides five forward gears and one reverse gear. The 4×2 drive configuration and three-person ISUZU cab make the truck practical for daily waste collection routes, particularly in urban areas where compact dimensions and maneuverability are important.

The skip-lift system is designed to handle a 4 CBM detachable garbage bin with a rated container capacity of approximately 3 tons. Customers can choose square, boat-shaped, or other container designs according to their waste collection requirements, while the lifting mechanism uses two strong alloy-steel lifting arms, reinforced chain rings, and two hydraulic stabilizers to provide reliable container handling.

The hydraulic skip-loading system can be operated through manual hydraulic controls and remote control, giving the operator greater flexibility during loading and unloading. Anti-corrosion treatment is applied to the structural components, followed by high-quality paint, helping protect the truck against moisture, dust, and the demanding operating conditions commonly associated with waste collection.

Features

1. Compact ISUZU 4×2 Chassis

The ISUZU 4×2 chassis provides a strong and maneuverable foundation for containerized waste collection, with overall dimensions of 6,000×2,100×2,900mm and a 3,360mm wheelbase. This relatively compact configuration allows the vehicle to operate conveniently in residential streets, commercial districts, industrial compounds, and other areas where larger waste collection trucks may have limited access.

The front and rear axle capacities are approximately 2 tons and 4.8 tons respectively, while the 7.00R16 tires provide suitable road contact and load-bearing performance for everyday transportation operations.

2. Reliable Euro 5 ISUZU Engine

The truck is powered by an ISUZU 4KH1CN5LS diesel engine, producing approximately 98HP and complying with Euro 5 emission requirements. The four-cylinder engine provides dependable power for frequent stop-and-go waste collection work while maintaining a straightforward mechanical configuration.

The engine is matched with an ISUZU MSB5 manual transmission featuring five forward gears and one reverse gear, allowing the driver to select suitable gears according to traffic, road conditions, and container load.

3. 4 CBM Detachable Garbage Bin

The skip-lift system is designed for a 4 CBM garbage bin with a specified loading capacity of approximately 3 tons. The detachable container concept allows bins to remain at fixed waste-generation locations while the truck periodically collects and transports them to disposal, transfer, or treatment facilities.

The skip bin can be manufactured in a square, boat-shaped, or other customer-specified configuration, allowing the waste collection system to be adapted to different operating environments and container management requirements.

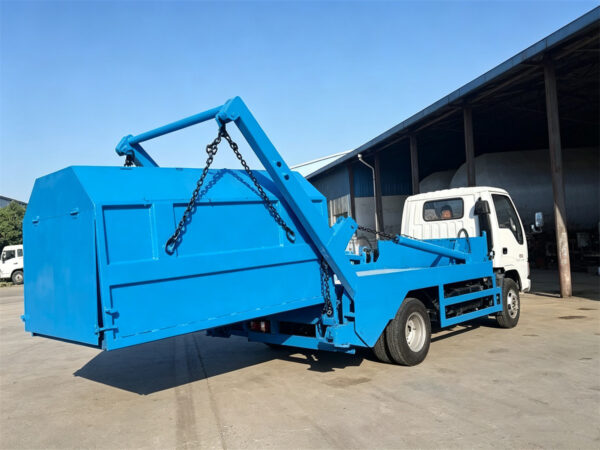

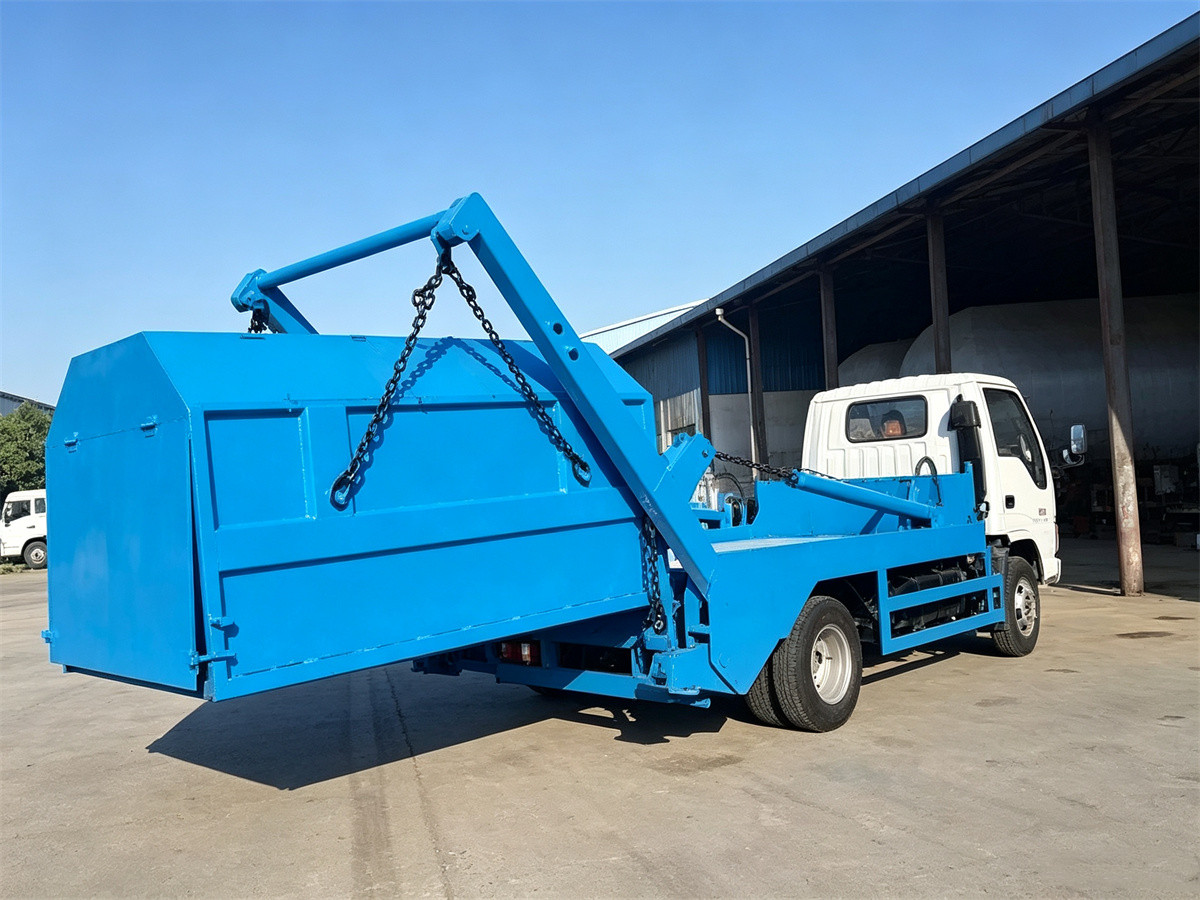

4. Strong Alloy-Steel Lifting Arms

The skip lifting mechanism uses two lifting arms manufactured from strong alloy steel, providing the structural strength required to raise and position a loaded garbage container. The two-arm configuration distributes lifting forces effectively and provides a stable connection between the hydraulic system, container, and truck chassis.

The reinforced structure is designed for repeated loading and unloading operations, making the truck suitable for municipal sanitation fleets and industrial waste collection applications where containers may be handled several times throughout the working day.

5. Reinforced Chain Ring System

The lifting mechanism incorporates thickened chain rings with large and small holes designed to improve engagement with the container lifting points while reducing the possibility of slipping, falling off, or deformation during operation.

This reinforced chain configuration helps provide a secure connection between the lifting mechanism and detachable container, which is particularly important when handling loaded bins and transferring them between ground level and the truck chassis.

6. Hydraulic Stabilizers for Safer Lifting

Two hydraulic stabilizers are installed to improve stability during container loading and unloading operations. Since lifting a loaded container can significantly change the vehicle’s weight distribution, the stabilizers provide additional support and help keep the truck stable while the skip mechanism is working.

The high-strength hydraulic stabilizer configuration is especially useful when the truck is operating on waste collection sites, industrial yards, construction areas, or other locations where the ground conditions may vary.

7. Dual Control for Flexible Operation

The manual hydraulic control and remote control system gives operators two practical ways to operate the skip-lifting mechanism. Manual controls provide direct operation from the truck, while remote control can provide additional convenience when the operator needs to observe the container and lifting mechanism from a suitable position.

This flexible control arrangement can improve visibility during container handling and makes the truck easier to adapt to different loading and unloading procedures.

8. Anti-Corrosion Treatment and Durable Construction

All major structural components receive anti-corrosion treatment before being sprayed with high-quality paint, helping protect the steel structure from moisture, dust, rain, and other environmental conditions encountered during waste collection.

The combination of a durable mild-steel skip bin, reinforced alloy-steel lifting arms, thickened chains, hydraulic stabilizers, and protective surface treatment gives the ISUZU 4 CBM Skip Lift Garbage Truck a practical and durable configuration for regular municipal and industrial waste transportation.

Specifications

ITEM	VALUE
Chassis – Size	6,000×2,100×2,900mm
Chassis – GvW/Curb Weight	6,600/3,600kg
Chassis – Wheelbase	3,360mm
Chassis – Front/Rear Axle	2T/4.8T
Chassis – Tire	7.00R16, 6+1 tires
Engine – Type	Diesel
Engine – Make/Model	ISUZU/4KH1CN5LS/ 98hp/ Euro 5
Transmission – Model	ISUZU/MSB5
Transmission – Gears	5F+1R
Transmission – Operation	Manual
Cabin – Driving	4×2
Cabin – Type	ISUZU
Cabin – Passenger No.	3
Skip Loader – Skip Bin Cubage (CBM)/Capacity (Tons)	4/3
Skip Loader – Skip Bin Shape	Square, boat, or other types of requirements
Skip Loader – Skip Loader Material	Mild steel
Skip Loader – Control System	Manual hydraulic control & remote control
Skip Loader – Lifting Arm	2pcs, strong alloy steel material
Skip Loader – Chain	Rings of thickened chains, with large and small holes, are not easy to fall off and deform
Skip Loader – Stabilizers	2pcs, hydraulic type, stable & high-strength
Painting	Anti-corrosion treatment for all structural parts; Steel components are sprayed with high-quality paint
