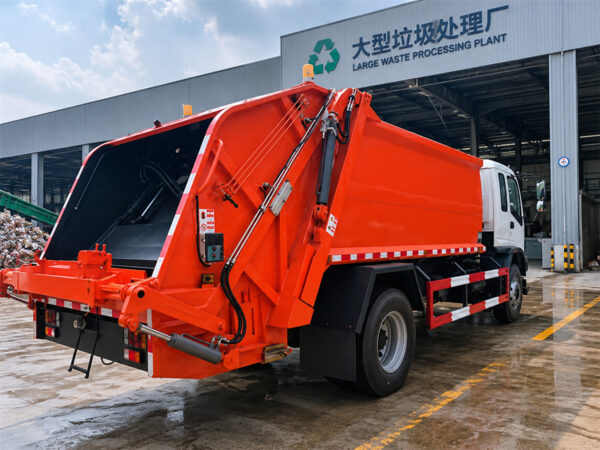

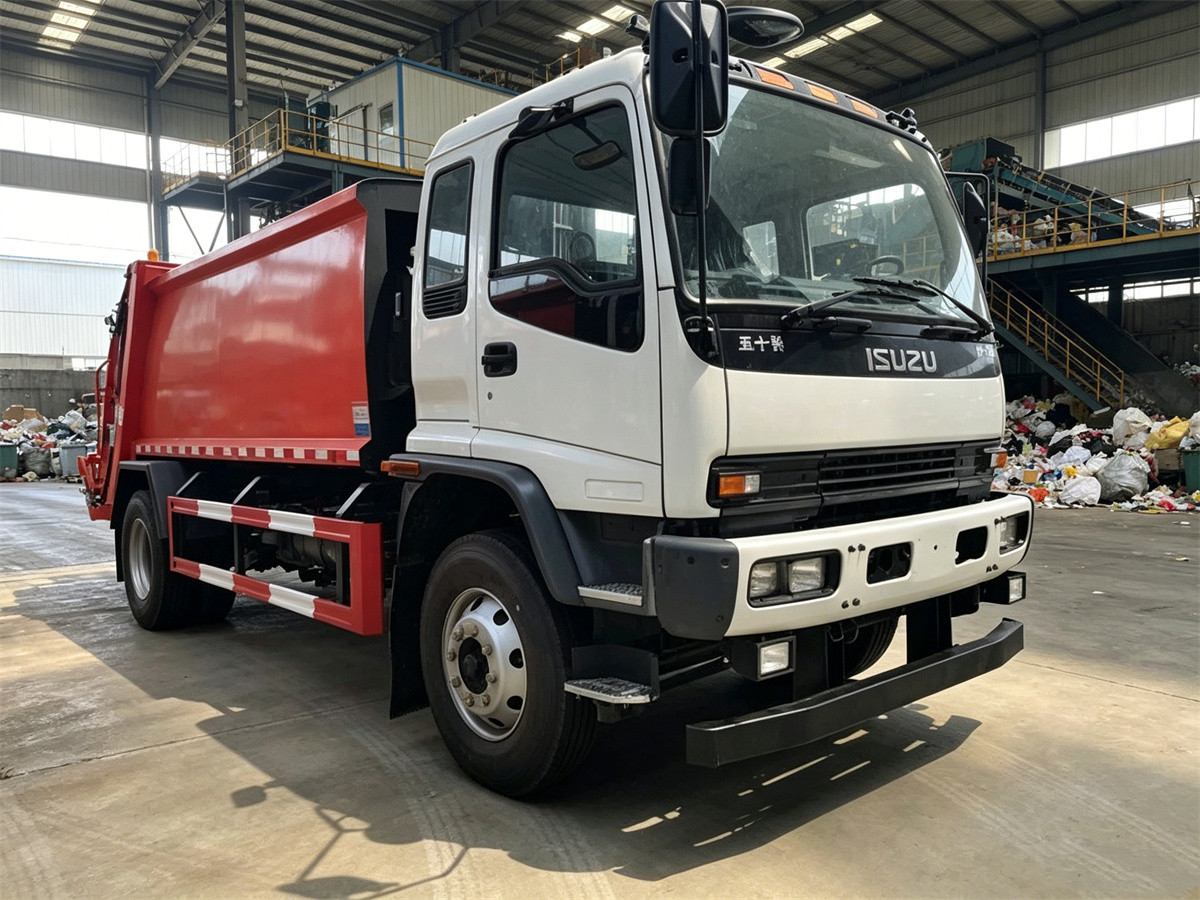

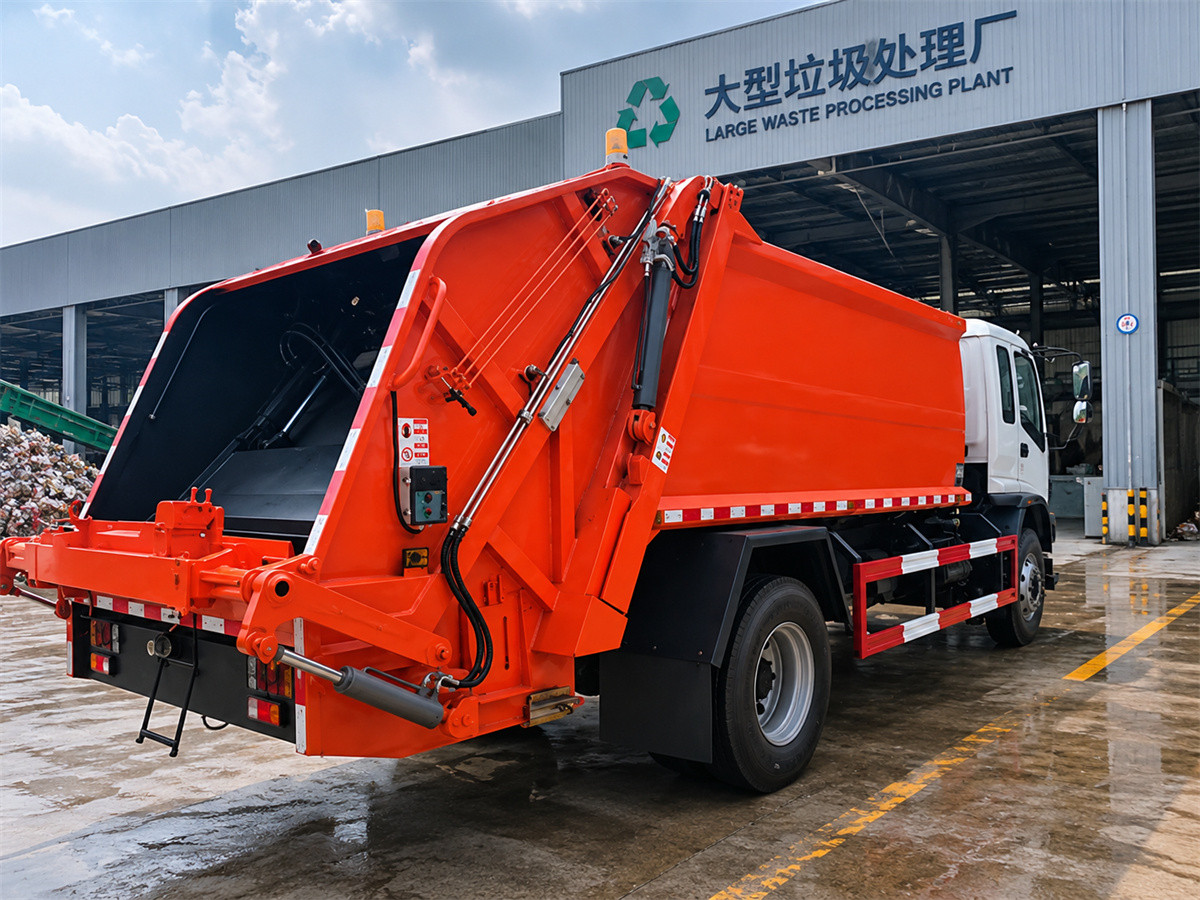

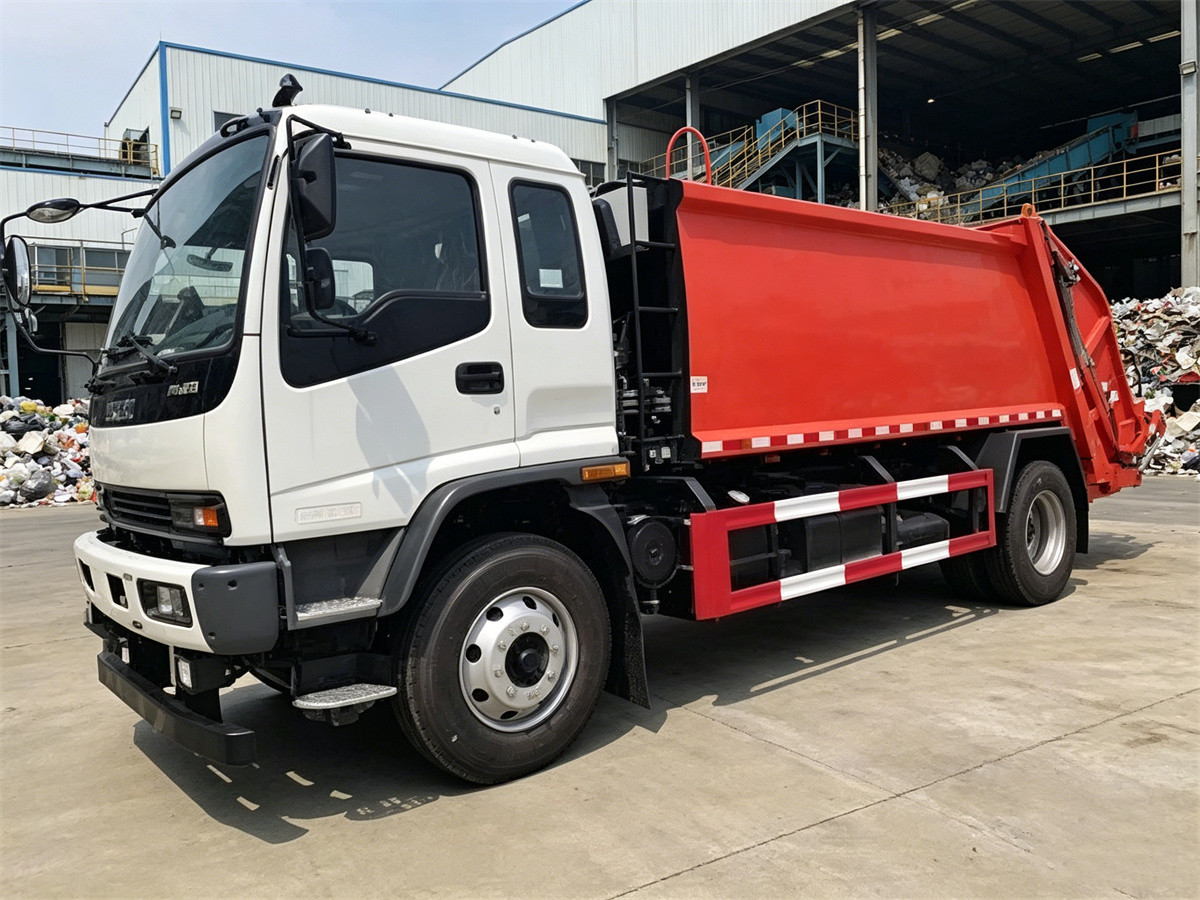

ISUZU 13 CBM Rear Loader Garbage Truck
The ISUZU 13 CBM Rear Loader Garbage Truck is a high-performance waste collection vehicle designed to improve the efficiency of municipal sanitation and commercial waste management operations. Built on the reliable ISUZU FVR 4×2 chassis, this rear loader combines a powerful compaction system, durable garbage body, and dependable drivetrain to deliver excellent productivity in urban and suburban environments.
Powered by the proven ISUZU 6HK1-TCL Euro 5 engine producing 240 HP, the truck offers strong hauling capability while maintaining fuel efficiency and operational reliability. Its 13 CBM waste body is manufactured from high-strength wear-resistant steel, making it suitable for continuous daily garbage collection and transportation tasks.
Features
Reliable ISUZU FVR Chassis
The truck adopts an ISUZU FVR cab with a flat-top design, air conditioning, and a comfortable driving environment for operators. The reinforced chassis frame, 6.3-ton front axle, and 13-ton rear axle provide excellent structural strength and stability during heavy-duty waste collection operations.
Equipped with an MLD 6-speed manual transmission, power take-off system, and durable drum brake system, the vehicle ensures smooth operation and dependable performance across various road conditions.
Durable 13 CBM Garbage Body
The garbage container features a modern curved-body design that enhances loading efficiency and structural strength. Constructed from Q345 low-alloy anti-corrosion manganese steel, the body is engineered to withstand long-term exposure to abrasive waste materials and demanding operating conditions.
The side panels, bottom plate, and key structural sections are manufactured with 5 mm thick high-strength steel, providing excellent resistance to deformation, corrosion, and wear.
Efficient Rear Loading Operation
The rear-loading configuration allows fast and convenient waste collection from residential, commercial, and industrial areas. Combined with the truck’s powerful hydraulic system and PTO-driven operation, the vehicle can handle large volumes of refuse while reducing labor intensity and improving collection efficiency.
Enhanced Safety and Working Performance
Safety and operational reliability are enhanced through the installation of an emergency stop button, allowing operators to immediately halt equipment operation when required. The garbage truck is also equipped with 295/80R22.5 tubeless tires, a reinforced vehicle frame, and a stable suspension system to ensure safe and dependable performance throughout daily sanitation operations.
With its combination of high-capacity waste collection, durable construction, and proven ISUZU engineering, the ISUZU 13 CBM Rear Loader Garbage Truck is an ideal solution for municipalities, environmental service companies, and private waste management contractors seeking dependable refuse collection equipment.
Specification
| Category & Item | Specification Description |
| 1. Basic Vehicle Specifications | |
| Overall Dimensions (L×W×H) | 8,500 × 2,500 × 3,400 mm |
| Curb Weight (Self-weight) | 10,000 kg |
| Gross Vehicle Weight | 10,000 kg |
| Drive Type | 4×2 |
| Driving Form | Left-hand drive (steering wheel left) |
| Horsepower | 240 PS |
| 2. Cab Specifications | |
| Cab Type | FVR cab, flat top |
| Cab Features | Reversible cab with air conditioning |
| 3. Engine Specifications | |
| Engine Model | 6HK1-TCL |
| Emission Standard | Euro 5 |
| 4. Transmission & Chassis | |
| Gearbox | MLD six-speed transmission |
| Vehicle Frame | Through reinforced girder |
| PTO (Power Take Off) | Yes, equipped |
| 5. Axle & Brake System | |
| Front Axle Load Capacity | 6.3 tons |
| Rear Axle Load Capacity | 13 tons |
| Brake Type | Drum brake |
| 6. Tire Specifications | |
| Tire Type & Quantity | 295/80R22.5 tubeless tire, 6 pieces |
| 7. Garbage Bin Specifications | |
| Box Material & Thickness | Q345 low alloy anti-corrosion and wear-resistant plate (manganese steel: side plate 5mm, bottom 5mm) |
| Box Shape | Curved box |
| 8. Safety & Other Features | |
| Emergency Stop Button | Yes, equipped |
