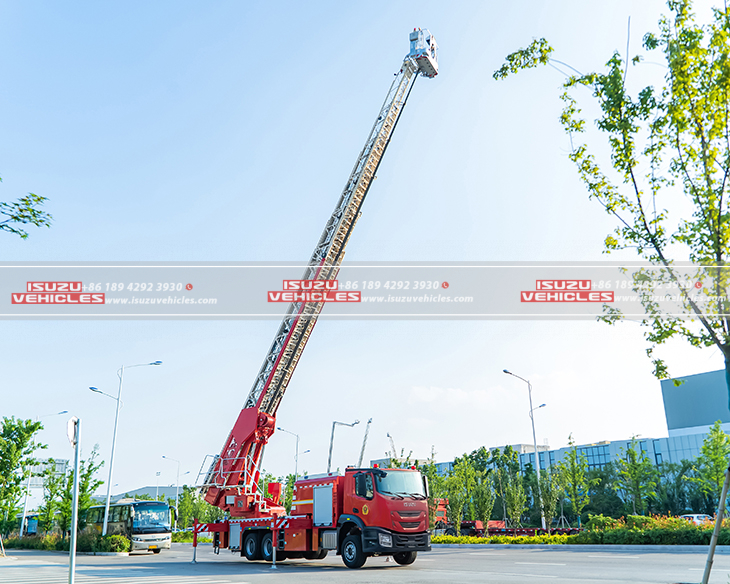

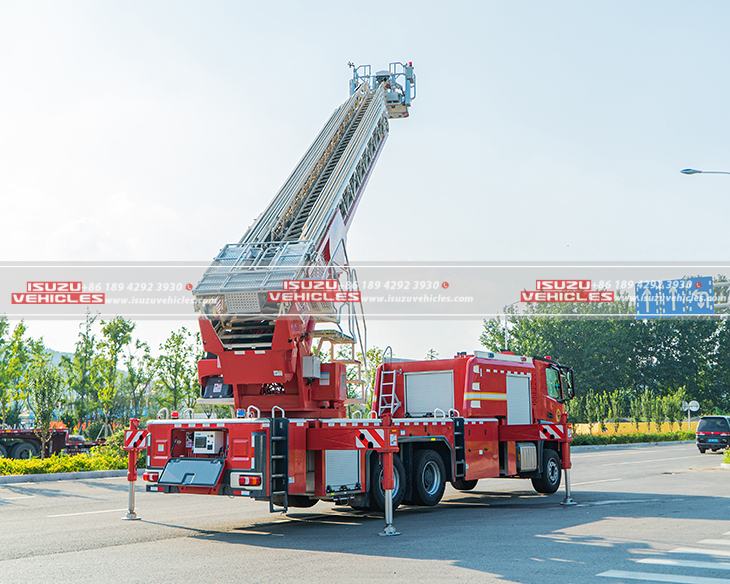

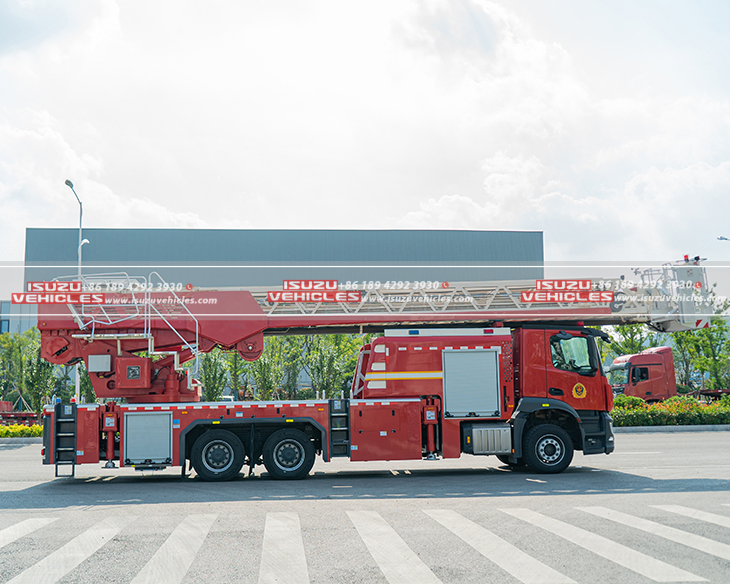

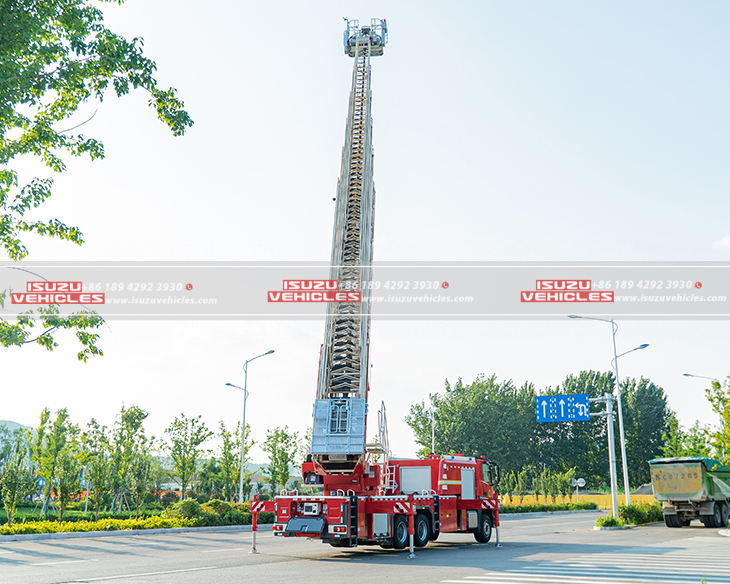

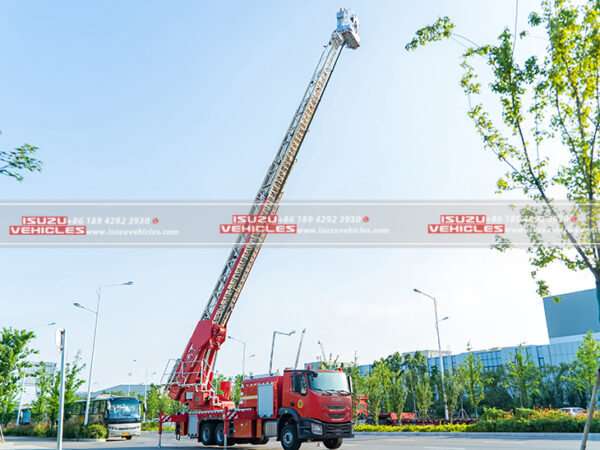

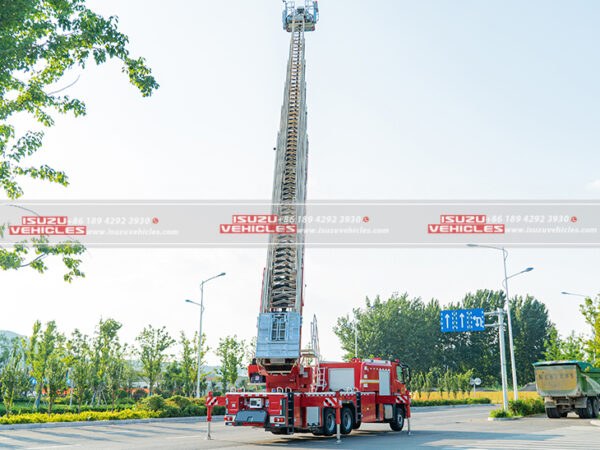

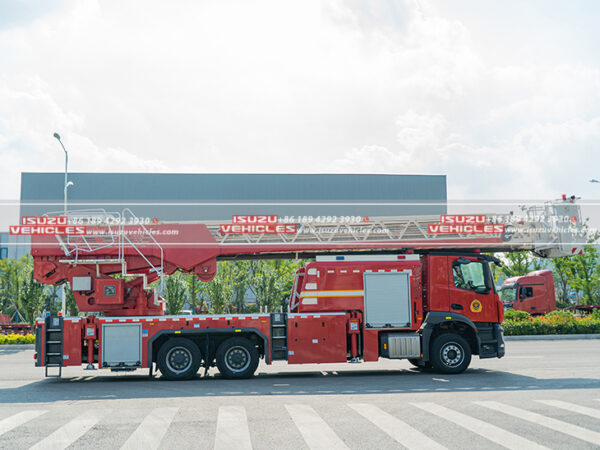

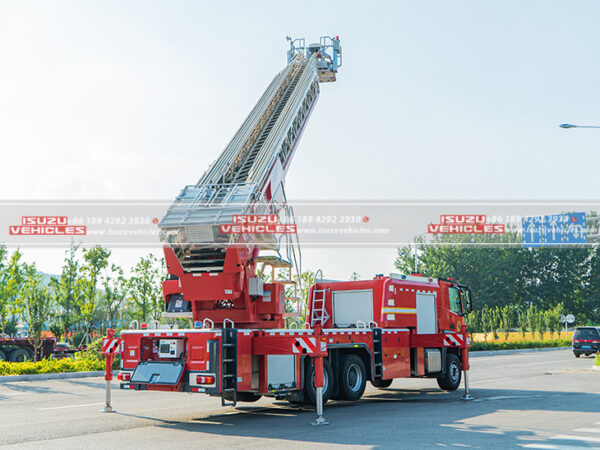

ISUZU 54M Aerial Ladder Firefighting Vehicle

ISUZU 54M Aerial Ladder Firefighting Vehicle

The ISUZU 54M Aerial Ladder Firefighting Vehicle is a cutting-edge fire suppression and rescue truck designed to handle urban firefighting and high-altitude rescue operations. Incorporating intelligent damping control technology, rapid lifting systems, and long ladder pre-deformation manufacturing, this truck ensures flexibility, high efficiency, and intelligent operation. Built as a main battle vehicle for urban fire control, it seamlessly integrates aerial rescue and firefighting functions, making it an essential tool for tackling emergencies in high-rise environments.

Features

Superior Structure

This firefighting vehicle consists of a reinforced chassis, advanced superstructure, and precision-engineered hydraulic and electrical systems. The ladder system, made of high-strength shaped pipes, ensures durability and smooth operation, while the intelligent electro-hydraulic leveling system enhances stability.

Exceptional Performance

Equipped with an ISUZU 6×4 chassis, this fire truck boasts a 54-meter working height and an 18-meter outreach, allowing for extensive coverage in rescue missions. The powerful 308 kW engine provides high torque and rapid response, making it suitable for dynamic and demanding firefighting scenarios.

Advanced Ladder System

The six-section telescopic ladder, controlled via electronic and manual operation modes, ensures precision and reliability in height-adjusted rescues. Its winch-driven extension system allows for quick deployment, while the integrated water and hydraulic rotary system enables seamless 360° rotation for versatile positioning.

Efficient Waterway System

Fitted with an American Hale RSD100 water pump and an Elkhart PSKD80-7200EXM electric-controlled fire monitor, this fire truck delivers a maximum water flow of 100L/s at optimal pressure. The stainless steel 2000L water tank and multiple water outlets and suctions ensure a steady supply of water during firefighting operations.

Rescue Cage & Safety Innovations

The rescue cage, supporting up to 300kg, features an automatic flip mechanism, high-intensity lighting, and an intelligent leveling system for secure operations. Safety features such as overload protection, collision prevention, and emergency manual overrides enhance operational security, ensuring smooth and risk-free rescues.

Intelligent Control & Electrical Systems

The CAN bus intelligent control system provides real-time monitoring of boom operations, ladder positioning, and engine performance through a color LCD display. Additionally, high-intensity lighting systems, intercom communication, and an alarm warning system facilitate enhanced situational awareness and operational efficiency.

Hydraulic & Emergency Protection

The imported variable pump hydraulic system ensures smooth ladder movement and optimal pressure regulation, while emergency backup systems allow manual ladder retraction and outriggers operation in case of power failure. Advanced stability mechanisms such as soft outrigger protection and wind speed alarms further enhance vehicle reliability.

The ISUZU 54M Aerial Ladder Firefighting Vehicle is a high-performance, versatile, and safety-driven firefighting solution built to tackle complex urban rescue and fire suppression missions with precision and efficiency.

SPECIFICATIONS:

Operating Performance Spec.
Brand	ISUZU
Driving type	6×4
Outrigger Span(V x H)	5200±50
Max Working Height	54m
Max Working Outreach	18m
Cage rated Capacity	300kg
Slide cage rated capacity	180kg
Boom operating time	≤120s
Slide cage speed	≥0.8m/s
Outrigger leveling time	≤30s
Max allowed wind speed	≤12.5（level 6）m/s
Driving Performance Spec
Full Load Weight	≤32000kg
Power	308kw
Cab Seat	2p
Emission Standard	National/Euro V
Chassis
Chassis model	ISUZU QL5350THBW1SDZY 6×4
Engine Model	6WG-1TCG52 In line six cylinder turbo charge diesel engine
Engine power	310Kw@1900r/min
Engine Torque	2060N.m@830-1400r/min
Max speed	100km/h
Wheel torque	4800mm+1370mm
Emission standard	National Ⅴ
Gearbox	Manual
Electric system	Generator：1.7kw/28V; Battery： 2x12V/120Ah
Fuel system	≥300L
Braking system	Service brake: double circle brake;
	Parking brake: spring actuated and air cut off parking brake;
	Assist brake: engine exhaust brake;
	With ABS system
Tire	Front axle: 385/65 R 22.5 Rear axle: 315/80 R 22.5 Rear axle2: 315/80 R 22.5 Amount: 11 (including spare tires)
Superstructure
Cage
Rescue cage overview	Automatically flip over the inverted ladder; Automatically deployment and leveling； Equipped with working light and safety rope
Cage rated capacity-outreach	300kg-18m, 200kg-19m；100kg-20m
Platform area	1.29m2
Leveling Method	Electro-hydraulic intelligent independent leveling system
Self-protection spray flow	≥285L/min
Ladder
Section	Six Sections
Main material	Special high-strength shaped pipe
Telescopic mechanism	Winch+ imported high flexible steel wire rope and pulley block to achieve synchronous telescopic
Operation curve	See chart
Ladder operation model	Foot switch + handle stepless control; electronic control forced operation; manual forced operation
Turntable	Water, electricity and hydraulic integrated central rotary device, any 360 continuous rotation
Outrigger
Type	H-Type, Automatic leveling + Manual leveling
Horizontal Span	5200±50mm
Outrigger operation mode	Automatic unfolding; Electronic control + manual; Manual forced
Slide cage
Overview	Frame folding structure, aluminum alloy door, folding in the upper part of the ladder when driving
Driving type	Hydraulic motor driven winch, Drive the wire rope through the pulley block
Max speed of slide cage lifting	≥0.8m/s
Slide cage rated capacity	180kg
Slide cage working at a variable Angle	50°～75°
Platform area	≥0.8m2
Slide cage brake	Mechanical friction brake
Waterway System
Fire monitor Model	America Elkhart PSKD80-7200EXM electric-controlled fire monitor
Water pump model	America Hale RSD100 water pump
Max flowing of water pump	100L/S @ 1.0 MPa， 40 L/S @ 1.5MPa;
Intake flange	DN150, outlet flange: DN125;
Adjustable flow	19~80L/s; Working pressure: 0.95 Mpa.
Horizontal rotation angle	±90°; angle of elevation: 80°; angle of depression: 30°
	≥ 150 m wireless remote control operation
Water pump type	Electric control of the fire monitor which can achieve working condition of horizontal rotation, pitch and water curtain
Tank Volume	2000L（for water）
Tank material	High quality stainless steel, bottom plate thickness 5mm, side plate thickness 4mm, roof 3mm
Telescopic pipe	High strength aluminum alloy pipe
Other pipe	Stainless steel or aluminum alloy
	2 Water suctions(Front left and right sides)  DN150
	2 Water inlet(Front left and right sides)  DN80
	4 water outlet(Front left and right sides) DN80
	1 water outlet(cage front) DN65
	1 Extension foam suction DN50
Electrical system
Control system	CAN bus intelligent control system (controller + display screen + control program)
Operating table	Turntable left operating table (with seats)
	Cage operating table
	Vehicle rear operation panel
Computer display	color LCD is adopted. Not only working curves of boom elevating and telescoping operation, boom rotation direction, but also working height, elevating angle and working radius of boom can be displayed, and faults can be inquired on the display screen.
Light System	Cage front left and right sides of the configuration of high – brightness lighting
	Yellow warning light around the cage
	High-intensity lighting on both sides of the ladder
	Ladder support with high-intensity lighting
	Turntable console, ladder configuration with channel lighting
	Each instrument panel is equipped with instrument lighting
	Equipment box with configuration lighting
	Outrigger with warning light
	Outrigger illuminator for illuminating the underside of the leg support
Alarm light system	A circular warning light on the left and right sides of the cab.
	Integrated operation of alarm lights and alarms in the cab
	Various functions such as fire alarm sound, siren sound, and external call.
	A square red/blue strobe light on the left and right of the rear of the car.
Intercom system	Turntable and bucket using non – handheld cable intercom system
Cables and connectors	Adopt the imported connector with waterproof performance up to IP67
	Ladder chain and imported cables
Automatic disconnect charging device	The battery can be charged by 220V mains, and the charging plug will automatically fall off when the fire truck starts
Reversing assist system	With reversing alarm buzzer, reversing camera and cab monitor;
Security protection system
Cage overload protection	When the cage exceeds 10% of the rated load, alarm and stop all actions.
Cage tipped protection	When the cage tilts more than 7 degrees, cut off all actions.
Cage Anti-collision protection	When the cage approaches the obstacle, the system alarms and stops the dangerous direction from continuing to approach
Ladder buffer protection	Limit position and sudden handle, the system can automatically accelerate and decelerate
Ladder limiting protection	When the ladder turns to the short outrigger, cut off the turning action in the dangerous direction
Rotary buffer protection	The system can effectively realize buffering when the rotation stops suddenly
Rotary alignment	When the rotation is close to the middle, Automatic speed reduction to ensure accurate center alignment
When the rotation is close to the middle, Automatic speed reduction to ensure accurate center alignment	In order to prevent the ladder frame from colliding with the car body, when the ladder frame turns to a certain position, it will automatically stop the dangerous direction of turning.
Interlock	The outriggers are not unfolded, the booms cannot move; the booms leave the bracket and the outriggers cannot move
Emergency function	On-board operating valve and outriggers operating valve with emergency manual operation; The system with an emergency power unit for winding up ladder frames and outriggers in case of engine or oil pump failure.
Outrigger operation alarm	Outriggers operation, Acousto-optic automatic alarm to prevent people from touching.
Soft outrigger protection	Ladder operation, outrigger appeared virtual outrigger and automatically cut off the dangerous direction.
Outrigger tips	The water cannon inlet pressure exceeds the rated value, an alarm is raised and the engine continues to accelerate.
Water tank protection	In addition to the overflow port with a large enough aperture, the pressure overflow device at the tank’s mouth is also set to prevent accidental overpressure when the water tank is filled with water
Engine speed limit	The ladder frame is in motion, the engine speed is automatically limited; The water pump works, prevent overpressure or water pump overspeed, automatic limit engine speed
Super wind speed alarm	The wind speed exceeds 12.5m/s, the acousto-optic system will automatically alarm and cut off the operation to the dangerous direction
Tips for not closing door of equipment box	The equipment door is not closed, the light will automatically alarm to prevent accidents.
Hydraulic system
Hydraulic system	Import variable pump + proportional valve load sensitive system
Max system pressure	25MPa
Ladder operation valve	Original imported brand, hydraulic pilot high performance electromagnetic proportional valve； Automatic adjustment of engine speed when ladder is operating
Outrigger valve	Original imported brand, electromagnetic proportional valve； The outrigger operates automatically, the engine speed increases automatically.
Balance valve other core valve parts	Original imported brand
Emergency power unit	Gasoline engine drive
Oil filter	Original imported brand, pump outlet of a pipeline oil filter；A return oil filter with filter plug to dispatch instructions
Hydraulic oil specification	Common area：Mobil DTE 20 Series 24；Low temperature area：Mobil DTE 10 Excel 32； Extremely cold area: Kunlun No. 10 ground aviation hydraulic oil
Body
Overview	Light weighted body with strong load capacity and excel and strong anti-corrosion. Applied with aviation binder on the cover sheets to reduce vibration and noise
Structure	The body frame is constructed by high strength aluminum alloy profile with hidden lap joint technology
	The body skin is bonded with high strength structure adhesive
Climbing ladder	Equipped with a fixed ladder on body left and right
Paint	Fire red paint on the exposed surface of the car body;
	Water tank exposed surface paint
	Anti-corrosion aluminum alloy tread plate on the top of the car body
Others
Waterway connector
Water suction	Snap type
Water inlet	Insertion type
Water outlet	Insertion type
Rescue cage outlet	Rescue cage outlet
Foam suction inlet	Insertion quick coupling
List of attachment carried in the vehicle
Fire hose（Insertion type）	20-80-20(4)
Shaped quick connector (inner thread)	KD150/100(1)
Water pipe(snap type)	φ150×2000(2)
Water pipe wrench	6″(2)
Water filter (snap type)	FLF150(1)
Irregular interface	KXK65 inner内扣/80 female(2)
Hose bandage	QH16044X(4)
Ground fire hydrant wrench	FB450(1)
Underground hydrant wrench	FBA800(1)
Safety harness	FZL-DD-III(2)
Outrigger pad	50×500×500(4)
Fire Extinguisher	MFCZ/ABC3(1)
Quick foam suction pipe	1
Foamed pipe	FPG80(1)
