Brief

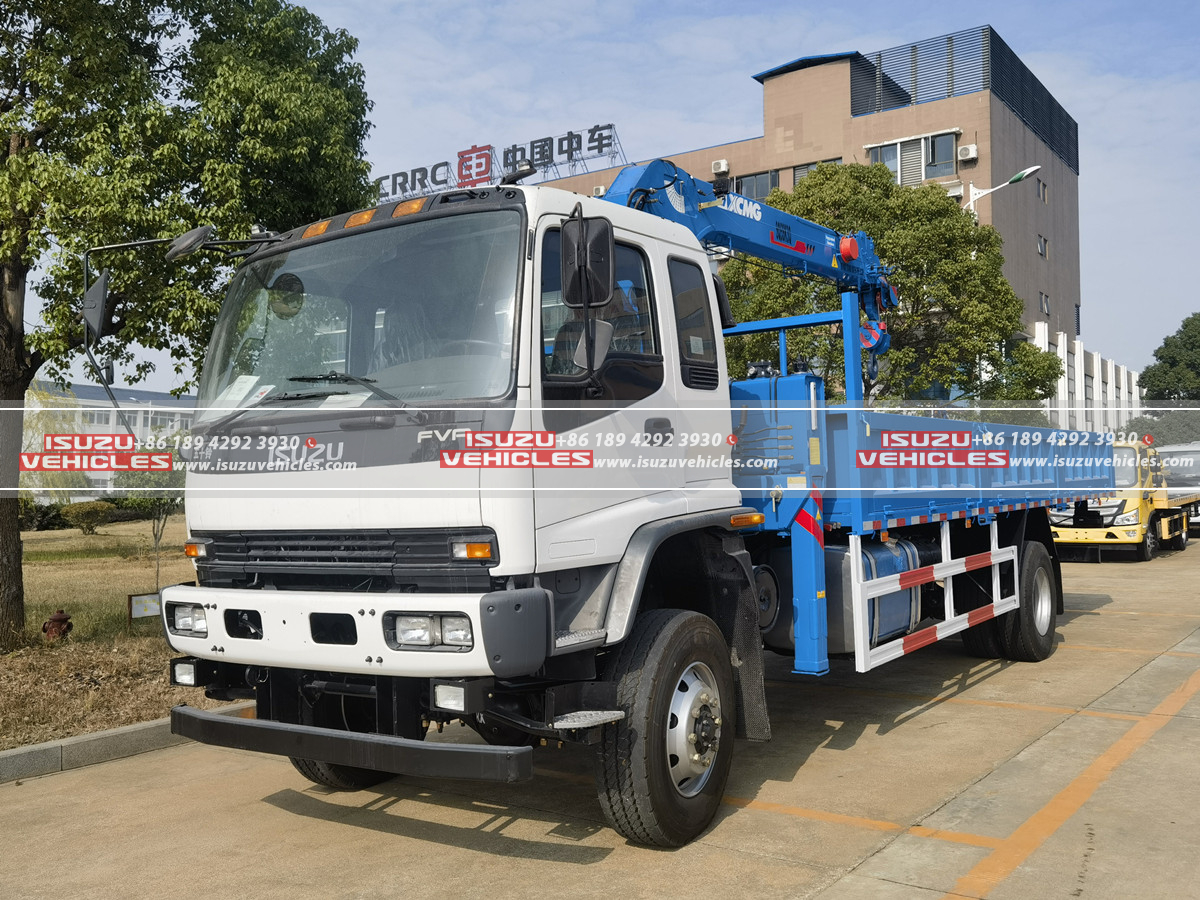

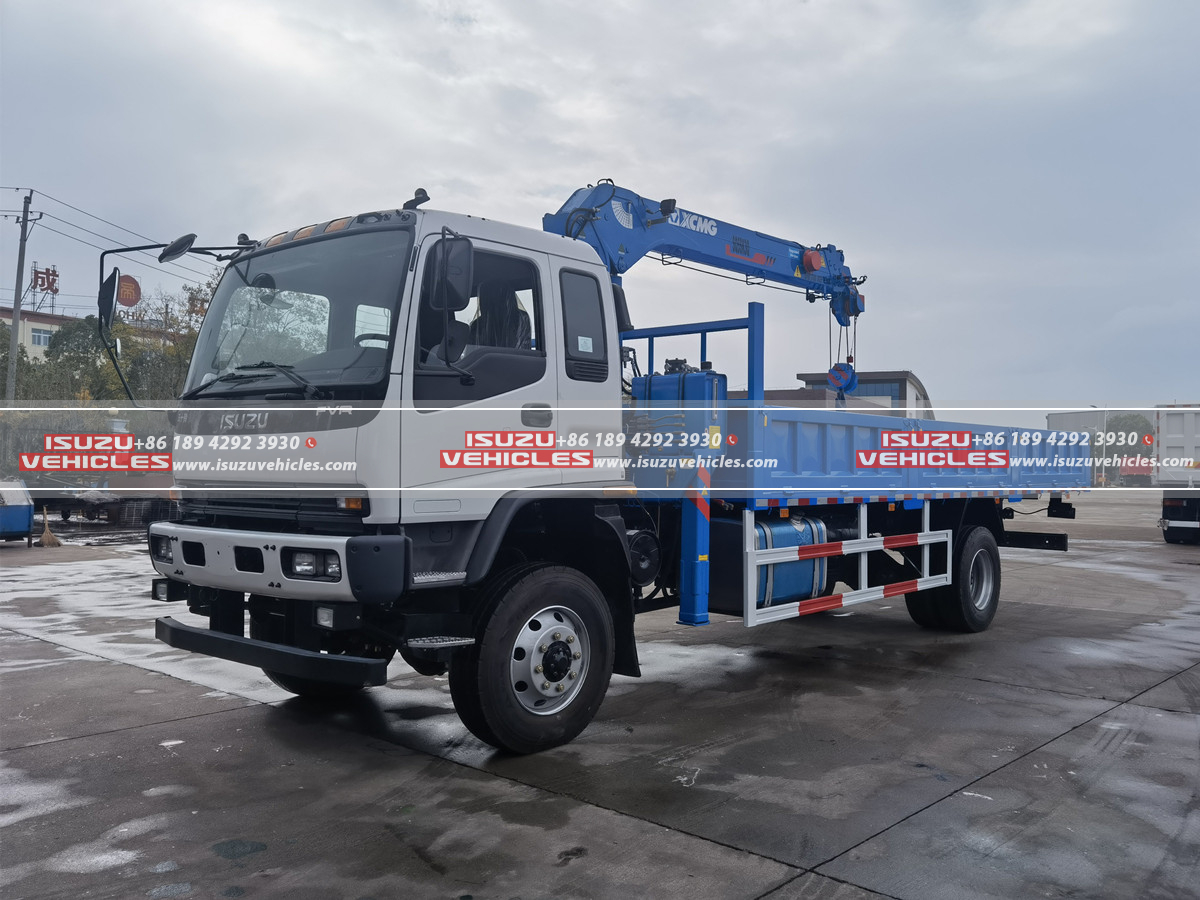

Conquer challenging off-road construction sites with the ISUZU Offroad Truck Mounted 5 Ton XCMG Crane. This versatile machine combines the power of a reliable ISUZU 4×4 truck chassis with the lifting prowess of an XCMG crane and a functional CSCTRUCK body. It provides a one-stop solution for handling and transporting heavy materials in even the toughest environments.
Features
-
Built to Handle Tough Terrain: The ISUZU Offroad Truck Mounted 5 Ton XCMG Crane features a robust ISUZU Forward 4×4 cab chassis designed to handle the demands of off-road use. Its heavy-duty rigid truck construction ensures stability and durability, while the 4×4 all-wheel drive system provides superior traction and maneuverability on uneven or loose surfaces. With a Gross Vehicle Weight (GVW) of 18 tons, this crane can carry significant loads without compromising performance.
-

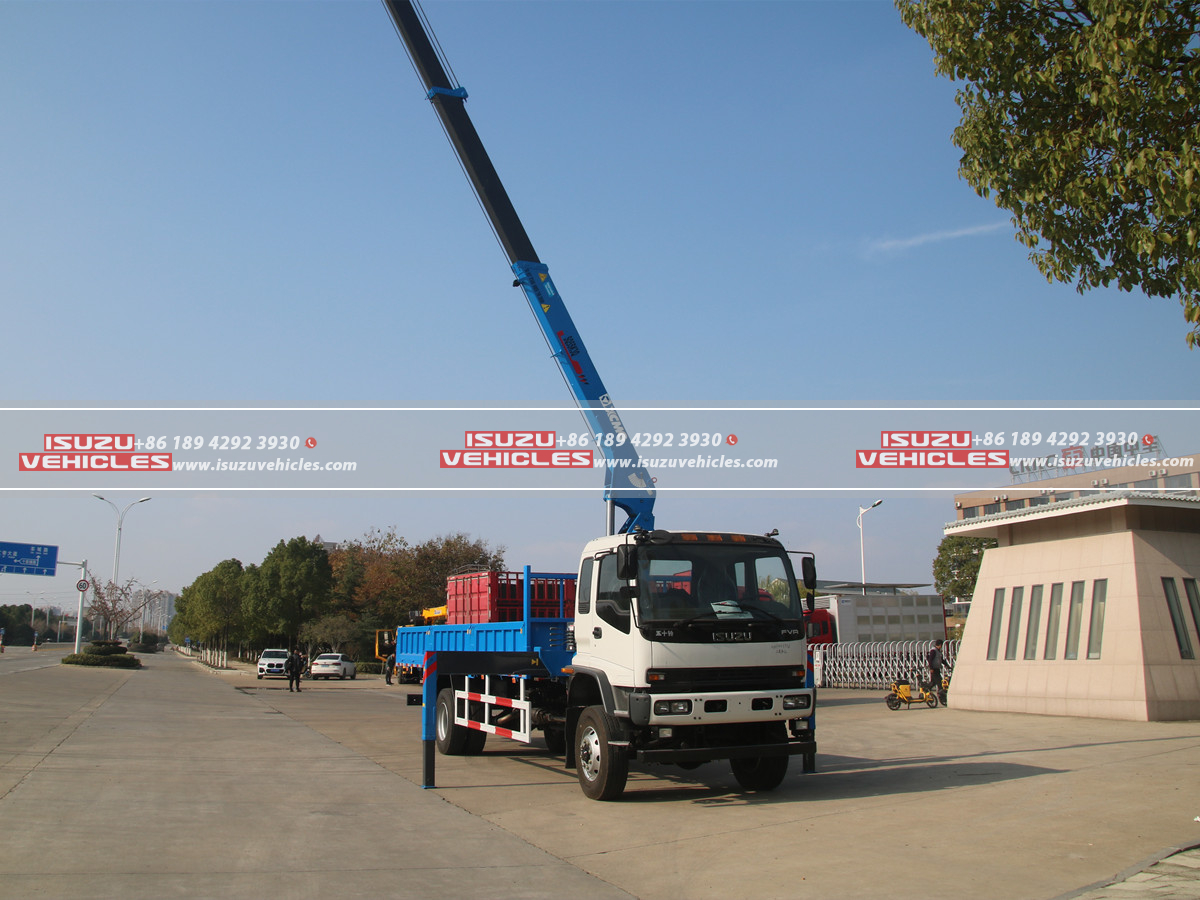

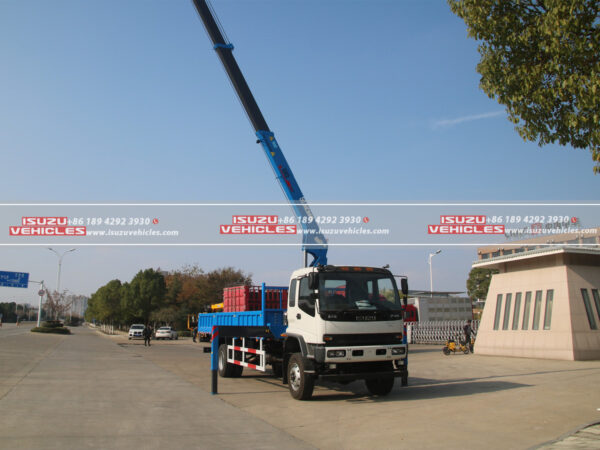

Powerful and Precise Lifting: The XCMG SQ5SK3Q crane, mounted securely between the truck cabin and body, boasts an impressive 5-ton lifting capacity. This allows you to tackle a wide range of lifting tasks efficiently, from placing heavy machinery to maneuvering building materials. The crane offers a generous 11-meter working radius and a 12-meter hook height, providing excellent reach and versatility for various lifting applications.
-
Advanced Crane Technology: The 3-section telescopic boom of the XCMG crane utilizes a multi-sectioned pentagonal box construction for exceptional strength and stability. The boom extends hydraulically, allowing for smooth and precise movement of loads. A powerful hydraulic motor drive system with a mechanical brake ensures efficient operation and secure control during lifting maneuvers. For added safety and durability, the crane is equipped with a 10-millimeter diameter, 60-meter-long wire rope.
-
Seamless Maneuvering and Stability: The ISUZU crane truck Mounted 5 Ton XCMG Crane prioritizes safe and controlled operation. The crane features a hydraulic motor-driven slewing system with a continuous 360° full circle rotation on a ball bearing slew ring, enabling smooth and precise positioning of loads. Automatic slewing lock further enhances stability during lifting operations. For additional stability when lifting heavy loads, the crane is equipped with manually extended sliders and hydraulically extended outriggers that can be easily deployed to create a wide and secure base.
-
Operator Comfort and Safety: This ISUZU truck Mounted 5 Ton XCMG Crane is designed with operator comfort and safety in mind. The crane features a user-friendly control system with multiple control valves featuring integrated safety valves. The operating levers are vertically arranged for easy handling and can be accessed from both sides of the boom for optimal control. A comprehensive suite of safety features, including a load meter, load indicator, over-winding alarm, hook safety latch, hydraulic safety valves, check valves, holding valves, level gauge, and anti-two-block device, ensures operator and workplace safety during lifting operations.
SPECIFICATIONS:
Specification | Description |
---|---|
Manufacturer | – Cab Truck: ISUZU (China Factory) – Crane: XCMG – Body: CSCTRUCK |
Assembler | ISUZU VEHICLE, CSCTRUCK |
Country of Origin | China |
Model No. | – Complete Truck: TBC05QL240L5 – Cab Truck: ISUZU Forward 4×4 – Crane: XCMG SQ5SK3Q |
Year of Manufacture | Brand New (2020 and Above) |
Application | Lifting and transporting heavy materials off-road |
Truck Type | Heavy duty rigid truck |
Axle Configuration | 4×4 (all-wheel drive) |
Cab Type | Single cab |
Gross Vehicle Weight (GVW) | 18 tons |
Wheels | 6 + 1 spare tire |
PTO | Manufacturer standard and original |

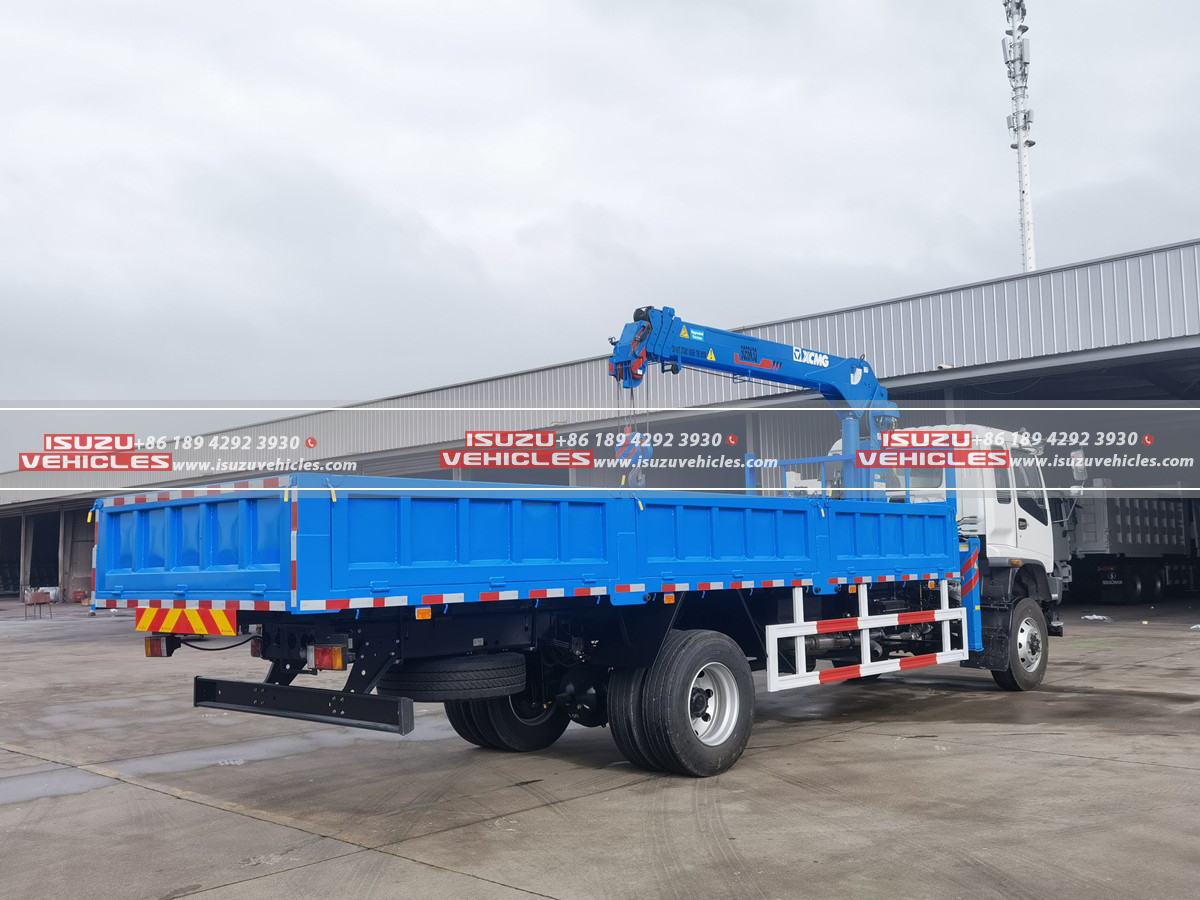

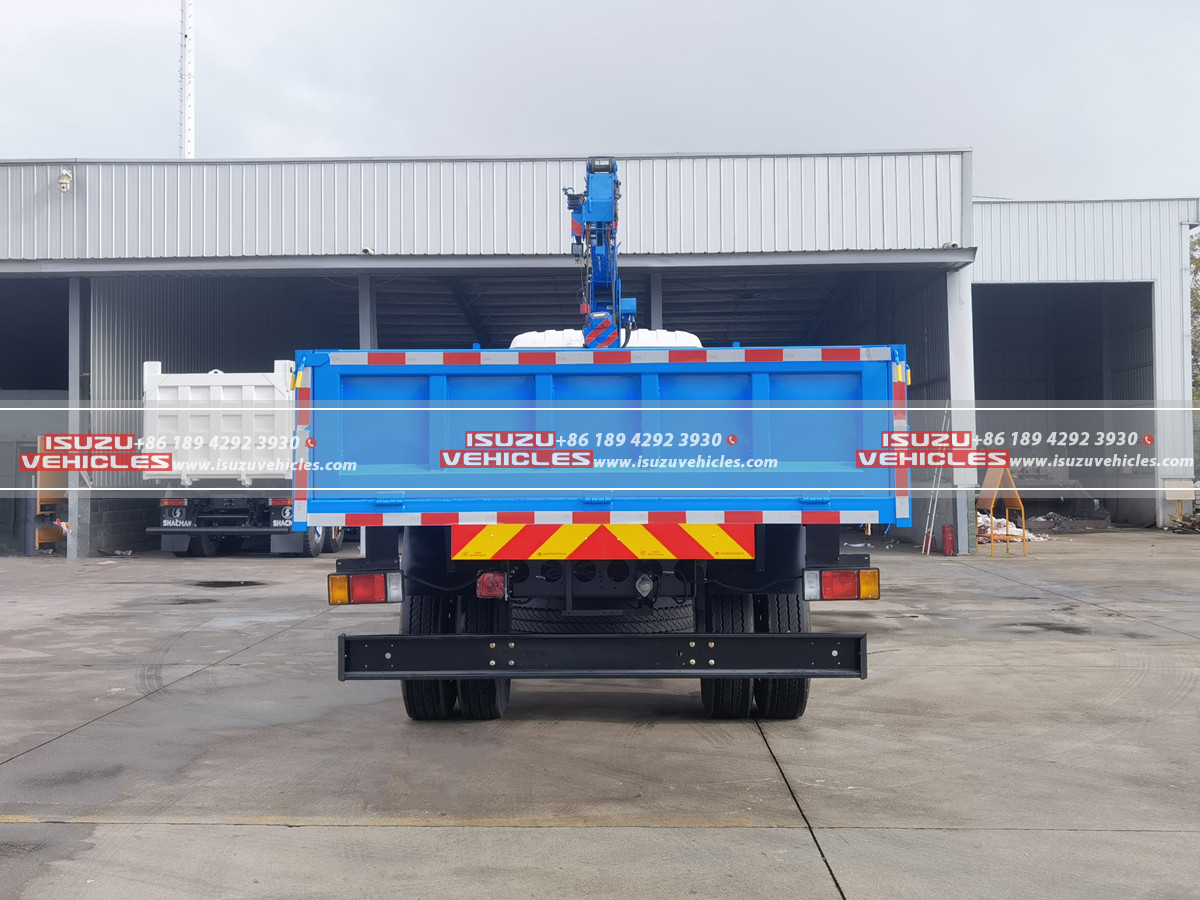

Body | Reinforced platform with drop sides, opens on all sides |
Engine | 6-cylinder-in-line, 4-stroke, water-cooled, turbo with intercooler |
Fuel | Diesel |
Displacement | 7790 cc |
Rated Power | 177 kW @ 2400 rpm |
Torque | 760 Nm @ 1450 rpm |
Drive | Left-hand drive |
Transmission | Manual (STD) |
Crane Lifting Capacity | 5 tons @ 2.5 meter outreach |

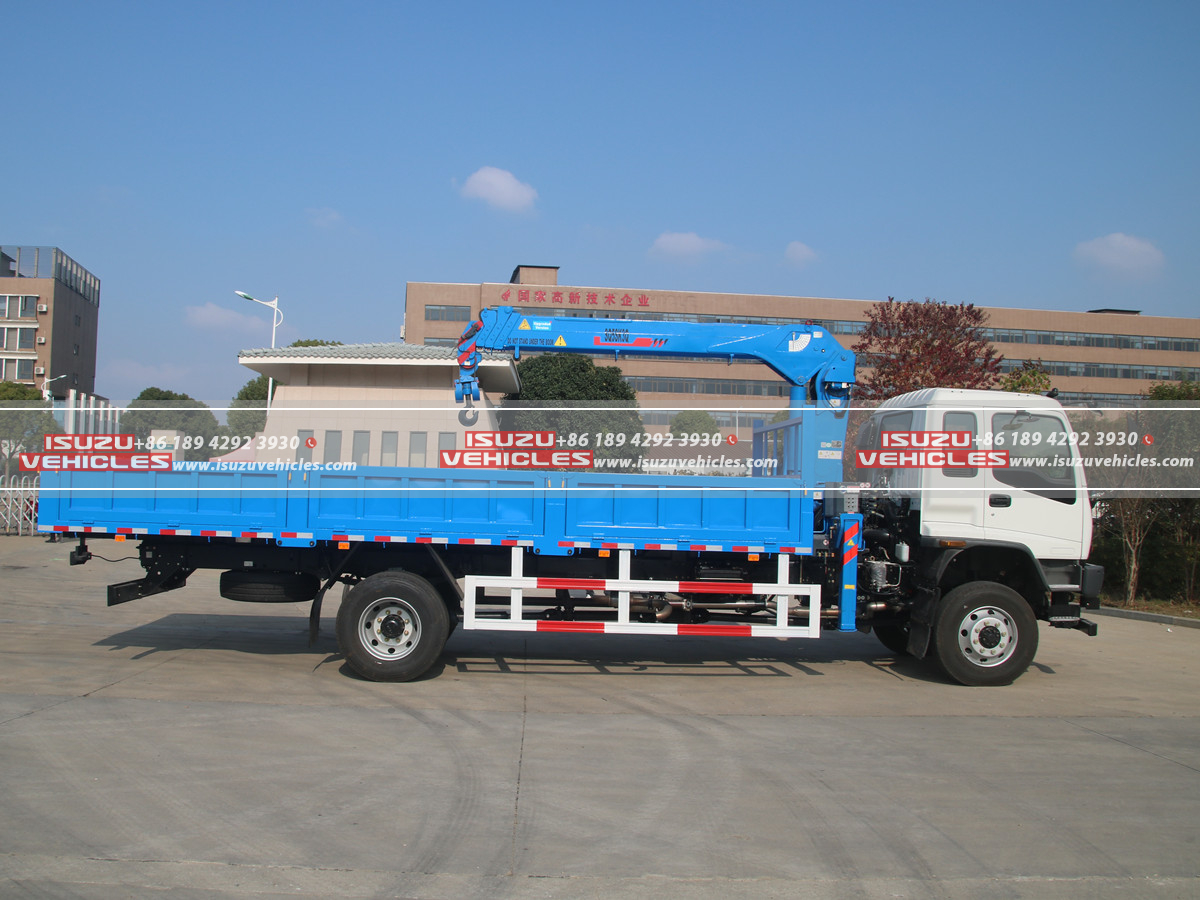

Crane Location | Mounted between truck cabin and body |
Working Radius | 11 meters |
Hook Height | 12 meters |
Crane Boom | 3-section, fully hydraulic telescoping boom, pentagonal box construction |
Boom Retracted Length | 3.26 meters to 10.85 meters |
Crane Elevation | Double-acting hydraulic cylinders |
Crane Drive | Hydraulic motor drive with spur gear speed reduction and mechanical brake |
Wire Rope | Diameter: 10 mm, Length: 60 meters |
Slew System | Hydraulic motor driven, worm gear speed reduction, continuous 360° full circle slewing on ball bearing slew ring with automatic slewing lock |
Swing Speed | ≤ 3 rpm |
Outriggers | Manually extended sliders and hydraulically extended jacks |
Hydraulic Pump | Single gear |
Control Valves | Multiple control valves with integral safety valve |
Oil Tank Capacity | 90 liters |
Operating Levers | Vertically arranged for easy operation on both sides of the boom |
Safety Devices | Load meter, load indicator, over-winding alarm, hook safety latch, hydraulic safety valves, check valves, holding valves, level gauge, anti-two-block device |
Warranty | One year against manufacturing defects |
