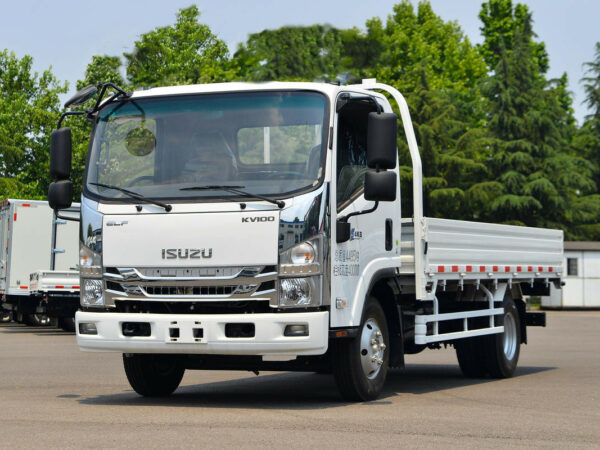

ISUZU KV100 4.2 Meter Cargo Truck
Designed for seamless city navigation and robust payload performance, the ISUZU KV100 4.2M cargo truck combines Chongqing-engineered reliability with Isuzu’s global engineering legacy. Built on a 4×2 drivetrain and optimized for blue-plate urban compliance, this light-duty workhorse features a strategic 3,360mm wheelbase that balances maneuverability in tight alleys with highway stability. Its 5.995-meter body accommodates a 4.205-meter flatbed while maintaining a compact 11.8-meter turning radius, supported by a durable body-on-frame chassis rated for a 1,735kg payload capacity and 4,495kg gross weight. Powered by Isuzu’s proven 2.5L diesel technology, it achieves 115km/h top speeds with fuel efficiency critical for last-mile delivery fleets, construction suppliers, and agricultural distributors operating under demanding schedules.
Technical Features & Capabilities
Powertrain & Efficiency
The heart of the KV100 is the Qingling Isuzu 4KB1-TCG60 engine, a 2.5L inline-4 diesel generating 96kW (131 HP) and optimized for low-RPM torque delivery. Paired with a 6-speed manual Isuzu MYY transmission, this powertrain ensures responsive acceleration under full loads while adhering to China VI emission standards. The robust 5.571 rear axle ratio (optionally configurable to 4.875 or 6.142) allows operators to prioritize highway fuel economy or low-speed hauling power, backed by a 1750kg front axle/2745kg rear axle load distribution.

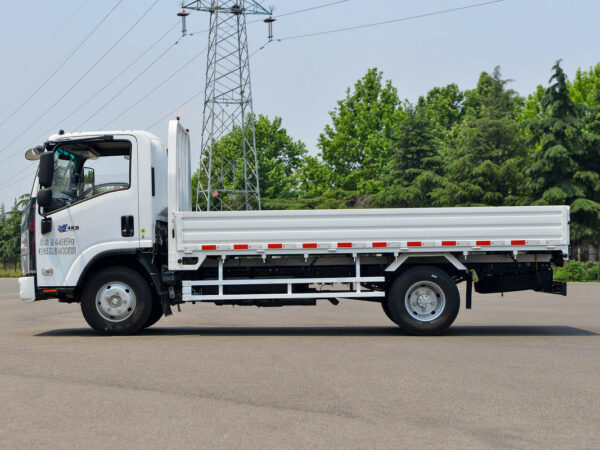

Cargo & Structural Design

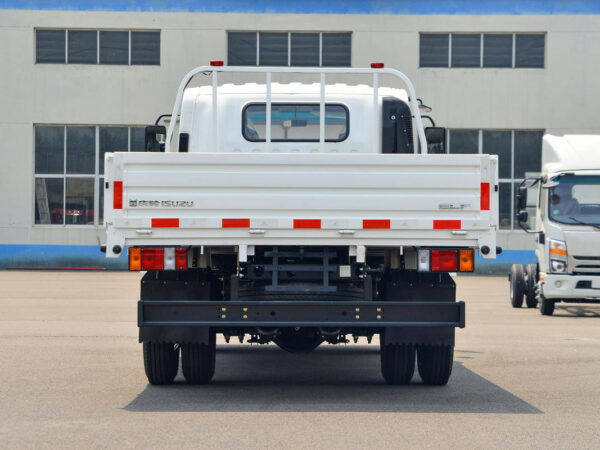

- Flatbed Utility: A 4.205×2.1m cargo bed with 400mm sidewalls and reinforced tie-down points secures palletized goods, construction materials, or equipment.
- Terrain Adaptability: 19°/16° approach/departure angles and 3/3+2 leaf spring suspension absorb road irregularities, while 6x 7.00R16LT 8PR tires provide puncture resistance on rough surfaces.
- Structural Integrity: The 2,565kg curb weight incorporates high-tensile steel cross-members, ensuring longevity under repetitive loading cycles.
Operational Safety & Driver Environment
- Control Systems: Standard ABS anti-lock brakes prevent wheel lockup during emergency stops, complemented by hydraulic steering for precise low-speed maneuvering.
- Ergonomic Cabin: A 1,995mm-wide single-row cab seats three occupants with optimized sightlines, featuring a tilt-adjustable steering column and essential instrumentation.
- Functional Simplicity: Designed for no-nonsense functionality, it includes sliding windows, mechanical climate control, and minimalistic controls to reduce operator training time.
Key Operational Metrics:
- Payload Efficiency: 1,735kg capacity → 70% chassis utilization at max load
- Fuel System: 76L steel tank → 600km+ range for urban routes
- Serviceability: Globally standardized Isuzu parts → <2hr scheduled maintenance
Engineered for businesses prioritizing total cost of ownership, the KV100 excels in scenarios demanding daily reliability—from navigating congested wholesale markets to traversing rural access roads during seasonal harvests. Its service-focused design minimizes downtime, while the Isuzu powertrain warranty (backed by 3,000+ Chinese service points) ensures uninterrupted operations for owner-drivers and logistics fleets alike.
SPECIFICATIONS
| Category | Specification |
|---|---|
| General | |
| Type | Cargo Truck |
| Drive Configuration | 4X2 |
| Tonnage Class | Light Truck |
| License Plate Type | Blue Plate |
| Place of Origin | Chongqing |
| Dimensions | |
| Wheelbase | 3,360 mm |
| Overall Length | 5.995 m |
| Overall Width | 2.2 m |
| Overall Height | 2.38 m |
| Front Track | 1,685 mm |
| Rear Track | 1,525 mm |
| Front Overhang | 1.11 m |
| Rear Overhang | 1.525 m |
| Approach Angle | 19° |
| Departure Angle | 16° |
| Weights | |
| Curb Weight | 2.565 tons |
| Payload Capacity | 1.735 tons |
| Gross Vehicle Weight | 4.495 tons |
| Powertrain | |
| Energy Type | Diesel |
| Engine Brand | Qingling Isuzu |
| Engine Model | 4KB1-TCG60 |
| Displacement | 2.499L |
| Cylinders | 4 (In-line) |
| Max Power | 96 kW (131 HP) |
| Emission Standard | China VI |
| Transmission Model | Isuzu MYY |
| Transmission Type | 6-Speed Manual |
| Reverse Gears | 1 |
| Rear Axle Ratio | 5.571 (Optional: 4.875 / 6.142) |
| Max Speed | 115 km/h |
| Cargo Box | |
| Box Type | Flatbed with Sides |
| Box Length | 4.205 m |
| Box Width | 2.1 m |
| Box Height | 0.4 m |
| Box Class | 4.2-Meter Grade |
| Cab & Capacity | |
| Cab Type | Single Row |
| Cab Width | 1,995 mm |
| Seating Capacity | 3 persons |
| Chassis & Tires | |
| Front Axle Load | 1,750 kg |
| Rear Axle Load | 2,745 kg |
| Suspension | 3 front / 3+2 rear leaf springs |
| Tire Specification | 7.00R16LT 8PR |
| Tire Quantity | 6 |
| Safety | |
| ABS | Yes |
